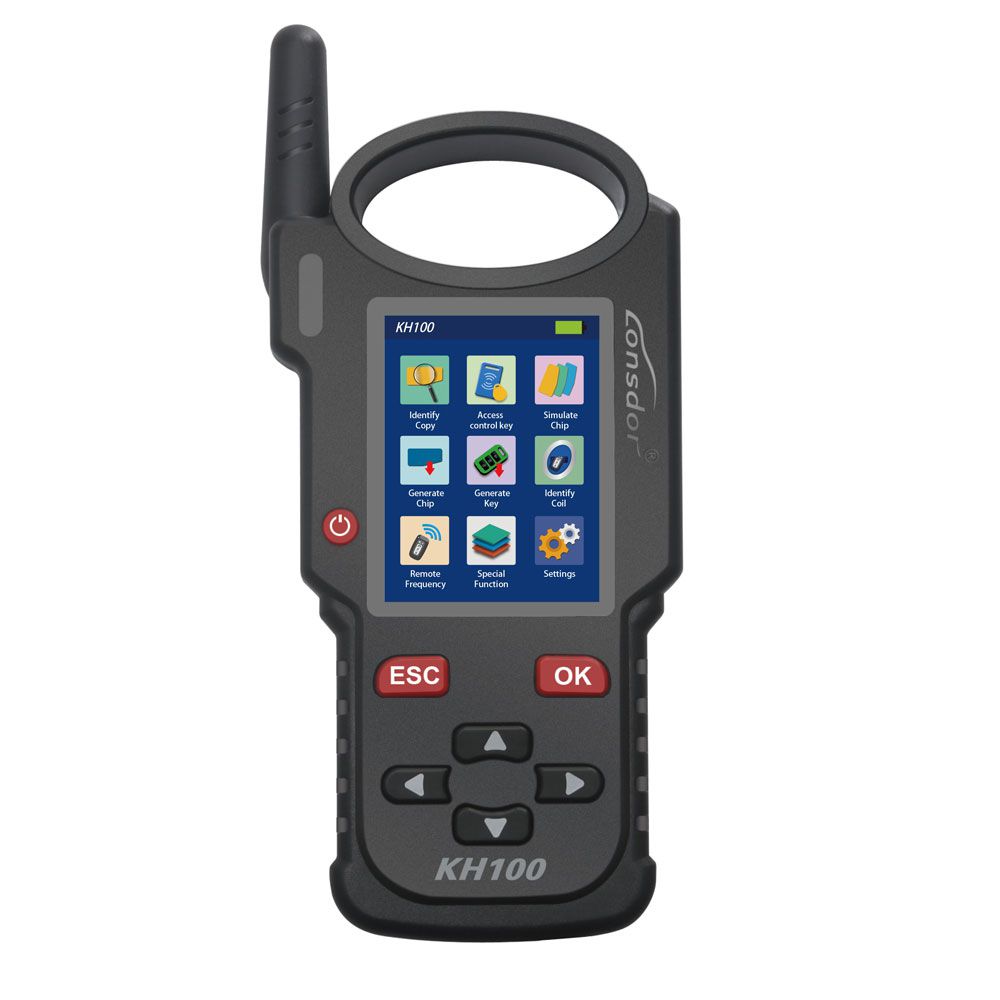

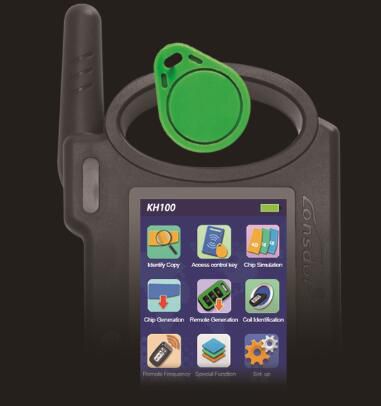

Lonsdor KH100+ Key Remote Programmer

Lonsdor KH100+ adopts a traditional and modern handheld design that aligns with the operating habits of general users. It includes all the functions found in similar products, while powerful hardware optimization and upgrades offer greater convenience for operators.

Key Features of the Lonsdor KH100+

• All-around Functions: Covers virtually all common key programming needs.
• Built-in Super Sensor: No interference within 1 meter when collecting data.
• Help Notes: Diagrams and text simplify operation.
• WiFi Module: Enables one-click network updates.

Function List

• Identify & Copy
• Chip Simulation
• Remote Generation
• Remote Frequency Detection
• Access Control Key
• Chip Generation
• Coil Identification
• Special Function

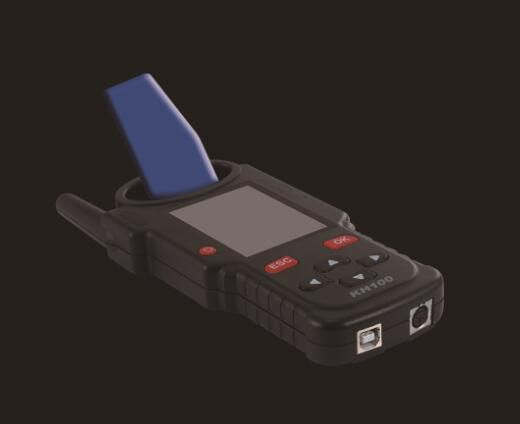

Identify / Copy / Generate Chip

Supports multi-vendor chips, with particular strength in Toyota 8A(H) chip handling.

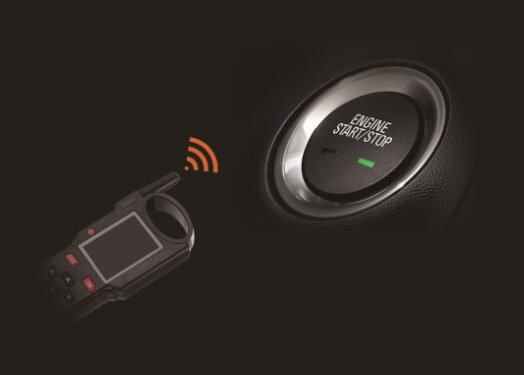

Simulate Chip

Capable of simulating 4D/46/48 chips. Equipped with a built-in super sensor data collector—no interference within 1 meter during data collection.

Generate Remote / Smart Key

Uses a dedicated connector for remote and smart key generation, with support for online updates.

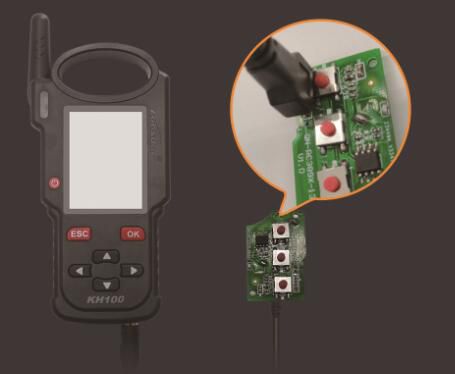

Remote generation diagram:

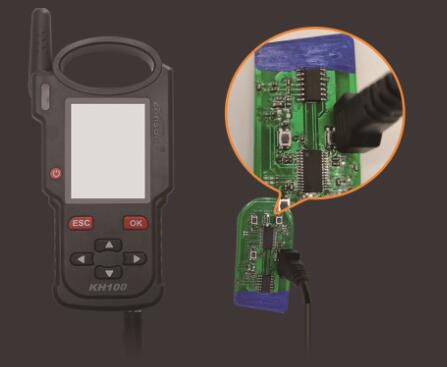

Smart key generation diagram:

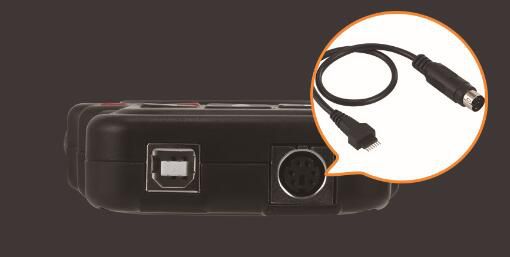

Dedicated connector for remote key: PS2-7Pin OD3.5

Access Control & Remote Frequency

One-click identification and copying of IC/ID cards. Supports copying of multi-vendor chips. Detects remote frequency bands with high accuracy.

One-click ID card identification and multi-vendor chip copying via the rear sensor area:

Detects super frequency bands and accurately identifies multiple frequency brands:

Lonsdor KH100+ Specifications

• Size: 193mm × 88mm × 24mm
• Screen Size: 2.8-inch color screen
• Resolution: 320 × 240
• Battery: 5V 500mA
• Work Temperature: -5°C to 60°C
• USB: USB-B for charging and data transfer
• Connector Port: PS2-7Pin OD3.5 (7-pin, 1.27mm spacing; Pin 2: NC)
