Launch CRT5011E TPMS Relearn Tool – Full-Featured TPMS & OBD2 Diagnostic Scanner (315+433MHz)

The Launch CRT5011E TPMS code reader and diagnostic tool is specially developed by Launch to provide comprehensive tire pressure monitoring system (TPMS) service capabilities. It enables users to trigger, activate, program, and relearn TPMS sensors, as well as check sensor part numbers. Additionally, it supports all 10 OBD2 diagnostic modes for complete vehicle diagnostics. With built-in help menus and clear code definitions, diagnosing and repairing the dreaded Check Engine or TPMS warning light is now easier than ever!

Key Features of the Launch CRT5011E TPMS Tool

• 2-in-1 TPMS & OBDII Functionality: Combines full TPMS service with complete OBD2 diagnostics in one compact device.
• Dual-Frequency Support (315MHz/433MHz): Programs TPMS sensors by receiving signals on both 315MHz and 433MHz frequencies.
• Broad Sensor Compatibility: Easily activates most known OEM TPMS sensors on the market.
• Free Lifetime Updates: Update your CRT5011E anytime via PC at no additional cost.
• Advanced ECU Interaction: Writes Sensor IDs into the ECU and reads TPMS ECU IDs. Supports diagnostics for 99% of vehicles on the road.
• Multilingual Interface: Available in 10 languages—English, French, Russian, German, Italian, Japanese, Korean, Spanish, Portuguese, and Chinese—for user convenience.

Main Functions of the Launch CRT5011E TPMS Tool

Full TPMS + OBDII Diagnostics in One Device

The LAUNCH CRT5011E (2023 model) integrates complete TPMS functionality—Diagnose (Check), Activate (Read), Program, and Relearn—with full OBD2 scanning capabilities. It activates and reads tire sensor data via 315/433MHz signals and resets the TPMS module through the OBD port. As an OBD2 scanner, it supports Read/Clear Codes, I/M Readiness, Live Data Stream, Freeze Frame, O2 Sensor Test, On-Board Monitor Test, EVAP System Test, and Vehicle Information retrieval.

5 Programming Modes with 315/433MHz Support

The CRT5011E supports five flexible programming methods: Auto Create, Manual Creation, Copy ID by OBD, Copy ID by Activate, and Create Multi-Sensor (up to 8 sensors). Note: These features are available only for LAUNCH LTR-01 sensors and other unencrypted sensors. LAUNCH LTR01 sensors are highly recommended (search “B09CKDYKY7” to purchase).

Activates 99% of Known OEM TPMS Sensors

Ideal for tire pressure sensor replacement, tire rotation, vehicle assembly, or sensor health checks, the CRT5011E works seamlessly for both DIYers and professional mechanics. It also helps clear TPMS and engine (emission-related) warning lights.

Comprehensive TPMS Relearn, ECU ID Reading & Wide Vehicle Coverage

This tool supports three relearn methods: OBD Relearn, Automatic Relearn, and Stationary Relearn. After programming new sensors, the relearn function registers their IDs in the vehicle’s ECU. It can also read existing TPMS ECU IDs and delivers diagnostic support for 99% of vehicle models worldwide.

Why You Need the Launch CRT5011E TPMS Relearn Tool

Detailed Functions of the Launch CRT5011E TPMS Tool

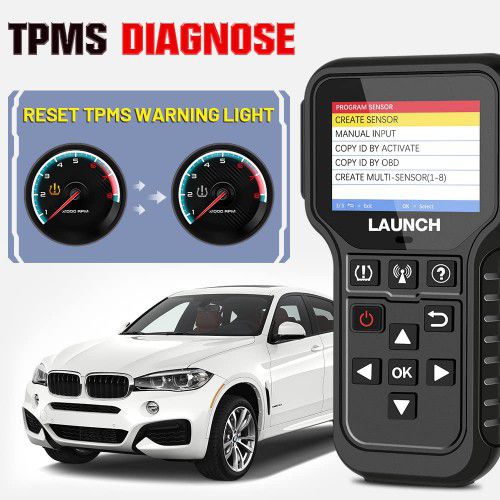

1. TPMS Capabilities

• Activate and communicate with all 315 MHz / 433 MHz tire pressure sensors
• Reset, relearn, and reprogram tire pressure sensors quickly
• Diagnose tire pressure issues and turn off warning lights via relearning and programming
• Reprogram LAUNCH LTR01 and other unencrypted sensors unlimited times
• Accurately read tire pressure, temperature, and battery status
• Program up to 8 sensors simultaneously
• Access TPMS relearning procedures and OE sensor number lookup
• Multiple ID generation options: Automatic creation, Manual creation, Copy ID by Activation, Copy ID by OBD, and Create Multi-sensor (1–8)

2. Full OBD2 Diagnostics

• Read dynamic data streams and MIL status
• Check I/M readiness status
• View freeze frame data
• Read and clear DTCs
• Perform O2 sensor test, on-board monitor test, and EVAP system test
• Retrieve vehicle information

Note: Connect to the OBD2 port and start the engine before using OBD functions.

Compatibility Note: For indirect TPMS vehicles, only the Relearning function is supported. Direct TPMS vehicles typically support Activation, Programming, and Relearning. Available functions may vary by vehicle make and model.

Integrated Diagnostic & Service Features

TPMS Check / Activate / Relearn / Programming Tool

Full OBDII 10-Mode Support

This feature provides rapid access to emission-related diagnostics: checking for DTCs, identifying the cause of a lit Malfunction Indicator Lamp (MIL), verifying monitor readiness for emissions testing, confirming repair success, and more.

Main OBDII Functions:

1. Read / Clear DTCs
2. I/M Readiness Check
3. Freeze Frame Data Viewing
4. O2 Sensor Test
5. On-board Monitor Test
6. EVAP System Test
7. Live Data Stream Viewing
8. Vehicle Information
9. Component Test

4-in-1 Live Data Stream

Retrieves and displays real-time parameters from the vehicle’s ECU, allowing you to monitor up to four different data types simultaneously.

TPMS Service Module

This includes two key utilities:

• Relearn Procedure: Required when newly programmed sensor IDs differ from those stored in the vehicle’s ECU. This process writes the new IDs into the ECU for proper sensor recognition.
• Part Number Lookup: Enables quick identification of sensor OE numbers.

Key Fob Test

Note: Requires the latest firmware update.

Tired of visiting the dealer to test your key fob’s signal strength? The CRT5011E makes key fob testing simple and convenient. If your key fob behaves abnormally or stops working, this tool verifies its condition quickly.

Check Sensor

Note: Requires the latest firmware update.

Use this function to retrieve detailed sensor data including Tire Sensor ID, Tire Pressure/Temperature, Voltage, Boot Version, Programming File, and Serial Number (SN).

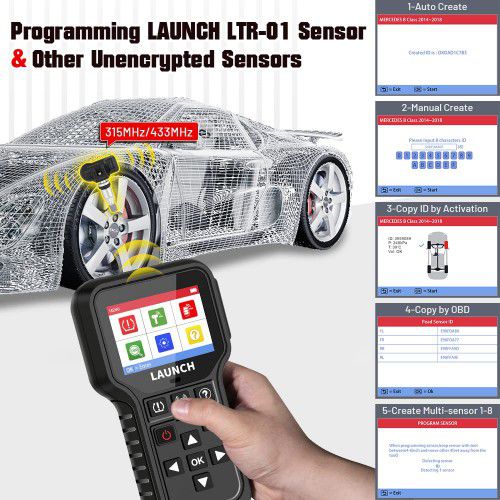

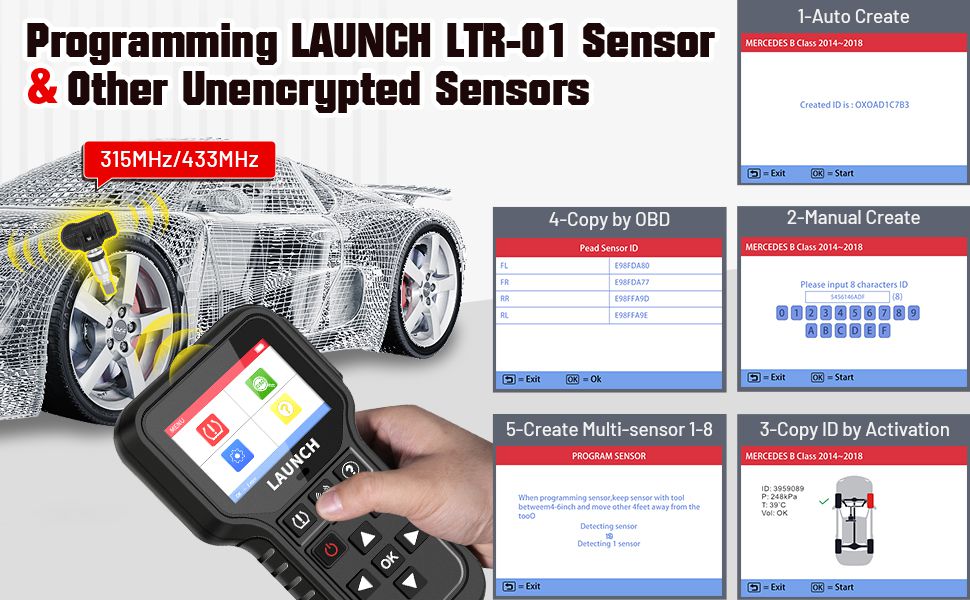

5 Programming Modes for LAUNCH LTR01 & Unencrypted Sensors

The Launch CRT5011E TPMS programmer supports all LAUNCH LTR01 sensors and other unencrypted sensors (315MHz and 433MHz) to replace damaged units.

Programming Modes Supported:

Sensor Programming Functions

• Auto Create: This function programs the LAUNCH sensor by generating random IDs based on the test vehicle when the original sensor ID cannot be obtained. Select the target wheel on the tool, place a LAUNCH sensor near the tool’s TPMS antenna, and choose CREATE SENSOR to generate a new random sensor ID.
• Manual Create: Enables manual entry of a sensor ID—either a random ID or the original sensor ID if available.
• Copy ID by Activation: Retrieves the tire pressure sensor ID when the original sensor is functioning normally. The retrieved original sensor data can then be written to the LAUNCH sensor. This method is used after triggering the original sensor.
• Copy by OBD: First, perform “Read ID from Vehicle” in the Relearn function to fetch the sensor ID stored in the vehicle’s ECU. This is useful when the original sensor is damaged but its ID remains saved in the vehicle system. The stored ID can then be directly written into your LAUNCH RF sensor.
• Create Multi-sensor (1–8): Allows simultaneous programming of up to eight sensors at once.

Launch CRT5011E TPMS Tool Supports 315/433 MHz Sensor Activation

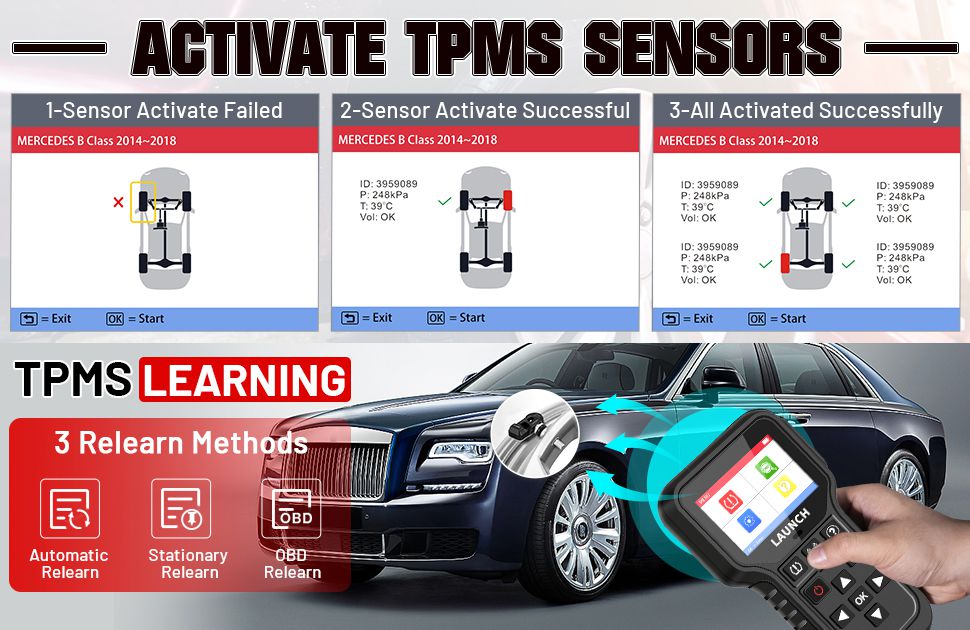

TPMS Sensor Activation

The Launch CRT5011E TPMS Diagnostic Tool activates TPMS sensors to display real-time sensor data, including sensor ID, tire pressure, transmission frequency, tire temperature, and battery condition (voltage).

TPMS Relearn Methods

• Stationary Relearn: Requires placing the vehicle into “Learn Mode.” Follow on-screen instructions to activate each sensor and complete the stationary relearn procedure.
• OBDII Relearn: Enables the CRT5011E to write TPMS sensor IDs directly to the vehicle’s TPMS module via the OBD connector.
• Auto Relearn: Completed by driving the vehicle. Refer to the on-screen Relearn Procedure for model-specific instructions.

Note: Not all relearn methods are available for every vehicle. Depending on the car model, one, two, or all three relearn types may be supported.

Important Usage Notes

• The LAUNCH CRT5011E TPMS Relearn Tool is designed exclusively for diagnosing electronic control systems in 12V vehicles and is not suitable for six-wheeled dual-rear vehicles.
• For early magnet-activated sensors, place a magnet over the valve stem and position the tool alongside the stem.
• If the TPMS sensor requires tire deflation (approximately 10 PSI), deflate the tire and hold the tool next to the valve stem while pressing the activation button.
• To successfully activate, check, or read a tire pressure sensor, ensure the CRT5011E is positioned within 30 cm of the sensor.
• Always select the correct vehicle make, model year, and TPMS sensor frequency before attempting activation or reading.
• If activation fails, try selecting alternative model years or sensor frequencies.
• If issues persist even after trying different settings and tire deflation (where applicable), please provide your vehicle model, year, and sensor OEM part number for support.

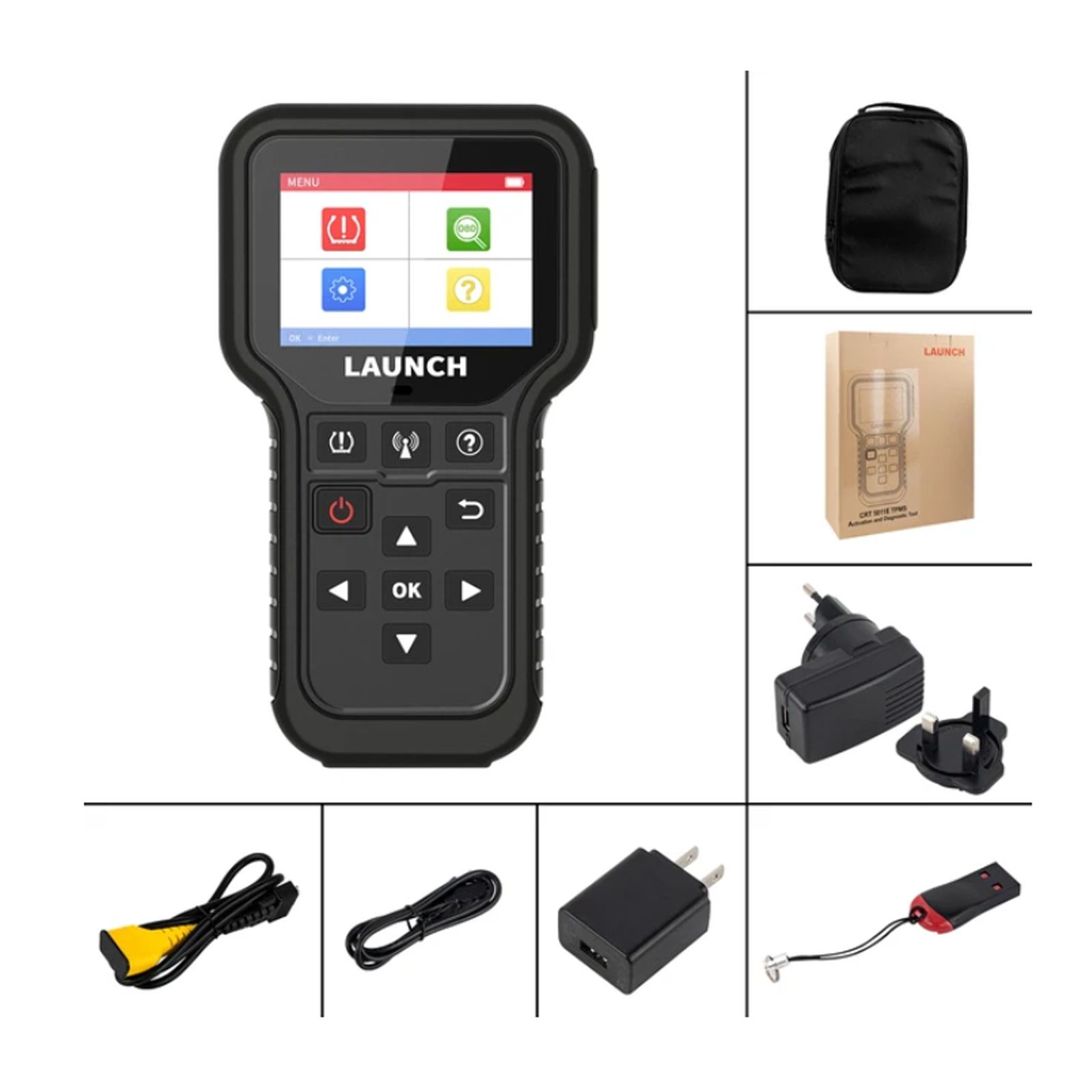

Package Contents

• 1 × Launch CRT5011E TPMS Tool
