2023 GODIAG GT105 OBD II Break Out Box OBD Assistant Plus Full Protocol OBD2 Universal Jumper

GODIAG GT105 OBD II Break Out Box OBD Assistant Plus Full Protocol OBD2 Universal Jumper

Highlights:

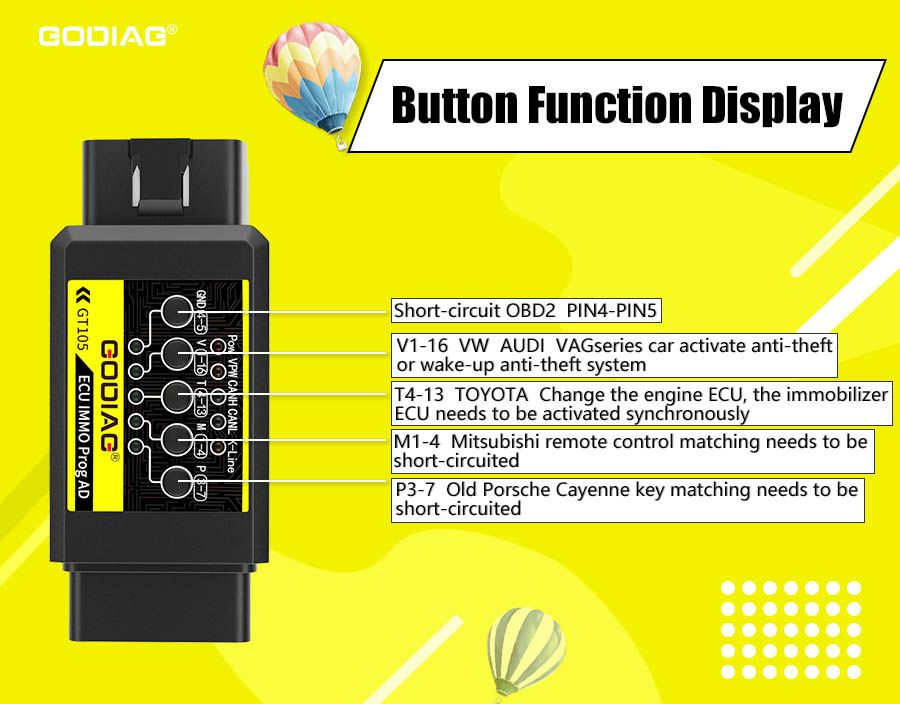

1. Safe and easy to operate for IMMO: to avoid disassembling the ECU of FORD, Mitsubishi, Volkswagen for short-circuit.

2. Assist in the detection of communication: When you use a device to test on car and it indicates that there is no communication, then you can use GT105 OBD assistant to plug into the car, detect whether there is communication between the car and the GT105 OBD assistant. If there is no problem with the communication between the car and GT105, maybe your device is faulty or not supported.

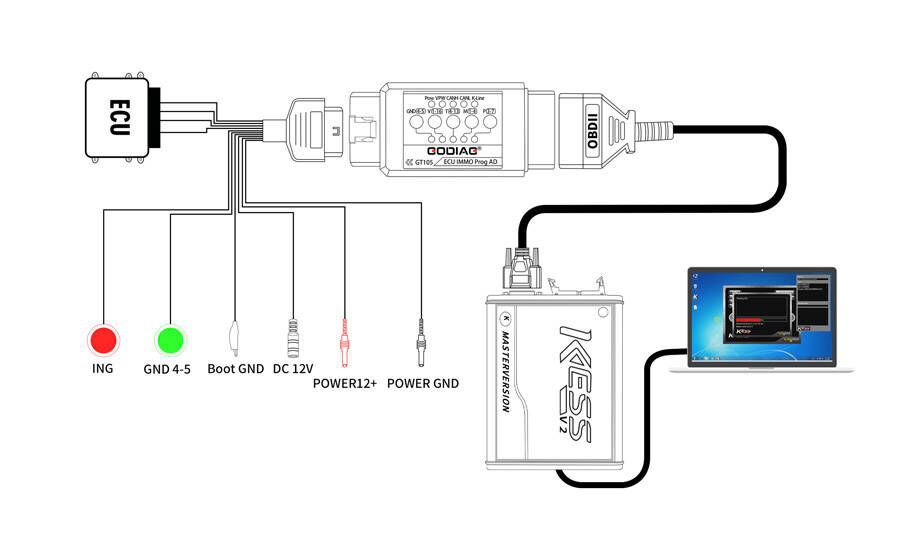

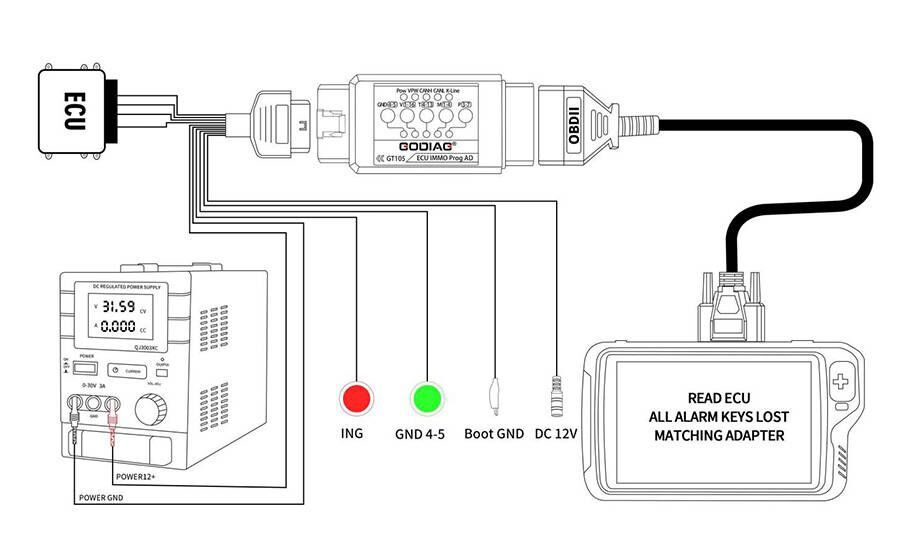

3. Full protocol OBD2 universal jumper is used to connect ECU for ECU programming via OBD2 way such as MMPS, FGTECH, KESSV2, BYSHUT, DISPROG, etc.

4. Perfectly replaces XHORSE All Keys lost Cable for FORD 2016- Smart Key AKL with Active Alarm

Description:

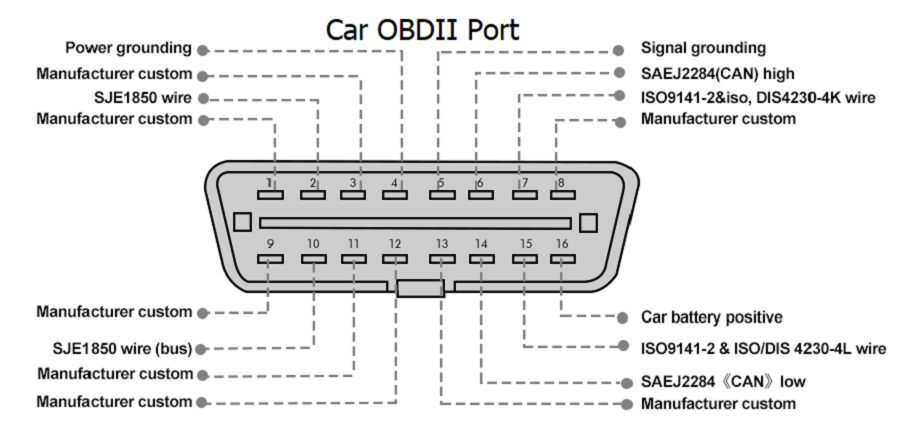

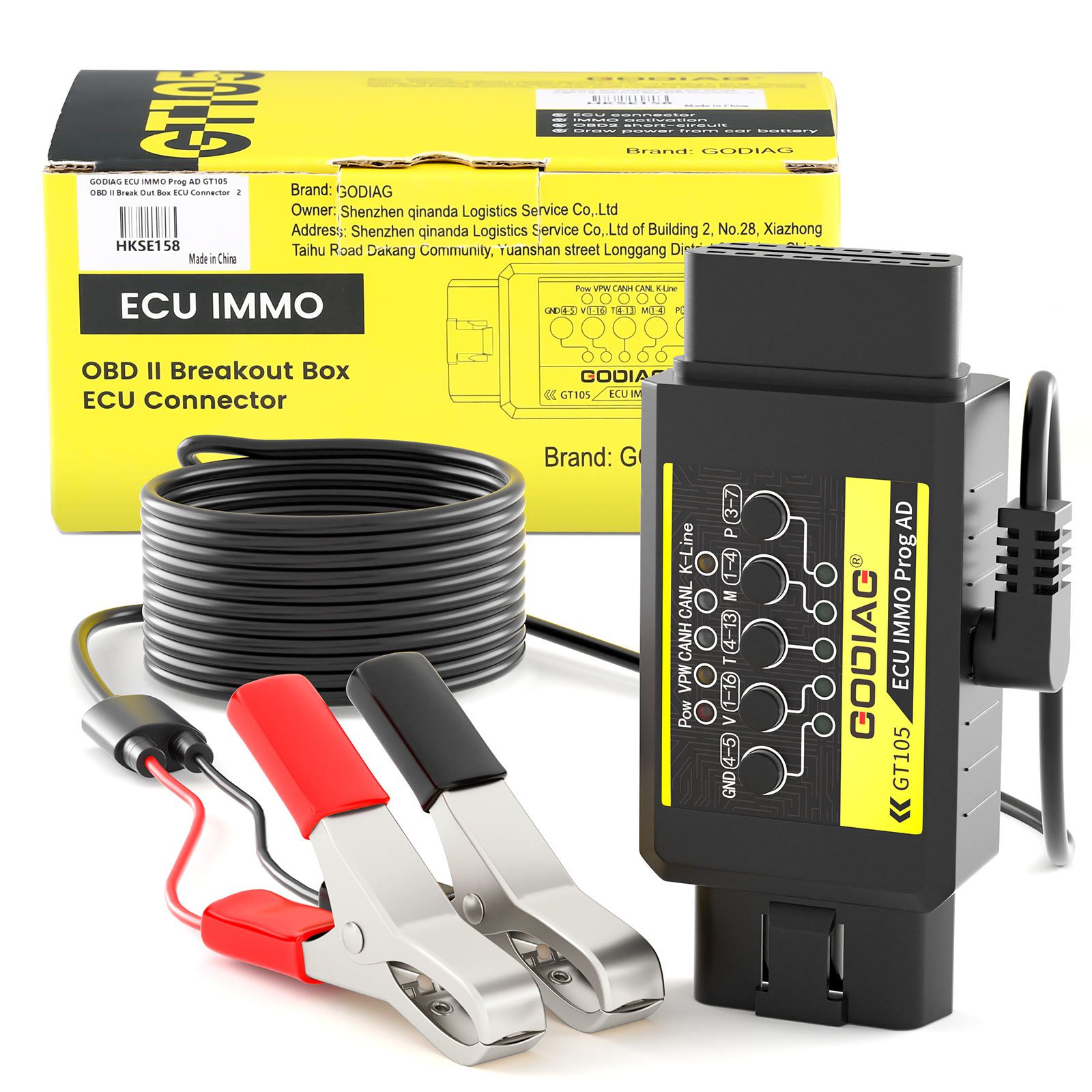

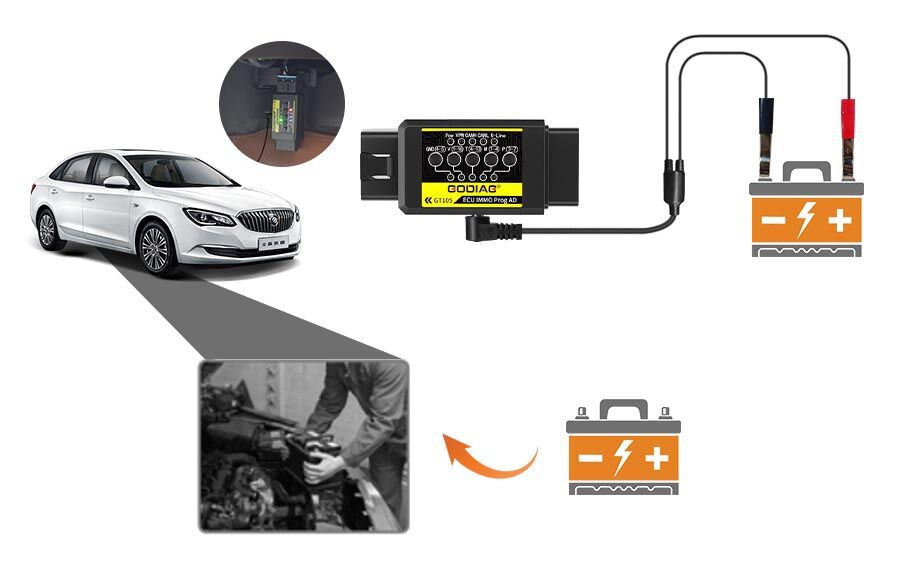

GODIAG ECU IMMO Prog AD GT105 is a special connection adapter developed for automobile maintenance technicians, IMMO matching technicians, ECU programming engineers, etc. It is used for short-circuiting OBD2 in the car for IMMO activation matching, ECU diagnosis and programming connection, and drawing power from the vehicle’s battery for outdoor on-site vehicle maintenance. GT105 is equipped with PWM+(PIN2), CANH(PIN6), CANL(PIN14), K-line(PIN7) signal communication indicators. When there is data communication, the corresponding protocol indicator will flash, therefore the communication status can be judged and you can also determine whether the diagnostic programming device is able to communicate. GT105 is suitable for outdoor work, taking power from the car battery and converting it into a DC12V power supply for 12V charging, programming power, or independent power supply for diagnostic equipment.
