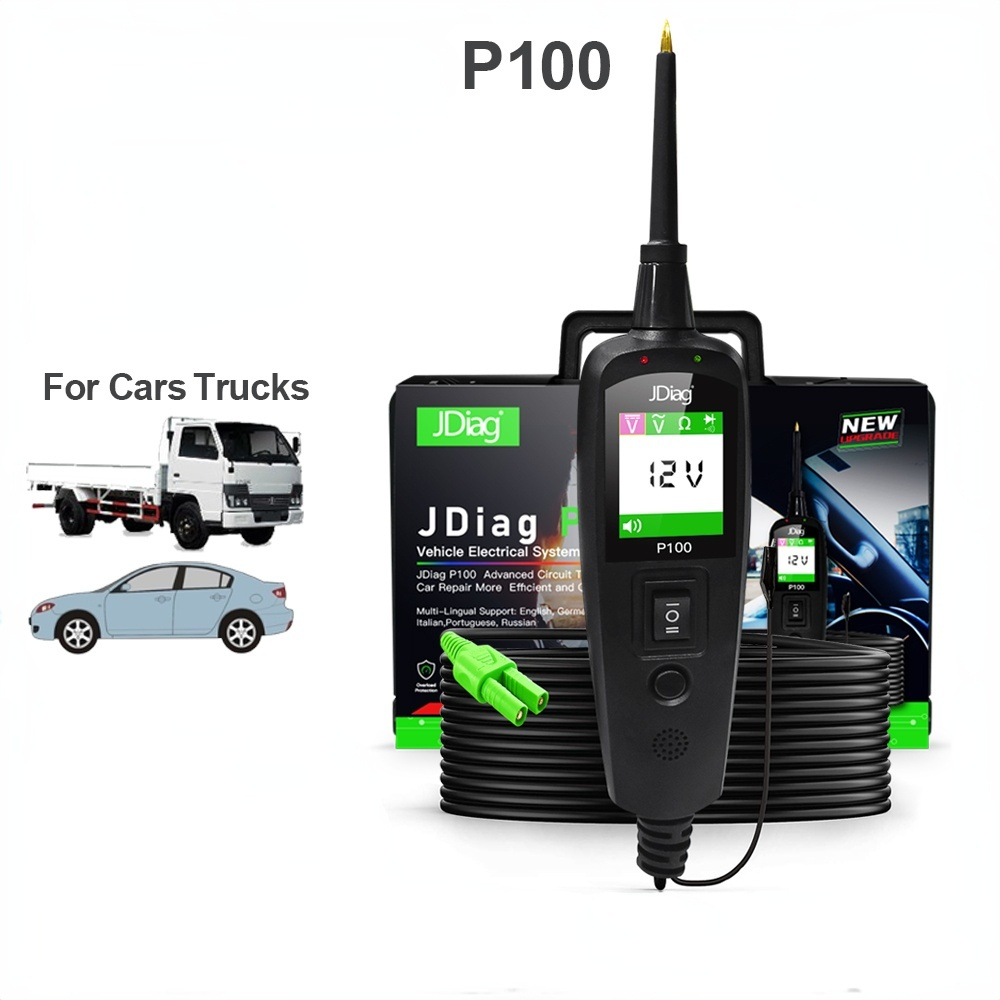

PowerPro P100 Electrical Circuit Tester for Cars Trucks and Motorbikes Multi-Lingual

Multi Languages Support : English, German, French, Spanish, Italian, Russian, Portuguese.


Original Automotive Electrical Circuit System Tester for Cars and Trucks 0V - 70V

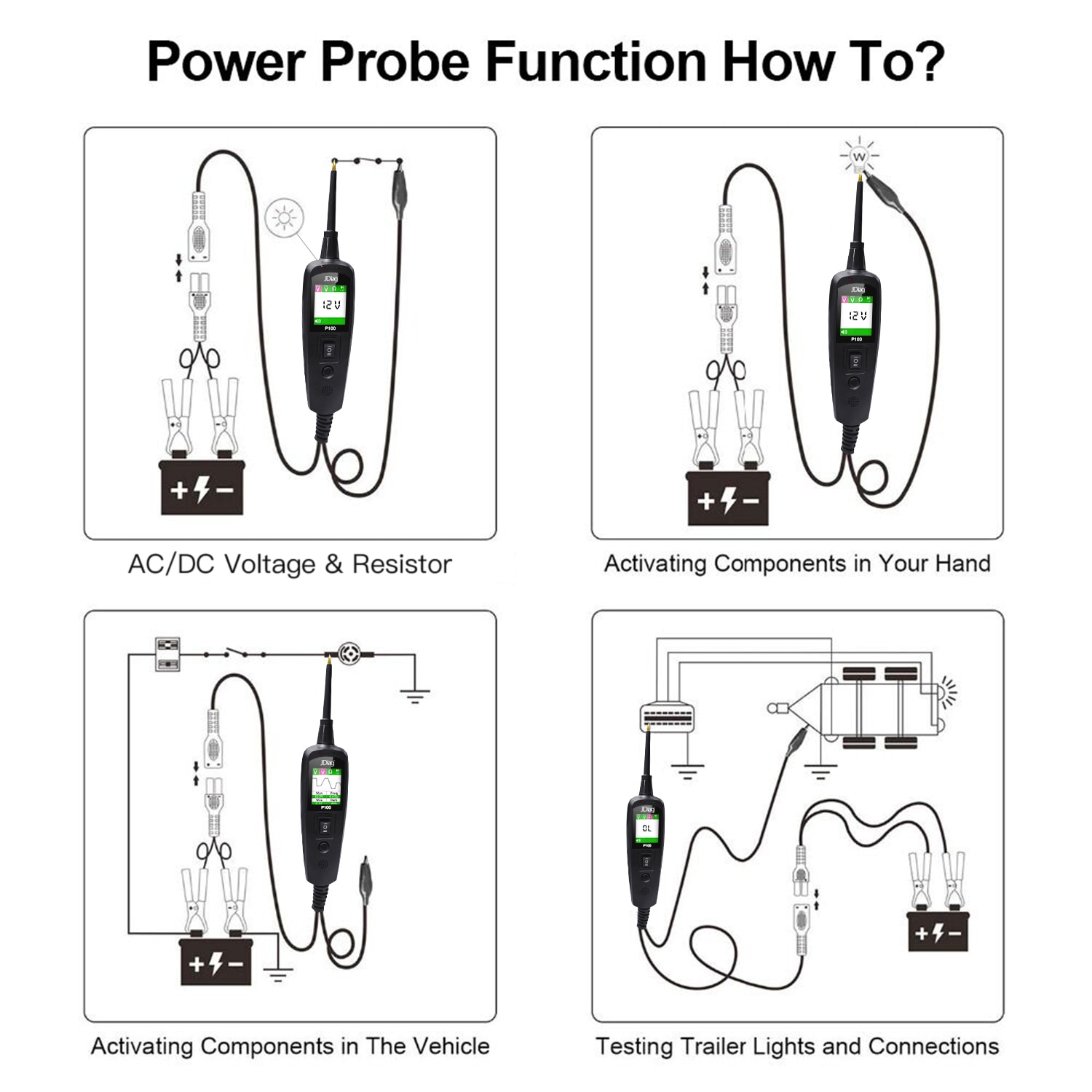

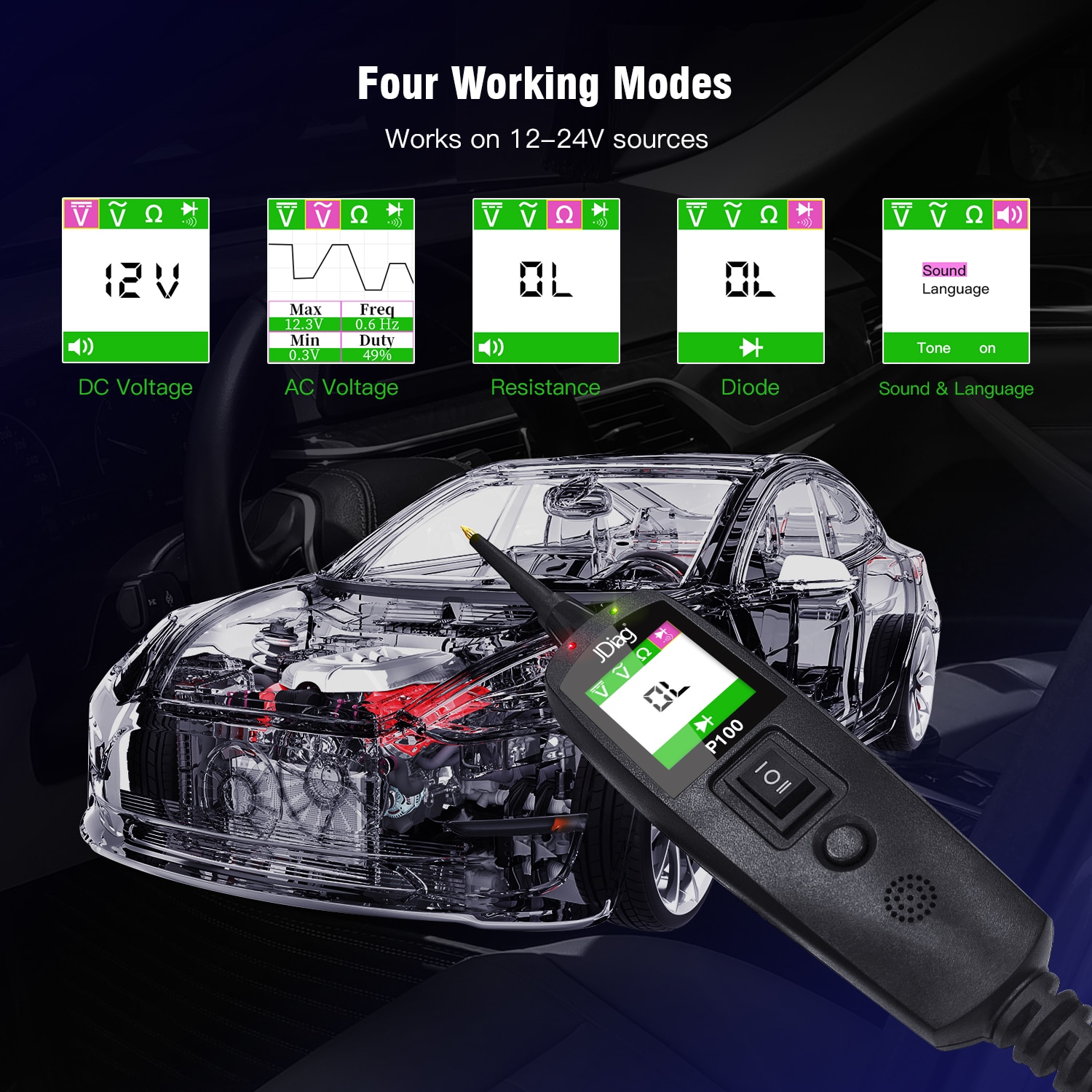

1.Voltage & Polarity Testing-Determine DC/AC Voltage and Postive/Negative quickly.

2.Resistance Continuity Testing- LCD Screen display the value of resistance.

3.AC Circuit Singal Testing- Fast to trubleshoot the sensors circuit problem.

4.Components Activation in your hand, in the vehicle or W/Ground.

5.Testing Trailer Lights and Connections-10M extension cable allow your to test Cars or Trucks.

6.Checking for Bad Ground Contacts and Locating Short Circuits



Specifications:
1. Display: TFT color display (160 x 128 dpi)
2. Operating Temperature: 0 to 60°C (32 to 140 F°)
3. Storage Temperature: -40 to 70°C (-40 to 185 F°)

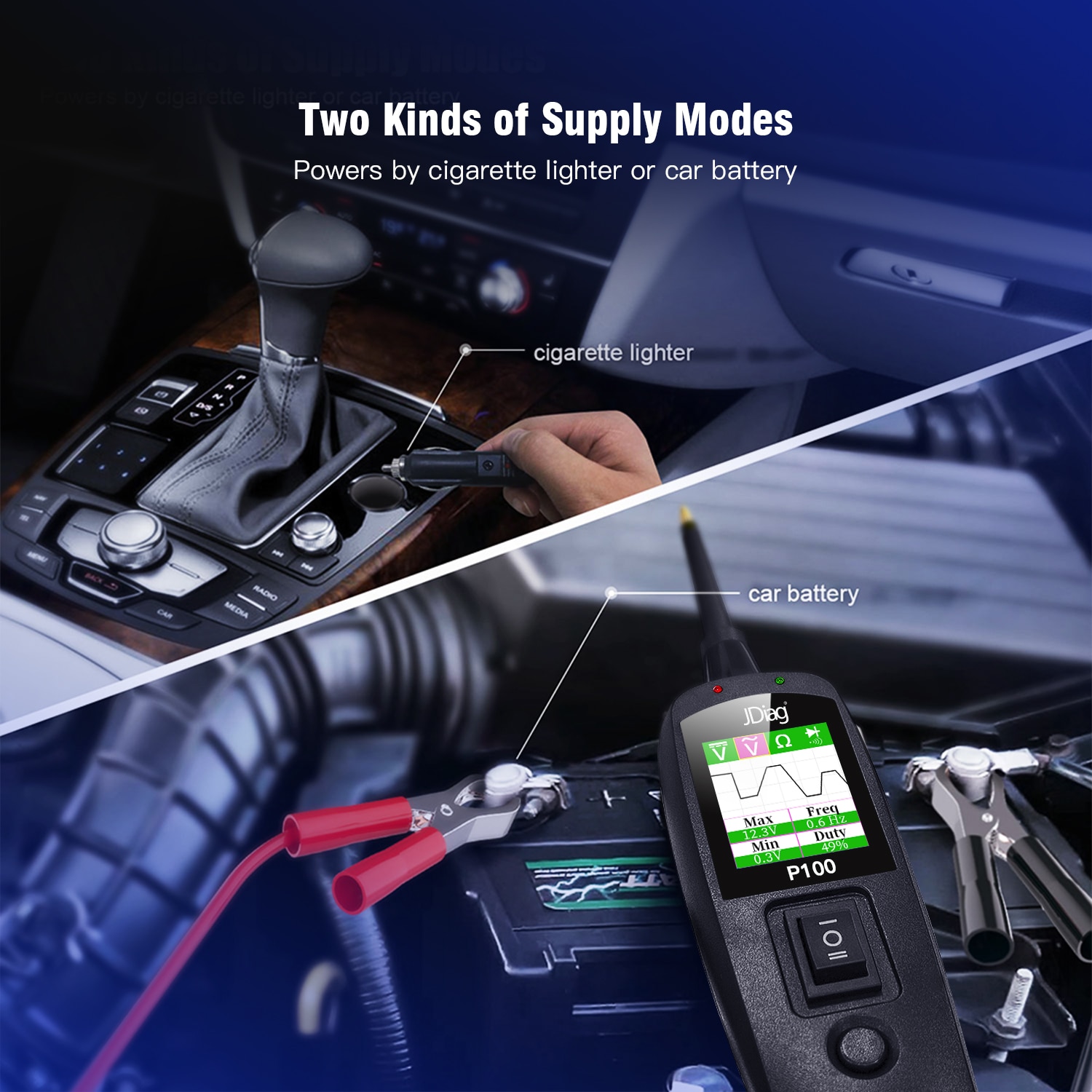

4. External Power: 12.0 or 24.0 V power provided via vehicle battery
5. Dimensions: Length 165 mm * Width 40 mm * Height 27 mm

Test Tool Specifications:
DC voltage range : 0-65V +1 digit
Resistance range : 0-200 K ohm
Frequency response of tone pass through
0Hz to 10K hz.
Circuit Breaker
Rating current: 1-10 Amp

Testing Standard:
100% current : no trip
150% current: trip in one hour
200% current: trip in 3-30 seconds.
300% current: trip in 0.5-4.0
