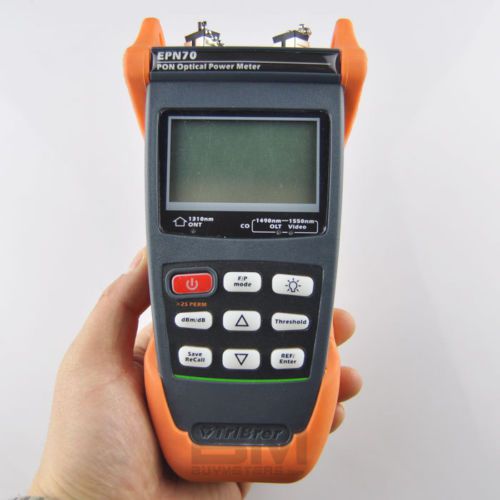

Digital EPN70 Singlemode PON Optical Power Meter Cable Tester
  • Digital EPN70 Singlemode PON Optical Power Meter Cable Tester
  • Digital EPN70 Singlemode PON Optical Power Meter Cable Tester
  • Digital EPN70 Singlemode PON Optical Power Meter Cable Tester
  • Digital EPN70 Singlemode PON Optical Power Meter Cable Tester
  • Digital EPN70 Singlemode PON Optical Power Meter Cable Tester
  • Digital EPN70 Singlemode PON Optical Power Meter Cable Tester
  • Digital EPN70 Singlemode PON Optical Power Meter Cable Tester
Digital EPN70 Singlemode PON Optical Power Meter Cable Tester
Digital EPN70 Singlemode PON Optical Power Meter Cable Tester
Digital EPN70 Singlemode PON Optical Power Meter Cable Tester
Digital EPN70 Singlemode PON Optical Power Meter Cable Tester
Digital EPN70 Singlemode PON Optical Power Meter Cable Tester
Digital EPN70 Singlemode PON Optical Power Meter Cable Tester
Digital EPN70 Singlemode PON Optical Power Meter Cable Tester

Digital EPN70 Singlemode PON Optical Power Meter Cable Tester

Digital EPN70 Singlemode PON Optical Power Meter Cable Tester Measurement Tools is new arrival, providing distinct power values for 1310 nm, 1490 nm and 1550 nm.
Item No. COBD24274 Price Down Notice
5 stars, 9 reviews.
In Stock
Price:
US$209.00/ piece
Quantity:

Shipping:
Standard Flat Rate Shipping Service
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question

Digital EPN70 Singlemode PON Optical Power Meter Cable Tester

Specification:


1. Providing distinct power values for 1310 nm, 1490 nm and 1550 nm
2. Pass through measurement
3. Simultaneously measures and displays voice, data and video signals on different PON architectures
4. Manual calibration
5. Energy save mode: about 10 minutes of no operation will cause the device to auto power off (can be cancelled)
6. Reference value set for each wave
7. Full energy can support above 36 hours operation

Measurement range 1310 nm: +10 ~ - 35 dBm
1490 nm: +10 ~ - 50 dBm
1550 nm: +25 ~ - 45 dBm
ORL APC: 55 dB; UPC: 35 dB
Pass through insertion loss < 1.5 dB
Accuracy ± 0.5dB (burst signal)
± 0.2dB
Threshold sets 10
Data Storage 100
Connector SC/PC (can customise other connectors)
Auto Power Off No operation in 10 minutes (can be cancelled), Low battery energy
Battery Charge Yes
Operate Time Above 36 hours
Storage Temperature -20 -- +60 °C, 90%RH
Operating Temperature -10 -- +50 °C, 90%RH
Power Supply 3 * AA batteries or AC/DC adapter(battery not include)
Size 190mm * 90mm *40mm
Weight About 450g

Package include:
1pc x EPN70 PON Singlemode Power Meter

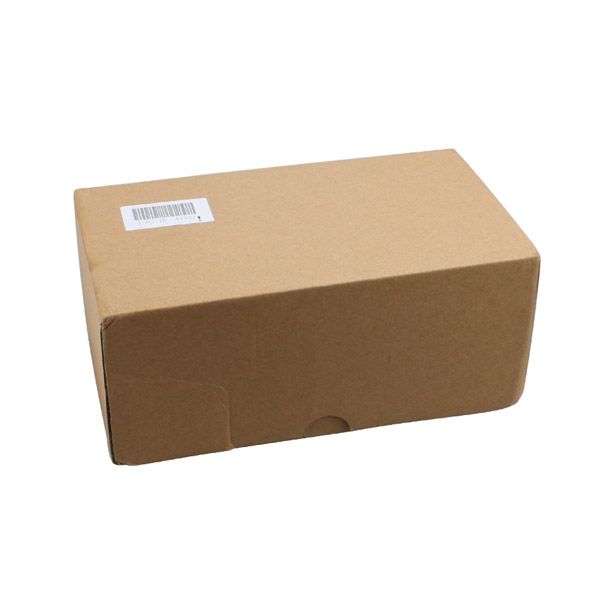

1pc x Packing Box
1pc x Engligh Manual
