CG FC200 ECU Programmer Full Version with New Adapters Set 6HP & 8HP / MSV90 / N55 / N20 / B48/ B58 and MPC5XX Adapter for EDC16/ ME9.0

CG FC200 ECU Programmer Full Version with New Adapters Set 6HP & 8HP / MSV90 / N55 / N20 / B48/ B58 and MPC5XX Adapter for EDC16/ ME9.0 etc

Highlights:

1. Protect Original Car Parts
More than 98% of ECUs support BENCH mode and OBD mode, no need to open the cover and punch holes to protect the original car.

2. Intelligent Recognition
The "identification" function can help users better diagnose whether the ECU module is communicating and check whether the wiring is wrong. If the ECU module can communicate without damage and the wiring is correct, the recognition can be successful, and the chip information, hardware information and firmware information can be read out.

3.Module Clone
Supports ECU data reading and writing and module cloning, no synchronization matching, no online programming, data sub-regional burning, automatic verification, and maximum protection of chips and modules.

4. ISN Read and Write
Supports engine computer ISN code acquisition for all BMW series (including Mini), which is convenient for key matching and anti-theft maintenance.

5.VIN modification
Solve the problem of double VIN or VIN mismatch of vehicles, which is convenient for vehicle maintenance.

6. Data Processing
Support engine computer data analysis and modification for Audi/Seat/Skoda/Volkswagen models;
Support the shutdown of Bosch MED/EDC17 series engine computer anti-theft system;
Support the TPROT off function of Bosch VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.

7. FC200 not only support BMW ECU but also support over three thousands of ECUs like KTAG, Kess, Dimsport etc.
Check FC200 Support ECU List

8. Multi-Language: English, French and Simplified Chinese
Spanish, Polish, Turkish and Traditional Chinese need to pay $130.

9. Full Version with All License Activated.
After 1 Year Free Update, It will cost $200/year for FC200 Update Service

10. With New Adapters Set No Need DisasseMBly in Package:
Adapters Including: 6HP & 8HP, MSV90, N55, N20, B48/B58, B38, 271KE Adaper, 271DE Adapter.
(With this adapter set, you won't need the old B48/B58 cable anymore).

11. With FC200 MPC5XX Adapter in Package, Support BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8



FC200 Latest Update Information:

CG FC200 V1.2.0.0 Registered Version NEW (2024.05.11)

1. Added CONTINEN type ECU: SID209, SIM2K-341 (ECU)
2. Optimize the verification function of BOSCH/CONTINENTAL/KEFICO/DELPHI TC17 ECUs
3.MED17_China adds a new password reading function
4. Added BOSCH TC17 ECUs: MINI: MED17.2.2, Ford/MB: DCU17PC01, Hyundai: DCU24, Peugeot:
ME17.9.53, BOBCAT: EDC17C87, McLaren: ME17.8.33

5. Added Renesas chip ECU:
Honda: KEIHIN 37820-xxx-xxx SH7058, DELPHI DCM3.7AP_CHINA SH72544
FAW: DENSO TD112700-xxxx SH72530
Hyundai: DENSO 33910-05005 adds the function of reading DFlash

6. Added Delphi TC2xx ECU: DCM7.1A/DCM7.1B

CG FC200 V1.1.9.0 Registered Version (2024.03.23)
CG FC200 Software Free Download
1. Add BOSCH ST10 ECU and add verification function:
Abarth: ME7.9.10
Alfa Romeo: ME7.9.10, MED7.1.1
Audi: ME7.5.30, ME7.5, MED7.5.10
Bentley: ME7.1.1
BMW: ME7.2
Chery: ME7.9.7, M7.9.7, ME7.9.71
Chrysler: ME2.8.1
Peugeot Citroen: M7.4.4, ME7.4.4, ME7.4.9, ME7.4.6, VALEO_J34P
Ferrari: ME7.1.1
Fiat: ME7.9.9, MED7.6.2, ME7.9.10, MED7.1.1, VALEO_J34P
Geely: M7.9.7
Honda: ME7.9.7, ME7.9.3
Hyundai Kia: M7.9.7, ME7.9
Lancia: MED7.6.2, MED7.1.1, ME7.9.10
Maserati: ME7.1.1
mercedes: ME2.8, ME2.8.1
Mitsubishi: ME7.7.1
Opel: ME7.6.4
Polaris: M7.9.7
Porsche: ME7.5, ME7.8.1, ME7.2, ME7.8
SAIC: ME7.8.8
Volkswagen Seat Skoda: MED7.5.10, ME7.5.30, ME7.5
Toyota: ME7.9.5
Volvo: ME7.0, ME7.0.1

2. Added DENSO ECU:
Mazda: DENSO R2AA/R2AB/R2AC/R2AJ/R2AK/R2AW/R2AX/R2BG/R2BP/R2BR/R2BS, DENSO RF7x/RF8x
Hyundai/Kia: DENSO 33910-05005
Suzuki: DENSO 33920-67P0

3. Other new ECUs:
Chevrolet/Holden/Opel: DELPHI DCM3.7AP
Suzuki: ME17.9.64
Ford: MG1CS017

4. A new button for "Vehicle Fault Code Support List" is added to the main interface.

BUG FIXED:
1. Fix the problem of EEPROM reading error in ME7.5.20/ME7.5.10/ME7.5 and other ECUs
2. Fix the problem that some ECUs such as DQ380/1 report a program error when writing after verifying PFlash.
3. Fixed the problem of failure to modify VIN in new versions of mercedes-Benz MED17.7.3/ME17.7.7 and Volkswagen MED17.5.25/MED17.5.5 models.

V1.1.8.0 Registered Version (2024.02.01)
1. Added Hyundai/Kia TCU: TC60.x.x
2. M7/ME7/M17 ST10F725/6 ECU adds the function of turning off the anti-theft system
3. GM E80 adds BOOT mode
4. BMW's new ECUs: MEVD17.8.4, ME17.2.42
5. Peugeot/Citroen MED17.4.2 TC1767 new platform mode
6. EDC17C84 adds the function of modifying VIN
BUG FIXED:
1. Fix the problem that some MD1CS089 cannot start the car after reading and writing data.
2. Fix the problem of mercedes-Benz 9GT TCU cloning failure
3. Fix the problem of failure to write PFlash in GM 6T/6L gearbox
4. Fix GPEC2A and other unrecognized problems
5. Fix the problem that some ECUs such as EDC16C1 and EDC16CP35 fail to write to ExtFlash.
6. Volkswagen MED9.1 MPC563/4 supplementary wiring diagram
7. Hyundai/Kia EDC17CP14 corrected reading password wiring diagram
8. Volkswagen MED17.5 platform mode supplements other wiring diagrams
9. IVECO EDC17C69 supplementary wiring diagram

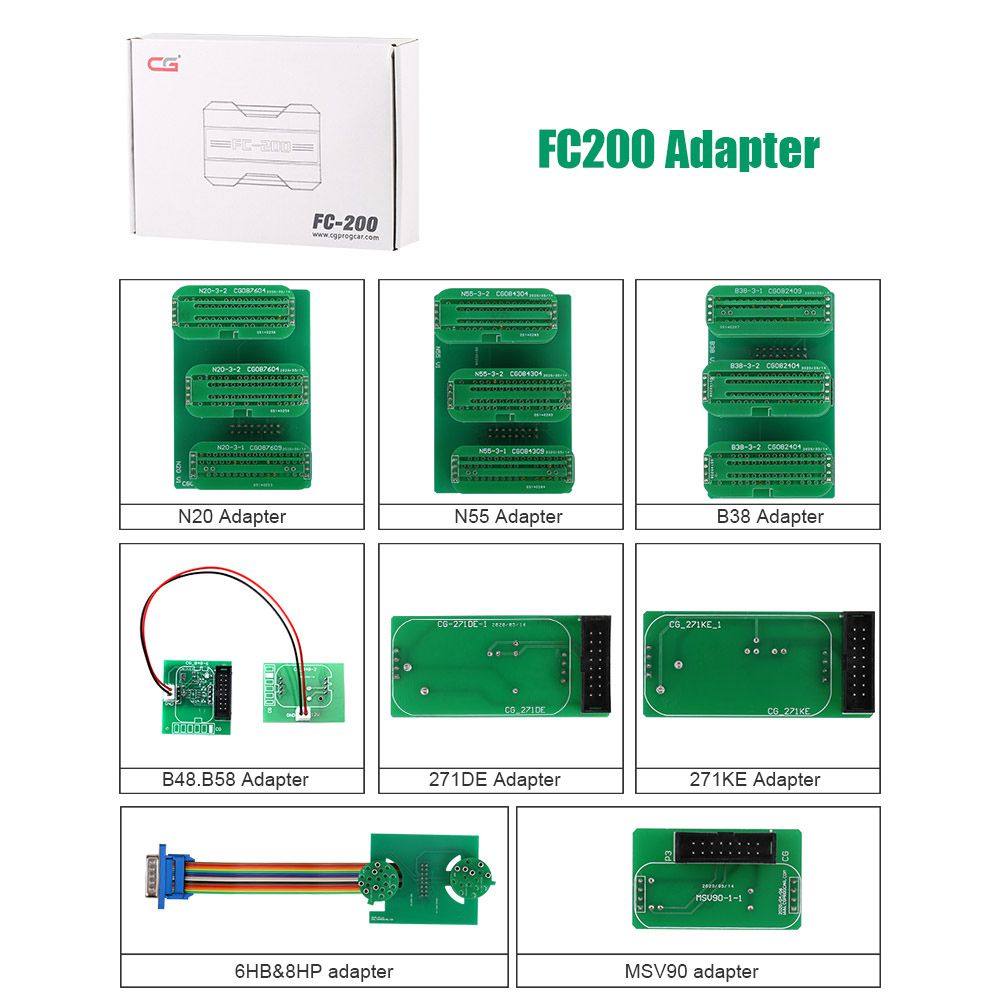

Functions of Each Adapter:

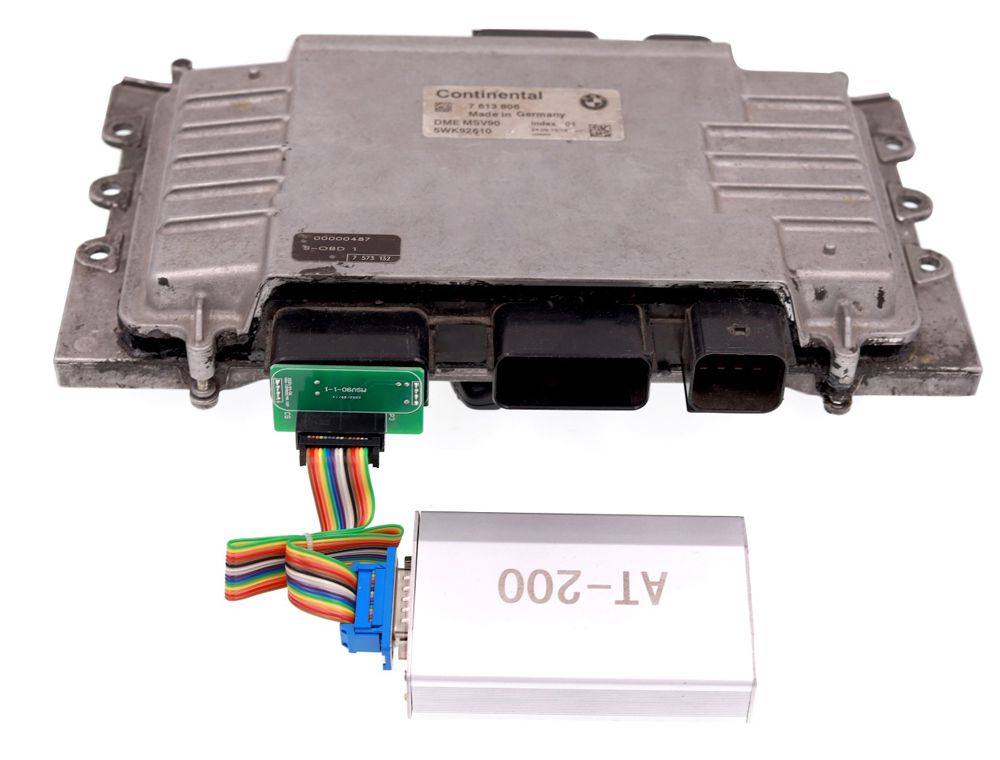

1. MSV90 Adapter:
This adapter supports ISN reading and writing and data backup and recovery of BMW MSV90

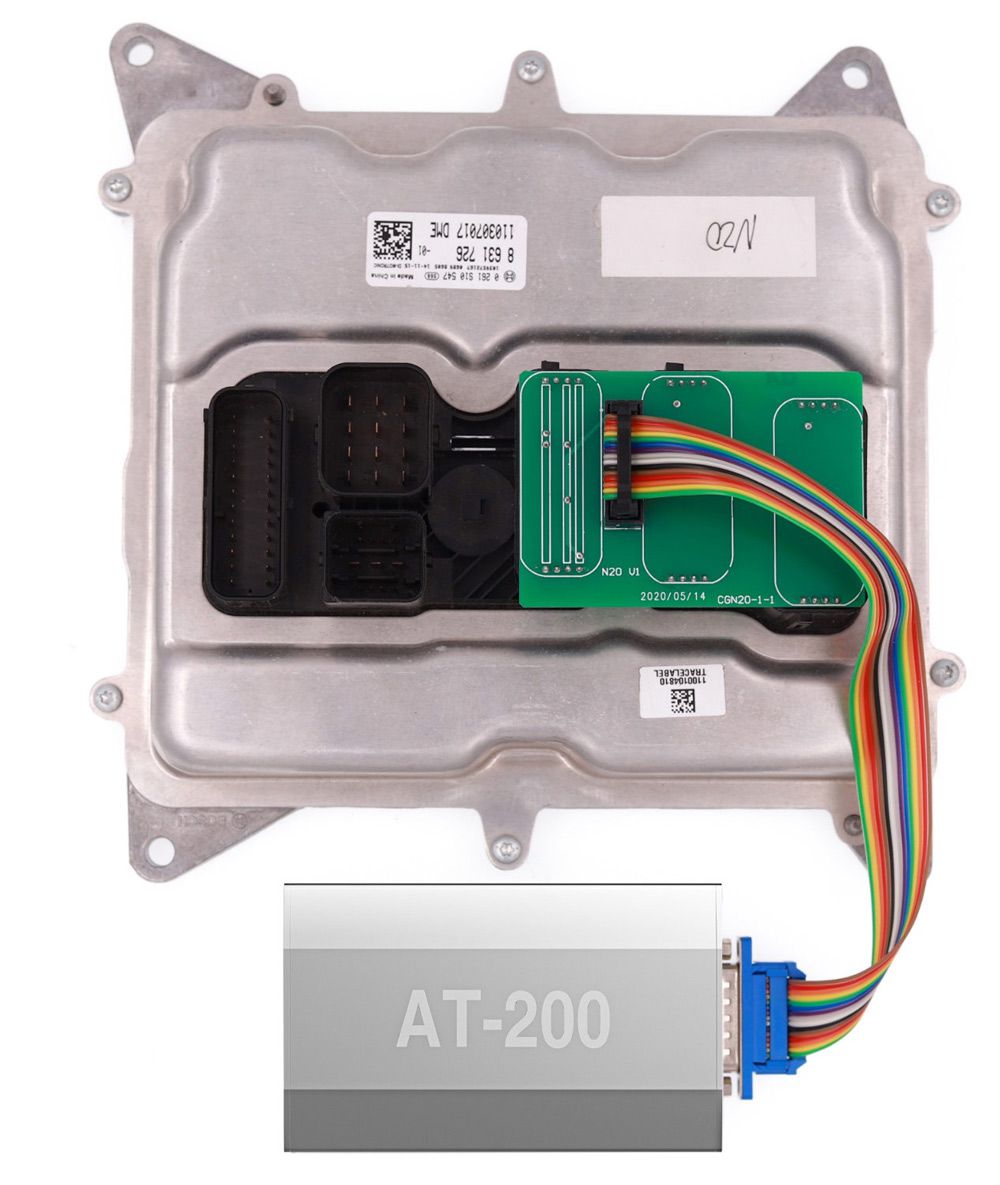

2. N20 Adapter:
This adapter supports ISN reading and writing, VIN modification and data reading and writing functions of the N20 and N13 of the F series chassis of BMW

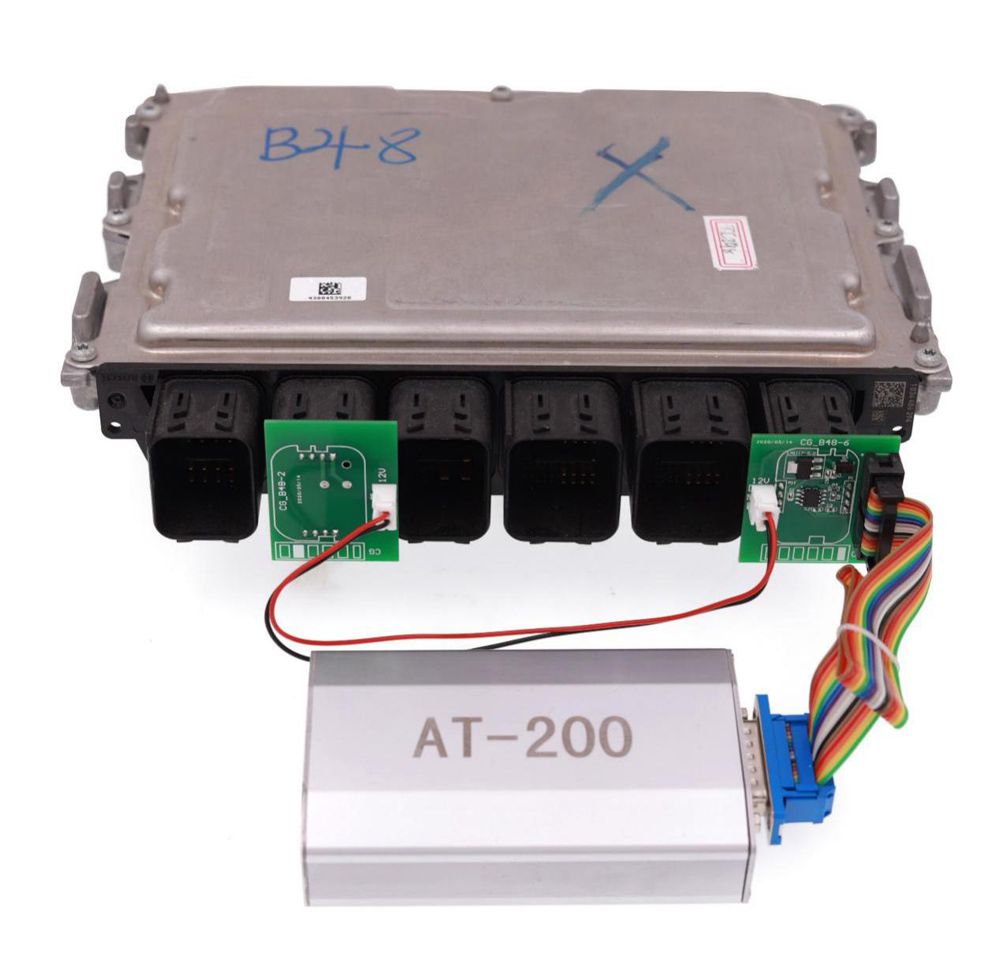

3. B48/B58 Adapter:
This adapter supports ISN reading and data reading and writing functions of BMW models: MG1CS003, MG1CS024 and MG1CS201.

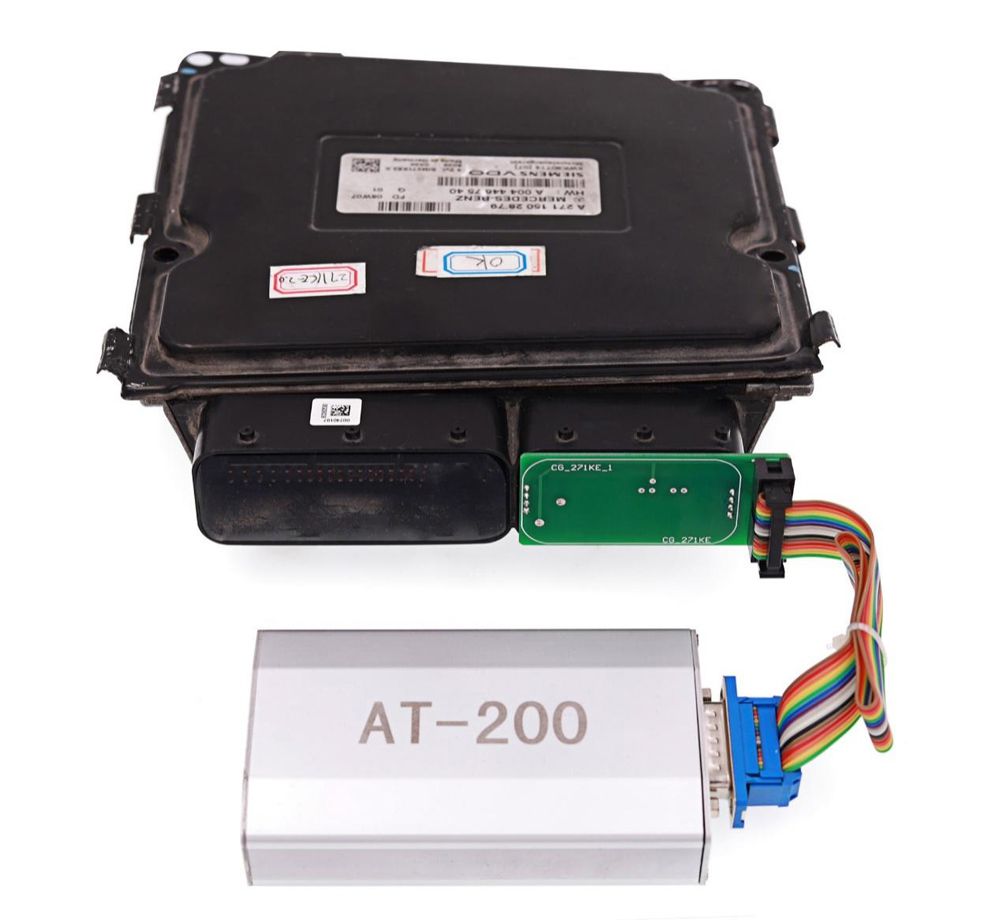

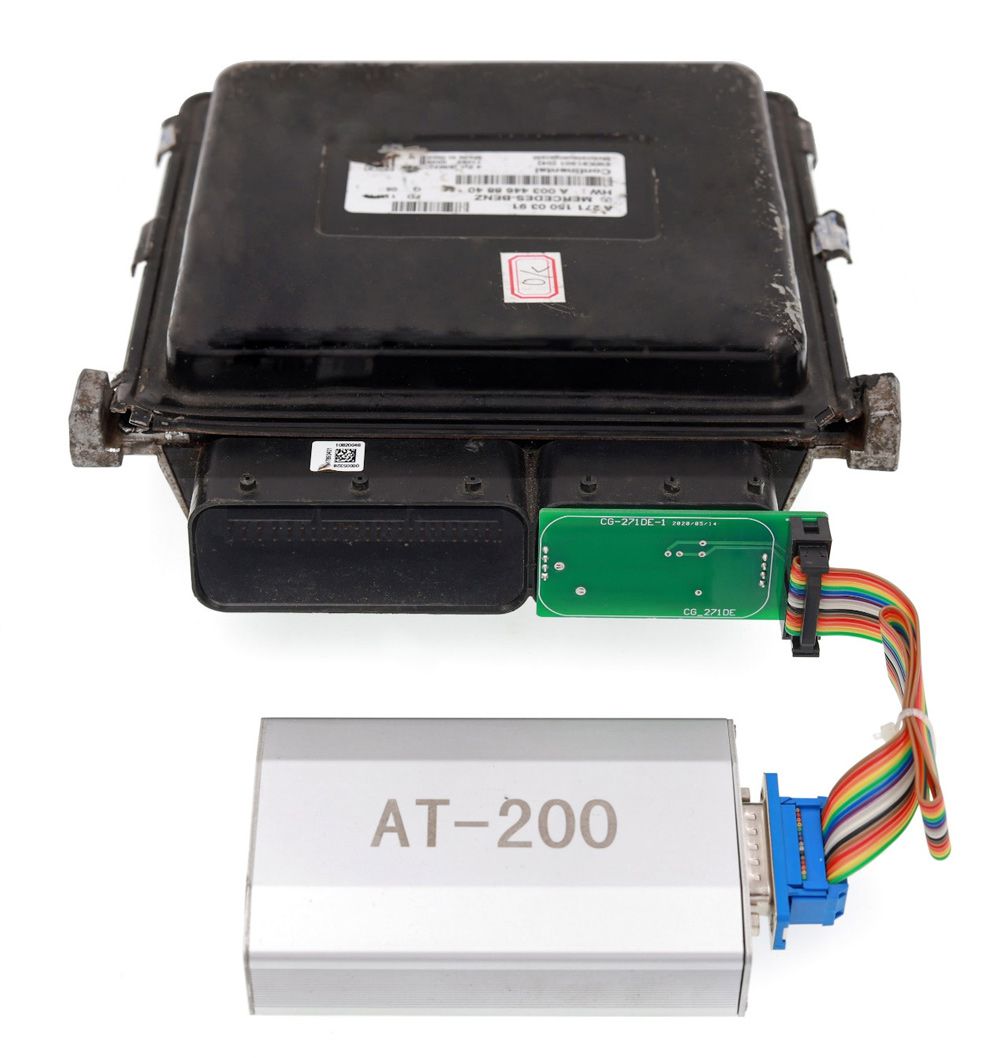

4. 271KE Adapter & 271DE Adapter:
These two adapters support the data backup and recovery functions of Mercedes-Benz SIM 271KE and SIM 271DE

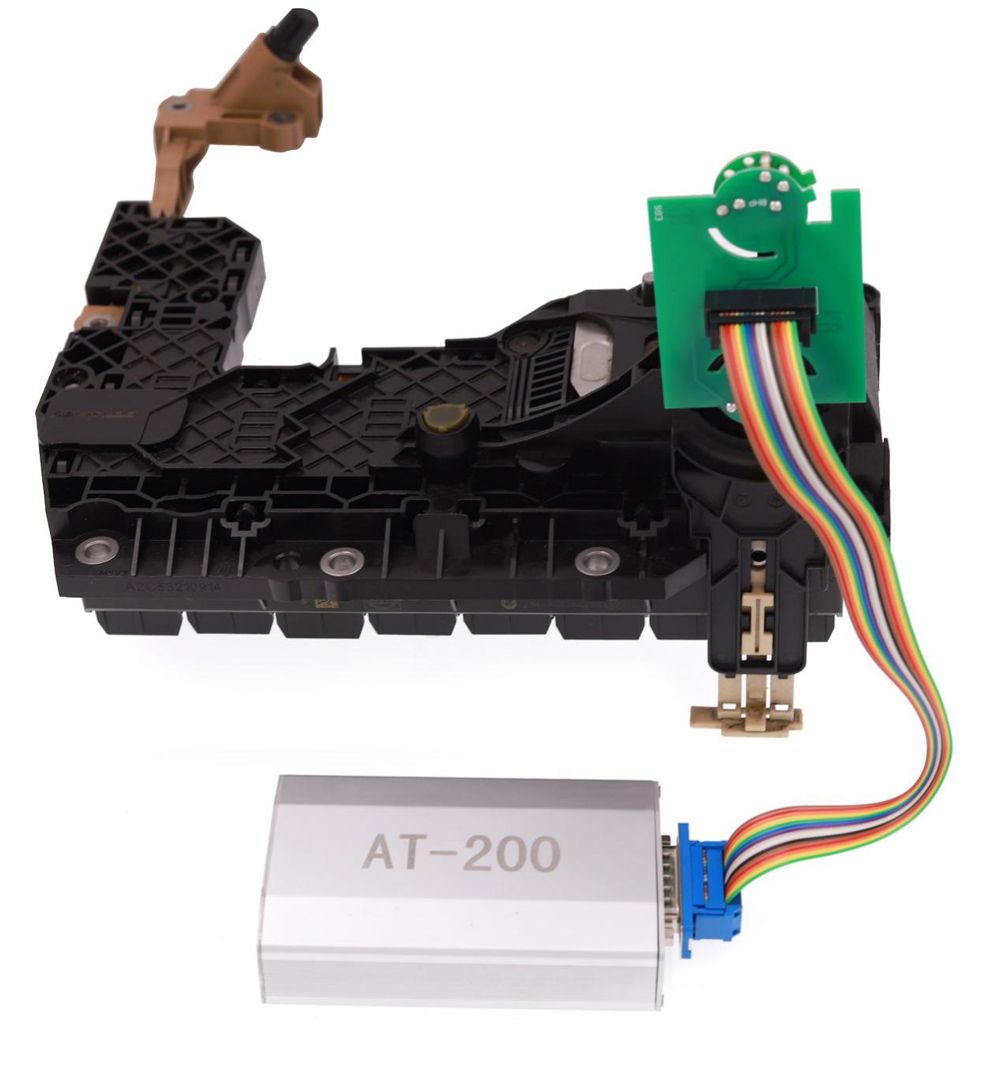

5. 6HP & 8HP Adapter:
The adapter is used for the data backup and recovery function of the 6HP and 8HP EGS of BMW models.

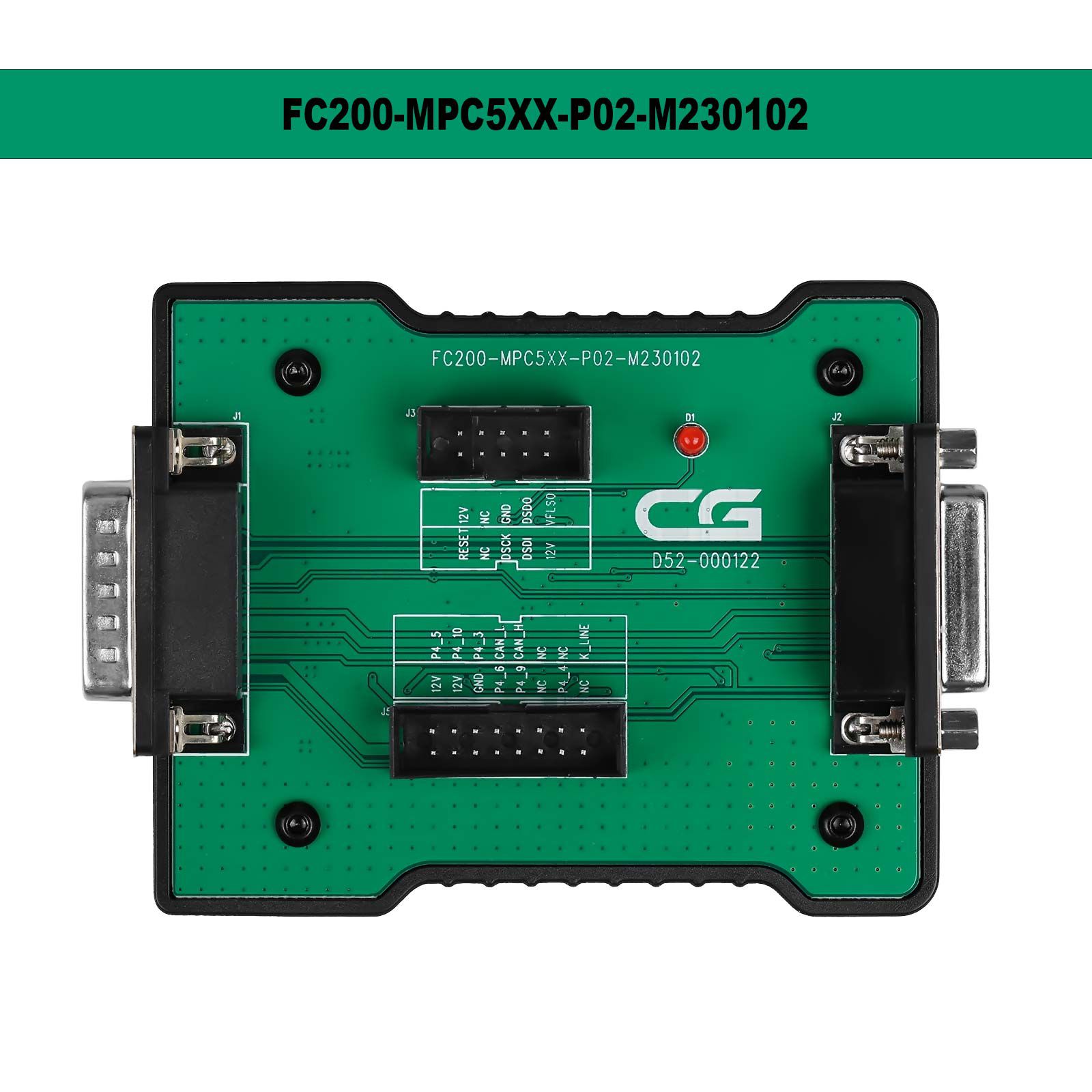

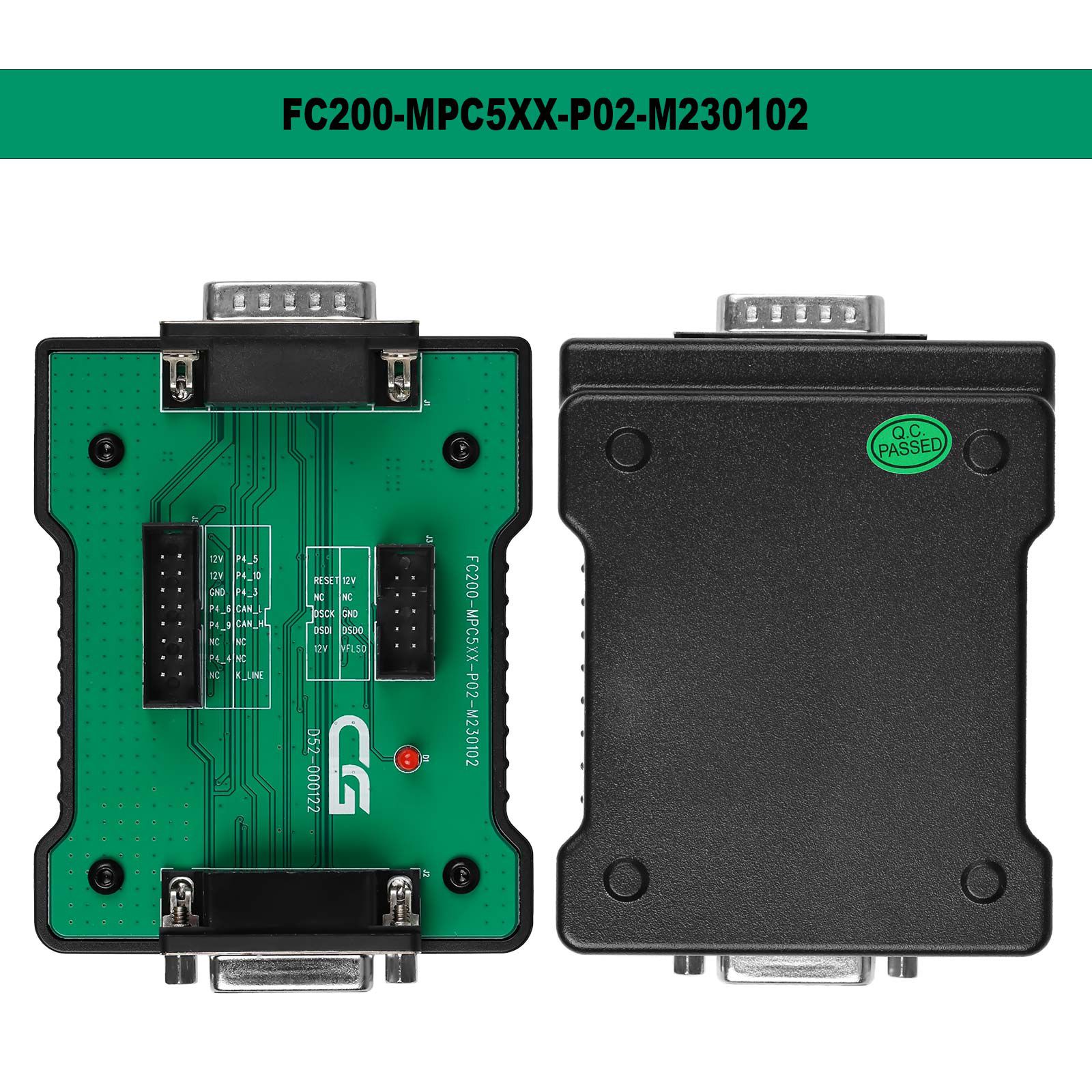

FC200-MPC5XX-P02-M230102 Adapter for BOSCH MPC5xx Read/Write Data on Bench

Description:
CG FC200-MPC5XX-P02-M230102 adapter can be used for MPC5X series clone without opening cover.

Product Functions:
Supported ECU Models: ME9.0, MED9.1, MED9.5.10, EDC16C2, EDC16CB, EDC16CP31, EDC16CP35. More models are being upgraded.

Product Features:

Adaptation without disasseMBly
Stable and safe
Function extension
Data loss prevention
Real-time monitoring
Solid connection

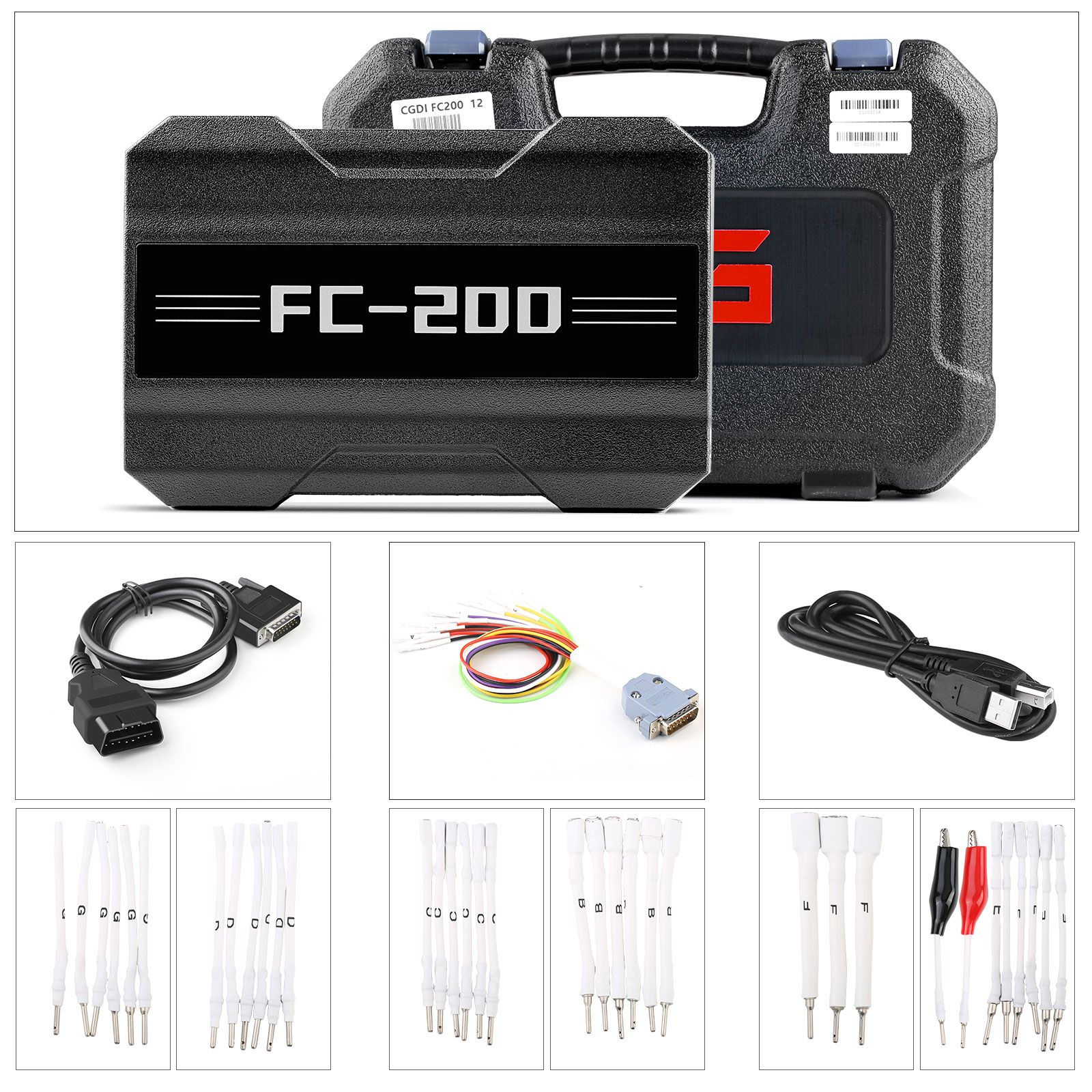

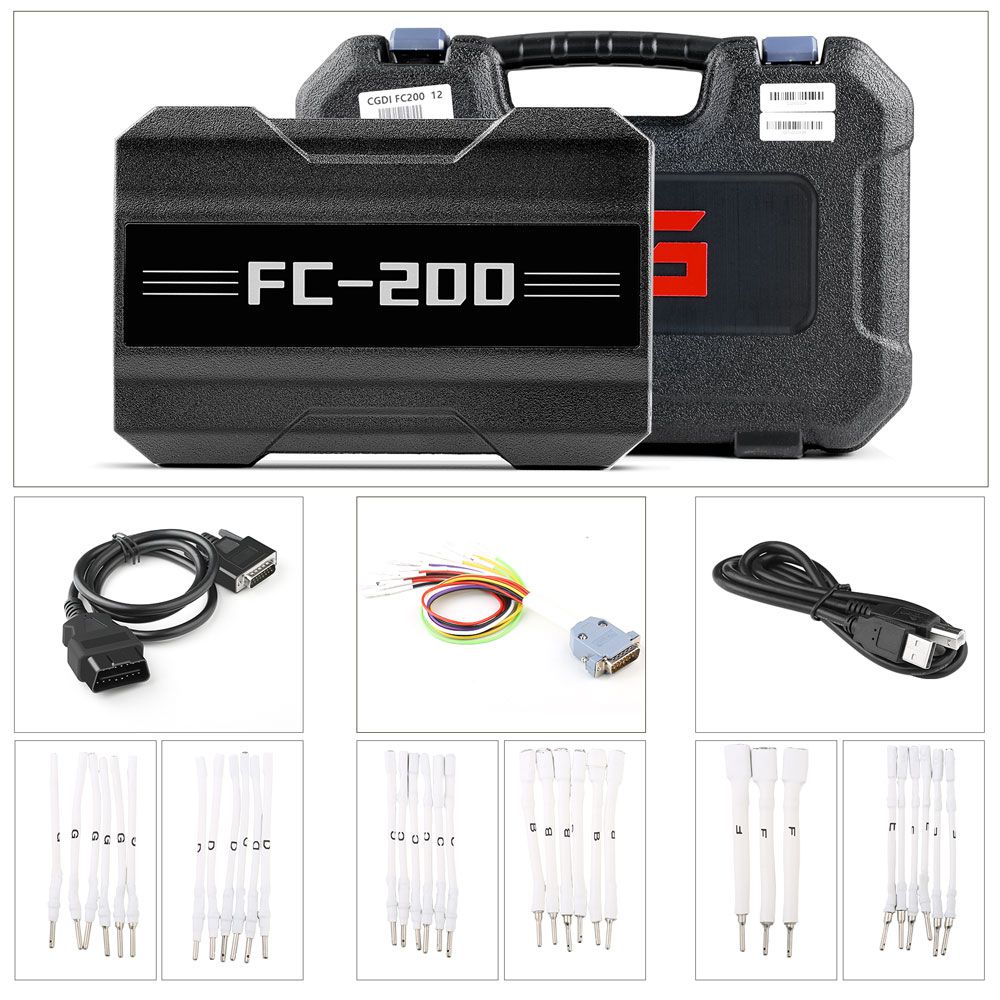

Package List:

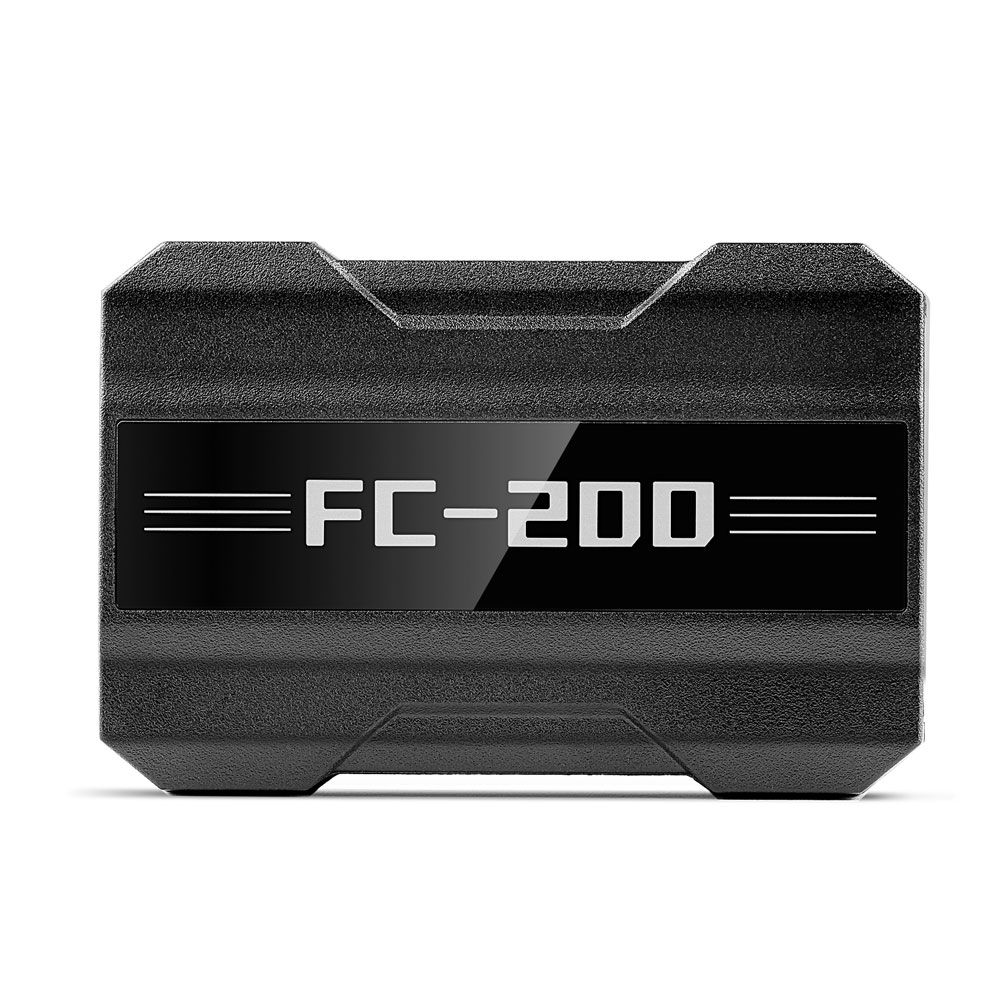

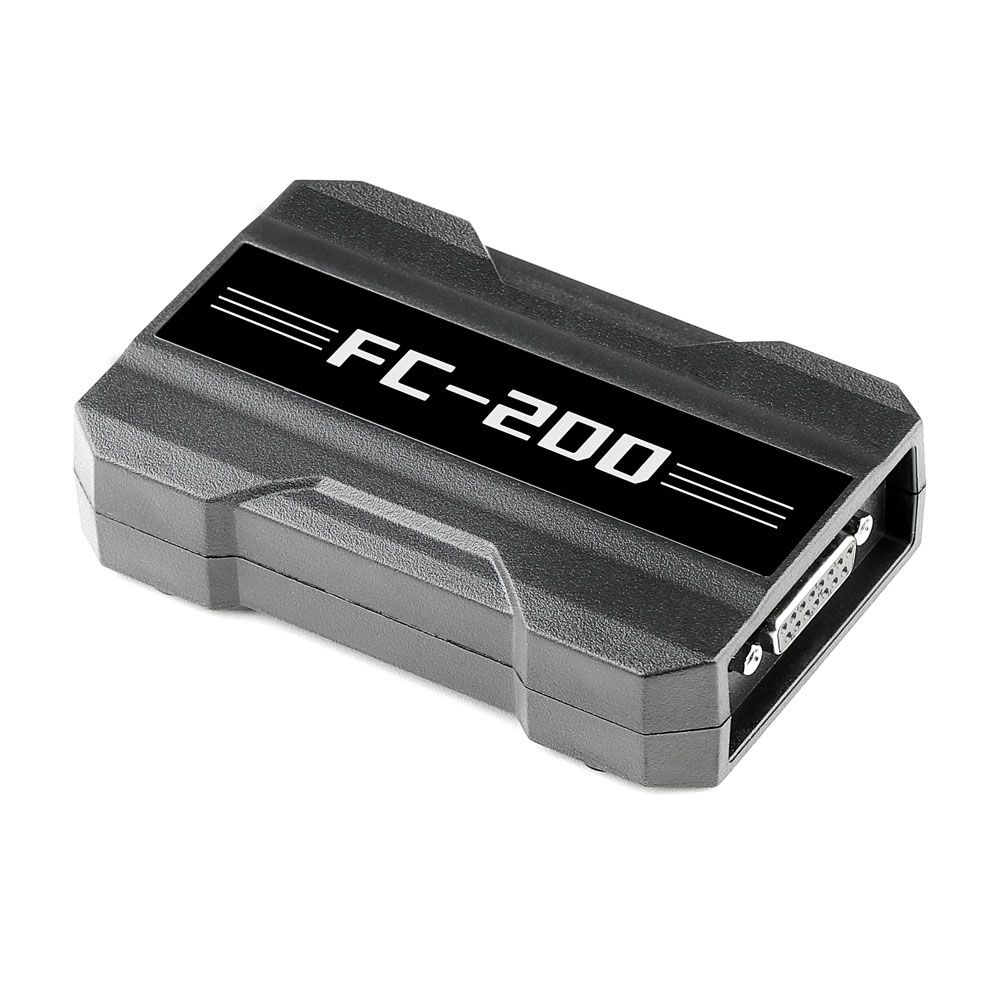

1pc x CGDI FC200 Host
1pc x OBD Cable
1pc x Jumper
1pc x USB Cable
6pcs x G-type Adapter Cable
3pcs x F-type Adapter Cable
6pcs x E-type Adapter Cable
6pcs x D-type Adapter Cable
6pcs x C-type Adapter Cable
6pcs x B-type Adapter Cable

FC200 Adapter Set
including: 6HP & 8HP, MSV90, N55, N20, B48/B58, B38, 271KE Adaper, 271DE Adapter

1pc x CG FC200-MPC5XX-P02-M230102 Adapter
