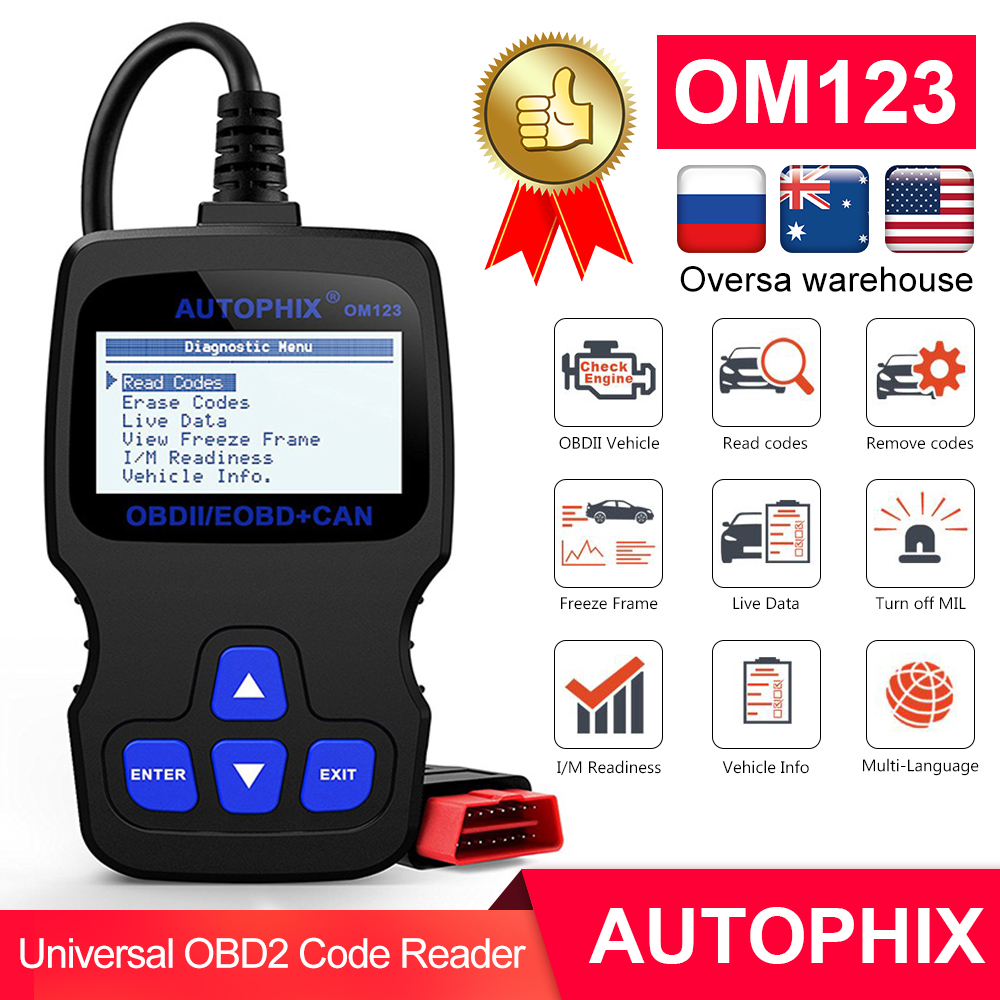

Autophix OM123 OBD2 Scanner OBD 2 Car Diagnostic Tool Automotive Scanner ODB Code Reader Auto Scan Tools PK ELM327 CR3001 AD10

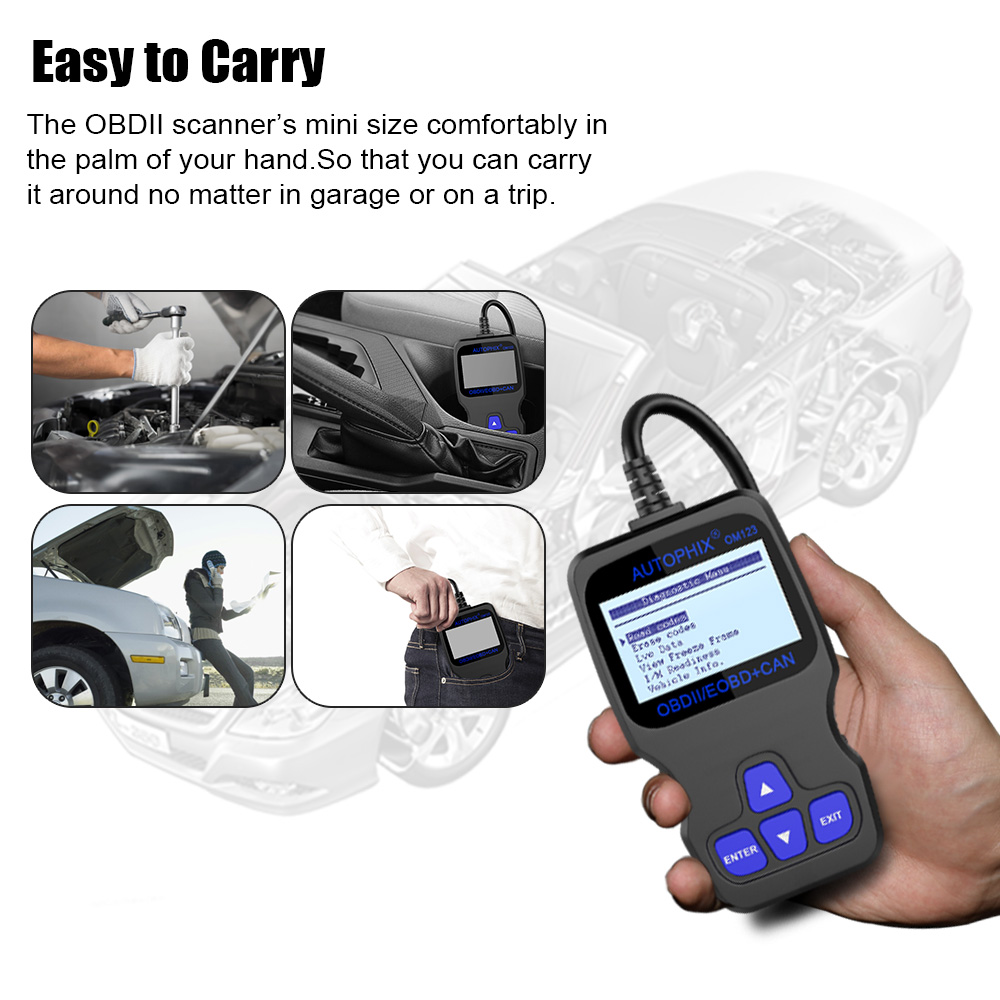

Hand-held OBD2 Tool---OM123 is a universal tool for checking engine system on most vehicles, it can check whole engine, easy to carry or put in a purse or glove compartment.

Easy-to-use Device---For everyone,with or without technical skills. Built-in OBD2 DTC lookup library. No batteries needed-powered via Car OBDII port.

Reliable LCD Display -It has white backlight and contrast adjustment, working temp from -20°C to 70°C.

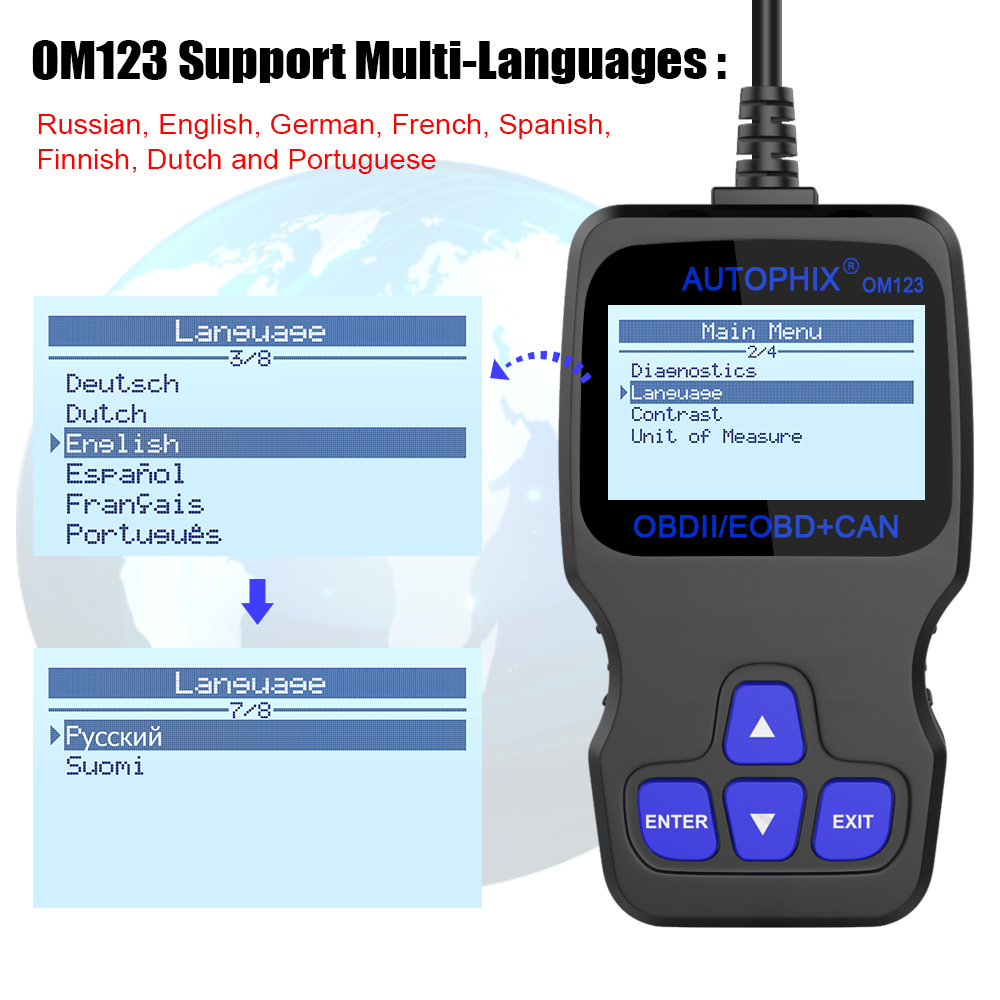

Support Languages: Russian,English,German,French,Spanish,Finish,Dutch and Portuguese.

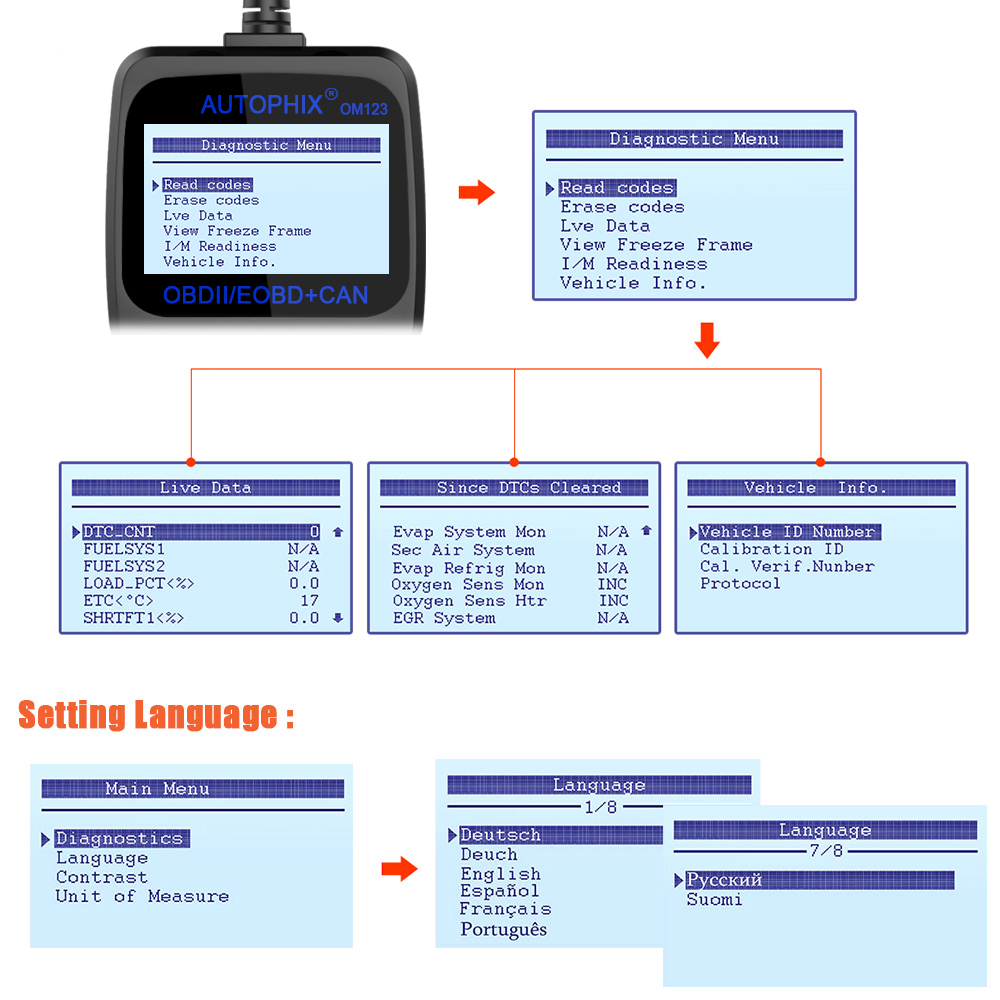

Function Specific:

1.Read, Clear engine error code. Turn off "Engine Check"MIL.
2.Live Data/Freeze Frame ---When emission-related faults occurs, certain vehicle conditions are recorded, so it can better locate the abnormal position and find the cause of the abnormality when it is repaired.
3.I/M Readiness --- It indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
4.VIN Code Reading --- It can reading the VIN code from the car ECU (some cars ECU not support this functions)
5.Hard(memory) Codes Reading
6.Pending Codes Reading

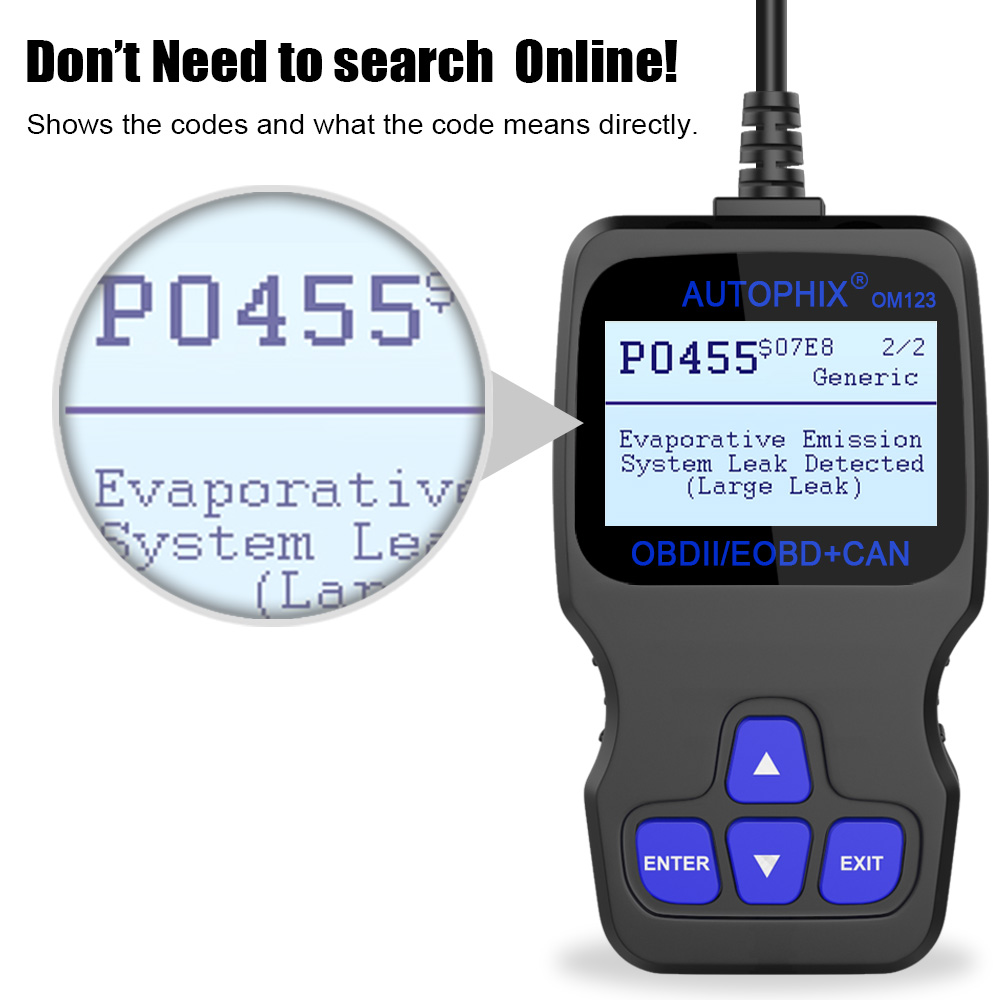

7.Shows Codes Definitions

Need to check Airbag,ABS----Vpecker E1

Need On-board computer-- P10

Support OBDII Protocols

ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)

Car List:

Support 12V Diesel , Gasoline Car.
Do NOT Support Hybrid, Electrical Car, VAZ,UAZ,LADA, Trucks, Pickups, Vans.

Nissan Lafesta 2008---not support.
If your car is Japanese in 2000-2005 , please choose Special Japanese Car scanner OM127

American Car after 2001:

for Chrysler, for Ford, for GM, for Jeep

European Car after 2004:

for Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Volvo, for Fiat, for VW, for Ford, for Jaguar
for Skoda Superb after 2006


France Car after 2006:

for Citroen, for Peugeot
Not Support for Renault

If you car is Opel,Renault,Citroen,Peugeot before 2004, please choose special European Car scanner EU410

Asian (Japanese/Korean) car after 2005:


for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai, for Dacia, for Lexus , for Mazda, for Subaru, for Toyota
for Nissan after 2008
for Suzuki after 2012
Not support for Ssangyong
if your car is in 2000-2005 , please choose Special Japanese Car scanner OM127

Chinese car after 2008:

for BYD, for Chery, for Geely, for Great Wall, for Karry

Note:
Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.Please Leave us message in below format, we will reply you within 6 hours.

for example : xx, 2005, 2.0cc, Diesel

We have the Russian version operation Manual,please leave your e-mail,we will send to you.

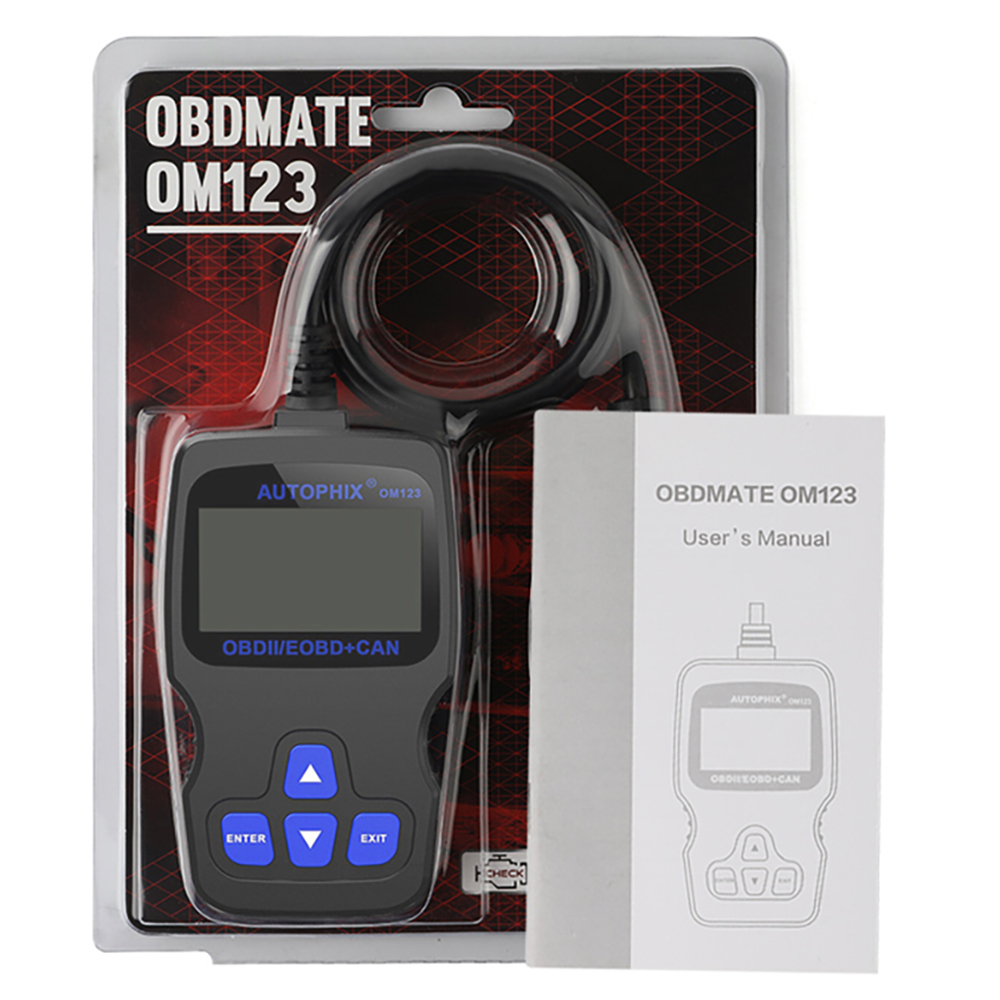

OM123 package list:

1pc x OM123 OBD2 Engine Code Reader

1pc x Mutil-Language User Manual(English,German,French,Spanish,Russian)

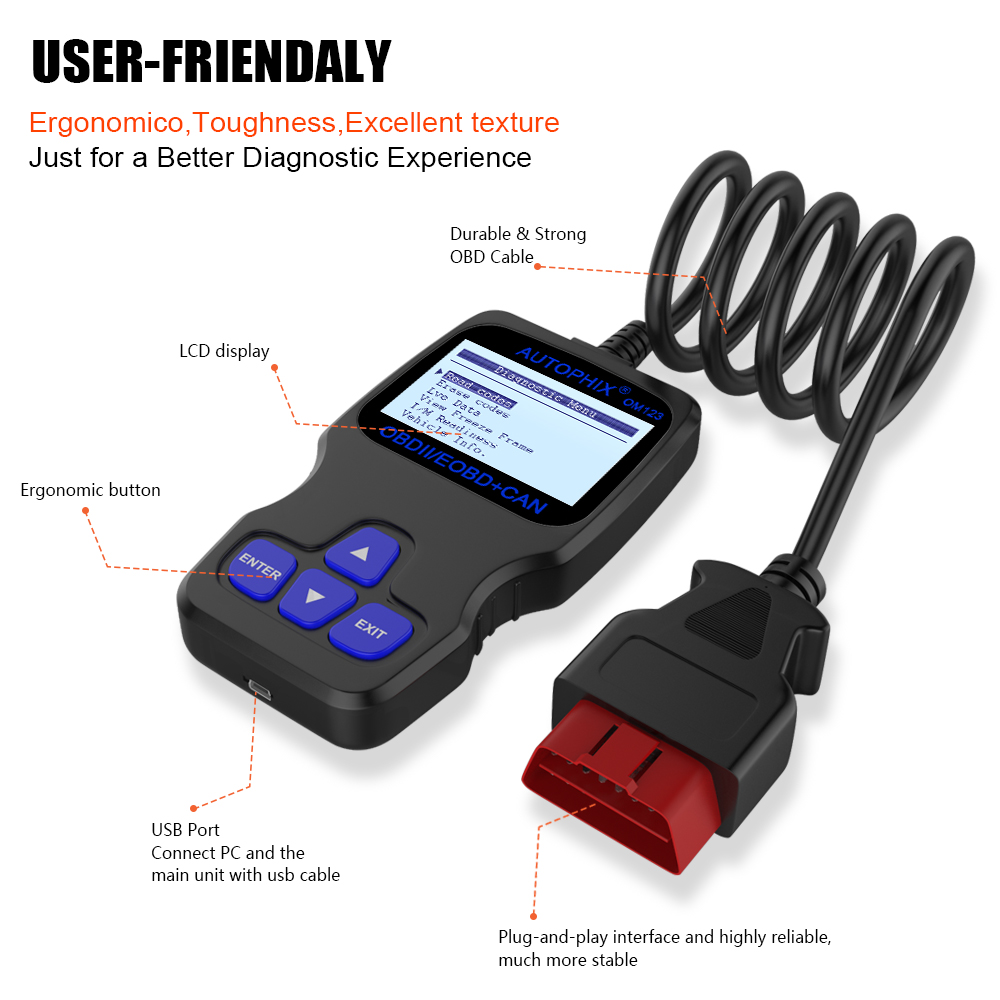

Notice:the usb port is designed for manufacturer to test and repair device.
