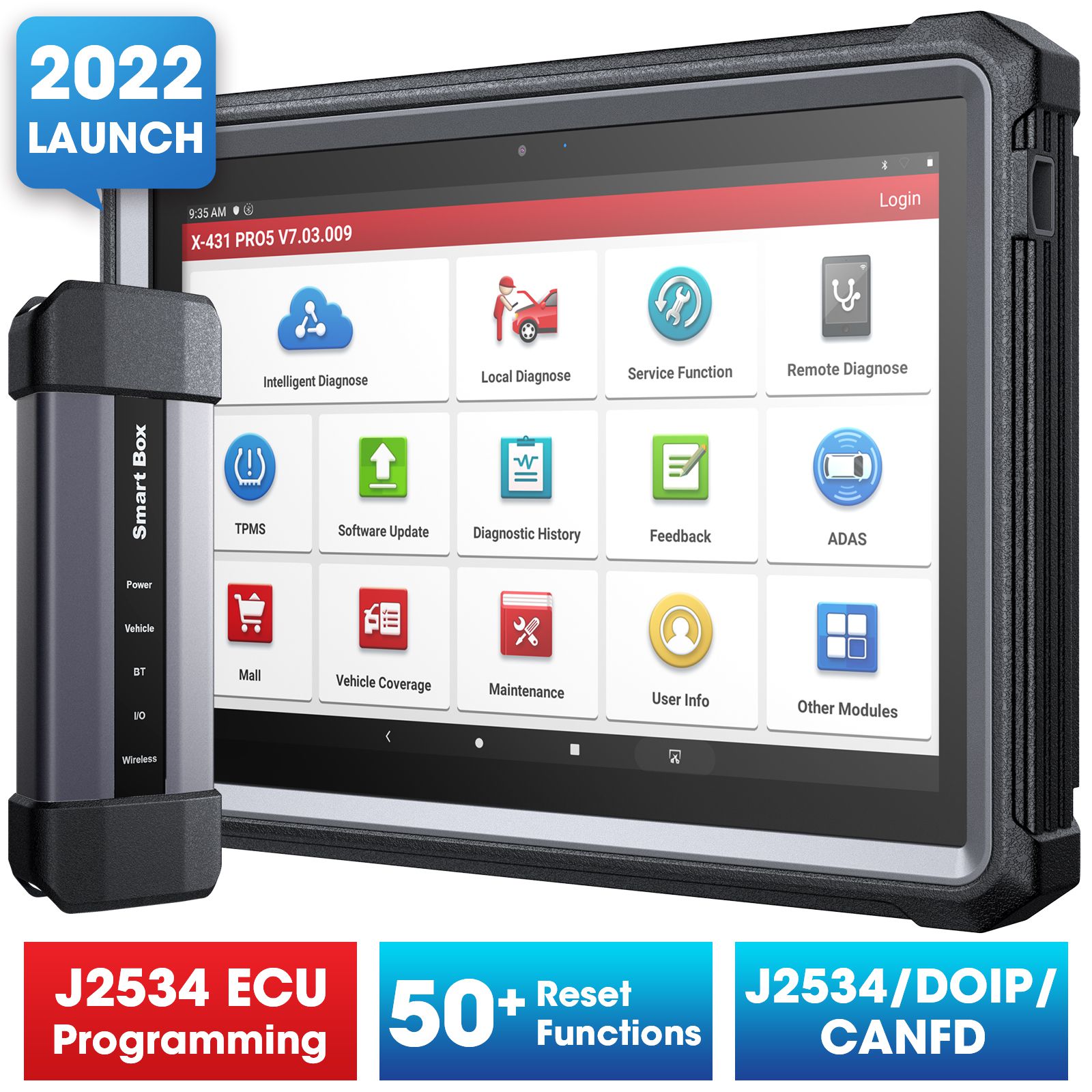

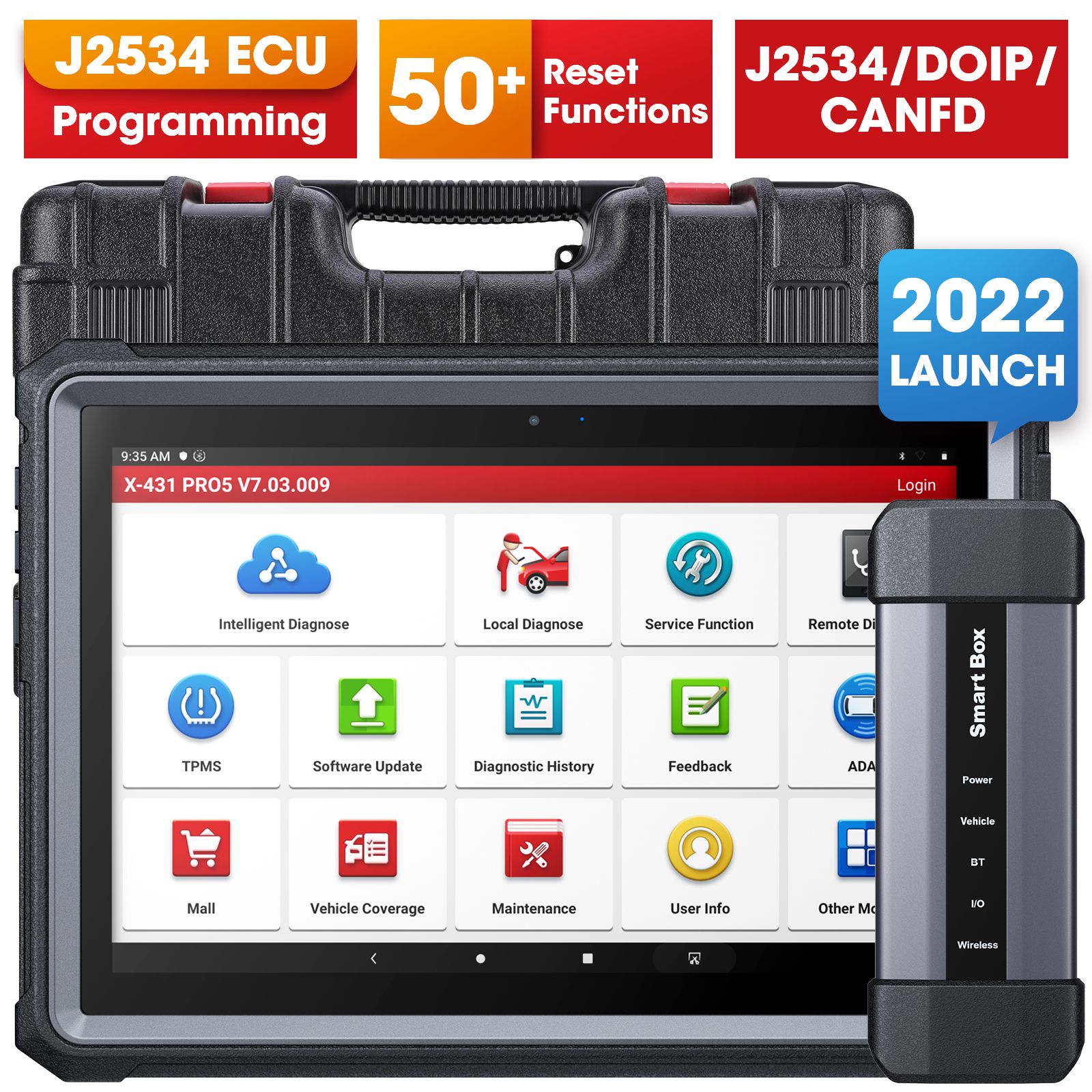

Launch X431 PRO5 Full-System OBD2 Automotive Diagnostic Scanner

The Launch X-431 PRO5 ushers in a new era of automotive diagnostics with its innovative dual diagnostic modes—local diagnosis and SmartLink remote diagnosis. Building on the powerful legacy of the PRO series, it delivers extensive vehicle coverage, advanced special functions, robust diagnostic capabilities, and highly accurate data.

Key Features of the Launch X431 PRO5

1. 2022 New Arrival – No IP Restrictions, 2 Years of Free Updates
2. Multi-Language Support: English, Japanese, Korean, French, Spanish, Portuguese, Italian, Russian, German, Polish, Romanian, Dutch, Arabic, Czech, Danish, Greek, Persian, Finnish, Hungarian, Swedish, Turkish, Serbian, Croatian, and more.
3. Upgraded Successor: Enhanced from X431 V+, Pros Mini, PRO3, TURBO, and Throttle models.
4. SmartBox 3.0: Multifunctional connector for versatile connectivity.
5. OE-Level Vehicle Coverage: Supports over 100 car brands and 20,000+ models from American, European, and Asian markets—with ongoing expansion.
6. Intelligent Diagnosis: AutoVIN and AutoScan enable full-system DTC scans in under 3 minutes on average.
7. Full Bidirectional Active Testing: Perform real-time component control and verification.
8. FCA AutoAuth Access: Seamlessly bypass SGM in FCA vehicles (2017 and newer Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, etc.). *Requires AutoAuth subscription.
9. VAG Guided Function: Skip manual entry of security access codes and channel nuMBers for VW, Audi, Skoda, and Seat vehicles.
10. Expandable via Add-On Modules: Compatible with ADAS Calibration Toolkit, VSP-600 VideoScope, X431 TPMS TSGUN, BTS360 Bluetooth Battery Tester, and X-PROG / X-PROG3 Immobilizer tools.
11. Non-16pin Connectors & Cables Kit: Ensures compatibility with a wide range of global vehicle interfaces.
12. User-Oriented Design: One-touch software updates for hassle-free maintenance.
13. Premium Hardware Configuration: Android 9.0 OS, 8-core 1.8GHz processor, 4GB RAM, 64GB ROM (expandable to 128GB), 10.1” HD (1920×1200) touchscreen, 8MP rear camera, 5MP front camera, and a 7000 mAh battery.

Comprehensive Diagnostic Functions

Advanced Full-System Diagnostics

This LAUNCH diagnostic scanner establishes a complete data link to all vehicle systems and subsystems to:

1. Retrieve ECU information, including unit type, version nuMBers, and specifications.
2. Read and erase Diagnostic Trouble Codes (DTCs) to pinpoint and resolve issues.
3. View live data parameters in real time.
4. Quickly identify faulty systems and related DTCs—enabling performance optimization, energy savings, emission reduction, and more.

Guided Functions

Step-by-step guidance transforms complex procedures into manageable tasks—ideal for Volkswagen, Audi, Skoda, Seat, and other compatible brands.

Bidirectional Active Testing

Perform specific component tests directly through the scanner—without using the vehicle’s native controls—to save significant time. For example, command the fuel pump to activate: if the pressure gauge confirms proper output, you instantly verify both the pump and its circuitry. This process takes under 5 minutes—versus triple the time manually.

50+ Reset & Relearn Maintenance Services

Streamline common service tasks with clear, precise instructions for faster completion, including:

• Oil Maintenance Light Reset: Reset service lamp and recalculate optimal oil change intervals.
• Steering Angle Reset: Zero the steering angle sensor for straight-line stability.
• Injector Coding: Program new injector codes to correct cylinder injection volume.
• Electronic Parking Brake Reset: Facilitate brake pad replacement and reset.
• ABS Bleeding: Simplify air removal from the ABS system.
• Throttle Matching: Initialize throttle actuators to default settings.
• Battery Matching: Register a new battery after replacement.
• DPF Regeneration: Remove particulate buildup to maintain filter efficiency.
• Anti-theft Matching (IMMO Service): Disable lost keys and add new ones. *Limited by default; full functionality requires X-PROG or X-PROG3.
• Tire Pressure Reset: Recalibrate tire pressure monitoring systems.
• Suspension Level Calibration: Adjust body height sensors for proper leveling.
• Headlight Matching: Initialize adaptive headlamp systems.
• Gearbox Matching: Enable gearbox self-learning for smoother shifts.
• Sunroof Initialization: Reset sunroof operation after service.
• Tooth Learning: Complete crankshaft position relearning after engine repairs.

Additional functions continue to expand. Available menus vary by manufacturer, model year, and vehicle configuration. Contact us for compatibility verification.

ECU Coding – Customize Your Vehicle

Go beyond standard diagnostics with ECU coding capabilities that let you tailor vehicle behavior to your needs:

1. Match, relearn, and code newly installed ECU modules after repairs or replacements.
2. Modify market-specific settings to unlock premium features or disable unused functions—breaking factory limitations.

J2534 ECU Programming

Functions as a J2534-compliant Vehicle Communication Interface (VCI), offering cost-effective OE-level programming support for Toyota, Honda, Volvo, VW, GM, Chrysler, mercedes-Benz, Jaguar, Land Rover, and more—directly from manufacturer servers.

TPMS Programming

Activate sensors, perform TPMS relearn procedures, and program tire pressure systems with ease.

AUTOVIN – Maximize Diagnostic Intelligence

Automatically identifies vehicle make, model, and year with a single touch—ensuring correct software matching for fast, accurate diagnostics. Automatically generates and saves inspection reports for easy vehicle health tracking and sharing.

Remote Diagnosis

Enable remote assistance by connecting with other LAUNCH tools (e.g., V+ 4.0) or PC-based technicians equipped with remote diagnosis modules—allowing experts to diagnose vehicles thousands of miles away.

Health Report Generation & Sharing

Generate a full-system diagnostic report with one click. Email reports directly to your office or customers, or print physical copies for records.

Print Diagnostic Results

Share diagnostic data via email for printing on a PC, or use optional Wi-Fi connectivity. Pair with the Launch X431 Mini Wi-Fi Printer for one-key wireless printing.

Global Vehicle Coverage – Including American Brands

Boost Diagnostic Efficiency with Real-Time Data

Monitor vehicle performance and sensor readings in real time through three intuitive live data display modes:

• NuMBers and Lists (default view)
• Wave Patterns (up to 12 channels simultaneously)
• Merged Graph (combine up to 4 data streams)

These visualizations help quickly assess whether parameters fall within normal operating ranges.

LAUNCH X431 PRO5 Technical Specifications

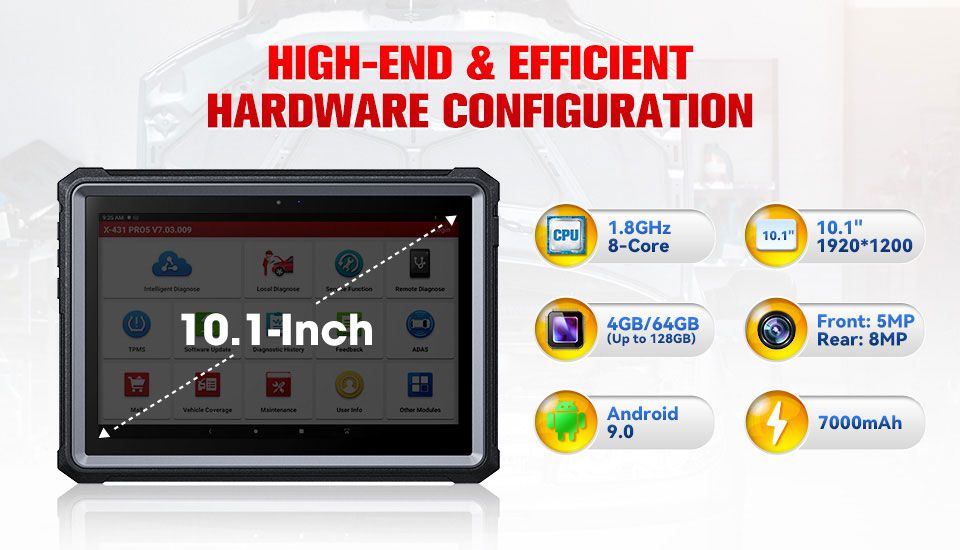

Tablet Specifications

• Display: 10.1-inch FHD IPS (1920 × 1200)
• CPU: 8-Core Processor, 1.8 GHz
• Cameras: 5MP front, 8MP rear
• Wi-Fi: Dual-band (2.4GHz / 5GHz)
• Operating System: Android 9.0
• Memory: 4GB RAM, 64GB ROM (expandable to 128GB)
• Battery: 7000 mAh / 3.8V
• Operating Voltage: 9–36V

Environmental and Physical Specifications

• Storage Temperature: -20℃ to 70℃ (-4℉ to 158℉)
• Working Temperature: 0℃ to 50℃ (32℉ to 122℉)
• Device Dimension: 267 × 191 × 33 mm (10.51 × 7.52 × 1.30 inch)
• Package Size: 594 × 164 × 410 mm (23.39 × 6.46 × 16.14 inch)

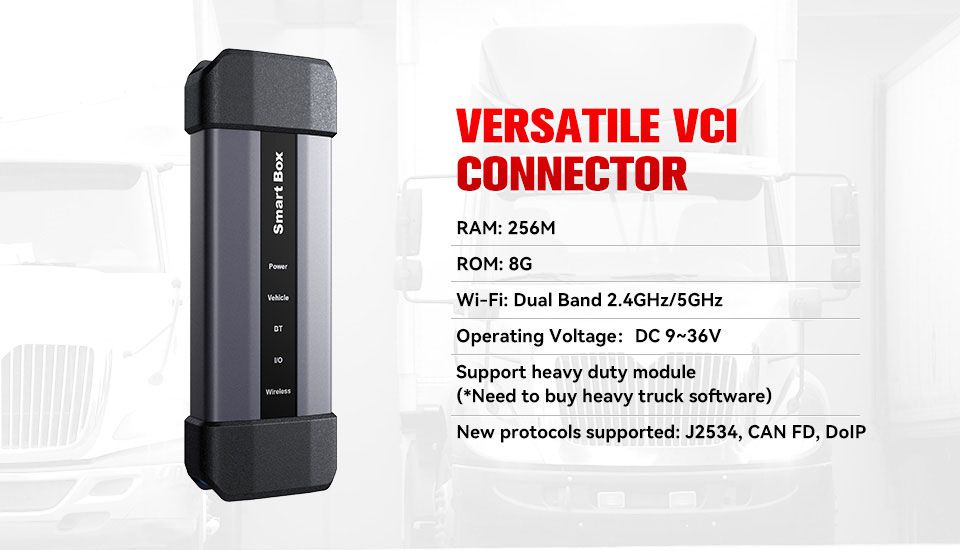

VCI Connector Specifications

• RAM: 256 MB
• ROM: 8 GB
• Wi-Fi: 2.4 GHz / 5 GHz dual-band
• Working Temperature: 0℃ to 50℃ (32℉ to 122℉)
• Operating Voltage: DC 9–36 V (requires heavy-duty card software and separate purchase of heavy-duty card connector for heavy truck support)
• VCI Connector Dimension: 200 × 75 × 40 mm (7.87 × 2.95 × 1.57 inch)
• New Protocol Support: J2534, CAN FD, DOIP

LAUNCH X431 PRO5 Package Contents

• 1 pc × Display tablet
• 1 pc × SmartLink C device
• 1 pc × Power adaptor
• 1 pc × OBD II extension cable
• 1 pc × Charging cable (Type A–Micro)
• 1 pc × Data cable (Type A–Type B)
• 1 pc × Crossover cable
