![Original Autel Maxisys Ultra Intelligent Full Systems Diagnostics Tool With MaxiFlash VCMI Get Free MSOBD2KIT or MaxiBAS BT506](/upload/pro/autel-maxisys-ultra-with-gift-1.jpg)
Original Autel Maxisys Ultra Intelligent Full Systems Diagnostics Tool With MaxiFlash VCMI Get Free MSOBD2KIT or MaxiBAS BT506
- Shipping:
- Airmail Post
Estimated delivery time: 7-45 working days.See details» - Returns:
- Return for refund within 7 days,buyer pays return shipping.Read details »
- Support:
-
Online Chat
WhatsApp
Skype
Ask a question
- Product Details
- Product's Reviews
- Write a Review
- Related Products
Autel Maxisys Ultra Highlights:
1. No IP Limitation
2. Updated Version of MK908P/ MS908P/ Elite/ MS909/ MS919: All-in-one comprehensive scanner for large repair workshops
3. One Year Free Update Online on Autel Official Website
4. Support New VCI Protocols: D-PDU, DoIP/ CAN FD, Mega CAN
5. Advanced VCMI 5-In-1 Device: VCI, OSCILLOSCOPE, MULTIMETER, WAVEFORM GENERATOR, CAN BUS CHECK
6. Provide Latest OE Level Coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
7. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
8. Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
9.Split-Screen Multi-Application Navigation with Super Fast Running Speed, Greatly Improving Your Work Efficiency

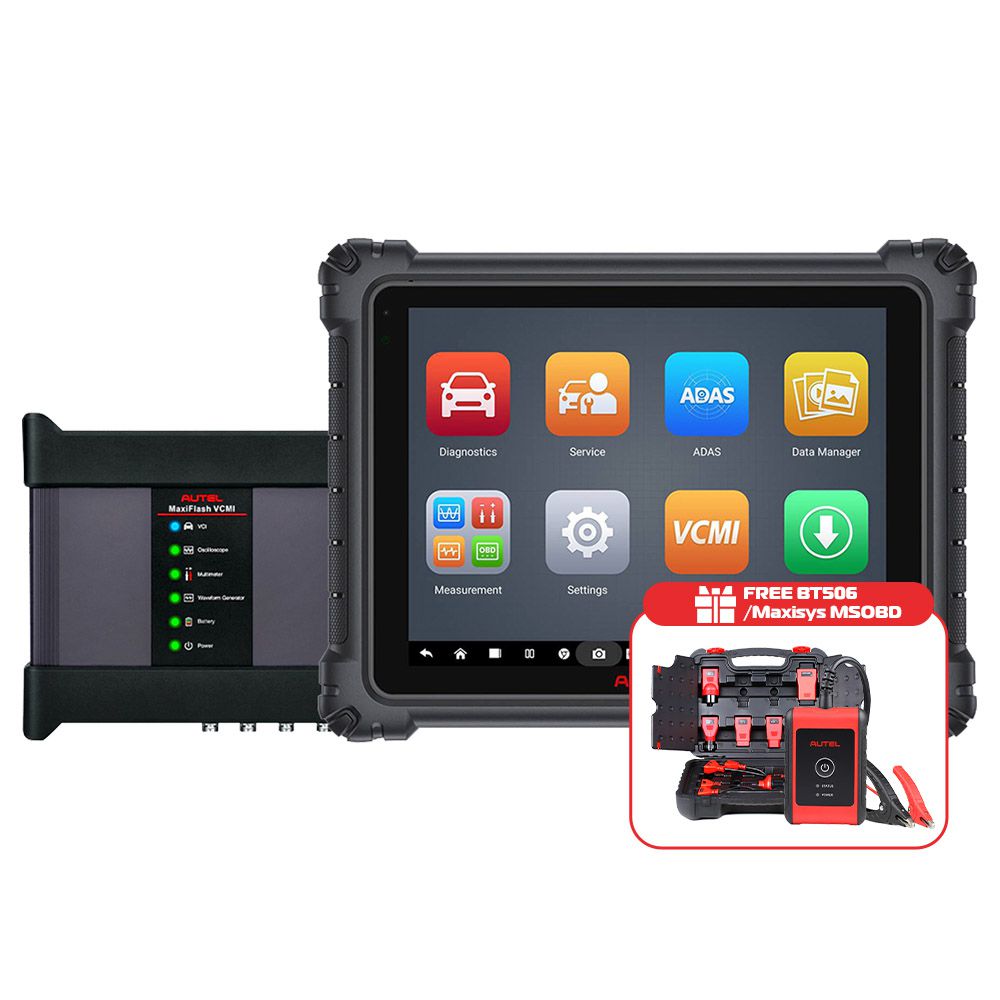

10. Buy Autel Maxisys Ultra Get Free MSOBD2KIT (US Customer Only) or Free Autel MaxiBAS BT506.
![Autel Maxisys Ultra](/upload/temp/autel-maxisys-ultra-with-gift-1.jpg)
Notice:
1. If you don't need the gift, please buy Autel Maxisys Ultra at $3999 only.
2. Not support Benz gateway.
3. Default Language: English.
Description:
The MaxiSYS Ultra is Autel's most ambitious diagnostics tablet to date, featuring a 12.9-inch touchscreen Android-based tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory and features the MaxiFlash VCMI, a 5-in-1 communication and testing tool providing wireless vehicle communications between the vehicle and tablet and supporting the latest DoIP, D-PDU, and Mega CAN vehicle communication protocols. The VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter, and CanBUS tester.
The Ultra offers the most advanced approach to vehicle diagnostics with its dynamic topology module mapping for supported vehicles combined with its Intelligent Diagnostics feature that guides the technician from code to repair to test with detailed repair information and illustrations, and Oscilloscope preset guides and tests and waveform library.
The Ultra features a rechargeable Lithium battery proving 8 hours of continuous use, a convenient docking station, and front and rear cameras.
Features:
1. Oscilloscope Preset Guided & Component Tests / Waveform Library
2. Split Screen Multi-Application Function / Dual Wi-Fi Connection
3. Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
4. Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
5. Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
6. Code-Related Technical Service Bulletins (on select vehicles)
7. License Plate Reader
8. ScanVIN: Barcode or Text Recognition with Camera
9. Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account (sold separately)

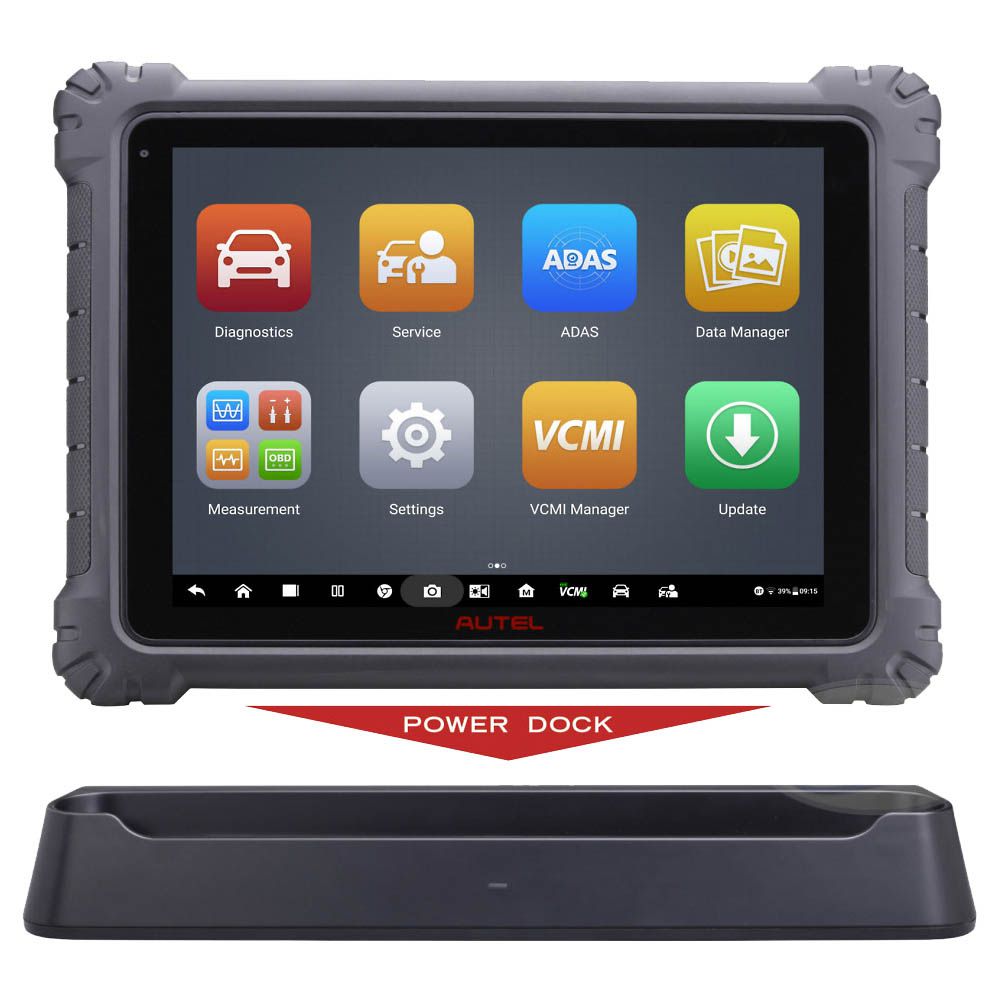

10. Includes Docking Station, Cables, Scope Connectors, Carrying Case
11. Enhanced Diagnostic Reports: PreSCAN & PostSCAN
12. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
13. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
14. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
![Autel Maxisys Ultra](/upload/temp/autel-maxisys-ultra-with-gift-2.jpg)

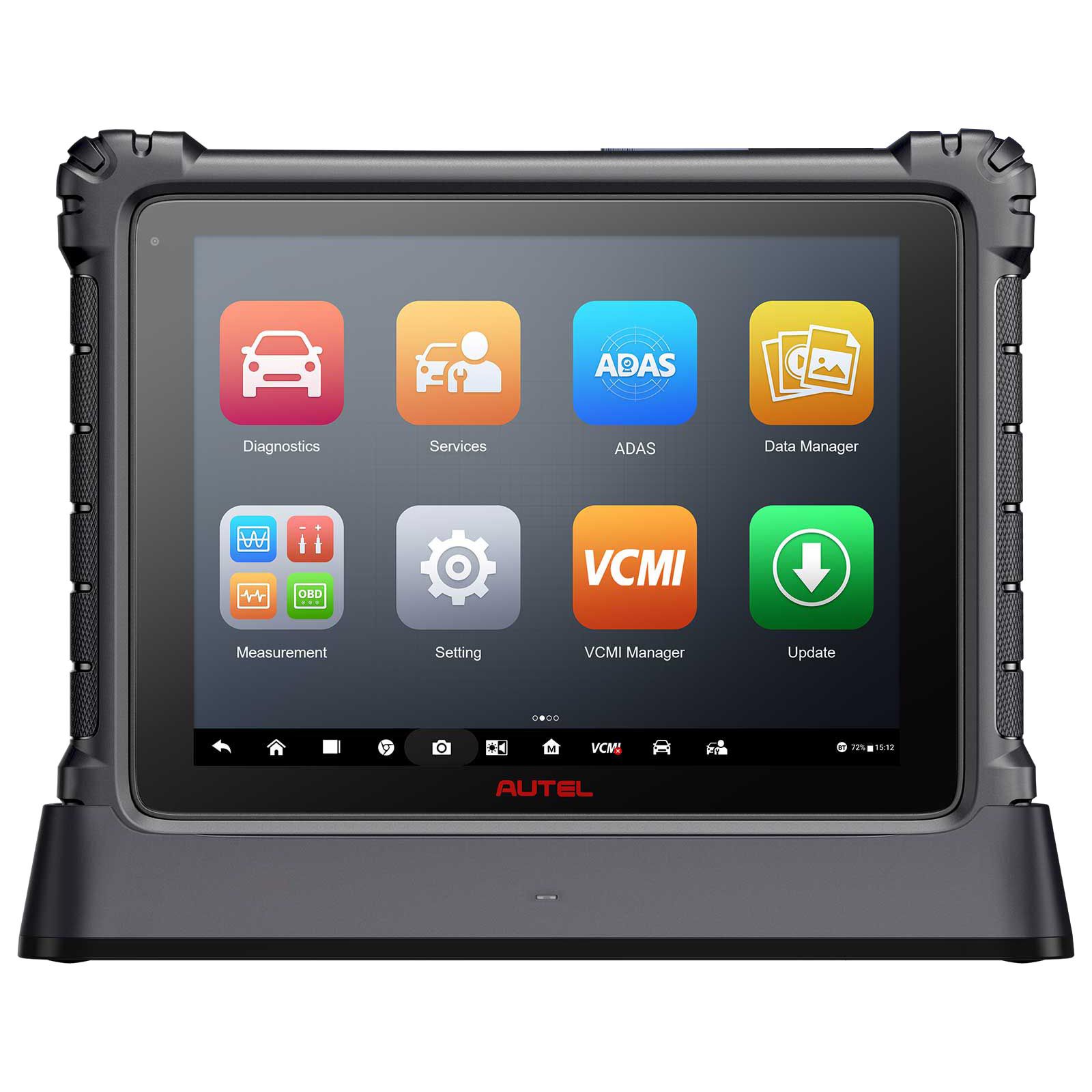

Autel Maxisys Ultra Functions:
1. Intelligent Diagnostics and VCMI 5-in-1
![Autel Maxisys Ultra](/upload/temp/autel-maxisys-ultra-with-gift-3.jpg)
One-Stop Solution to Guide Customers to Solve the Faults
1). DTC and Symptom Based Repair Guided Assistance
2). Single Screen - Multiple Repair Guidance Options
* Technical Service Bulletin Search Listing
* DTC Analysis - Repair Advice From OE Repair Library
* Repair Assist - OE Repair Content Library Access
* Repair Tips - MaxiFIX Community User Based Advice
* Relevant Cases - OE Repair History Library Access
* VCMI Component Measurement - Guided Test Plans
5-in-1 VCMI, Diagnose & Program Vehicles More Efficiently
Except working as a diagnostic tool, it also functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester.
More Advanced than J2534: With the 3 diagnostic protocols (D-PDU/SAE J2534/RP1210), Ultra can work with more OEM diagnostic tools and diagnose & program more vehicles than J2534 programming tools.
1). New Combination Vehicle Communication and Measurement Interface
* D-PDU / J2534 / RP1210 Diagnostic Protocols Cover More Vehicle Types
* DoIP / CAN FD Protocols for High-Speed CAN Cover New Vehicle Models
* NEW Oscilloscope - Faster Bandwidth 20MHz / Sample Rate 80MS/s
* Higher 12-Bit Resolution / Larger Memory 32Mil Samples
2). Affordable Test Component Combination for Repair Confirmation
* Combined Signal Detection and Signal Stimulation
* OBDII Channel Detection / DLC Pin Location and Direct Measurement
* Protocol CAN Testing / Advanced Triggering / Auto-Scale Zooming
3). Easier Operation of Built-In Preset Guided Tests for Faster Operation
* Custom Probe Specification & Reference Waveform Libraries
* Saved Test Configurations / Component Tests / Data Graphs
2. Advanced ECU Programming & Coding
![Autel MaxiSys Ultra ECU PROGRAMMING](/upload/temp/autel-maxisys-ultra-with-gift-4.jpg)
The need to perform programming & coding services is now more relevant in the aftermarket than ever. There are more and more instances where programming/coding is necessary, e.g., replacing a module, replacing the existing software or firmware in the ECUs, fixing software-controlled drivability issues and emission issues, etc. There are two general types of programming operations:
A. Coding--also known as Teach-in Program, or Component Adaptation, is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.
B. Programming --downloads the latest version of software from the online server database through Internet access (this procedure is done automatically when the tablet is connected to the Internet, so there is no need to check for software updates yourself), and reprograms the newest version into the vehicle's ECU.
Autel MaxiSys Ultra with VCMI can help you solve all above issues. With D-PDU, SAE J2534 & RP1210 protocols, Auto scan tool Maxisys Ultra provides diagnosing, coding, and programming for more passenger and commercial vehicles, much more advanced than J2534 programming tools.
- Online ECU programming & coding without any special connectors for BMW (F & G chassis);
- Online ECU programming for new chassis of Benz (204, 212, 207, 463, etc.); Online SCN for Benz (222, 212, 204, 205, etc.);
- Online ECU coding for Volkswagen, Audi, Porsche, Renault, etc.
- ECU programming & coding for GM, Ford, Chrysler, Volvo, Land Rover, Jaguar, etc.
- The VCMI module also supports various common vehicle buses protocols, for instance: KPW, CAN, CAN-FD, DoIP, etc. Speaking of the CAN-FD, its transmission speed is 14 times faster than CAN.
![Autel Maxisys Ultra](/upload/temp/autel-maxisys-ultra-with-gift-5.png)

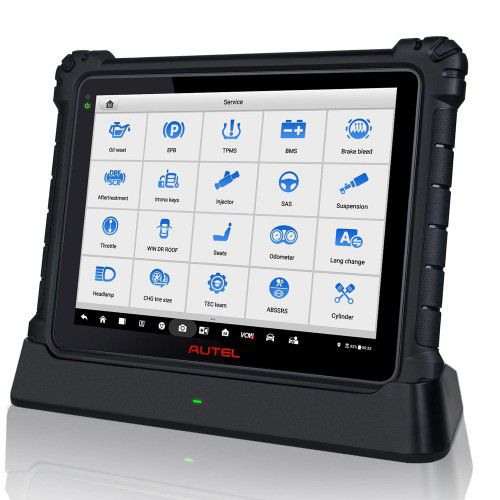

26 Commonly Used Reset Functions for Fast Maintenance or Repairs:
Oil Reset, EPB, BMS, ABS Bleed, TPMS, Airbag Reset, DPF Reg., IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Language Change, Headlight Matching, A/F Setting, WIN DR Roof, Odometer, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption.
10+ Advanced Functions for Different Vehicle Models:Neutral Gear Position Learning, Torque Sensor Adjustment, Signal Check, Yaw Rate Sensor (YRS) Learn, Clutch Pedal Position Learn, Cylinder Power Balance, Component Matching, Stop/Start Reset, Transport Mode, Auto-Door Lock, etc.
- Oil Reset, to reset the oil service lamp for the engine oil life system; EPB Reset, to reset the brake pad after replacing the brake pad.
- ABS Bleeding, to perform various bi-directional tests of Anti-lock Braking System;
- Injector Coding, to write the new code to the ECU after replacement of injector.
- Suspension Calibration, to adjust the height of the body; SAS Calibration, to calibrate the steering angle after replacement.
- Anti-theft Matching, to disable the lost key and add the new key’s data for security.
- BMS Reset, to perform a resetting operation on the monitoring unit of the vehicle battery.
- Tire Pressure Reset, to look up the tire sensor IDs, reset tire pressure, and turn off the tire pressure MIL.
- DPF Reset, to retrieve/erase DPF-related codes, and reset the DPF light.
- Throttle Matching, to make initial settings to throttle actuators.
- Gearbox Matching, to achieve a more comfortable and ideal shift quality.
- WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, Cylinder, Trans Adaption, Airbag Reset, etc., and are still growing.
1). NEW Topology Module Listing CAN BUS Tree
* Single Page Color Coded Module Status Mapping
2). Enhanced DTC Guided AutoScan Module Listing
* Review Module DTCs From AutoScan With Greater Detail
3). Scan VIN NEW Feature - Barcode or Text Recognition
* Easily Scan Vehicle ID by Camera to Identify
5. Secure Gateway Access
Easier Automatic Scan Tool Authentication
* Authorized OEM Access Account Registration
* Confirmation of Compatible Diagnostic Platform
* Approved Credential Stored in Maxisys Software
* Immediate Authorized Secure Gateway Access
* Management of Registered Account Use
![Autel Maxisys Ultra gatewy access](/upload/temp/autel-maxisys-ultra-with-gift-6.jpg)
The Specifications of Autel MaxiSys Ultra:
Operating System | Android 7.0 |
Processor | Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
Memory | 4GB RAM & 256GB On-board Memory |
Display | 12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen |
Connectivity | WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) |
BT v.2.1 + EDR | |
GPS | |
USB 2.0 (Two USB HOST Type A, one USB mini device) | |
HDMI 2.0 | |
SD Card (Support up to 256GB) | |
Camera | Rear: 16 Megapixel, Autofocus with Flashlight |
Front: 5 Megapixel | |
Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
Audio Input/Output | Microphone |
Dual Speakers | |
3-Band 3.5 mm stereo/standard headset jack | |
Power and Battery | 18000mAh 3.8 V lithium-polymer battery |
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C | |
Input Voltage | 12V/3A Adapter |
Operating Temp. | 0 to 50°C (32 to 122°F) |
Storage Temperature | -20 to 60°C (-4 to 140°F) |
Dimensions (WxHxD) | 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34") |
Weight | 2.18kg (4.81 lb) |
Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
Product Comparison Chart:
![Autel Maxisys Ultra Comparison Chat with MS919](/upload/temp/autel-maxisys-ultra-with-gift-7.jpg)

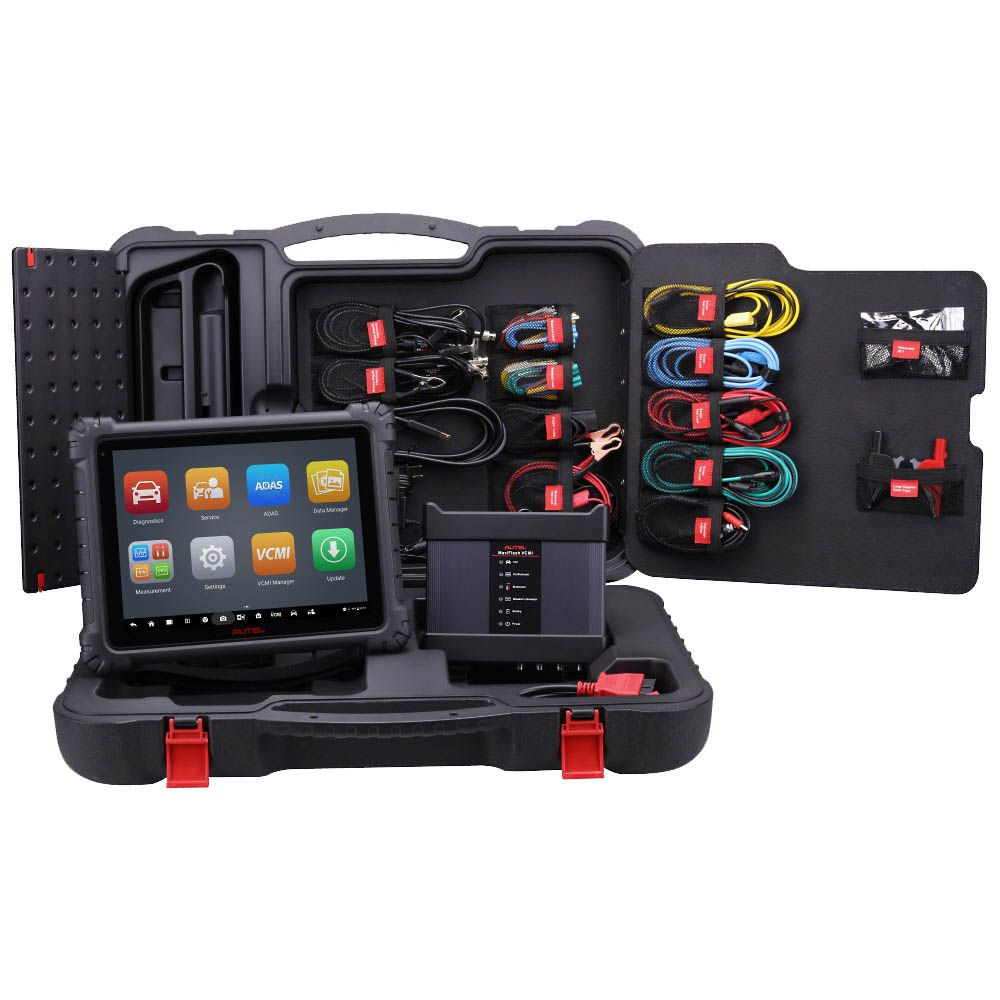

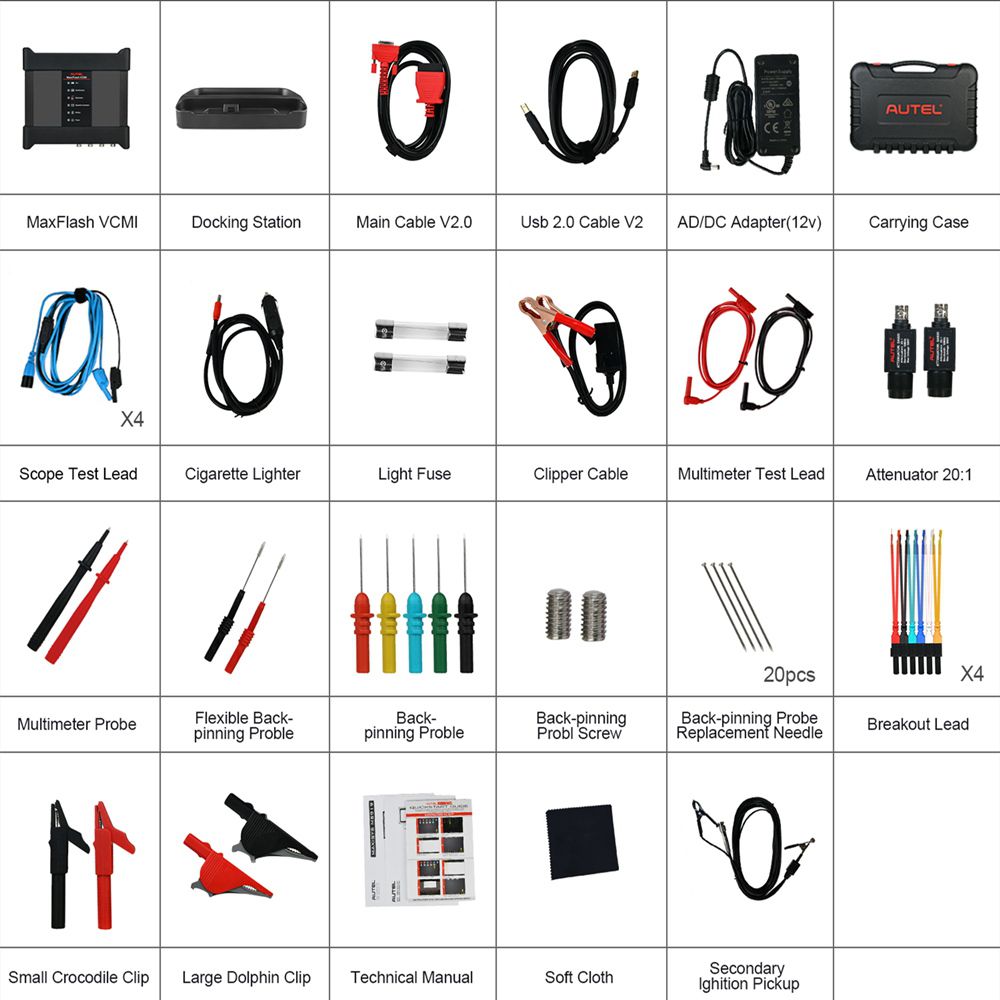

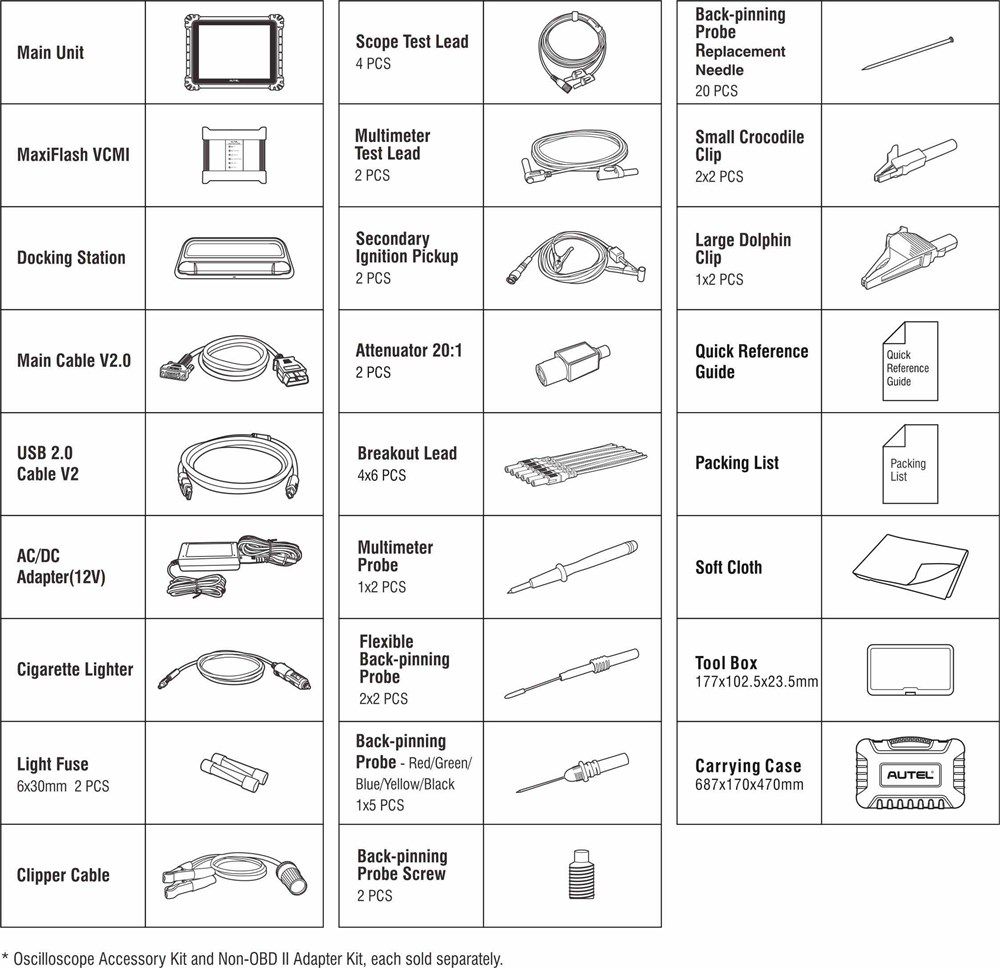

Autel MaxiSys Ultra Package List:
1pc x Main Unit
1pc x MaxiFlash VCMI
1pc x Main Cable V2.0
1pc x USB 2.0 Cable V2
1pc x AC/DC Adapter(12V)
1pc x Cigarette Lighter
2pcs x Light Fuse 6x30mm
1pc x Clipper Cable
4pcs x Scope Test Lead
2pcs x Multimeter Test Lead
2pcs x Secondary Ignition Pickup
2pcs x Attenuator 20:1
1set x Breakout Lead 4x6 PCS
2pcs x Multimeter Probe
1set x Flexible Back-pinning Probe 2x2 PCS
1set x Back-pinning Probe - Red/Green/Blue/Yellow/Black 1x5 PCS
2pcs x Back-pinning Probe Screw
20pcs x Back-pinning Probe Replacement Needle
1set x Small Crocodile Clip 2x2 PCS
1set x Large Dolphin Clip 1x2 PCS
1pc x Quick Reference Guide
1pc x Packing List
1pc x Soft Cloth
1pc x Tool Box
1pc x Carrying Case
![Autel Maxisys Ultra Package](/upload/temp/autel-maxisys-ultra-with-gift-8.jpg)
