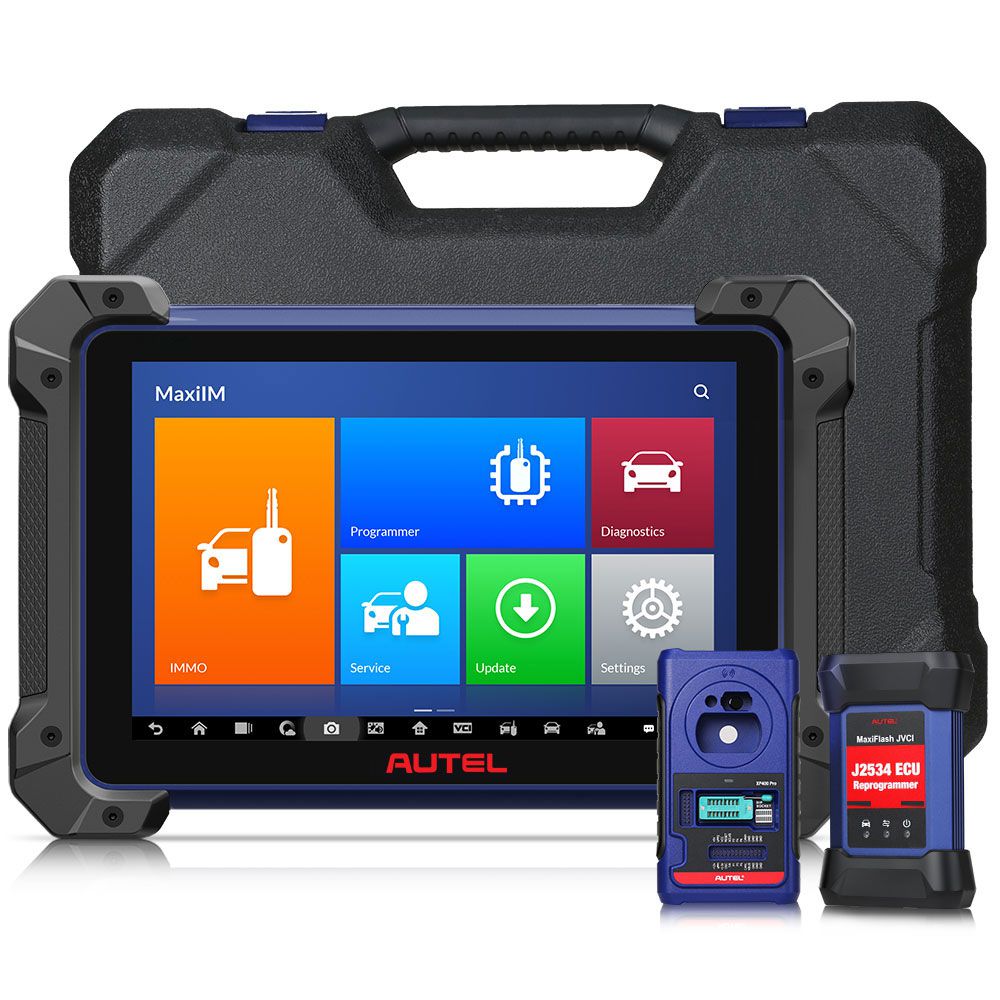

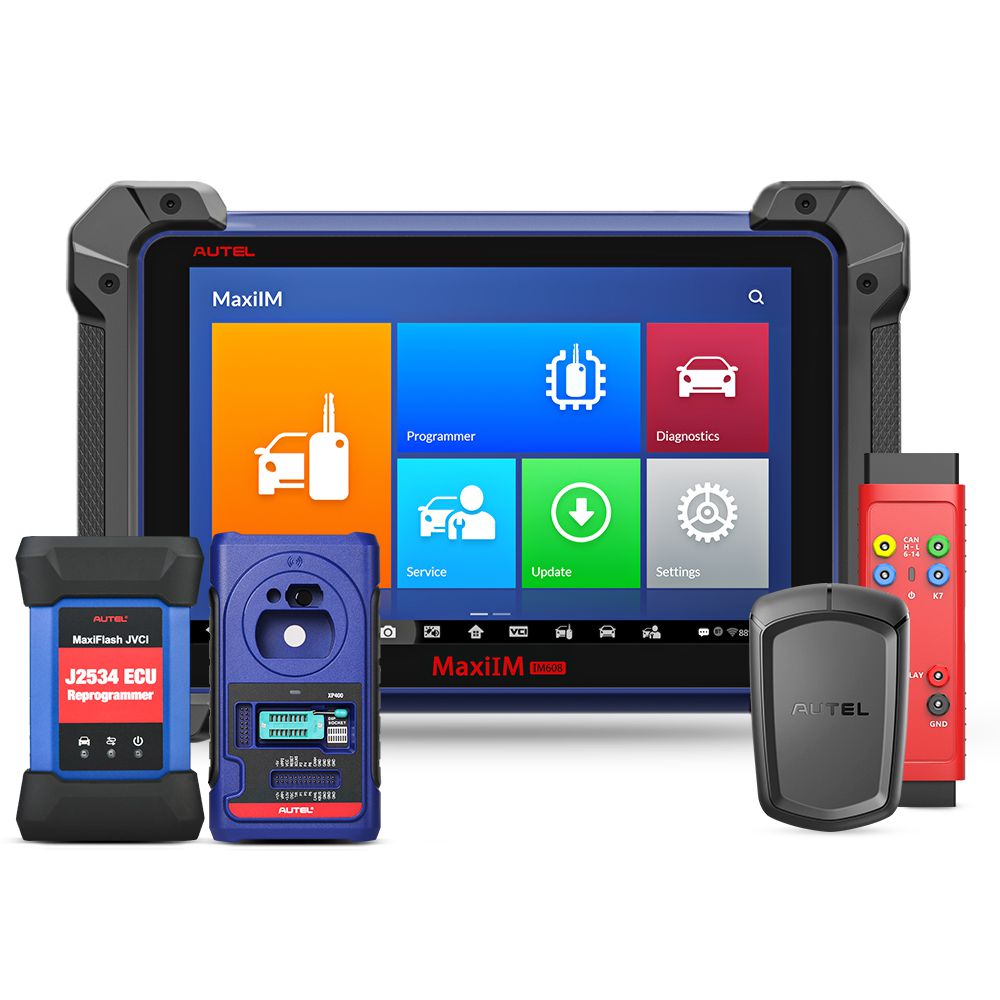

2022 Autel MaxiIM IM608 PRO Auto Key Programmer & Diagnostic Tool Plus APB112 Smart Key Simulator and G-BOX2

Autel MaxiIM IM608 PRO Auto Key Programmer & Diagnostic Tool Plus APB112 Smart Key Simulator and G-BOX2



Autel MaxiIM IM608 PRO Highlights:

1. Package Contains Autel IM608PRO, Autel G-Box2 and Autel APB112
2. Global Version, No IP Blocking Problem.
3. IM608PRO Comes with XP400 Pro Which Adds More Functionality for BMW, Mercedes-BENZ, as well as EEPROM Reading
4. Could be used with IMKPA Accessories (Need to Buy Separately) Which Adds BMW EWS3 Key Learning, Benz NEC Key Learning and BENZ ESL_W209 Read/ Write/ Erase
5. Works for 85% Cars In The Wordwide, Include BMW, BENZ, VW, AUDI etc. make your work simple and easier, Best Choice for locksmith and Workshop
6. Smart Mode and Expert Mode Solution In One Tool to Easy Operation, Works for 85% Cars In the Wordwide, Include BMW, BENZ, VW, AUDI etc
7. Big Promotion: Get 2 Years Free Update Online. After 2 Years, please check Autel MaxiIM IM608/IM608Pro One Year Update Service

Notice:
1. No Holden or Australia Ford Software (Need to buy authorization Separately)
2. J2534 MaxiFlash ECU Programmer Can't Support ECU Online Programming for Benz and BMW.
3. For Service/ Special Functions, please send us VIN nuMBer and the functions you want to check compatibility before purchase.
4. Do Not Connect XP400Pro to Vehicles or Power Supply Directly, Otherwise Both XP400Pro and IM608 Pro Will Be Damaged.

Autel MaxiIM IM608 PRO Auto Key Programmer & Diagnostic Tool Main Features

IMMO & Key Programming Bundle
MaxiIM IM608 Pro 10.1-inch Android Touchscreen Tablet
Program IMMO & Keys for U.S., Asian and European Vehicles
XP400Pro Key and Chip Programmer
JVCI Wireless J2534 Pass Thru Programming Device



AUTEL IM608 PRO Supported Functions :

1. IMMO Functions
Auto Detect Make/Model/Year/System
Read PIN (all key lost)
Key Learning
IMMO ECU Reset/Adaption
IMMO ECU Refresh/Coding
Remote Learning
AUDI Q5/A4/A5 2015-2017 Key Learning
VW MQB Key Learning
BMW FEM/BDC Key Learning and Adaption
BMW CAS4 Key Learning and Adaption
Mercedes Key Learning
2015-2018 Land Rover & Jaguar write key via dump
Volvo Smart Key Learning/knob-style smart key
Advanced Programming Functions
EEPROM Read/Write
MCU Read/Write
Key Programming
Mercedes Key Read/Write
Remote Frequency Detect
OE-Level Diagnoses

2. All System Diagnostics & Advanced Service Functions (Work with the MaxiFlash JVCI (J2534 ECU Reprogrammer)
Oil Service Reset
Parking Brake Pad Relearn After Replacement
Steering Angle Sensor Relearn
Battery Registration and Reset
Diesel Particulate Filter Regeneration
Tire Pressure Monitoring System
Active Test
ECU Coding
VW/Audi Component Protection
Complete Service Functions

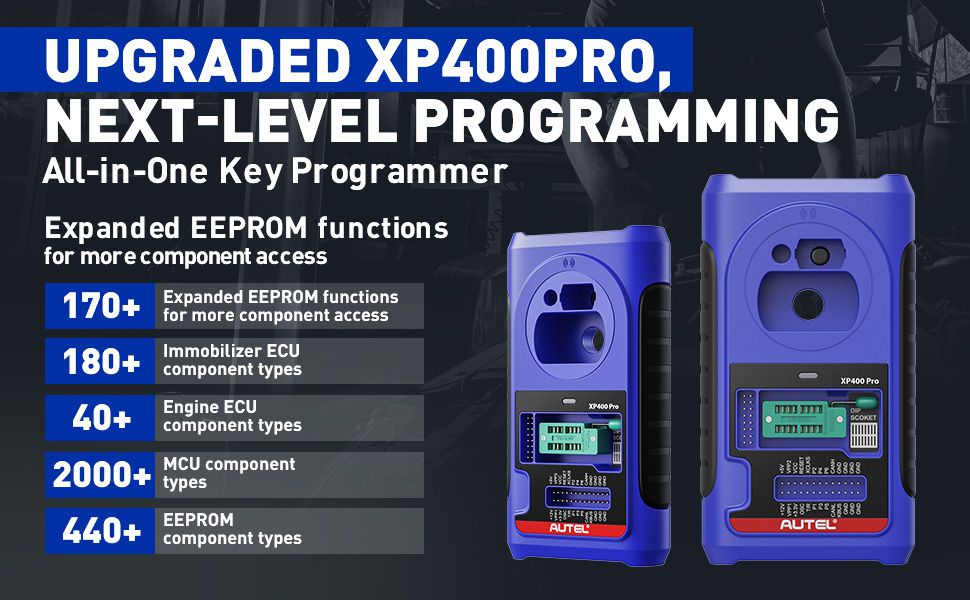

XP400 Pro adds support for following Chips:
EEPROM-->AMD-->AM29FXXX series chip
EEPROM--> FUJITSU-->MB29FXXX series chip
EEPROM-->ST-->M29FXXX series chip
Engine control module-->SIMTEC76(AM29F800BB) write
IMMO-->BENZ-->ESL_W209_W906 (Motorola) read/write/erase function
IMMO-->BMW-->EWS3 module read/write function
REMOTE_RENEW(renew key)-->NEC-->V51 and V5 chip read/write/erase

XP400 Pro adds support for the following adapter board:
APB113 PCF79XX adapter board
APB114 EWS3 adapter board
APB115 NEC Adapter board
APB118 NEC ELV adapter board
APB119 TB28FXXX adapter board
APB120 TMS370 adapter board
APB121 AM29FXXX adapter board
APB122 AM29FXXX adapter board 1
APB123 AM29FXXX adapter board 2
APB126 M35080/D80 adapter board
APB127 MC68HC0(7)05BXX adapter board
APB128 MC68HC05X32 adapter board

Advanced Key Programming Functions:

Exclusive Smart Mode to guide Key Programming
Auto Read IMMO Data via OBD
One-tap Key Programming via OBD & Easy-to-use Remote Programming
With the newly upgraded Key Programmer XP400 Pro
Extensive Vehicle & Functionality Coverage
Support Diagnostics & IMMO Programming for 10,000+ Models;
Support Models Up to 2020;
All System Diagnostics and Advanced Maintenance Services;
Benz -- 3rd Generation IMMO CAN-Line / K-Line Add Key, all key lost via OBD;
BMW -- Support EWS3/4; CAS 1/2/3/4, FEM/BDC Add Key / all key lost;
Volkswagen / Audi -- Add Key / all key lost via OBD for 2013 - 2020 Models;
GM -- Read IMMO Password, Add Key / all key lost up to 2020;
Ford -- Add Key / all key lost (No PIN Needed) up to 2020;
Mazda -- Add Key / all key lost (No PIN Needed) up to 2020;
FCA -- Read IMMO Password, Add Key / all key lost up to 2020;
Renault -- Add Key / all key lost (No PIN Needed) up to 2020
Jaguar LandRover -- Add Key / all key lost up to 2019
Volvo -- Semi-smart Key Learning via OBD up to 2018; Smart / Blade / Fobik Key Learning via Dump



Autel APB112 Highlights:
Autel APB112 smart key simulator is used to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip. It can also simulate the vehicle key chip.

1. Smart key simulator
2. Compatible with IM608, IM508, and MX808IM
3. Compact but would need to be used with the XP400
4. Cannot be used with the XP200
5. 46, 4D data collection
6. 46 smart key password calculation
7. 46 chip simulation
8. Toyota 4D (94/ D4, 98) smart key simulation
9. Toyota H (88/ A8, A9, 39) smart key simulation
10. Collects data from the ignition coil
11. Identify ignition coil troubles
12. Decode vehicle key chip data
13. Simulate vehicle key chip (ex - 4D chip)
14. Must be used with an Autel diagnostic tool
15. Toyota/ Lexus smart key all key lost
16. Chip decoding (Hyundai 46)

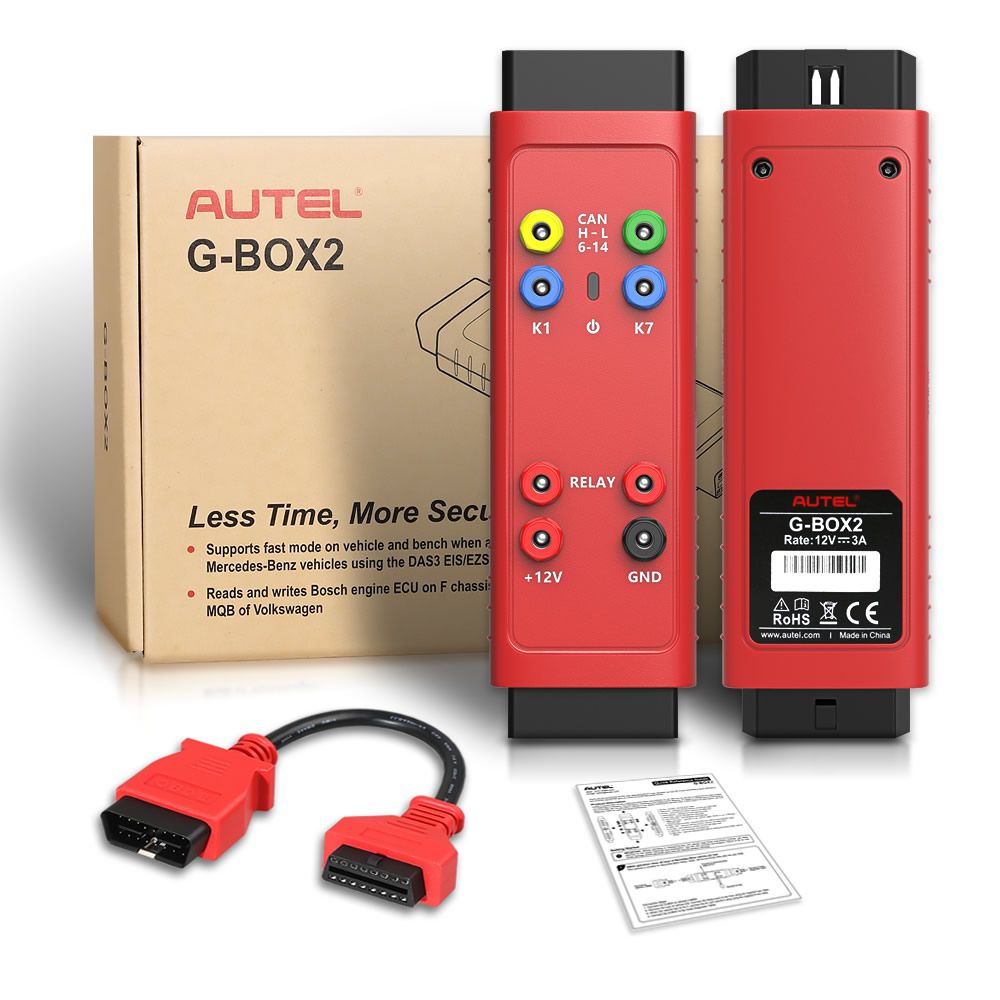

Autel G-BOX2 Highlights:

1. Supports Mercedes Benz all key lost, faster calculate password
2. Supports IM608 or IM508 with XP400
3. Used for Faster Mercedes ECU data and EIS password calculation
4. Mercedes DAS3 can EIS/EZS all keys lost
5. Reduces reading time of W204 ECU data & W207 EIS by over 85%
6. No need to remove and reinsert the key for W221 & W164 after 2009 Models

Package List:

Autel IM608Pro Package:
1pc x MaxiIM IM608 Tablet
1pc x XP400 Pro Key Programmer
1pc x MaxiFlash JVCI ECU Reprogrammer
1pc x Carry Case
1pc x Main Cable
1pc x USB Cable (2m)
1pc x Mini USB Cable
1pc x AC/DC Adapter (12V)
1pc x Light Fuse - 6*30mm (2pcs)
1pc x Cigarette Lighter
1pc x AAC001
1pc x APC101 (USB Cable)
1pc x APB129 (EEPROM Adapter)
1pc x APB125 (Mercedes Infrared Collector)
1pc x APB103 (MCU_PLCC52)
1pc x APB104 (MCU_FQFP64)
1pc x APB105 (MCU_FQFP80)
1pc x APB106 (MCU_FQFP112)
1pc x APB107 (MCU_FQFP144)
1pc x APB108 (MCU_FQFP176)
1pc x APB109
1pc x APB110 (MCU_FQFP176)
1pc x APB111 (MCU_FQFP176)
1pc x APA002 (EEPROM Socket)
1pc x APA101 (Signal Cable)
1pc x APA103 (EEPROM Clamp)
1pc x APA107 (ECU Clamp)
1pc x APA108 (MCU Clamp)
1pc x APA109 (MC9S12 Clamp)
1pc x Connect Cable

G-Box2 Package:
1pc x Autel G-BOX2
1pc x DB15 Cable
1pc x K-Line Cable
1pc x Fuse Cable
2pcs x Fuse (5A)
2pcs x Clamp Cable
1pc x OBDII Extension Cable
1pc x Quick Reference Guide

APB112 Package:
1pc x AUTEL APB112 Main Unit
1pc x USB Cable
