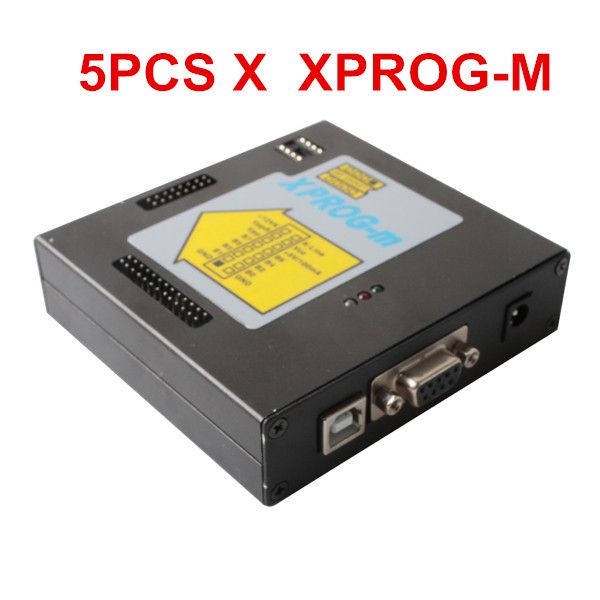

5pcs Newest Version XPROG-M V5.3 Plus With Dongle

5pcs Newest Version XPROG-M V5.3 Plus with Dongle

Note:
1. Win XP (English Version) Operating System Needed
2. It supports microchips freescale MAC, INFINEON, RENESAS.
3. Before connect the USB dongle to PC and run software, please disable the antivirus and firewall (or uninstall the antivirus software); once the software is deleted or corrupted by mistake, we could not supply back up software!

68 HC908:

XC68HC708AZ60 (8 H62A)
0 L72A
3 K56G
0 L07H
0 L59XZ, reading and writing, support network security box down from the reading and writing
Siemens IMMO new 0 L72A E security box down from reading and writing
MingRui SRS computer 1 L02M literacy and the wiring diagram
1 J35D (68 HC908AZ60) EEPROM of reading and writing

9 S12:

9 S12KG128 reading, writing
9 S12KG128 encryption, reading, writing

9 S12X:

9 S12XDA/B/G 128 EEPROM + FLASH, reading, writing
9 S12XDA/B/G 128 EEPROM + FLASH encryption, reading, writing
9 S12XDT/P384 EEPROM + FLASH, reading, writing
9 S12XDT/P384 EEPROM + FLASH encryption, reading, writing
9 S12XHZ256, 9 S12XHZ384 EEPROM + FLASH, reading, writing
9 S12XHZ256, 9 S12XHZ384 EEPROM + FLASH reading and writing, reading, writing
9 S12XHZ512 EEPROM + FLASH reading and writing (support fox instrument replacement CPU)
9 S12XHZ512 encryption EEPROM + FLASH reading and writing (support high 6 way view instrument)
2011 new sound of S12XEG384 BCU 9 (3 M25J) EEPROM read, the wiring diagram

TMS:
Some TMS370 374

Other:
Add the following meter:
2006 TuAn
2009-2010 step into soar team champion edition
2010 1.4 TSI step into soar team
SEAT 2006 LEON
Add some meter hookup
BOSCH engine computer MPC wiring definition

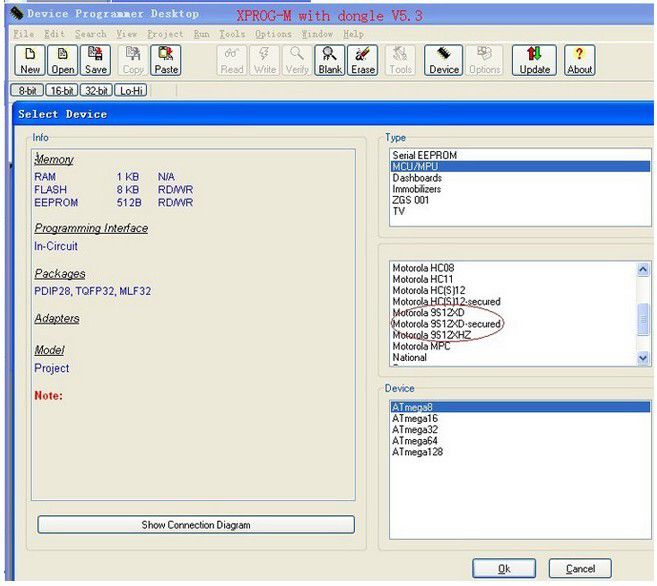

XPROG-M V5.3 Software Display:





Difference Between XPROG-M V5.3 and V5.0

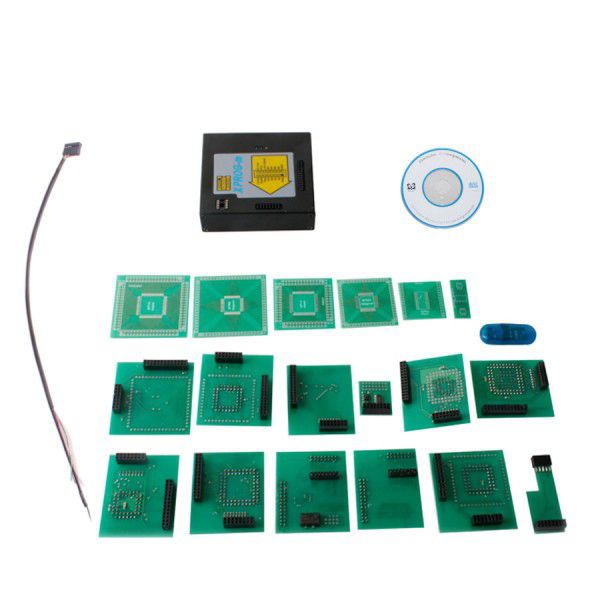

Package List:

XPROG-M machine
USB cable
USB dongle+CD software
16PIN cable
EWS3 adaptor
EEPROM adaptor
QFP28 adaptor
QFP144 adaptor
QFP80 adaptor
QFP64 adaptor
QFP112 adaptor
HC05BX adaptor (PLC52 1-002-0004)
HC05BX adaptor (QFP64 1-002-0005)
MC68HC05V12 adaptor (1-002-0009)
HC(S)12 BDM adaptor (1-002-0017)
M35080 ICP adaptor (1-002-0006)
TMS374 adaptor (1-002-0010)
TMS374/uPD78 IC adaptor (1-002-0008)
TMS370 adaptor (PLCC28 1-002-0002)
HC11E9/EA9 adaptor (PLCC52 1-002-0011)
TMS370 adaptor (PLCC28 1-002-0001 / PLCC68 1-002-0003)
TMS370 adaptor (PLCC28 1-002-0001 / PLCC68 1-002-0003)
