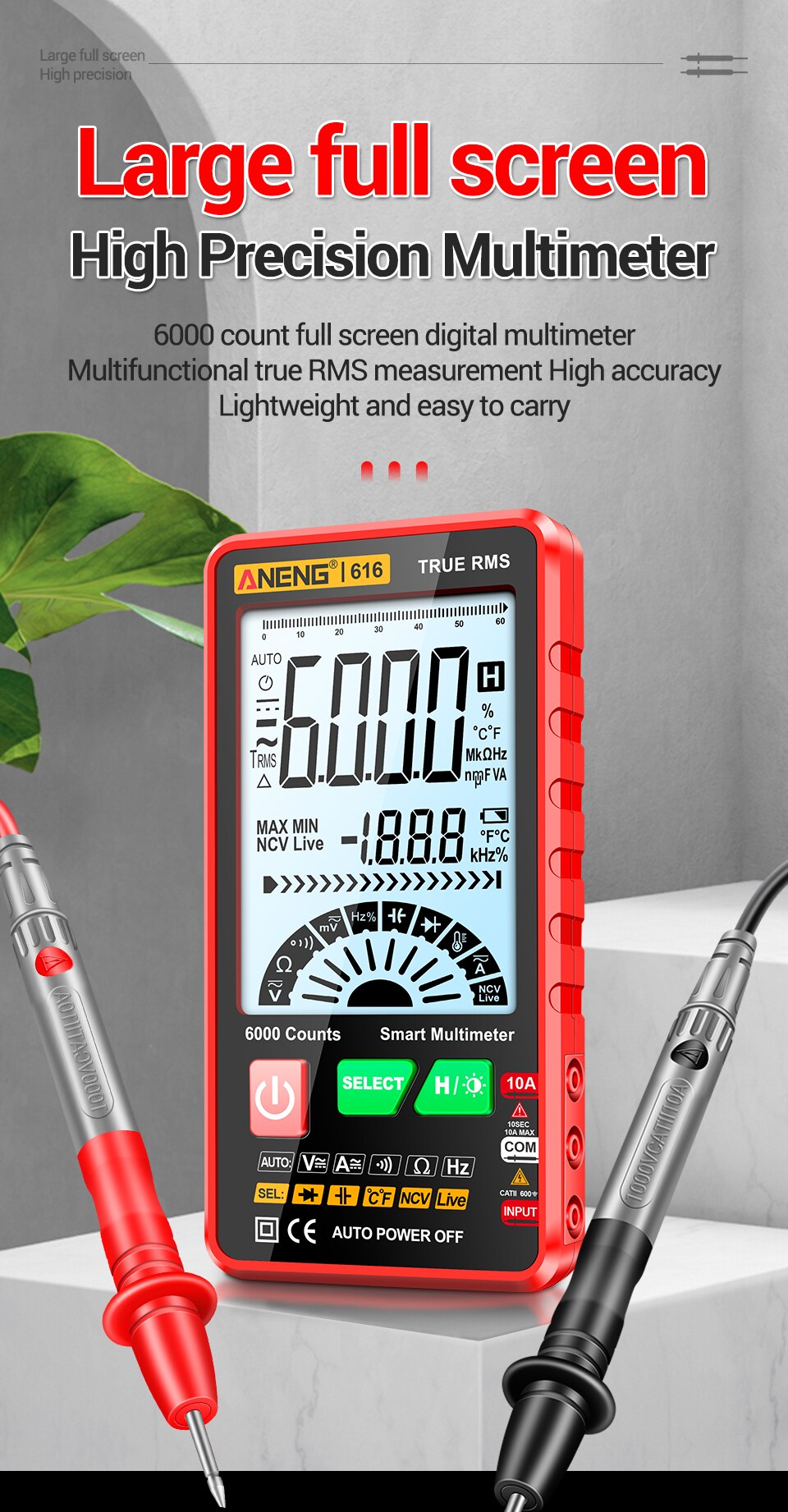

This product is a battery-powered, auto-ranging, true RMS digital multimeter with a 6000 counts LCD display.
616 is a 6000 count pocket type true effective value automatic scanning digital meter.
616 automatically recognizes and measures according to the different input voltage/current/resistance/etc. signals.
616 has the characteristics of stable performance, high precision and clear reading.
616 also has additional convenient functions of flashlight test.
616 is an ideal tool and instrument suitable for factories, teaching and electronic enthusiasts.
Features:

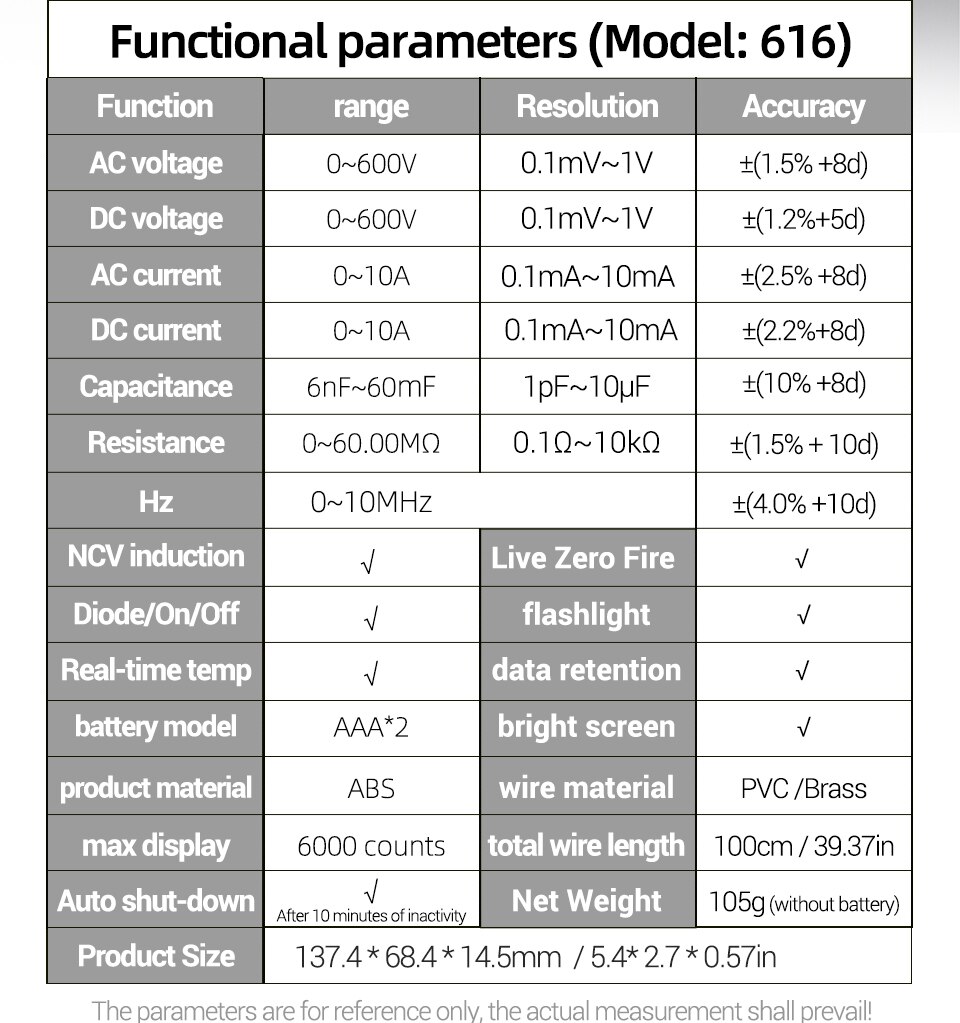

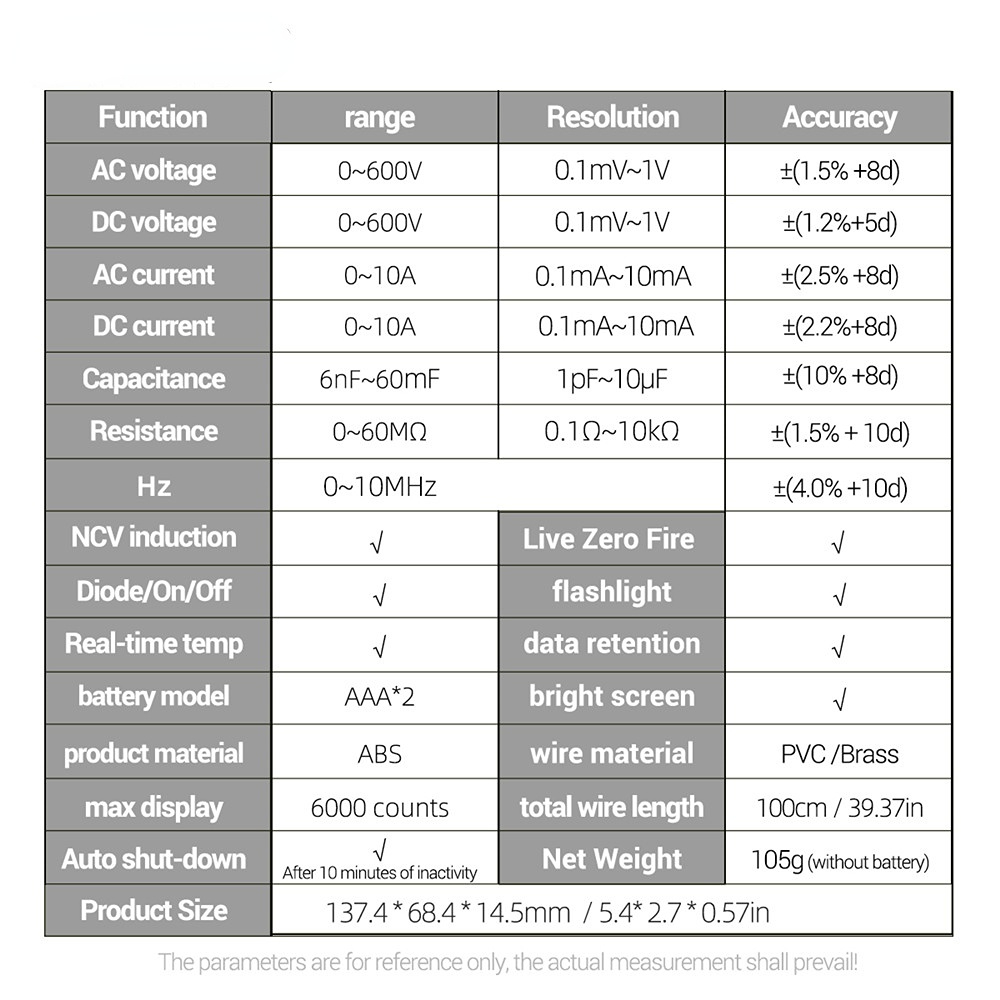

| Function | Range | Resolution | Accuracy |
| AC voltage | 0~600V | 0.1mV~1V | ±(1.5%+8d) |
| DC voltage | 0~600V | 0.1mV~1V | ±(1.2%+5d) |
| AC current | 0~10A | 0.1mA~10mA | ±(2.5%+8d) |
| DC current | 0~10A | 0.1mA~10mA | ±(2.2%+8d) |
| Capacitance | 6nF~60mF | 1pF~10μF | ±(10%+8d) |
| Resistance | 0~60MΩ | 0.1Ω~10kΩ | ±(1.5%+10d) |
| Hz | 0~10MHz | ±(4.0%+10d) | |
| NCV induction | √ | Live Zero Fire | √ |
| Diode/On/Off | √ | flashlight | √ |
| Real-time temp | √ | data retention | √ |
| battery model | AAA*2 | bright screen | √ |
| product material | ABS | wire material | PVC/Brass |
| max display | 6000 counts | total wire length | 100cm/39.37in |
| Auto shut-down | √ | Net Weight | 105g(without battery) |

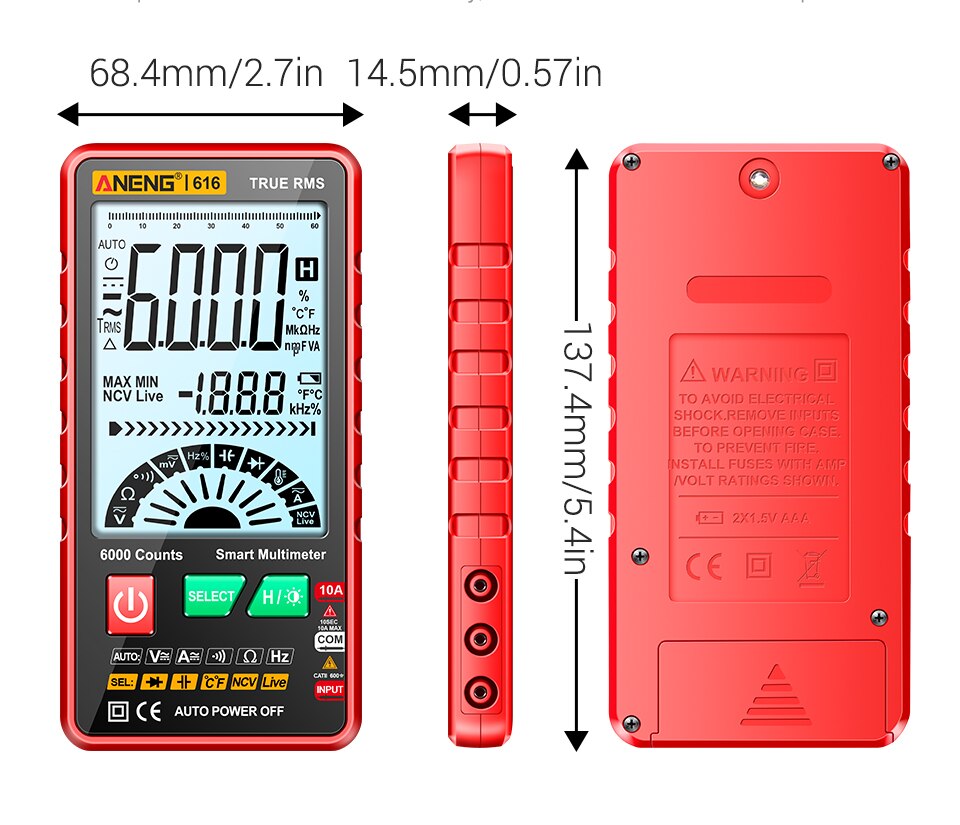

| Product Size | 137.4*68.4*14.5mm/5.4*2.7*0.57in | ||
Packing List:
1 * Digital Multimeter
1 * Test leads
1 * English user Manual
1* Temperature line
1* Storage bag
1* Needle Tip Probe
1 * Packing box
