MS8212A Pen type Digital Multimeter Multimetro DC AC Voltage Current Tester Diode Continuity Logic Non-contact Voltage

Features and specifications:

Please Note:
1. Batteries and color box not included.
2. Sometimes the English manual print is on A4 paper.

Specifications:
1. Environmental conditions: 600V VAT.III
2. Pollution degree: 2 Altitude<2000m
3. Operating temperature: 0-40C,32F~122F（<70%RH,battery removed）
4. Max.show value:1999(3 1/2)
5. Polarity indication: "-"indicates negative polarity
6. Overrange indication: Display "OL"
7. Sampling time: approx. 0.4 second
8. Unit showing: Showing of function and electrical capacity
9. Low battery indication
10. Fuse protection: F250mA/250V
11. Power supply: 1.5V x 2 AAA battery(Not included)
12. Dimension: 222 x 43 x 29 mm

DC Voltage: 200mV/2V/20V/200V/600V ±0.7%+2
AC Voltage: 200mV/2V/20V/200V/600V ±0.8%+3
DC Current: 20mA/200mA ±1.5%+3
AC Current: 20mA/200mA ±2.0%+3
Resistance: 200/2K/20K/200K/2Mohm ±1.0%+1, 20Mohm ±1.0%+5
Continunity test
Diode test
Logic test

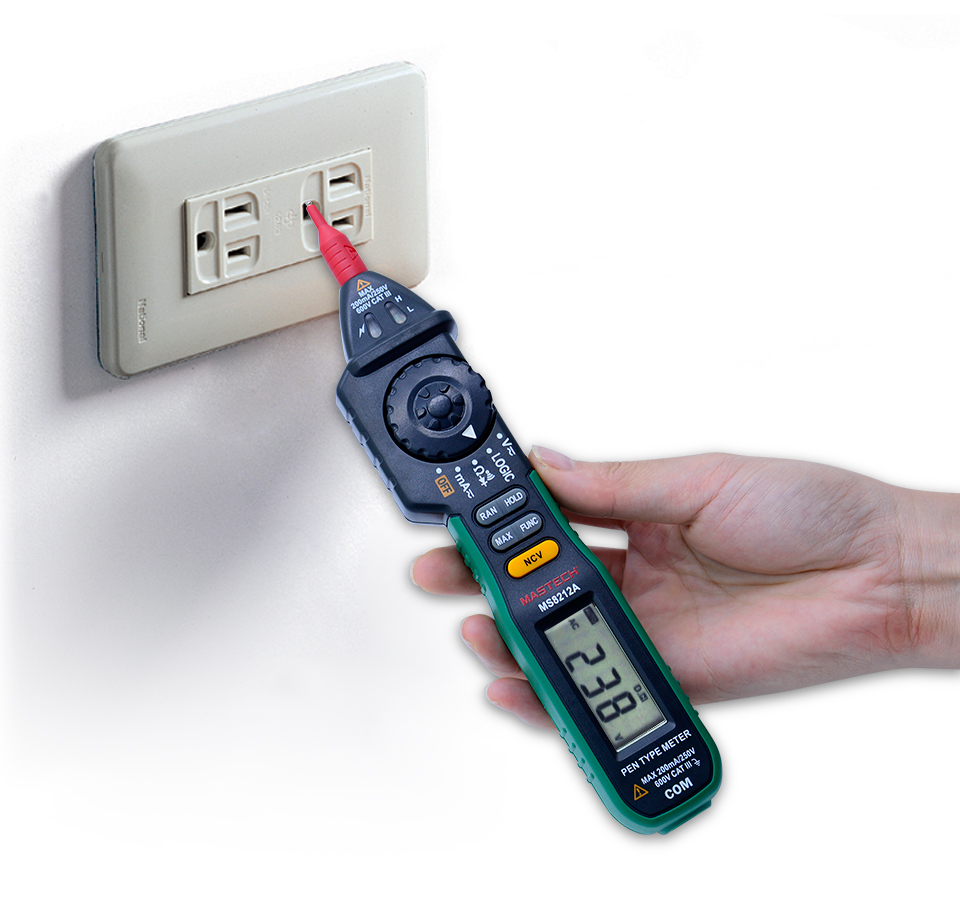

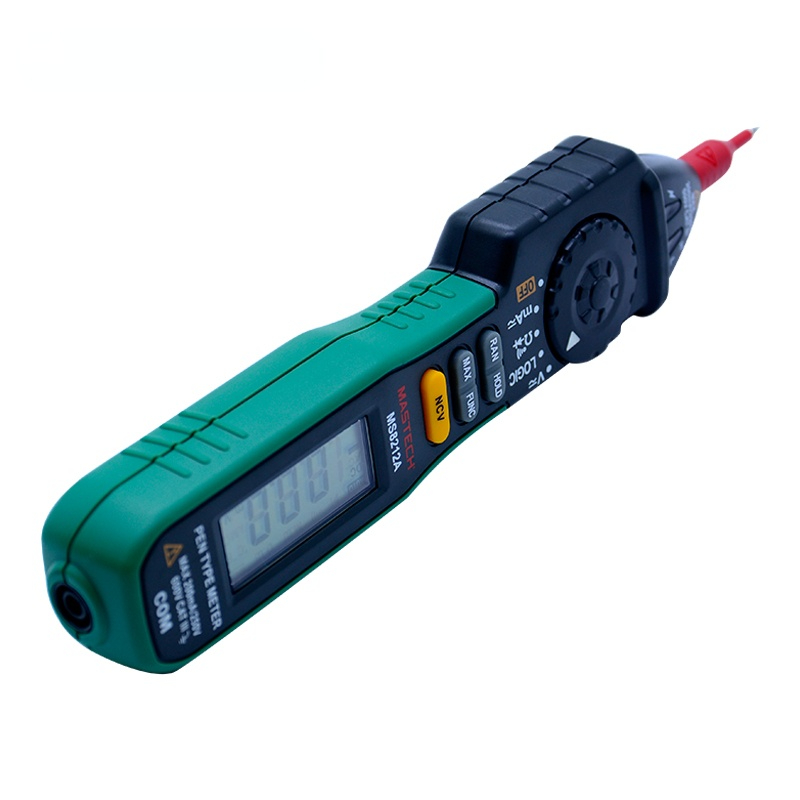

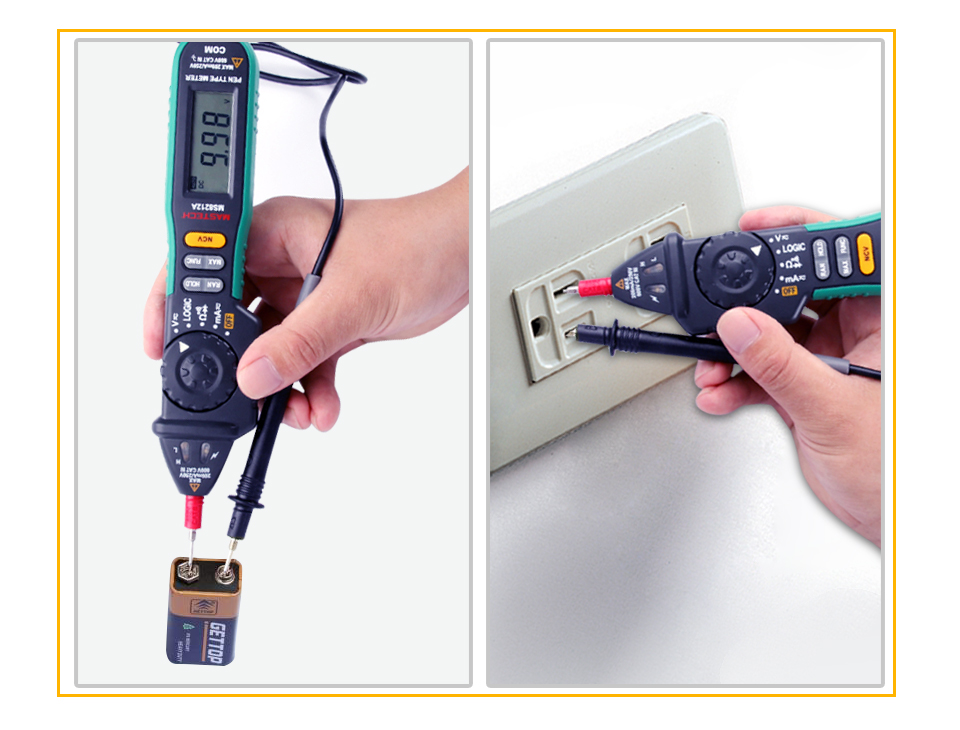

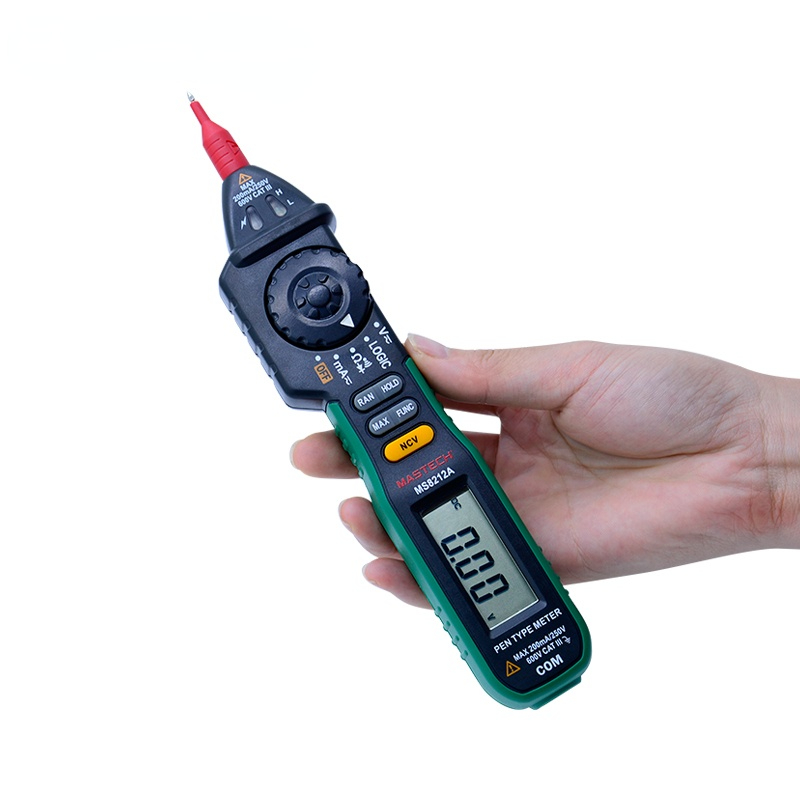

Showcase

Panel Introduction

1. Positive test probe"+"
2. Probe Cover(Removable)
3. NCV indicator
4. LED indicator
5. Rotary switch
6. Range button (RAN)
7. Max hold button (MAX)
8. Data hold button (HOLD)
9. Function button (FUNC)
10. Non-contact voltage button (NCV)
11. LCD screen
12. COM Jack"-"

Spacifications & Features

More Details

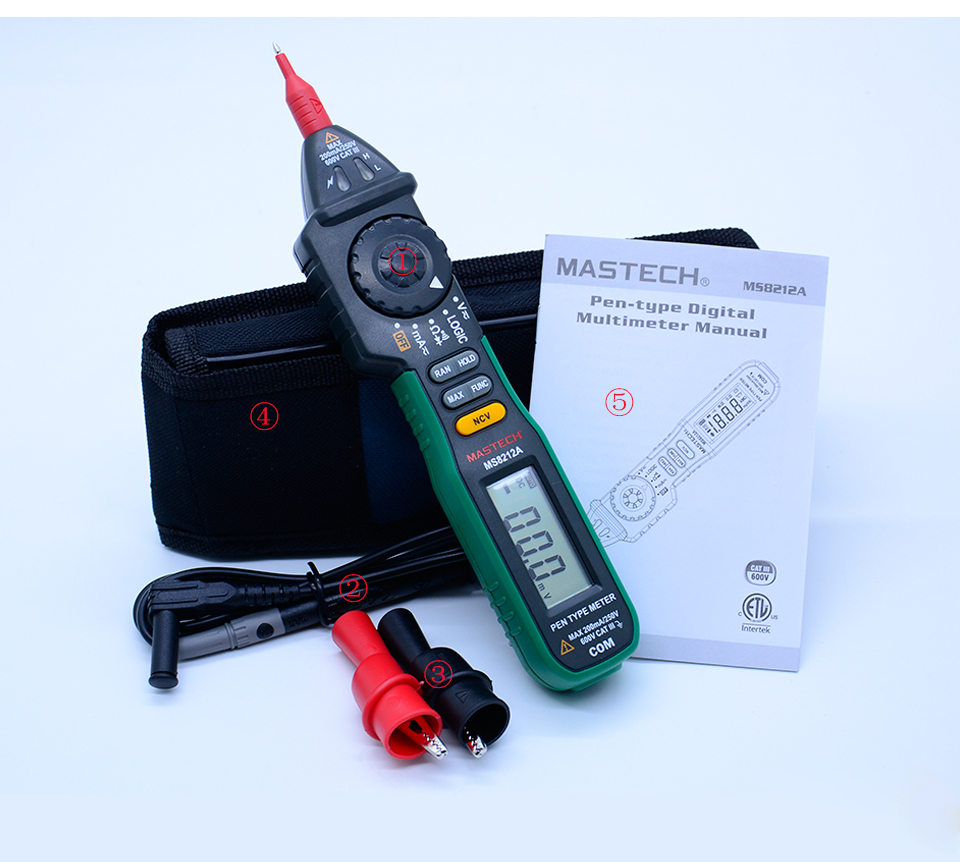

Packing List

1 x Pen type digital multimeter MS8212A
1 x Test leads
1 x Black red clips
1 x Pouch bag
1 x English manual (Sometimes print by A4 paper)
