Yanhua Mini ACDP-2 BMW IMMO Package with Module1/2/3 for BMW CAS1-CAS4+/FEM/BMW DME ISN Read & Write Added B48/N20/N55/B38 Bench Board

Yanhua Mini ACDP-2 Master with Module1/2/3 for BMW CAS1-CAS4+/FEM/BDC/BMW DME ISN Read & Write Added B48/N20/N55/B38 Bench Board

Yanhua Mini ACDP-2 BMW IMMO Package Includes as below:

1. Basic Module
Support 93 /24/ 25 / 35/ 95 Series EEPROM in circuit programming (ICP) and on adapter board programming (OBP),
and parts of Freescale / NEC MCU in circuit programming (ICP). This module is a necessary basic configuration for other modules.

2. CAS Module
(1) Support CAS1 – CAS3+ IMMO Key Programming by OBD or ICP mode, Mileage reset, Read/Write EEPROM and FLASH data.
(2) Support CAS4/CAS4+ IMMO Key Programming in circuit programming (ICP), Mileage reset, Read/Write EEPROM and FLASH data.
(3) Newly add CAS4/CAS4+ OBD Function
Yanhua Mini ACDP Upgrading functions: CAS1 (0K50E), CAS2 (2k79x), CAS3 (0L01Y/0L15Y/0M23S), CAS4 (1L15Y/5M48H/1N35H) refresh & coding by ICP.

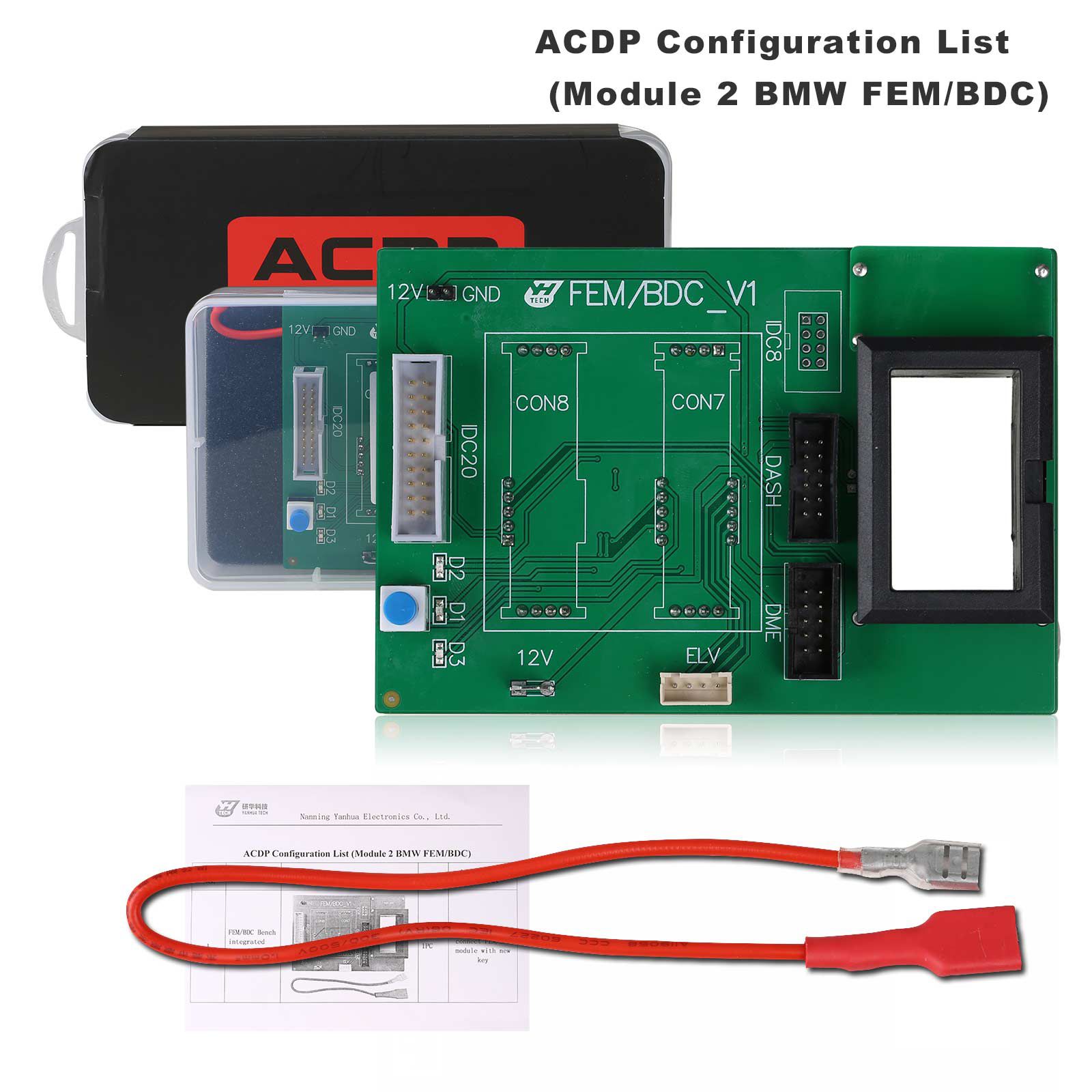

3. FEM / BDC Module
Support FEM/BDC IMMO Key Programming by ICP or OBP mode, Mileage reset, Recover/Backup data.

4. ISN Module
Read/write N20/N55/N13 ISN code via OBD.
Read/write MSV80/MSD85 ISN code without opening DME shell.
Read/write other DME ISN code by opening DME shell.

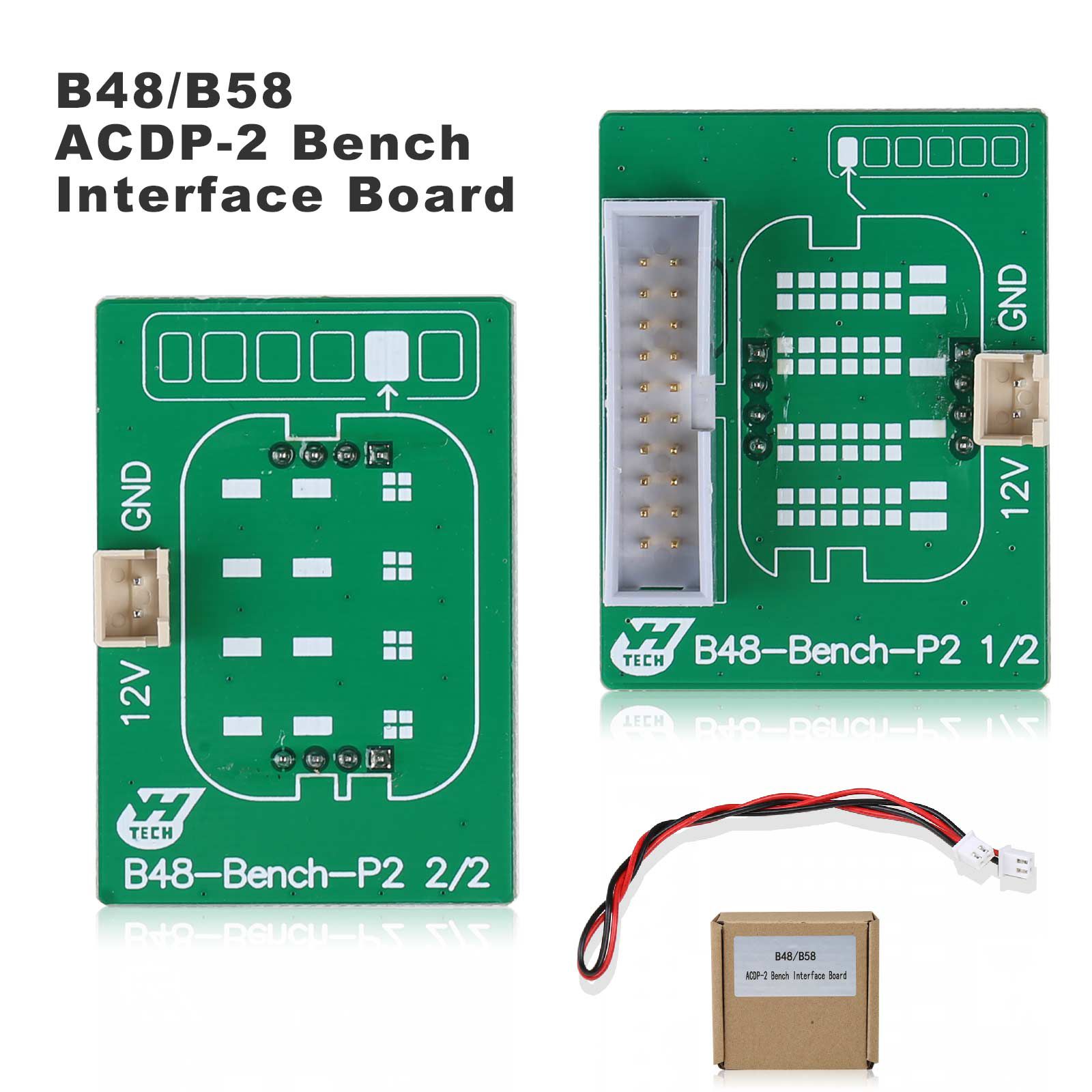

5.B48 bench interface board (Newly Added)
Read the ISN of B48 without wiring

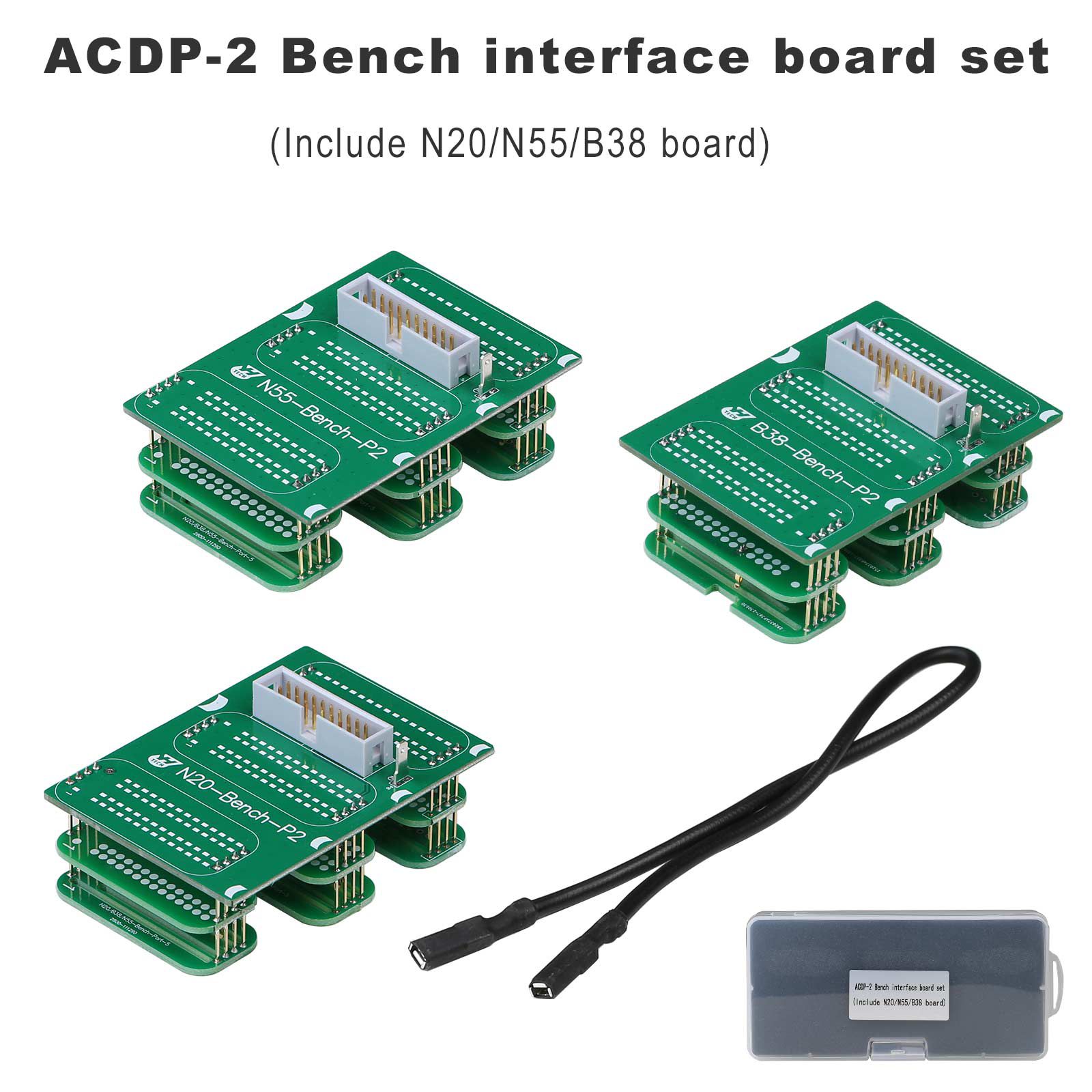

6. N20/N55/B38 bench interface board (Newly Added)
No need to open the DME shell, No need to drill the hole, No need to insert the cable. Read/Write N20/N55/B38 DME ISN
Will extend the function of cloning N20/N55/B38

Notice:
ACDP Module 3, 8, 12, 15, 18, 19, 25 and 30 Can't be used with ACDP-2. Please select the corresponding version.



Yanhua Mini ACDP-2 Highlights:

Test car NO longer needs engines
YANHUA car keys programming NO longer need soldering iron
Car locksmith NO longer needs soldering work.
The first in the world
Programming no need soldering

Yanhua Mini ACDP-2 IMMO/Mileage Programming

No need to remove chip
No need soldering
No need to cut the line
No need to lift the pin

Yanhua Mini ACDP-2 Operating System:

IOS: iPhone/iPad/MAC
IOS System Requirement:
1. System Version: 9.0 or above
2. Cell Phone Models: iPhone 6 or above
3. Running Memory Ram: >2G
4. Storange Space rom: >1.5G

Android: Xiaomi, OPPO,Samsung etc Qualcomm chipset mobile phones (DOESN'T support Huawei)
Android System Requirement:
1. System Version: 5.0 or Above
2. Running Memory Ram: >2G
3. Storage Space Rom: >1.5G

PC Version: PC Software Free Download
For installation instruction, please refer to our official blog How to Use Yanhua Mini ACDP PC Version

Yanhua Mini ACDP IOS App Installation Instruction
Yanhua Mini ACDP Android App Installation Instruction
Yanhua Mini ACDP IOS Version Import Data to PC Instruction
Yanhua Mini ACDP Android Version Import Data to PC Instruction

ICP: Memory and MCU programming In Circuits



MCU programming in Circuits


Yanhua Mini ACDP 2 Functions

1. Memory programming:
Support 93/24/25/35/95 series EEPROM in circuit (ICP)and on board(OBP)programming and parts of Freescale/ NEC MCU in circuit programming(ICP).

2. BMW module programming:
(1) Support cas1-cas4+and FEM/BDC IMMO key programming, mileage reset, program recovery.
(2)BMW engine ECU data reading and ISN code reading

3. VW module programming. MMC instrument
4. Instrument mileage and airbag ECU reset/maintenance is under development.
5. BENZ. BMW Audi and various models are upgraded successively

BMW CAS1-CAS3+ Key Programming by OBD (Function Included Already, no need to pay more):
Read CAS EEPROM
Add Keys
Reset Mileage
Back up or recover CAS
All keys lost

BMW CAS4/CAS4+ (Function Included Already, no need to pay more):
Read CAS4 EEPROM without soldering/welding
Add Keys without soldering/welding
Reset Mileage without soldering/welding
Back up or recover CAS without soldering/welding
All keys lost without soldering/welding

FEM/BDC (Function Included Already, no need to pay more):
All keys lost without soldering/welding
Add keys without soldering/welding
Delete Keys without soldering/welding
Enable/Disable keys without soldering/welding
Read Key ID
Repair/Replace FEM Module without soldering/welding
Reset Mileage without soldering/welding

Read and Write ISN Code (Function Included Already, no need to pay more):
N20(mevd1724, mevd172P, mevd1729), N13(mevd1725, ), N55(mevd172, mevd1726, mevd172G, mevd172S, MEVD17, ), MSV80, MSD81, MSD85, MSD85HY, MSD87, MSV90, MEVD1728(s63), mev1722, med172, mevd1727, dde701_edc17c50, BMSX….

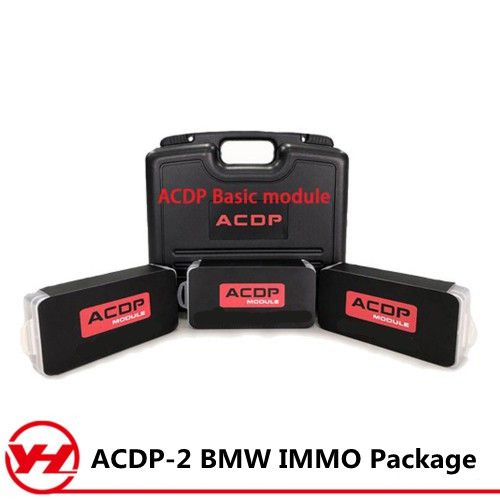

Package List:

1pc x ACDP-2 Master Basic Module
1pc x ACDP-2 Module 1
1pc x ACDP-2 Module 2
1pc x ACDP-2 Module 3
1pc x B48 bench interface board (Newly Added)
1pc x N20/N55/B38 bench interface board (Newly Added)
