Yanhua Mini ACDP-2 Second Generation Module8 for BMW FRM Footwell Module Refresh/ Recover 0L15Y 3M25J Read/Write No Need Soldering

Yanhua Mini ACDP-2 Second Generation Module8 for BMW FRM Footwell Module 0L15Y 3M25J Read/Write No Need Soldering

#Support BMW FRM (Footwell) module refresh/recover.

Function:

Repair FRM(3M25J Chip) without coding
Read and write BMW FRM module(FRM Footwell module) 0L15Y chip
EEPROM/FLASH data, No Need Soldering.
Read and write 3M25J chip EPPROM/D-FLASH/P-FLASH data

Feature:

The interface board replaces the welding wire.
The pin connect with intelligent detection.
The data reading and writing is safe and reliable.

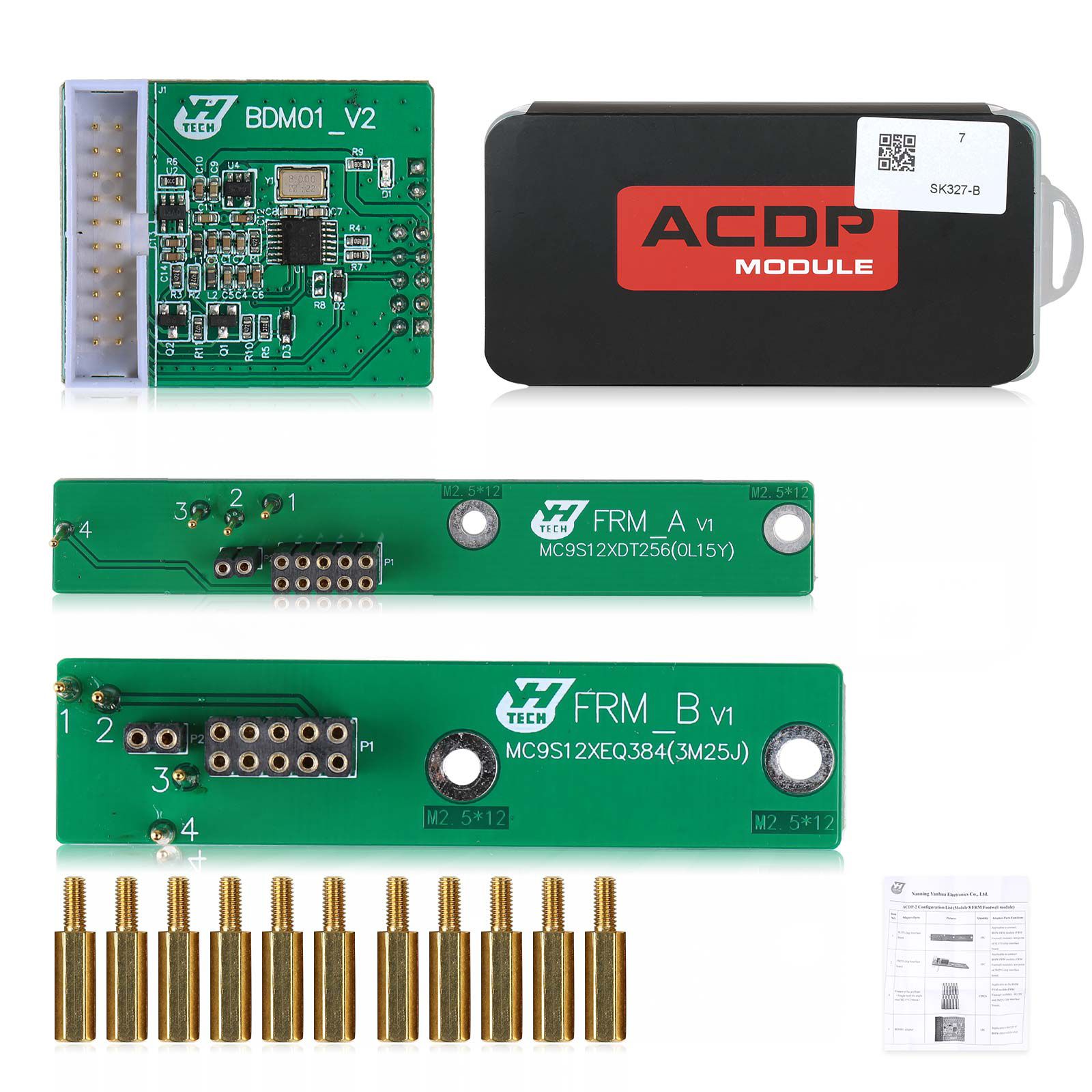

Item NO.	Adapters/Parts	Quantity	Adapters/Parts Functions

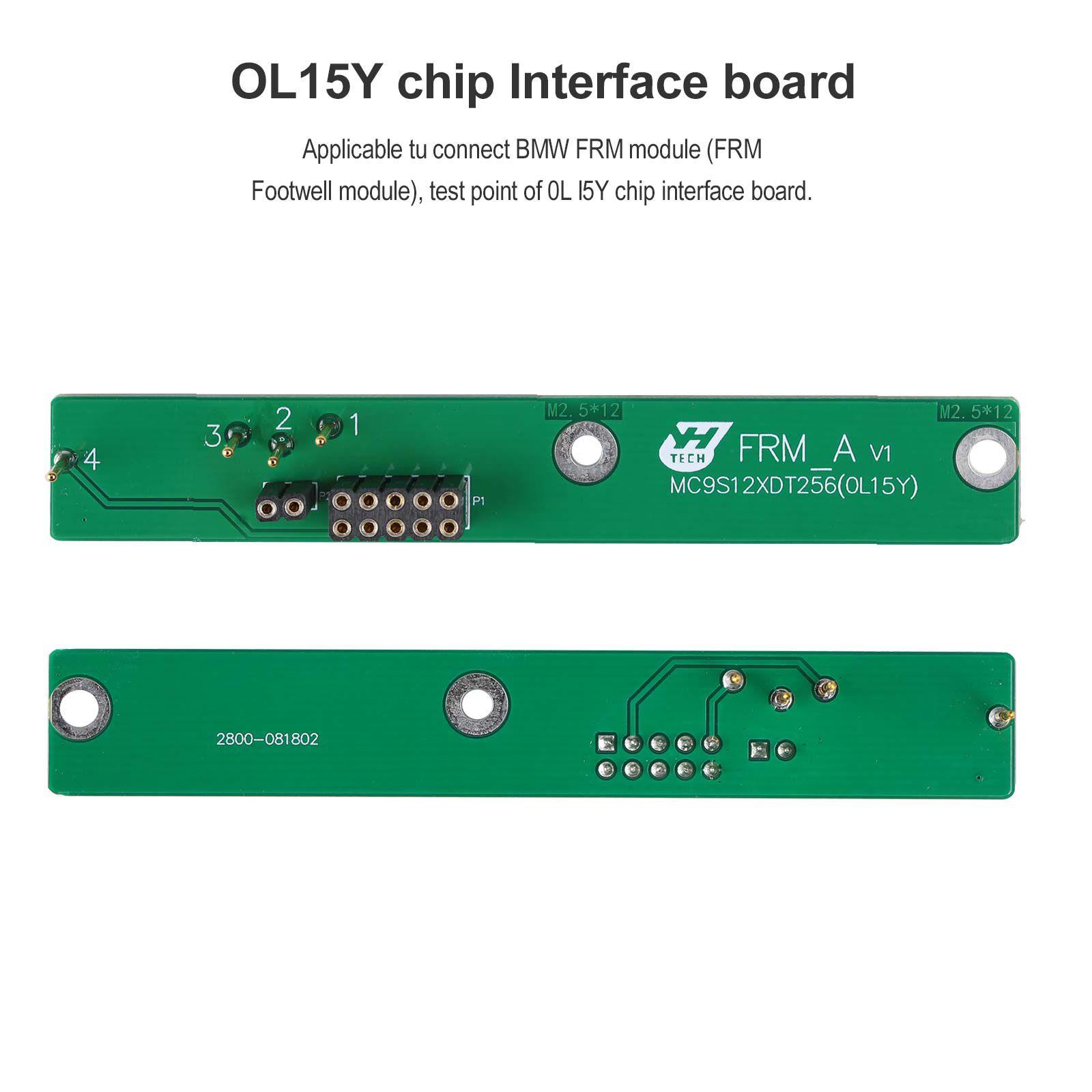

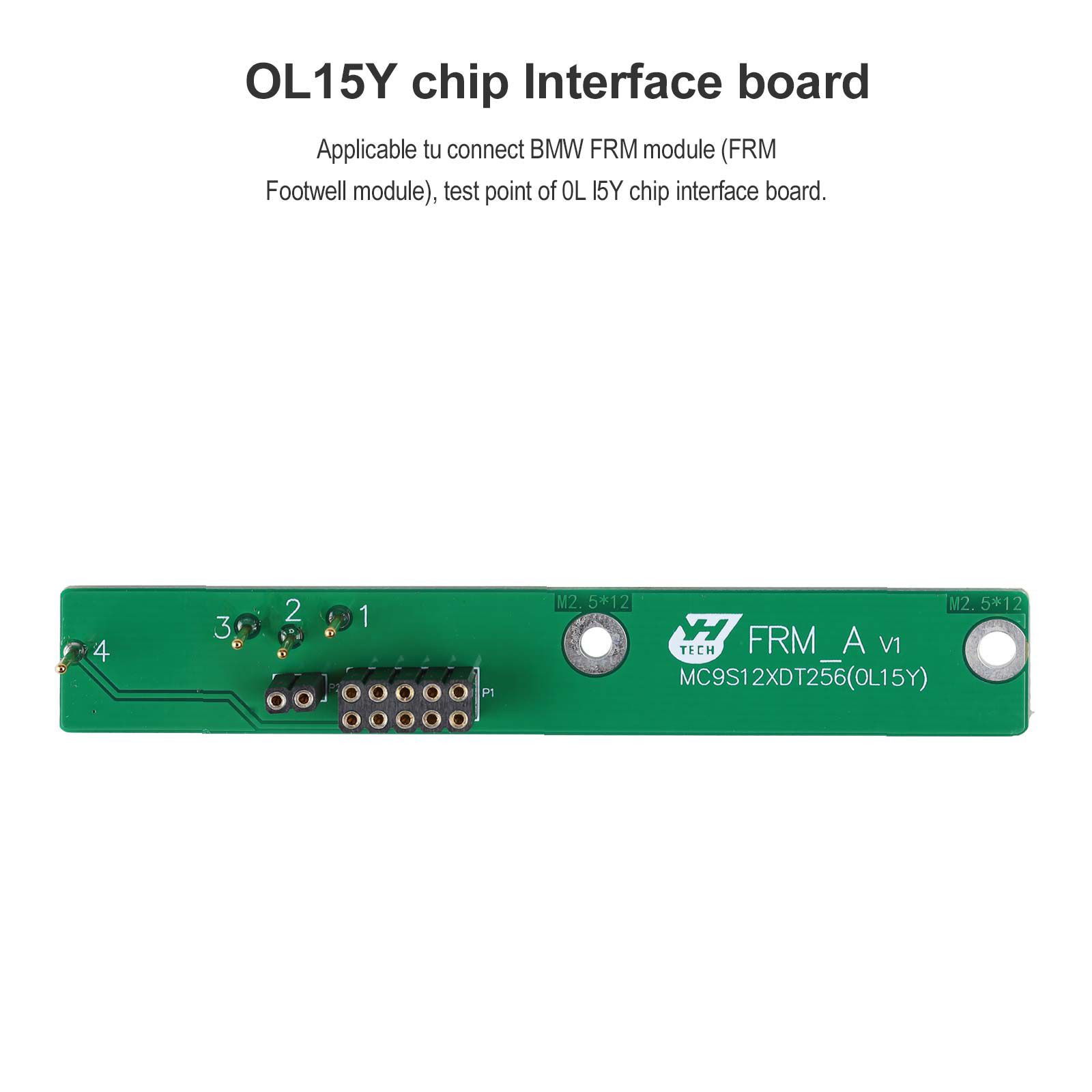

1	0L15Y chip Interface board	1PC	Applicable to connect BMW FRM module (FRM Footwell module)，test point of 0L15Y chip interface board.

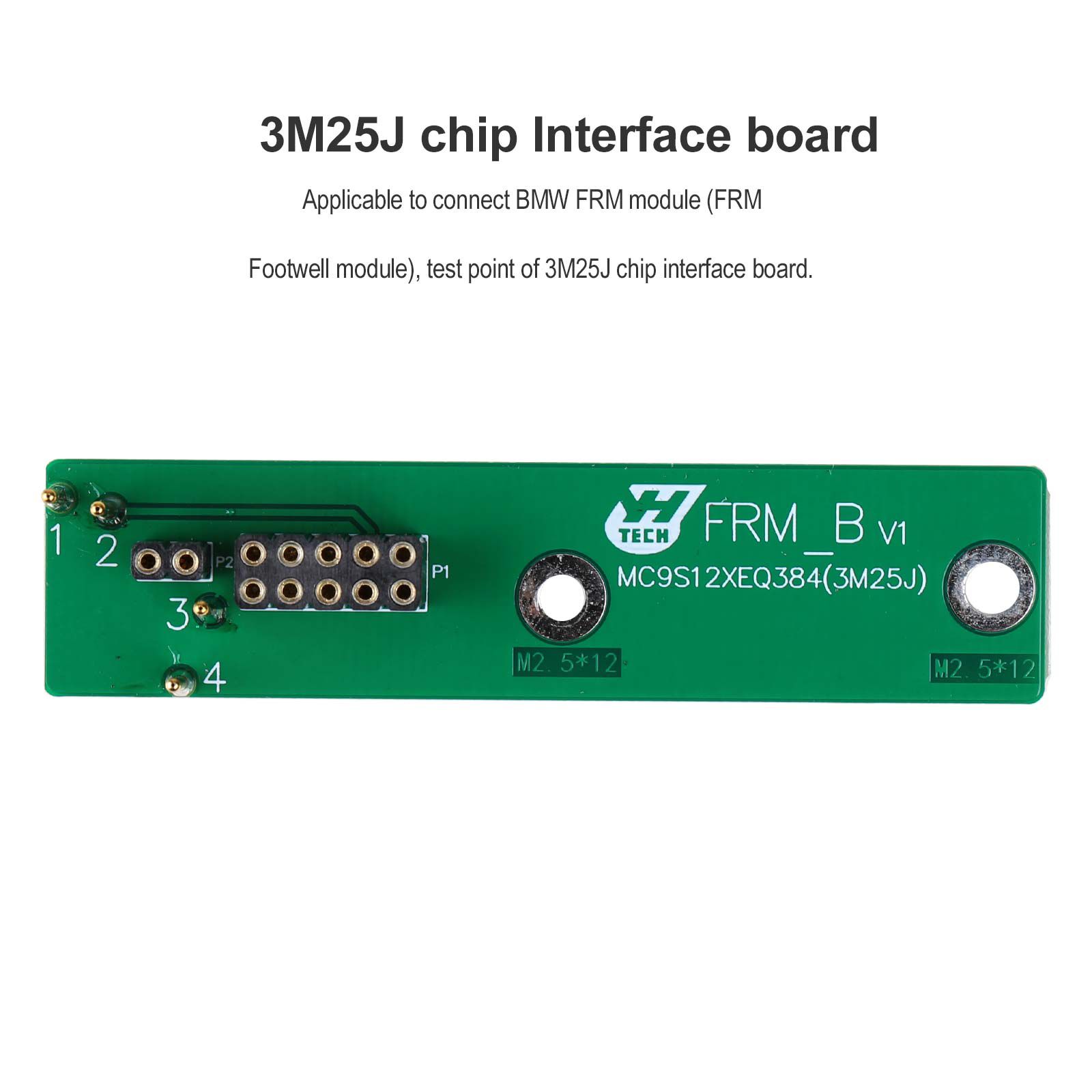

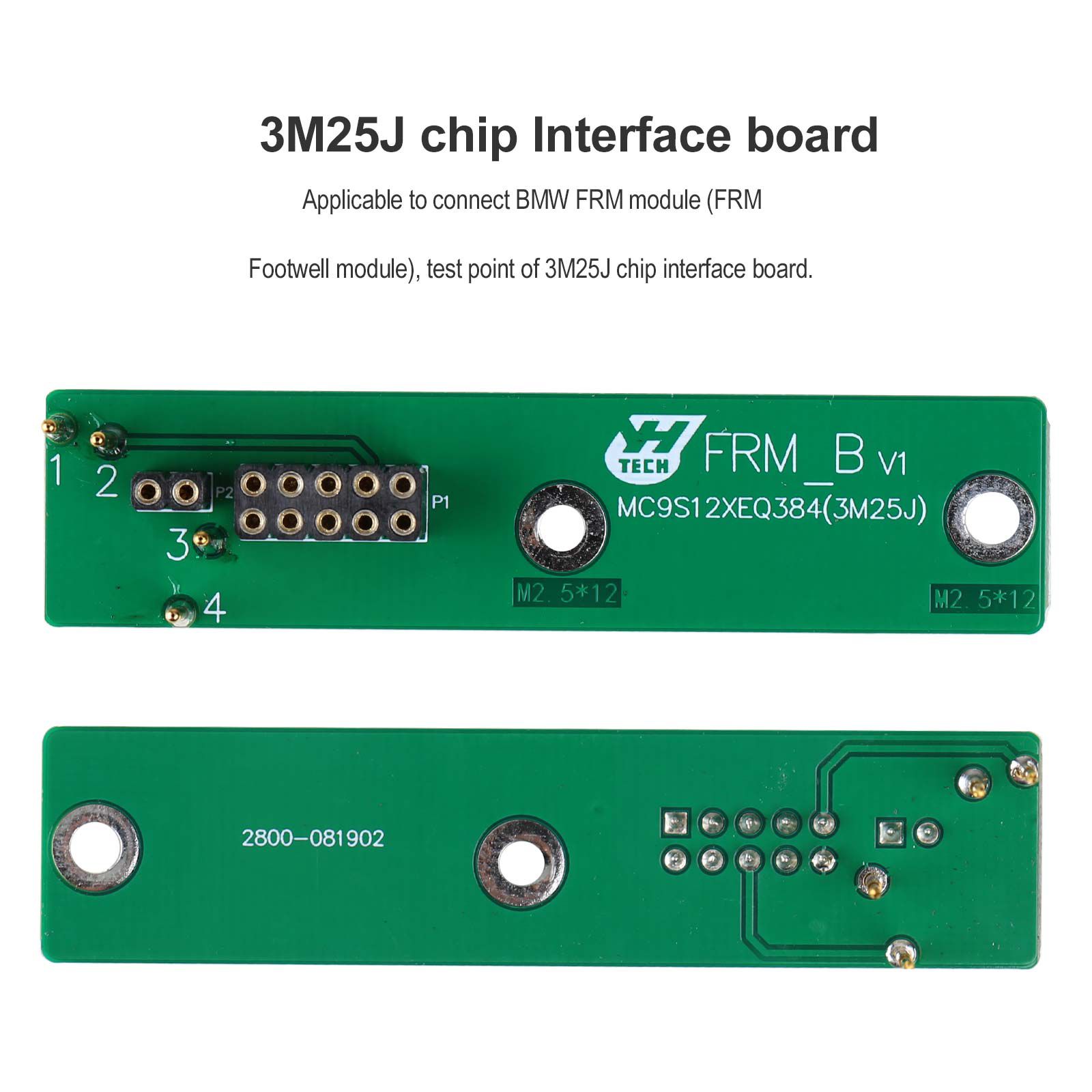

2	3M25J chip Interface board	1PC	Applicable to connect BMW FRM module (FRM Footwell module)，test point of 3M25J chip interface board.
3	Copper pillar package（Single head six angle stud M2.5*12+6mm）	12PCS	Applicable to fix BMW FRM module (FRM Footwell module)，0L15Y and 3M25J chip interface boards.
