XTOOL X100 PADS Key Programmer with Built-in CAN FD DOIP Supports 23 Service Functions

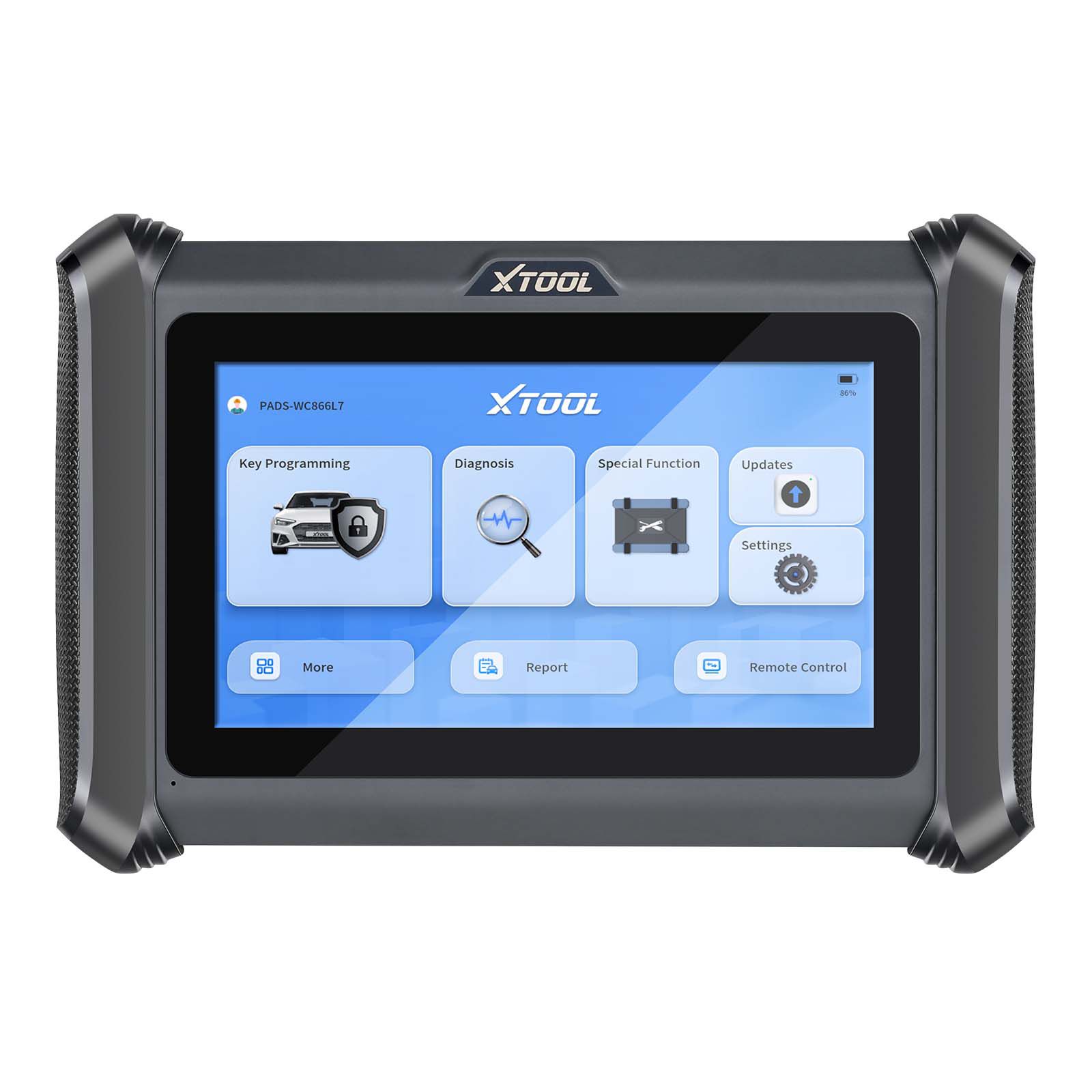

XTOOL X100 PAD S is an advanced tablet scan tool based on the Android operating system. The 2023 new release Key Programmer, XTOOL X100PAD S, is an upgraded version of XTOOL X100PAD PLUS. The X100PAD S adds support for CANFD and DOIP protocols, includes an endoscope, stent, increased memory, enhanced battery, USB, and WiFi capabilities. The device's appearance has also been fully upgraded.

Key Features of XTOOL X100 PAD S

• Upgraded Version: Improved from X100 PAD & X100 PAD PLUS with a new UI, 8MP camera, self-test function, and collapsible stand.
• Full System Diagnosis: Access and scan over 80 vehicle brands and all available modules including ABS, SRS, TCM, Brakes, BCM, TPM, etc. Read and clear diagnostic Trouble Codes, view live data, and retrieve ECU information.
• Advanced Key Programming: Read PIN codes, add transponder or smart keys, disable lost keys, perform remote learning, generate dealer keys, handle all-key-lost scenarios, back up IMMO data, conduct key matching, and perform EEPROM read/write operations.
• 23+ Service Functions: Includes Oil Light Reset, EPB Reset, SAS Calibration, DPF Regeneration, BMS Reset, Throttle Relearn, TPMS Reset, ABS Bleeding, Injector Coding, Gearbox Matching, Suspension Calibration, Seat Calibration, Headlight Initialization, Airbag Repair, and more. Note: Provide your car brand, year, VIN, and required function to verify compatibility before purchase.
• Built-in CAN FD & DOIP Protocol: Supports CAN FD for GM models from 2020 onwards—no additional adapter needed. DOIP protocol supports BMW E/F/G chassis, Jaguar, and Land Rover vehicles.
• Auto VIN Scan: Automatically identifies the vehicle, scans all accessible ECUs, and enables diagnostics on selected systems. Manual VIN entry is available for unsupported vehicles.
• Full OBDII Functionality: Read and clear codes, retrieve vehicle information, view live data and freeze frame data, check I/M readiness, perform O2 sensor and on-board monitor tests, component tests, and identify connected modules.
• 15 Language Support: English, German, Spanish, French, Polish, Portuguese, Russian, Italian, Turkish, Traditional Chinese, Japanese, Korean, Vietnamese, Arabic, and Finnish.
• Wide Vehicle Coverage & 2 Years Free Update: Extensive support across global manufacturers with free software updates for two years.

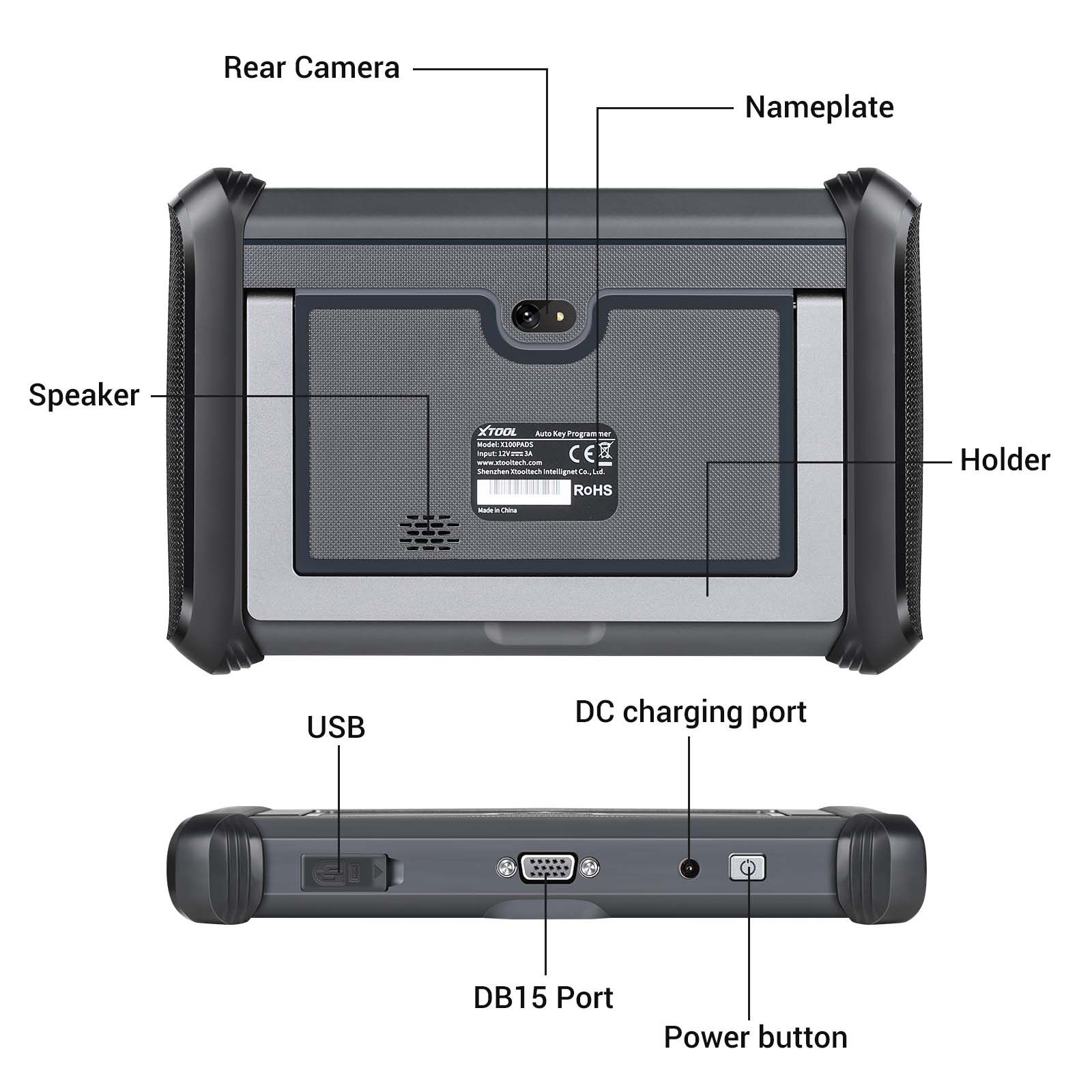

• Enhanced Hardware: 2GB RAM + 64GB storage, 5000mAh battery, dual-band Wi-Fi (2.4G/5G), USB 2.0 port, movable navigation bar, electronic user manual, and integrated bracket.
• Compatibility with KC100/KC501: Enables Key Programming for Mercedes, TOYOTA, and other brands—supports PIN reading, fob programming, remote learning, and lost key disabling.
• Works with XTOOL XV100 Endoscope: Enhances vehicle inspection by allowing internal viewing via the endoscope accessory.

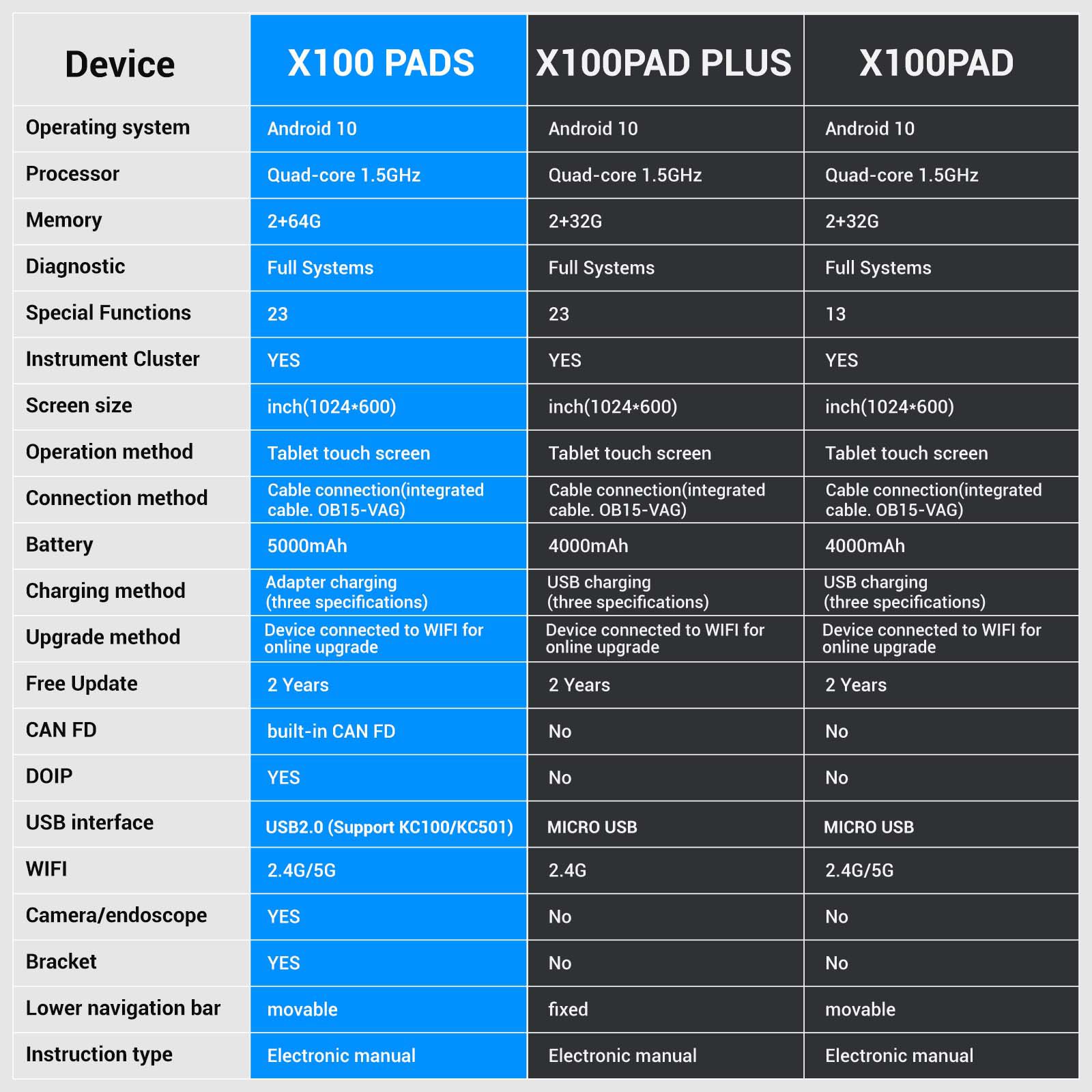

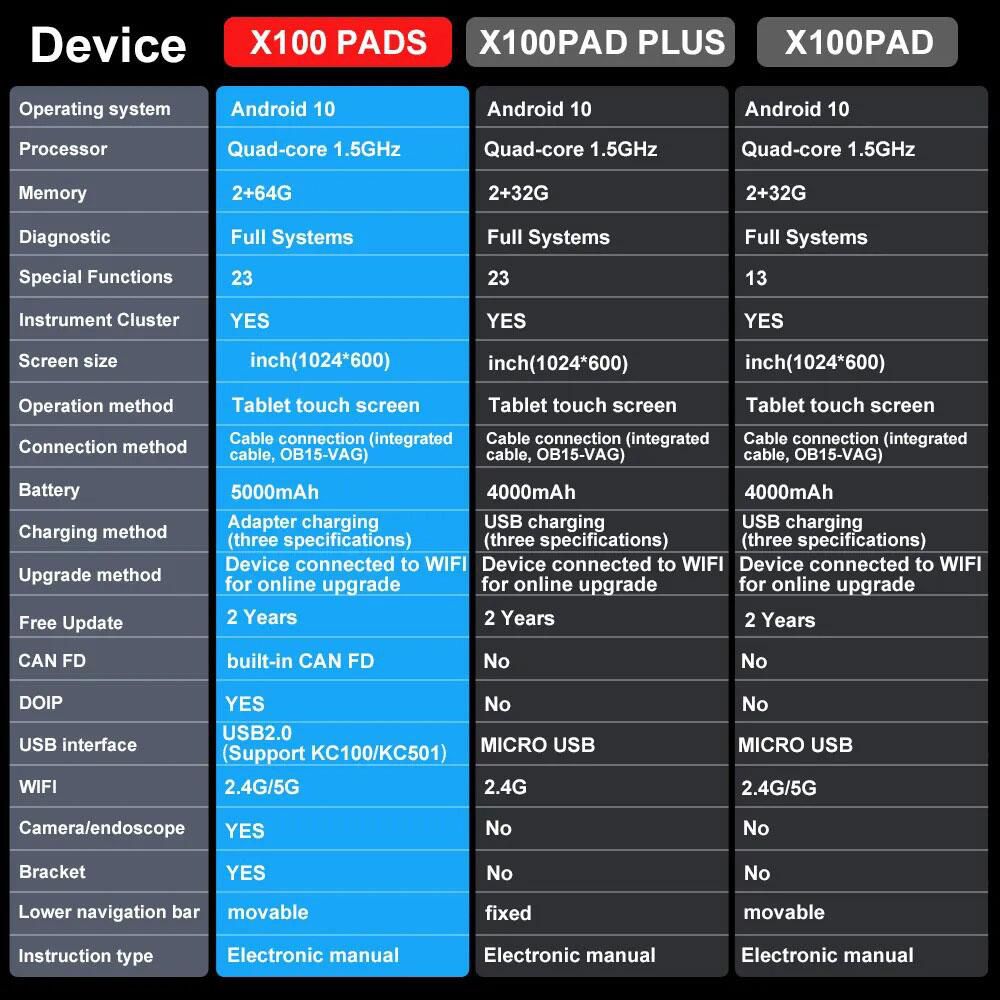

Comparison: XTOOL X100 PADS vs. X100 PAD PLUS vs. X100 PAD

Detailed Functionality

IMMO Key Programming

The X100 PAD S supports comprehensive immobilizer functions such as:

• Read PIN Code
• Add Transponder / Smart Key
• Disable lost Keys
• Remote Learning
• Generate Dealer Key / All-Key-Lost Programming
• IMMO Data Backup and Restore
• EEPROM Read & Write
• Immobilizer Module Replacement
• IMMO ECU Reset & Coding
• Mercedes Infrared Key Read/Write

Advanced IMMO/Key Programming (with EEPROM Adapter)

Using the X100PADS with an EEPROM adapter enables deeper access to immobilizer systems, allowing users to disable lost keys and program replacements. Functions include PIN code reading, key generation, key refresh, all-key-lost recovery, and direct chip-level data manipulation.

Note: X100PADS cannot perform all-key-lost programming for BENZ/BMW/Audi/VW/TOYOTA smart keys, nor can it read PIN codes for Chrysler vehicles (requires XTOOL X100PAD3 + adapter). Please consult the seller with your vehicle’s VIN to confirm compatibility prior to purchase.

All System Diagnostics

Access and diagnose over 80 vehicle makes across all major control units including ABS, SRS, Engine, Transmission, Brakes, BCM, and more.

OE-Level Full Systems Diagnostic

The XTOOL X100PADS establishes a direct data link with the vehicle’s electronic control systems to deliver OEM-equivalent diagnostics. It retrieves Trouble Codes, event logs, and real-time sensor data across critical systems such as:

• Engine Management
• Transmission Control
• Brake & ABS Systems
• Emission & Fuel Systems
• Lighting & Wiper Systems
• SRS/Airbag Module

Diagnostic Capabilities Include:

• Read and Clear Diagnostic Trouble Codes
• View Live Data Streams
• Retrieve Freeze Frame Data
• Perform Active Tests
• Read ECU Information

23+ Special Service Functions

• Oil Reset: Reset maintenance intervals and turn off the oil service light after an oil change.
• EPB Reset: Reset electronic parking brake pads after replacement.
• BMS Reset: Register a new battery with the vehicle’s Battery Management System after installation.
• Throttle Relearn: Recalibrate the throttle body to optimize air intake settings.
• Injector Coding: Program new fuel injectors after replacement.
• ABS Bleeding: Activate the ABS pump to bleed air from the braking system.
• Gearbox Match: Reset adaptive shift points in automatic transmission control units.
• Headlight Initialization: Calibrate adaptive headlight systems.
• Air Suspension Calibration: Adjust suspension height sensors.
• Window Initialization: Restore power window auto-up/down functionality.
• Airbag Repair: Reset crash data in the airbag module after an accident repair.
• EEPROM Adapter: Read, write, and back up EEPROM chips inside immobilizer modules.

Additional Functions: TPMS Reset, Seat Calibration, Cylinder Balancing, Transport Mode, Tire Upgrade, Electronic Pump Activation, DPF/GPF Regeneration, SAS, Gear Learning, EPS Calibration, and more.
Note: Always provide your specific car model and VIN number to verify function compatibility before purchasing.

Professional Features to Improve Efficiency

• Built-in CAN FD & DoIP Protocol: Direct support for modern communication standards—no extra adapters required. Compatible with GM vehicles post-2020 (CAN FD) and BMW E/F/G series, Jaguar, and Land Rover (DoIP).
• 8-in-1 Live Data Display: Simultaneously read, graph, and combine up to 8 sensor data streams. Export live data to CSV files for analysis, comparison, recording, playback, and reporting.
• Fast Auto VIN Scan: Automatically detects vehicle details and scans all diagnosable ECUs. Manual VIN input option available.
• Report Generation & Sharing: Save, share, or print diagnostic reports via Bluetooth to mobile devices, tablets, or computers. Connect to a printer for physical copies.

Supported Vehicle Brands

The XTOOL X100 PAD S offers broad compatibility across global automotive manufacturers, including:

• ABARTH, ACURA, ALFA ROMEO, ASTON MARTIN, AUDI, BMW, BENZ, BUICK, BYD, CADILLAC, CHEVROLET, CHRYSLER, CITROEN, DACIA, DODGE, FERRARI, FIAT, FORD (USA/EU/AU), GAZ, GEELY, GMC, GREAT WALL, HONDA, HUMMER, HYUNDAI, INFINITI, ISUZU, IZH, JAC, Jaguar, JEEP, KIA, LANCIA, Land Rover, LEXUS, LIFAN, LINCOLN, MASERATI, MAZDA, MERCEDES-BENZ, MITSUBISHI, MINI, NISSAN, OPEL, OPEL, PAZ, PEUGEOT, PONTIAC, PORSCHE, RENAULT, SAAB, SATURN, SEAT, SKODA, SMART, SSANGYONG, SUBARU, SUZUKI, TOYOTA, UAZ, VOLVO, ZAZ

Product Specifications

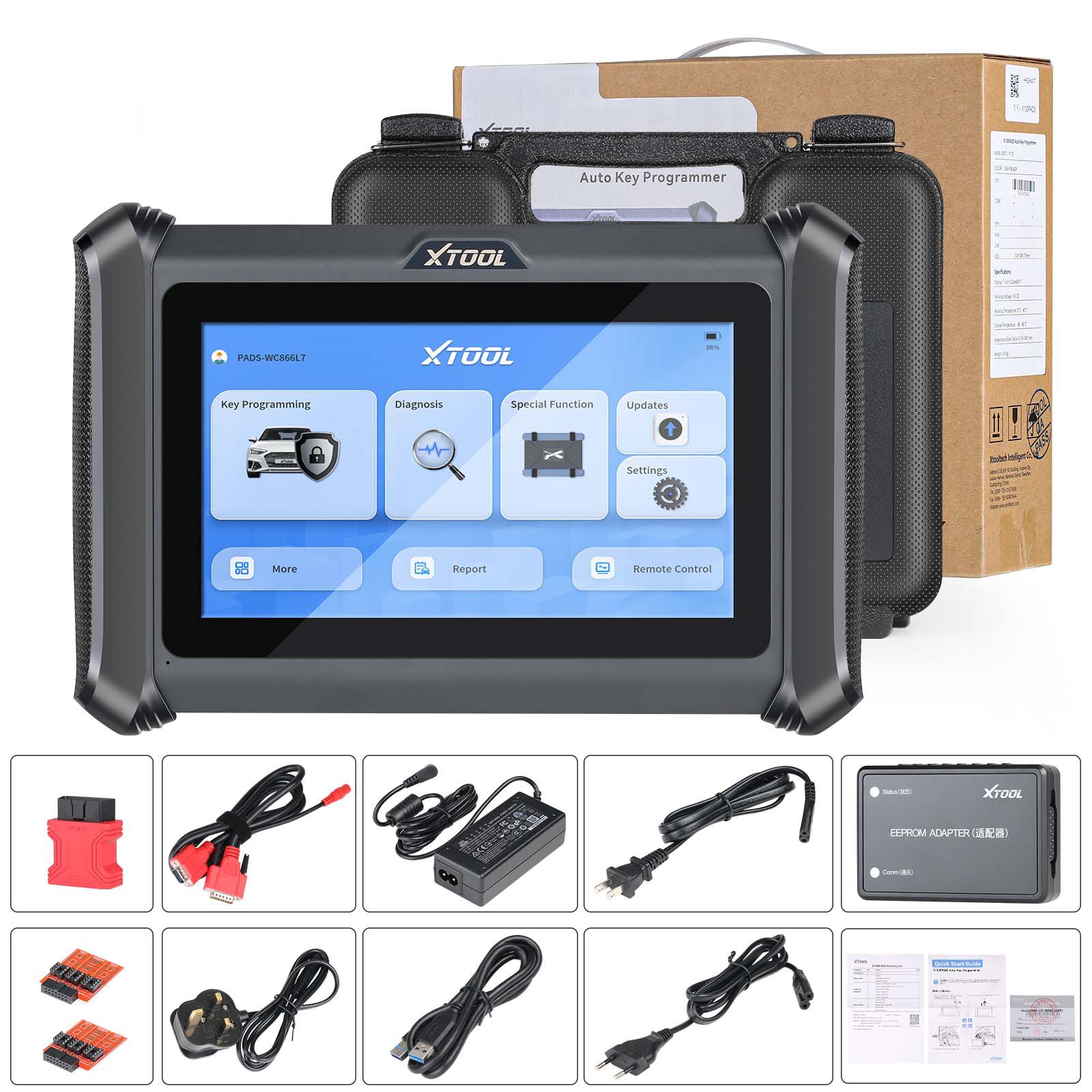

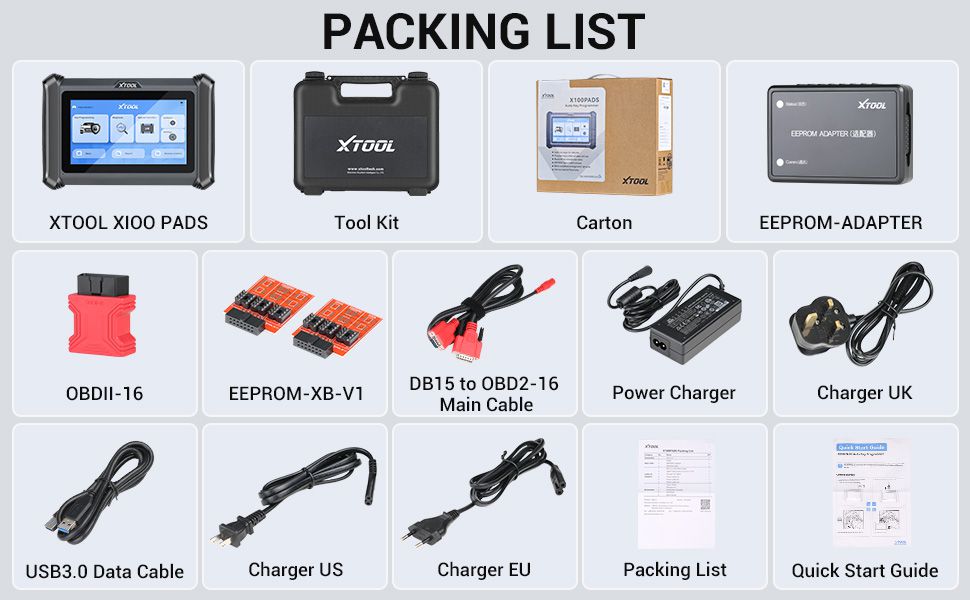

Package Contents
