Latest Xhorse VVDI Key Tool Max

VVDI Key Tool Max is a professional smart device with multi-function. Bluetooth and Wi-Fi communication interfaces are integrated inside, which is convenient for connecting Xhorse Key Cutting Machine, MINI OBD TOOL, and other products to perform specific operations. This device adopts an HD LCD screen with a clear interface—easy to use and flexible.

VVDI Key Max Features

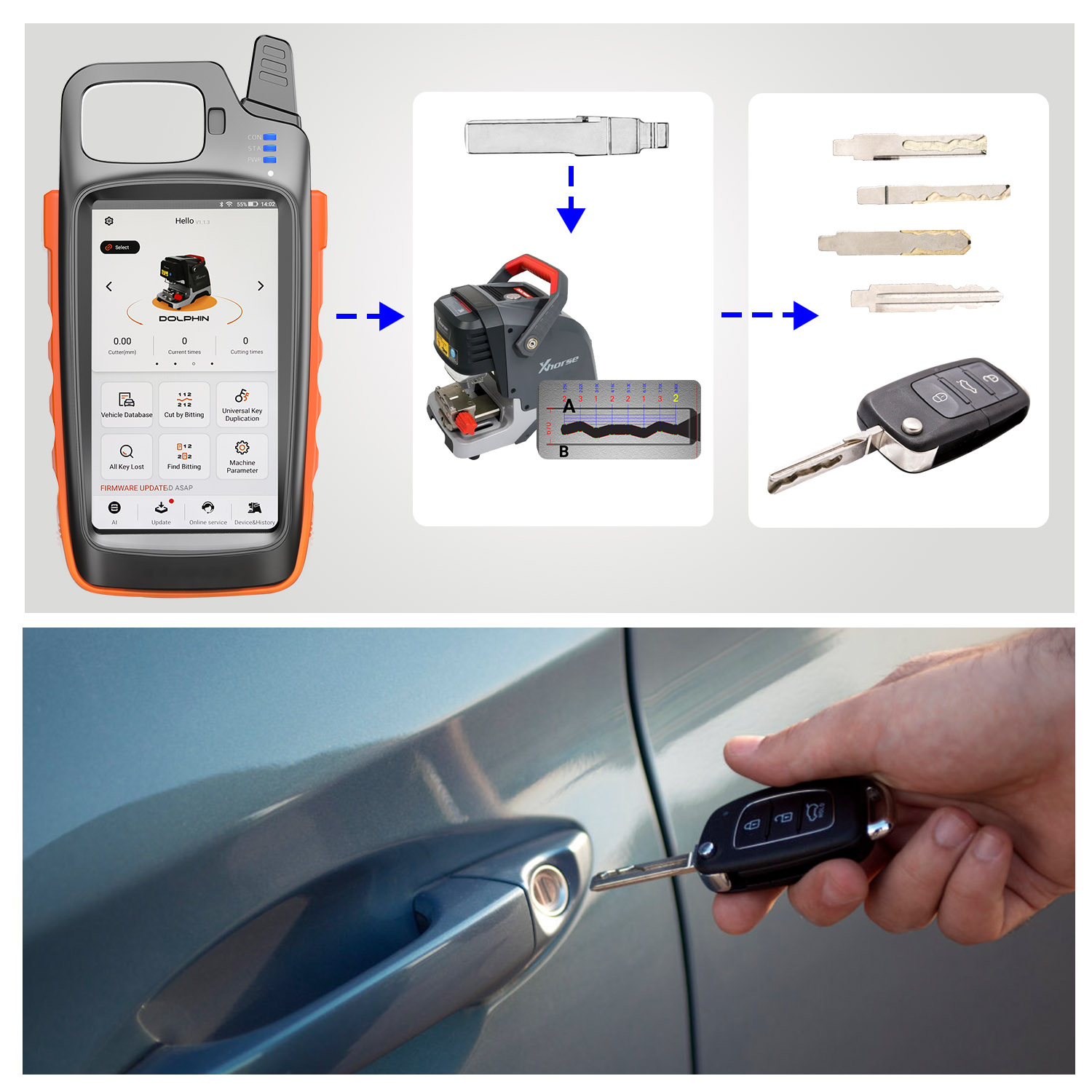

• Use KEY TOOL MAX to connect the Dolphin to cut the key for the customer.
• Supports generating transponders and remotes, etc.

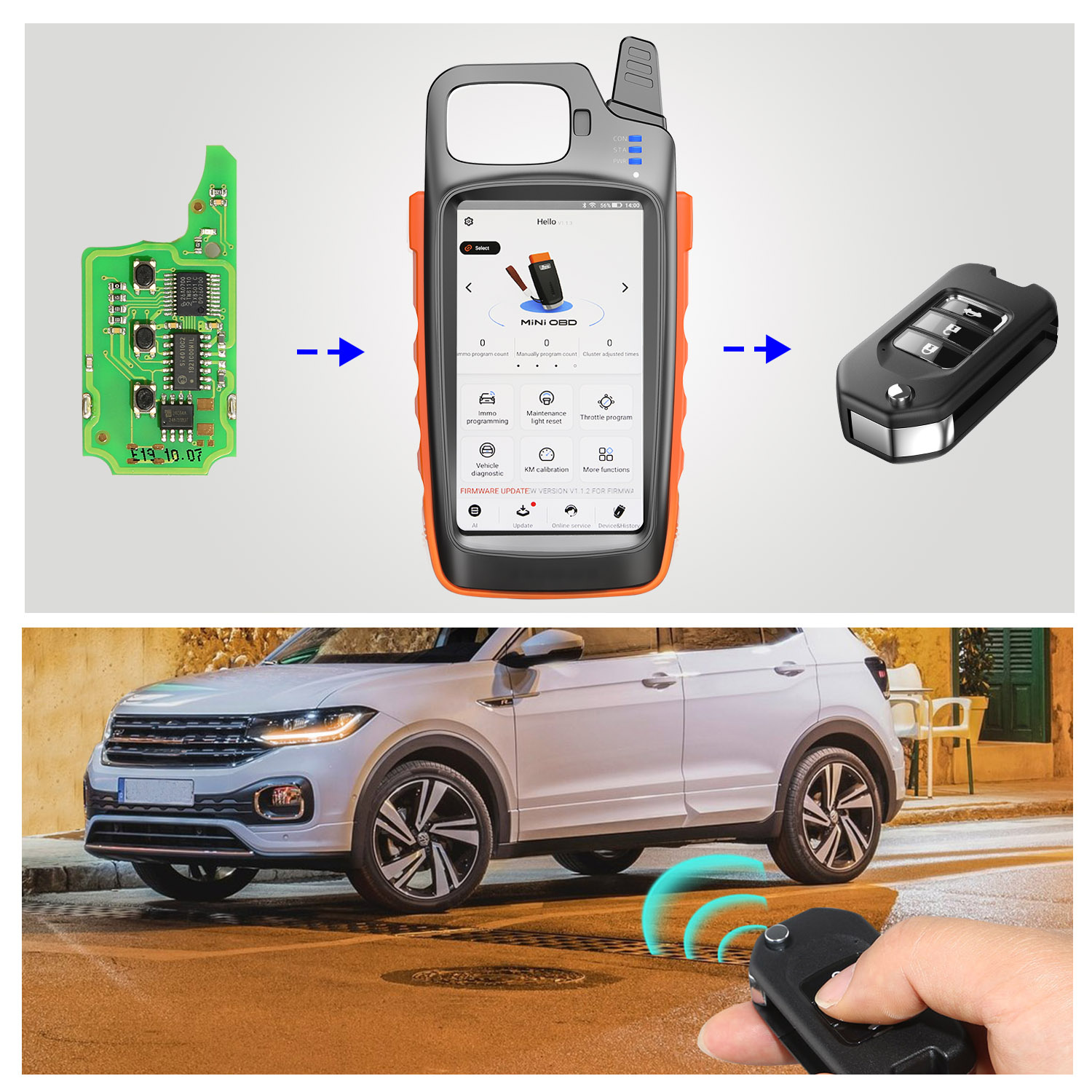

• Enter the car directly using KEY MAX + MINI OBD for matching. The entire process can be seamlessly connected without switching devices.
• KEY TOOL MAX + MINI OBD TOOL can not only match the chip remote control of imported and domestic cars and smart cards, but Toyota H chips will also be released first on KEY TOOL MAX.
• Languages: English, Spanish, and French.
• New update file enables free key making and provides free cloud storage for temporary data.

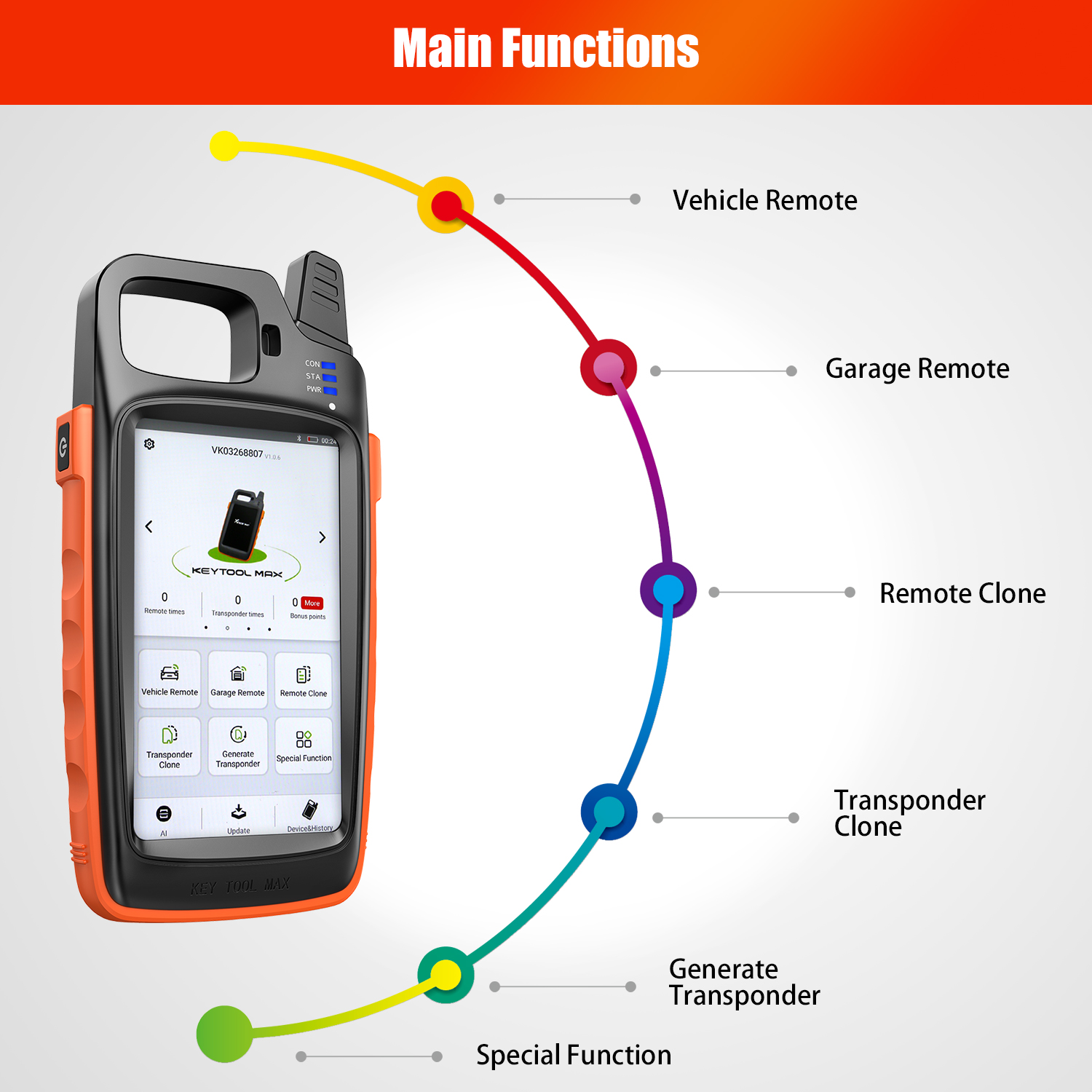

VVDI Key Tool Max Functions

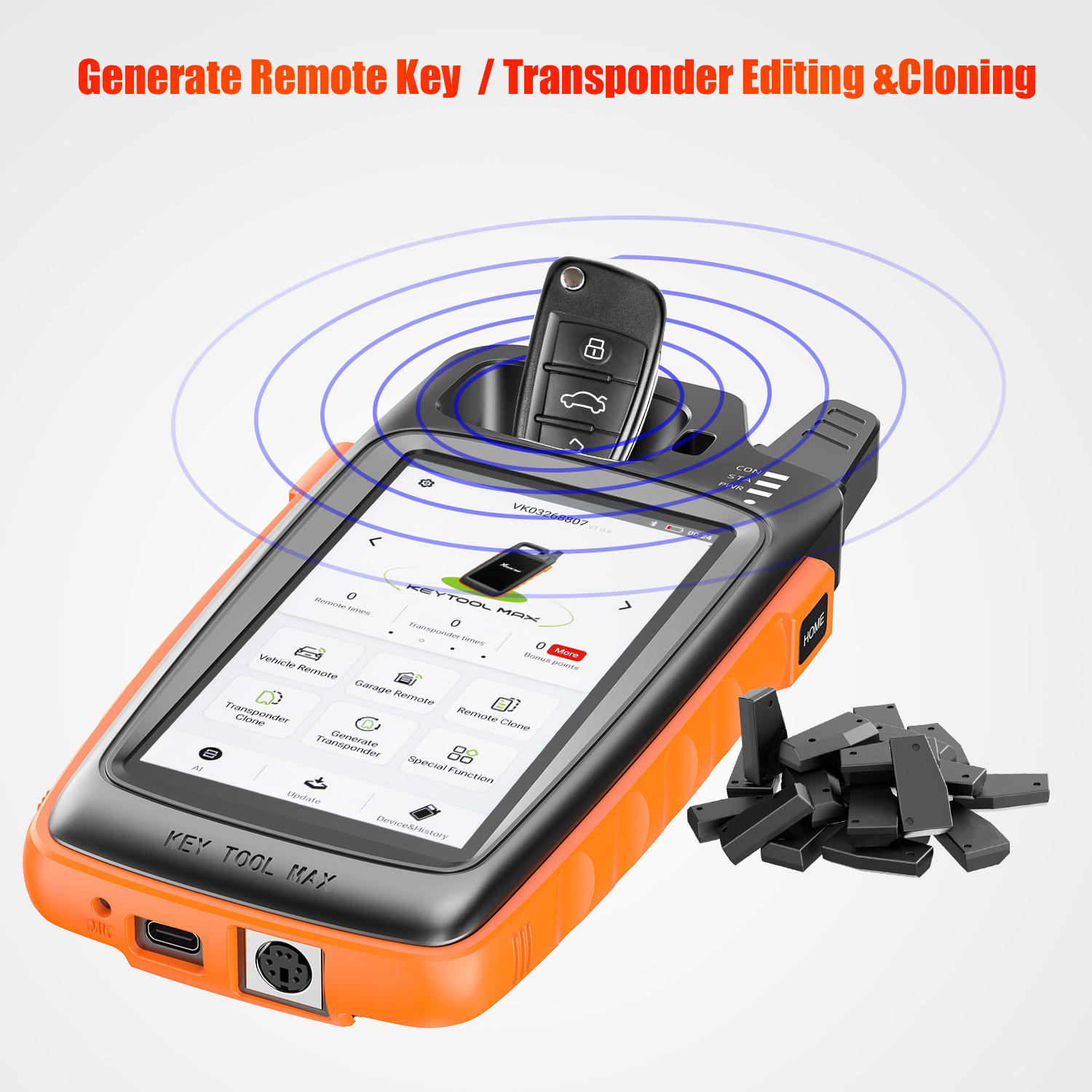

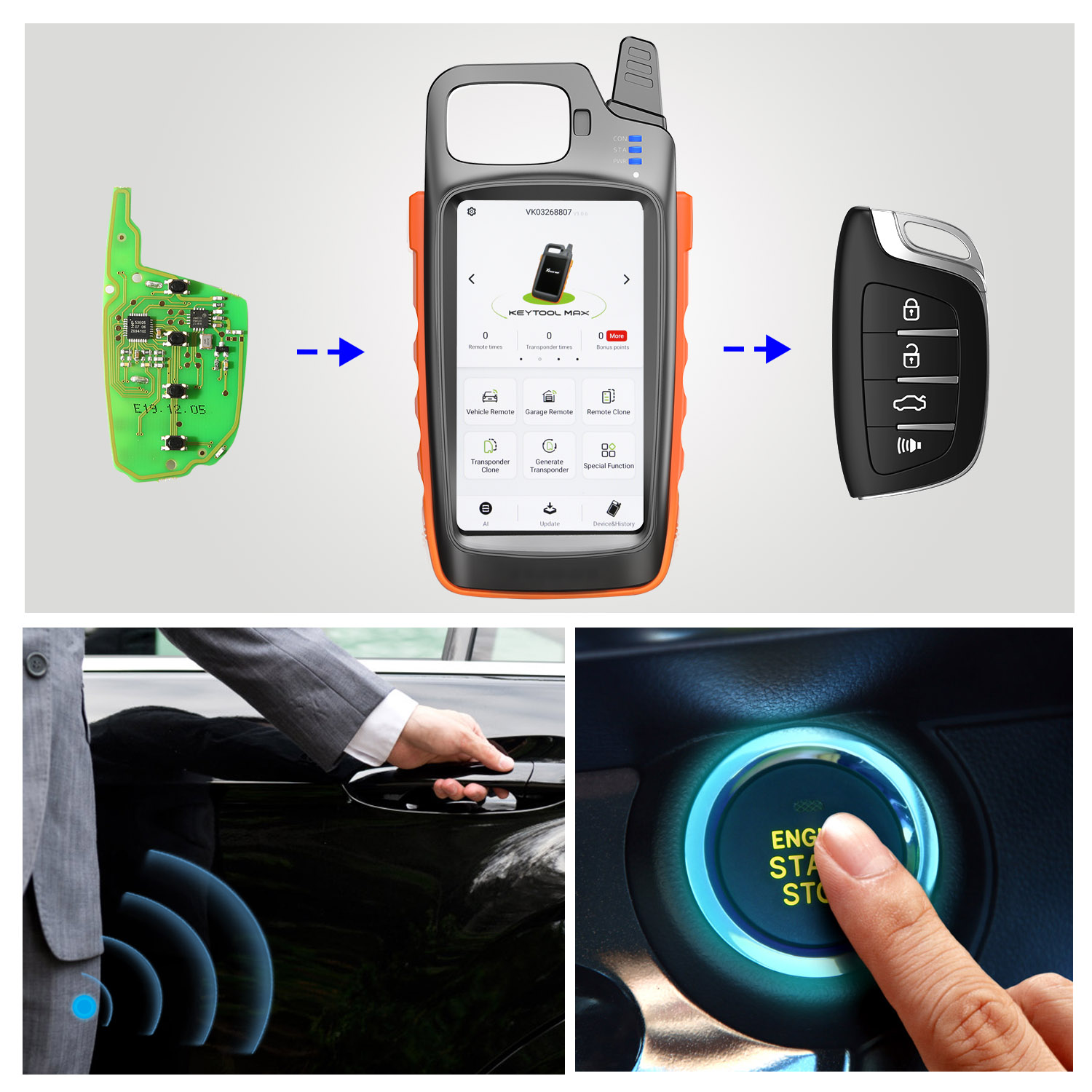

• Generate remote and smart key
• Program and Immo transponder
• Generate special transponder
• Renew remote
• Recognize and copy access card
• Generate and copy garage remote
• Frequency detection and copy remote
• Connect to Xhorse key cutting machine
• Special functions (VVDI Special TP, Unlock Toyota Smart Key, Special 4D to 4C, ID63 to ID83, VVDI smart key clone, VVDI remote repair calibration, etc.)

How to Use VVDI Key Tool Max?

1. Read the vehicle data (VIN & immobilizer) via OBD utilizing the soon-to-be-released Mini OBD Tool.
2. View the remote and transponder chip information for the vehicle you’re plugged into and instantly generate your chip and key.
3. View the proper keyway for cutting on the Dolphin and cut your blade (once you’ve Lishi’d to determine your cuts).
4. Take your completed key back to the vehicle for immobilizer programming.

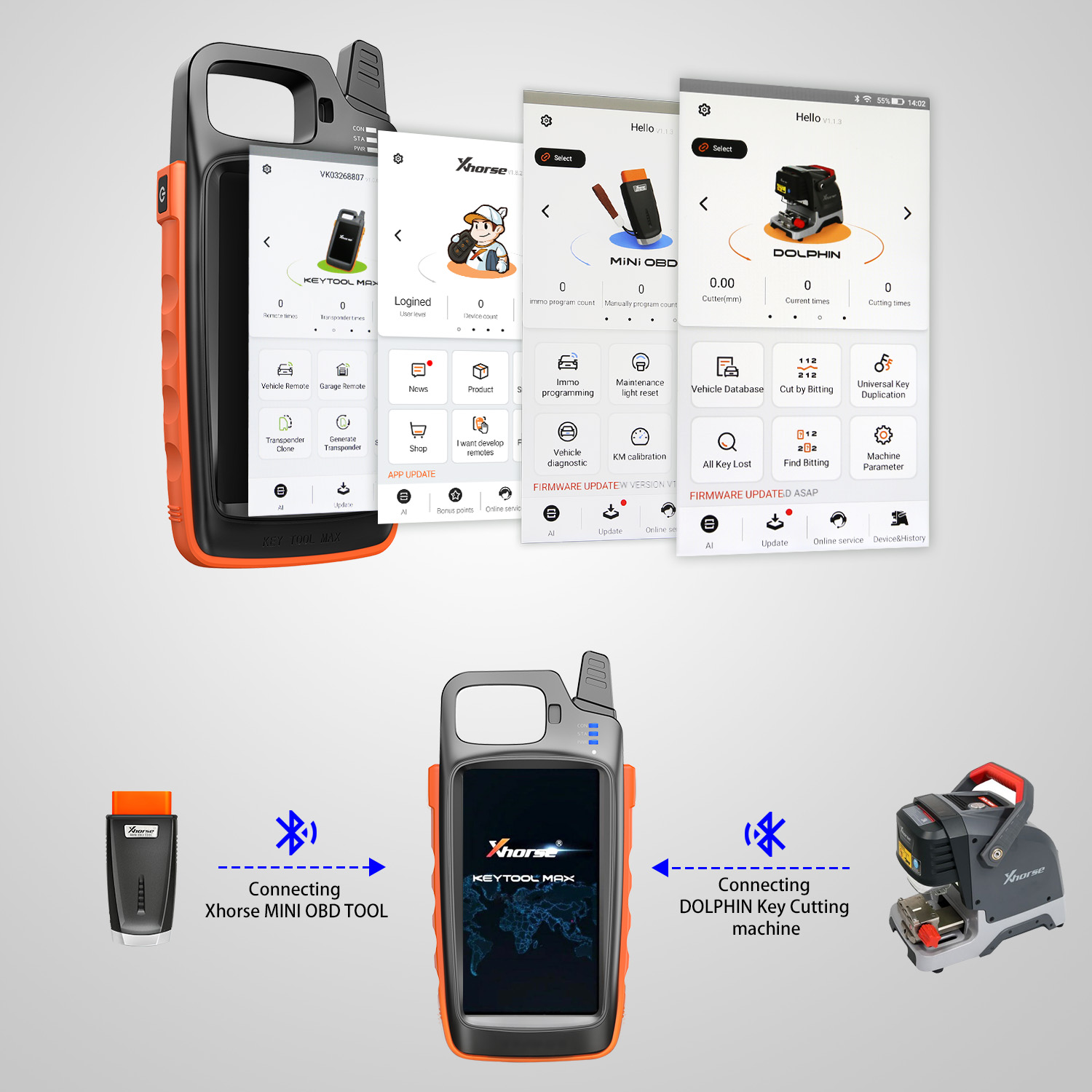

VVDI Key Tool Max Connect to MINI OBD TOOL

There are 3 ways for Key Tool Max to connect to MINI OBD TOOL:

• USB Type-C cable
• Wi-Fi
• Bluetooth

1. Click on the [Select] on the HOME page. Available devices will be shown on the screen. Choose a device to connect according to Serial Number.
2. Software will detect the current device with software interface connection status, WLAN connection status, and Wi-Fi connection status.

VVDI Key Tool Connect to Xhorse Dolphin XP005 Key Cutting Machine

Key Tool MAX connects to Key Cutting Machine by Bluetooth to perform cutting operations.

VVDI Key Tool Max Latest Update Information

Update file enables free key making and provides free cloud storage for temporary data (Jul 16th, 2020).

File Make Key Support List

Asia

Acura, Besturn, Brilliance, Chang An, Chery, China Immobox, Daewoo, Daihatsu, Geely, Great Wall, Haima, Honda, Hyundai, IKCO, Infiniti, Isuzu, Kawasaki, Kia, Lexus, Mazda, Mitsubishi, Nissan, Proton, SaicMotor, Saipa, SsangYong, Subaru, Suzuki, Tata, Toyota, Yamaha

Europe

Alfa Romeo, Aprillia, Aston Martin, Audi, Bentley, BMW, Citroen, Dacia, DAF, Ducati, Ferrari, Fiat, Gilera, Iveco, Jaguar, Lancia, LOV, MAN, Maserati, Mercedes Benz, Opel, Peugeot, Piaggio, Polonez, Porsche, Renault, Rover, Saab, Scania, Seat, Skoda, Smart, TagAZ, UAZ, VAZ, Volvo, VW

North American

Bombardier, Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GMC, Jeep, Lincoln, Oldsmobile, Pontiac

Tech Support: Xhorse Key Tool Max File Make Key Function Use Tips

VVDI Key Max Parameters

• Battery Capacity: 3375mAh
• Battery Life: >6 hours
• Standby Time: >5 days
• Recharging Current: 1500mAh
• Brightness: >400 nits
• Screen Resolution: 1280×720P
• Camera Resolution: 800W

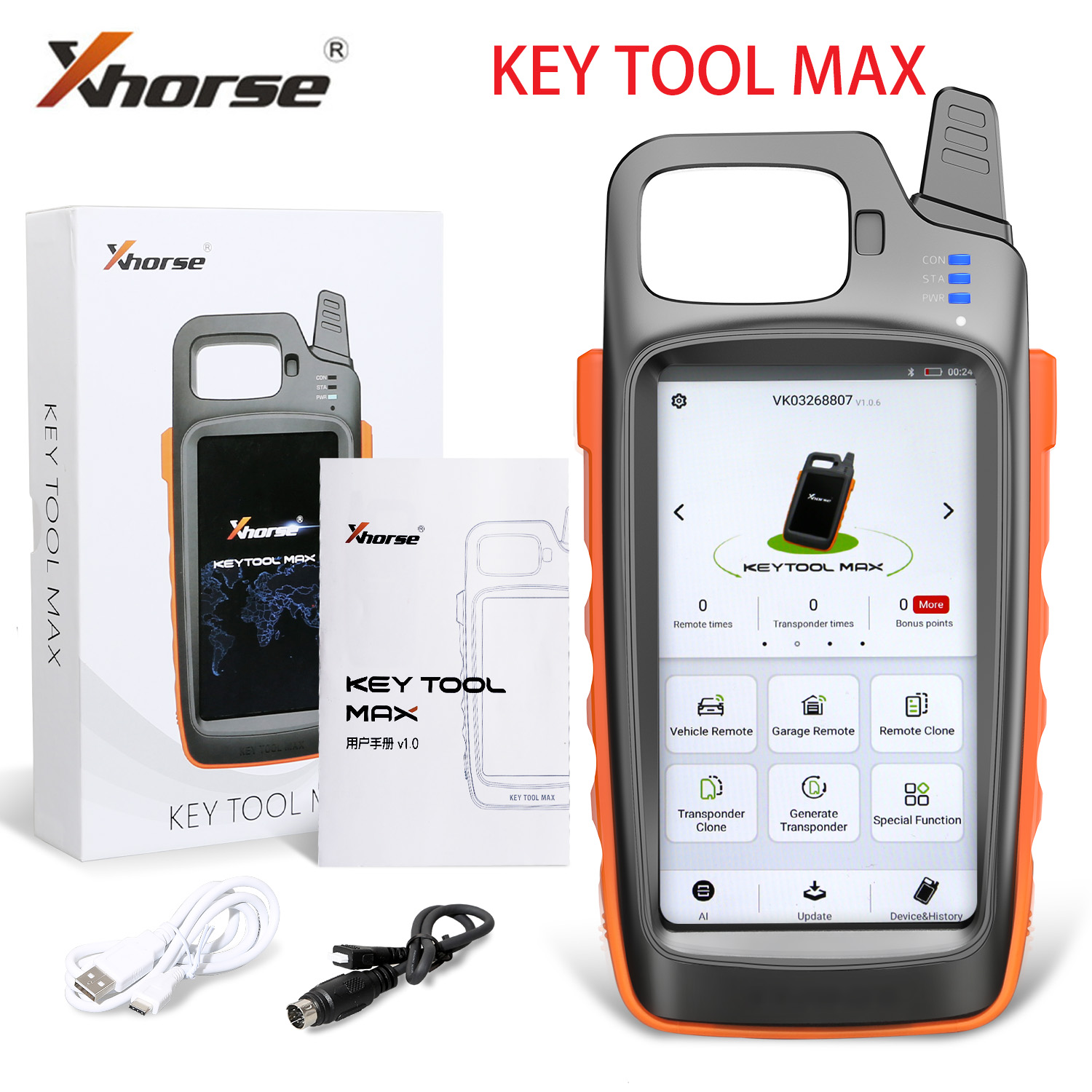

VVDI Key Tool Max Package List

• 1× VVDI Key Tool Max tablet
• 1× USB-C cable
• 1× Remote generation cable
• 1× User Manual
