Xhorse Multi Prog Programmer + Exclusive Adapters + MQB48 Adapters + MQB-RH850 Adapter + GODIAG ECU GPT Boot AD and G-V ECU Cable Bundle Package Kit

Xhorse Multi Prog Programmer + Exclusive Adapters + MQB48 Adapters + MQB-RH850 Adapter + GODIAG ECU GPT Boot AD and G-V ECU Cable Bundle Package Kit

Highlights:

1. Bunding Package:
Xhorse Multi Prog Pro-level ECU TCU Programmer
Xhorse Multi-Prog Programmer Adapters XDMP04GL VH24 + XDMP05GL VH29 + XDMP06GL VH30 + XDMP07GL VH31
Xhorse MQB48 No Disassembly No Soldering 13 Full Set Adapters XDNPM3GL
Xhorse Multi Prog Adapters for EEPROM and FLASH 9pcs/set
Xhorse XDMPR8GL MQB-RH850/V850 Adapter
GODIAG ECU GPT Boot AD ECU Connector
GODIAG G-V ECU Cable

Xhorse Multi Prog Pro-level ECU TCU Programmer Highlights:

1.Fully Replace VVDI Prog:
Multi-Prog support factory usage mode for batch programming of chips. In this mode, the functions of batch programming, offline programming, and file offline programming can be done easily.
The main difference between VVDI PROG and Multi-Prog: Multi-Prog has the batch programming function but VVDI PROG programmer doesn't.
2. With Free MQB48 License and BMW Bench Read ISN.
Bind with Xhorse VVDI2/ Key Tool Plus PAD account, then your VVDI2/Key Tool Plus PAD can use MQB48 Function too
3. Read, Write and Clone ECU
4. Read, Write and Clone Gearbox TCU
5. Read EEPROM, ECU, MCU
6. Read and Write Bosch ECU ISN with new Bosch ecu adapter
7. Supports Checksum correction for some EDC16/EDC17 ECUs (more to come)
8. Get free BMW ISN read function and NEC, MPC, Infineon etc chip continously update service
9. With built-in free MQB48 license. Bind Multi-prog and VVDI2 (full version) or key tool plus to the same Xhorse app account to use MQB48 NEC35XX function.
10. Free software and firmware update timely.

Other Features:

Support R&W lots of chips, include MC9S08 series, MC68HC(9)12series, MC9S12series, V850series, H8Xseries, R8Cseries, PCF79XXseries and most eeprom chips etc .
Support chip data verify, checkblank function
Support data file compare function
Free Pin code calculation service by Dump for various models
Support Read and Write BMW N20, N55 ECU (show ISN directly)
Stable Read and Write MC9S12XE series chips (5M48H/ 1N35H/ 2M53J/ 3M25J etc.)
Support renew PCF79XX remote, currently support BMW E/F series (Please Note PCF79XX adapter is optional)
Has the largest database of connection diagram
Reserve Ports: For future update
Supports Repair Porsche 12V lithium battery and BYD Lithium Battery (MC9S12XET256)
Supports EDC17/MED17 data calculation (checksum correction)
Support for third-party automatic HEX editing scripts
Supports Expert mode: batch write chips. vvdi prog only write a single chip at a time

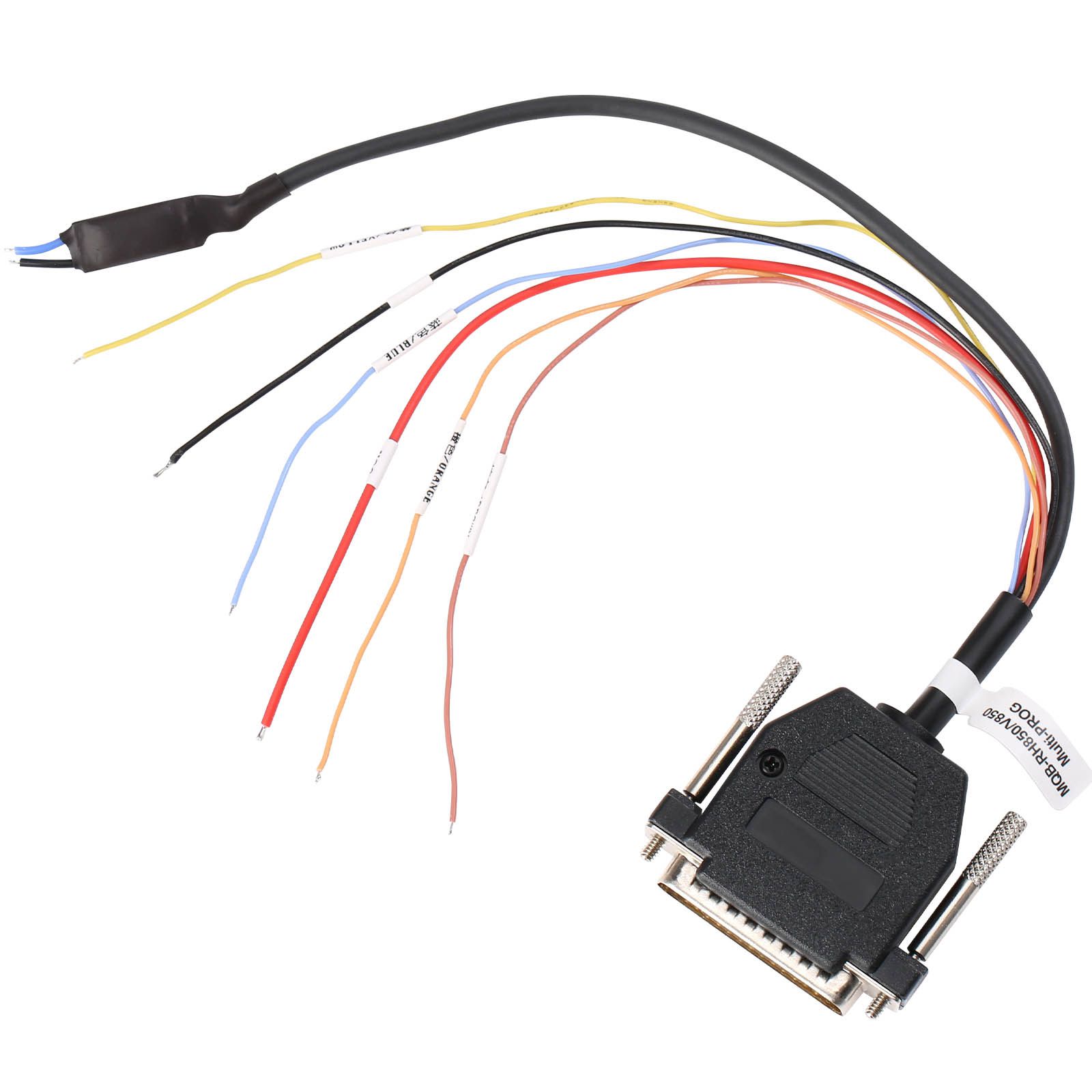

Xhorse XDMPR8GL MQB-RH850/V850 Adapter for Xhorse MULTI-PROG Pro-level Programmer

Highlights:

No need to cut wire or lift pin to read MQB48/MQB49/5C dashboards.

Supported Dashboards:

VW 4th Gen Johnson Controls 34xx series
MQB 34XX series
MQB-RH850(R7F)series

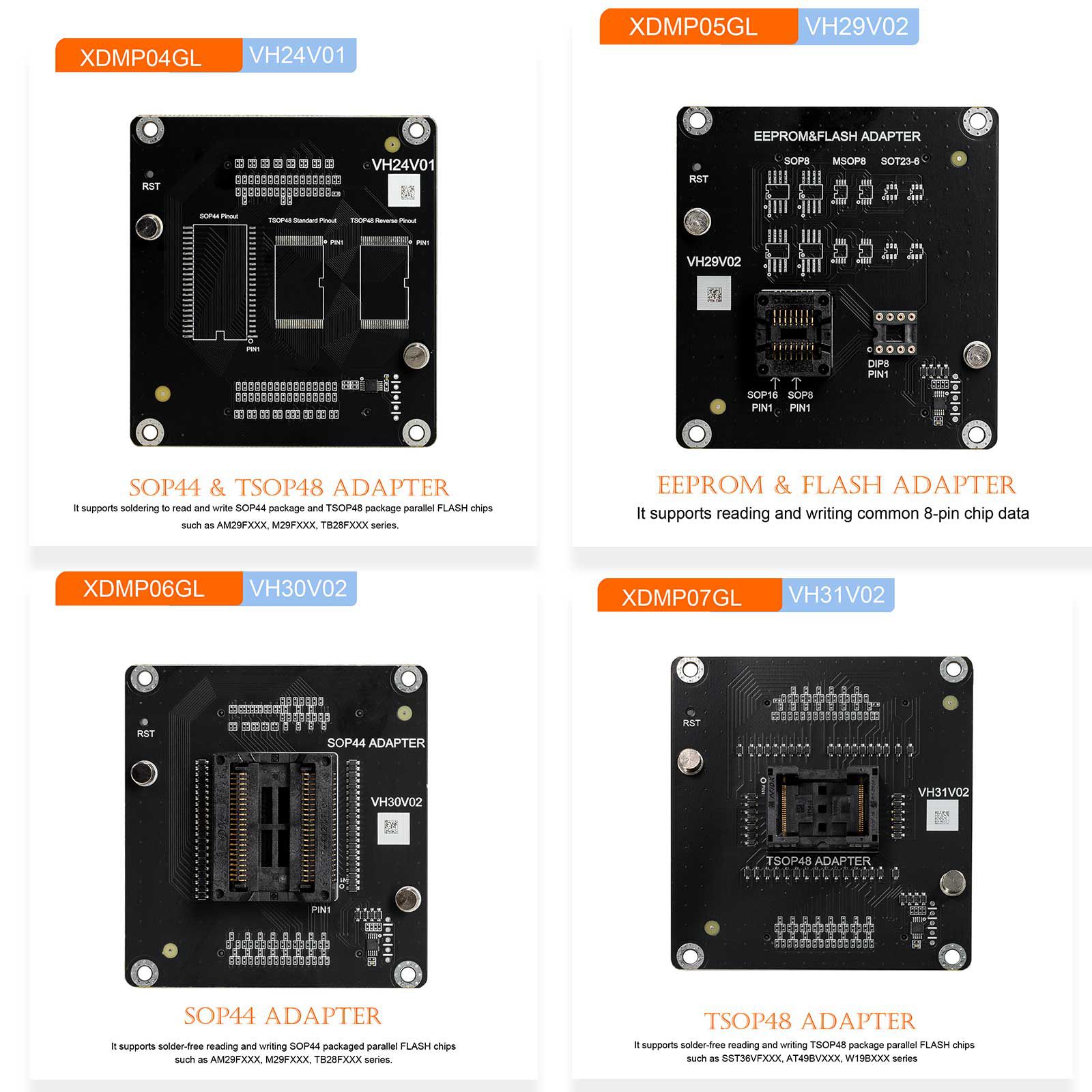

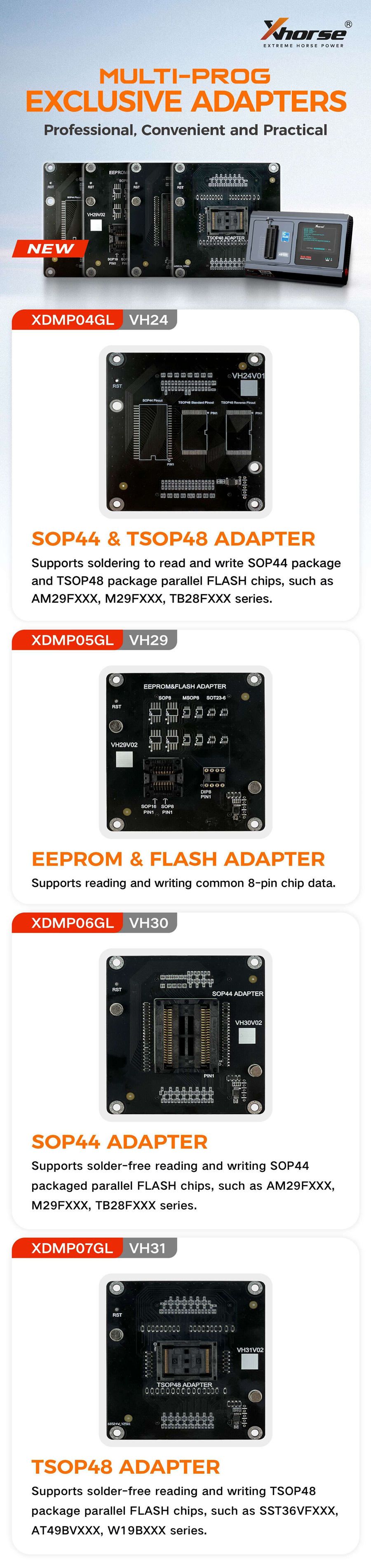

Xhorse Multi-Prog Programmer Adapters XDMP04GL VH24 SOP44 TSOP48 + XDMP05GL VH29 EEPROM FLASH + XDMP06GL VH30 SOP44 + XDMP07GL VH31 TSOP48

Supports soldering to read and write SOP44 package and TSOP48 package parallel FLASH chips, such as AM29FXXX, M29FXXX, TB28FXXX series.
Supports solder-free reading and writing TSOP48 packaged parallel FLASH chips, such as SST36VFXXX, AT49BVXXX, W19BXXX series.
Supports reading and writing common 8-pin chip data.
Supports solder-free reading and writing SOP44 packaged parallel FLASH chips, such as AM29FXXX, M29FXXX, TB28FXXX series.

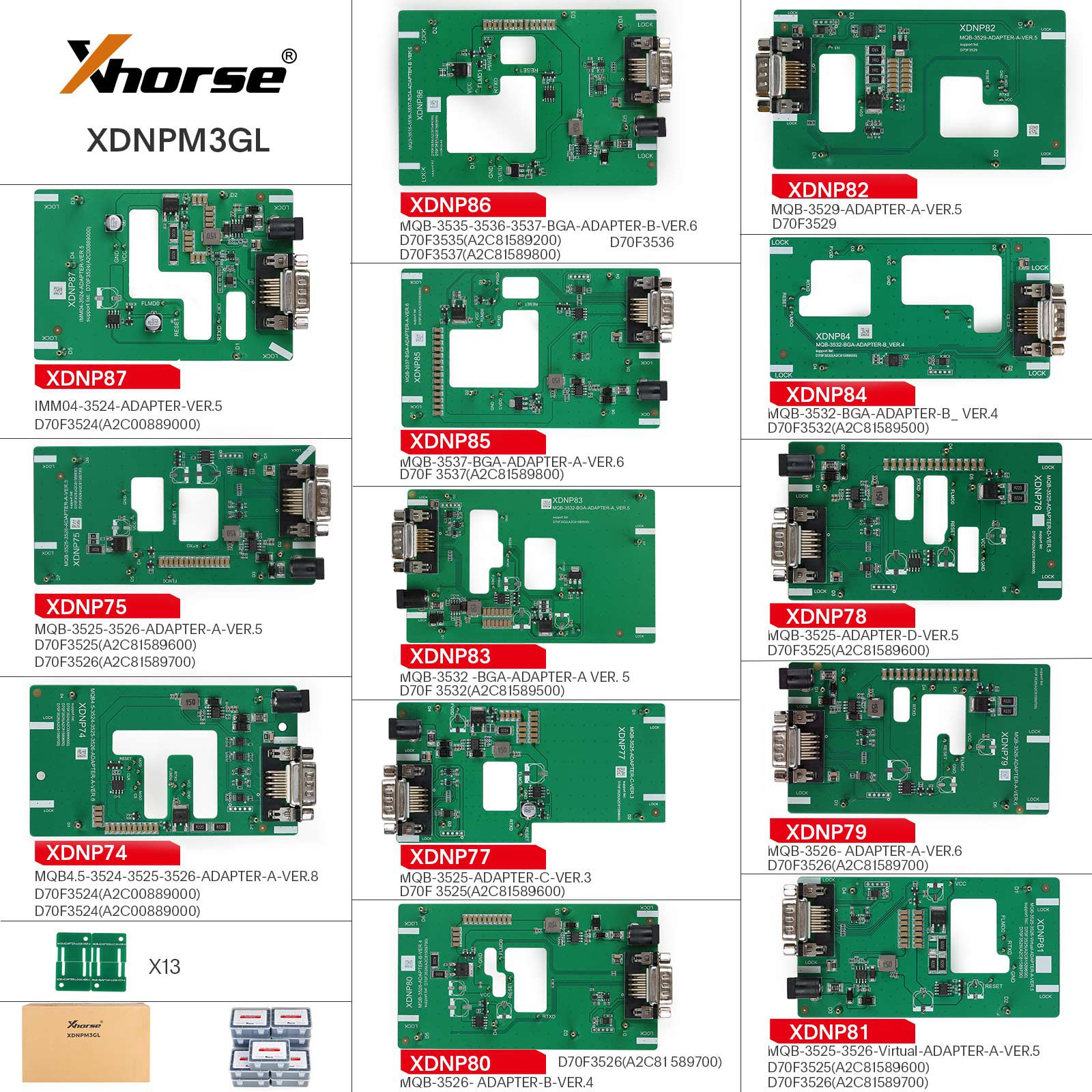

Xhorse MQB48 No Disassembly No Soldering 13 Full Set Adapters XDNPM3GL

No soldering, no lifting pin, no cutting wire
Do not destroy the original instrument, easy to read data, safer to use.
Easy to read data, more secure to use
Can be used with Muti-PROG, VVDI PROG, Key Tool Plus.

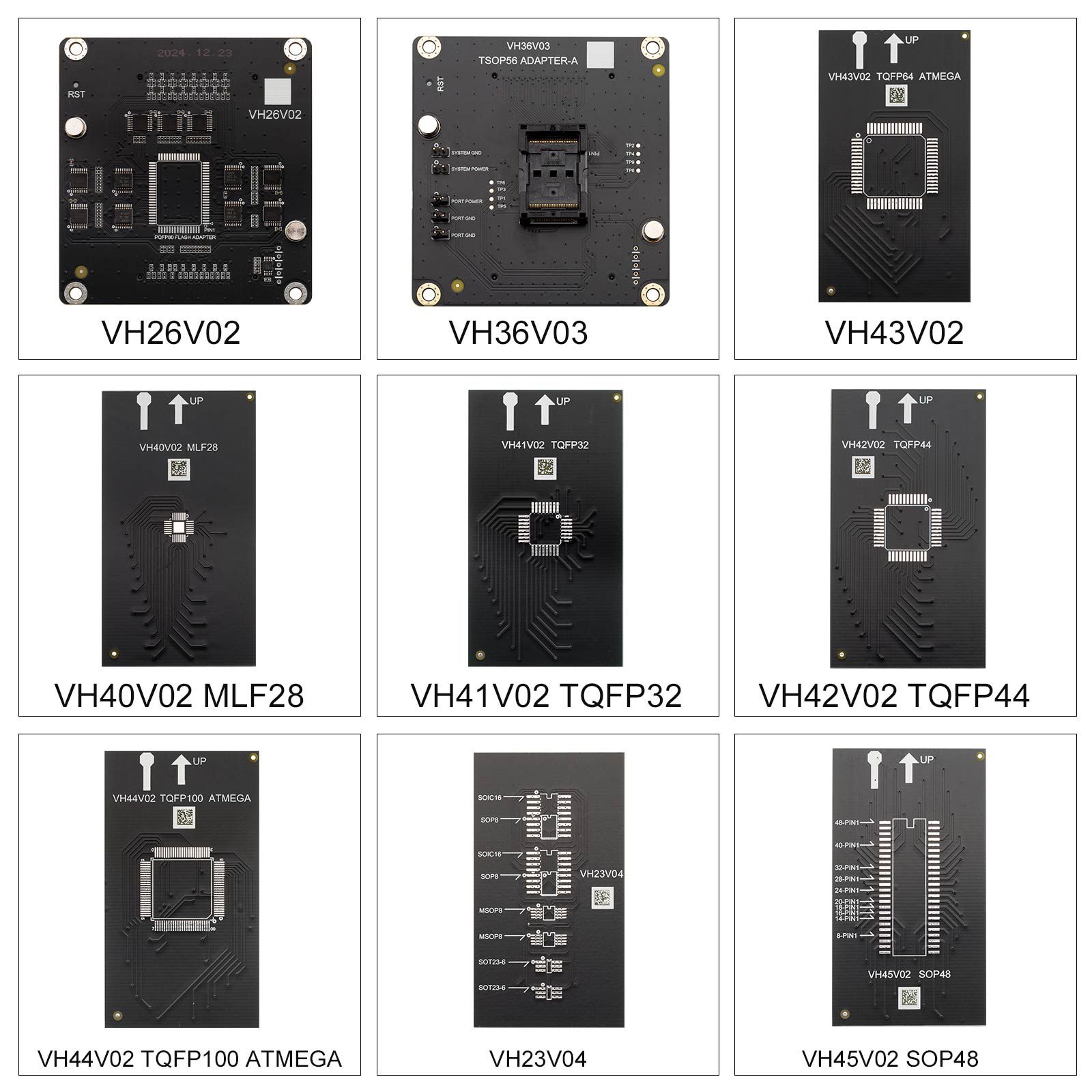

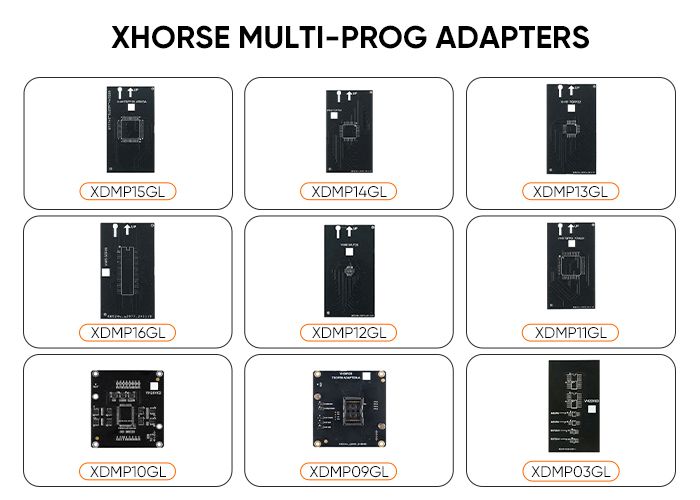

Xhorse Multi Prog Adapters for EEPROM and FLASH 9pcs/set


Package includes adapters XDMP03GL, XDMP09GL, XDMP10GL, XDMP11GL, XDMP12GL, XDMP16GL, XDMP15GL, XDMP14GL and XDMP13GL
These soldering boards support Reading & Writing of common EEPROM and FLASH chips.

XHORSE XDMP03GL Adapter EEPROM&FLASH Soldering Board Supports Reading & Writing of common EEPROM and FLASH chips.
XHORSE XDMP09GL Adapter TSOP56 Adapter Chip holder (Footprint:TSOP56) reads and writes, performs FLASH
XHORSE XDMP10GL Adapter PQFP80 Adapter AM29BDD160G (Footprint:PQFP80) Reads and Writes
XHORSE XDMP11GL Adapter Support ATMEGA103 (Footprint:TQFP64) Reading and Writing
XHORSE XDMP12GL Adapter MLF28 Adapter Support ATMEGA88PA(Footprint:MLF28) Reading and Writing
XHORSE XDMP13GL Adapter TQFP32 Adapter Support ATMEGA88PA(Footprint:TQFP32) Reading and Writing
XHORSE XDMP14GL Adapter TQFP44 Adapter Support ATMEGA163(Footprint:TQFP44) Reading and Writing
XHORSE XDMP15GL Adapter TQFP100 & ATMEG Adapter Support ATMEGA3250(Footprint:TQFP100) Reading and Writing
XHORSE XDMP16GL Adapter SOP48 Adapter: Support ATMEGA3250(Footprint:TQFP100) Reading and Writing

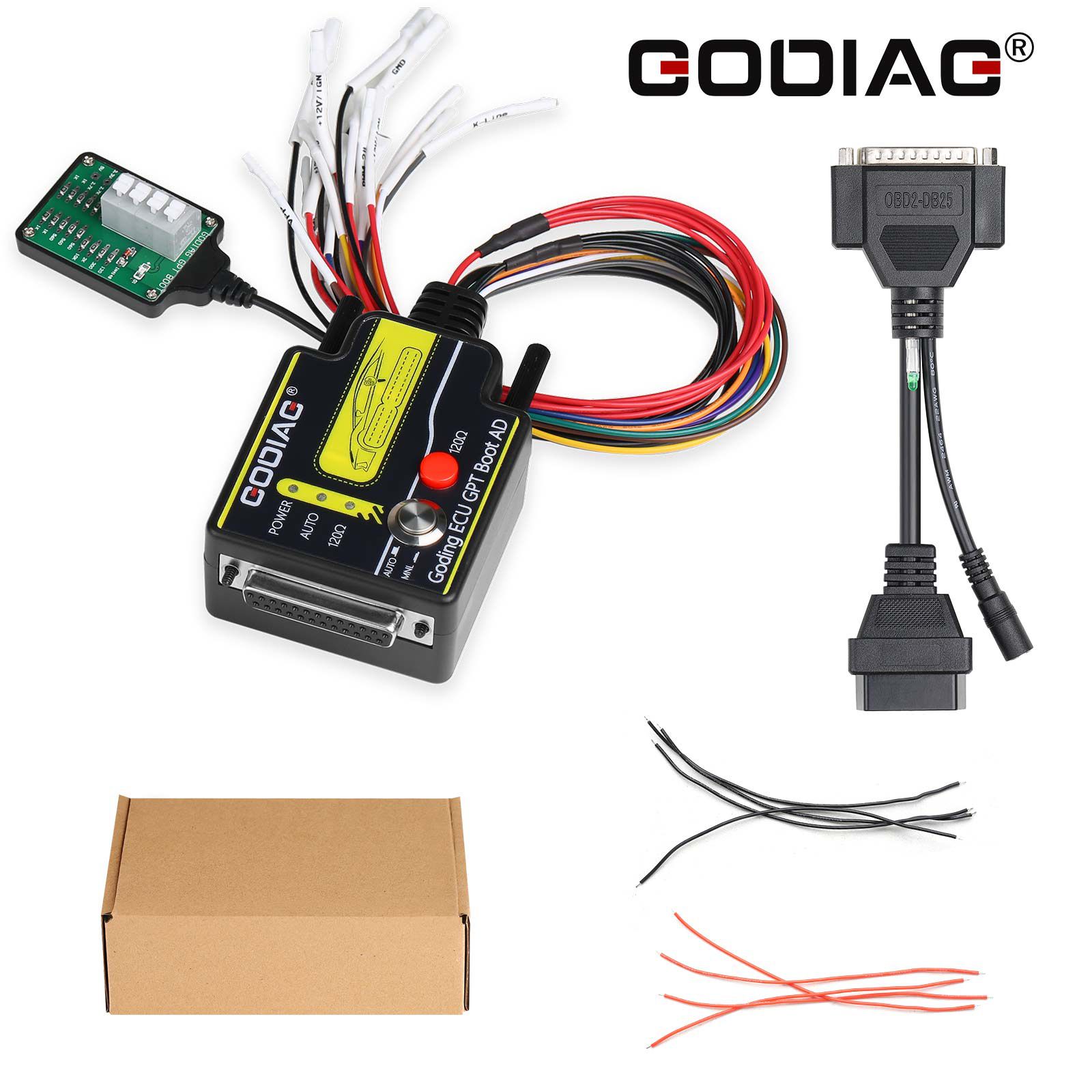

GODIAG ECU GPT Boot Adapter Features:

GODIAG ECU GPT Boot AD programming adapter can help customers read and write ECU data without disassembling the ECU using the OBD2 Bench or GPT Bench method or disassembling the ECU and using the Boot method. This product is equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU. Customers can use it with J2534 devices and PCMFLash software.

1. ECU dedicated connection terminal.
2. Support manual ignition power control
3. The ECU interface cable is labeled
4. Support ECU conversion to OBD2 mode to read and write data
5. Support RESET, BOOT, CNF1, GPT1, GPT2, 5V, 3.3V, VPP, GND.
6. Support PCMFlash automatic control of ignition power supply
7. Support ECU opening BOOT method to read and write data
8. CANbus is equipped with a switch to freely select the 120Ω resistor
9. Support GPT to read and write data without disassembling the ECU.

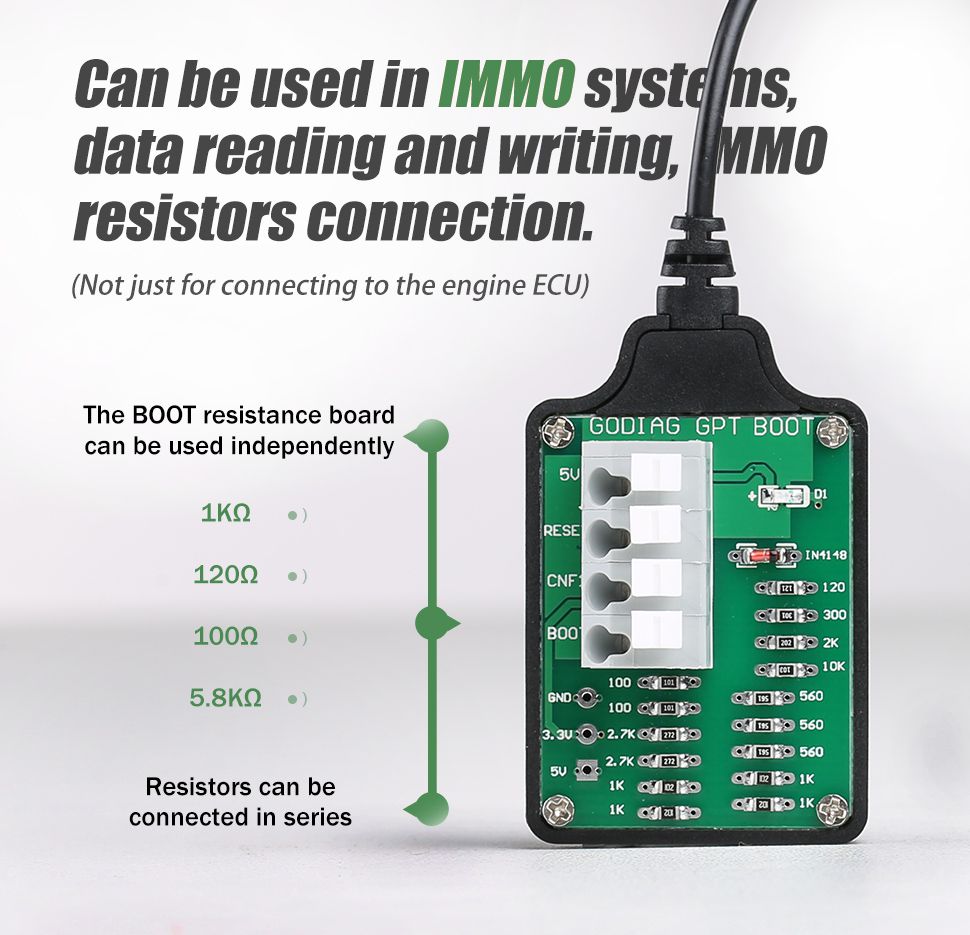

10. Equipped with BOOT resistance board connecting cable [anti-lost resistor design]

GODIAG ECU GPT Boot Adapter Functions:

Diagnostic function supports standard OBD2 protocol equipment.
Supports ECU reading and writing data, and supports J2534 devices.
Only Scanmatik 2 PRO for PCMflash allows to form GPT1, GPT2 signals necessary to work with Module 71.
Other devices Scanmatik OpenPort 2.0, Mongoose JLR, MongoosePro JLR,
Teradyne GNA600 (VCM 1), Mazda VCM 2 supports OBD2 or BOOT 53 mode to read and write ECU data.

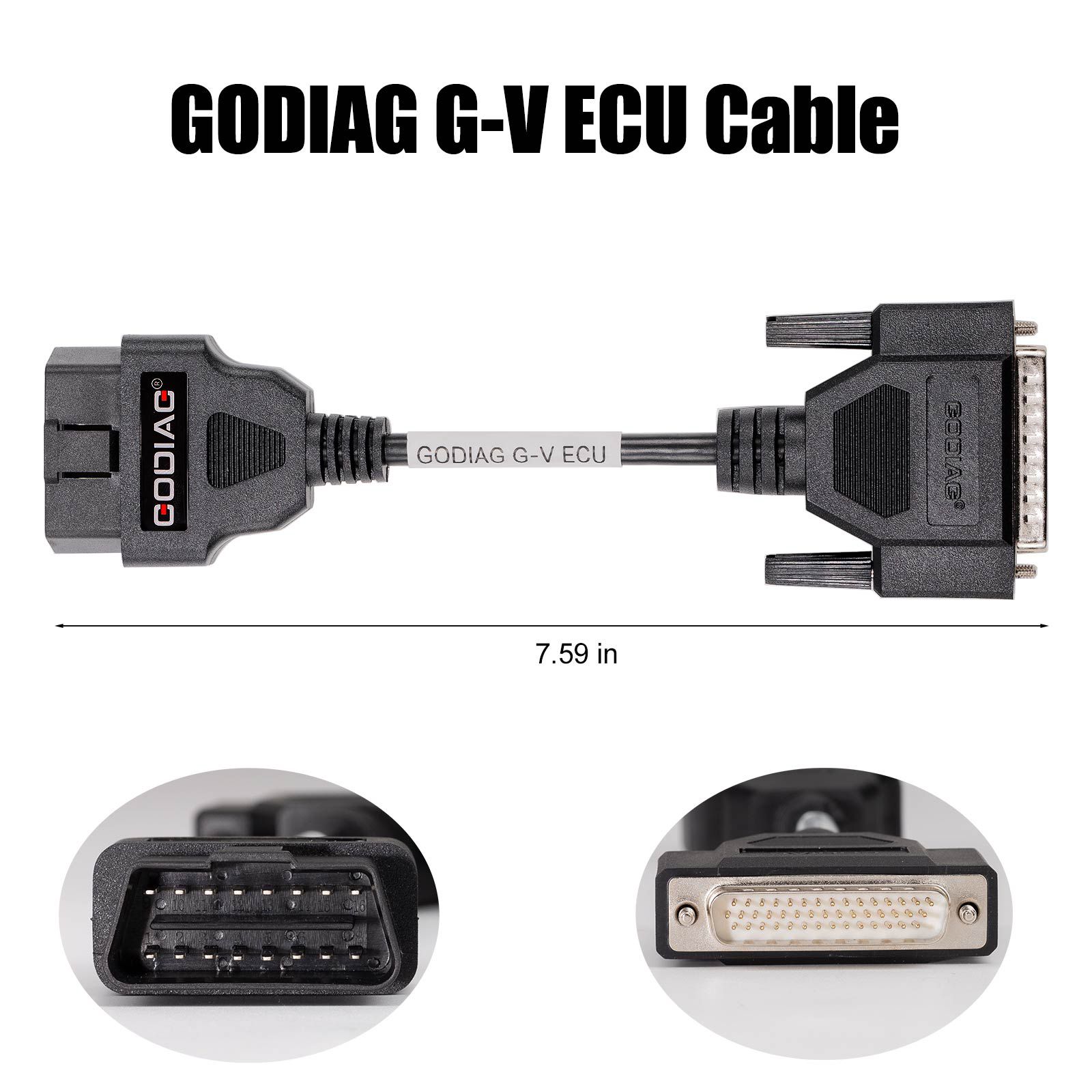

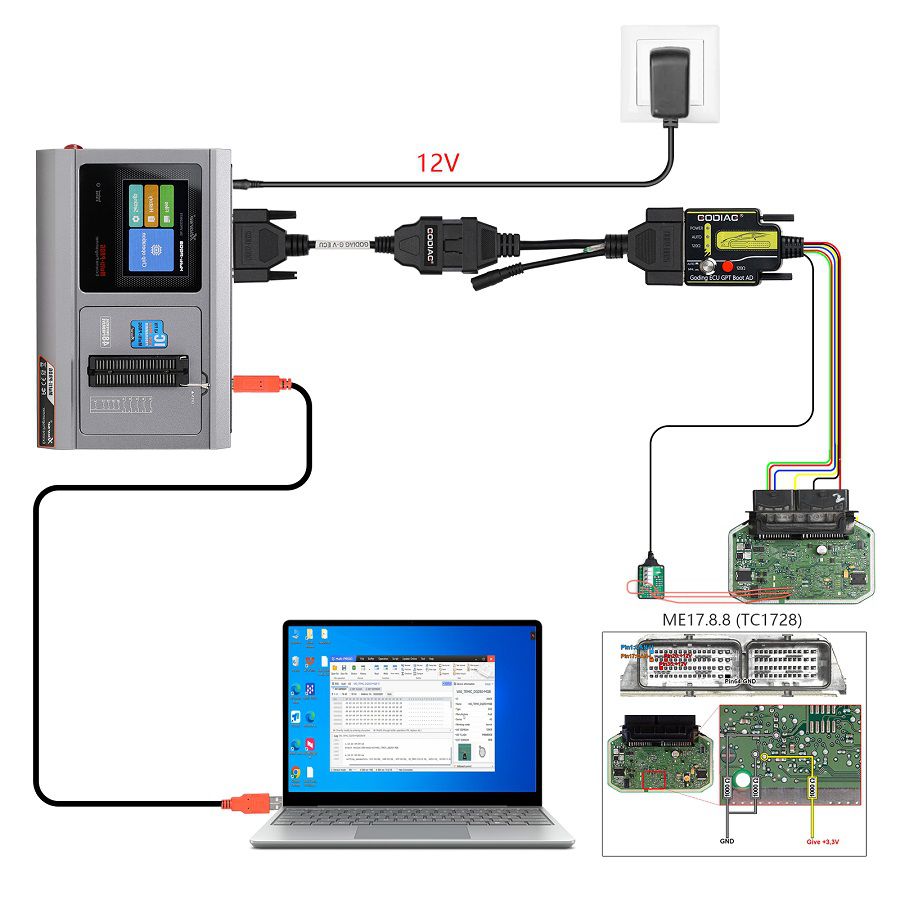

GODIAG G-V ECU Cable

GODIAG G-V ECU Cable is used to connect Xhorse MULTI PROG with GT107 or GT107+ GPT BENCH BOOT to read and write data on VAG gearbox ECU and engine ECU, clone ECU.

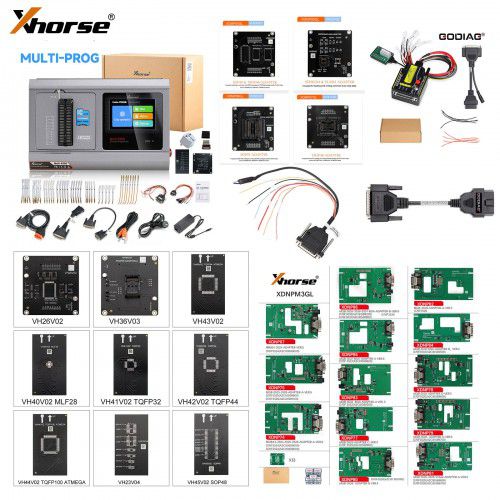

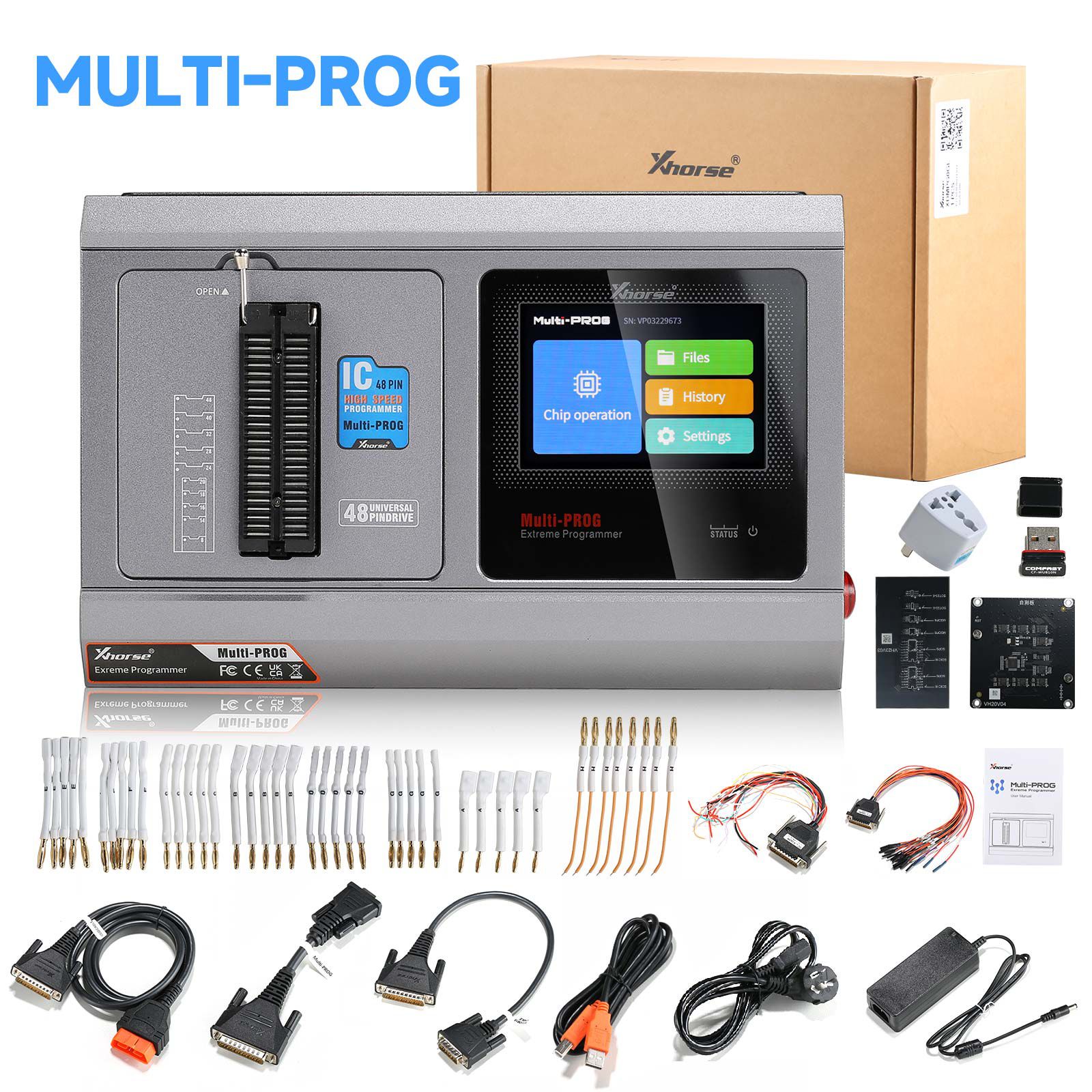

Package Includes:

1pc x Multi-PROG
1pc x USB Cable
1pc x Power Adapter (15V 4A)
1pc x 220V Power Cord
1pc x VH13 Interface Adapter Board
1pc x VH20 Interface Adapter Board
1pc x VH23 Interface Adapter Board
1pc x MCU Adapter Multi-PROG Solder Cable
1pc x MCU DB15 Adapter Cable
1pc x ECU Adapter Multi-PROG Solder Cable
1pc x ECU DB15 Adapter Cable
1pc x Multi-PROG OBD Cable
1pc x USB WIFI Network Card
1pc x Product Manual
1pc x Certificate Of Conformity
43pcs x ECU Cable Plugs

13pcs x Xhorse MQB48 adapters XDNPM3GL

1pc x Xhorse XDMPR8GL MQB-RH850/V850 Adapter for Xhorse MULTI-PROG Pro-level Programmer

1pc x XDMP03GL
1pc x XDMP09GL
1pc x XDMP10GL
1pc x XDMP11GL
1pc x XDMP12GL
1pc x XDMP13GL
1pc x XDMP14GL
1pc x XDMP15GL
1pc x XDMP16GL

1pc x Xhorse XDMP04GL VH24
1pc x Xhorse XDMP05GL VH29
1pc x Xhorse XDMP06GL VH30
1pc x Xhorse XDMP07GL VH31

1pc x GODIAG ECU GPT Boot AD Programming Adapter
