VIDENT iMax4305 OPEL Full System Car Diagnostic Tool for VAUXHALL OPEL Rover Support Reset/OBDII Diagnostic/Service

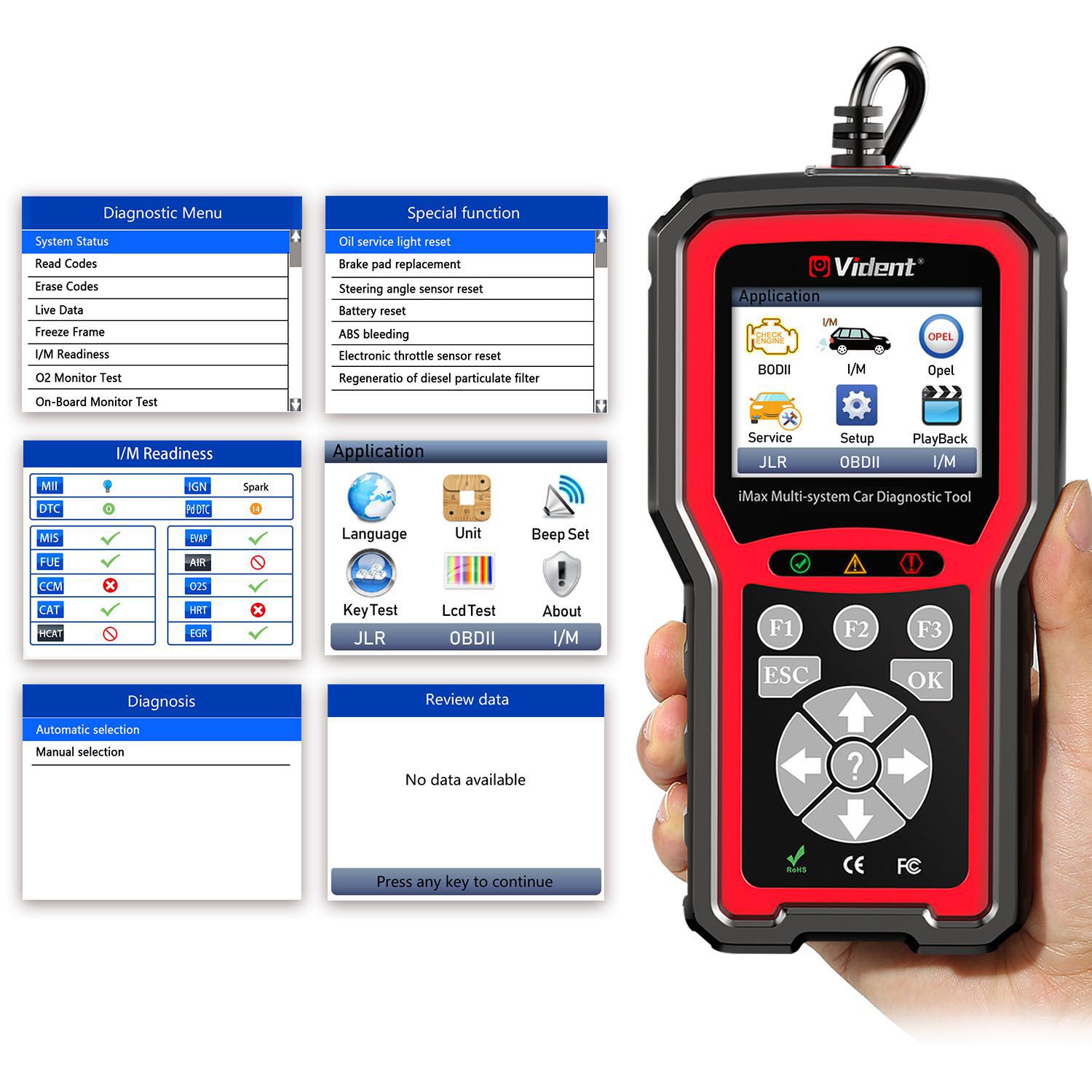

1). VAUXHALL OPEL Diagnosis for Single Brand of most Models (OBDII-16DLC)

2). Read &Clear DTC

3). Read Live Data

4). ECU Information

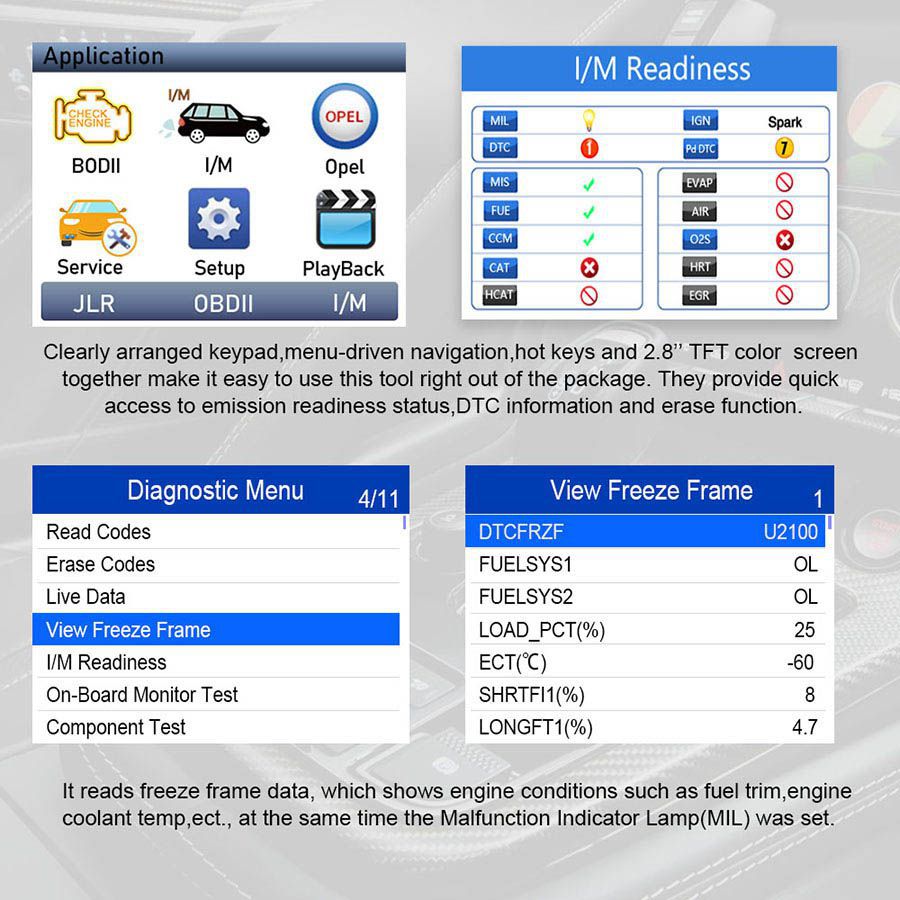

5). Freeze Frame

6). Oil Service Reset

7). Electronic Parking Brake (EPB) system maintenance

8). Battery Replace Test (BRT)

9). Diesel Particulate Filter (DPF) Regeneration Control System

10). Electronic Throttle Control System (ETC)

11). Steering Angle Sensor (SAS) Calibration

12) ABS bleeding

13). I/M Readiness Test

14). Data Playback and Print

15). Full Speed Upgrade via PC

16). TFT LCD,320*240

17). Lifetime free software update

18). Multilingual: English, French, German, Spanish, Italian, Dutch, polish, Swedish, Portuguese, Russian etc

1.If the service lamp is on, you must provide service for the car. After service, you need to reset the driving mileage or driving time so that the service lamp turns off and the system enables the new service cycle.

2.After changing engine oil or electric appliances that monitor oil life, you need to use vident tools reset the service lamp.

Electronic Parking Brake (EPB) system maintenance

1.Use the car diagnostic device to reset the car battery monitoting unit to clear original fault information about insufficient battery electric quantity, and match the battery again and monitor battery based on current battery information.

2.Battery matching must be performed in the following cases:

a) Main battery is replaced. Battery matching must be performed to clear original electric quantity insufficiency information and prevent the related control module from detecting false information. If the related control module detects false information, it will invalidate some electric auxiliary functions, such as automatic start&stop function, sunroof without one-key trigger function, power window without automatic function.

b) Battery monitoring sensor. Battery matching is performed to re-match the control module and motoring sensor to detect battery electric quantity use information more accurately, which can avoid the instrument panel displaying false information.

1.To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.

2.After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), peforming four-wheel alignment, or recoving car body, you must reset the steering angle.

ABS bleeding:

1.When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

2.If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.

VIDENT iMax4305 OPELOBDII Function supports most of OBDII/EOBD test modes including CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.

VIDENT iMax4305 OPELOBDII Function works on most of 2001 and later European OBDII compliant PETROL vehicles and most of 2004 and later European OBDII compliant DIESEL vehicles.

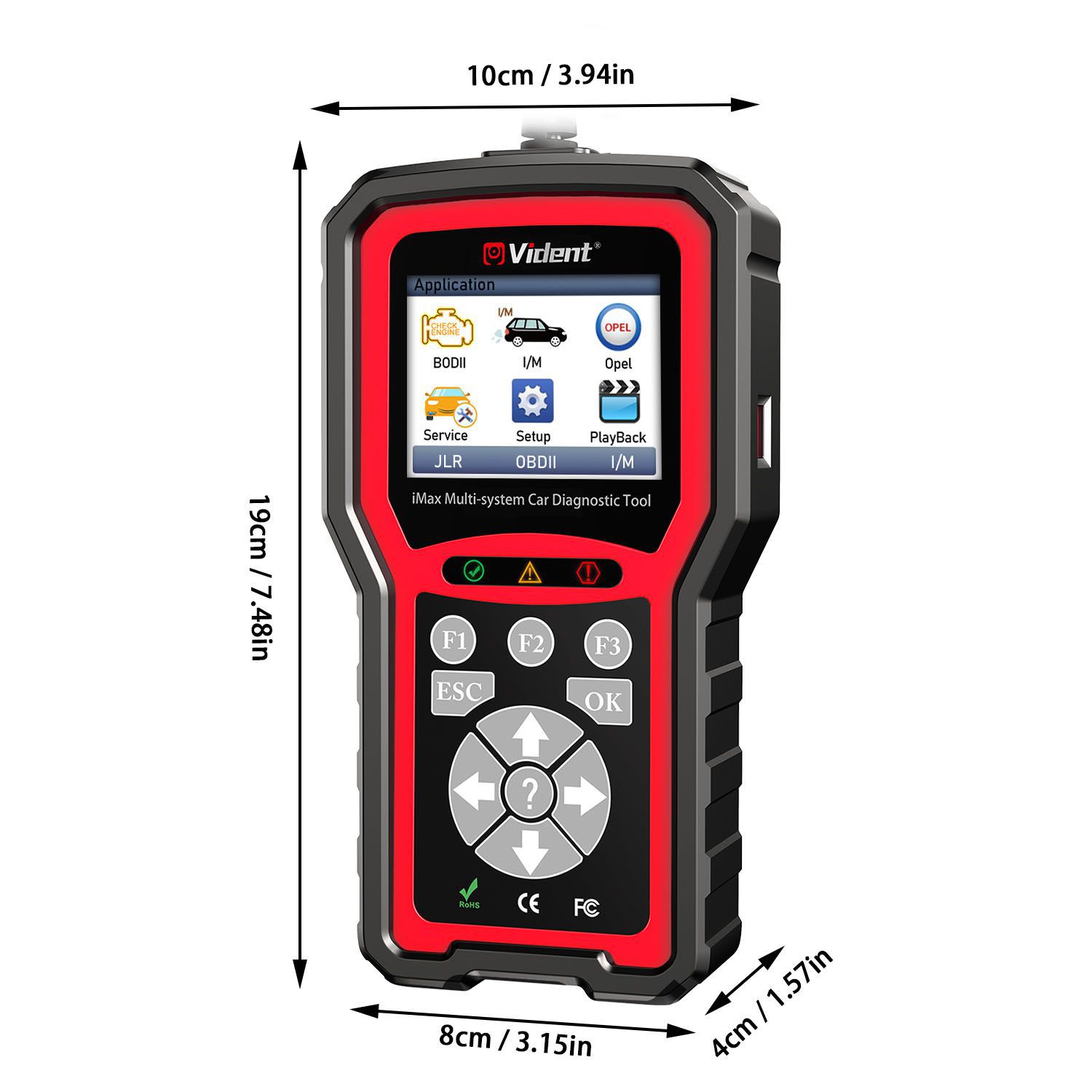

1pc x VIDENT iMax4305 OPEL Main Unit

1pc x Users Manual

1pc x USB Cable
