VIDENT iLink400 Full System Single Make Scan tool Supports ABS/SRS/EPB/DPF Regeneration/Oil Reset Update Online Better than Foxwell NT510

VIDENT iLink400 Full System Single Make Scan tool Support ABS/SRS/EPB//DPF Regeneration/Oil Reset Update Online

Available Manufacture for selection Makes:

（The scanner is shipped with one free software . More software can be added anytime at extra cost）
SC367-2 VIDENT iLink 400 System Scan tool -Ford Ford, EU FORD
SC367-3 VIDENT iLink 400 System Scan tool - BMW/MINI BMW, Mini and Rolls Royce
SC367-4 VIDENT iLink 400 System Scan tool - Citroen Citroen
SC367-5 VIDENT iLink 400 System Scan tool - Chrysler Chrysler
SC367-6 VIDENT iLink 400 System Scan tool -Fiat Alfa Fiat, Abarth, Alfa Romeo， Lancia
SC367-7 VIDENT iLink 400 System Scan tool -Ferrari Ferrari
SC367-8 VIDENT iLink 400 System Scan tool -Jaguar Land Rover Jaguar, Land Rover
SC367-9 VIDENT iLink 400 System Scan tool -GM GM
SC367-10 VIDENT iLink 400 System Scan tool -Vauxhall Opel Vauxhall, OPEL
SC367-11 VIDENT iLink 400 System Scan tool -Honda Honda
SC367-12 VIDENT iLink 400 System Scan tool -Hyundai / Kia Hyundai, Kia
SC367-14 VIDENT iLink 400 System Scan tool -Porsche Porsche
SC367-15 VIDENT iLink 400 System Scan tool -Toyota Lexus TOYOTA, Lexus and Scion
SC367-16 VIDENT iLink 400 System Scan tool - Mercedes Benz Mercedes BENZ, Sprinter
SC367-17 VIDENT iLink 400 System Scan tool - Maserati Maserati
SC367-18 VIDENT iLink 400 System Scan tool -Mazda Mazda
SC367-19 VIDENT iLink 400 System Scan tool -VAG VW, Audi, Skoda, Seat, Bentley, Bugatti, Lamborghini, VW Commercial
SC367-20 VIDENT iLink 400 System Scan tool -Volvo Volvo
SC367-21 VIDENT iLink 400 System Scan tool - Renault Renault, Dacia
SC367-22 VIDENT iLink 400 System Scan tool -Mercedes Benz Mercedes BENZ
SC367-23 VIDENT iLink 400 System Scan tool - Subaru Subaru
SC367-24 VIDENT iLink 400 System Scan tool -SsangYong SsangYong
SC367-25 VIDENT iLink 400 System Scan tool -Peugeot Peugeot

Vident iLink400 Each Software Function & Car List

Vehicle Coverage Options:
iLink400 comes with Global OBD2 software installed. You can select any of the car make software below to update on your scan tool. The first software is free of charge with your purchase. Any additional software costs $60 each up to 5 makes.

American car: for FORD, for GM, for Chrysler, for Scion

European car: for EU FORD, for BMW, for Mini and Rolls Royce, for Citroen, for Fiat, for Abarth, for Alfa Romeo and Lancia, for Ferrari, for Jaguar, for Land Rover, for Vauxhall, for OPEL, for Porsche, for Mercedes, for Sprinter, for Maserati, for VW, for Audi, for SEAT, for Skoda, for Volvo, for Renault, for Dacia, for Peugeot

Asian car: for Hyundai, for Kia, for Honda, for Subaru, for Mazda, for TOYOTA, for Lexus, for SsangYong

VIDENT iLink 400 Features:

1.Compatible with both OBDI and OBDII vehicles .
2.Works on the latest 2016/2017 vehicle models.
3.Multi-system Diagnosis–for most (if not all) electronically controlled systems, including Engine, ABS, Airbag, Automatic Transmission, Immobilizer, Climate Control, Fuel Pump Control module, Fuel Injection Control module, All-wheel drive control , VG transfer case module, Electronic selector module, body control module, digital radio, standard radio, drivers door module, HVAC, instrument cluster, seat memory module, theft deterrent, Amplifier, central gateway, immobilizer, overhead control panel, steering column module, convertible top controller, etc.
4.Basic diagnostic function includes read/erase codes, freeze frame data, live data, graph and compare live data, ECU information, active test, advanced ID.
5.Quick Test function to test most common vehicle systems.
6.Turns off dashboard warning lights.
7.Request and record live sensor data. Display live data graphs, and merge 2 parameter graphs simultaneously.
8.Display freeze frame data .
9.Retrieve ECU information.
10.Key coding for several vehicles.
11.Perform bi-directional actuations tests- manually operating components on the car to test their function.
12.Support advanced functions such as adaptations and control module coding.
13.Support the most commonly required service features like brake deactivation, service resets, Steering Angle Sensor (SAS) Calibration, DPF regeneration, ABS Bleeding, BCM/SIR Setup, TPS/TBA(Throttle Body Alignment), etc.

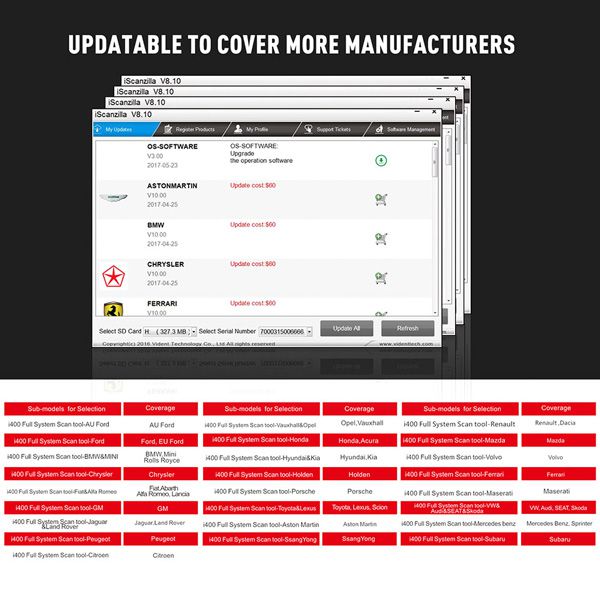

14.Upgradable to cover more car makes.
15.Multi-lingual menus and code definitions for an international marketplace. Support English, Spanish, Portuguese, Dutch, German, French, Swedish, Italian, Polish, Hungarian, Japanese, Korean, etc.
16.TF memory card for data backup and software update
17.As easy as 1-2-3 with large TFT color screen and menu-driven operations
18.Ergonomic design and ruggedly built for both shop and road tests
19.3 years free software update

VIDENT iLink400 Scanner Sofware Features:

VIDENT iLink400 Specification:

Display: 2.8” Backlit, 320X240 TFT color screen
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Power: 8 to 18 V provided via vehicle
Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)
Tool Dimensions: 194*117*47mm (L*W*H)
Color Box: 220*165*85mm (L*W*H)
Weight: 0.9KG

Package includes:

1pc x iLink400 Full Scan Tool
1pc x User’s Guide
1pc x Memory Card
1pc x USB Cable
1pc x Leather Carrying Pouch

Vident iLink400 OBD2 scanner Reviews:

Review 1:
Very useful and capable device. You can run programs to test certain things such as injectors, abs, tps ect. You can pay for other manufacturers programs too. Each additional one is 60 dollars but it comes with 1 for free.

Review 2:
Awesome tool works on my 2010 for Dodge Ram & my wifes 2015 for Jeep Wrangler. both were throwing codes which my OBD2 was no help for. This tool showed me the live data as well as the saved data from when the first error was seen. Has live testing where you can from inside the vehicle check to make sure everything works.. Highly recommend!! save yourself time and money using this tool then going to a dealership.


Foxwell NT520 Pro vs. Vident iLink400 vs. iCarsoft

		Vident iLink400	Foxwell NT520 Pro	iCarsoft
OBD Functionality	Perform 10 OBDI and OBDII/EOBD test modes	Yes	Yes	Yes
Full System Diagnostic Functionality	Works on almost all electronic systems	Yes	Yes	Yes
	Reads and clear codes	Yes	Yes	Yes
	Reads/records/graphs live sensor data	Yes	Yes	Yes
	Freeze frame data	Yes	Yes	Yes
	ECU information	Yes	Yes	Yes
	Multilingual menu and codes	Yes	Yes	Yes
	Code troubleshooters	Yes	Yes	Yes
Hardware features	Hot keys for quick access of data	Yes	Yes
	Color screen	Yes	Yes	Yes
Special functionality	Bi-directional control tests	Yes	Yes
	EPB Service	Yes	Yes	Yes
	Oil Light Reset	Yes	Yes	Yes
	DPF Reset	Yes	Yes
	SAS(Steering Angle Sensor Calibration)	Yes	Yes	Yes
	Battery Configuration	Yes	Yes
	TPS/TBA(Throttle Body Alignment)	Yes	Yes
	Other Service Maintenance Function
Update	Free Update Period	3 years	Life time	Free, but no update
Coverage
	Aston Martin	Yes	Yes
	Ford, EU Ford	Yes	Yes	Yes
	BMW, Mini and Rolls Royce	Yes	Yes	Yes
	Chrysler	Yes	Yes	Yes
	Citroen	Yes
	Ferrari	Yes	Yes
	Fiat, Abarth, Alfa Romeo and Lancia	Yes	Yes	Yes
	GM	Yes	Yes	Yes
	Honda	Yes	Yes	Yes
	Hyundai, Kia	Yes	Yes	Yes
	Land Rover, Jaguar	Yes	Yes	Yes
	Maserati	Yes	Yes
	Mazda	Yes	Yes	Yes
	Mercedes BENZ	Yes	Yes	Yes
	Renault, Dacia	Yes
	Peugeot	Yes	Yes	Yes
	Porsche	Yes	Yes	Yes
	SsangYong	Yes
	Subaru	Yes
	TOYOTA, Lexus and Scion	Yes	Yes	Yes
	VW Audi SEAT Skoda	Yes	Yes	Yes
	Vauxhall, OPEL	Yes	Yes	Yes
	Volvo	Yes	Yes	Yes

Vident iLink400 FAQs:

Q1:Is iLink400 software open for all car manufactures or need to buy software for each car manufactures ?
A1:It have a free model,and you need to pay for extra software

Q2:Will this support abs bleeding on a 1999 ford e350 super duty?
A2:Yes, it is support abs bleeding on a 1999 ford e350 super duty.

Q3:Can iLink400 program key for 98 taurus?
A3:Sorry, Ilink400 no key program key function.

Q4:Will this initiate bleeding for gm abs
A4:Yes.

Q5: Does this perform tcm quick learn for chrysler 45rfe/545rfe transmission?
A5: Yes. it does.

Q6: How do i download the software on macbook / os?
A6:You can download from Official website.

Q7:Will it go into the RVC soft top module on a w208?
A7:sorry, it can't support.

Q8: How to download software for my iLink400 ?
A8: Brief Guide
1. Install update client. Download the update client from our website or from the CD comes in the product package. And install it.
2. Creat a Vident ID. Create your Vident ID either on the update client iScanzilla or our website
3. Register the scanner. Register your scan tool with the update client iScanzilla
4. Connect the TF card with computer. Remove the TF card from the tool and connect with a windows computer through the card reader provided.
5. Download software. Log in iScanzilla to download all available software onto the TF card.

Q9: How to update software for my iLink400 ?
A9: Brief Guide
1. Download the update client from our website or from the CD comes in the product package. And install it.
2. Create your Vident ID either on the update client iScanzilla or our website
3. Register your scan tool with the update client iScanzilla
4. Remove the TF card from the tool and connect with a windows computer through the card reader provided.
5. Log in iScanzilla to download all available software onto the TF card.


Vident Ilink400 Software Update Log:

2018/9/28
MAINTENANCE_BENZ V10.05 Optimize the software
MAINTENANCE_BMW V10.05 Optimize the software
MAINTENANCE_FORD V10.05 Optimize the software
MAINTENANCE_MAZDA V10.05 Optimize the software
MAINTENANCE_TOYOTA V10.05 Optimize the software

2018/9/21
MAINTENANCE_BENZ V10.03 Initial release
MAINTENANCE_BMW V10.03 Initial release
MAINTENANCE_FORD V10.03 Initial release
MAINTENANCE_MAZDA V10.03 Initial release
MAINTENANCE_TOYOTA V10.03 Initial release

2018/9/20
OS-SOFTWARE V3.31 Update OS system

2018/9/13
CHRYSLER V10.40 Fix bug
TOYOTA V11.21 Optimize Portuguese translation

2018/9/11
OPEL V12.04 "1.Fix bug 2.Optimize Portuguese translation"

2018/9/6
GM V11.06 "1.Fix bug 2.Optimize Spanish and Portuguese translation"

2018/8/29
TOYOTA V11.20 Fix field test bug

2018/8/25
UPDATETOOLS V5.00 Optimize update speed

2018/8/22
GM V11.05 "1.Optimize menu display 2.Optimize live data"

2018/8/20
TOYOTA V11.10 "1.Fix the field test bug on VIOS model 2.Optimize Spanish and Portuguese translation"

2018/8/7
GM V11.04 1：Optimze protocol2：Optimize system access
OPEL V12.03 1：Optimze protocol2：Optimize system access

2018/7/26
CHRYSLER V10.32

2018/7/24
CHRYSLER V10.31 Optimize Polish and Spanish translation

2018/7/20
BENZ V11.10 Optimize Polish translation

2018/7/18
FIAT V10.21 Optimize Polish translation

2018/7/17
SSANGYONG V11.00 "1:Optimize DPF function 2:Optimize Spainish translation"

2018/7/16
OPEL V12.02 Optimize Polish translation

2018/7/14
GM V11.02
LAND_ROVER V10.60 Optimize Polish translation
OBDII V11.01 "1:Optimization code 2:Optimizing Polish language"

2018/7/13
OPEL V12.01 Optimize Polish translation
BMW V11.51 Optimize Polish translation
Porsche V10.30 Optimize Polish translation

2018/7/7
VAG V11.60 Fix DPF function bug on UDS models

2018/7/6
UPDATETOOLS V4.10 Optimize update speed

2018/7/4
UPDATETOOLS V4.00 Optimize the display

2018/7/2
UPDATETOOLS V3.30 Optimize update speed
"1:Add year 2017~2019 models for Chevrolet, Buik,, Cadillac 2:Add more than 126 kinds of special functionality"

2018/6/28
OPEL V12.00 "1:Add year 2017~2019 models for Chevrolet, Buik, Cadillac 2:Add more than 126 kinds of special functionality"
GM V11.01 "1:Add year 2017~2019 models for Chevrolet, Buik, Cadillac 2:Add more than 126 kinds of special functionality"

2018/6/21
UPDATETOOLS V3.20 Optimize update procedure

2018/6/15
VAG V11.50 1. optimize Polish 2. Optimize Spanish

2018/6/14
LAND_ROVER V10.50 Optimize auto scan and read codes

2018/6/13
SSANGYONG V10.20 fix inject coding. Modify Spanish translation

2018/5/29
SSANGYONG V10.10 Fix bug on communication with Actron engine

2018/5/24
GM V10.70 Update read/clear codes for 1996~2003 Chassis C, G, P

2018/5/16
VAG V11.30 Fix battery configuration bug on VW UDS models

2018/4/24
VAG V11.20 Update oil service function for Audi A4 2016
BMW V11.31

2018/4/12
LAND_ROVER V10.40 Fix communication bug for 1998 Discovery

2018/4/4
TOYOTA V11.00 Add 2014~2016 vehicle models

2018/3/29
GM V10.50 Fixed bug

2018/3/29
CHRYSLER V10.30 Optimize live data display and fix freezing bug
