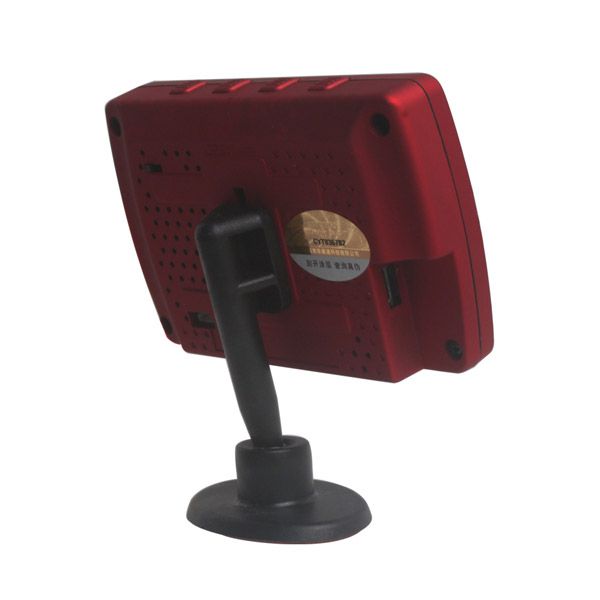

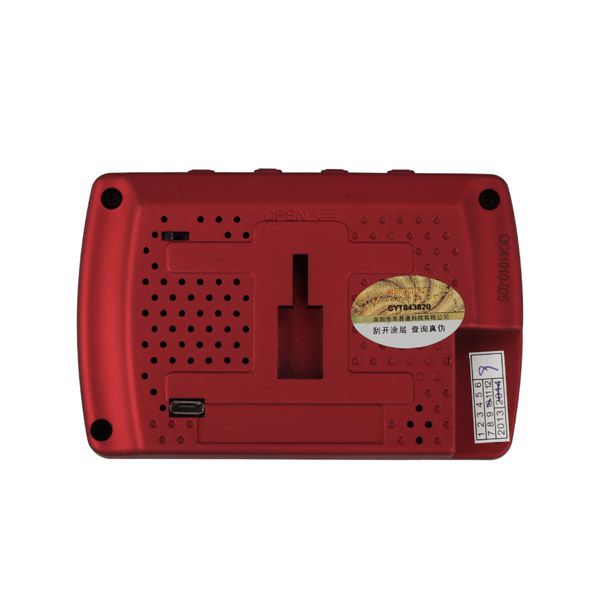

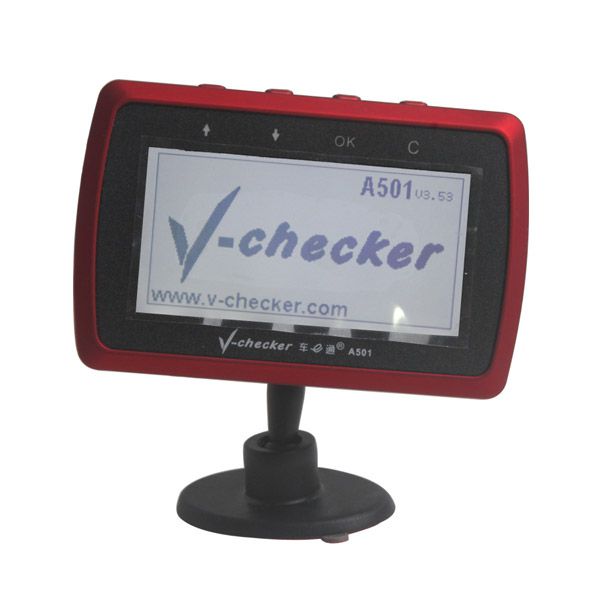

V-CHECKER A501 Multi-Function Trip Computer

Introduction

• The device’s interface can be customized according to user’s preferences so that the user can freely review the vehicle information.
• The device can be installed without changing the original vehicle cables. Just plug and the device works immediately, easy to use.
• The device supports all OBD compliant vehicles.

Features

• Quickly retrieves vehicle Diagnostic Trouble Codes and other vehicle security information.
• Displays real time oil consumption data, helps lowering maintenance cost.
• Clears trouble code information and saves maintenance costs.
• Real time vehicle trouble alerts include vehicle malfunction, high water temperature, over-low battery voltage, fatigue driving, over-speed, maintenance reminding, shift reminding.

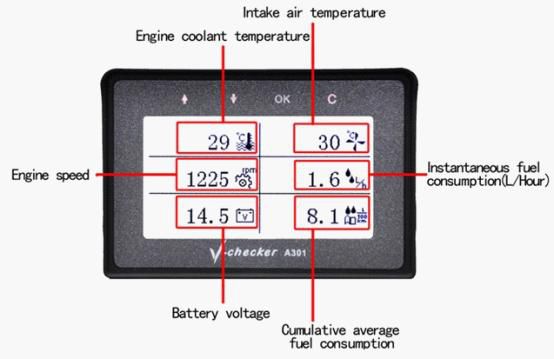

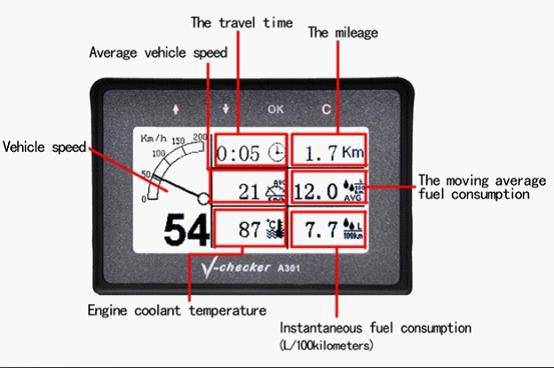

• Displays vehicle parameters, including engine speed, air pressure, real time oil consumption, acceleration performance, coolant temperature, oxygen sensor voltage.
• Provides a variety of graphic and digitized images or texts under various driving modes including idle mode, tour mode and race mode.

Specifications

• Working voltage: 8–36V
• Working Current: 100mA
• Working power: 1W
• Standby Power: 0.6W

Package Includes

• 1pc x Main Unit
• 1pc x OBD2 Connect Cable
• 1pc x User's Manual
• 1pc x Carrying Box
