UNI-T UT387C Wall Scanner Detector Non Ferrous Metal Stud Finder AC Voltage Live Wire Wood Detect Copper With Buzzer Indication

UNI-T's new wall scanner UT387 series enables you to detect electric wire, metal object, wooden beams accurately. The new and improved wall scanners are great tools for interior finish, renovation, furniture installation, flooring, pipe installation, and building construction.

1.High precision
2.Audible alarm
3.Multiple detection modes
4.1 meter drop resistance

Used to detect wood, metal (water pipes, steel bars, copper pipes), and live wires under gypsum board.

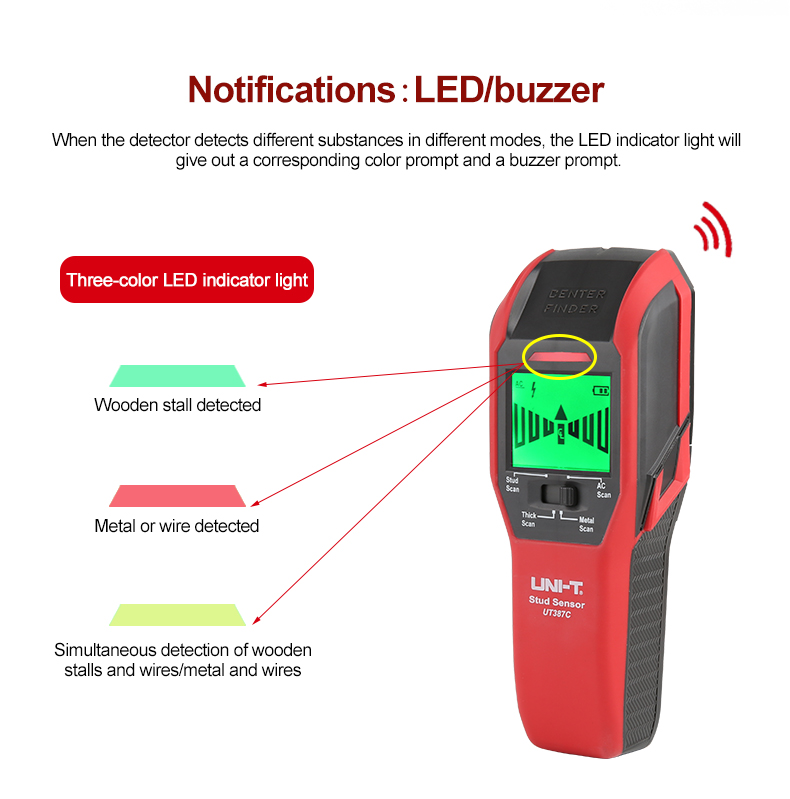

When the detector detects different substances in different modes. the LED indicator light will give out a corresponding color prompt and a buzzer prompt.

Easily display data in dark environments

Multi-material application (measurable metal, wire, wood)

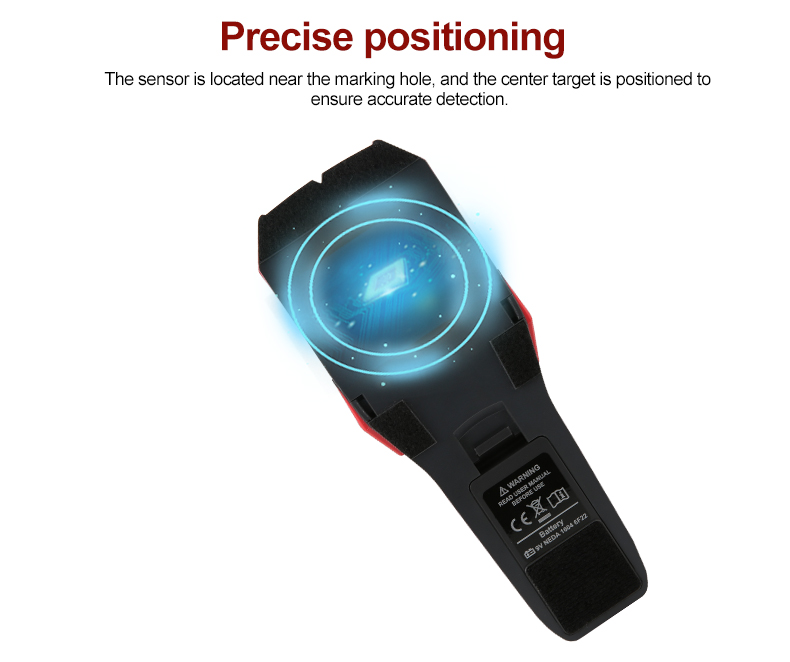

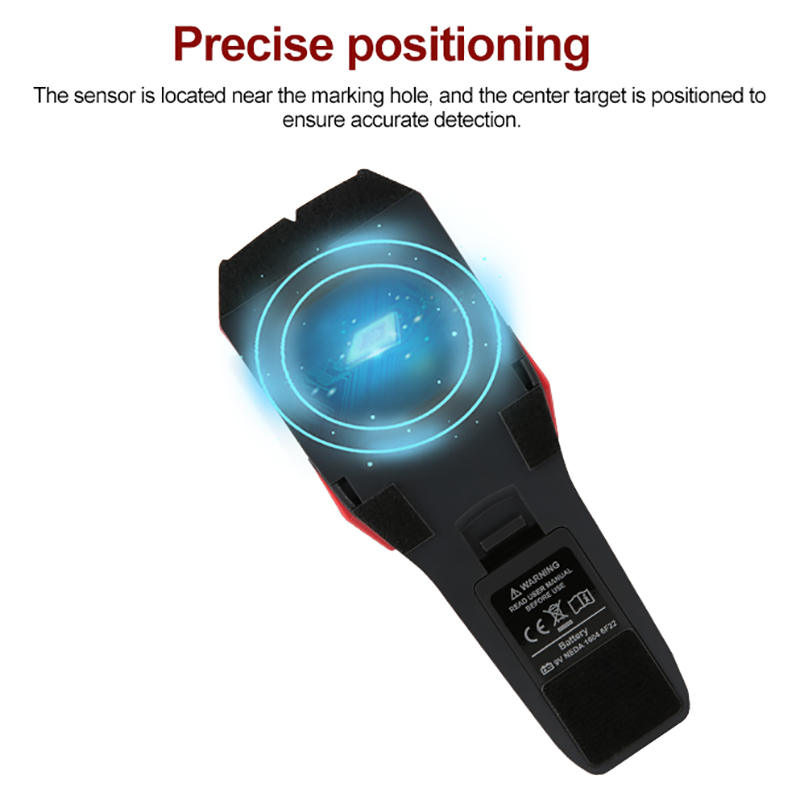

The sensor is located near the marking hole, and the center target is positioned to ensure accurate detection.

Add Velcro design up and down to increase the flatness of the instrument

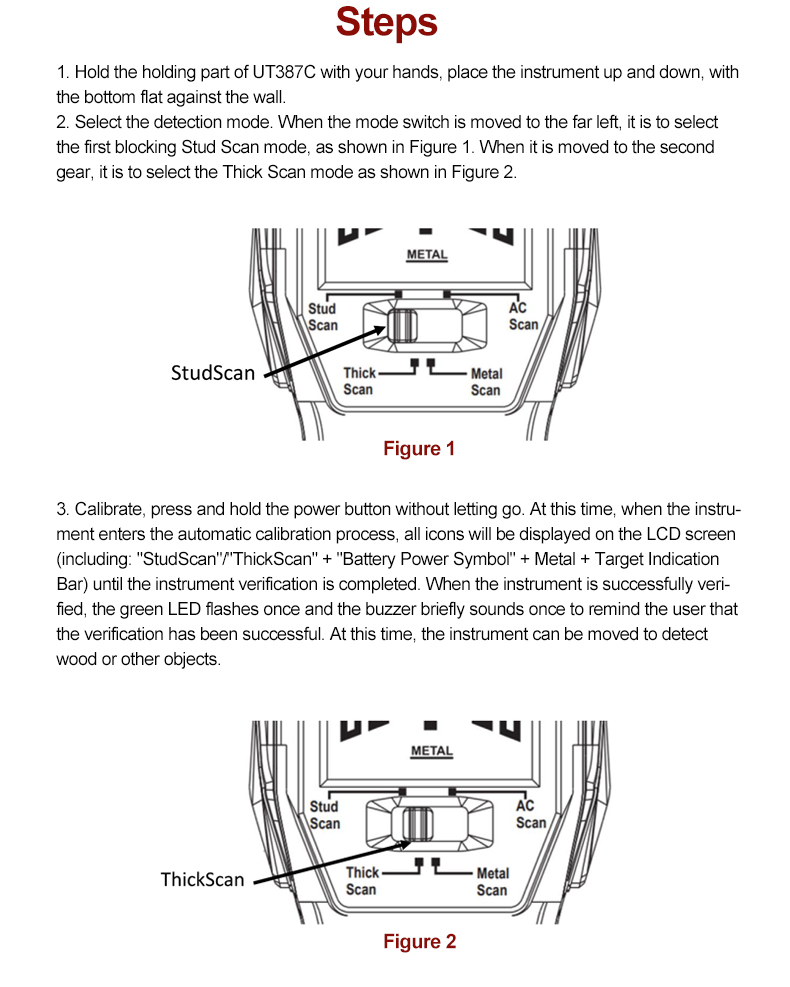

1. Hold the holding part of UT387C with your hands, place the instrument up and down. with the bottom flat against the wall.
2. Select the detection mode. When the mode switch is moved to the far left, it is to select the first blocking Stud Scan mode, as shown in Figure 1. When it is moved to the second gear, it is to select the Thick Scan mode as shown in Figure 2.
3. Calibrate, press and hold the power button without letting go. At this time, when the instrument enters the automatic calibration process, all icons will be displayed on the LCD screen (including: "StudScan"/ThickScan"+ "Battery Power Symbol" + Metal + Target Indication Bar) until the instrument verification is completed. When the instrument is successfully verified, the green LED flashes once and the buzzer briefly sounds once to remind the user that the verification has been successful. At this time, the instrument can be moved to detect wood or other objects.
