THINKCAR Thinktool Professional OBD 2 Automotive Scanner All System Bi-Directional Test ECU Coding OBD2 Car Diagnostic Scanner

THINKCAR Thinktool -WORLD FIRST Modular Design diagnostic tool!

All in one Diagnostic Scanner: Thinktool tablet scan tool is the first modular comprehensive diagnostic scan tool, which developed for mechanics looking for a scanner with ultra-convenient and modern design while delivering ultimate performance. ThinkTool can accomplish a comprehensive car full system scan diagnosis, coding , Bi-directional activate test and all service reset special functions.

The most powerful diagnostic functions

ThinkTool is a professional diagnostic tool that supports enhanced full vehicle module scans, read/clear codes, data stream graphing,OBD&I/M,actuation test,special functions.The special integrated industry design tablet supports multimodular.

Smart and automatic diagnosis
Complete maintenance functions
Powerful TPMS function
ThinkFile
Repair info

THINKCAR Thinktool OBD2 Scanner Support Automotive Full System Diagnotic

Full System Diagnosis: Thinktool car scanner enables you to scan full control units for a number of cars such as Engine, ABS, SAS, Transmission, Fuel system, Emission system, Body, and so on. With the latest Auto VIN Technology, quick diagnosis and complete vehicle inspection featurs, allows you to identify vehicle information, like brand, year, make, model and etc, at one touch to facilitate vehicle diagnosis process.

ECU Coding

The Coding function is used to re-flash the vehicle control modules. Thinktool code reader car diagnostic tool allows you to reprogram adaptive data for certain components after making repairs or replacements, providing ways for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts.

TPMS Programming

Thinktool car diagnostic scanner for cars provides professional full TPMS services including sensors activation, sensors programming, sensor relearn, TPMS active test, scan sensor ID, read & clear TPMS codes, live TPMS data, copy sensor ID and input sensor ID for cars.

Bi-directional & Activate Test:

Request information or command a module to perform specific tests and functions. For instance, in the case of OBD II generic information Mode 1, you can initiate a request for information from the powertrain control module, and the PCM responds by sending the information back to the scan tool for display. In addition, thinktool scanner have the ability to actuate relays, injectors, coils, or perform system tests, etc.

Commonly-used 28 service function

1、Oil Reset
The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the system will start a new maintenance cycle.

2、Elec.Throttle Adaption
Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.

3、Steering Angle Reset
To reset the steering angle, first find the relative zero point position for the car to drive in straight line.Taking this position as reference,the ECU can calculate the accurate angle for left and right steering.

4、Battery Matching
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.

5、ABS Bleeding
When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

6、Break-pad Reset
lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad.After replacing the brake pad, you must reset the brake pad.Otherwise, the car alarms.

7、DPF Regeneration
DPF regeneration is used to clear PM(Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.

8、Gear Learning
After the engine ECu, crankshaft position sensor,or crankshaft flywheel is replaced, or the DTC 'gear not learned' is present, gear learning must be performed.

9、IMMO Service
To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.

10、Injector Coding
Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity.

11、TPMS Reset
Note:Cooperate with wireless tire pressure diagnosis tool to realize TPMS activation, programming and learning functions

12、Suspension Matching
This function can adjust the height of the body. When replacing the body height sensor in the air sus pension system, or control module or when the vehicle level is incorrect, you need to perform thisfunction to adjust the body height sensor for level calibration.

13、AFS Reset
This feature is used to initialize the adaptive headlamp system.

14、A/T Learning
This function can complete the gearbox self-learning to improve gear shifting quality.

15、Sunroof Initialization
This function can set the sunroof lock off, closed when it rains,sliding /tilting sunroof memory function,temperature threshold outside the car etc.

16、EGR Adaption
This function is used to learn the EGR valve after it is cleaned or replaced.

18、Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.

19、Transport Mode
ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

20、A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.

21、Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

22、NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. lf theNOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

23、AdBlue Reset (Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

24、Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

25、Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

26、Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.

27、Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

28、Language Change
This function is used to change the system language of the vehicle central control panel.

.......

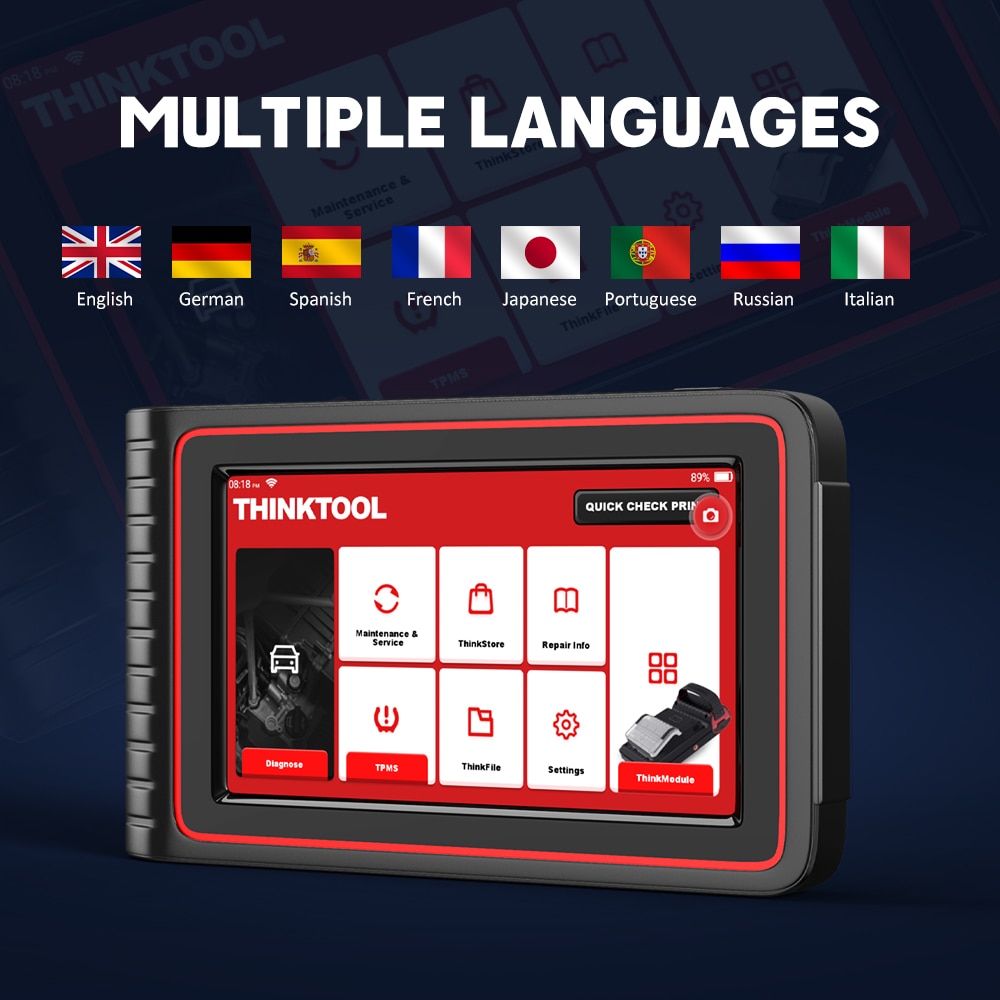

Thinktool Support Multi-Language

English, German, Spanish, French, Japanese, Portuguese, Russian, Italian.

THINKCAR Thinktool Features

1. Quickly Read Auto VIN infor

2. Advanced Hardware:
it's super-easy operation to do yourself diagnostic work due to the fast Android 7.0 operating system with 7'inch LCD Touch Screen.

3. Printer Accessories as a free gift.
You can customized the report tile address, very convenient and efficient. the device also support other accessories, such as WORKLIGHT, THEMAL IMAGER , VIDEO SCOPE. if you need these , please contact us.

4. Lifetime technical support,5 Year Quality Warranty. 365 days no reason free replacement

5. Graphical display：
Combine: Displayed in graph merge status for data comparison.

Support more than 10000+ Car Models

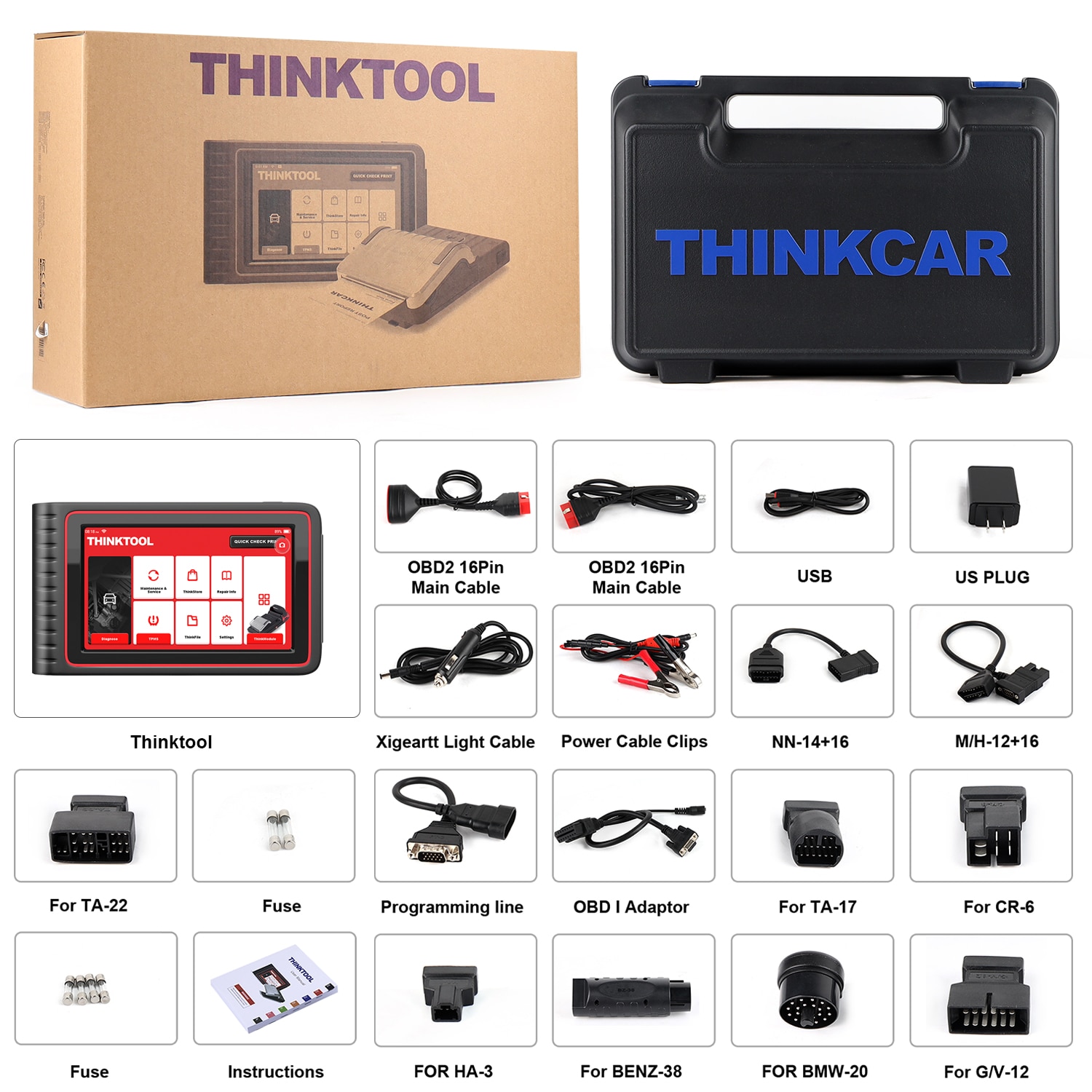

Packing List:

1*OBD2 diagnose cable
1* USB cable
1* User's manual
1*US plug
1*THINKTOOL Tablet Scanner
1*Plastic box
1*OBD Adapter set
