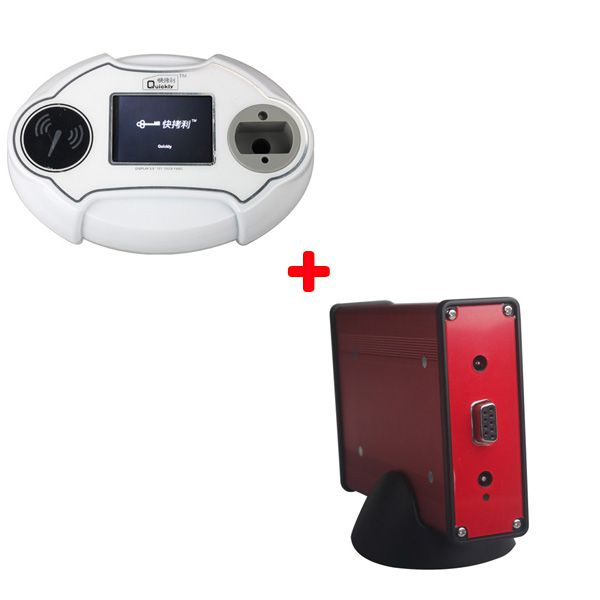

Quickly 4C/4D/46/48 Code Reader Chip Transponder Auto Key Programmer V2.14.8.16 Plus 4D Decoder Clone Box

Top 7 Reasons to Buy the Quickly 4C/4D/46/48 Chip Transponder Programmer with 4D Decoder Clone Box

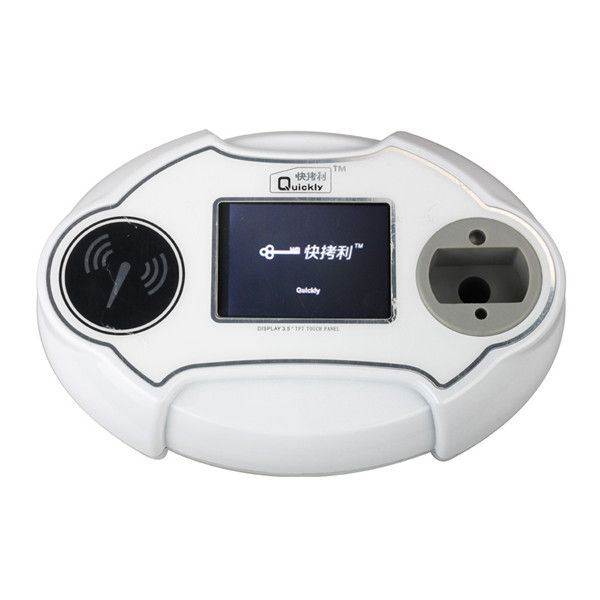

1. Portable Design: Features a 3.5-inch TFT LCD touch screen with a built-in battery, enabling operation without an external power supply.
2. Fast and Accurate Reading: Reads transponder chips quickly, stably, and accurately.
3. Standalone Operation: Copies 4C, 4D, and 46 chips without requiring a computer connection.
4. Broad Chip Compatibility: Supports copying 4C and 4D chips, including models TPX1, TPX2, EH2, TK40, and more.
5. Cost-Effective Alternative: Offers the same functionality as the original CN900 and ND900 Key Programmers at a significantly lower price.
6. Battery Powered: Operates on internal battery power for enhanced portability.

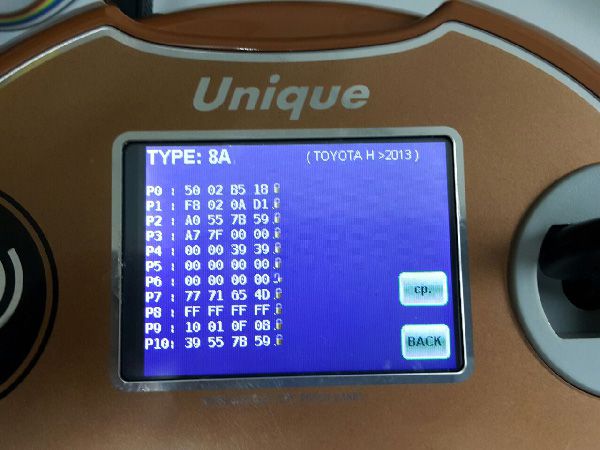

7. Toyota H Key Support: Compatible with Toyota H keys.

Important Notices

• Language: English only.
• 4D Chip Copying: Requires a separately purchased 4D Box.
• ID46 Chip Copying: Requires a separately purchased ID46 Decoder.

Key Functions of the Quickly 4C/4D/46/48 Chip Transponder Programmer

Function 1: Advanced Chip Identification

1. Accurately identifies a wide range of chip types: 11, 12, 13, 33, T5, 40, 41, 42, 44, 45, 46, 48, 4C, 4D, 60, 61, 62, 63, 65, 66, 67, 68, 69, 6A, 6B, 70, 71, 74, B9, 8C, 8E, 8A, and more.
2. Provides detailed format distinction for 48, 4D, and 46 chips. Identifies 2010 Toyota G keys and differentiates 4D72. Recognizes F2010 Ford keys and directly displays Toyota master and deputy key status.

Function 2: Remote and Smart Key Analysis

Detects remote controller frequency, verifies whether Toyota smart cards are new or previously used, and reads associated data.

Function 3: Chip Copying Capabilities

Supports copying of chips 11, 12, 13, 33, T5, 41, and 42, as well as partial support for 44 and 40. Fully supports copying of 4C, 4D, and 46 chips when used with dedicated blank chips.

Function 4: Data Storage via PC Software

When connected to compatible Chinese PC software, it enables unlimited storage of read key code data.

Function 5: Startup Chip Writing

Supports writing startup chips for various vehicle models, including: Jinbei (chip 13), Zhongghua (chip 13), Elysee (chip 33), Toyota (chip 4C), Renault encrypted (chip 46), and FAW Bensturn (B50 and B70). Also enables non-invasive start programming for Mazda and Mercedes-Benz W140, plus over 60 additional models including Ford, with password calculation capabilities similar to Tango functions.

Function 6: Chip 48 Unlocking

Unlocks standard chip 48 (note: encrypted 48 chips cannot be unlocked).

Function 7: Dedicated 48 Chip Conversion

Converts general-purpose chip 48 into dedicated variants such as 48A1, 48A2, 48A3, 48A4, and specific versions for 2010–2011 Jetta and Zhonghua models.

Function 8: Hyundai and Kia Password Calculation

Calculates passwords for six chassis types of Hyundai and Kia vehicles manufactured before 2007.

Function 9: Fiat Key Programming

Programs all types of Fiat keys, including chips 11, 13, and 33.

Additional Supported Functions

• Supports T5 and Temic chips; generates chips 11, 12, 13, and 33.
• Supports 4D chips; generates chips 4C, 61, 62, 63, 65, 66, 67, 68, 69, 6A, 6B, B9, and 71.

Special Notice

Copying 4D and 46 chips requires purchasing the dedicated 4D and 46 Decoders along with their respective blank chips.

Usage Instructions

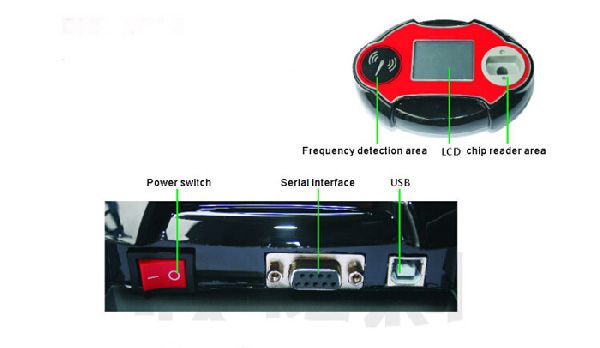

1. External Interface Overview

2. Chip Identification

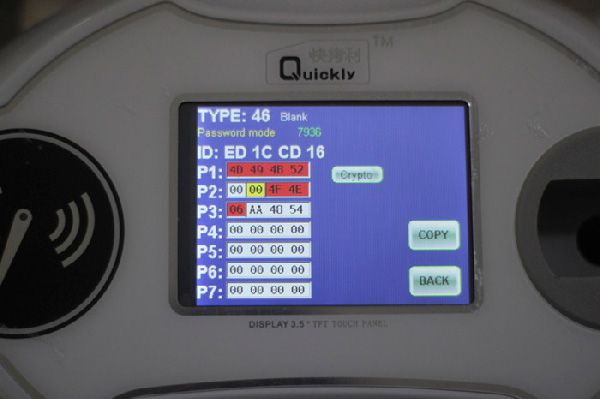

Place the chip in the designated reading area and select "Chip Reading and Writing." If a chip is present, its type and parameters will be displayed.

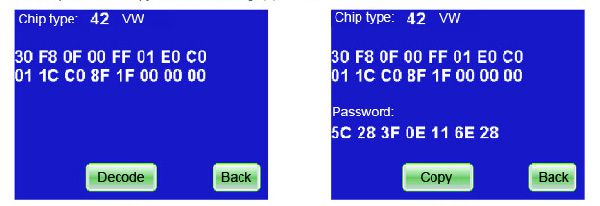

3. Chip Copying Procedure

Example: To copy a 42 chip, first place the original working key in the reader to extract data. After decoding, remove the original key, insert a new blank 42 chip, and click "Copy."

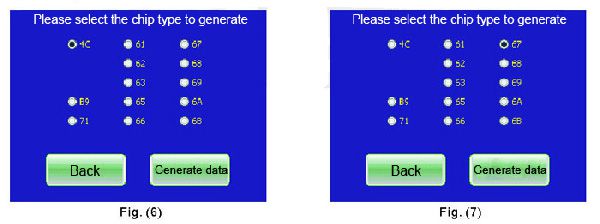

4. Additional Settings – Generating Specialized Chips

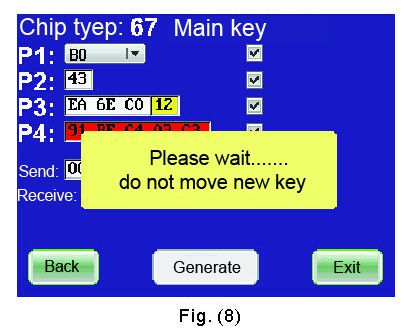

Example: To generate a 4D67 chip, insert a blank 4D60 chip into the reader, navigate to "Additional Settings" → "Key Cutting," select "67," and confirm to generate the data.

5. Toyota Smart Key Usage Check

Insert a Toyota smart key into the reader, go to "Additional Settings" → "Smart Key Reading," and the device will indicate whether the key is new or has been used.

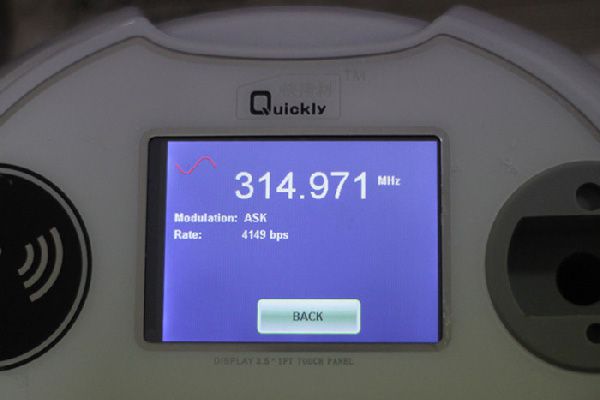

6. Remote Frequency Detection

Place the remote key flat in the frequency detection area, select "Frequency Detection" from the menu, and press any button on the remote. The screen will display frequency, ID, modulation mode, speed, and other parameters.

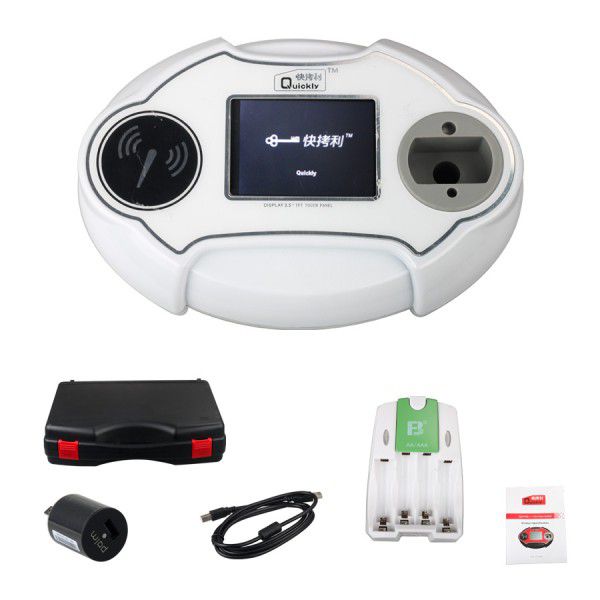

Package Contents

• 1 × Quickly 4C/4D/46/48 Machine
• 1 × USB Cable

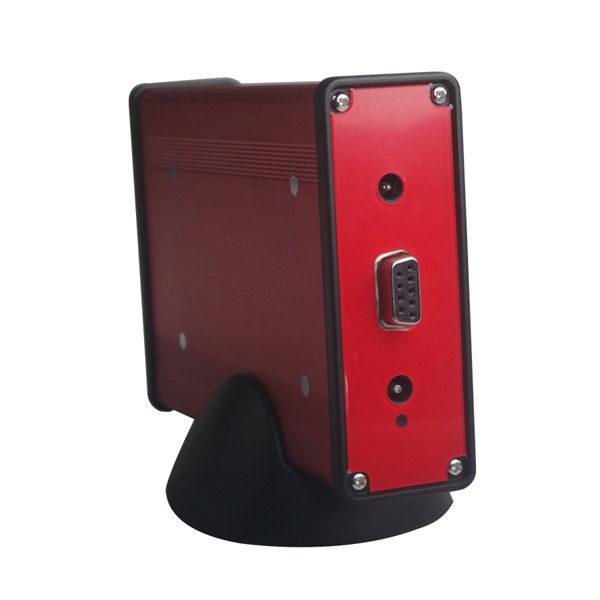

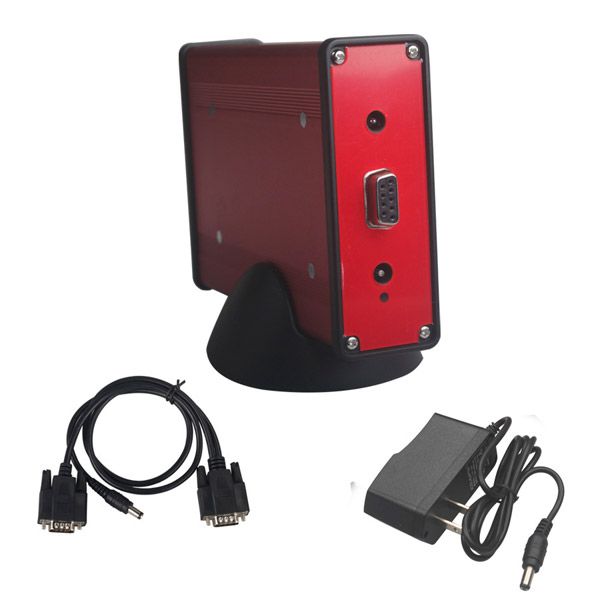

• 1 × Quickly 4D Decoder
• 1 × Cable
• 1 × Power Adapter
• 1 × Host Base
