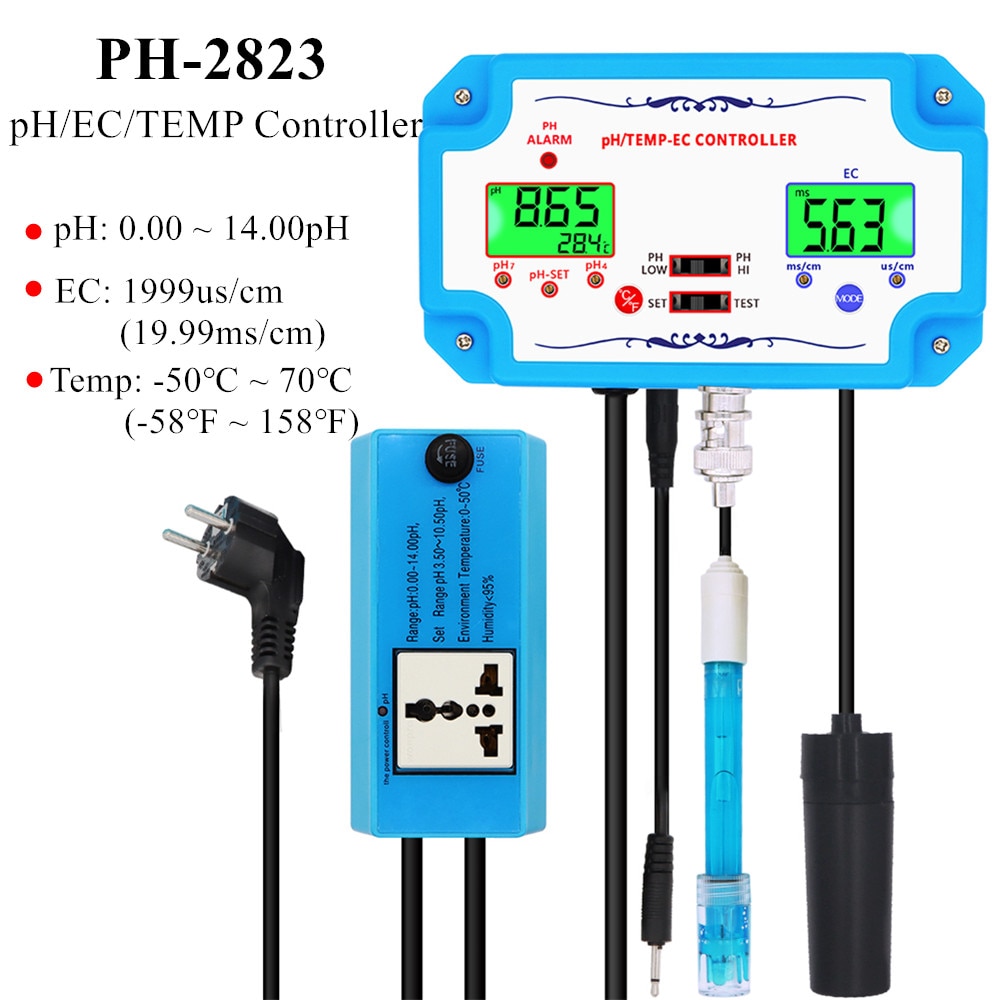

PH-2823 3 in 1 pH/TEMP/EC Controller pH Water Quality Detector Relay Plug Repleaceable Electrode BNC Type Probe Water Tester 40% off

Descrition:

This pH/temperature/EC 3-in-1 water quality controller has pH&TEMP&EC tri display and pH control which can simultaneously measure and display pH/temperature value and electric conductivity(EC). It has BNC electrode(pH) and 1 output power socket. The pH electrode is removable and can be replaced at any time. With relay output power socket, you can plug your own 110V/220V equipment, such as air outlet stone, oxygen pumps, carbon dioxide regulators, solenoid valves and other pH control devices. Simply set the desired Hi/Low pH value in the controller. If the pH value currently measured is lower than the set value, it will open the device. If the measured value is higher than the set value, it will close the device. Suitable for aquarium pool, soil-free growing, laboratory, and environment water.

Features:

1. Widely used to test the pH / Temperature / EC (electric conductivity) of water.

2. With relay output power socket, you can control the pH value according to your requirements.

3. You can replace the fuse easily and fast with external replacement. Detachable and replaceable pH electrode.

4. With power plug for air outlet stone, oxygen pumps, carbon dioxide regulators, solenoid valves and other pH control devices.

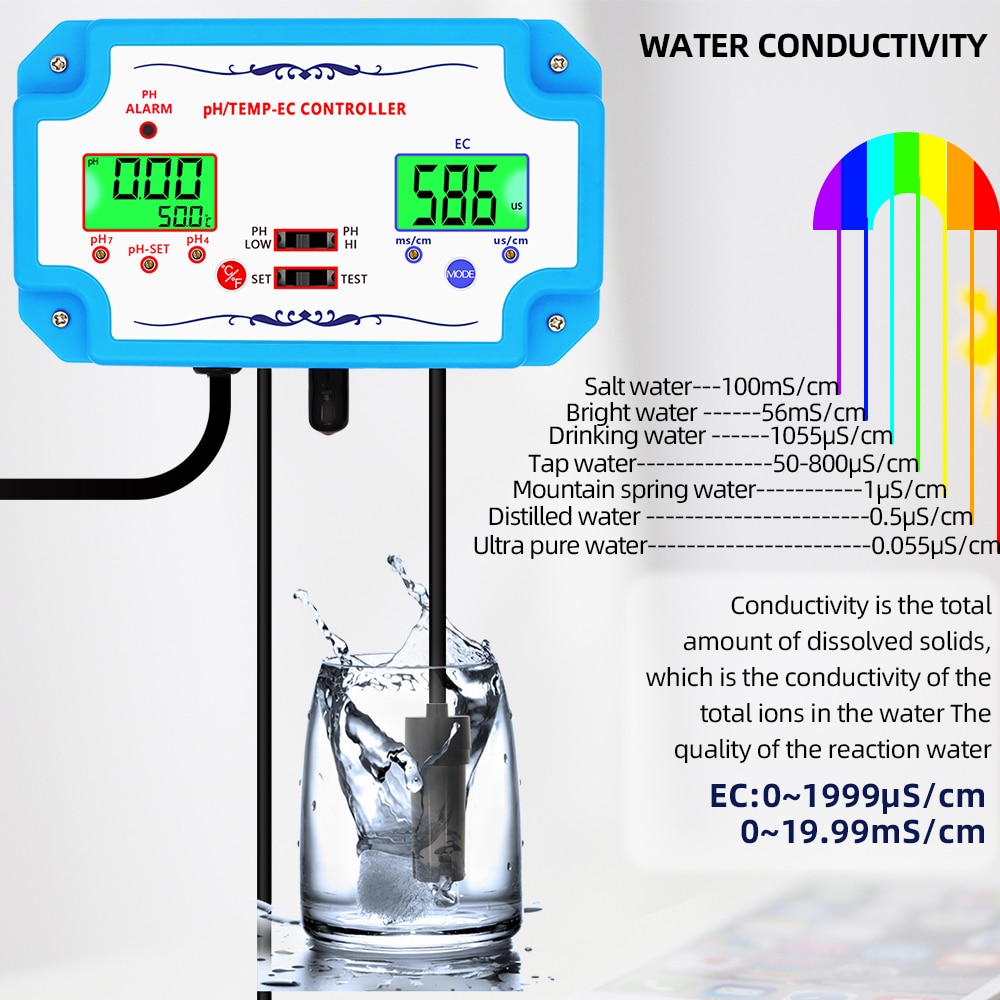

5. Test the EC with both us/cm and ms/cm units at will.

6. Easy calibration of pH/EC with just a mini-screwdriver and automatic temperature compensation.

7. Clear LCD with backlight. Easy to use and provide instant display of results.

8. Test temperature in ℃ / ℉(switchable units) and can online monitor and control pH for a long time.

9. Apply in water sources, soil-free growing, aquarium, hydroponics, laboratory, spas, environment water, swimming pools, water purification systems, etc.

Specifications:

• Color: Blue

• Material: ABS Plastic

• Type: pH/TEMP&EC controller pH -2823

• Plug Type: EU / US (Optional)

• Input Voltage: 230～240V (EU) / 110～120V (US)

• Range: pH: 0.00 ～ 14.00pH

• EC: 1999us/cm (19.99ms/cm)

• Temperature: -50℃ ～ 70℃ (-58℉ ～ 158℉)

• Resolution: pH: 0.01pH

• EC: 1us/cm (0.01ms/cm)

• Temperature:0.1℃(0.2℉)

• Accuracy: pH: ±0.1pH

• EC: ±2%F.S

• Temperature: ±1.0℃(±2℉)

• Temperature Compensation: 0℃ ～ 50℃ (32℉ ～ 122℉)

• Working Temperature: 0℃ ～ 50℃ (32℉ ～ 122℉)

• Input Resistance: 10⊃1;⊃2;Ω

• Alarm Setting Range: pH 3.50pH～10.50pH

• Relay Contact:5A/250V AC

• Length of Sensor Line: 2m / 6.56ft

• Item Weight: Approx. 680g

Package List:

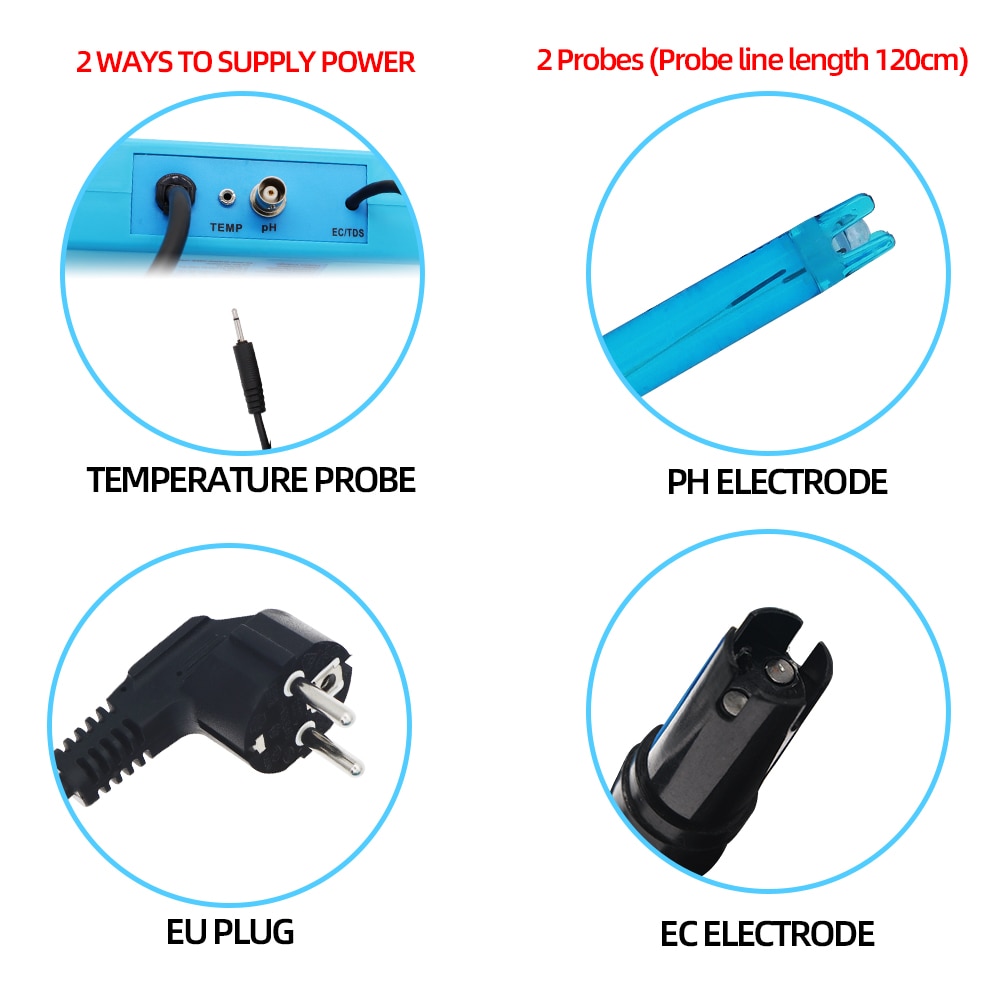

1 * 3 in 1 Water Quality Tester with EC Electrode

1 * pH Electrode

1 * Temperature Electrode

2 * Suction Cups

4 * Self-tapping Screws

1 * Mini Screwdriver

1 * User Manual

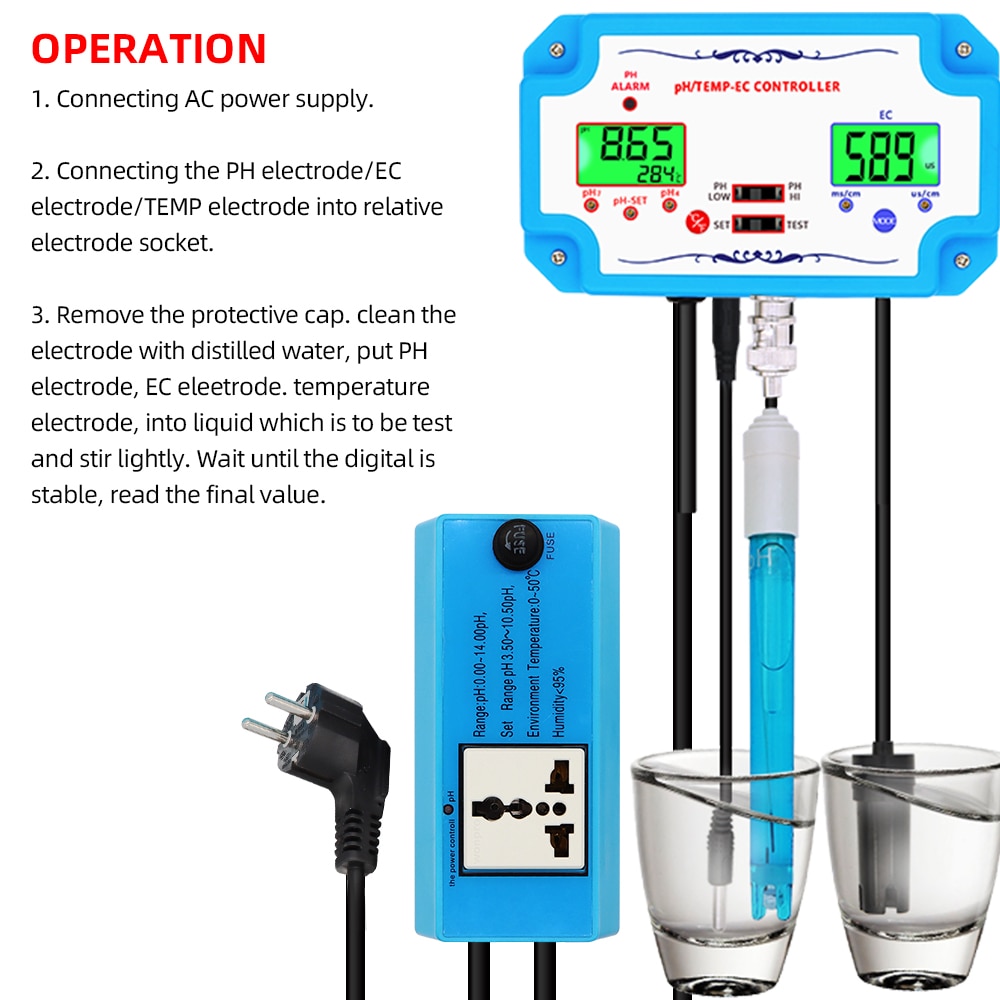

Operation:

1.Connecting AC power supply(Make sure the correct)

2.connecting the PH electrode,TEMP electrode into relative electrode socket.

3.Remove the protective cap,clean the electrode with distilled water ,put ph eletrode,EC eletrode temperature eletrode ,into liquid which is to be test ,and stir lightly.Waiting until the digital is stable,read the final value.
