Opcom OP-Com 2014 V Can OBD2 Opel Firmware V1.45 with PIC18F458 Chip

Opcom OP-Com 2014 V Can OBD2 Opel Firmware V1.45 with PIC18F458 Chip

Name: Opcom OP-Com 2014 V Can OBD2 Opel Firmware V1.45 with PIC18F458 Chip
Brand: UKOBD2
SKU: COBD2368
Price: 22.99 EUR
Availability: InStock
Rating: 5 (9 reviews)

OPCOM 2014 software 120309a firmware V1.45 with the PIC18F458 chip covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B. opcom 2014 will help read and clear fault codes for many control units.

Item No. COBD2368 Price Down Notice

9 reviews.

Out of Stock

Price:: US$23.99/ piece

Discount Price:: US$22.99/ piece 4%

Quantity:

Shipping:: Airmail Post
Estimated delivery time: 7-45 working days.See details»
Returns:: Return for refund within 7 days,buyer pays return shipping.Read details »
Support:: Online Chat WhatsApp Skype Ask a question

Opcom OP-Com 2014 V Can OBD2 Opel Firmware V1.45 with PIC18F458 chip

Software VERSION: 2014V

Firmware version: 1.45

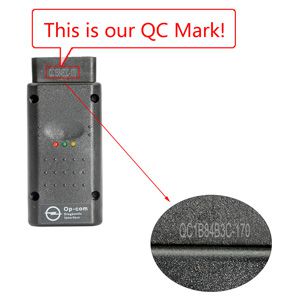

OPCOM 2014 Function, Workable Vehicle and Control System: OP-Com 2012 V Can OBD2 QC MARK

OP-COM is a PC-based diagnostic program, it can read out and clear detailed fault codes, read live data, and perform output test on many control units (e.g. Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, etc.) for almost all Opel cars even the new CAN-BUS protocol cars such as Vectra-C, Astra-H and Zafira-B, etc.

Note:

Since Opel cars are built with many pins in the OBD connector, you need select the appropriate pin for communication with diagnostic interface:

PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)

OPCOM 2014 Feature:

1) Full status information (Present, Not present, Intermittent)

2) You can print out, save, or copy the fault codes to any other application. From the fault codes interface, you can go directly to the measuring blocks interface.

3) The program shows you measuring block information on many control module, but you can choose anything from the list on your own.

4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate mostly depends on the communication protocol. For example, the older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while the newer Multec, or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

You can also run output tests on many controllers.

PIN6-PIN14

PIN3-PIN11

PIN1

HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps

MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps

SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

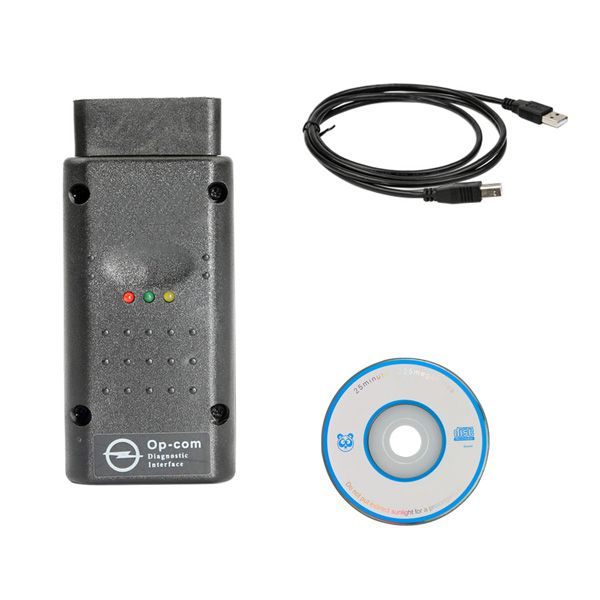

Package List:

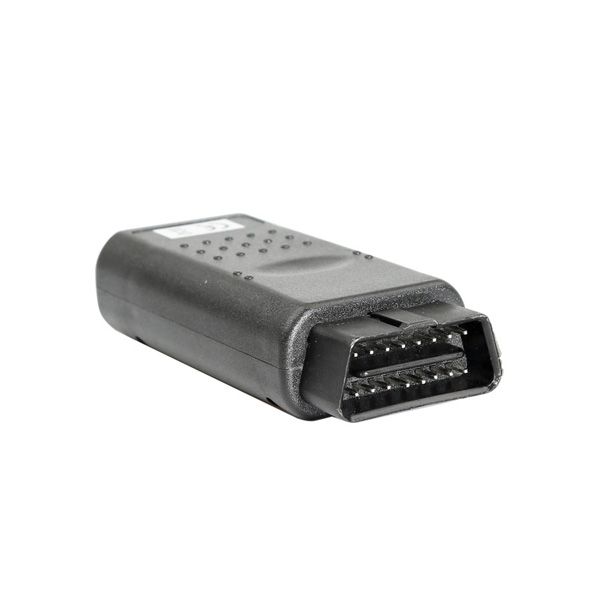

1pc x OP COM Interface

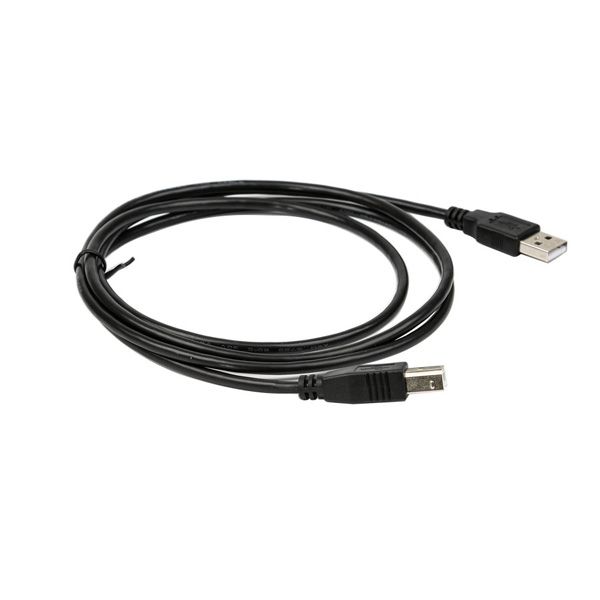

1pc x USB Cable

1pc x Software and Drivers CD
