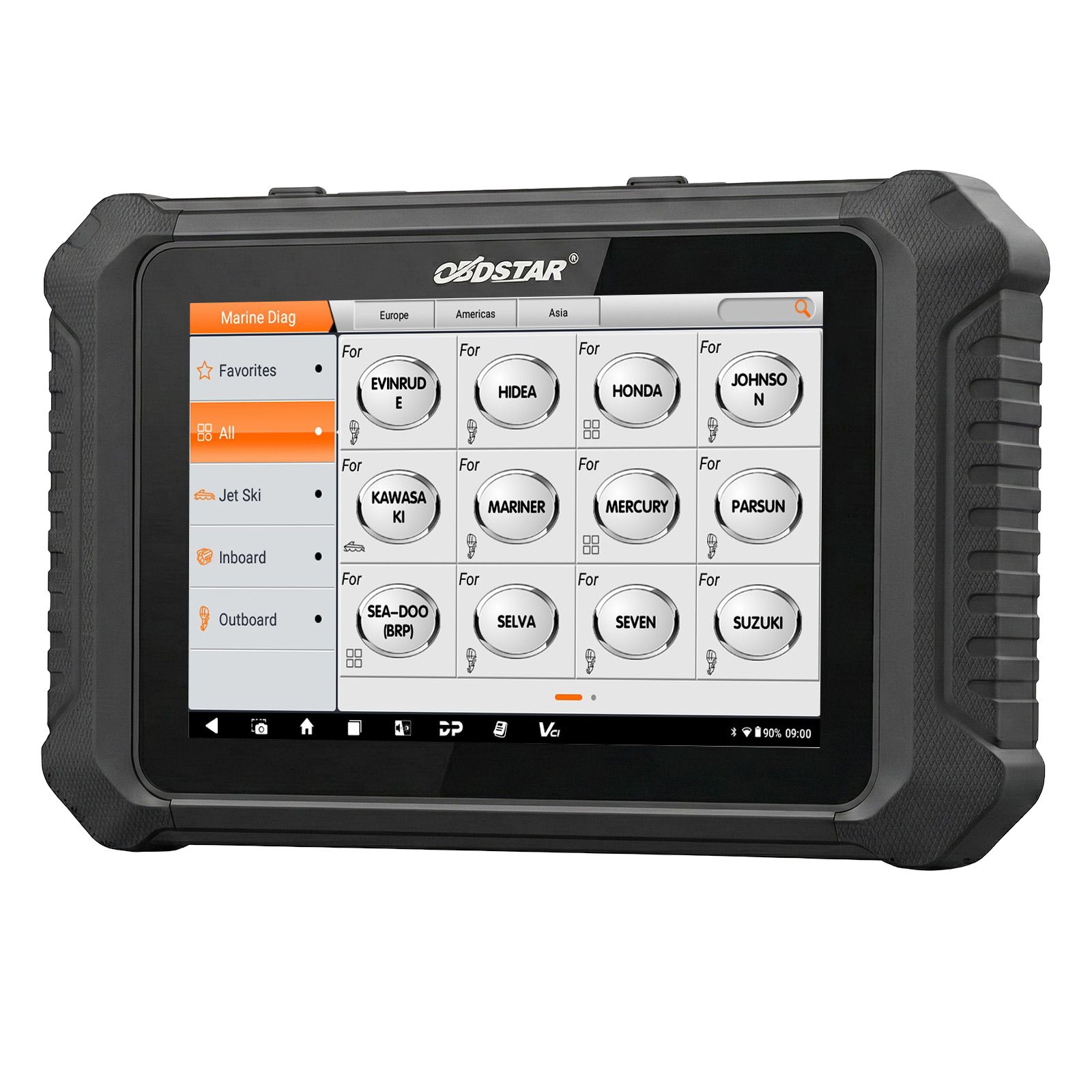

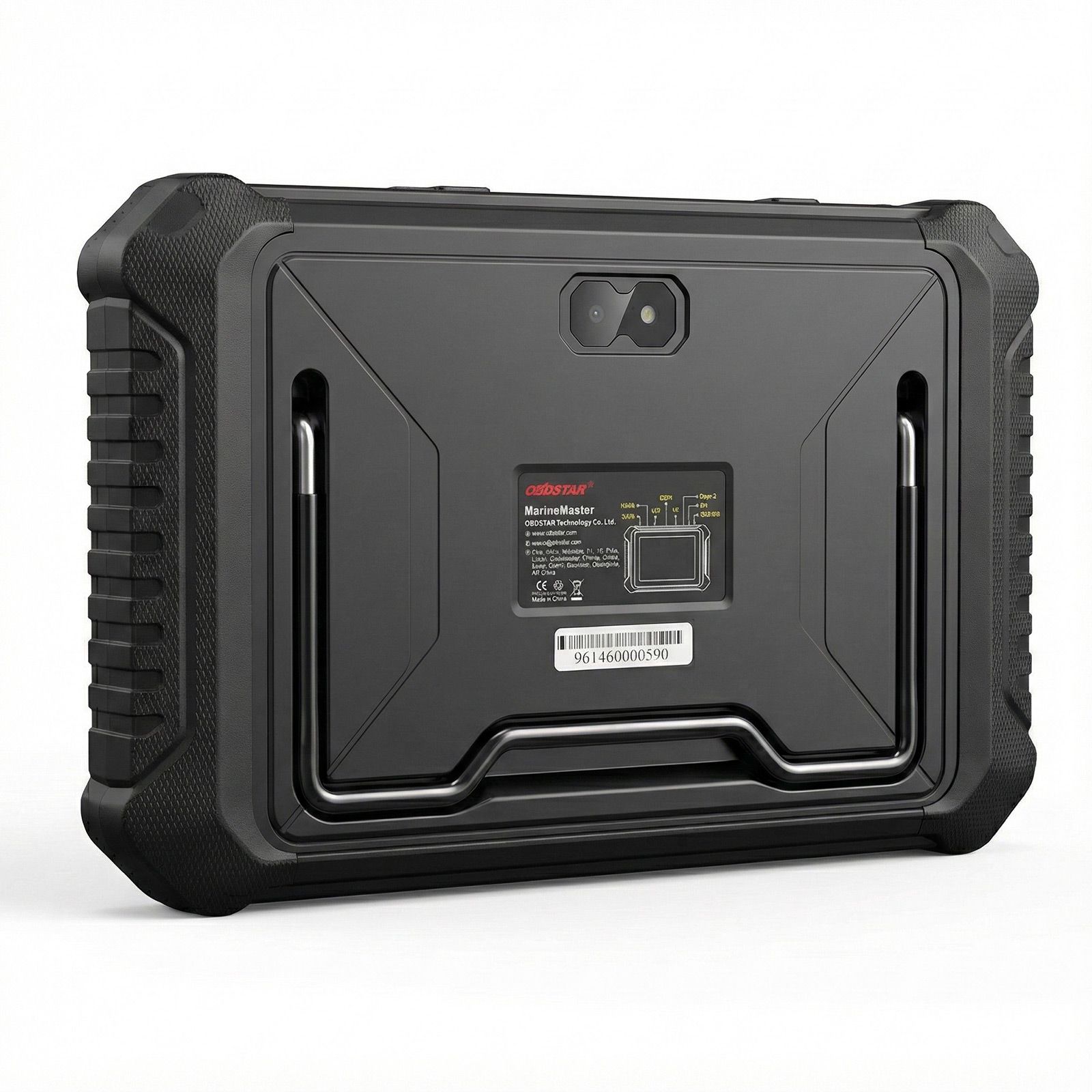

OBDSTAR Marine Master for Jet Ski, Outboard, Inboard, and Generator

MarineMaster is OBDSTAR's new generation device for marine (jet ski, outboard, inboard, generator) intelligent diagnosis.

Based on the Samsung Exynos processor, it features an 8-inch display screen for extremely fast and smooth performance.

MarineMaster runs on the latest 3.0 APK platform and includes shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. With fast upgrade capabilities and built-in help materials, the MarineMaster marine scanner is an essential tool for marine maintenance engineers!

Product Functions

• Android 11 operating system with one-click OTA (Over-The-Air) updates

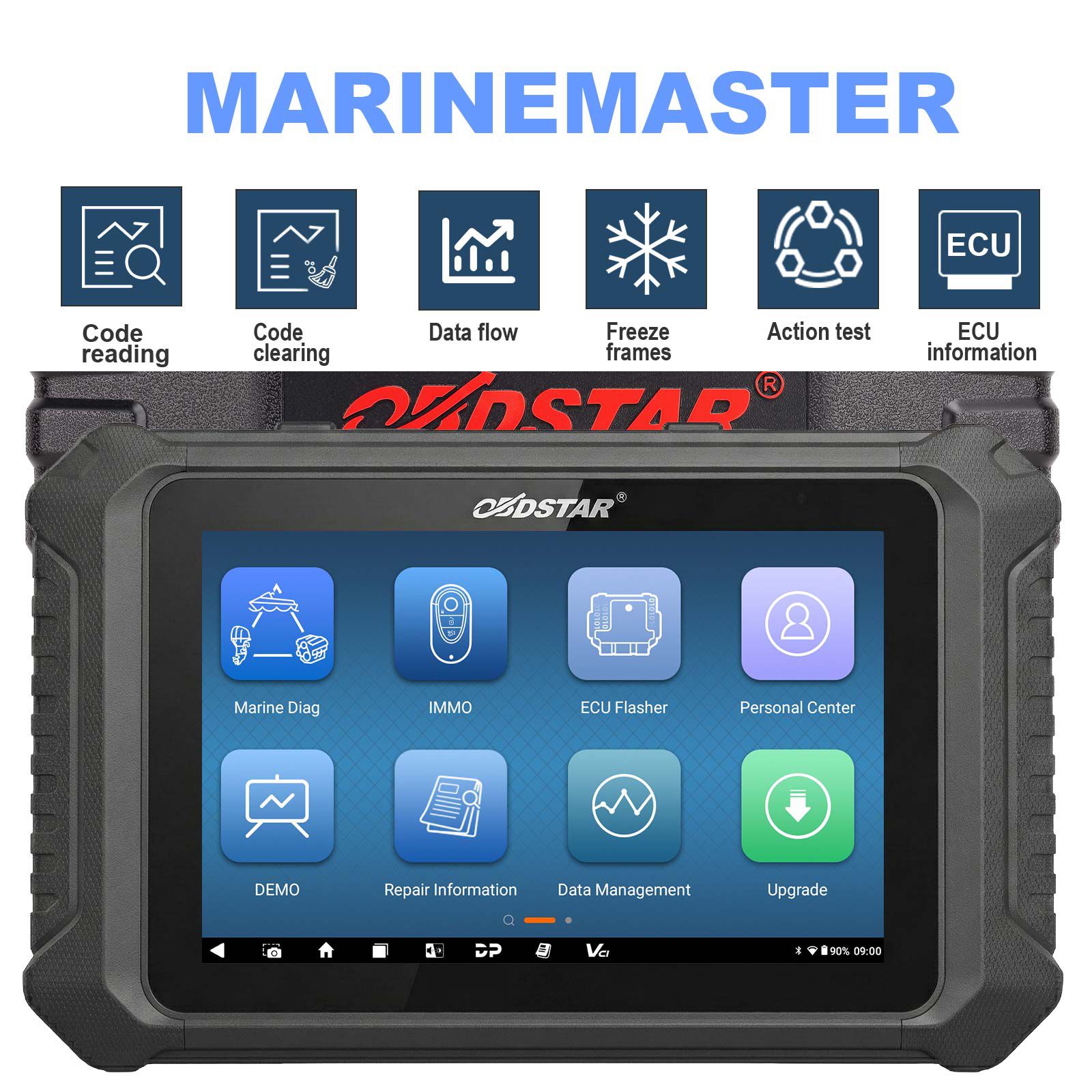

• Complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, settings, coding, read working hours, Helm Setup, and more
• Record and playback real-time data flow to quickly and accurately locate sensor and component faults
• Wi-Fi internet connectivity for one-click software upgrades
• One-click remote assistance from OBDSTAR technical staff
• Built-in screen recording and wireless screen mirroring capabilities

Advanced Functions

• The OBDSTAR mobile app integrates diag socket location, flash code query, technical bulletin, manual service function (service lamp reset), basic parameters, and more—working with MarineMaster to enable more accurate and efficient marine diagnosis (some functions are free exclusively for MarineMaster users)
• Exclusive interactive wiring diagram and electrical appliance description query for worry-free diagnostics
• Multiple data flow display modes—including text, waveform diagram, and instrument diagram—for easy fault analysis
• Supports Auto Scan, BCM Simulator, Instance Setting, Maintenance Setting, Remote Control Reset, System Calibration, Torque Adjustment, and other advanced functions

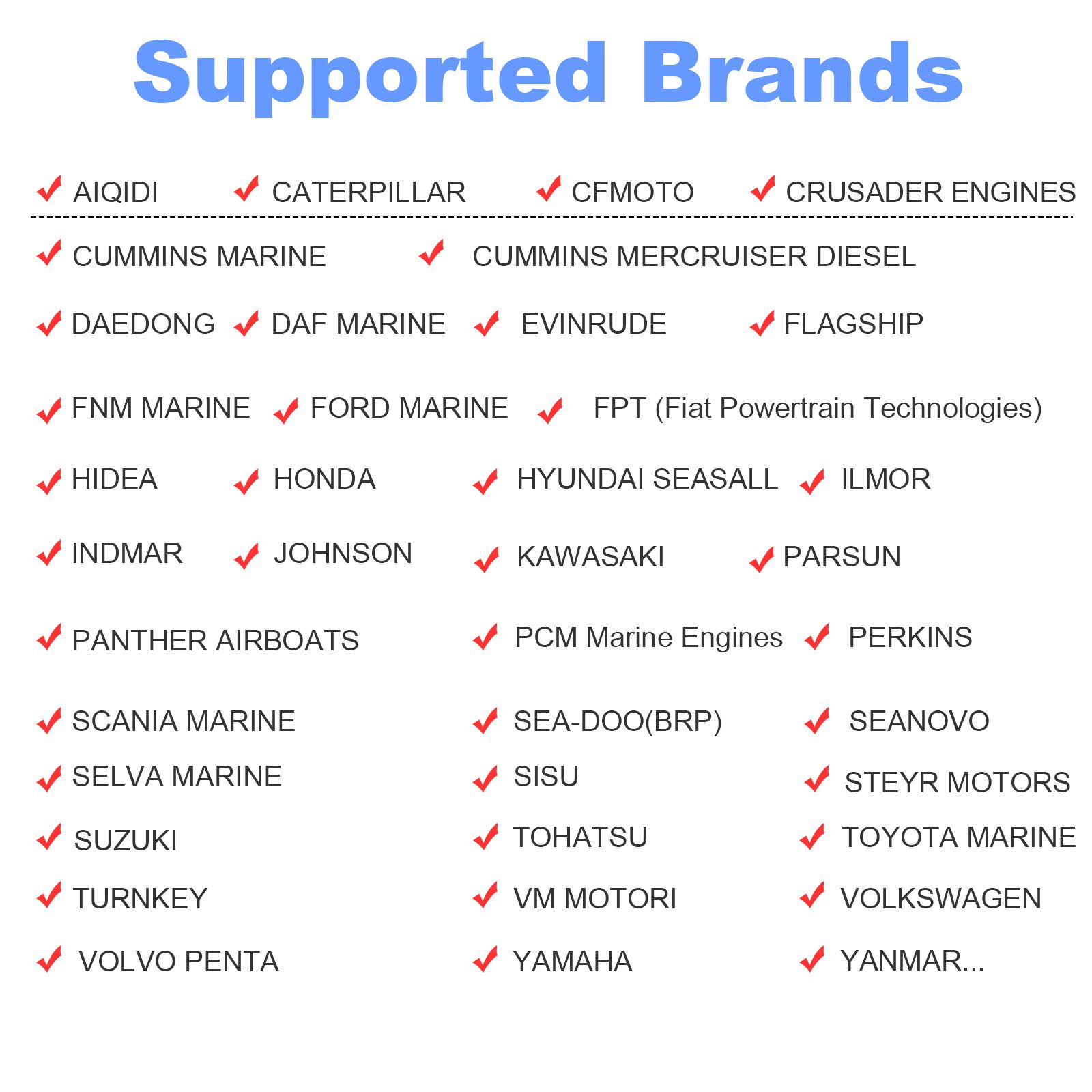

Supported Brands

AIQIDI, CATERPILLAR, CFMOTO, CRUSADER ENGINES, CUMMINS MARINE, CUMMINS MERCRUISER DIESEL, DAEDONG, DAF MARINE, EVINRUDE, FLAGSHIP, FNM MARINE, FORD MARINE, FPT (Fiat Powertrain Technologies), HIDEA, HONDA, HYUNDAI SEASALL, ILMOR, INDMAR, JOHNSON, KAWASAKI, KODIAK MARINE, KOHLER, LOMBARDINI MARINE, MALIBU, MAN MARINE, MARINER, MARINE POWER, MERCRUISER, MERCURY, MERCURY DIESEL, MTU, PARSUN, PANTHER AIRBOATS, PCM Marine Engines, PERKINS, SCANIA MARINE, SEA-DOO (BRP), SEANOVO, SELVA MARINE, SEVEN MARINE, SISU, STEYR MOTORS, SUZUKI, TOHATSU, TOYOTA MARINE, TURNKEY, VM MOTORI, VOLKSWAGEN, VOLVO PENTA, YAMAHA, YANMAR…

More functions are under development...

Configuration Coverage

A: Jet Ski
B: Outboard
C: Inboard
D: Generator

MarineMaster A+B+C+D: Supports Jet Ski, Outboard, Inboard, and Generator

For more details, please refer to the software configurations in 'Specifications' and coverage information in the 'Function Manual'.

Function Display – From OBDSTAR Mobile App

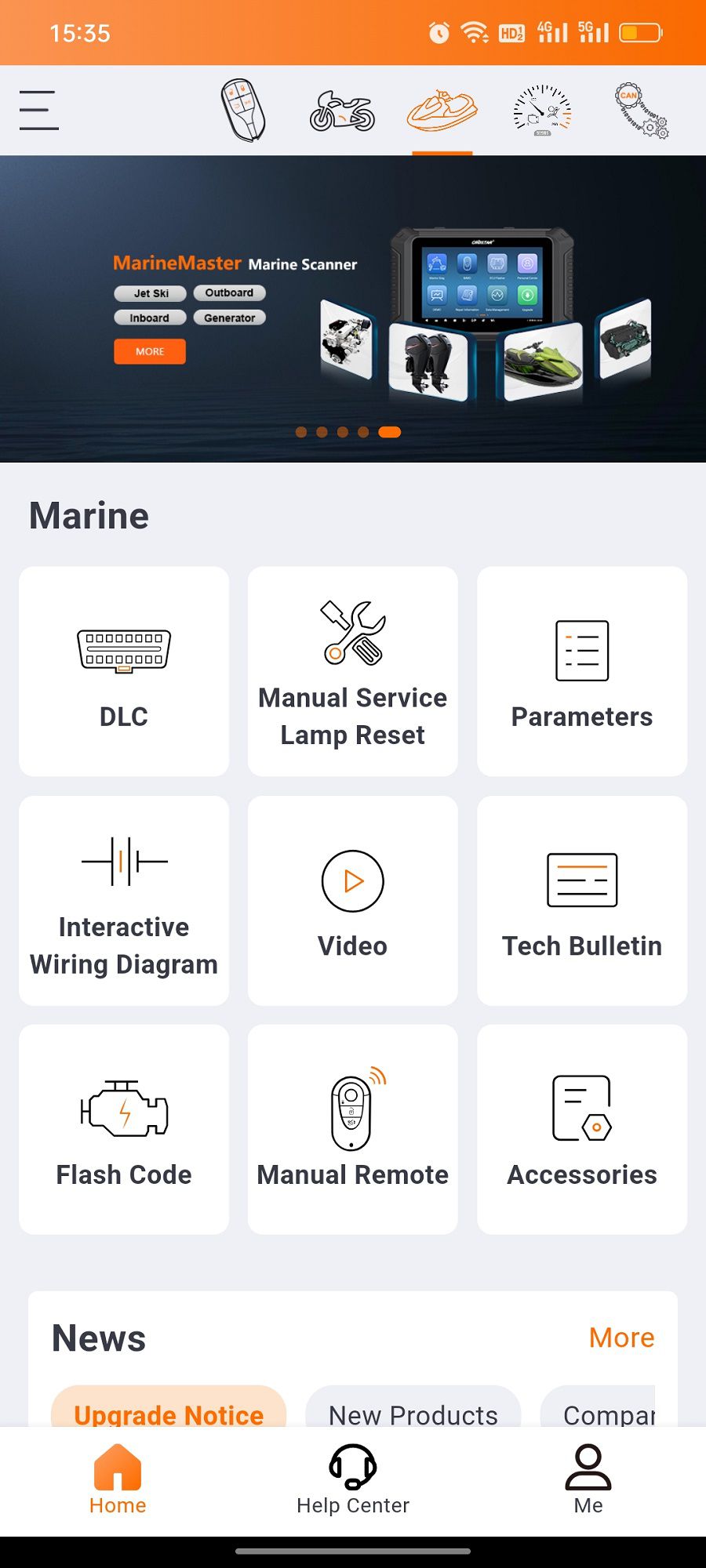

1. Main Page

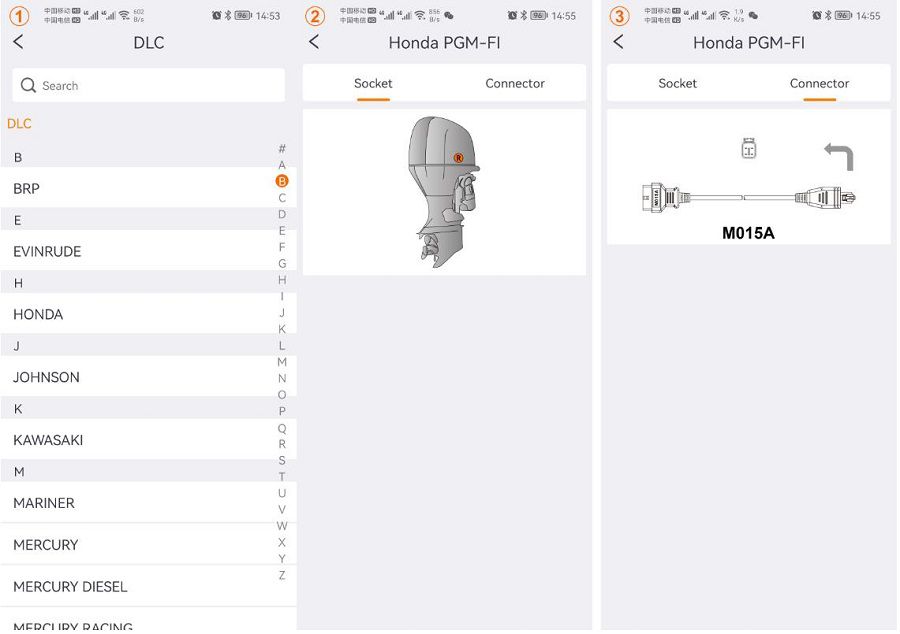

2. Diag Socket/Diag Connector Location

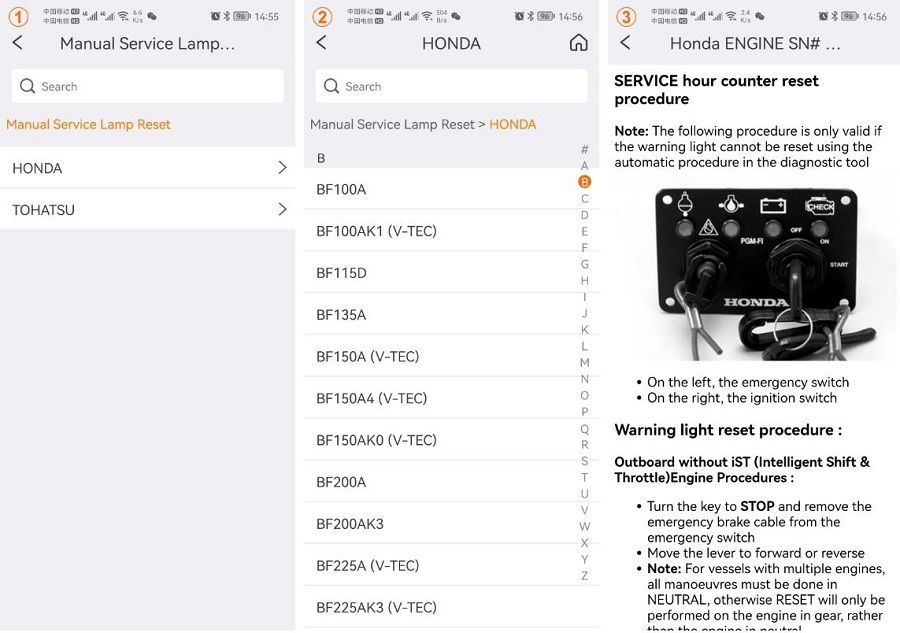

3. Manual Service Function (Service Lamp Reset)

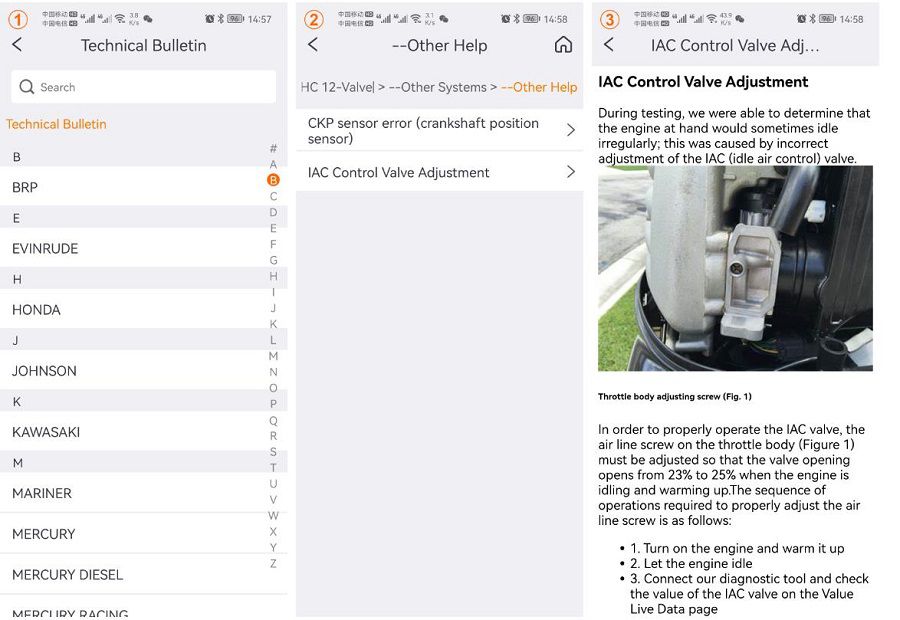

4. Technical Bulletin

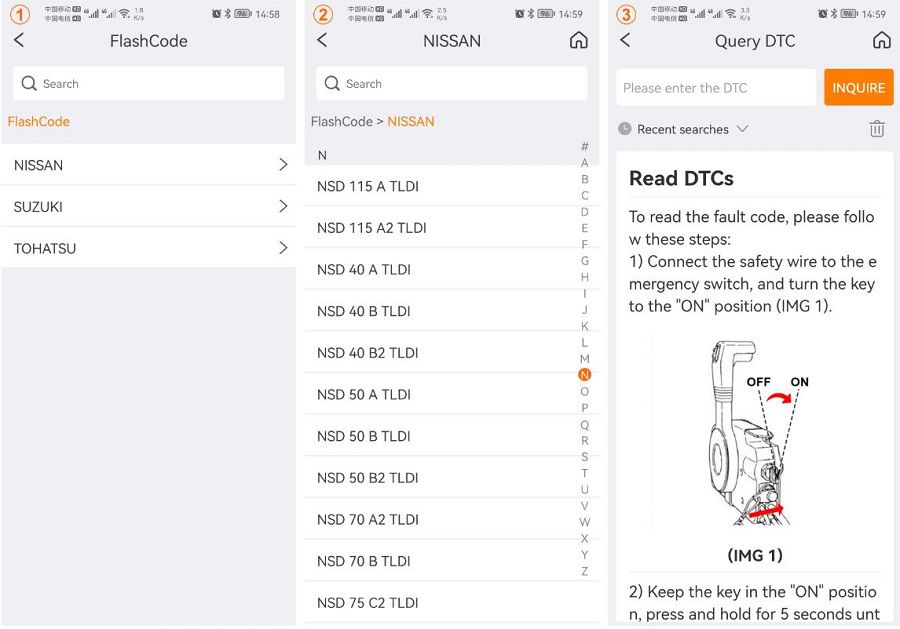

5. Flash Code

Function Display – From MarineMaster

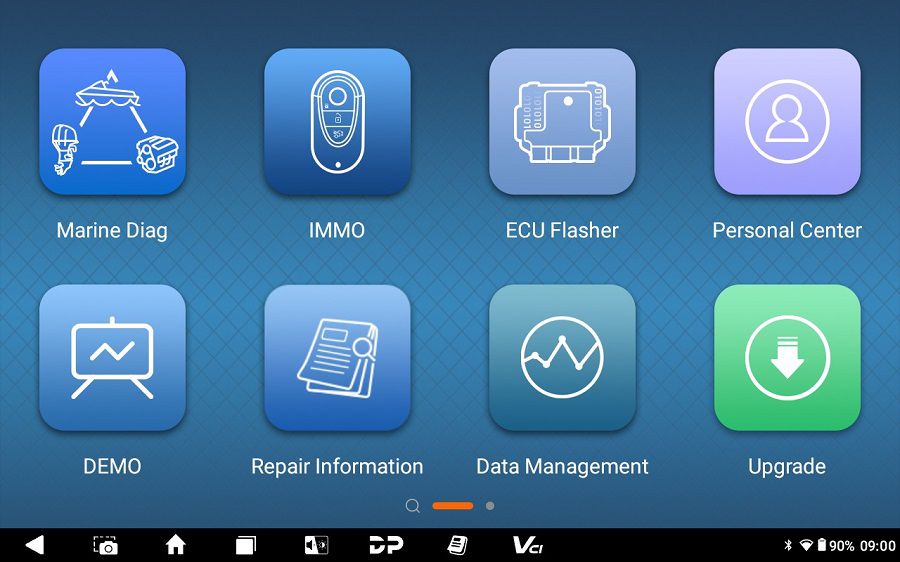

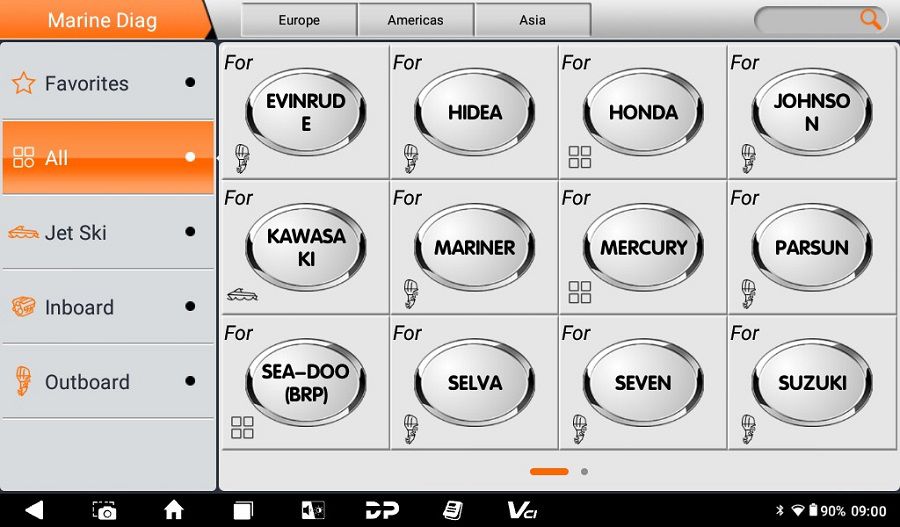

1. Main Page / Brand Supported

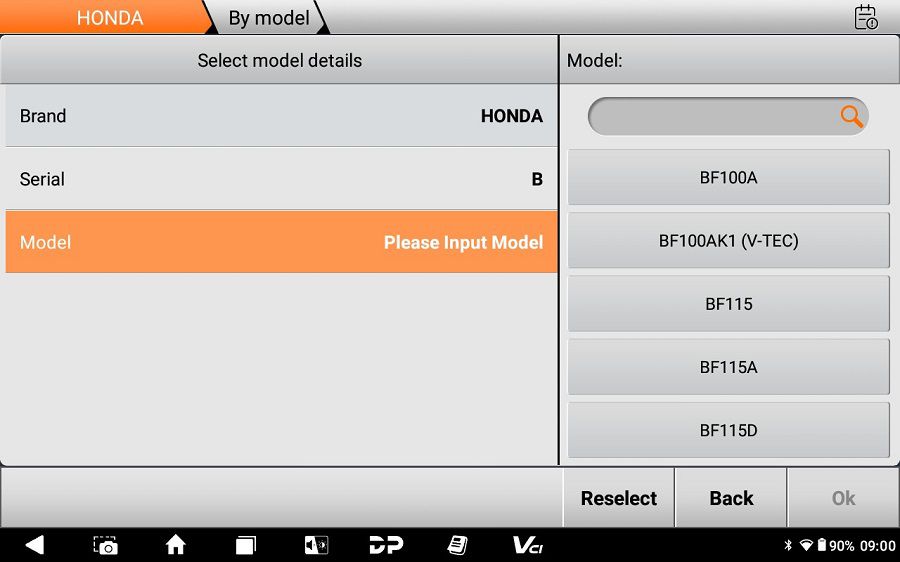

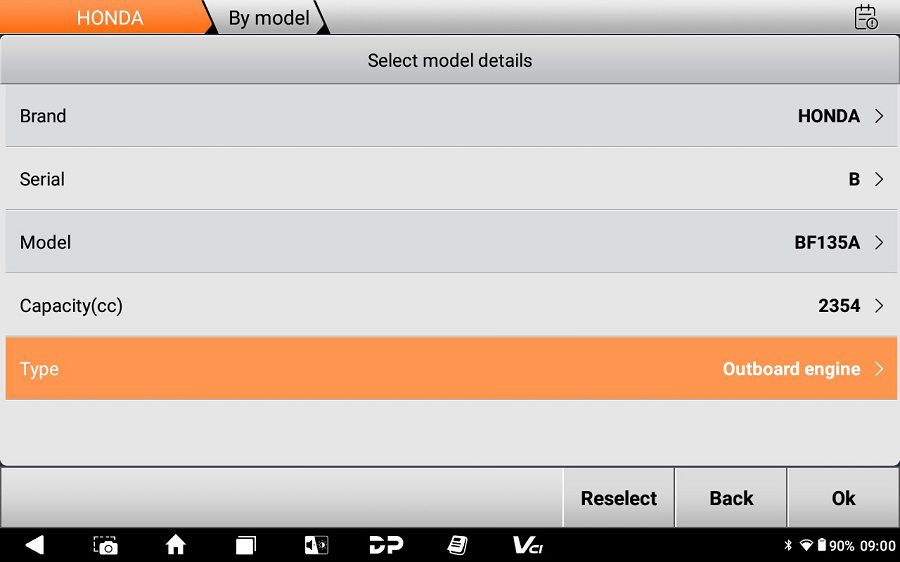

2. Menu Selection

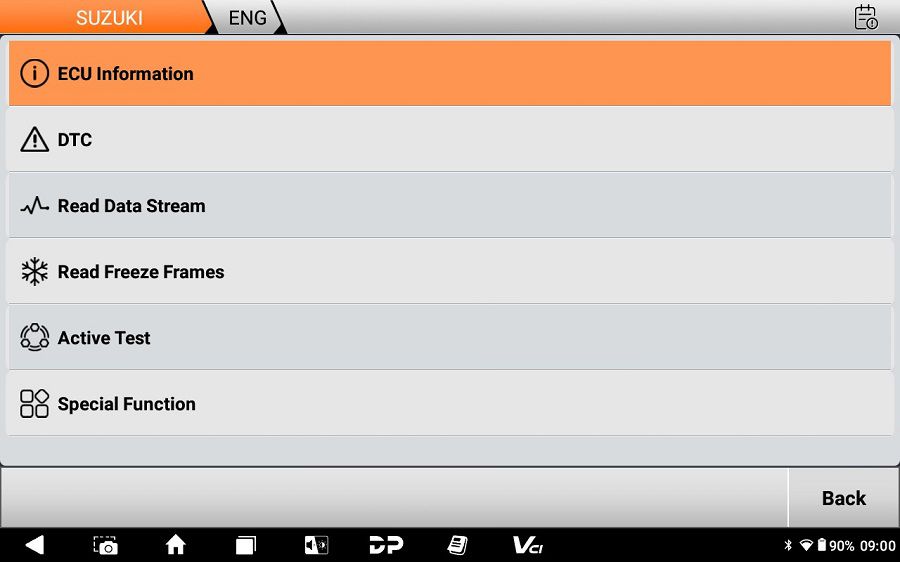

3. Function Menu

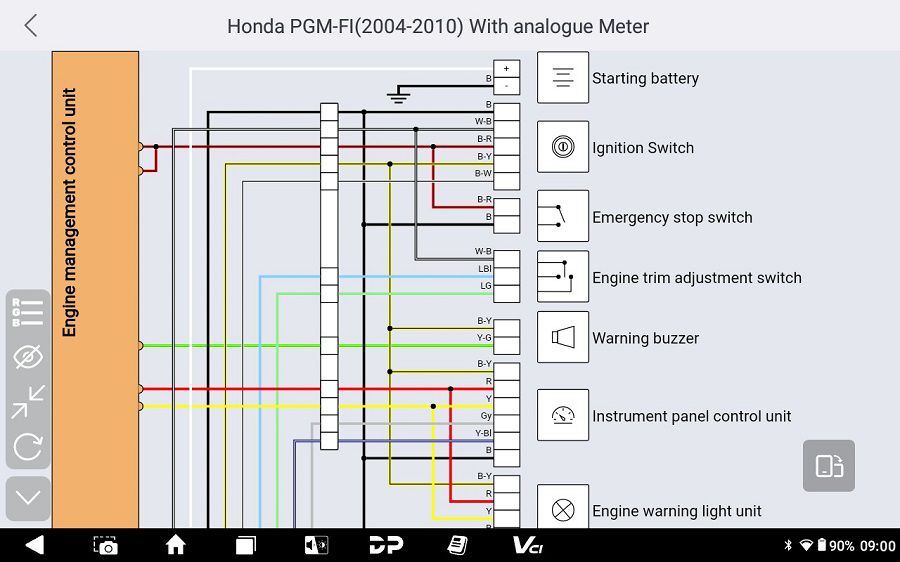

4. Interactive Circuit Diagram

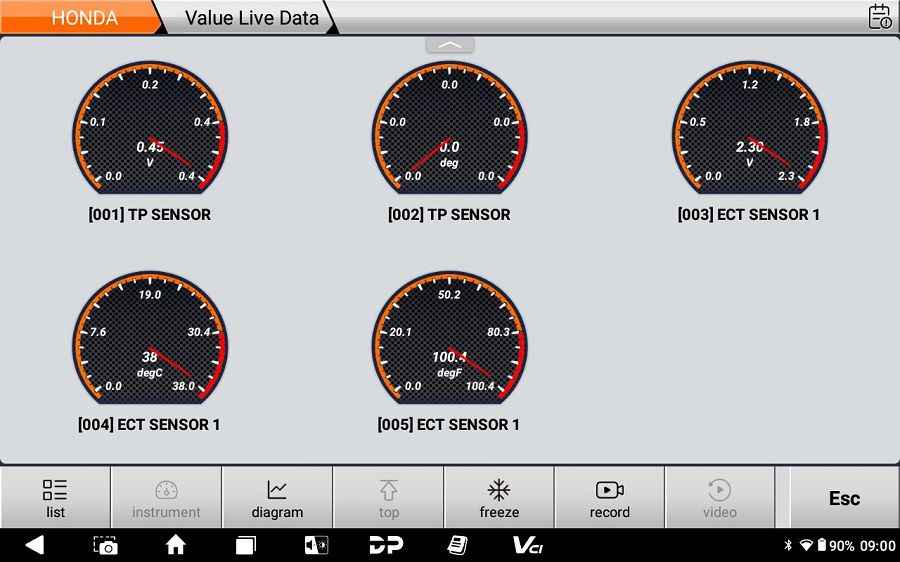

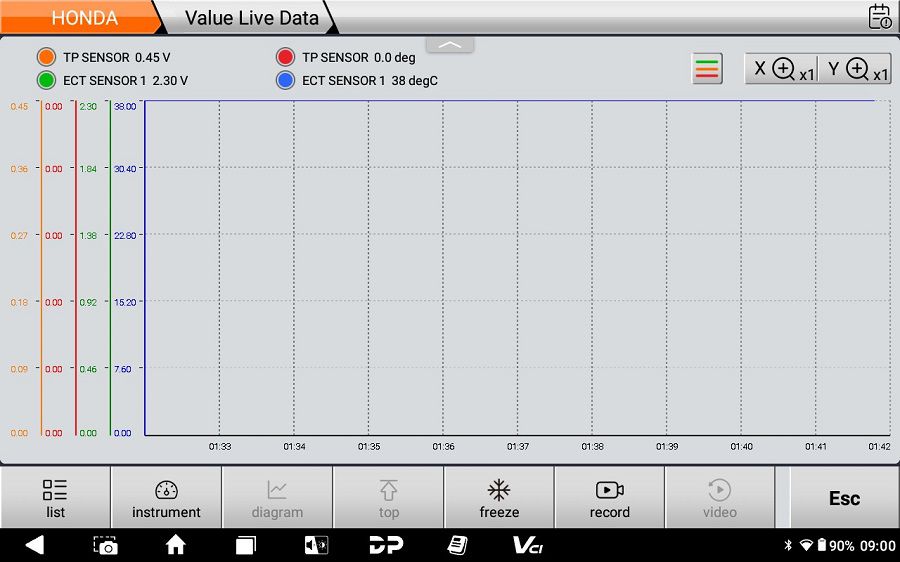

5. Data Flow Text / Waveform Diagram / Instrument Diagram

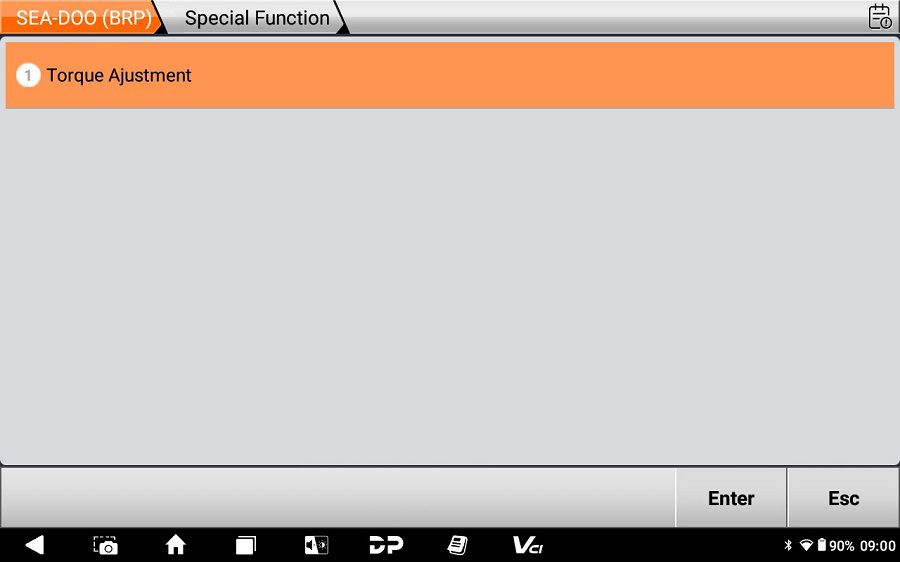

6. Special Function – BRP

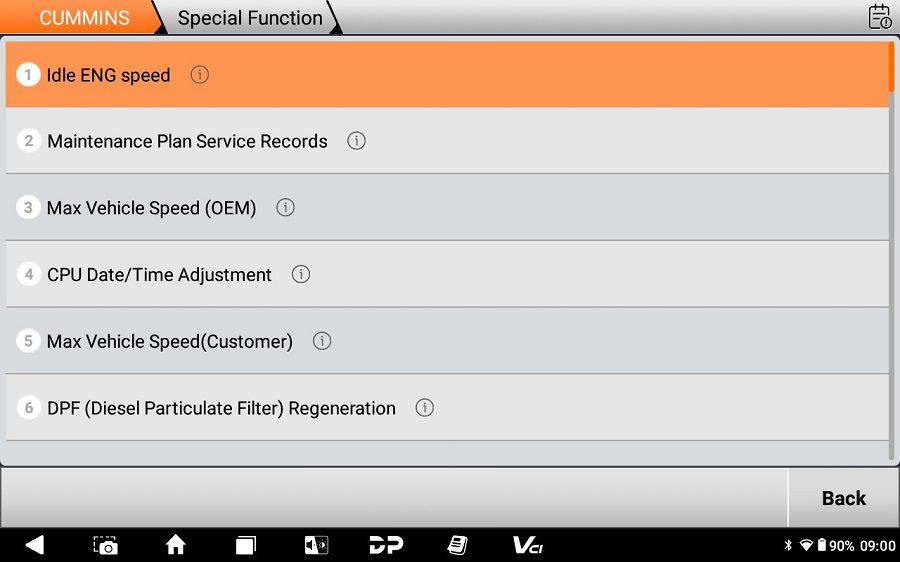

7. Special Function – CUMMINS

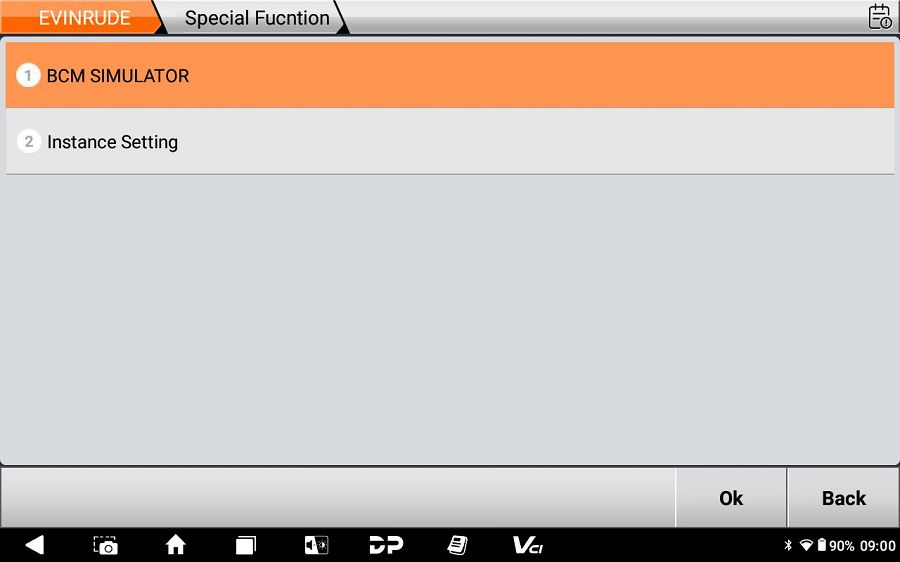

8. Special Function – EVINRUDE

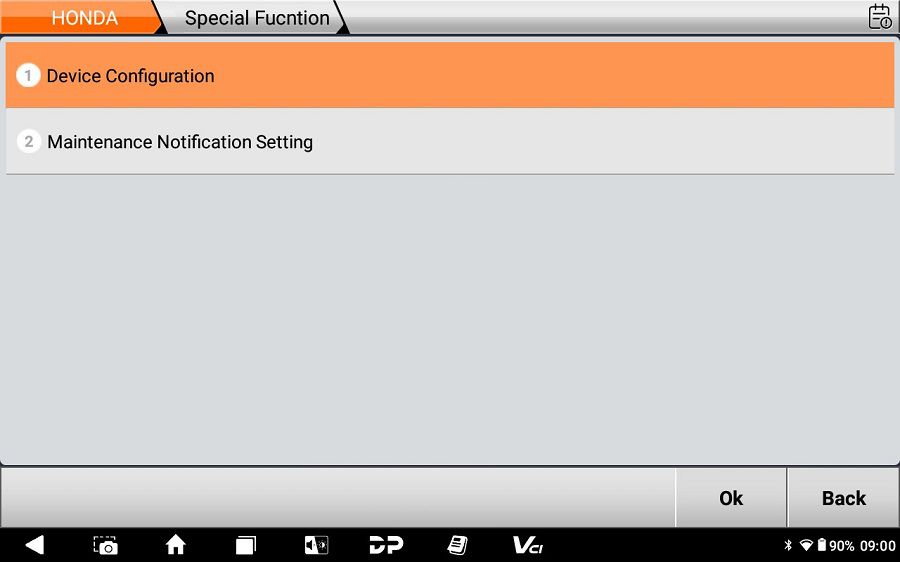

9. Special Function – HONDA

10. Special Function – JOHNSON

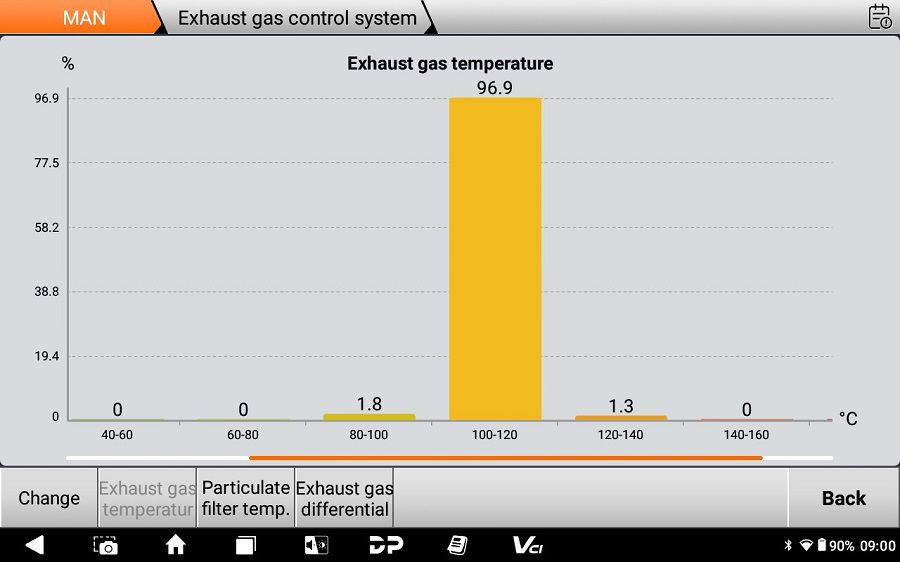

11. Special Function – MAN

12. Special Function – SUZUKI

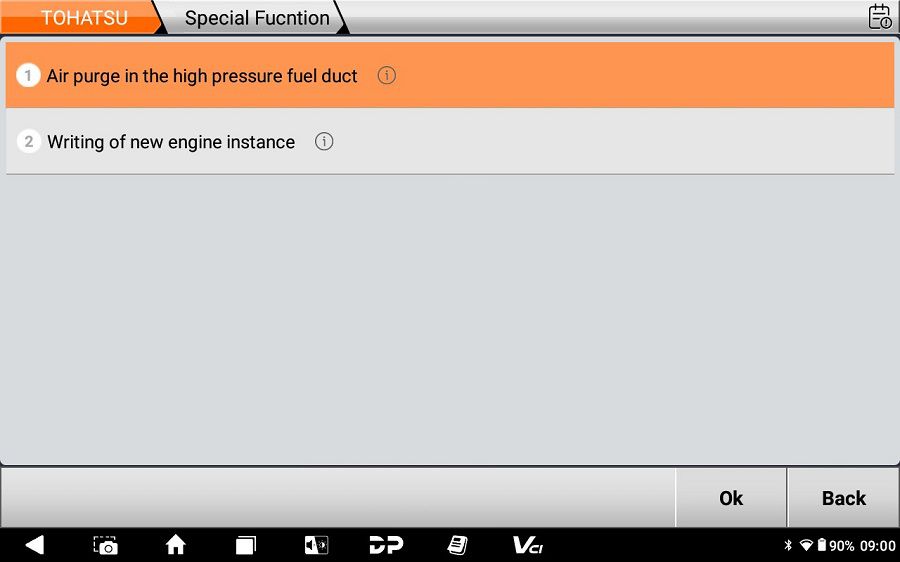

13. Special Function – TOHATSU

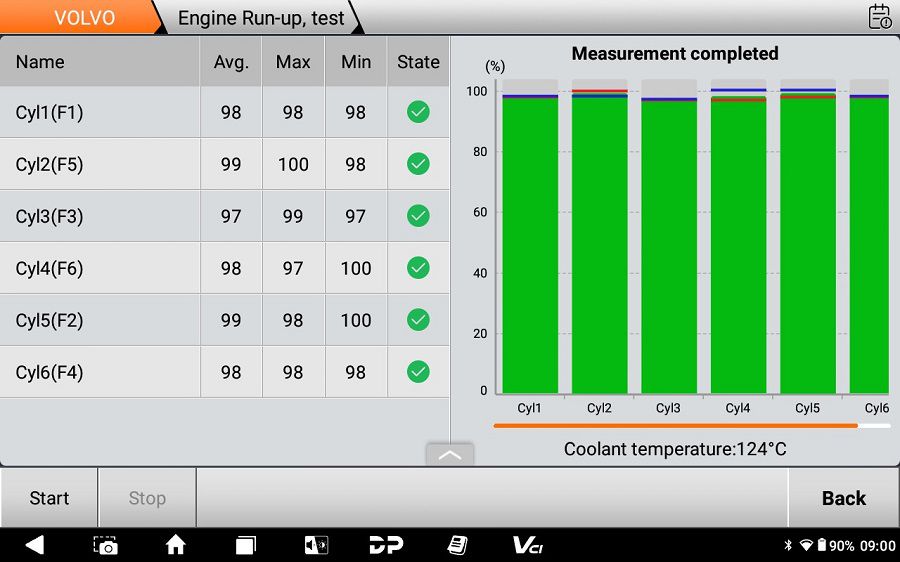

14. Special Function – VOLVO

15. Special Function – YAMAHA

Product Specifications

• Operating system: Android 11
• OTA: √
• Screen recording: √
• Wireless screen casting: √
• CPU: Quad-core 64-bit Cortex-A55 2.0GHz
• Battery: 9000mAh
• Storage capacity: 4GB RAM + 64GB ROM
• LCD: 8.0 inch fully laminated sunlight-readable screen
• LCD resolution: 1280 × 800
• Camera: Rear camera 800W pixels, auto-focus
• Bluetooth: Bluetooth 5.0

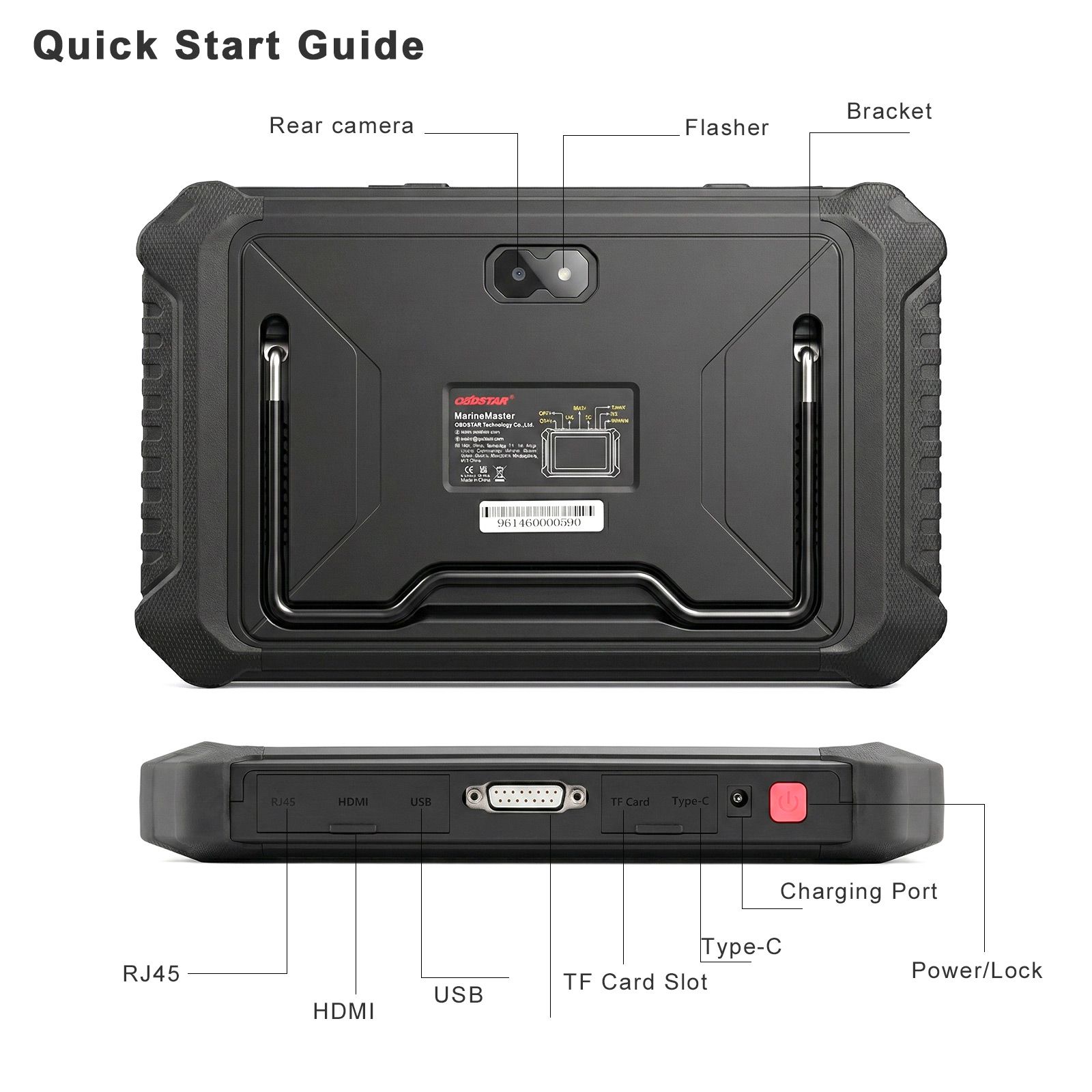

• External interfaces: RJ-45 (√), HDMI (√), TYPE-A, TYPE-C
• Wi-Fi: Dual-band 2.4GHz / 5GHz
• VCI: CAN FD built-in (√)
• DoIP built-in (√)
• Low Speed (Fault Tolerant) CAN built-in (√)
• Supports all other common protocol types

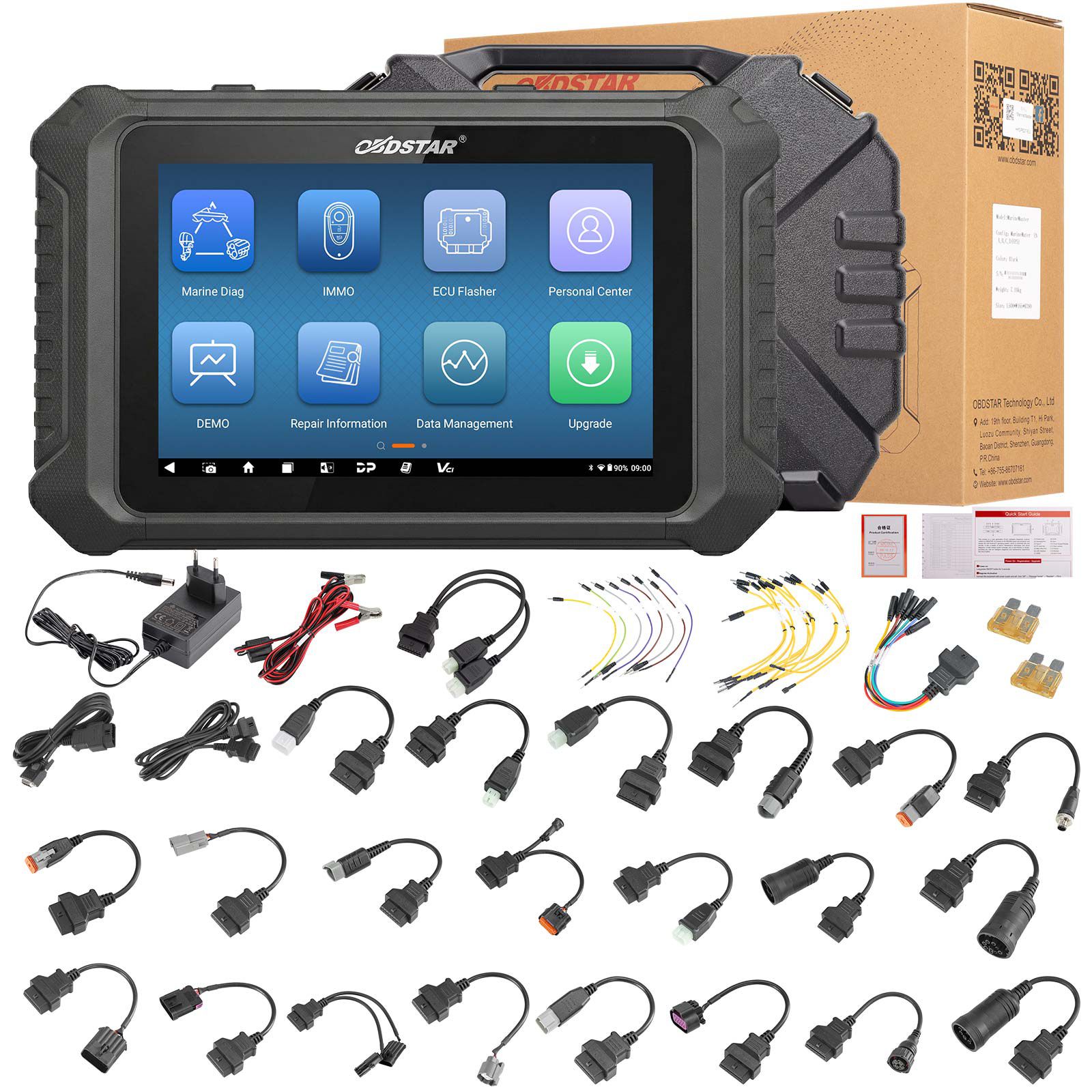

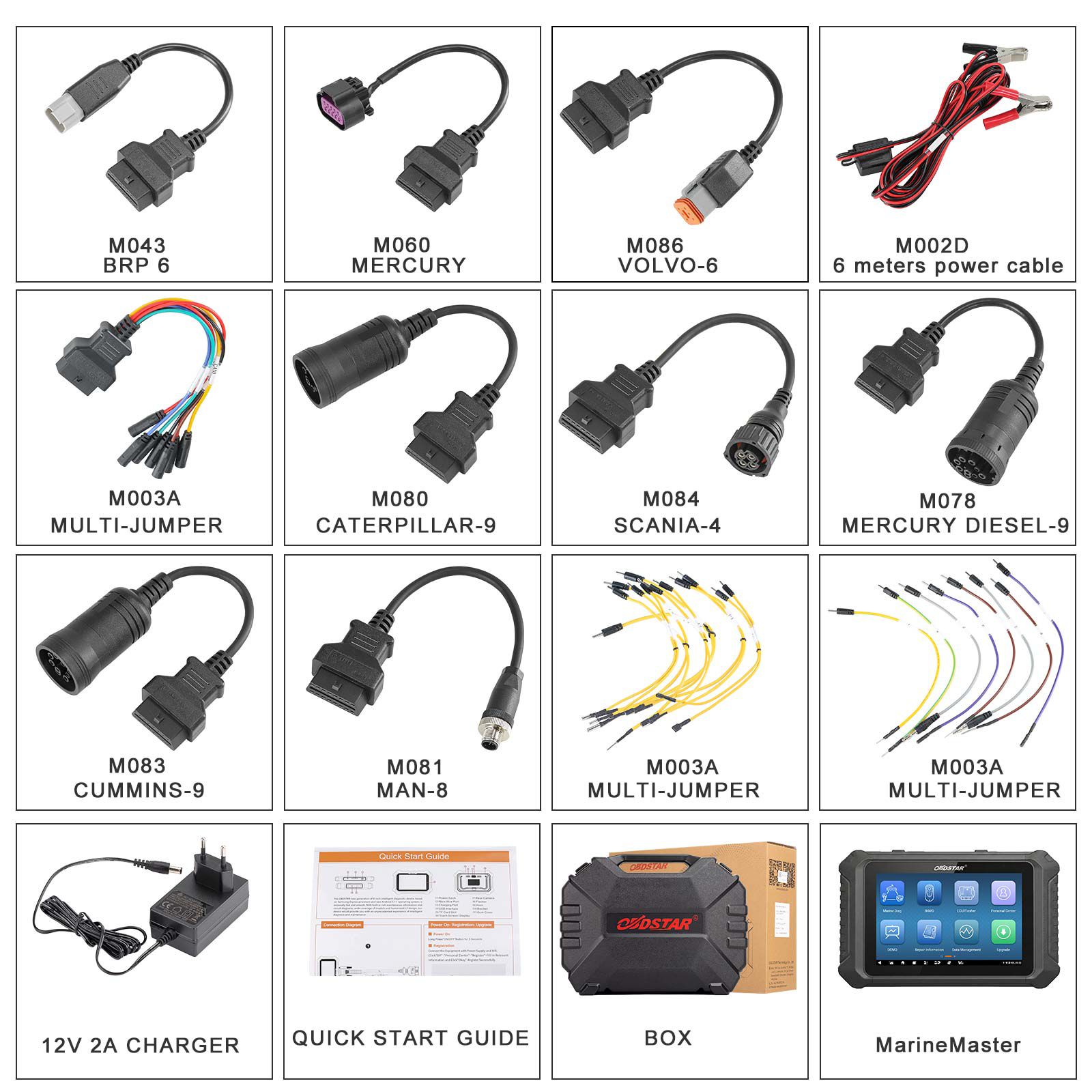

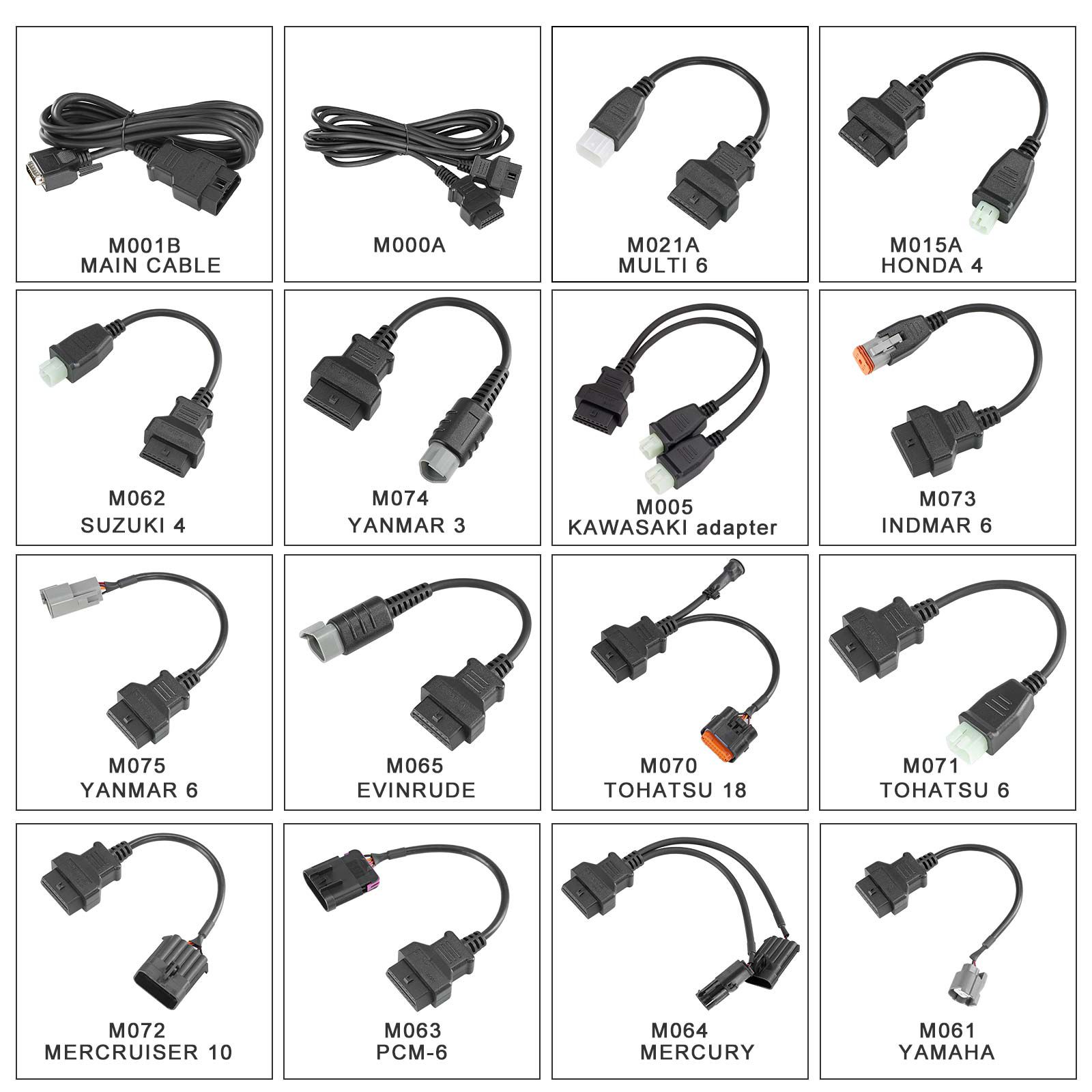

Package Includes

• 1 pc × tablet
• 1 pc × 12V 2A charger
• 1 pc × M000A 4-meter extension cable
• 1 pc × M001B main cable
• 1 pc × M002D 6-meter power cable
• 1 pc × M003A multi-functional jumper
• 1 pc × M005 KAWASAKI adapter
• 1 pc × M015A HONDA adapter
• 1 pc × M021A PARSUN adapter
• 1 pc × M043 BRP adapter
• 1 pc × M060 MERCURY adapter
• 1 pc × M061 YAMAHA adapter
• 1 pc × M062 SUZUKI adapter
• 1 pc × M063 PCM/CRUSADER ENGINES/ILMOR/INDMAR/KODIAK MARINE/MARINE POWER/MERCRUISER/PANTHER AIRBOATS/SEVEN MARINE/VOLVO PENTA adapter
• 1 pc × M064 MERCURY adapter
• 1 pc × M065 EVINRUDE adapter
• 1 pc × M070 TOHATSU adapter
• 1 pc × M071 TOHATSU adapter
• 1 pc × M072 MERCRUISER adapter
• 1 pc × M073 INDMAR adapter
• 1 pc × M074 YANMAR adapter
• 1 pc × M075 YANMAR adapter
• 1 pc × M078 MERCURY DIESEL adapter
• 1 pc × M080 CATERPILLAR adapter
• 1 pc × M081 MAN adapter
• 1 pc × M083 CUMMINS adapter
• 1 pc × M084 SCANIA adapter
• 1 pc × M086 VOLVO adapter
