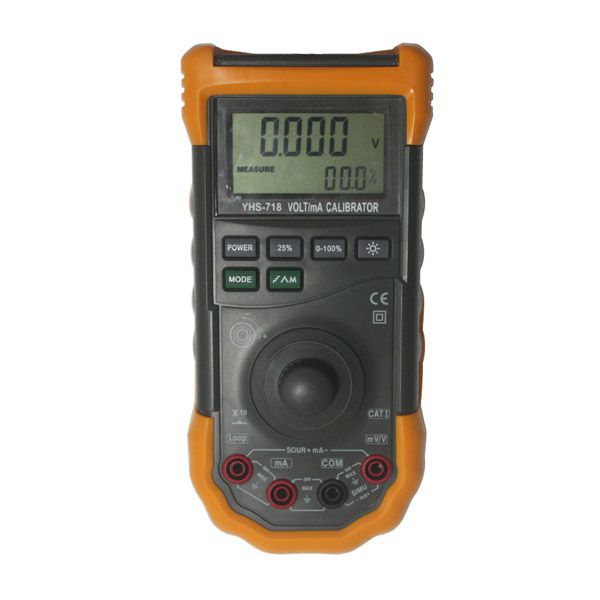

YHS718 voltage and current calibrator (Volt / mA Calibrator) can be used for calibration, repair and maintenance the calibrated instrument which has 0-100mV/10V voltage signal or 0-20mA loop current, such as electric actuators, hydraulic actuators, pneumatic actuators, electric actuator mechanism, electricity - gas valve positioners and valve positioners, etc.
Item No. COBD23744 Price Down Notice
5 stars, 9 reviews.
Out of Stock
Price:
US$195.99/ piece
Quantity:

Shipping:
Standard Flat Rate Shipping Service
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question
New YH-718 Loop Volt and mA Signal Source Process Calibrator Meter Tester

Feature:


1. Rapid induction knob, Single-handed operation possible
2. 0.02% accuracy and 1μA/10μV resolution
3. Steps and ramp output optional
4. 24V loop Power and processing mA measurement
5. mV/V voltage output, measurement functions; showing the percentage of mV/V and range
6. mA current source output, simulation and measurement functions; showing the percentage of mA and range

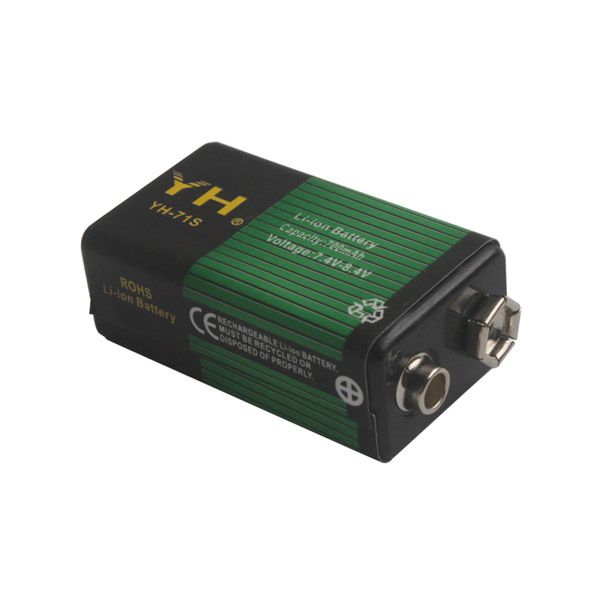

7. Rechargeable management module built-in, able to charge while working1. Rapid induction knob, Single-handed operation possible

Current output mode:

SOURCE mA mode: Calibrator outputs current
SIMULATE mA mode: Calibrator simulates an external power supply with a two-wire transmitter

Voltage output mode:

Instrument outputs a high - precision voltage signal 0-100mV/0-10V; Voltage signal output resolution up to 10μV

Automatic ramp current output:

The calibrator can periodically output a changing current / voltage signal applying to the external load or loop device continuously according to the time interval automatically.

Technical specifications:

Loop Power :24V—26V

DC mA (source output / simulation / measurement):

Range: 0 - +24 mA;
Resolution: 1μA;
Accuracy: ± (0.02% +4 words)

DC voltage (output / measurement):

Range: 0 - +10 V;
resolution: 1mV;
Accuracy: ± (0.02% +4 words)

Range: 0 - +100 mV;
Resolution: 10μV;
Accuracy: ± (0.02% +4 words)
