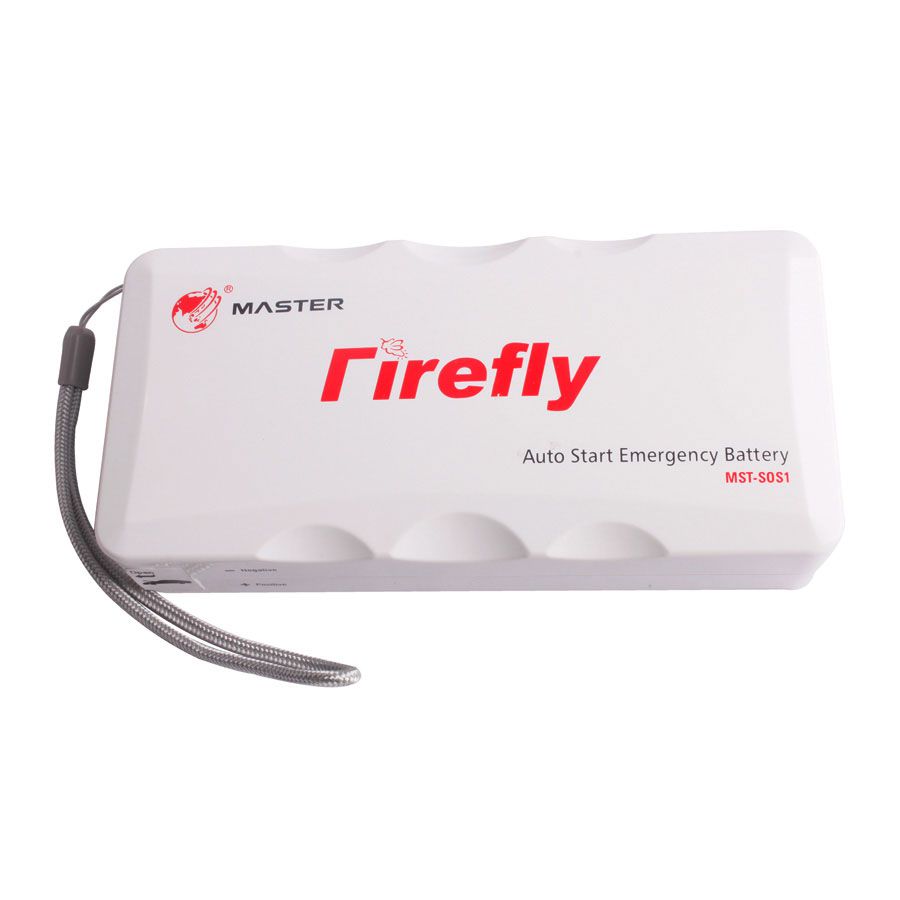

MST-SOS1 Handheld Jump Start Emergency Battery Charger for Phone Laptop and Car

Notice: We do not sell this device to Singpore and Taiwan

This manual is for the MST - SOS1 specification .The operation Manual for the MST - SOS1 is only provide instructions.It couldn't used for other instruments.

If it's not the MST - SOS1 itself quality problem,The list of as follows are not for free maintenance.For example,Users abuse,misuse,do STH without authorization remove,Repair the equipment,in accordance with the manual make the Repair and maintenance.Lost parts of MST-SOS1.

This product with wiring and joint only can be used for the testing instrument.It couldn't used for other testing instrument. please read this manual carefully before useing the testing instrument.

With the popularity of electronic products and function, and improved the electronic products of power.The power consumption is also more and more big and the requirements of the battery is more and more high,Especially in mobile phones and laptop industry.Standby time belongs to one of the important selling point.Due to the limitation of the volume and weight,the battery has been long stand by the electronic industry is difficult to solve the problem.How to make your laptop, mobile phone to realize long standby during business trip,traveling and without power outdoor? MST - SOS1 can help you achieve all of this.

There are the situation of car battery not electric and cause the car can't start situation because of the rise of the automobile industry and popularity of the automobile,traffic jam,long distance driving,traveling outdoors.

Function:charging for the common mobile phone, notebook, and other 5 v, 12 v, 19 v electronic product.It could be used as a lighting and warning distress lamp as automobile starter emergency start power.

(pic 1)

(pic 2)

(pic 3)

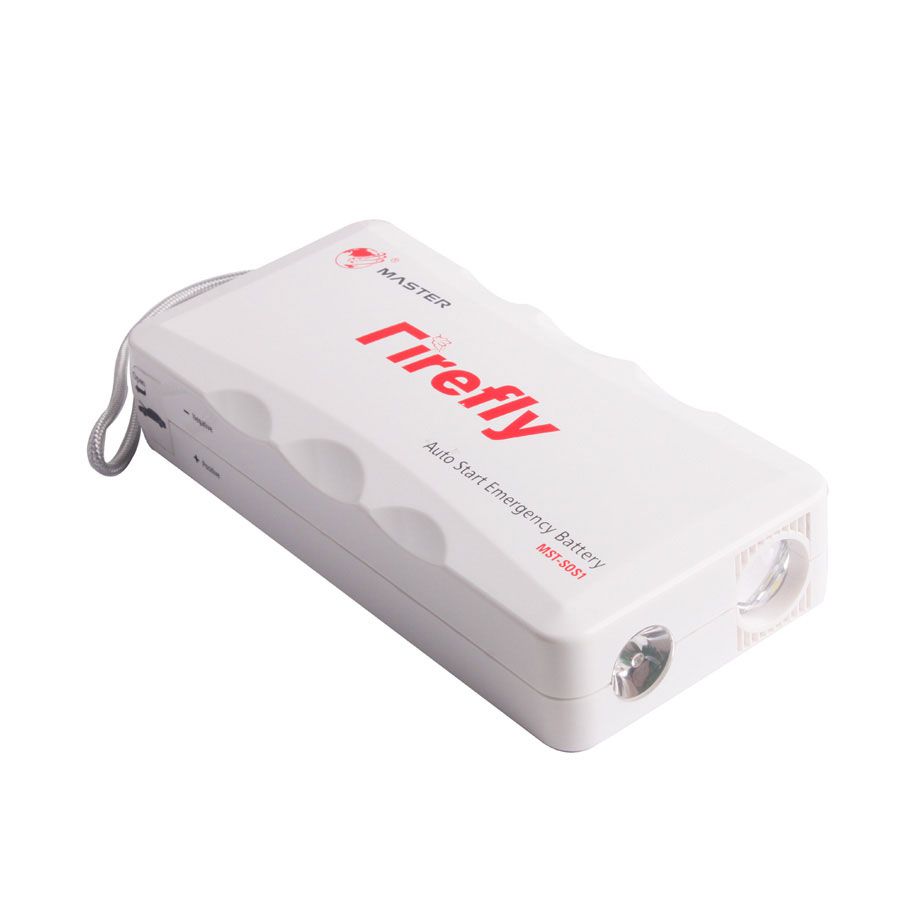

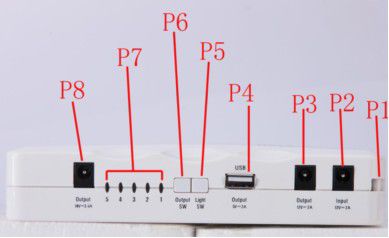

1. portable rope
2. Input 14 v, 2A, 12V power Input, connection charger charging
3. Output 12 V, 2 A, 12 V power Output, for 12 V electrical charging interface
4. Output 5 V, 2 A, 5V power Output, for 5 V electrical charging interface (mainly for the most mobile phone charge)
5. Light SW, lighting and warning distress lamp switch.
6. Output SW power Output switch (the need for external electric charge must open the switch)
7. lamp, charge flicker, the light that has been full of electricity, electricity output display, 5 light is full charge, only a light suggests the need for charging
8. Output 19.5 V - 3.5 A Output, notebook charging interface
9. diffused light
10.spot
11.automobile emergency start output interface

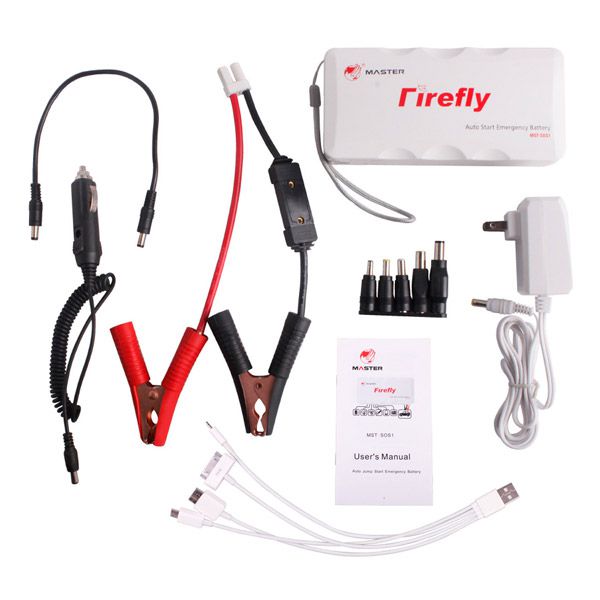

1.4 Parts illustration

1.Charging for MST-SOS1

Connection mthod 1:Power adapter joint 220 v or 110 v power supply. 2.connect with the MST-SOS1,2A interface,The charging indicator light flashing order,Until five light full light than Charge Complete

Charge Complete

2:Connect the car cigarette lighter,connect up Input12V in the MST-SOS1,2A interface,the charging indicator light flashing order,Until five light full light than Charge Complete

2. Car emergency start charging

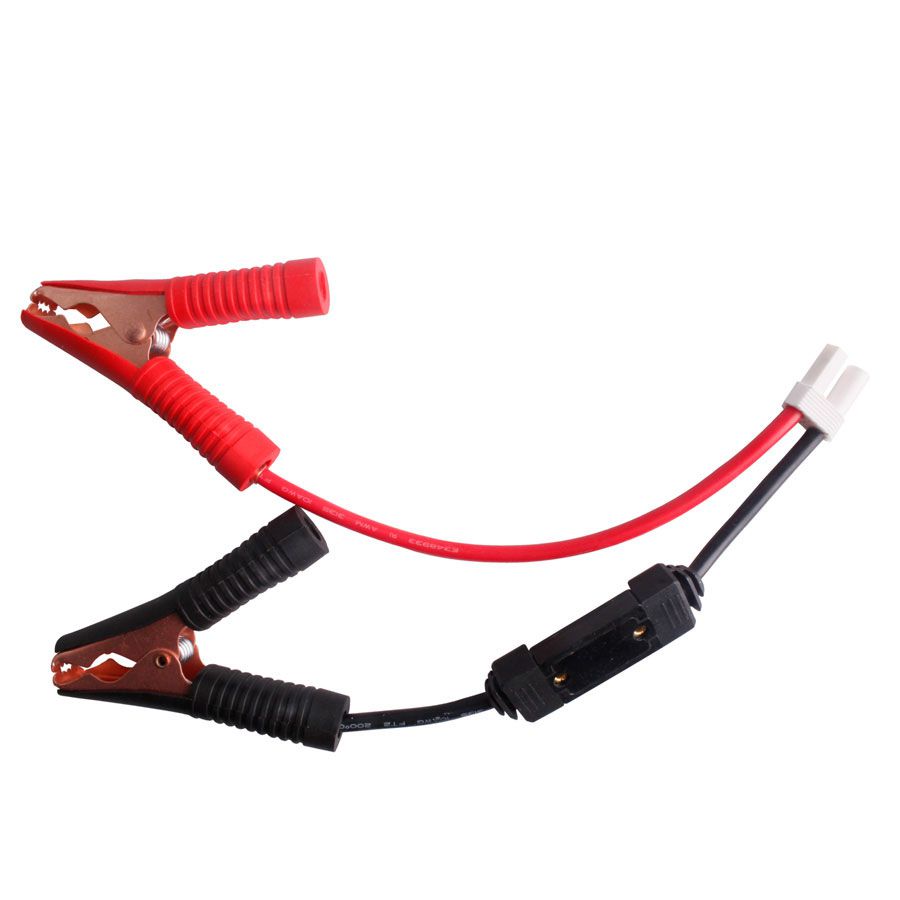

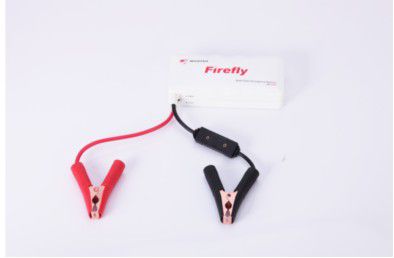

First turn on the battery terminal in accordance with the positive negative properly connected well, as shown in figure:


And the positive negative properly connected, the direction can't put wrong (- Negative, + Positive)
