2024 Launch i-TPMS Handheld TPMS Service Tool Can be Binded with X-431 Scanner and the i-TPMS APP Supports All 315/433MHz Sensors

Launch i-TPMS Handheld TPMS Service Tool Can be Binded with X-431 Scanner and the i-TPMS APP Supports All 315/433MHz Sensors

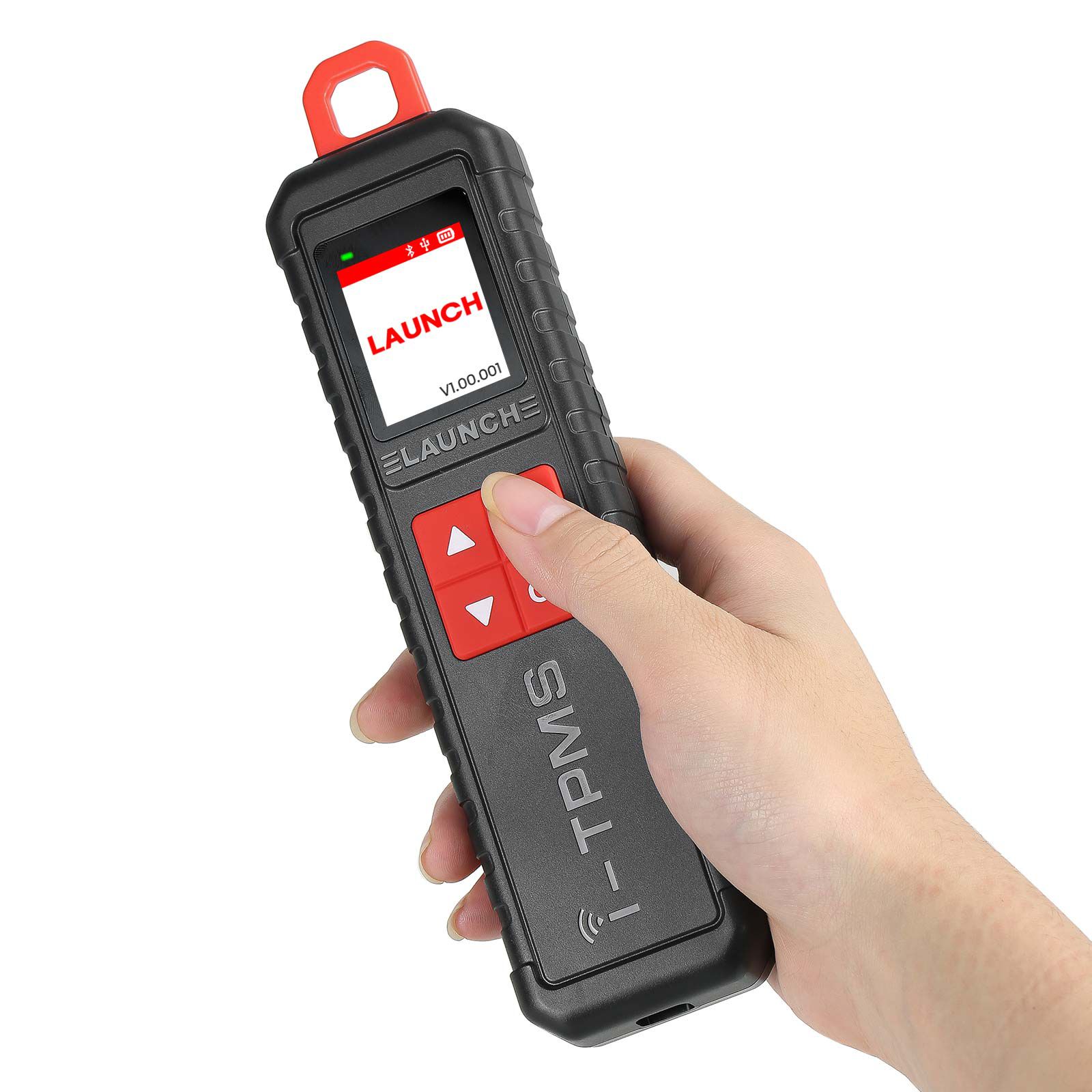

Launch i-TPMS provides professional and comprehensive TPMS services for repair shops to develop their TPMS business. It can program Launch LTR RF sensors for unlimited times to replace OE sensors. The sensor data can be read instantly and accurately, including sensor ID, tire pressure, tire temperature, battery status, etc







Complete TPMS Functions:

Activates all universal TPMS sensors.

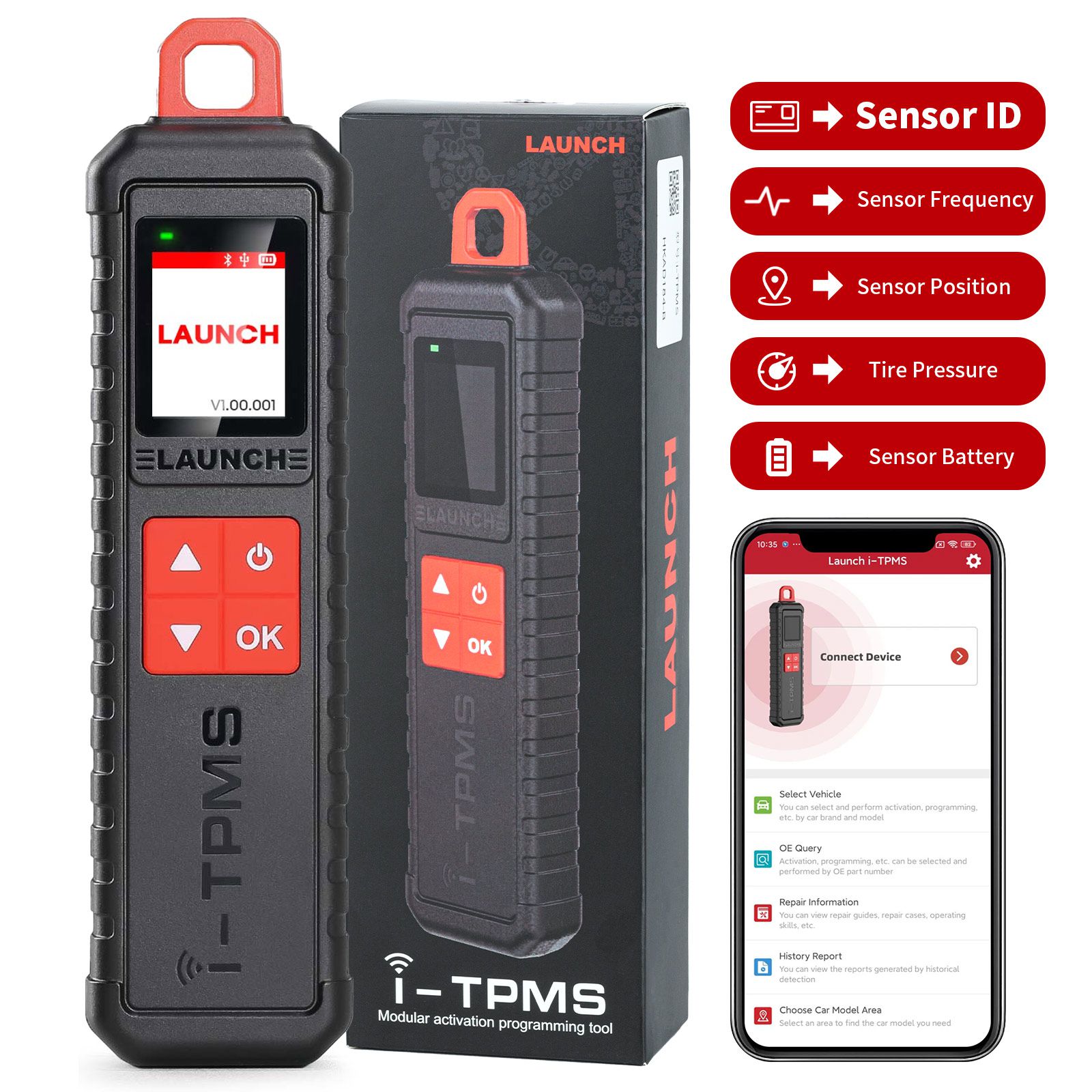

Reads sensor data including sensor ID, tire pressure, temperature, battery condition ect.
Read/Clear fault codes for tpms system, allows you clearly view the status of all TPMS sensors, and compare sensor and ECU data to instantly pinpoint system faults;

4 Modes to Program Launch Scanner:

Auto Create : user can generate the sensor ID by click auto button
Manual Input : x431 tsgun support manually input the original ID or other ID.
Copy by OBD: it needs to connect OBD cable to retrieve the sensor ID from the ECU.
Copy by Activation: it requires activate the original sensors first.

3 Ways to Relearn Sensors:

Stationary Relearn requires the vehicle be placed in the learning mode, and the follow the on-screen prompts to complete it.
Automatic Relearn, for some vehicles, can be completed by driving. Refer to the on-screen learning steps to do the operation.
OBD Relearn directly writes TPMS sensor IDs to the TPMS module via the OBD connector.To perform relearn by OBD, firstly activate all sensors, and then use the diagnostic tool together with the included VCI to complete the learning steps following the on-screen instructions.



Product Specifications:

Display	1.77’’, 168*128
Battery	2000mAh
OBDII Input Voltage	9V ~ 18V
DC Input Voltage	DC 5V
Working Current	≤1A
Working Temperature	-10℃~50℃
Storage Temperature	-20℃~60℃

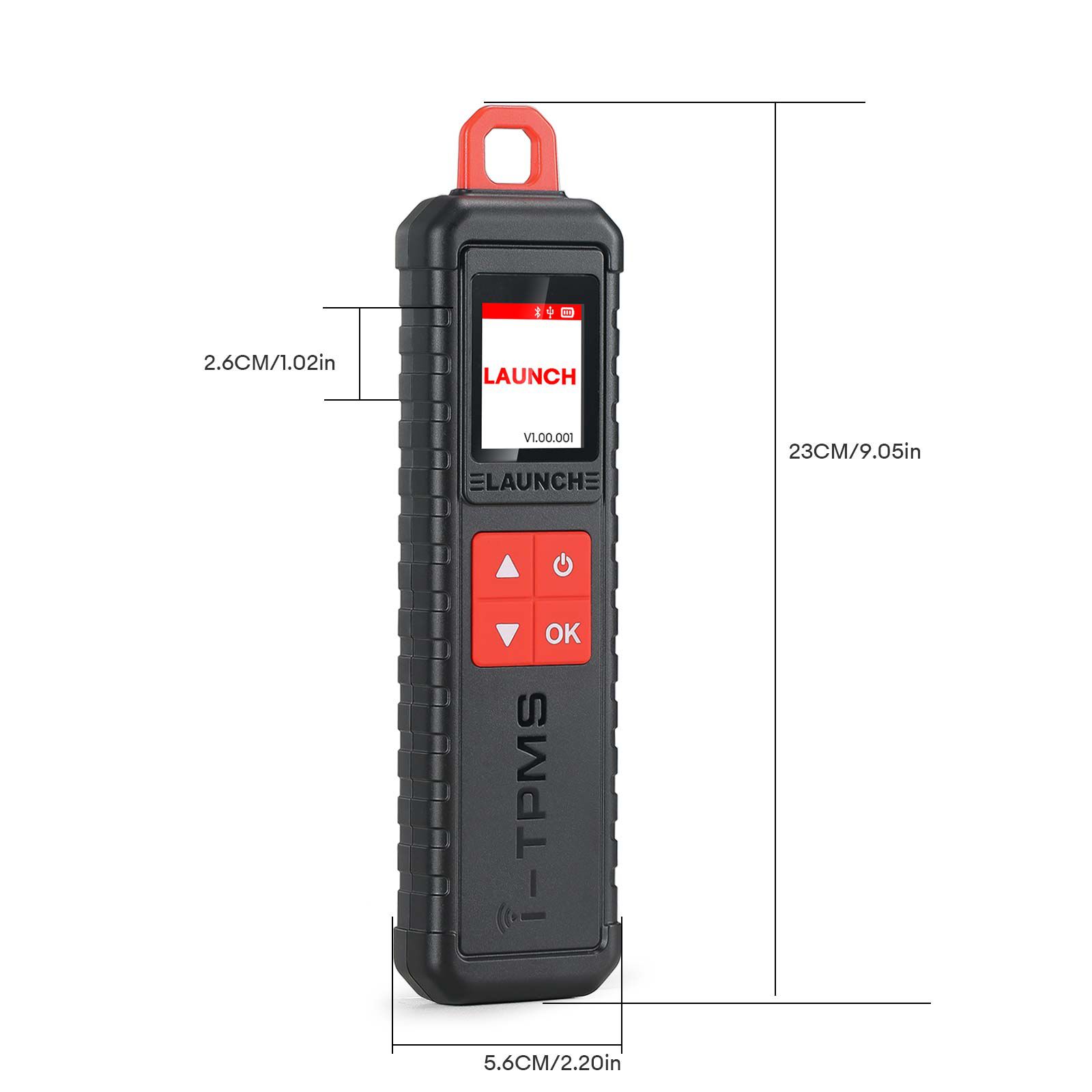

Dimension	252*54*30 (mm)

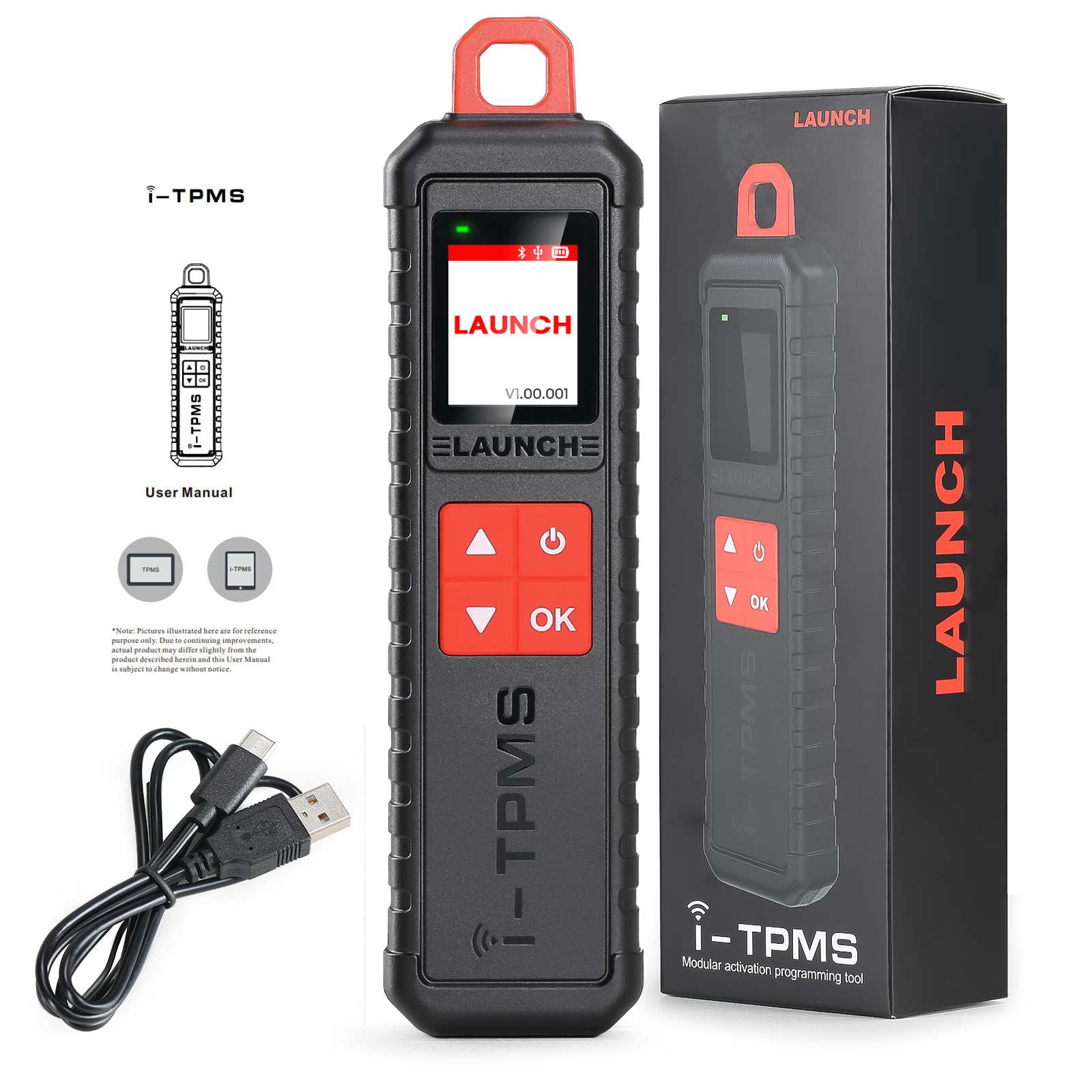

Package includes:
