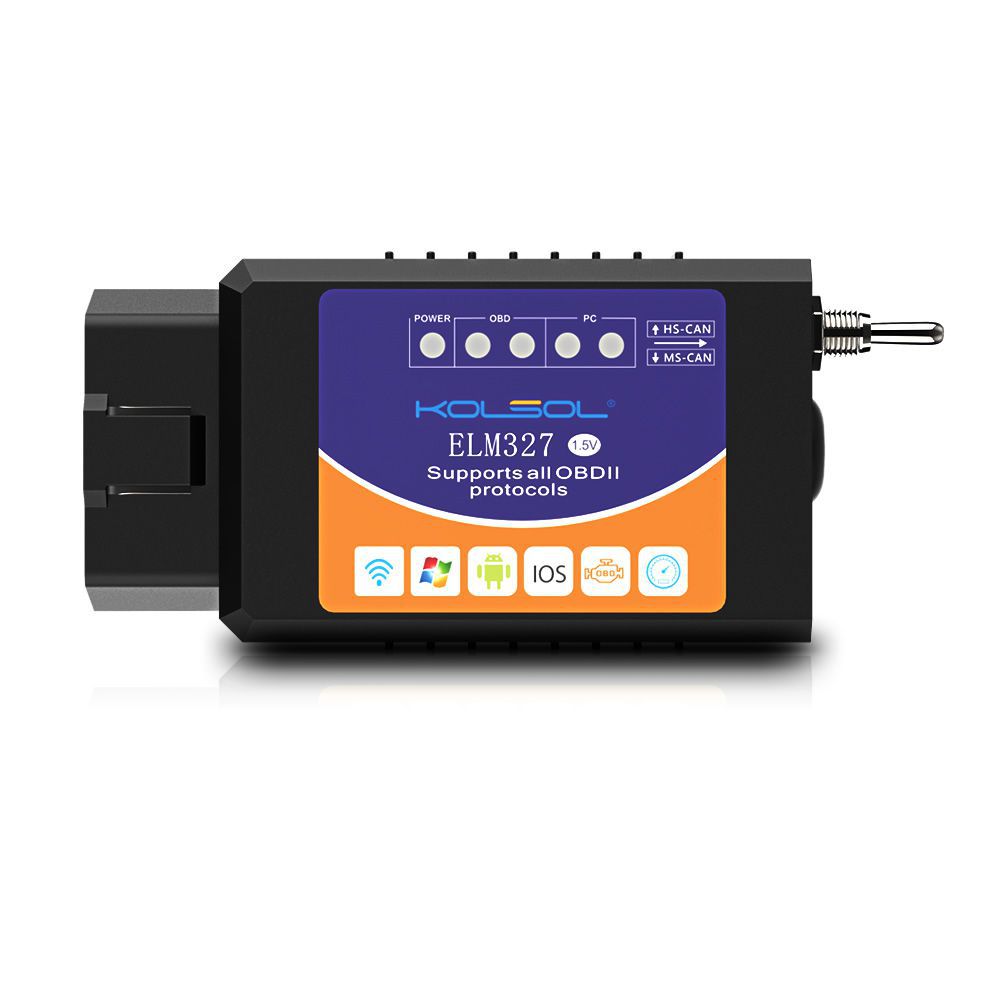

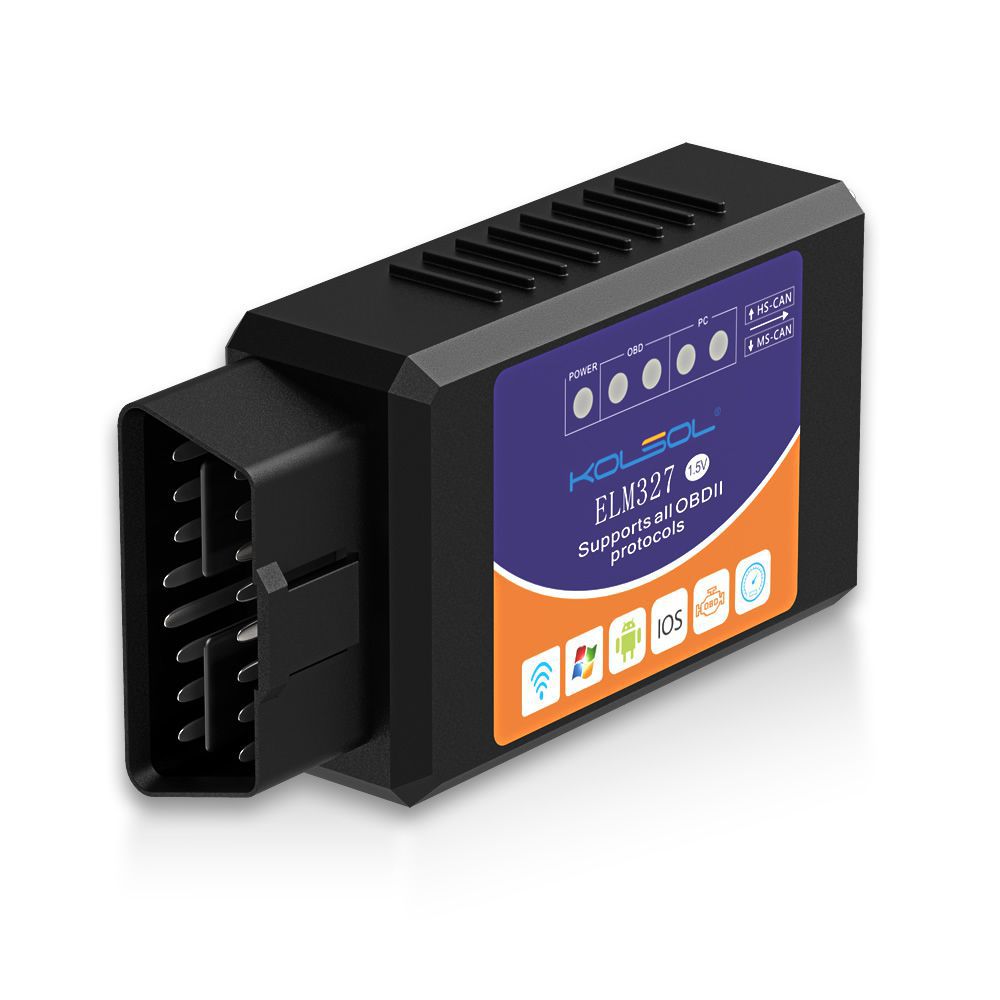

KOLSOL ELM327 WIFI OBD2 Scanner V1.5 with Switch

Product Description

The WIFI Elm327 is a versatile, high-tech automotive electronics device that interfaces with your vehicle’s ECU computer for real-time data synchronization, enabling comprehensive monitoring of the vehicle's electronic control system. Through the vehicle’s ECU computer system, drivers can access and adjust internal vehicle functions in a more intuitive and user-friendly manner.

This device is not only an information display system but also a powerful fault detection tool that identifies vehicle issues. It clearly presents fault information in text form to safeguard the owner’s interests.

Key Highlights

• Reads diagnostic trouble codes

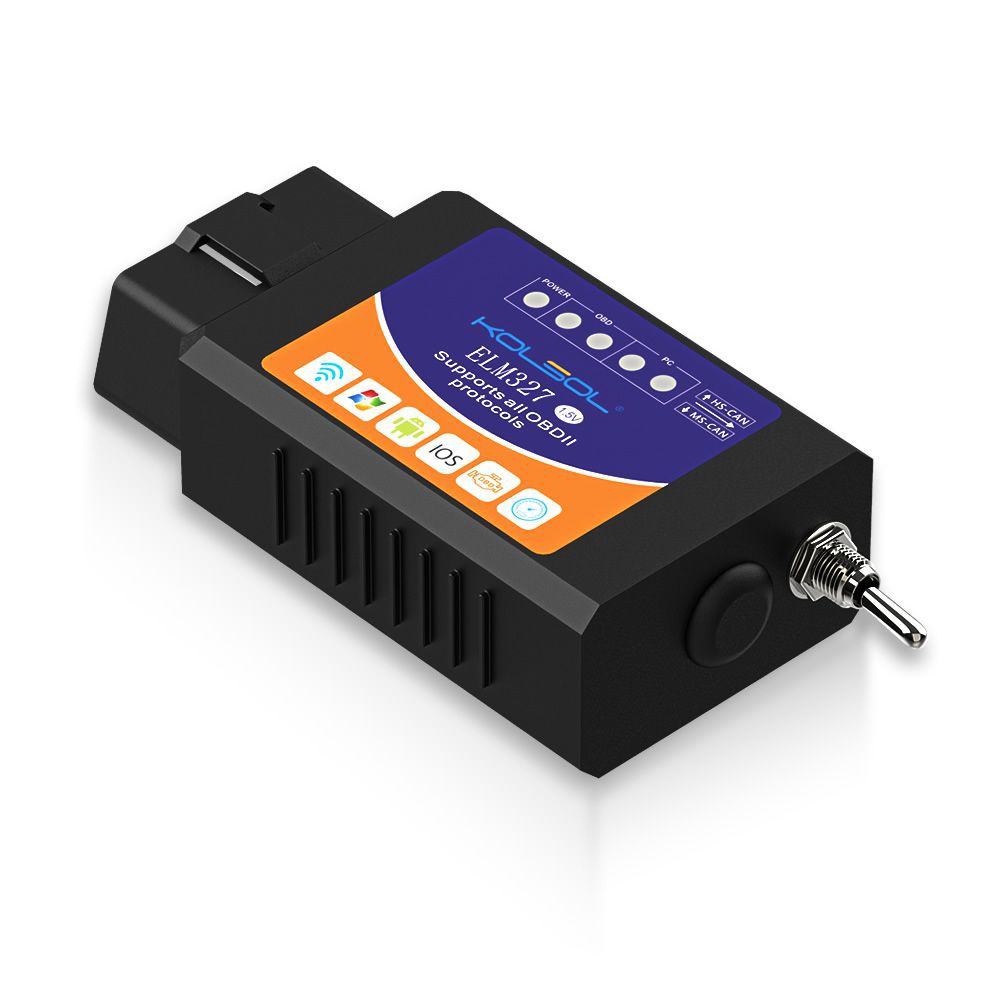

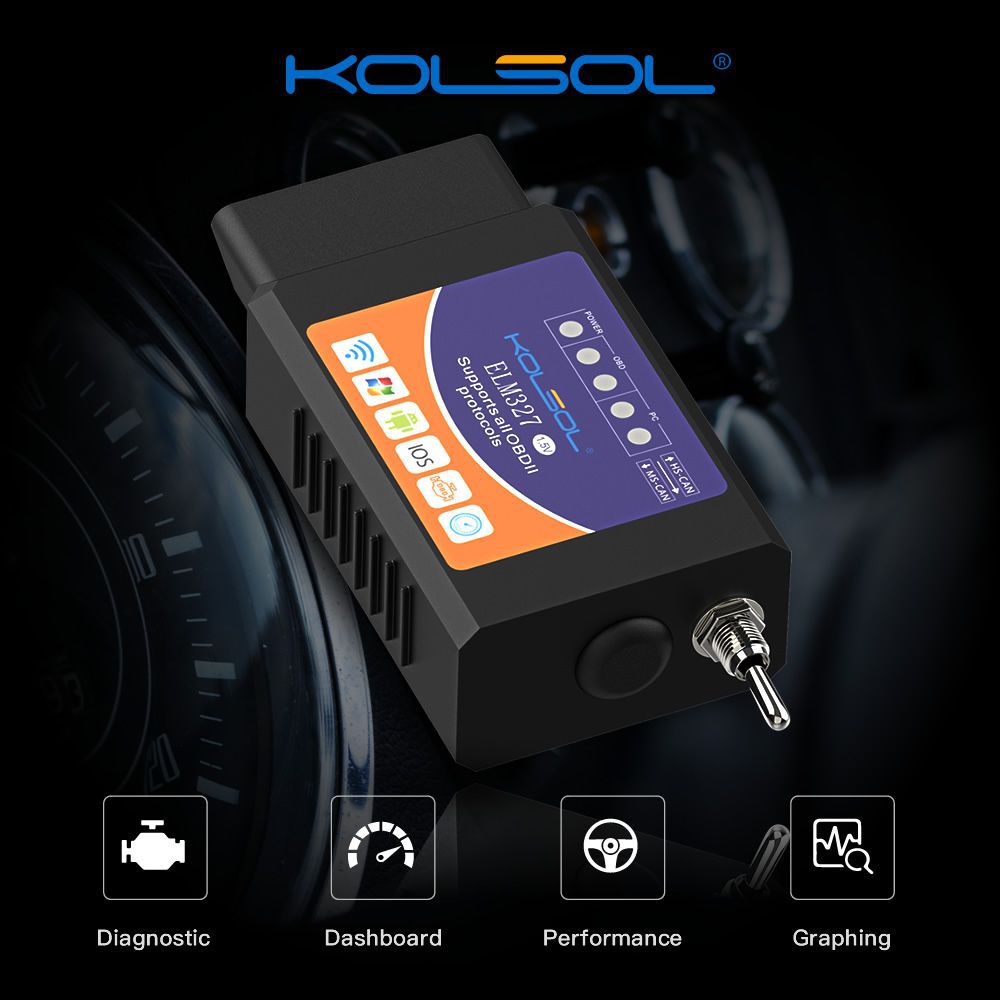

• High-quality scan tool equipped with a switch
• Supports all OBD-II protocols

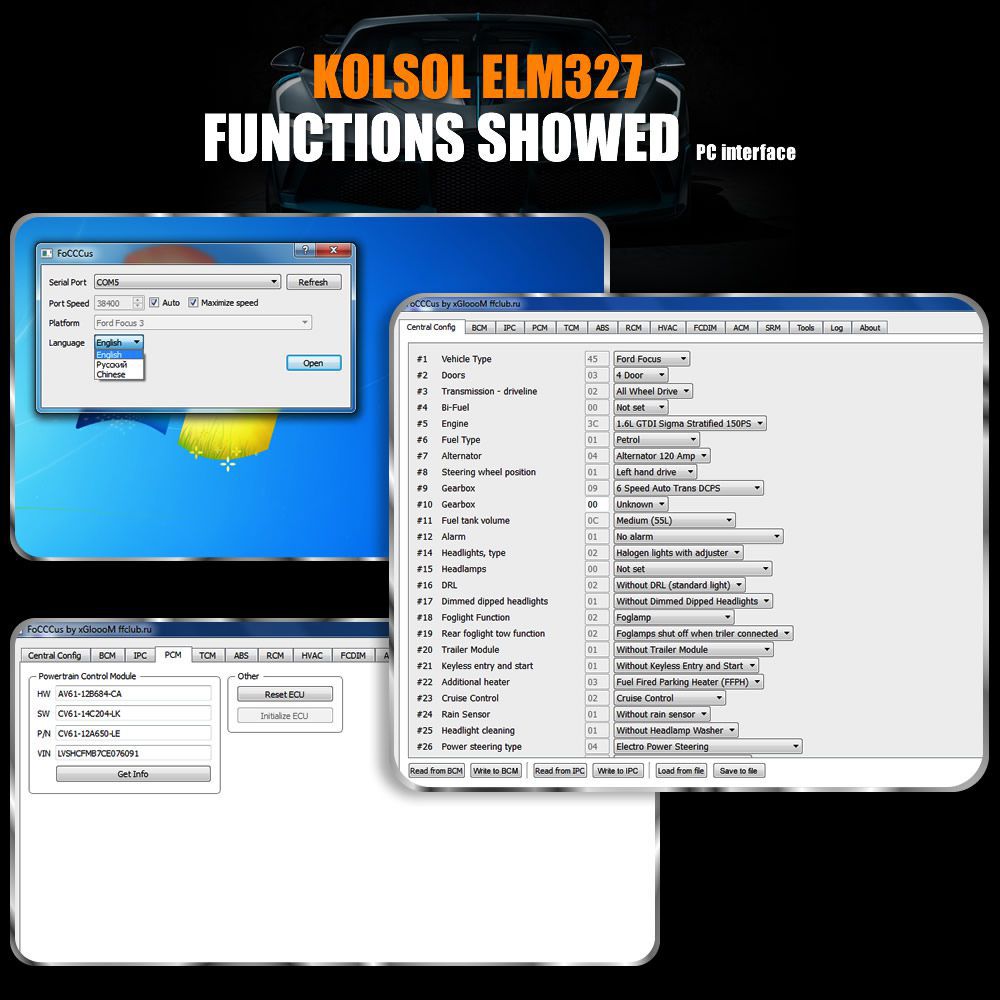

• Compatible with a wide range of diagnostic software

Functions

• Reads both generic and manufacturer-specific diagnostic trouble codes and displays their meanings (includes over 3,000 generic code definitions in its database)
• Clears trouble codes and turns off the MIL (“Check Engine” light)
• Displays real-time sensor data, including:
  • Engine RPM
  • Calculated Load Value
  • Coolant Temperature
  • Fuel System Status
  • Vehicle Speed
  • Short Term Fuel Trim
  • Long Term Fuel Trim
  • Intake Manifold Pressure
  • Timing Advance
  • Intake Air Temperature
  • Air Flow Rate
  • Absolute Throttle Position
  • Oxygen sensor voltages and associated short term fuel trims
  • Fuel System status
  • Fuel Pressure
  • Many others...

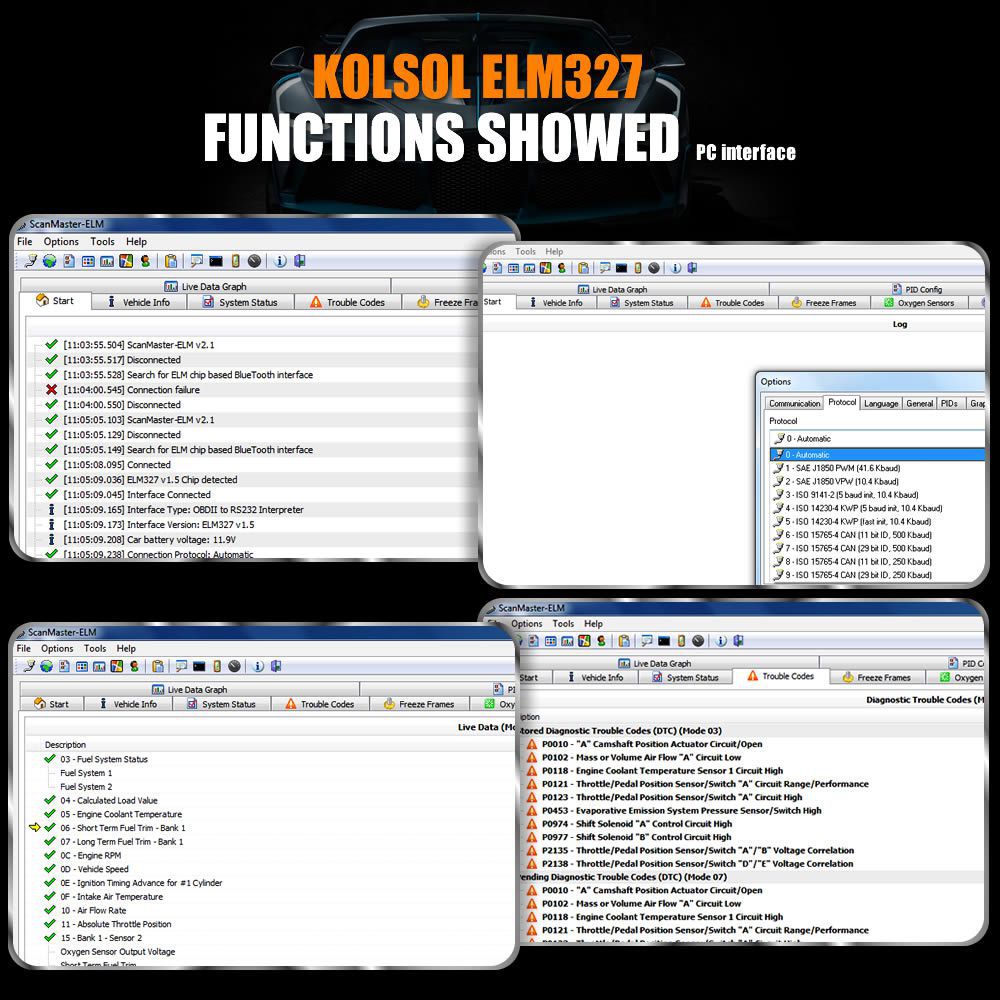

Supported Protocols

• SAE J1850 PWM (41.6 Kbaud)
• SAE J1850 VPW (10.4 Kbaud)
• ISO9141-2 (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (fast init, 10.4 Kbaud)
• ISO15765-4 CAN (11-bit ID, 500 Kbaud)
• ISO15765-4 CAN (29-bit ID, 500 Kbaud)
• ISO15765-4 CAN (11-bit ID, 250 Kbaud)
• ISO15765-4 CAN (29-bit ID, 250 Kbaud)

Compatible Systems

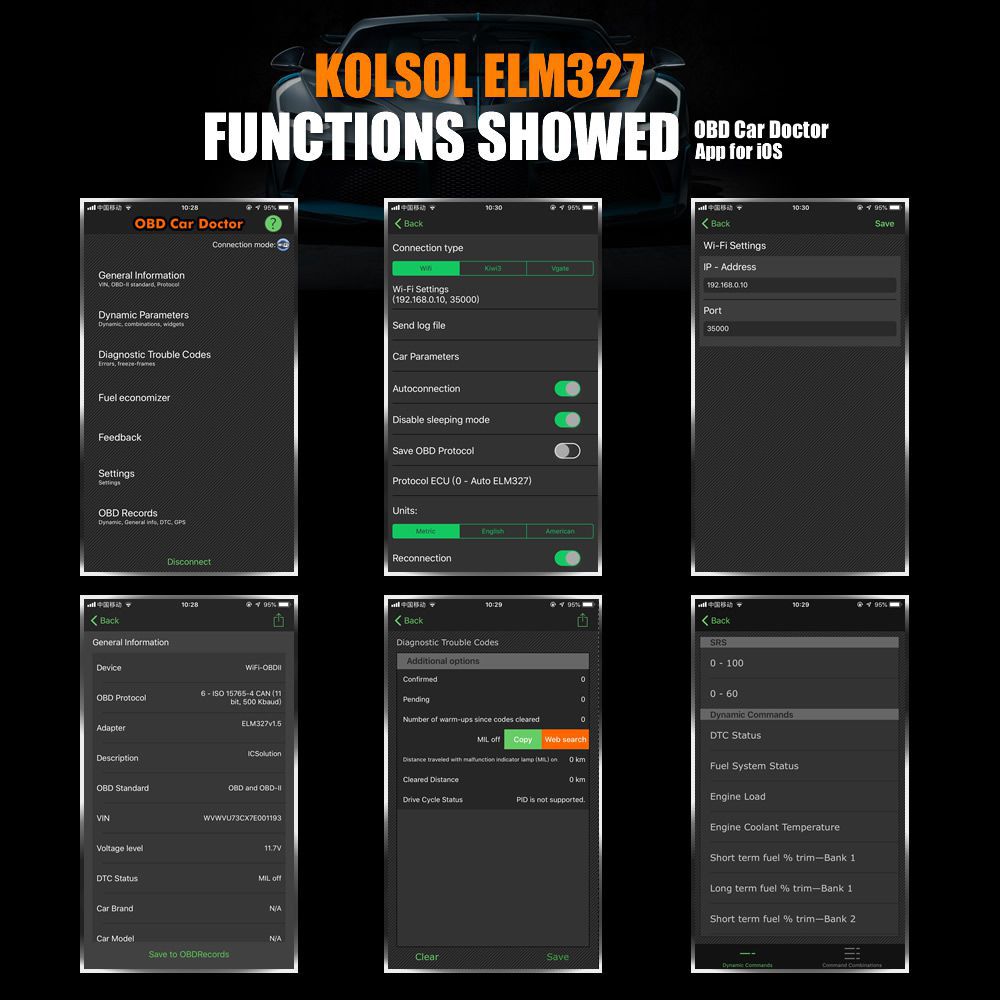

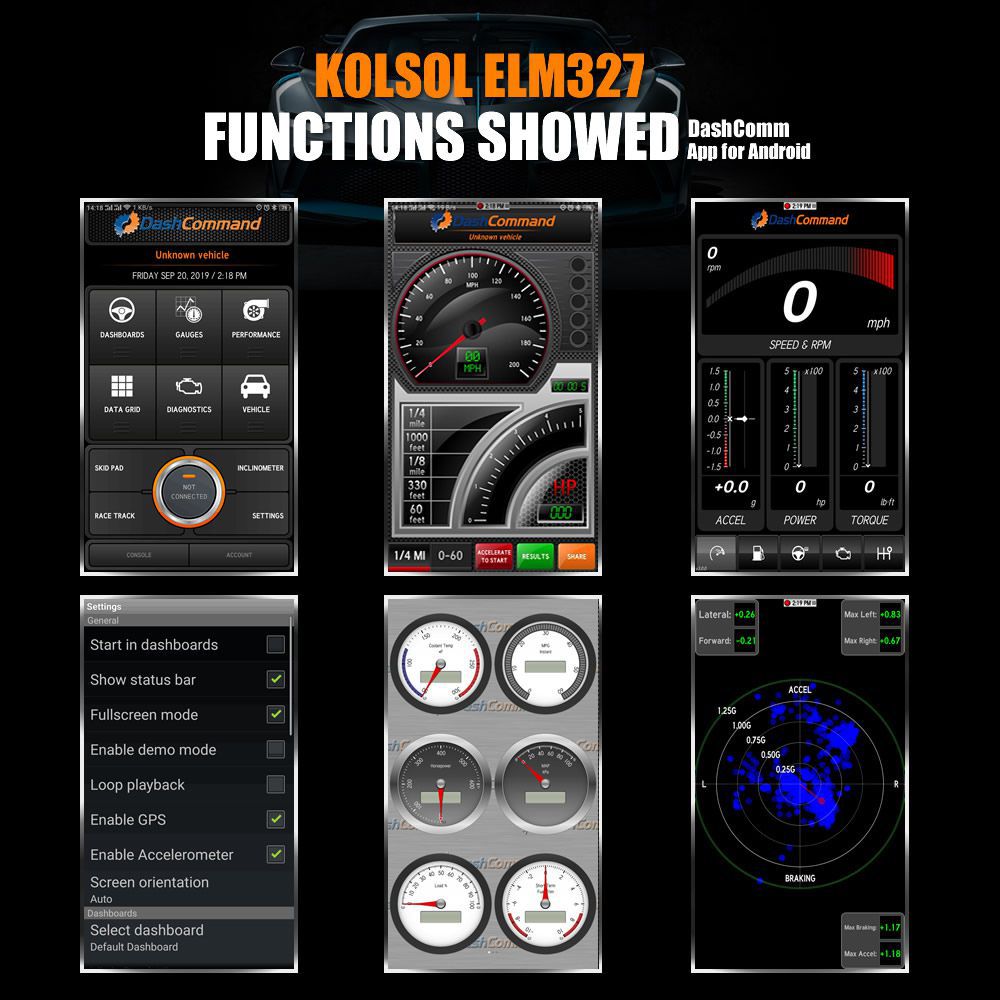

Software support platforms: Windows XP, Windows 7/8, iOS, Android, Symbian.

Package Includes

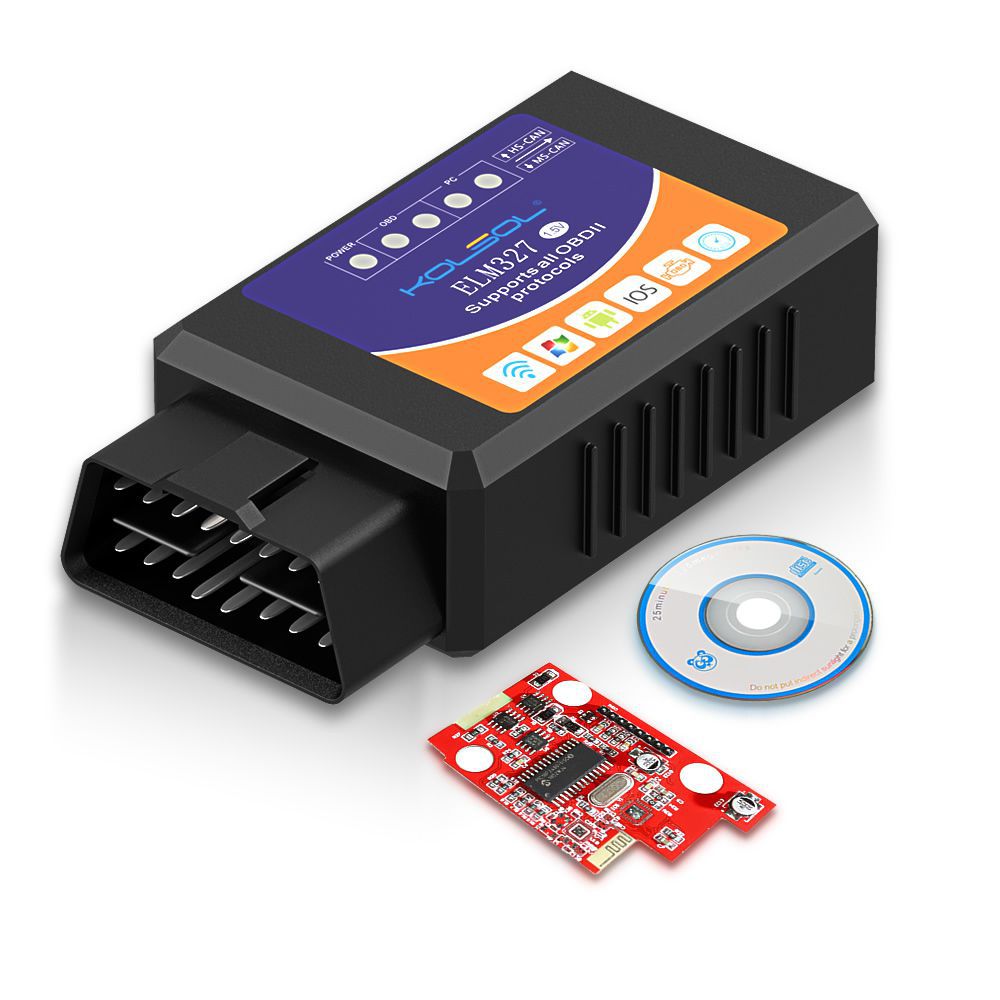

• 1 PC × KOLSOL ELM327 Wifi OBD2 Scanner V1.5
• 1 PC × CD-ROM
