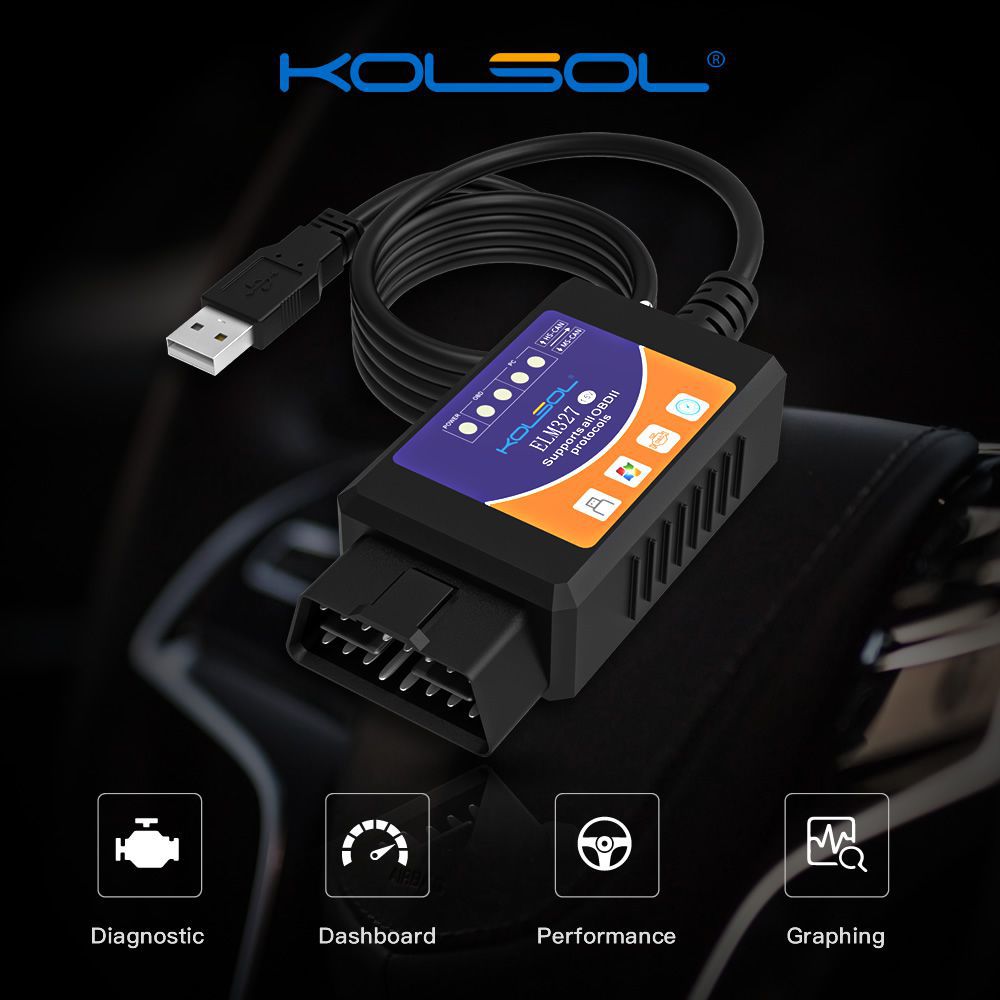

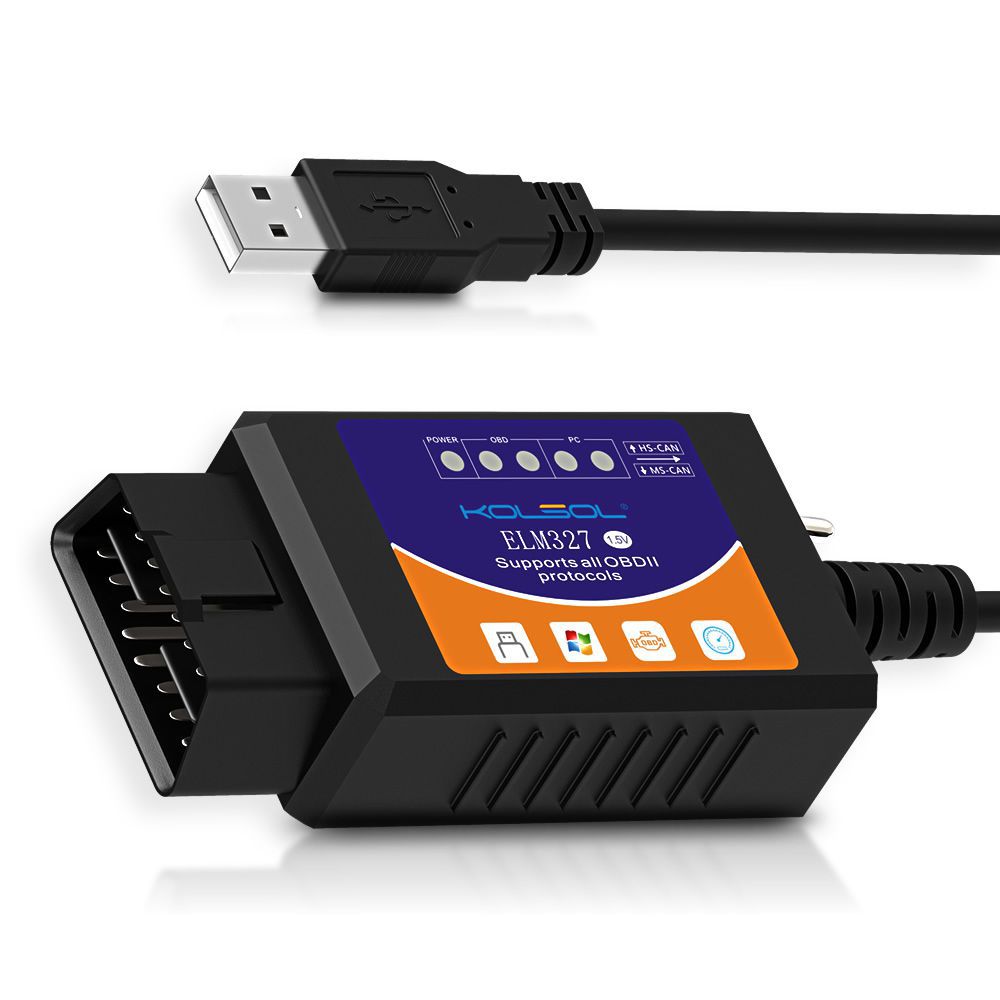

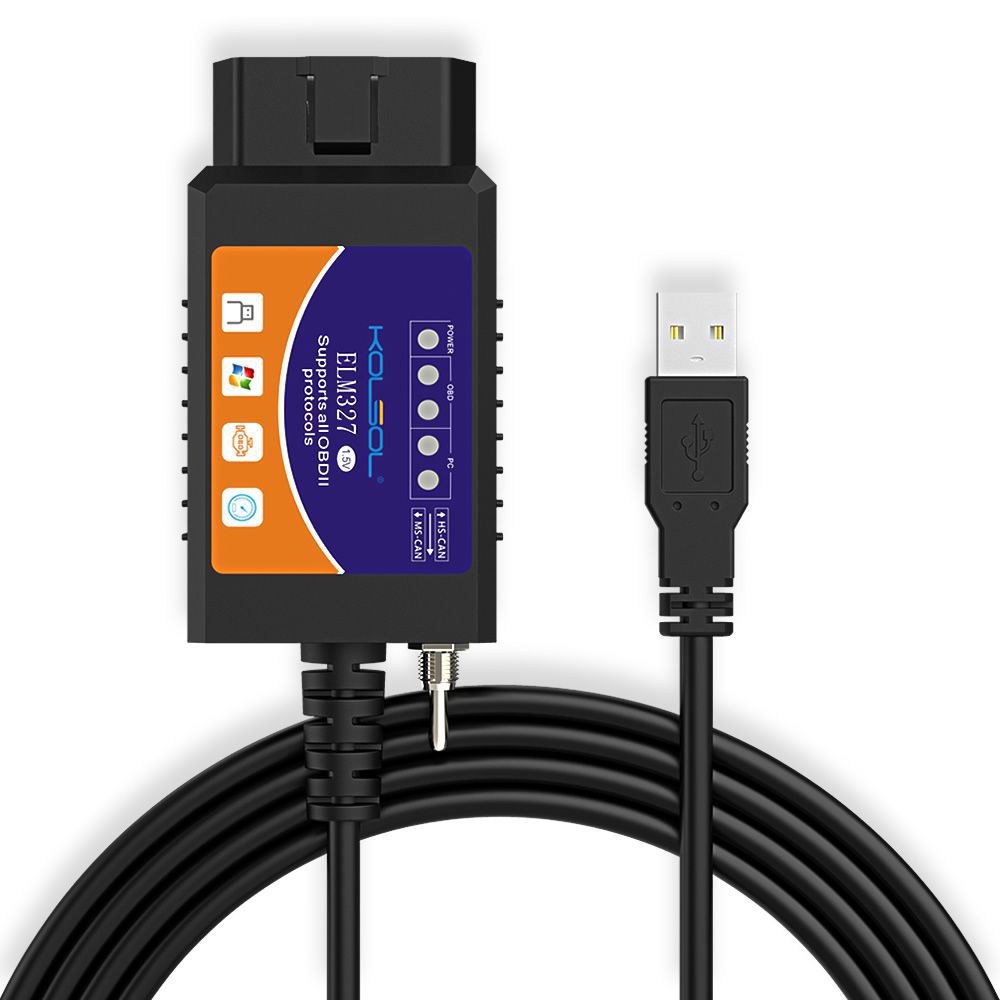

KOLSOL ELM327 USB V1.5 with Switch Modified for FORD – ELMconfig, Forscan Compatible (CH340 + 25K80 Chip, HS-CAN / MS-CAN)

Key Highlights

• Supports FORD models to unlock hidden functions.

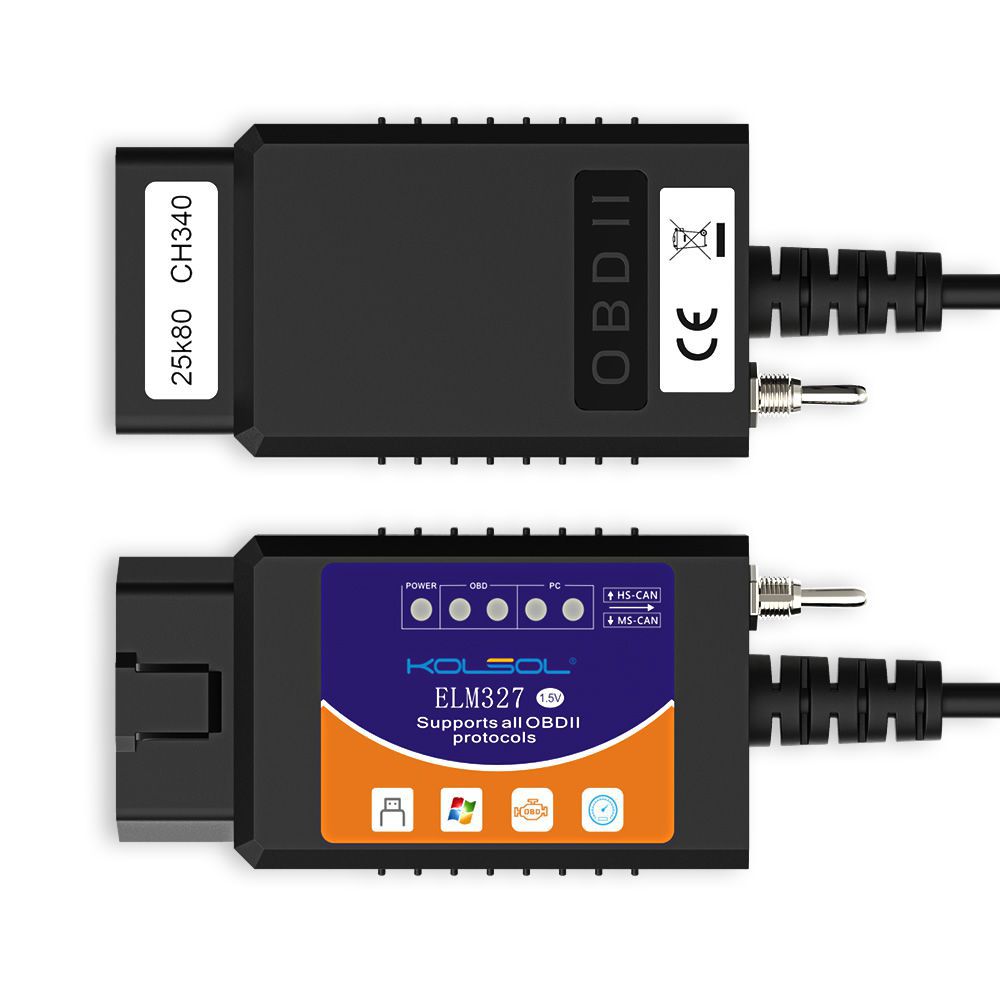

• MS-CAN support via toggle switch (selectable between MS-CAN and HS-CAN).
• Full compatibility with FORD-specific diagnostic protocol MS-CAN.
• Most modern Ford modules are accessible only through the MS-CAN protocol.
• Functions as a standard OBD2/EOBD code reader on all supported vehicles beyond Ford applications.

Supported Functions

• Read and erase fault codes from all vehicle modules, including OBD2/EOBD systems
• Access modules in both HS-CAN and MS-CAN modes
• Read vehicle configuration data
• Perform actuator tests
• View live data streams
• Injector coding
• Software updates
• Service programming
• Force DPF regeneration
• Module programming
• Vehicle coding
• Adaptation procedures

Compatible Software

• ELMconfig
• Forscan
• FOCCCUS
• FF2

Vehicle Coverage

The ELM327 USB V1.5 OBD2 scanner is compatible with FORD, MAZDA, BMW, VW, GM, AUDI, CHEVY, TOYOTA, LEXUS, MERCEDES, HYUNDAI, KIA, MITSUBISHI, NISSAN, SUZUKI, JAGUAR, LAND ROVER, CHRYSLER, HONDA, and many more vehicle makes.

Supported Protocols

• SAE J1850 PWM (41.6 Kbaud)
• SAE J1850 VPW (10.4 Kbaud)
• ISO9141-2 (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (fast init, 10.4 Kbaud)
• ISO15765-4 CAN (11-bit ID, 500 Kbaud)
• ISO15765-4 CAN (29-bit ID, 500 Kbaud)
• ISO15765-4 CAN (11-bit ID, 250 Kbaud)
• ISO15765-4 CAN (29-bit ID, 250 Kbaud)
• SAE J1939 CAN (29-bit ID, 250 Kbaud)
• CAN (11-bit ID, 125 Kbaud)
• CAN (11-bit ID, 50 Kbaud)

Package Includes

• 1 PC × KOLSOL ELM327 USB OBD2 Scanner V1.5
• 1 PC × CD-ROM
