GS-911 V1006.3 Emergency Diagnostic Tool For BMW Motorcycles

GS-911 Emergency Diagnostic Tool for BMW Motorcycles

Notice:
1. Software Version: V1006.3
2. Just install the software with the version GS-911-1006.3, because these higher version are not stable. and pls used without the network, do not update ,or the software will be easy to be destroyed.

Description:

GS-911 is a unique software and hardware combination that allows the BMW enthusiast the ability to communicate with the control modules in a safe and controlled manner.

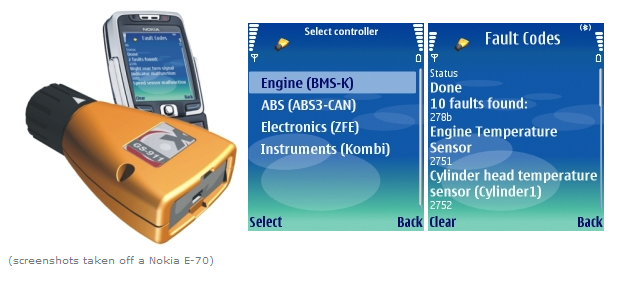

In the true spirit of adventure associated with your motorcycle, the GS-911 tool is also available with a Bluetooth interface, allowing you to use it with most modern mobile phones (including BlackBerry)... no need for anything else.

Function:

1.Read Diagnostic Fault Codes
This shows the Fault codes and text descriptions of the faults stored on the Electronic Control Unit.
2.Shows ECU information
See hardware and software versions, manufacturing dates, and other manufacturer related data.
3.Clears Diagnostic Fault Codes
Enables you to erase fault codes once the problem has been fixed.
4.Real-time Analog and Digital values for Engine control units
view and log the real-time values (very dependent on the type of controller)
5.Service Functionality

Support Model List:

Shown here are models covered in either of the full release or the latest Beta.
R-Series:
HP2, HP2 Megamoto, R1200GS, R1200GS Adventure, R1200RT, R1200R, R1200ST, R1200S, R1200S HP2
R1200C, R1200CL
R1150GS, R1150GS Adventure, R1150RT, R1150R, R1150RS (single- and twin-spark on all models)
R1100S (single and twin-spark)
R850C, R850R, R850RT
K-Series:
K1300GT, K1300R, K1300S
K1200GT, K1200R, K1200R Sport, K1200S,
K1200LT, K1200GT (non-CAN), K1200RS
F-Series:
F800S, F800ST, F800GS, F800R
F650GS (800cc 2 cylinder)
F650CS, F650GS, F650GS Dakar (single- and twin-spark on all models)
G-Series:
G650Xchallenge, G650Xcountry, G650Xmoto
G650GS
G450X
C-Series:
C1, C1-200
S-Series:
S1000RR

Compatible System:

This depends on the bike model, but in general we cover the following:
1.Engine controller (BMS-K, BMS-KP, BMS-C, BMS-CII, MA2.4, KMS-K16)
2.ABS (ABS-II, ABS-N, Integral-ABS, Integral-ABS-CAN, Integral-ABS2-CAN, ABS8, ABS8MOC)
3.Central Vehicle Electronics (ZFE-Basic (low, mid, high), ZFE-Low, ZFE-High(full, no-ESA, ESA-only))
4.Instrument cluster (Kombi-H, Kombi-L, Kombi-7x, Kombi-2D)
5.DWA (Anti-Theft Alarm system)
6.RDC (Tyre Pressure Control)

GS-911 Hardware is available as two offerings:

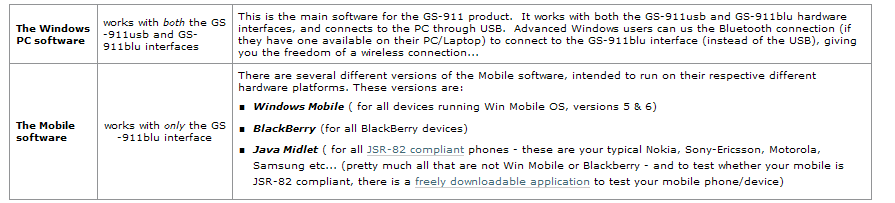

GS-911 Software is available as two offerings:



FAQ:

Q: GS-911 you offer is USB only version or Blutooth?
A: GS-911 is only USB, no bluetooth.
