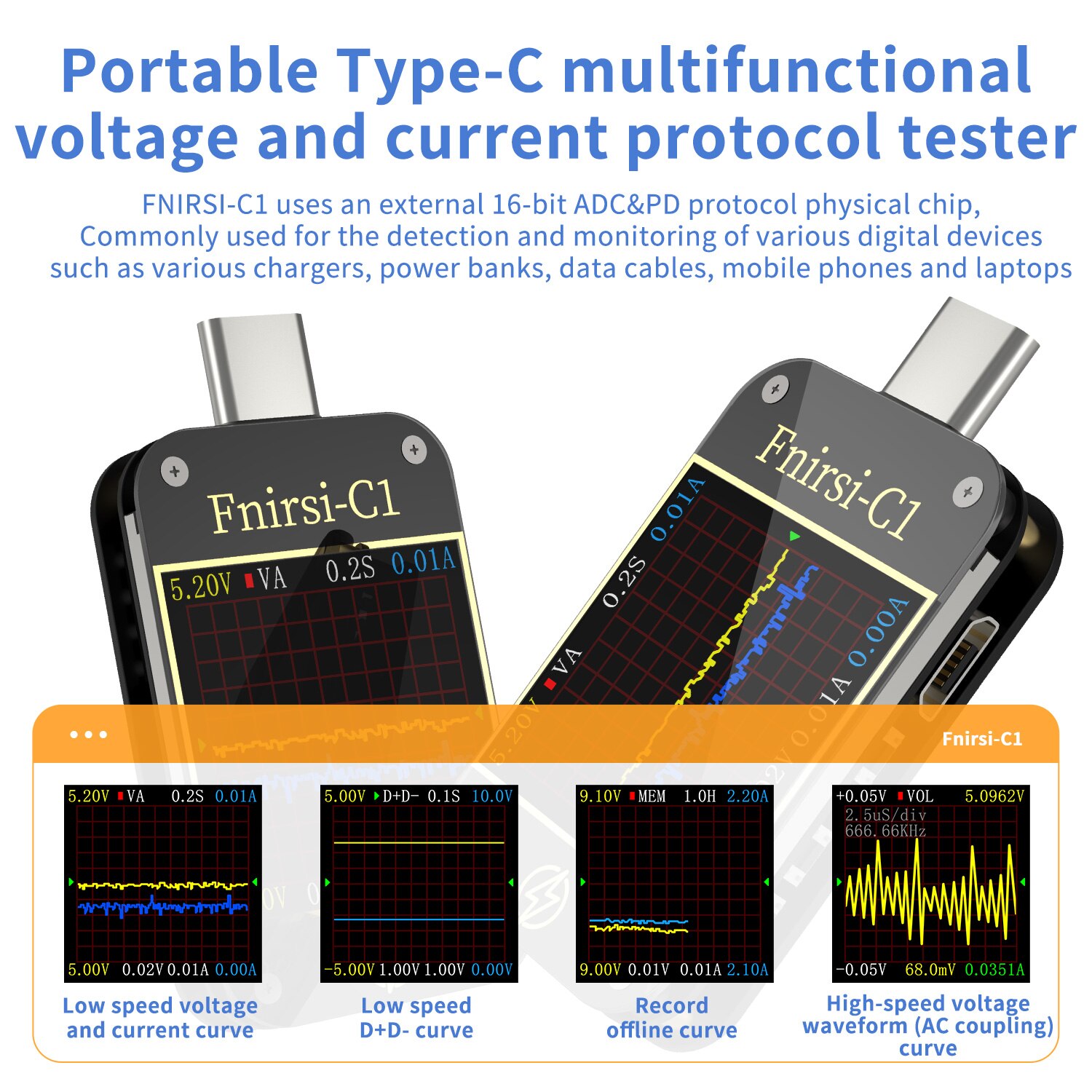

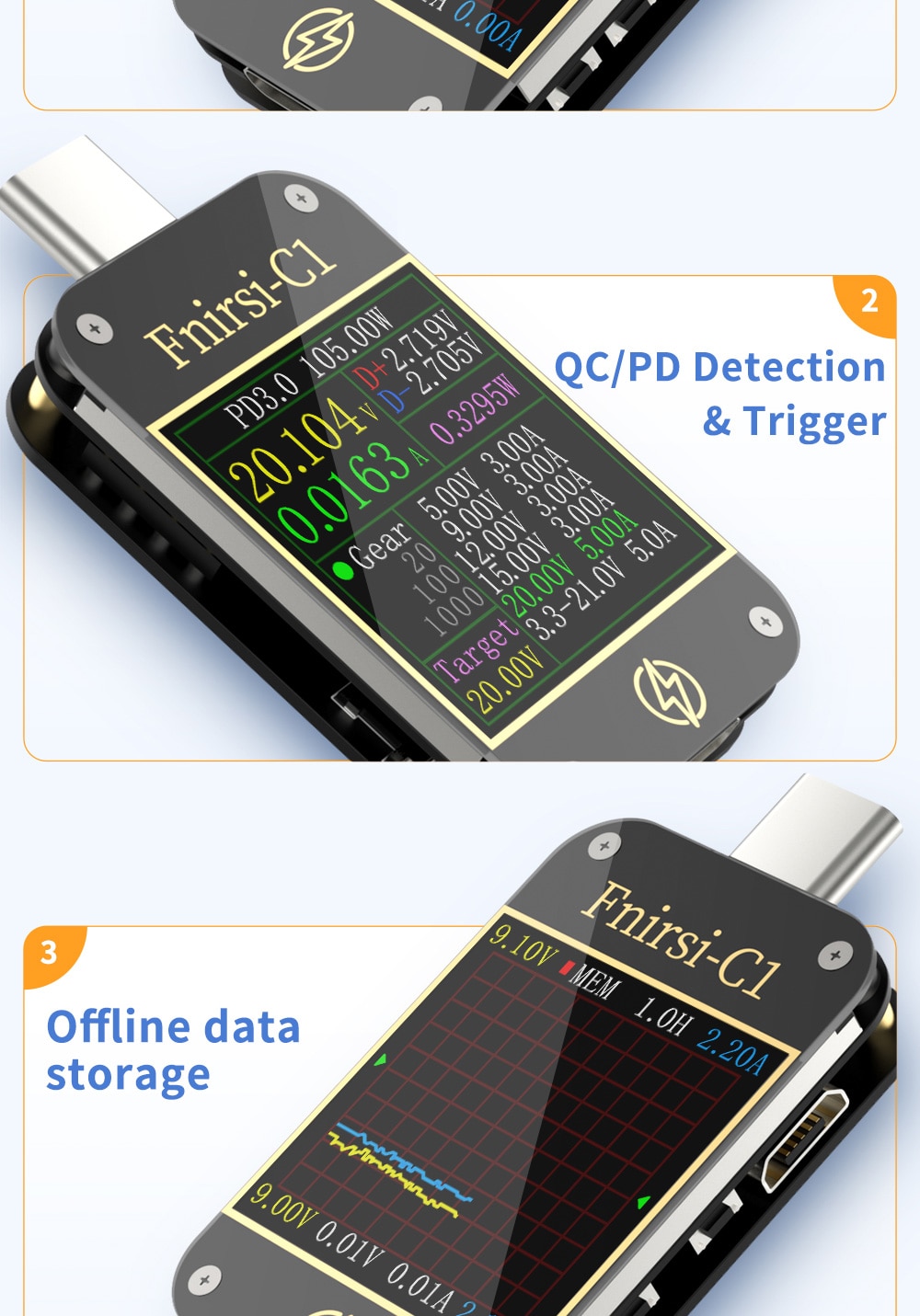

FNIRSI-C1 Type-C PD Trigger USB-C Voltmeter Ammeter Fast Charging Protocol Test Type-C Meter Power Bank Tester With PC Software

https://www.mediafire.com/file/ju57qo52v3tx3nf/FNIRSI-C1_Product_Manual_v1.0.docx/file

https://www.mediafire.com/file/i9cw11iu5zaucea/FNIRSI_UsbMeter_PC_Software_V0_0_4.rar/file

https://www.mediafire.com/file/fuqw55k572ti94q/FNIRSI_UsbMeter_PC_Software_Manual-EN-V0.1.docx/file

https://www.mediafire.com/file/wtg9tez17iyutrw/FNIRSI-C1_Bluetooth_APP_%25C3%25AF%25C2%25BC_Android%25C3%25AF%25C2%25BC__v1.0.apk/file

https://www.mediafire.com/file/6t34k5gbf7kbhkc/FNIRSI-C1_Firmware_V0.70.rar/file

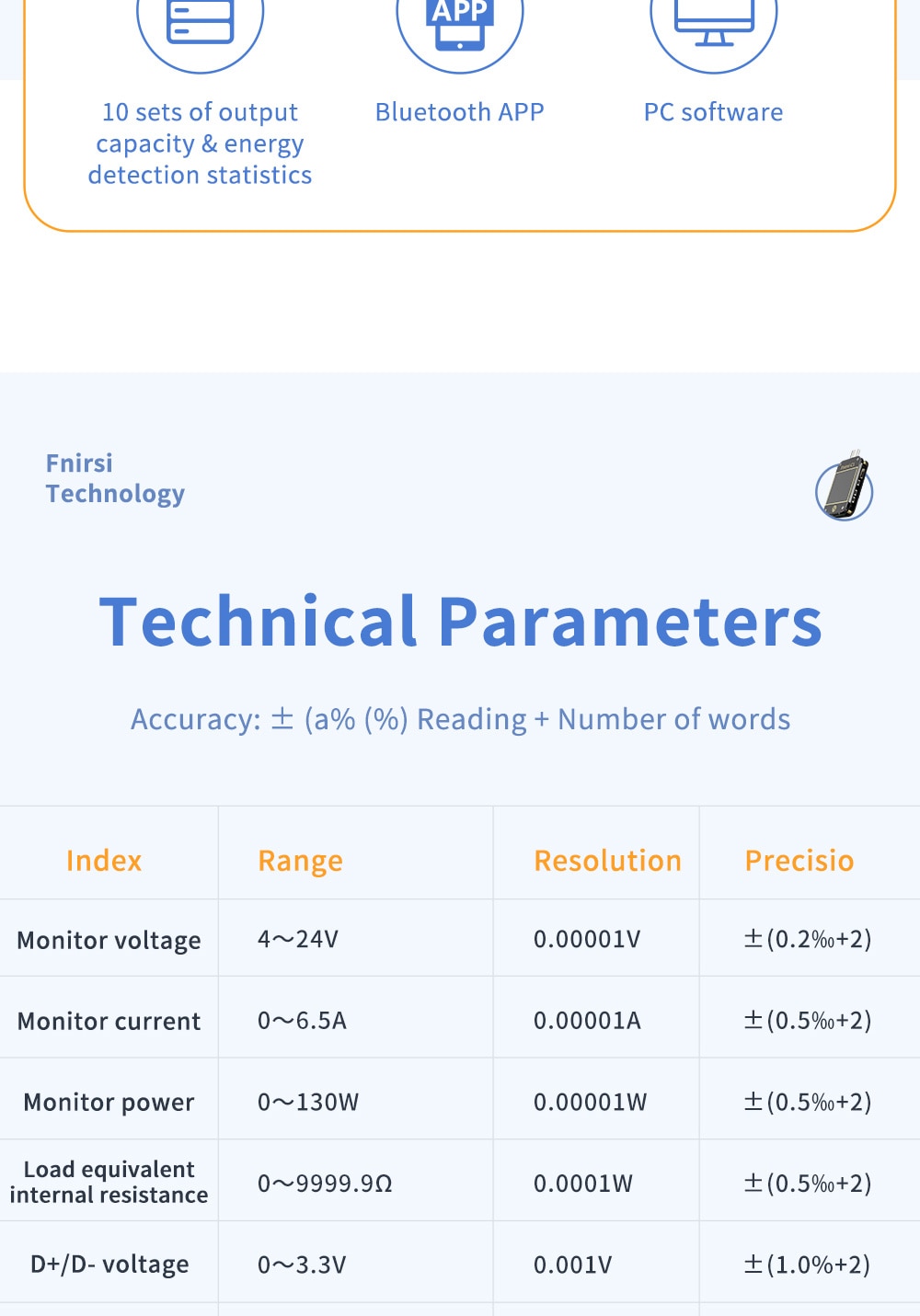

Monitoring voltage: 4~24V
Monitor voltage resolution: 0.00001V
Monitoring voltage accuracy: ±(0.2‰+2)
Monitoring current: 0~6.5A
Display current resolution: 0.00001A
Monitoring current accuracy: ±(0.5‰+2)
Display power: 0~130W
Display current resolution: 0.00001W
Monitoring current accuracy: ±(0.5‰+2)
Load equivalent resistance: 0~9999.9Ω
Load equivalent resistance resolution: 0.0001Ω
Load equivalent resistance accuracy: ±(0.5‰+2)

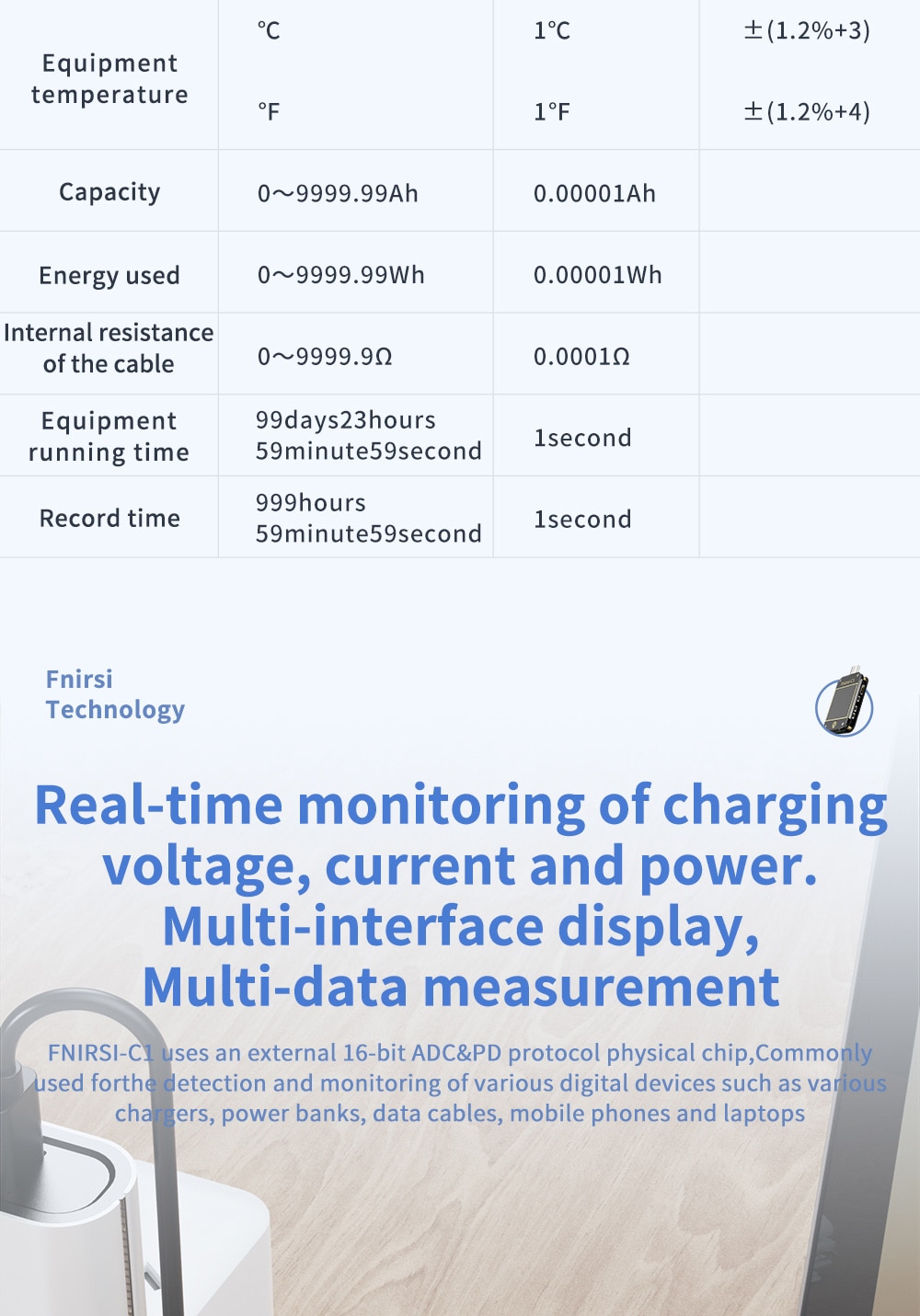

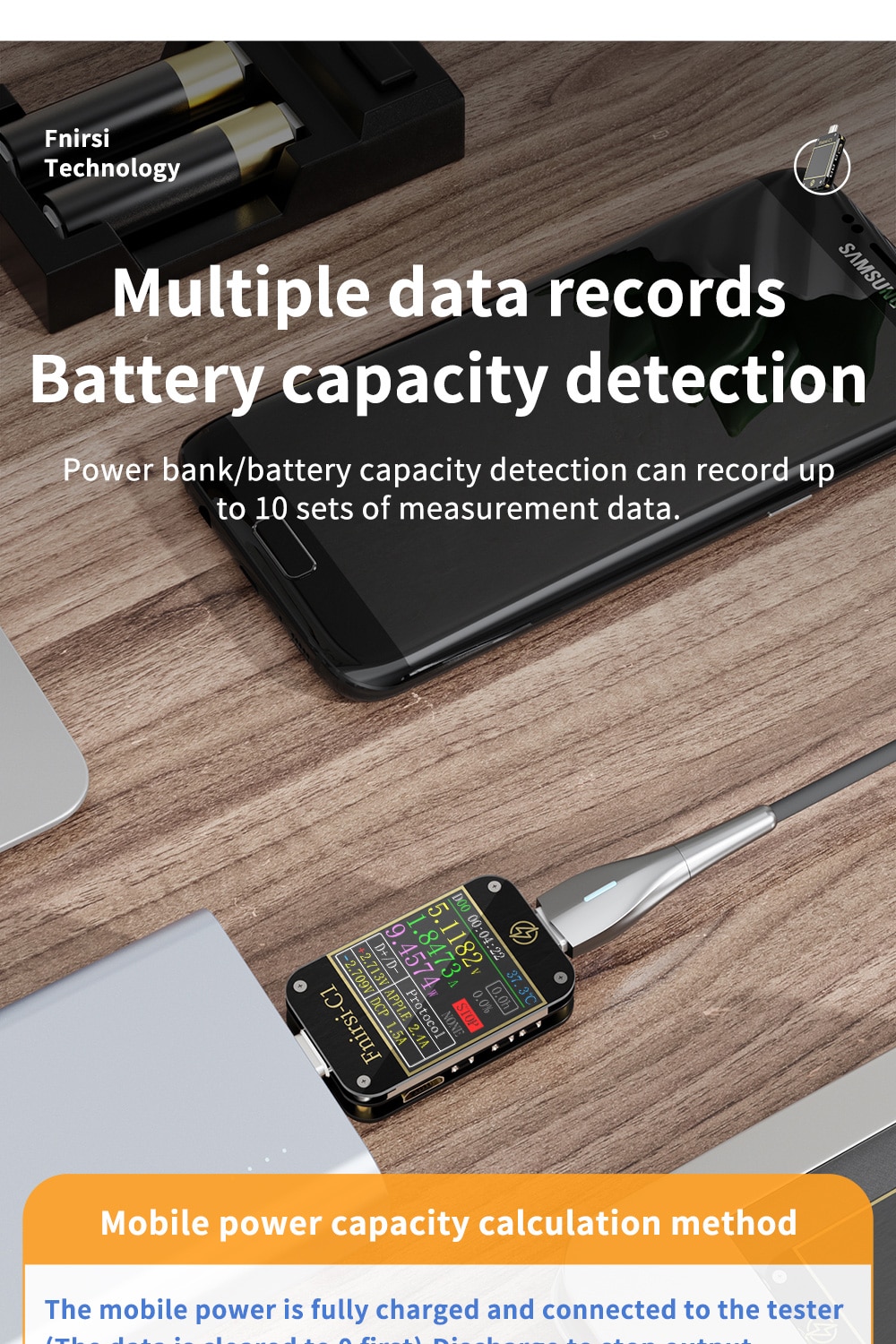

Capacity: 0~9999.99Ah
Use energy: 0~9999.99Wh

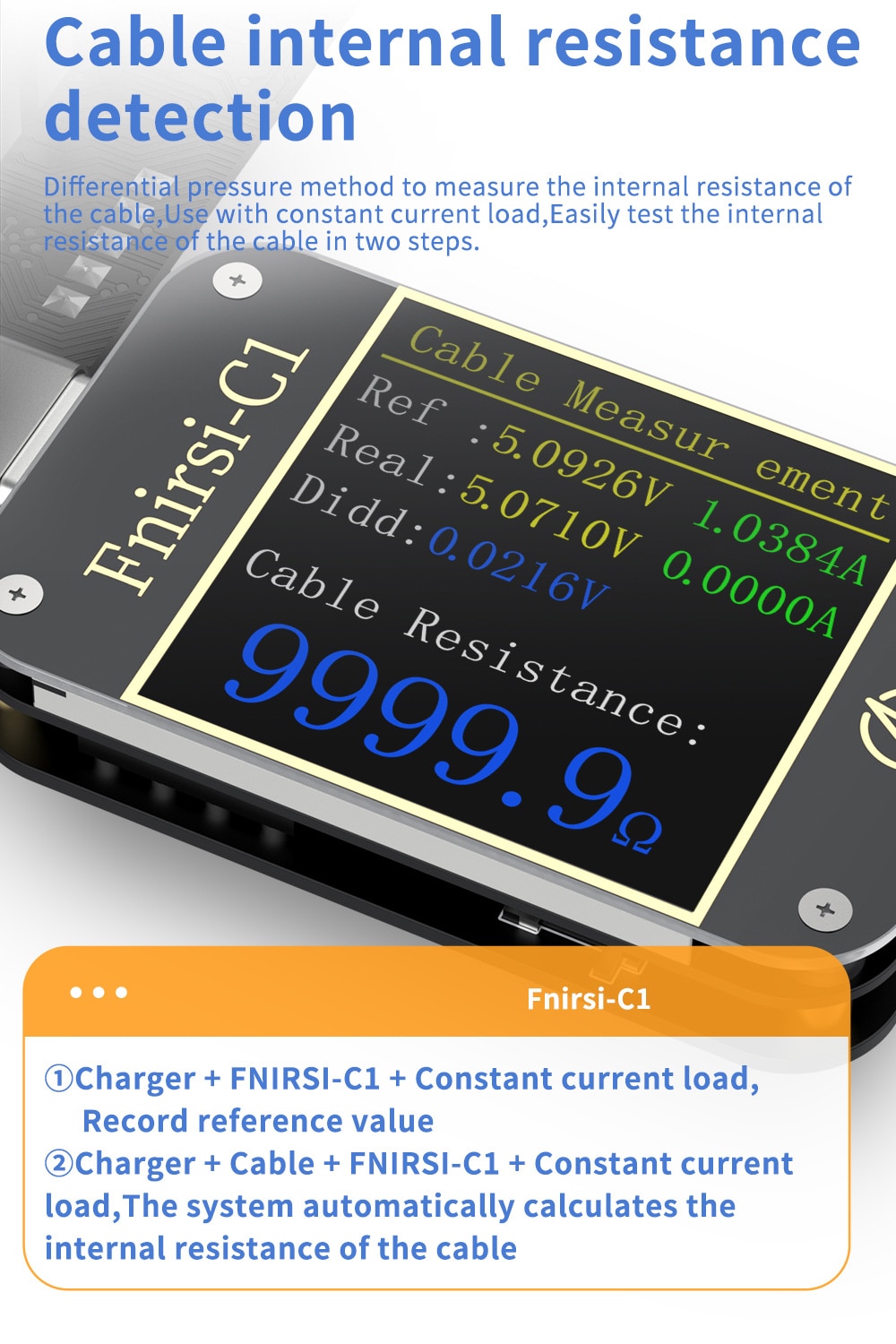

Cable resistance: 0~9999.9Ω
D+/D- voltage: 0~3.3V
D+/D- voltage resolution: 0.001V
D+/D- voltage accuracy: ±(1.0%+2)
Equipment temperature: ℃/℉

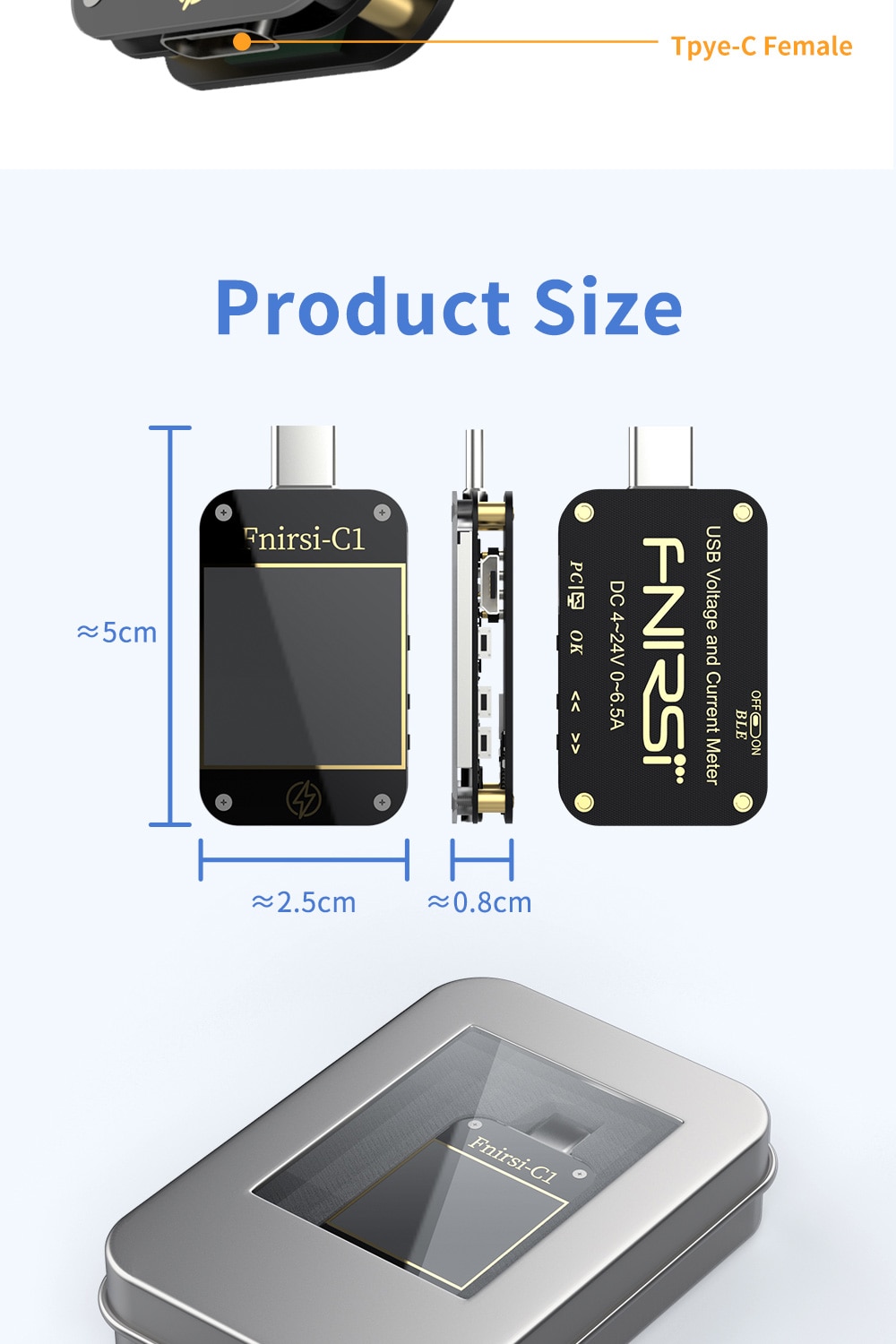

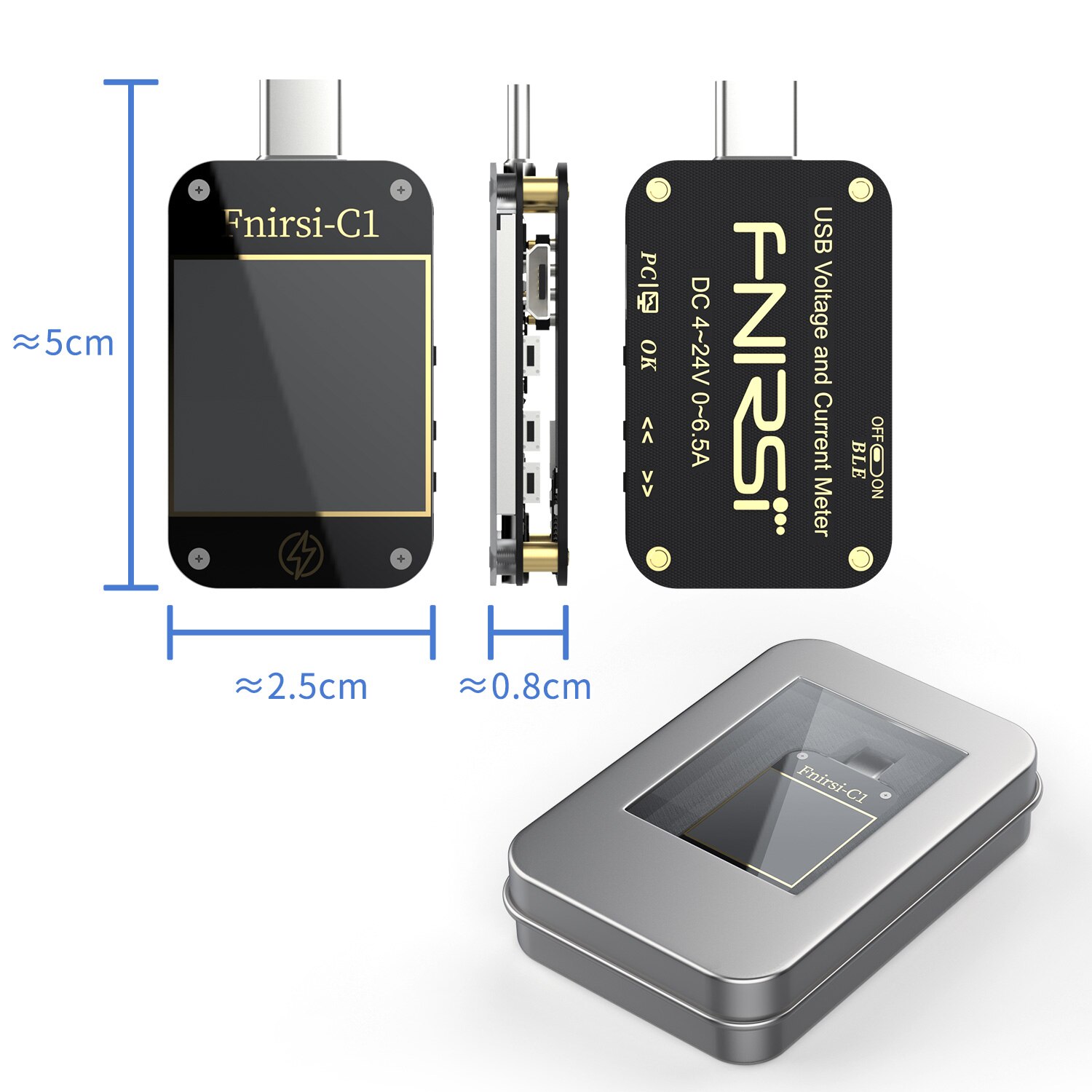

Package size: 50*25*8mm / 1.97* 0.98 * 0.31in
Package weight: 47g / 1.66oz

①There may be incompatibilities problems of the PC software with some Windows systems, if you really need it, please install and test the software before buying the product.

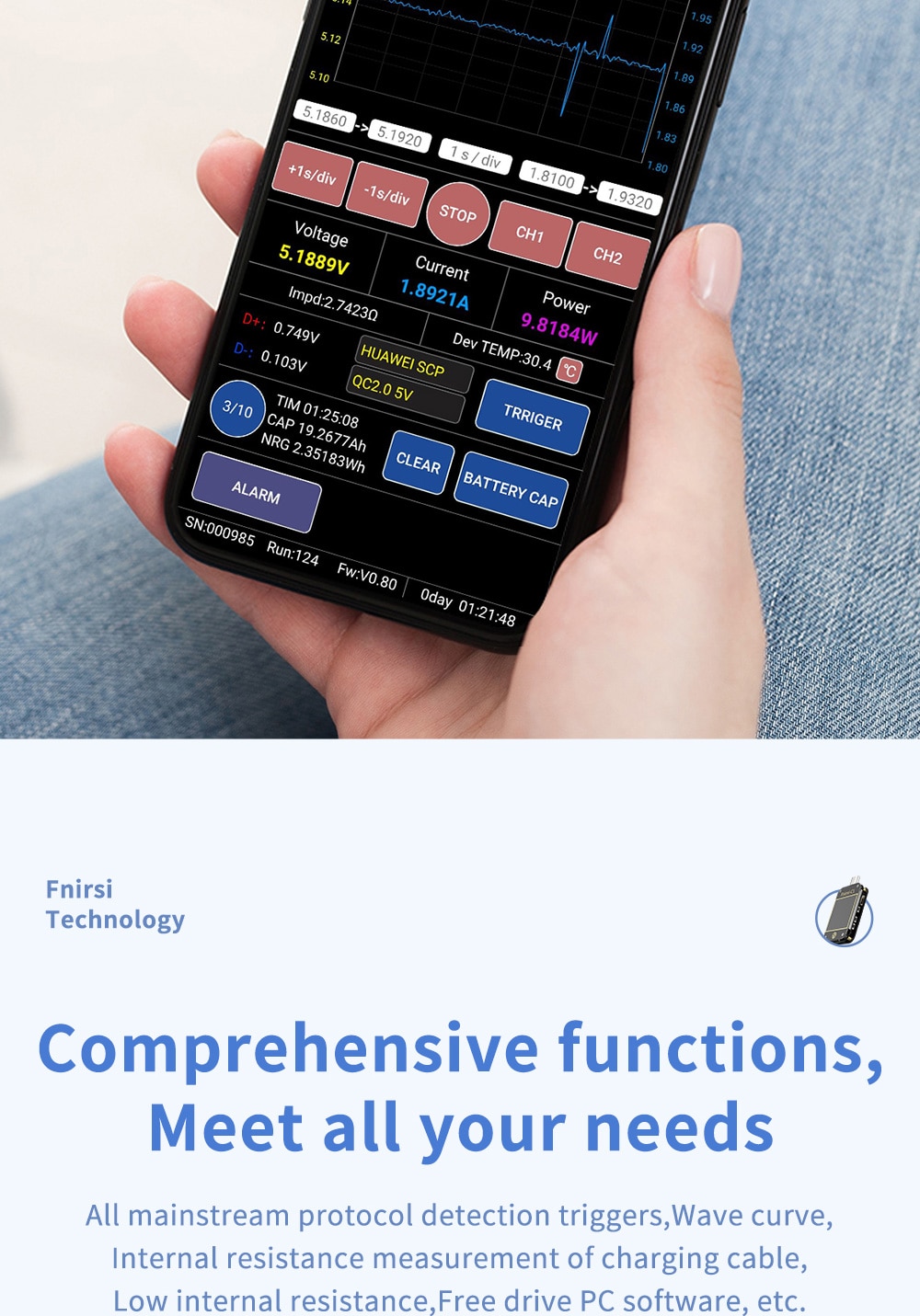

②There are many types of mobile phones and operation systems, so there may be incompatibilities, if you need APP, please install and test the APP before buying the product.
③If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.
④Please do install and test the APP if you use Samsung mobile phone.
