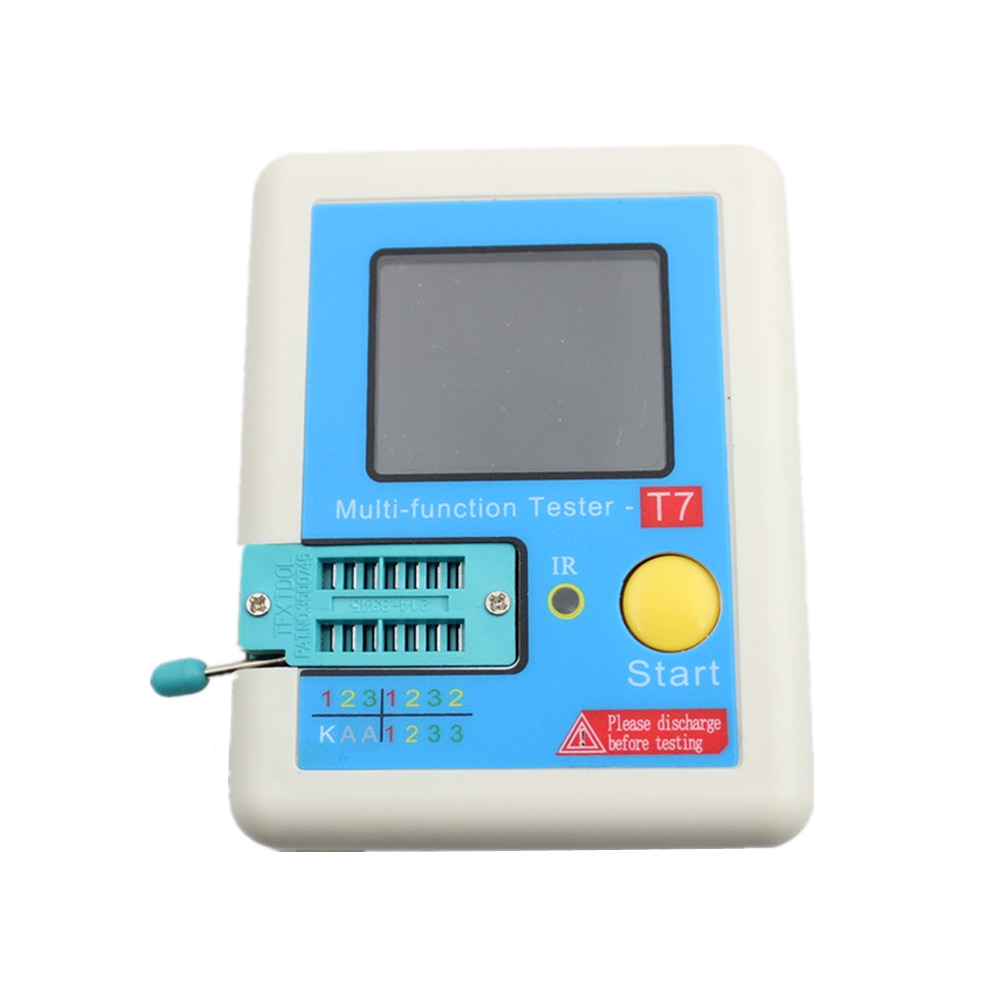

LCR-T7 New Transistor Tester TFT Diode Triode Capacitance Meter LCR ESR Meter NPN PNP MOSFET IR Multifunction Tester Multimeter

In order to protect the safety of your product, the test capacitor must be discharged first to avoid electrostatic breakdown of the chip and burn the product.

After the power-off state or test is completed, put the test component into the transistor test area of the test socket, press the lock handle,
press the multi-function key, the tester automatically measures, and the measurement result is displayed at the end of the test.
Warning: We do not recommend using a tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!

After the power-off state or test is completed, put the test component into the transistor test area of the test socket, press the lock handle,
press the multi-function key, the tester automatically measures, and the measurement result is displayed at the end of the test.
Warning: We do not recommend using a tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!

Automatic detection of zener diode 0.01-30V.
Self test with automatic calibration.
Support Hitachi IR coding.
IR waveform display.
Infrared receiving instruction.

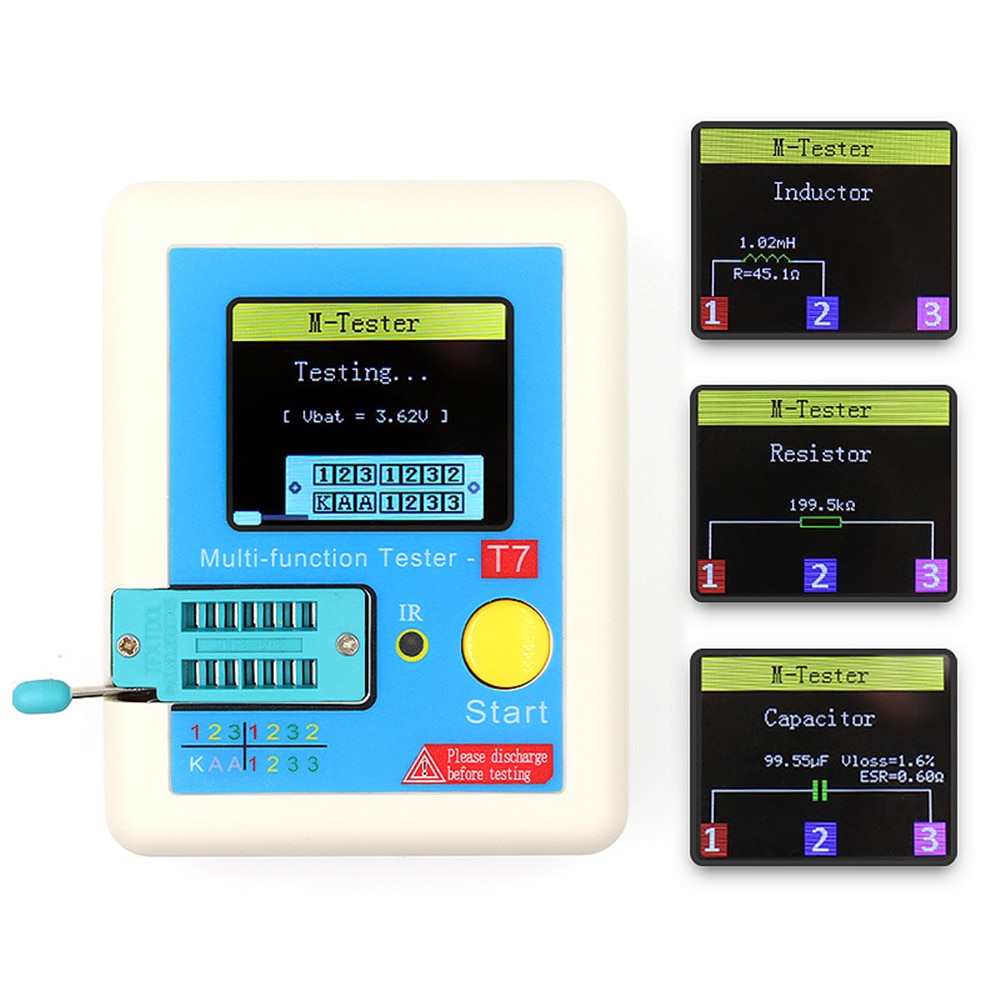

Measurement results using TFT graphic display.
One key operation.
Auto power off (timeout settable).
Built-in high capacity rechargeable Li-ion battery.
Li-ion Battery voltage detection.
Used to detect NPN and PNP transistors, capacitors, resistors, diodes, transistors, N-channel and P-channel MOSFETs, IGBTs, JFETs, triacs and batteries

Sweep range: 0.1MHz
Voltage: 3.7V
Display: 160 * 128 TFT
Battery: 1 * Li-ion battery, 3.7V, 300mAh

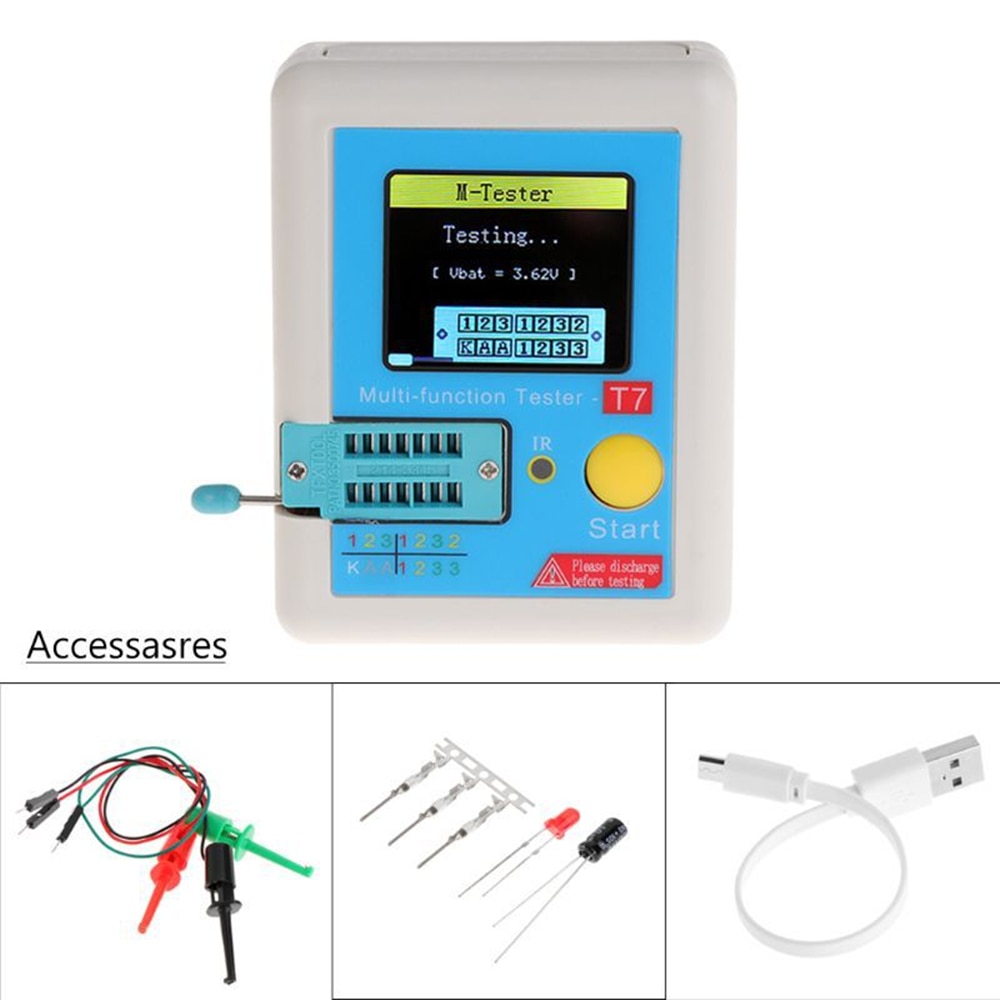

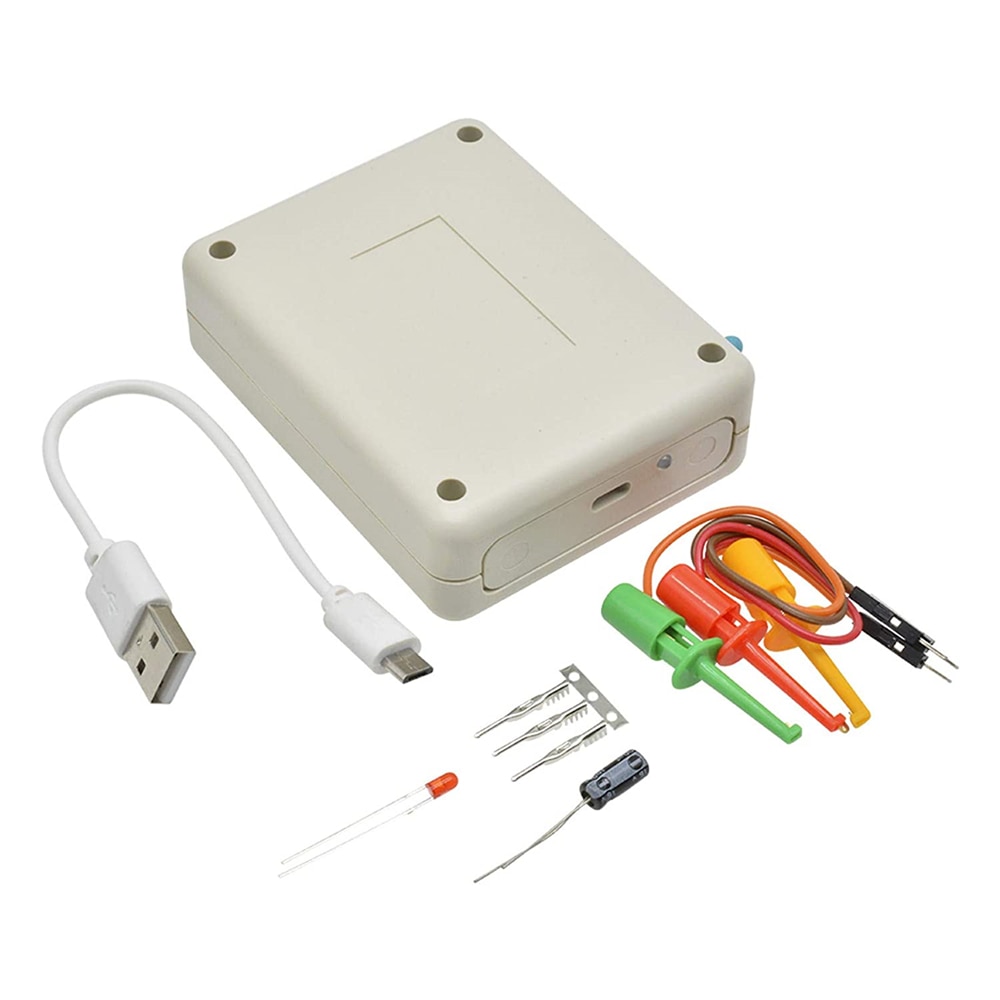

1 * Tester
1 * USB Cable
1 * Test Clip
1 * LED
1 * Capacitance
1 * Resistance
