MAGIC FLK02.V02 FLEX Full HW Kit for New Users – Basic Device (Full Hardware Only)

Flex is an innovative programmer designed for mechatronic workshops, supporting the latest advancements in the tuning and vehicle repair industry. Fully customizable, it allows you to choose your software, upload your company logo, and create your own chiptuning tool.

Flex is a revolutionary chiptuning programmer that streamlines mechatronic work by combining ECU/TCU reading and writing, module repair, and performance enhancement into a single solution.

Key Features

1. ECU & TCU Programmer: Program cars, motorcycles, and trucks in OBD, Bench, and Boot modes.
2. Over 25,000 Supported Vehicles (Click to check the list)
3. Intuitive Software with Regular Updates: Software updates released every 2 weeks.
4. Easy to Use: Select the vehicle brand and model or enter the ECU/TCU code—software automatically displays available connection modes.
5. Magic Lock Security: Restrict access to files saved in engine units to authorized users only.
6. Datalogger Function: Collect up to 60,000 real-time parameters including pressure, torque, air/fuel ratios, exhaust gas temperature, speed, RPM, and more.
7. Limited Lifetime Warranty: Includes repair or replacement service.
8. Tech Support: Online technical support available from 8:00 am to 10:00 pm CET.

Optional Software Configurations for FLEX

The following software packages can be activated in both MASTER and SLAVE versions to customize your FLEX device:

• FLS0.1 – Flex ECU OBD + Bench software
• FLS0.2 – Flex TCU OBD + Bench software
• FLS0.3 – Motorola MPC5xx Flex software
• FLS0.4 – Flex Nexus MPC5xxx software
• FLS0.5 – Full Flex SW Package
• FLS0.6 – Flex Renesas SH7xxxx software
• FLS0.7 – Siemens C165 / 166 / 167 Flex software
• FLS0.8 – Flex software ST10F2xx
• FLS0.9 – Flex software NEC 76F00xx
• FLS0.10 – Infineon TC17xx software

Important Notes

1. We do not sell the hardware kit alone—you must purchase at least one software package. Contact us to add software:
   WhatsApp: +86-13995696053
   Email: [email protected]
2. Shipping to Italy is not available. Please purchase from a local dealer.

Software Versions and Pricing (EUR)

FLEX HW Kit for New Users

Use your FLEX to easily reprogram, update, or modify the software of most engine control units directly through the vehicle's OBD socket. With a simple internet connection, you gain access to the full potential of the tool. For advanced or repair tasks, use the FLEXBox module to program the control unit in BDM, Bootloader, JTAG, and AUD modes. The device’s cutting-edge design detects any connection or communication errors automatically.

Configure FLEX

Customize FLEX to match your workflow. Choose the software packages and accessories that best suit your business needs. Your first year’s subscription fee is included with the purchase of a new tool, helping boost productivity and elevate your business with this customizable technology.

What Is the Difference Between Flex Slave and Master Versions?

Flex MASTER

The Flex Master software license offers significant advantages. It enables users to build their own professional network by activating a file decryptor module and linking up to 99 slave users to their account. The Master version supports both plaintext and .bin file formats, which are fully editable with any software.

Additionally, Master users can access Magicmotorsport’s file modification services and receive 300 free Green coins per month, along with full technical support.

Flex SLAVE

The Flex Slave software license works exclusively with encrypted files, meaning Slave users cannot view or edit file content. Any required modifications must be sent to their linked Master for processing. Each Slave tool must be associated with a Flex Master account—either selected by the user or assigned by Magicmotorsport based on geographic location. Once linked, all file-related operations must go through that Master. Support requests are handled first by the Master, and Slave users cannot be unlinked without explicit email permission from their Master to Magicmotorsport.

Note: Slave version owners may upgrade to Master status at any time.

Helpdesk Coin System

The Helpdesk operates on a coin-based payment system with two types: GREEN and RED.

• RED Coins: Prepaid funds with monetary value, purchasable through your Helpdesk account. Can be converted to GREEN coins if needed.
• GREEN Coins: Awarded monthly to users with an FLEX or X17 MASTER tool. MAGICMOTORSPORT provides 300 GREEN coins per month for specific services. These cannot be converted to RED coins, do not accumulate, and reset to 300 at the start of each month.

Master versions of software modules include 300 Green Coins per month for Helpdesk support. Green Coins are non-cumulative and reset monthly.

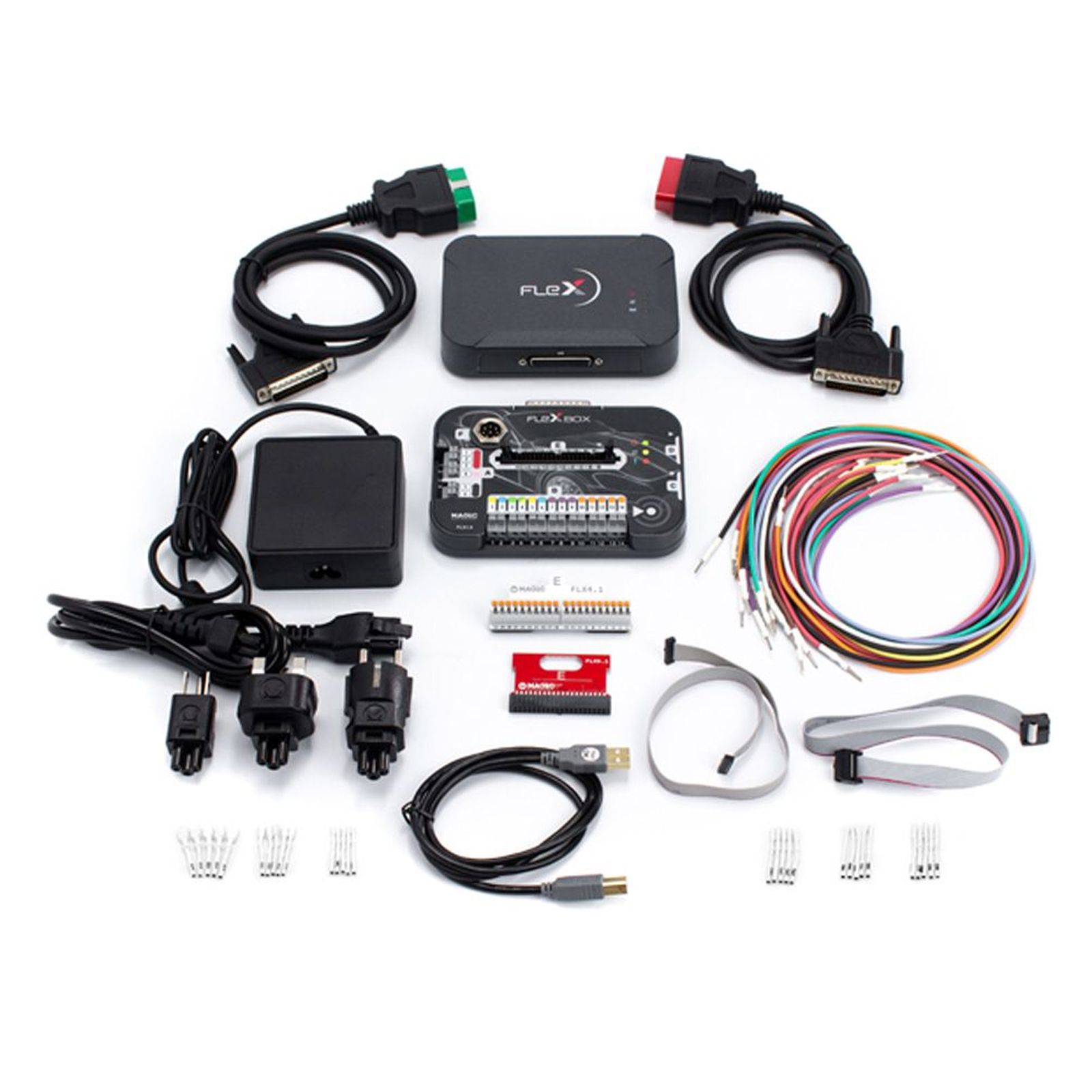

Package Includes

• 1pc x FLK35 Cabling kit: FLX35 color coded wiring harness
• 1pc x FLK42 Adapter kit: 6 pcs set of pin adapters to FLX35

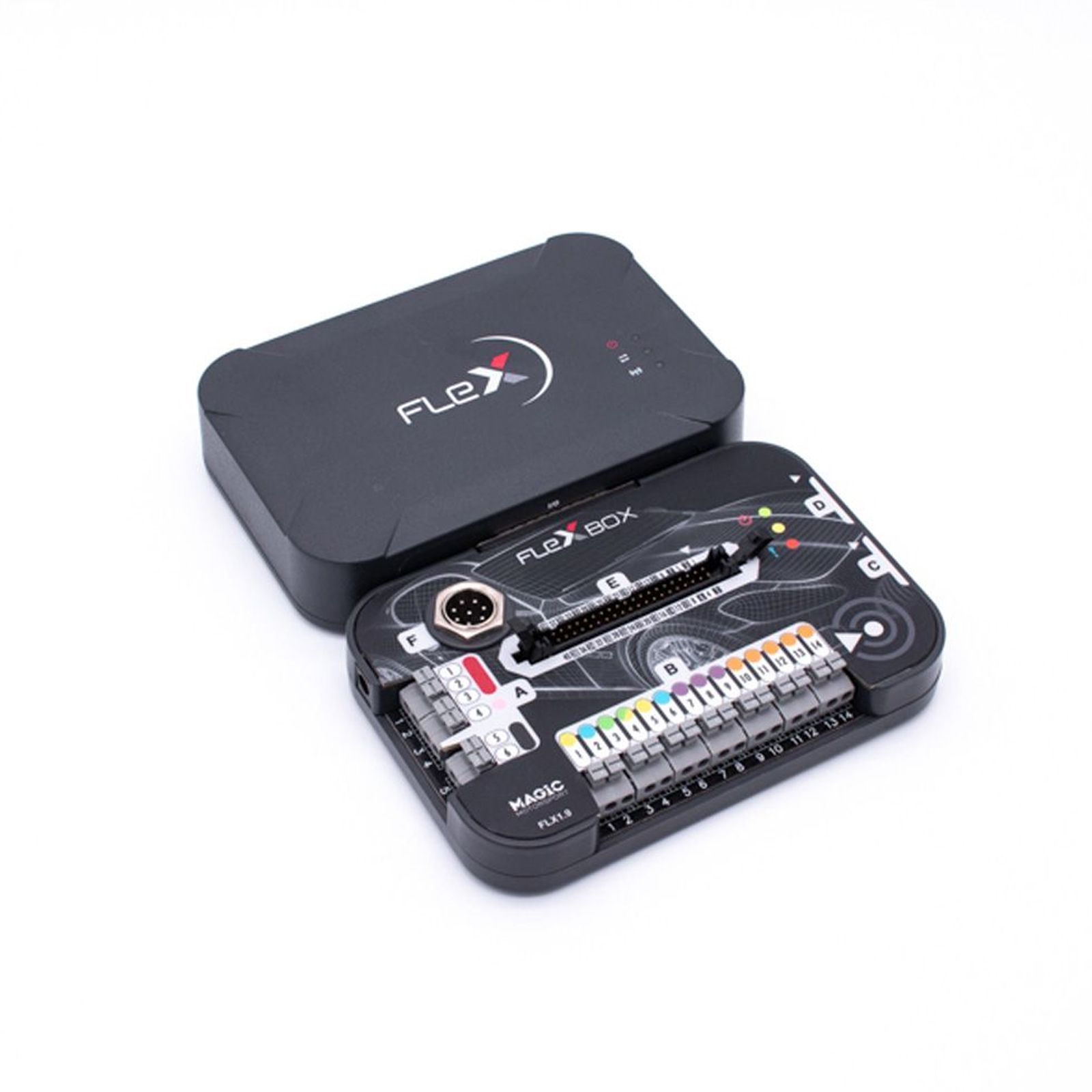

• 1pc x FLX1.1 FLEX Base Module

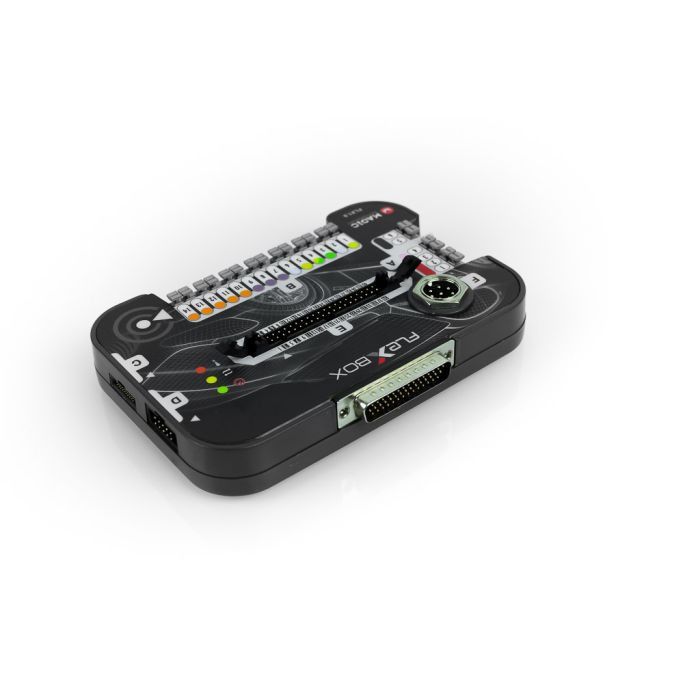

• 1pc x FLX1.9 FlexBox Module for FLEX
• 1pc x FLX2.10 Connection cable OBD: FLEX to CAN/Kline RED
• 1pc x FLX2.11 Connection cable OBD: FLEX to ENet GREEN
• 1pc x FLX3.3 Connection cable: FlexBox port C to NEC 7F00 XX
• 1pc x FLX3.4 Connection cable: FlexBox port D to BDM MPC5xx
• 1pc x FLX3.9 Connection cable: USB 2.0 AM-BM BLK 1.8m
• 1pc x FLX4.1 FlexBox port E 40 pin adapter for FLK35
• 1pc x FLX9.1 FLEX & FlexBox diagnostic adapter
• 1pc x FLK49 Switch Mode Power Supply for FLEX with plugs
• 1pc x FLX8.10 FLEX Branded Box
• 1pc x FLX2.14 OBD Female Cable
• 1pc x FLK43 4-adapter set for FLK35 - Flex Supplementary Kit
