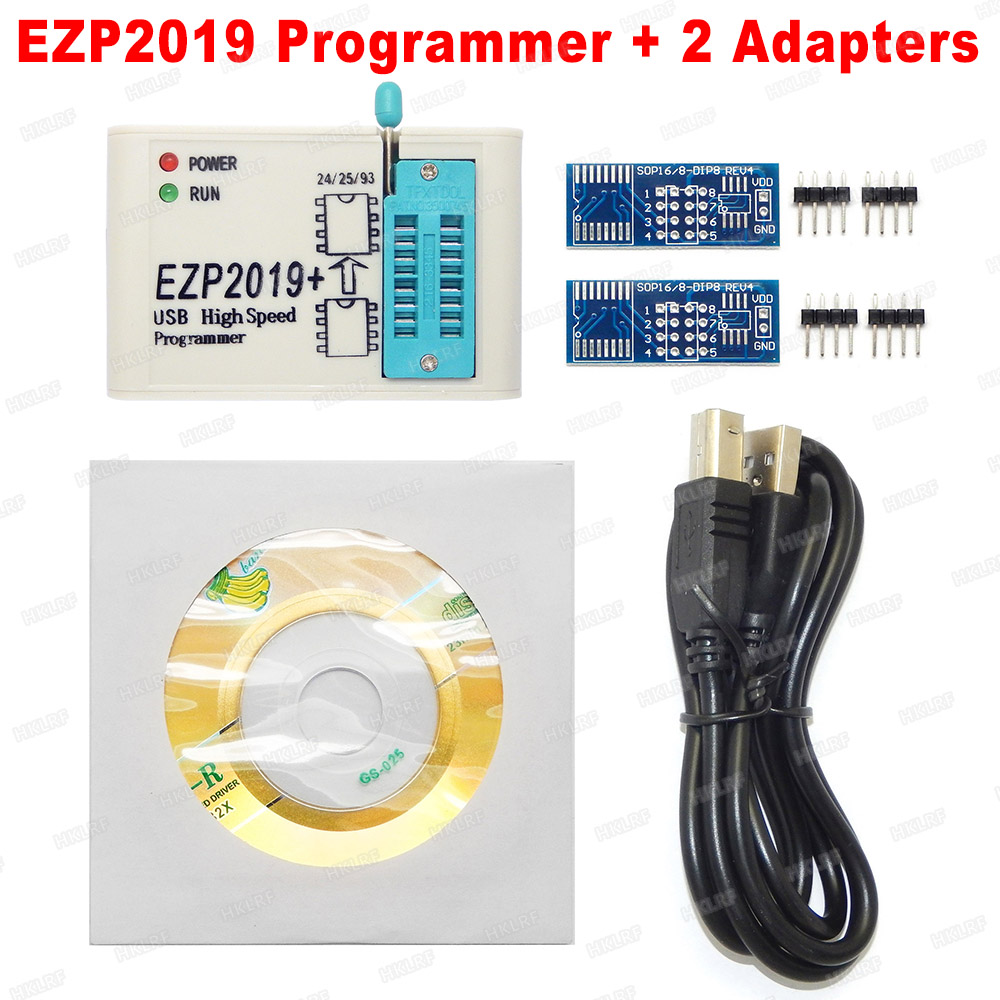

Factory Price! Newest Version EZP2019 High-Speed USB SPI Programmer – Supports 24, 25, 93 EEPROM and 25 Flash BIOS for Windows 8/10 (32/64-bit) with 5 Sockets

Product Description

Software and firmware update available.

This programmer supports 25 SPI FLASH, 24 EEPROM, 25 EEPROM, 93 EEPROM, and more. It features a compact design—small size, lightweight, and low power consumption.

Compatible with Windows 2000, Windows XP, Windows Vista, Windows 7 (32-bit & 64-bit), Windows 8, and Windows 10.

Equipped with a USB 2.0 interface offering speeds up to 12 Mbps, enabling very fast read and write operations.

• Auto-selects power voltage
• Auto-detects chip models
• Supports offline chip copying
• Reads and writes BIOS chips from DVD players, TVs, PCs, hard drives, and more

EZP2023 vs. EZP2019: Key Differences

1. Faster read/write speed: Reads EN25T80 in just 3 seconds and writes it in 9 seconds—currently the fastest BIOS chip programmer on the market.
2. Automatic chip model identification: Primarily for 25-series chips; 24/25/93/95 EEPROMs still require manual selection.
3. Chip placement detection: Automatically detects whether a chip is properly inserted.
4. Automatic voltage selection: Adjusts chip supply voltage as needed.
5. Broad compatibility: Fully supports 25 SPI FLASH, 24 EEPROM, 25 EEPROM, 93 EEPROM, 95 EEPROM, and other memory chip series.

Key Features

• USB 2.0 interface with 12 Mbps transfer speed
• Fast reading and writing performance
• Auto-detects chip models
• Auto-selects power voltage
• Supports 25 SPI FLASH, 24 EEPROM, 25 EEPROM, 93 EEPROM, 95 EEPROM, and more
• Compact and portable design
• Compatible with Windows 2000, XP, Vista, 7, 8, and 10 (32/64-bit)

Supported IC Series

Currently supports all 24, 25, and 93 series ICs.

25 SPI FLASH Supported Models

AMIC: A25L05PU, A25L05PT, A25L10PT, A25L05PU, A25L20PT, A25L512, A25L010, A25L10P, A25L020, A25L20P, A25L040, A25L40P, A25L080, A25L80P, A25L016, A25L16P, A25L032, A25LQ32A

ATMEL: AT25F512, AT25F512A, AT25F512B, AT25F1024, AT25F1024A, AT25FS010, AT25DF021, AT25F2048, AT25DF041A, AT25F4096, AT25FS040, AT26F004, AT26DF081A, AT25DF161, AT26DF161, AT26DF161A, AT25DF321, AT25DF321A, AT26DF321

EON: EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10, EN25LF10, EN25P10, EN25D20, EN25B05, EN25B05T, EN25F20, EN25LF20, EN25D40, EN25F40, EN25LF40, EN25D80, EN25F80, EN25Q80, EN25T80, EN25T80, EN25B16, EN25B16T, EN25D16, EN25F16, EN25Q16, EN25T16, EN25B32, EN25B32T, EN25F32, EN25QH16, EN25P32, EN25Q32, EN25B64, EN25B64T, EN25F64, EN25P64, EN25Q64, EN25F128, EN25Q128

ES: ES25P80, ES25P16

ESMT: F25L004A, F25L04UA, F25L008A, F25L08PA, F25L016A, F25L16PA, F25L32PA, F25L32QA, F25L32QA

MXIC: MX25L512, MX25V512, MX25L1005, MX25L2005, MX25L4005A, MX25V4005, MX25L8005, MX25V8005, MX25L1605D, MX25L1635D, MX25L3205D, MX25L3225D, MX25L3235D, MX25L3237D, MX25L6405D, MX25L12805D, KH25L4006E, KH25L8006E, KH25L80036, KH25L1606E, MX25V1005, MX25U4035, MX25V4035, MX25V8035, MX25U8935, MX25L8006E, MX25L1606E, MX25L1635D, MX25L1633E, MX25L1635D, MX25L1608D, MX25L1608E, MX25U1635E, MX25L3225D, MX25L3237D, MX25L3236D, MX25L3206E, MX25L3235D, MX25U3235F, MX25U3235E, MX25L3208D, MX25L3208E, MX25L6455E, MX25L6465E, MX25L6408D, MX25L6408E, MX25L6406E, MX25L6445E, MX25L6436E, MX25L12835E, MX25L12835F, MX25U12835F, MX25L12845E, MX25L12836E, MX25L12865E, MX25L12855E, MX25L25635E, MX25L25635F, MX25L25639F, MX25L25735E, MX25U25635F, MX25L25735F, MX66U51235F, MX66L51235F

NEXFLASH: NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32

PMC: PM25LV512A, PM25LV010A, PM25LV020, PM25LV040, PM25LV080B

SAIFUN: SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320

SPANSION: S25FL001, S25FL002, S25FL004A, S25FL008A, S25FL016A, S25FL032A, S25FL064A, S25FL0128

SST: SST25VF512, SST25VF512A, SST25VF010, SST25VF010A, SST25VF020, SST25VF020A, SST25VF040, SST25VF040A, SST25VF040B, SST25VF080B, SST25VF016B, SST25VF032B, SST25VF064C

GIGADEVICE: GD25Q512, GD25Q10, GD25Q20B, GD25Q21B, GD25Q40B, GD25Q41B, GD25LQ40, GD25F40, GD25F80, GD25Q80, GD25Q16, GD25Q32B, GD25Q64, GD25Q128, GD25Q256, GD25Q256MC

ST: M25P05A, M25P10A, M25PE10, M25P20, M25PE20, M25P40, M25PE40, M25P80, M25PE80, M25PX80, M25P16, M25PE16, M25PX16, M25P32, M25PX32, M25P64, M25PX64, M25P128

WINBOND: W25P10, W25X10, W25X10A, W25X10AL, W25X10L, W25P20, W25X20, W25X20A, W25X20AL, W25X20L, W25P40, W25X40, W25X40A, W25X40AL, W25X40L, W25P80, W25X80, W25X80A, W25X80AL, W25X80L, W25P16, W25X16, W25P32, W25X32, W25X64, W25Q40, W25Q80, W25Q16, W25Q32, W25Q64, W25Q128, W25Q64FV, W25Q64FW, W25Q256

24 EEPROM Supported Models

ATMEL: AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A, AT24C02B, AT24C04, AT24C04A, AT24C04B, AT24C08, AT24C08A, AT24C08B, AT24C16, AT24C16A, AT24C16B, AT24C32, AT24C32A, AT24C32B, AT24C64, AT24C64A, AT24C64B, AT24C128, AT24C128A, AT24C128B, AT24C256, AT24C256A, AT24C256B, AT24C512, AT24C512A, AT24C512B, AT24C1024, AT24C1024A, AT24C1024B

93 EEPROM Supported Models

ATMEL: AT93C46(16bit), AT93C46(16bit)-SOP8, AT93C46(8bit), AT93C46(8bit)-SOP8, AT93C46A, AT93C56(16bit), AT93C56(16bit)-SOP8, AT93C56(8bit), AT93C56(8bit)-SOP8, AT93C57(16bit), AT93C57(16bit)-SOP8, AT93C57(8bit), AT93C57(8bit)-SOP8, AT93C66(16bit), AT93C66(16bit)-SOP8, AT93C66(8bit), AT93C66(8bit)-SOP8, AT93C86(16bit), AT93C86(16bit)-SOP8, AT93C86(8bit), AT93C86(8bit)-SOP8

For more models, please feel free to contact us.
