·LCD display· Backlight function to view the test results in dimly areas· Rk Function is available to cancel the residual resistance on the Test Leads
Item No. COBD211499 Price Down Notice
In Stock
Price:
US$298.22/ piece
Discount Price:
US$129.00/ piece 57%
Quantity:

Shipping:
Express Shipping Service
Estimated delivery time: 3-15 working days.See details »
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question

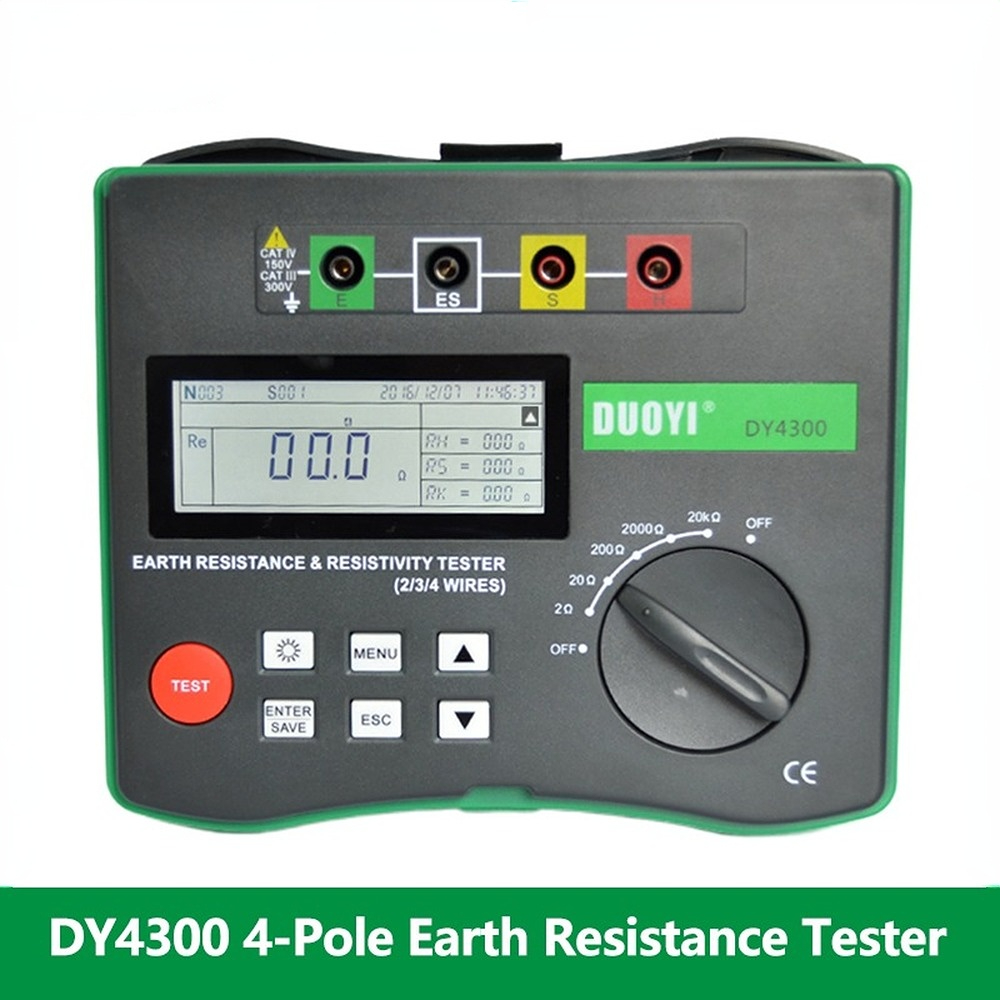

DUOYI DY4300

PRODUCT DETAIL PRESENTATION

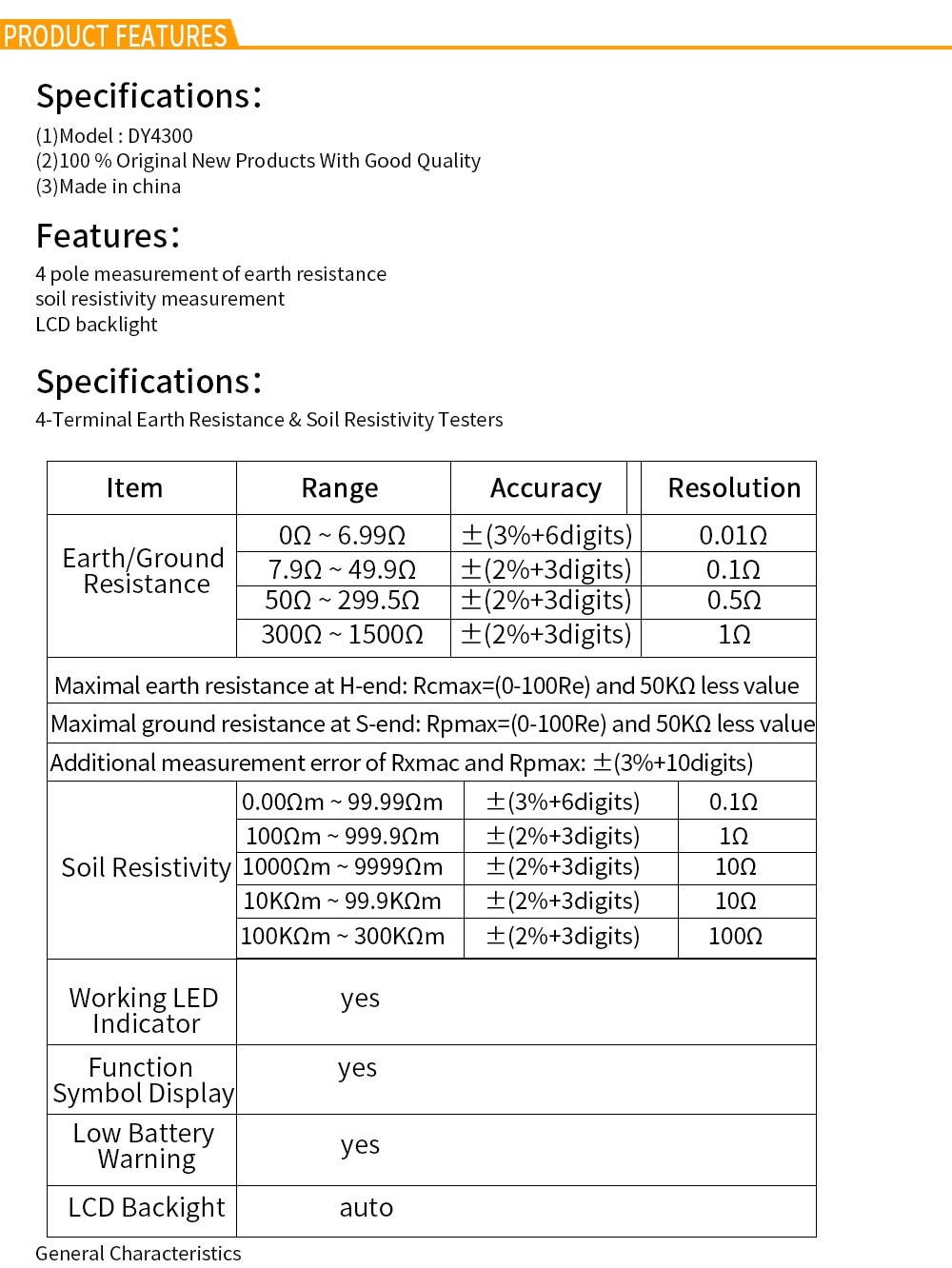

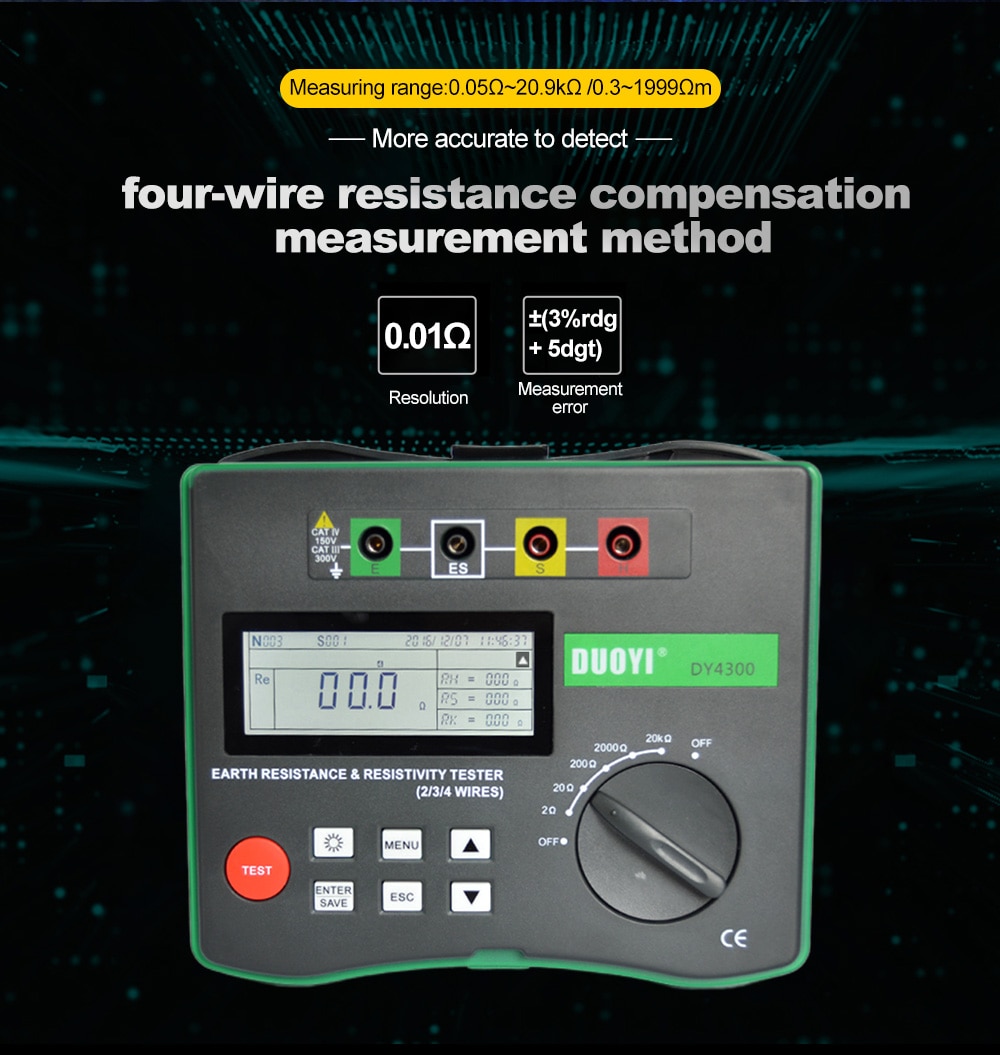

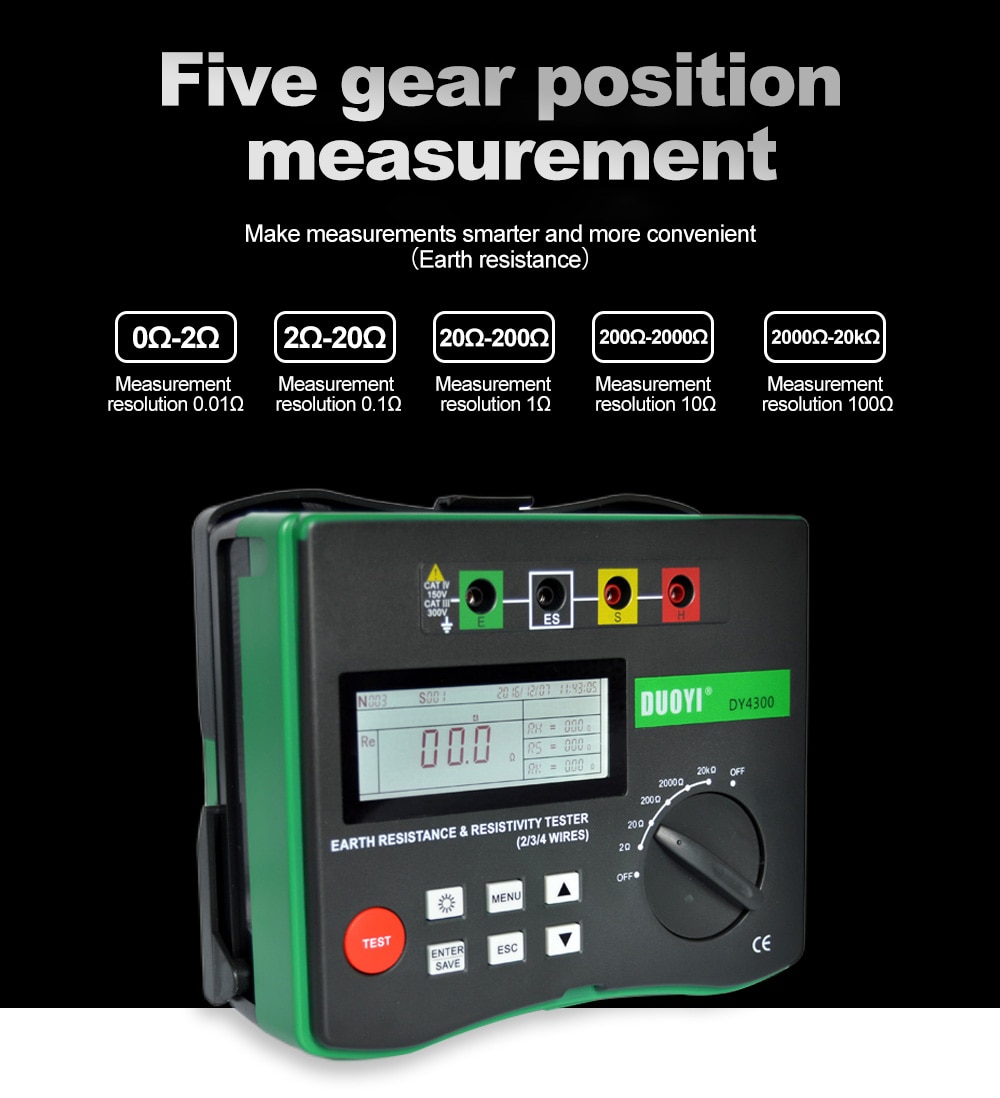

Test range and tolerance

Function

Range

Resolution

Testing Range

Accuracy

Earth resistance Re

(Earth resistance )ρ=Rg

2 Ω

0.01 Ω

0.05~2.09 Ω

±(3%rdg.+5dgt)(Remarks 1)

20 Ω

0.1Ω

0.5~20.9 Ω

200 Ω

5~209 Ω

2000 Ω

10Ω

0.05~2.09Ω KΩ

20K Ω

100Ω

0.5~20.9KΩ

Auxiliary earth resistance

Rh,Rs

/

/

/

(Re+Rh+Rs)8%

Soil resistivity ρ

(Remarks 3 )

2 Ω

0.3~393.7Ω.m

ρ=2*π*a*Rg

(Remarks 2)

20 Ω

3~3937Ω.m

200 Ω

0.03~39.37Ω.m

2000 Ω

0.3~393.7Ω.m

20K Ω

3~1999Ω.m

(Remarks 1) revised Auxiliary Earth Resistance 100ΩRk.

(Remarks 2) Depending on the test value of Rg. Between the auxiliary ground rods[a]1.0~ 30.0m

(Remarks 3)Not available for voltage testing of commercial power.

Test range (temperature and humidity 23±5℃ 45~75%RH)

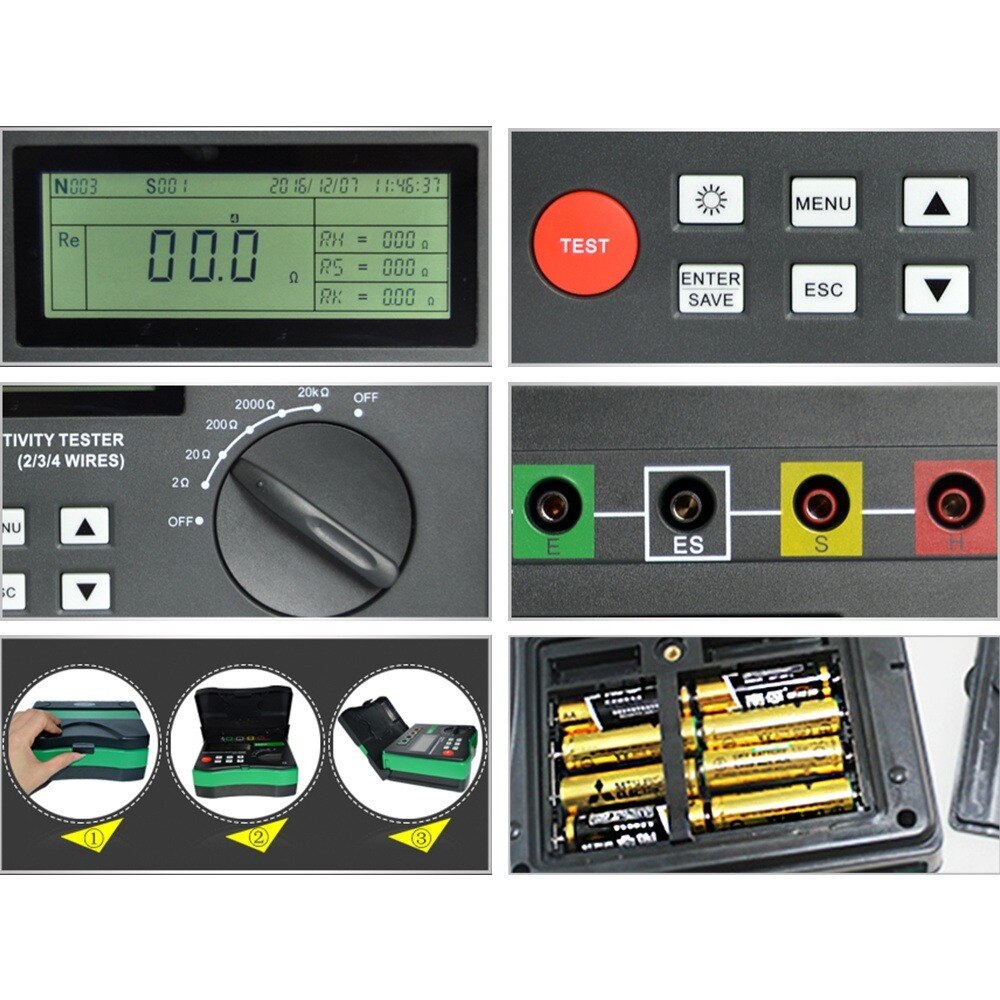

FEATURES

· Stable measurement results can be obtained under a noisy environment by introducing the FFT (Fast Fourier Transform) technology.

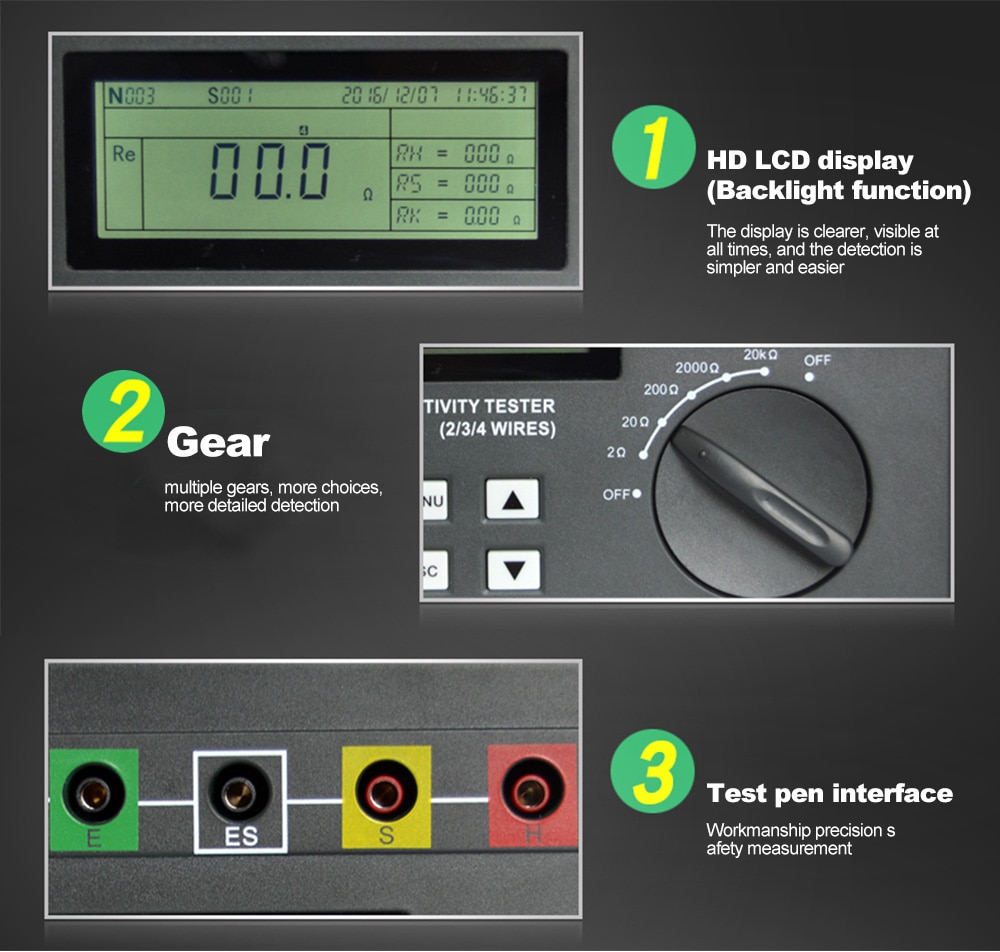

·LCD display

· Backlight function to view the test results in dimly areas

· Rk Function is available to cancel the residual resistance on the Test Leads.

· Battery Check Function

· Auxiliary Earth Resistance Measurement Function

Auxiliary earth resistances are measured and displayed.

· Warning for Auxiliary Earth Resistance Measurements

Warnings are displayed on the LCD when auxiliary earth resistances are too high and may result in inaccurate measurements.

· Auto-Power-Off Function

The instrument is automatically powered off when 5 min passes without any Key operation.

· Data storage

Save 1000 test data

SPECIFICATIONS

IEC 61010-1 (CAT.III 300V, CAT.IV 150V, Pollution degree 2)

IEC 61010-031(Requirements for hand-held Probes)

IEC 61557-1, 5 (Earth Resistance Tester)

IEC 61326-1 EMC Standard

Test range (temperature and humidity23±5℃45~75%RH)

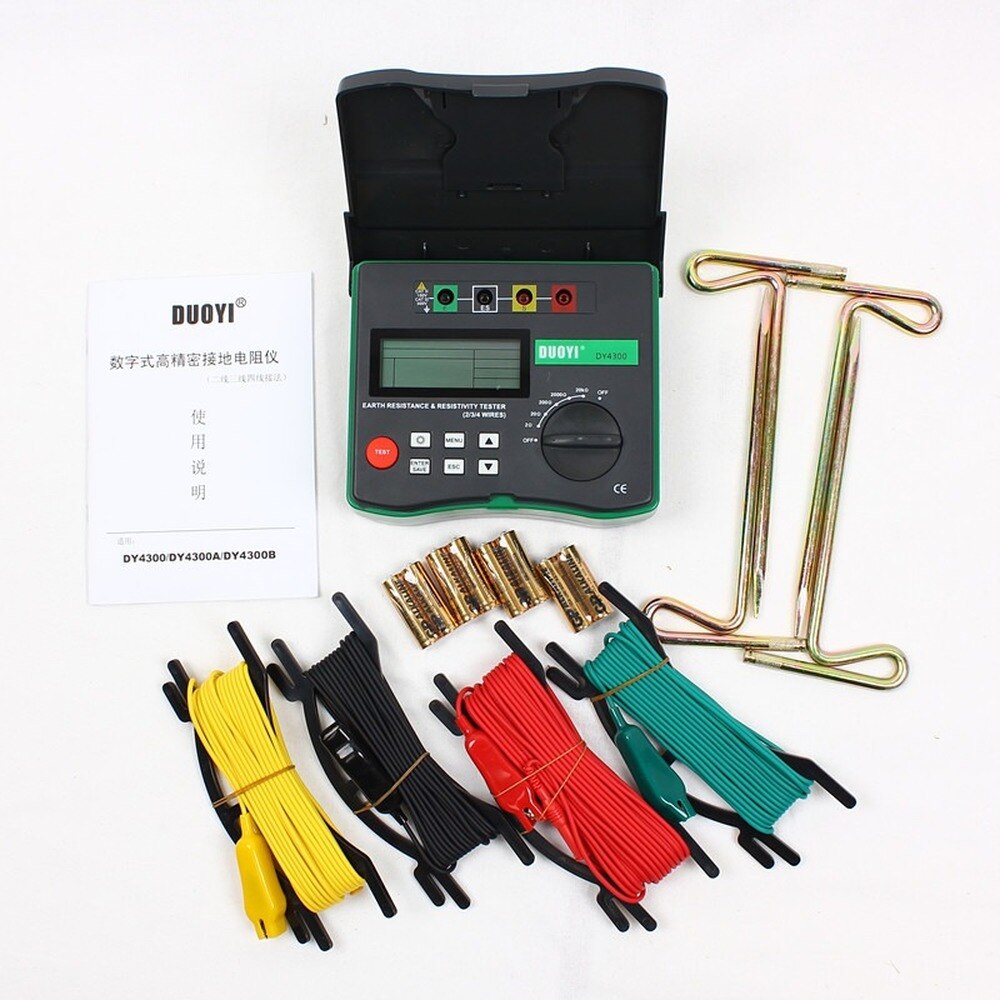

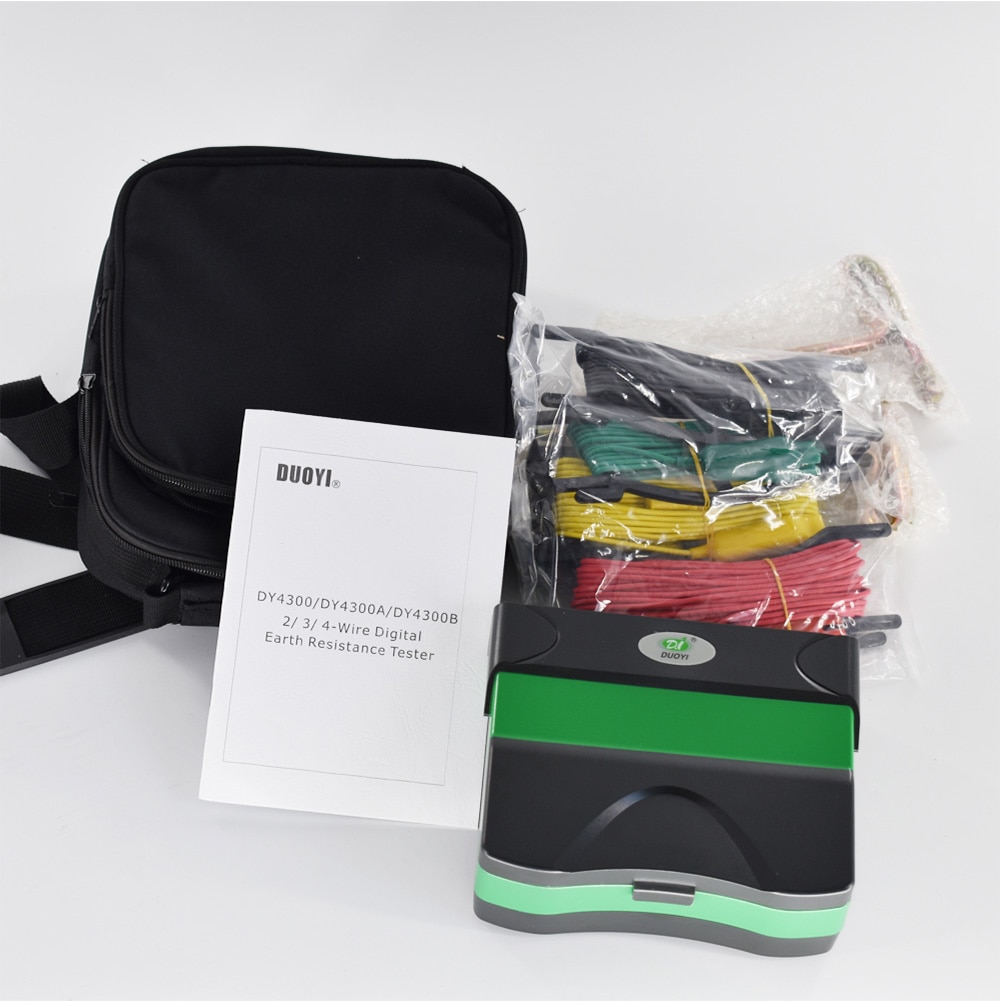

Accessories
4* Auxiliary Earth Spikes
4 * Earth Test Leads
(one Red Earth Test Leads 15 meters,
one Yellow Earth Test Leads 10 meters,
one Green Earth Test Leads 5 meters,
one Black Earth Test Leads 5 meters )
8 * 1.5V(AA) Batteries(not including)
1 * manual(in English)
1 * Bags

Attention Please:
Because items with batteries can not be shipped by post air mail, the package does not include battery.
