AUTOPHIX E-SCAN ES620 Scanner for OBD2 VW Protocols (Including UDS Protocols)

Key Features of the E-SCAN ES620

• Works on all OBD II compliant vehicles manufactured after 1996 in the US, Europe, and Asia.
• Supports all VW diagnostic protocols (KWP1281, KWP2000, TP-CANBUS, NEW UDS) and all standard OBD II protocols (CAN, J1850 PWM, J1850 VPW, ISO9141, and KWP2000).
• Compatible with a wide range of vehicles including VW, Audi, Seat, Skoda, Jetta, Golf, Beetle, Touareg, GTI, Passat, and more.
• Easily identifies the cause of the "Check Engine Light" (MIL).
• Reads hard (memory), pending (intermittent), and historic trouble codes along with their definitions.
• Clears diagnostic trouble codes and resets readiness monitors.
• Reads live datastream from the vehicle’s systems.
• Views freeze frame data captured at the time a fault occurred.
• Performs I/M (Inspection/Maintenance) monitor readiness testing.
• Displays live oxygen (O2) sensor test data.
• Retrieves vehicle information including VIN, CIN, and CVN.
• Turns off the MIL (Malfunction Indicator Light) after clearing fault codes.
• Detects issues across nearly 130 vehicle systems, including engine, ABS, airbags, transmission, radio, climate control, instrument cluster, immobilizer, and more.
• Software is upgradeable via the internet.
• Complies with CE, FCC, and RoHS certifications.

Technical Specifications

• Display: 2.7-inch black-lit LCD, 128 x 64 pixel resolution with contrast adjustment
• Operating Voltage: 8.0 to 18.0V (powered via vehicle battery)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• External Power: 8.0 to 18.0V (supplied by vehicle battery)
• Weight: Net weight: 0.48 kg (1.06 lb); Gross weight: 0.62 kg (1.36 lb)
• Dimensions: 166 mm × 88 mm × 30 mm

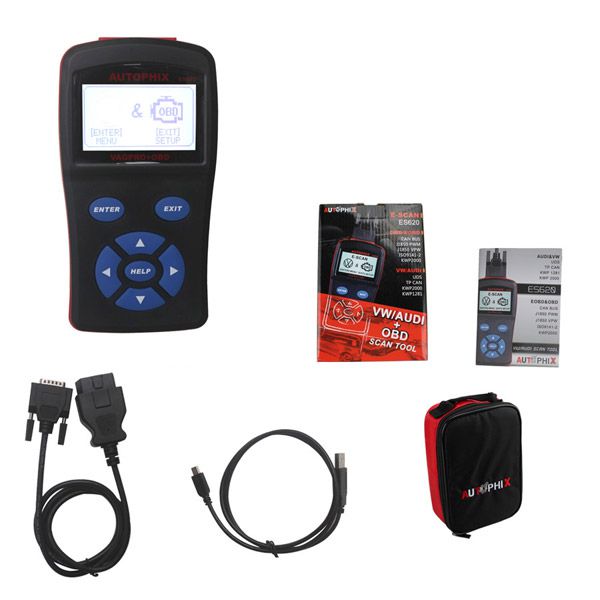

What's Included in the Package

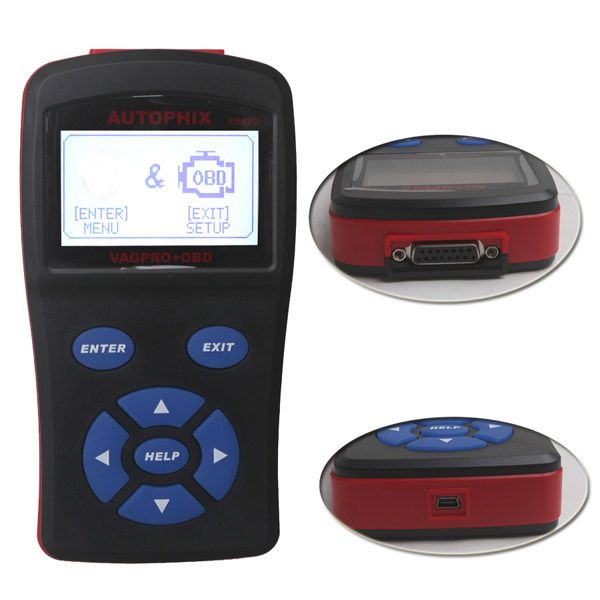

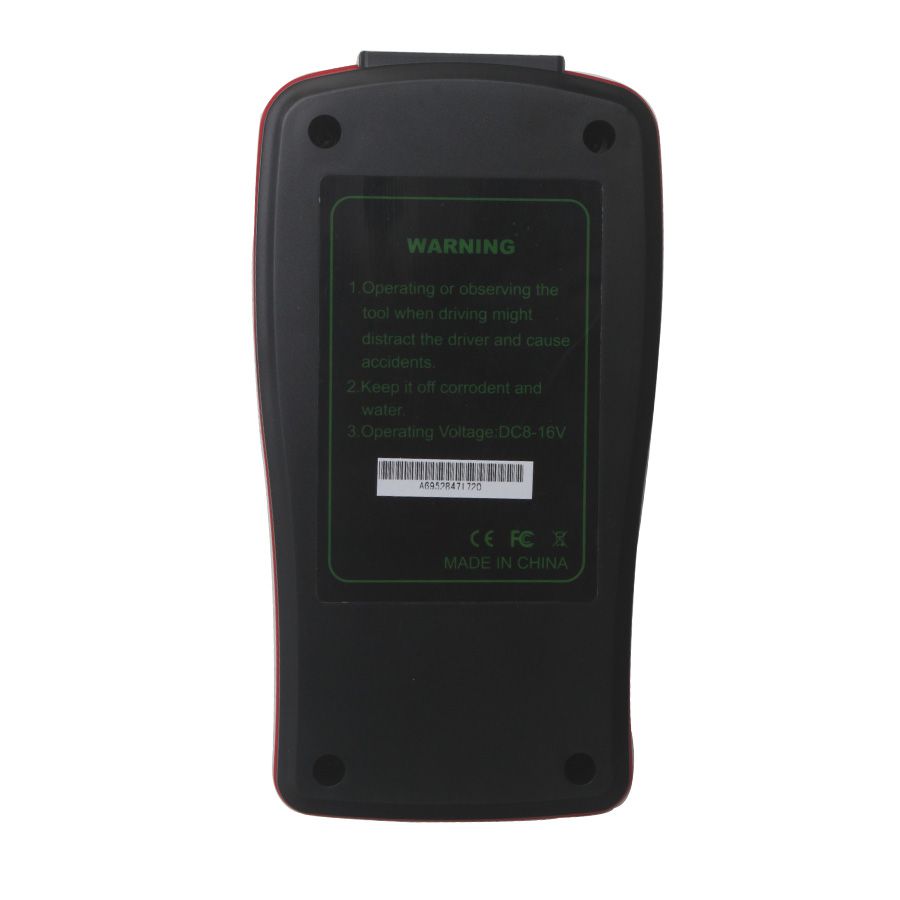

• 1 × E-SCAN ES620 Scan Tool main unit
• 1 × User's Manual

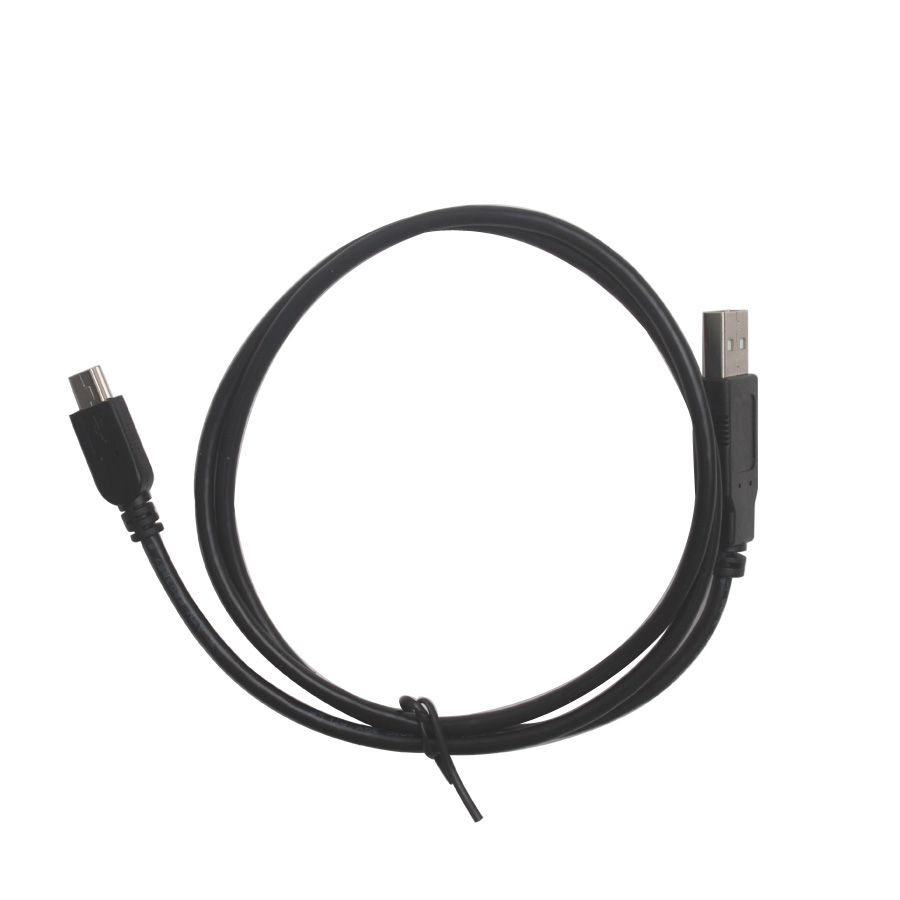

• 1 × USB update cable

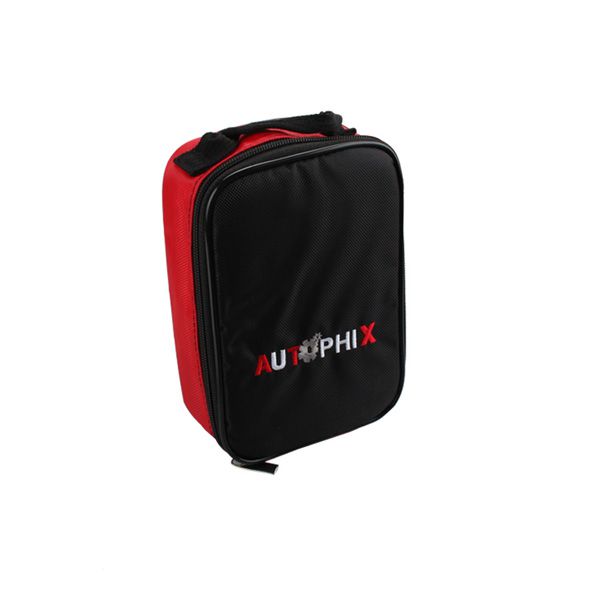

• 1 × Durable nylon storage case
