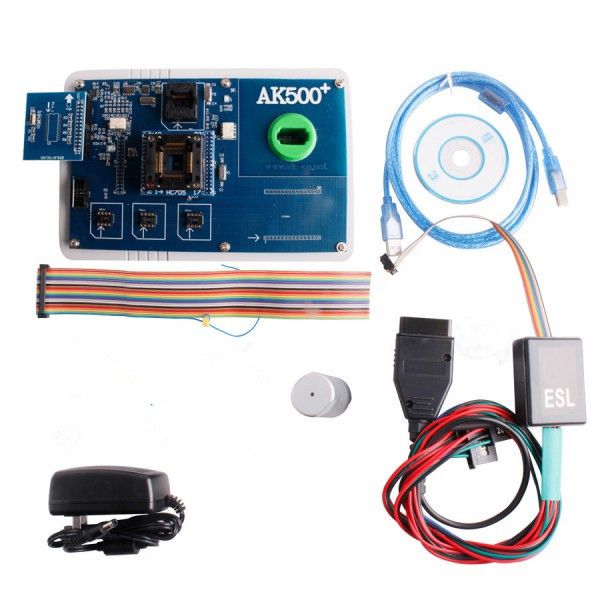

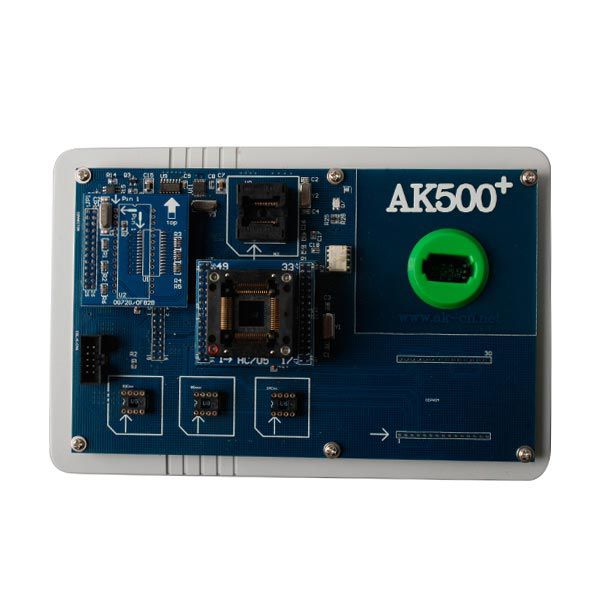

New Released Mercedes BENZ AK500+ Key Programmer with EIS SKC Calculator and Database Hard Disk

Model: SK110-1 = SK111 + SS34-B + SS67

New Function

SBC Repair function for Mercedes BENZ – enables direct repair of Mercedes vehicles via the OBD2 diagnostic interface.

AK500+ with SKC Key Features

• Read data faster and more securely
• Read and write keys faster and more securely
• Improved equipment stability

Supported Vehicle Models

Mercedes-BENZ: W220, W220 "Keyless Go", W208, W210, W220, W203, W215, W230, W209, W219, W211, W230, W215

BMW: Series 1/3/5/6/7/8; supports MPC (MPC555/556, MPC561/562, MPC563/564), external Flash (MB58BW016, 29BL802C, AM29BDD160, S29CD016, DE28F800, etc.), and external EEPROM (M95xxx)

Volkswagen & Audi: Supports MPC (MPC555/556, MPC561/562, MPC563/564), external Flash (MB58BW016, 29BL802C, AM29BDD160, S29CD016, DE28F800, etc.), and external EEPROM (M95xxx)

Product Specifications

Key Features

1. Matches and supports the "Keyless Go" function for Mercedes-Benz infrared keys.
2. Supports locking and unlocking via infrared keys for EIS, ESL, and ESM – leading global technology.
3. Directly reads EEPROM for BENZ DAS (1995–1998) via OBD; capable of unlocking DAS when all keys are lost and the system is locked.

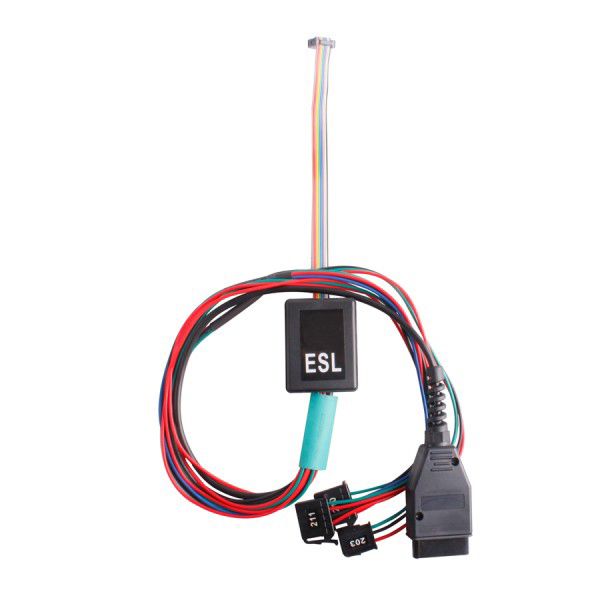

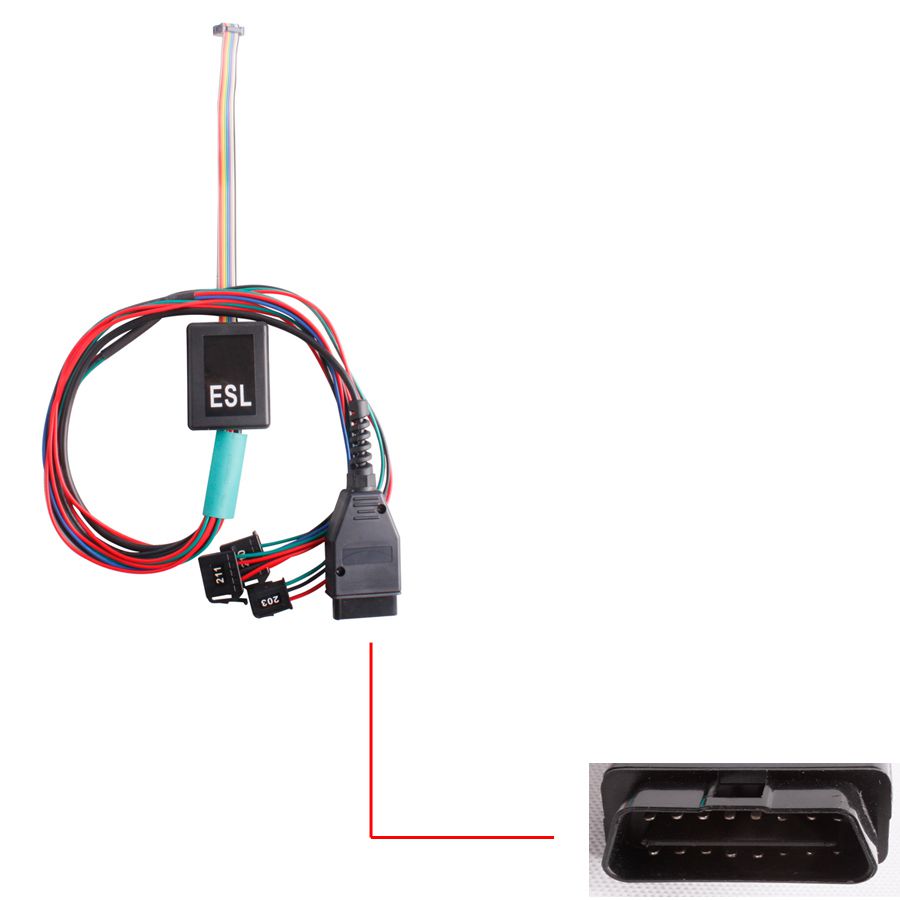

4. Reads and writes ESL for E-Class and C-Class via K-line without removing the ESL unit.
5. Supports key data generation from Benz ECU flash memory (29F400, 29F800); requires STAR 2000 for ECU coding.
6. No need to manually select MCU type for EIS. Automatically recognizes EIS file and generates key file. For HC705 MCUs, software prompts to load the next EIS file if needed.
7. Powerful Motorola MCU programming: Directly reads EEPROM dumps (HC908) and Flash memory (HC912, HC9S12, HC9S12X) for Motorola MCUs. Supports engine ECUs for Mercedes-Benz, BMW, VW, and Audi including MPC types, external Flash, and external EEPROM (M95xxx). Advanced tool for car ECU repair, programming, odometer adjustment, and key programming.

Follow-Up Upgrades

• Benz (R or W220) shift module ISM and 722.9 gearbox ECU drive authority
• Upgrade ESM read and write EEPROM functionality

Technical Parameters

• Communication Interface: USB 2.0
• Power Input: AC 100–240V, 50/60Hz
• Output: 12V / 2A DC
• Power Consumption: 40W

AK500+ Key Programmer FAQs

Q: How do I write keys using the AK500+ Key Programmer?

A: Follow these steps:

1. Remove the EIS unit from your vehicle.
2. Connect the EIS according to the connection diagram.
3. Read the EIS data.
4. Load the data into the SKC calculator to generate key data, then use the AK500+ to write it to a new key.

Q: Can the AK500+ perform Read/Write on NEC Keys via Infrared and Fast Erase NEC Chips via socket?

A:

• Infrared Read/Write NEC Key: Only supported for old keys; not available for new keys.
• Fast Erase NEC Chip via Socket: Requires the chip to be a NEC type and must be removable/renewable.

Q: I cannot find the 95xxx adapter. I don’t have a 95 adapter to connect to 95xxx on the AK500+ main unit, so I can't read ECU or ESM data. Some videos mention it's included in the package, but I didn't receive one. Please provide a 95xxx chip adapter, otherwise I cannot use the device properly.

A: The current AK500+ SKC model does not include a 95xxx chip adapter. Unlike older AK500 models, the AK500+ with SKC calculator does not require you to remove the ECU. Using AK500+ with SKC is simpler and more efficient than the older version with the 95xxx adapter.

Q: I tried to renew a NEC chip without placing any chip on the socket, but the device still attempts to erase. Shouldn't it show an error? Why does it continue erasing with no chip present?

A: The AK500+ cannot renew a NEC chip via socket while it's installed in the key. You must physically remove the NEC chip and place it on the chip dashboard for renewal.
