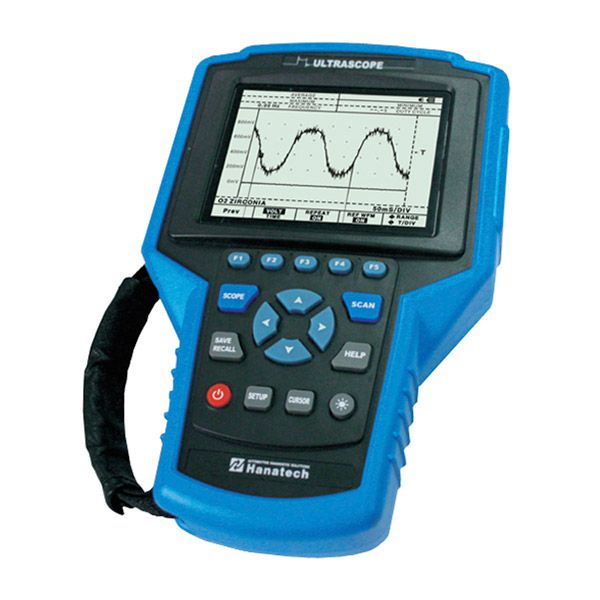

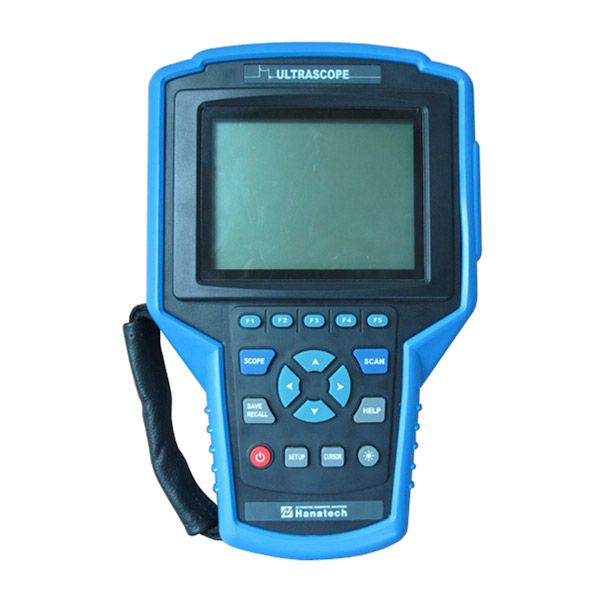

ADS7100 ULTRASCOPE Dual Channel Oscilloscope & Multimeter

ADS7100 ULTRASCOPE Dual Channel Oscilloscope & Multimeter

Features:

1. Super fast Oscilloscope, high-accuracy multimeter.
2. OBD2 BUS analyzer for CAN, SAEJ1850, ISO9141.
3. Real time screen refresh rates.
4. Small size, light weight, portable.
5. Dual channel, auto calibration, auto trigger.
6. Auto screen horizontal axis, perpendicular division.
7. Low battery voltage charge indicator.
8. Maximum input voltage: 600V peak DC or AC.
9. UI3111, CSA C22.2 No. 1010-1 safety standards compliance.
10. Generic OBDII diagnostics.

Specifications:

Language: English
Material: Metal
Color: Blue+black
Weight: 7.5KG
Display screen: 320*240 CCFL backlit LCD
Save model: Reference ware form saved
Connect: USB interface with PC

Sample Rate	25 Ms/s(Dual CH mode)
	50 Ms/s(Single CH mode)
Record Length	512 in single shot mode
	256 in all other modes
Sample/Division	25
Update Rate	Real time
Modes	Single shot,Roll,Normal
Accuracy	0.01%
Sweep Rate	1uS to 5S in 1,2,5 sequence

Vertical

Bandwidth	1MHz
Resolution	8 Bit
Channels	Dual
Coupling	AC,DC
Input Impedance	1 MΩ
Accuracy	3%
Max input Voltage	DC or AC 600vrms
Volt/Division	0.5mV to 500V in 1,2,5 in sequence
	50mV to 50kV for ignition Secondary

Triggering

Source	Internal, External
Coupling	AC, DC
Slope	Rising Or Falling edge
Trig Sensitivity	2/20 Division

Other

Waveform Memory	8 Shot
Reference Waveform	4S Shot
Ignition Analyzer	Primary & Secondary Ignition
	Conventional and DLI/DIS
	Peak Voltage,Burn time & Voltage

DC V

Range	Resolution	Accuracy	Impedance
5V	0.001V	±(0.3%+3)	1MΩ
50V	0.01V
500V	0.1V	±(0.5%+5)
1000V	1V

AC V

Range	Resolution	Accuracy			Impedance
		50-450Hz	0.45-5kHz	5kHz-20kHz
3V	0.001V	±(0.3%+3)	±(0.75%+5)	±(2%+5)	1MΩ
30V	0.01V
300V	0.1V	±(0.5%+5)
750V	1V			N/A

OHM

Range	Resolution	Accuracy	Over Load Protection
5kΩ	0.001kΩ	±(0.5%+5)	600V DC or AC rms
50kΩ	0.01kΩ
500kΩ	0.1kΩ
5MΩ	0.001MΩ	±(0.75%+10)

Continuity Test(Buzzer)

Test Voltage	Threshold	Over Load Protection
1.7V	100Digits	600VDC Or AC Peak

Optional Function

Temperature	0-200℃(Max 300℃)
Pressure	0-50Kg/Cm2
Ampere	0-4Amp, 0-40Amp, 0-400Amp

General Specifications

Operating Temp	0℃-50℃(32"F-122"F)humidity 75% or less
Power Supply	Ni-MH 4.8V
Battery Life Time	3hours without backlit/2hours backlit ON
Display Type	320×240 LCD(CCFL backlit)
Dimensions	164mm(width)×58mm(depth)×256mm(height)
Weight	1kg

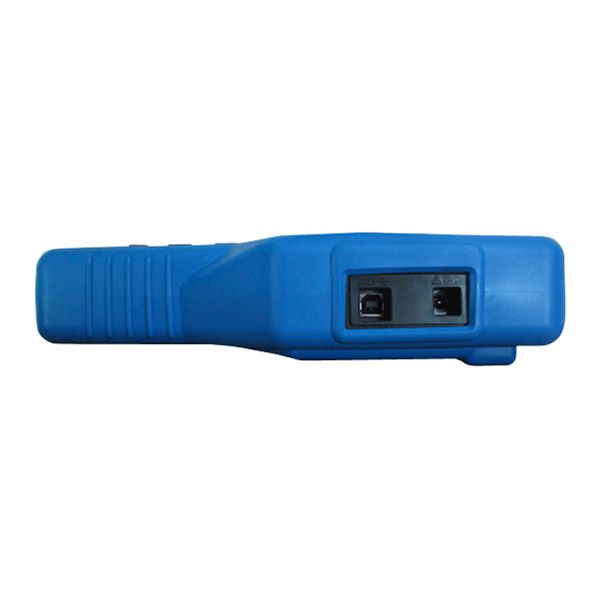

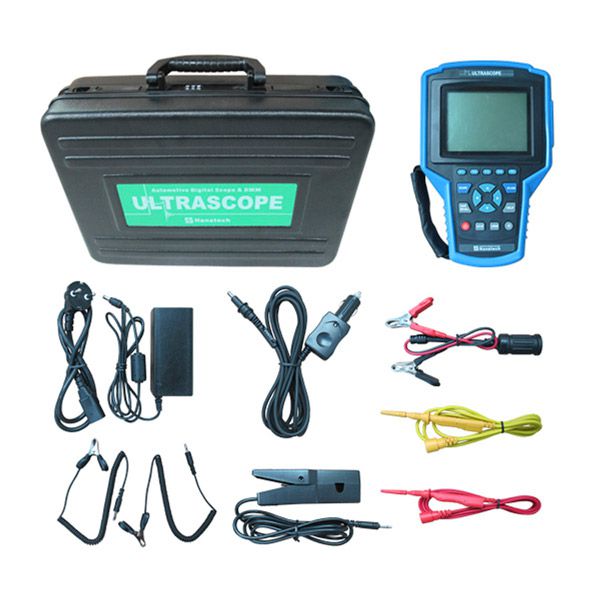

Package including:

1pc x Body

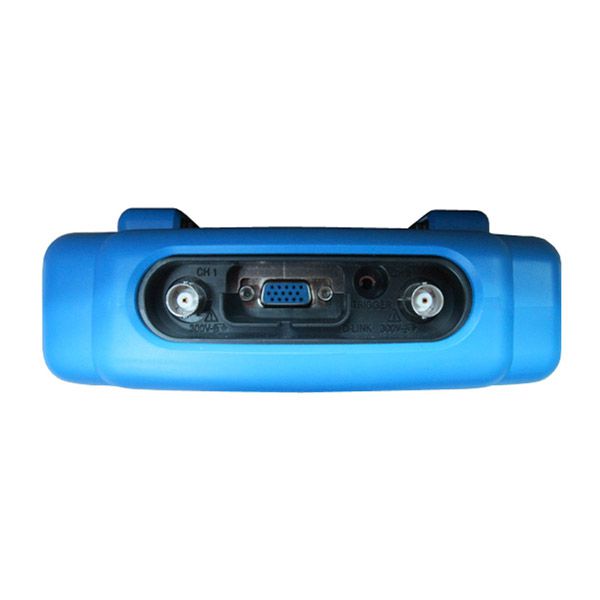

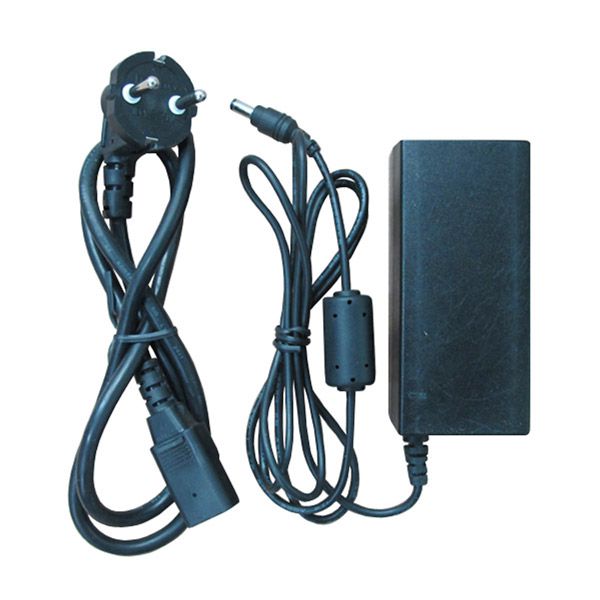

1pc x adaptor recharger
2pc x Probe cable
2pc x Needle cable

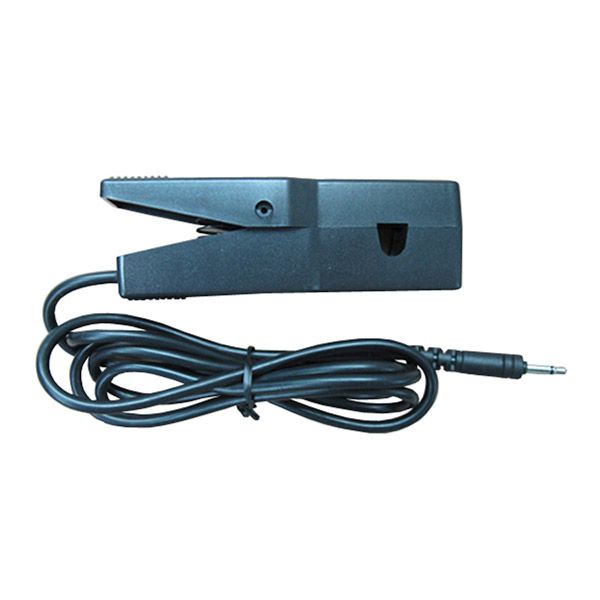

1pc x Ignition CYL.1 pickup probe
1pc x Battery cable

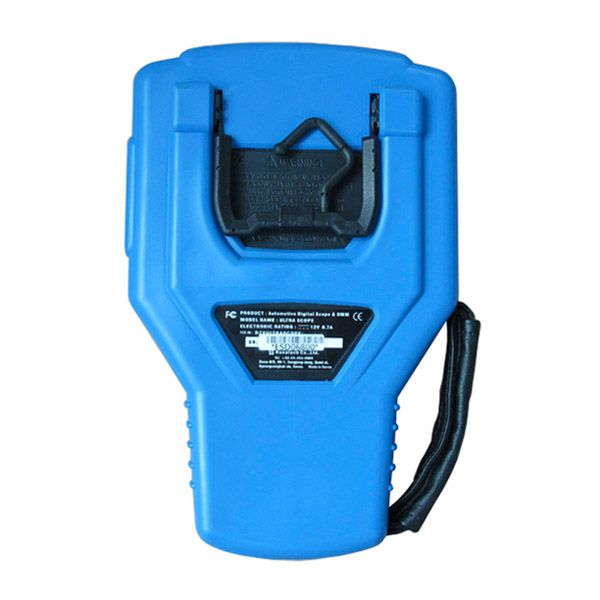

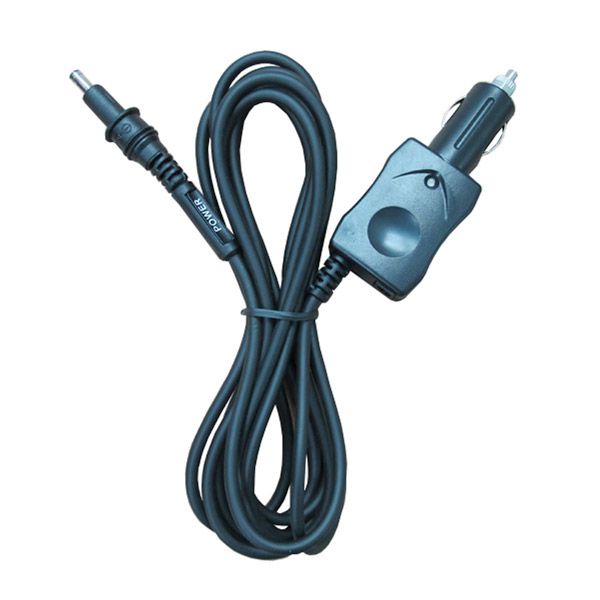

1pc x Aux. cigarette cable
1pc x User manual
1pc x Carry bag
1pc x Box enclosure
