Characteristics:
Max display value:6000 Counts.
True-RMS / Automatic-Range.
Color LCD display with backlight for clear reading.
The difference between ADM92CL is that the display is different. The function is consistent.

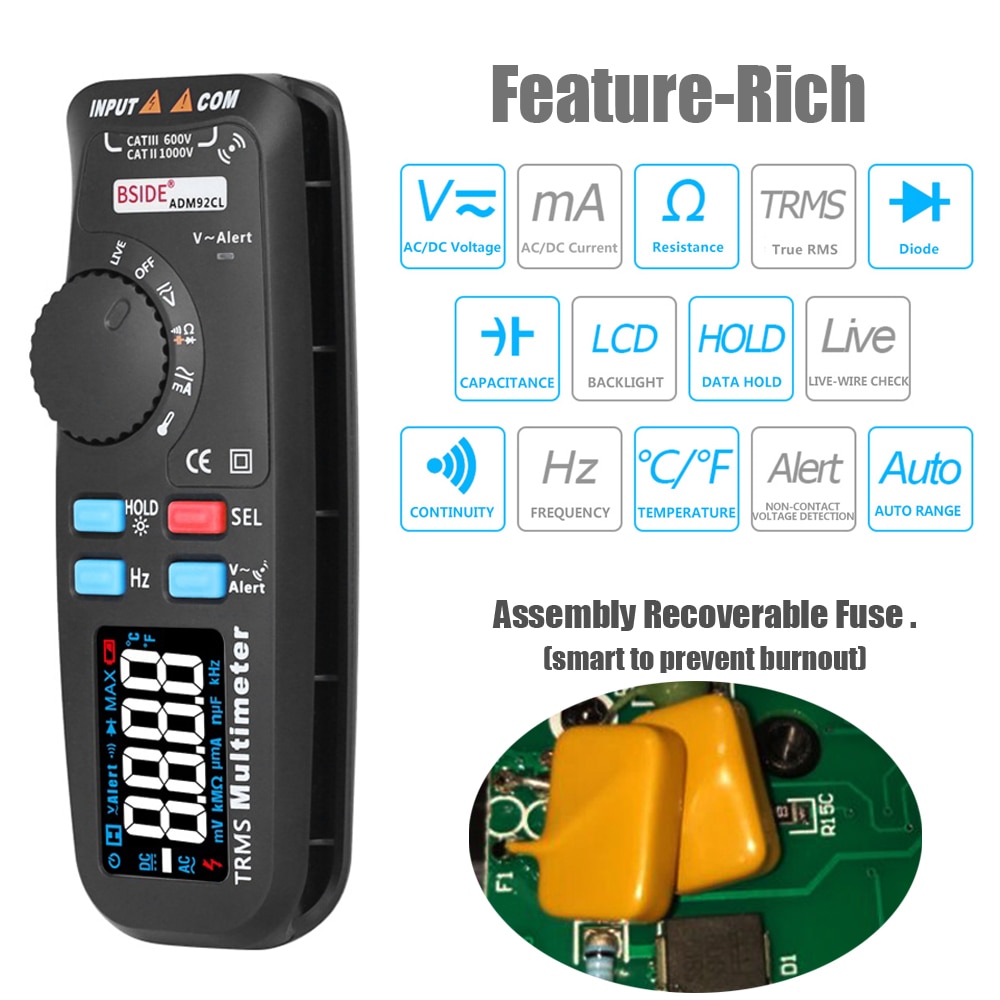

Assembly recoverable fuse (smart to prevent burnout).
Support one-handed switching of all test functions, making operation more convenient and quick.
Can measures DC/AC Voltage,DC/AC Current, Resistance, Capacitance, Frequency, Temperature, Diode, Continuity, Dangerous voltage alarm and Live/Neutral wire distinguish.
Activate v~alert(NCV) at any function.
Data hold.Low battery indication functions.Auto power off.
With overload protection on all ranges.
Definition newest design:Single-sided pen holder pocker tetachable probe.
Added back hooks, convenient to carry.
Specifications:
AC current: 60mA/200mA ±(1.0%+3).
DC current: 60mA/200mA ±(0.8%+3).
AC voltage: 6V/60V ±(0.8%+3); 600V/750V ±(1.0%+10).
DC voltage: 6V/60V/600V/1000V ±(0.5%+3).
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ ±(0.8%+3); 60MΩ ±(1.2%+30).
Capacitance: 6nF±(4.0%+10); 60nF/600nF/6μF/60μF/600μF/6mF ±(4.0%+5).

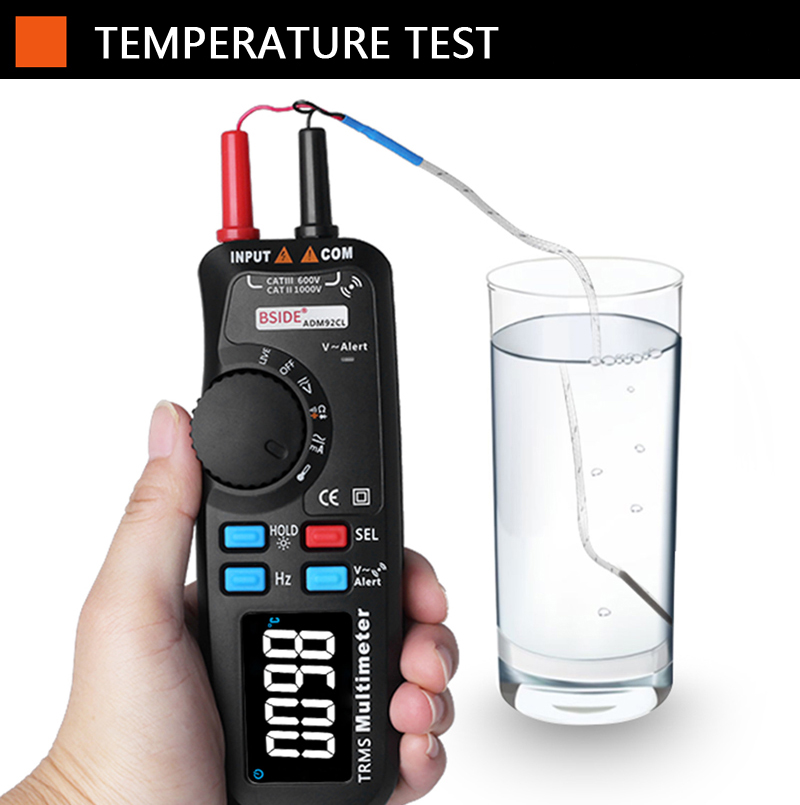

Temperature: -20°~1000°/-4°~1832° ±(1.0%+3).
Continuity: If the resistance is less than 50Ω, the continuity beeper sounds.
Type of fuse: Recoverable fuse (Smart to prevent burnout).
Power: 1.5V (AAA) * 2 (not included).
Storage temperature: -10°~60°.
Working temperature: 0°~40°.
Size: 139.5x49.5x24.5mm.
Weight: 96g.
Distinguishing Feature:

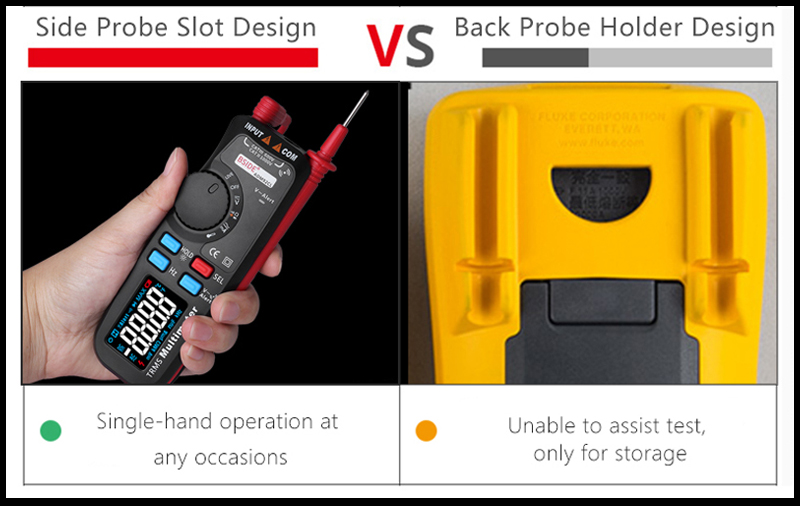

1. [Definition newest design]: Single-sided pen holder pocker tetachable probe.

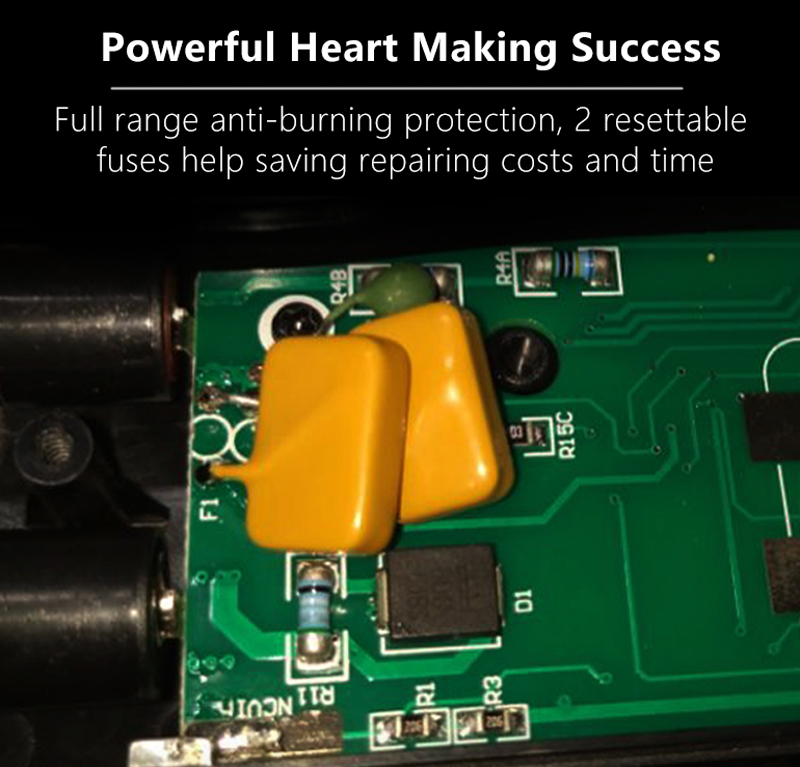

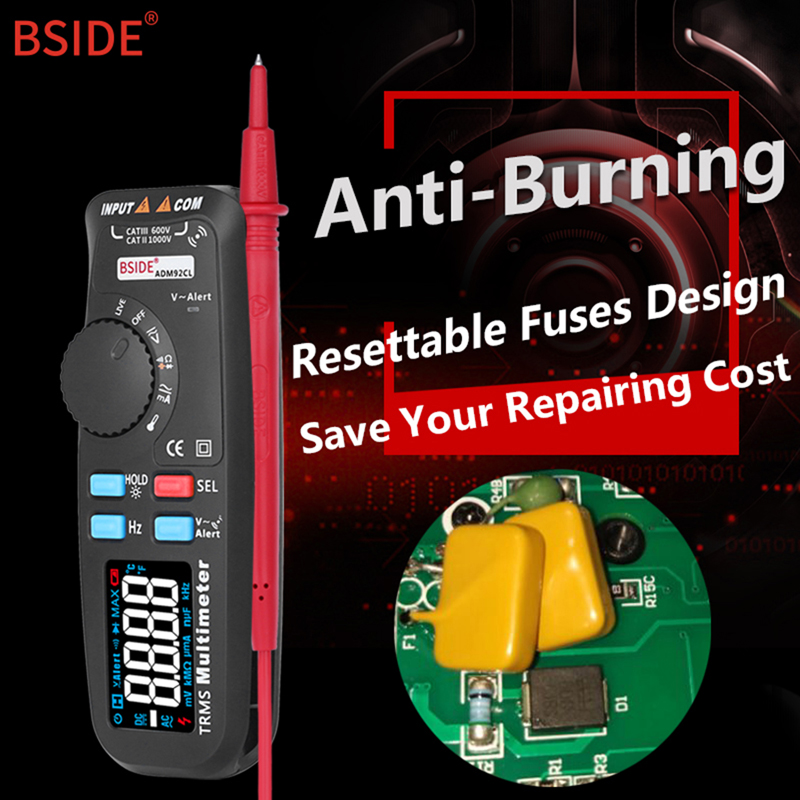

2. [Resettable Fuses]: Built-in resetable 2 fuses help to save your repairing costs and time.

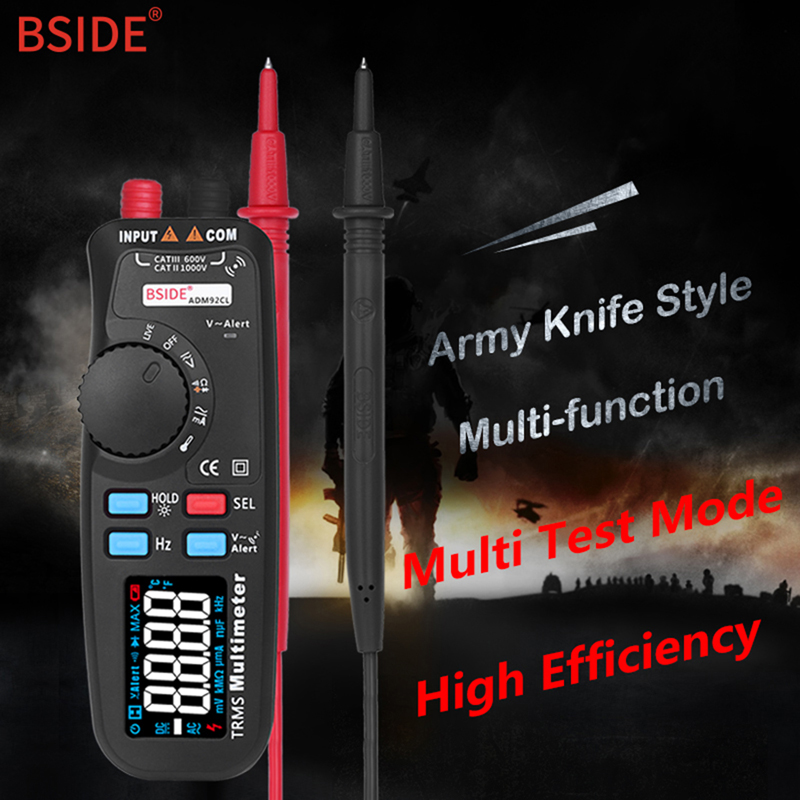

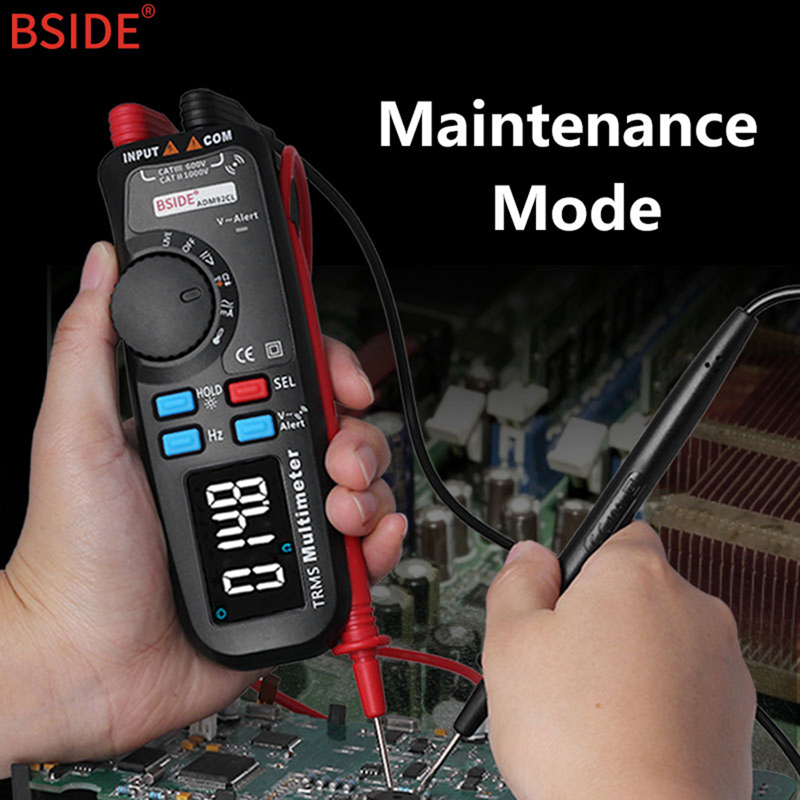

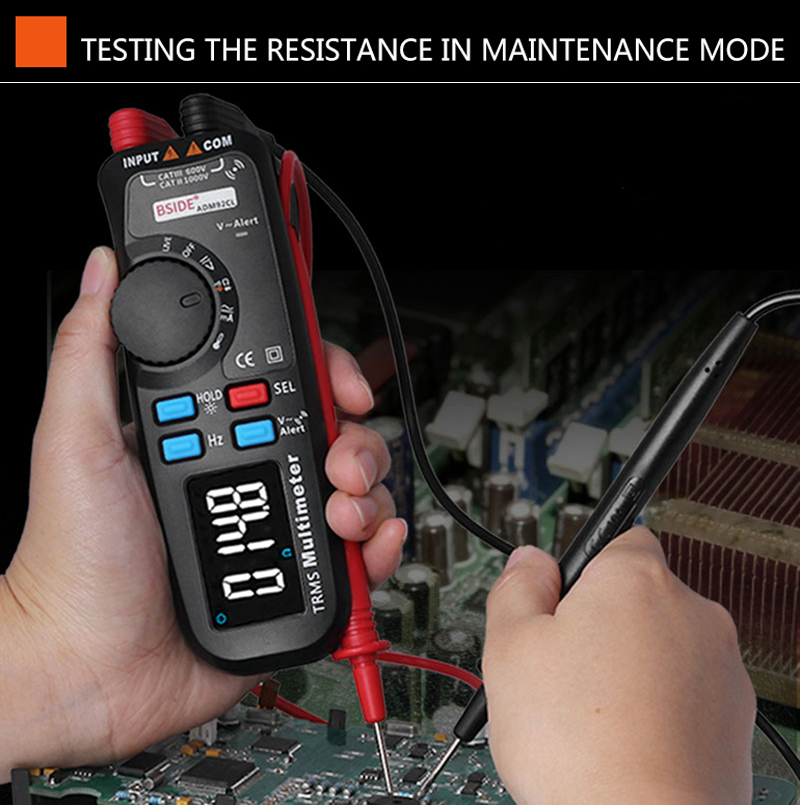

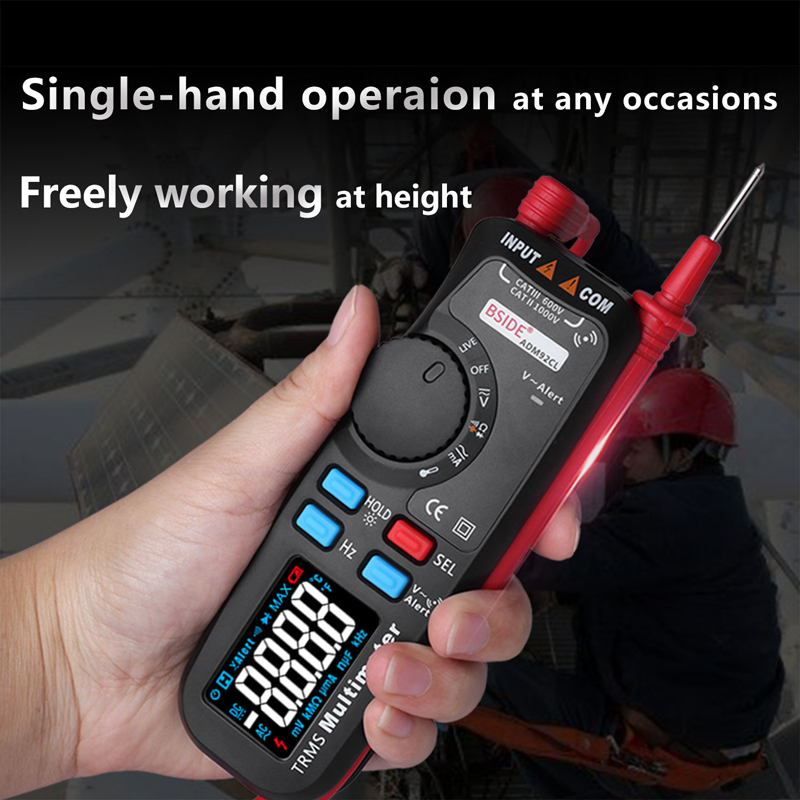

3. [Multi Test Mode]: Fix the probe upward in the slot for detection at height; Fix the probe downward in the slot for maintenance; Release the probe from the slot and work as a desktop multimeter.

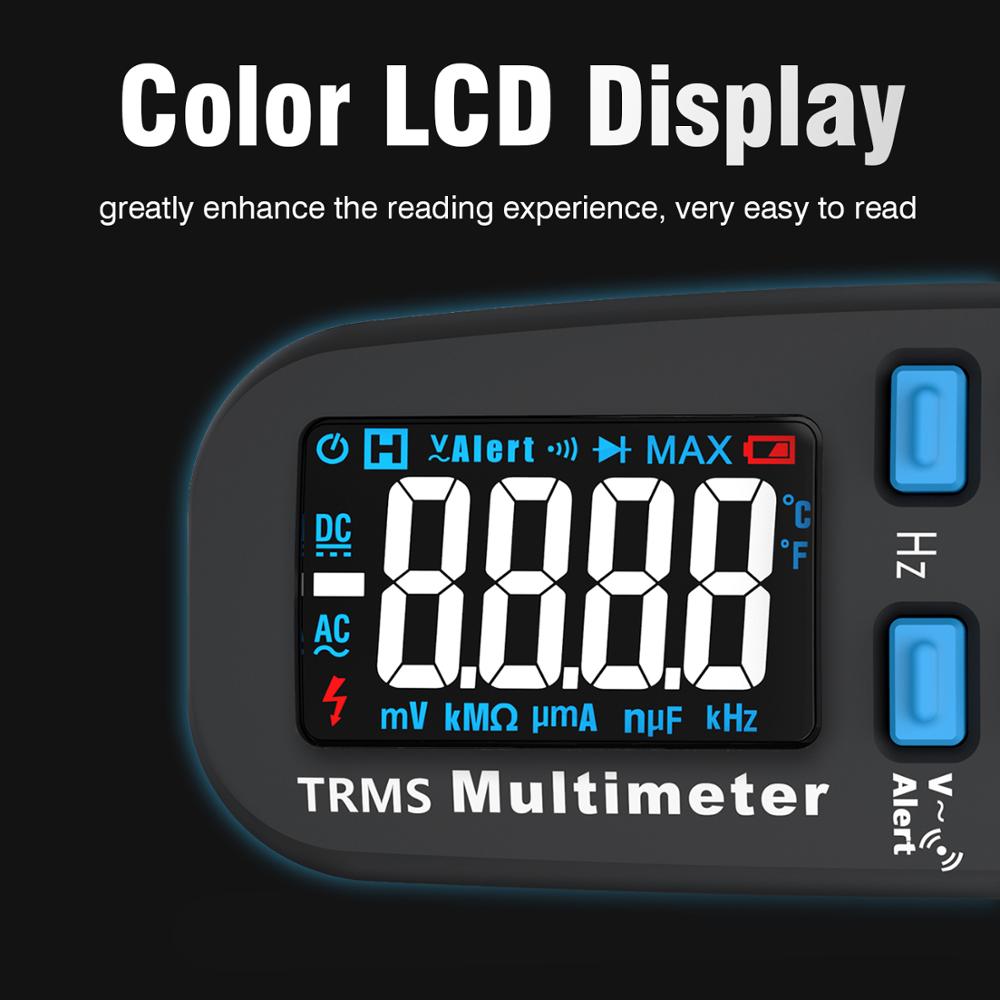

4.[Color LCD Display (ADM92CL)]: Digital stereo is better, Test sensory quality is increased.

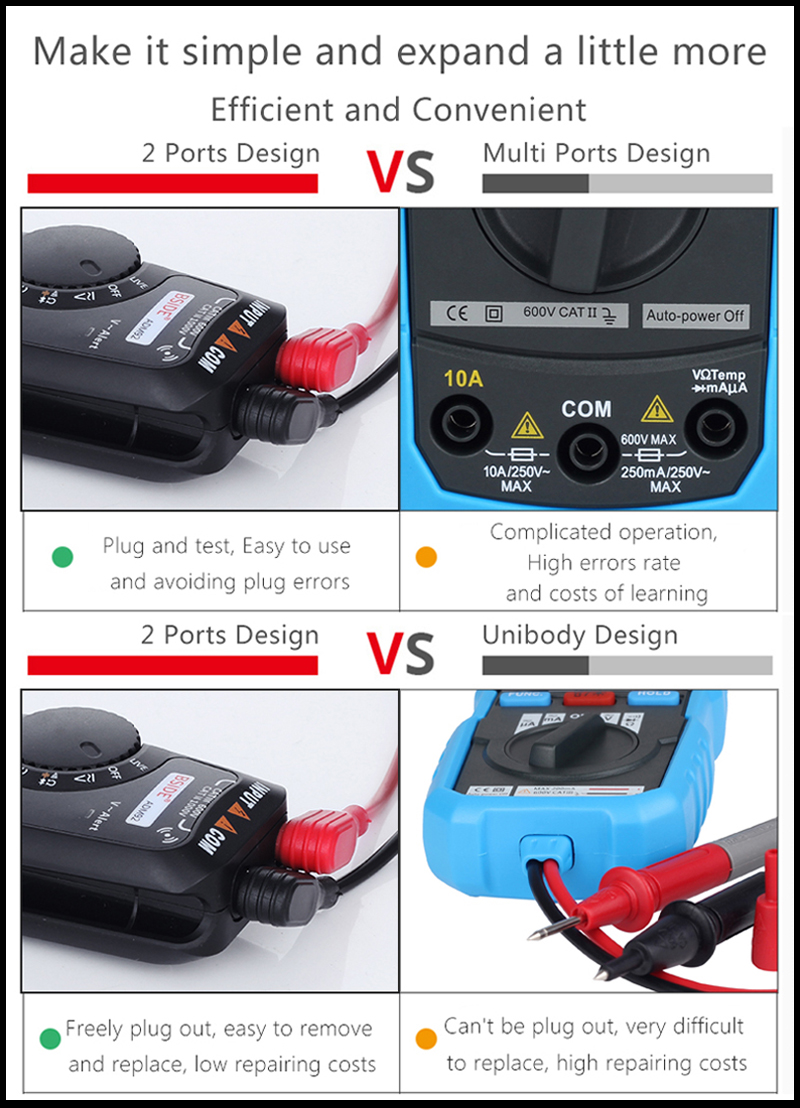

5. [Universal 2 Ports Design]: (1) Our multimeter features universal 2 ports for all functions.
(2) Compared with those of 3, 4 or more ports multimeters, not only save your learning time, but also prevent wrong insertion of ports, Avoid damage to the multimeter ;
(3) Compared with the unibody multimeter, easy to replace when the probe is damaged, which extend the application life.

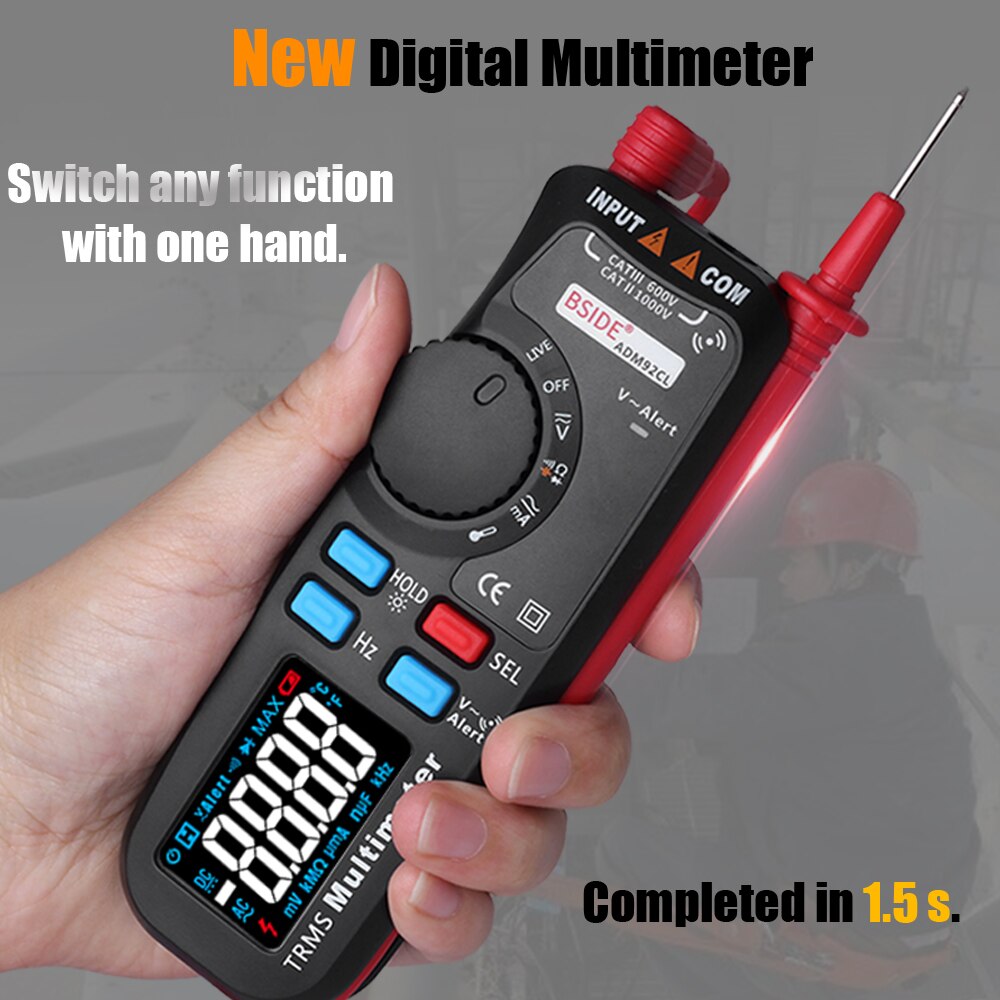

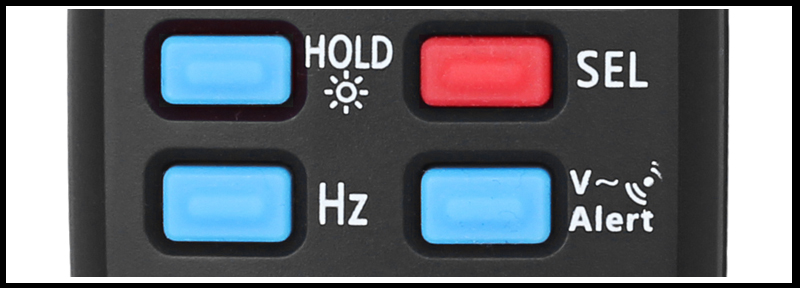

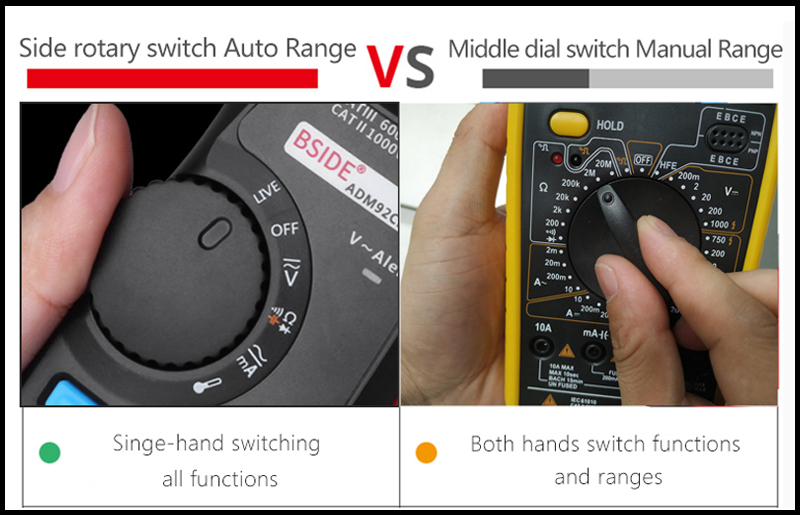

6. [High Efficiency Function Switching]: You can switch all functions with one hand by spinning the knob or pressing the button (Complete in 1.5 second), can save your test time when compared to other multimeters that require both hands.
7. [Activate V-alert at Any Function]: Under any function range, convenient to enable V-alert (Non-contact Voltage Detection) function by pressing the V-alert button. AC voltage can be detected by built-in sensor or probe.

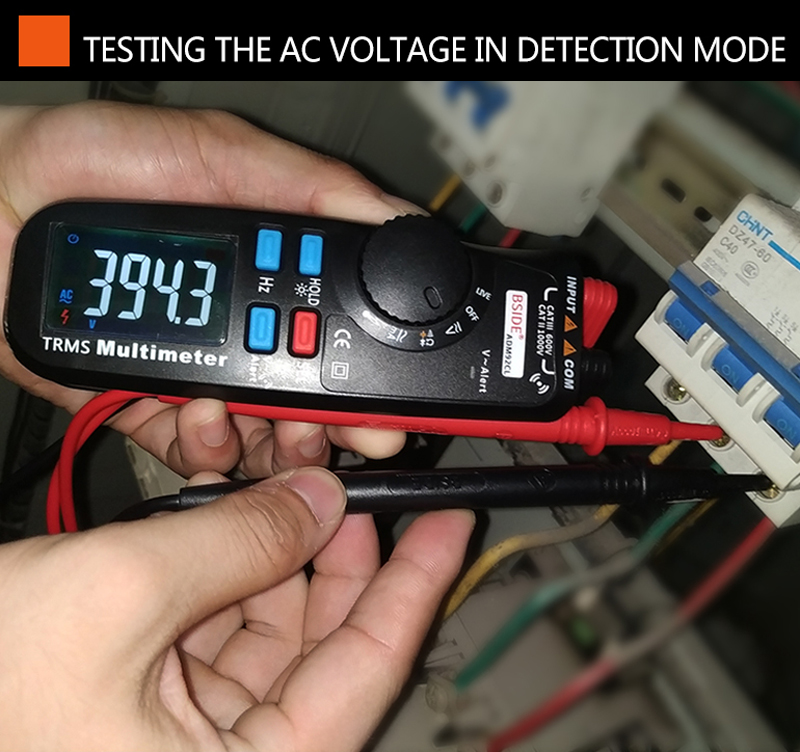

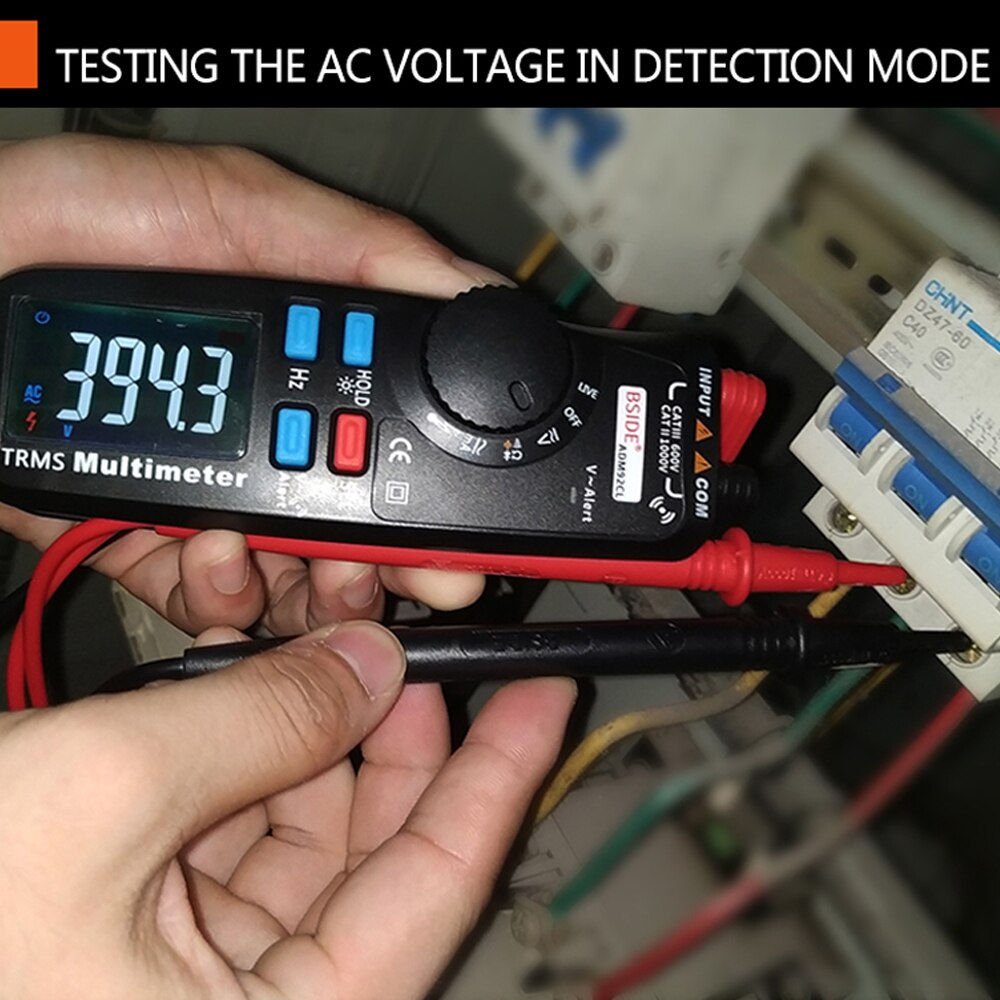

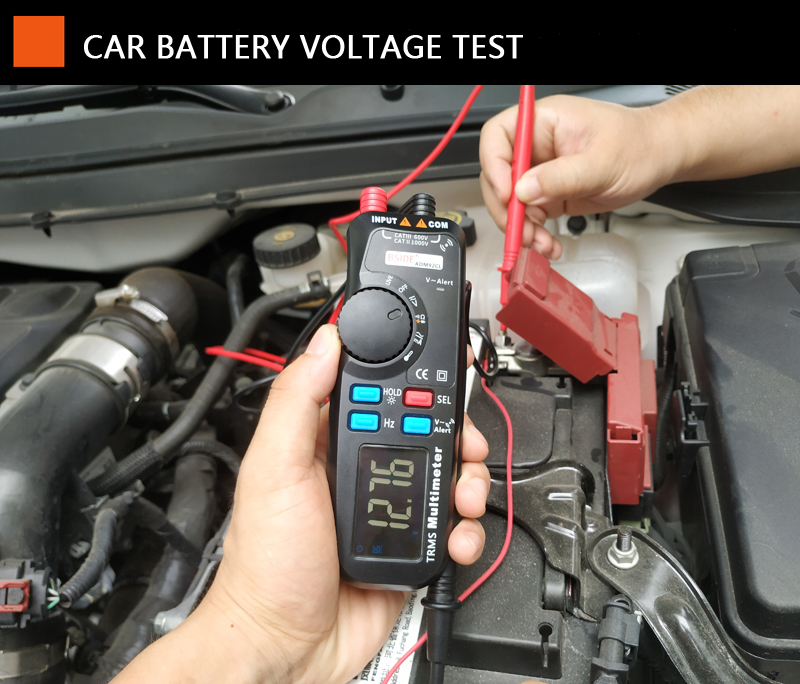

Real Test & Occasions:

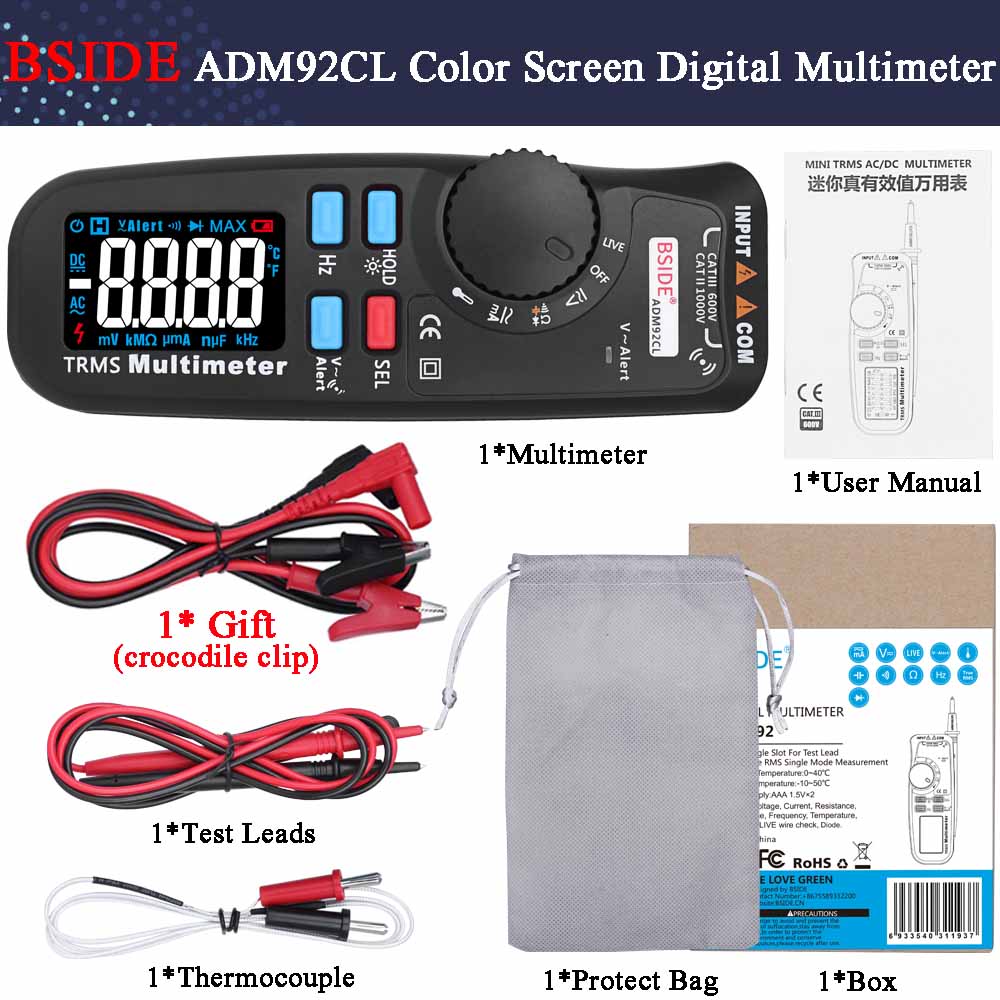

Package Included:
1 x Multimeter
1 x CAT III 600V Stand Test Leads
1 x Thermocouple
1 x Protect Bag
1 x User Manual
1 x Box
