1.If the device do not turn on, please open the back cover and check the battery.
(The package content may not included battery. Due to china post new rules can't send goods with battery.)
2.Please don't use this device under 0 degrees Celsius !
3.If the continuity test not sound, please remember to shift to correct function.
Feature

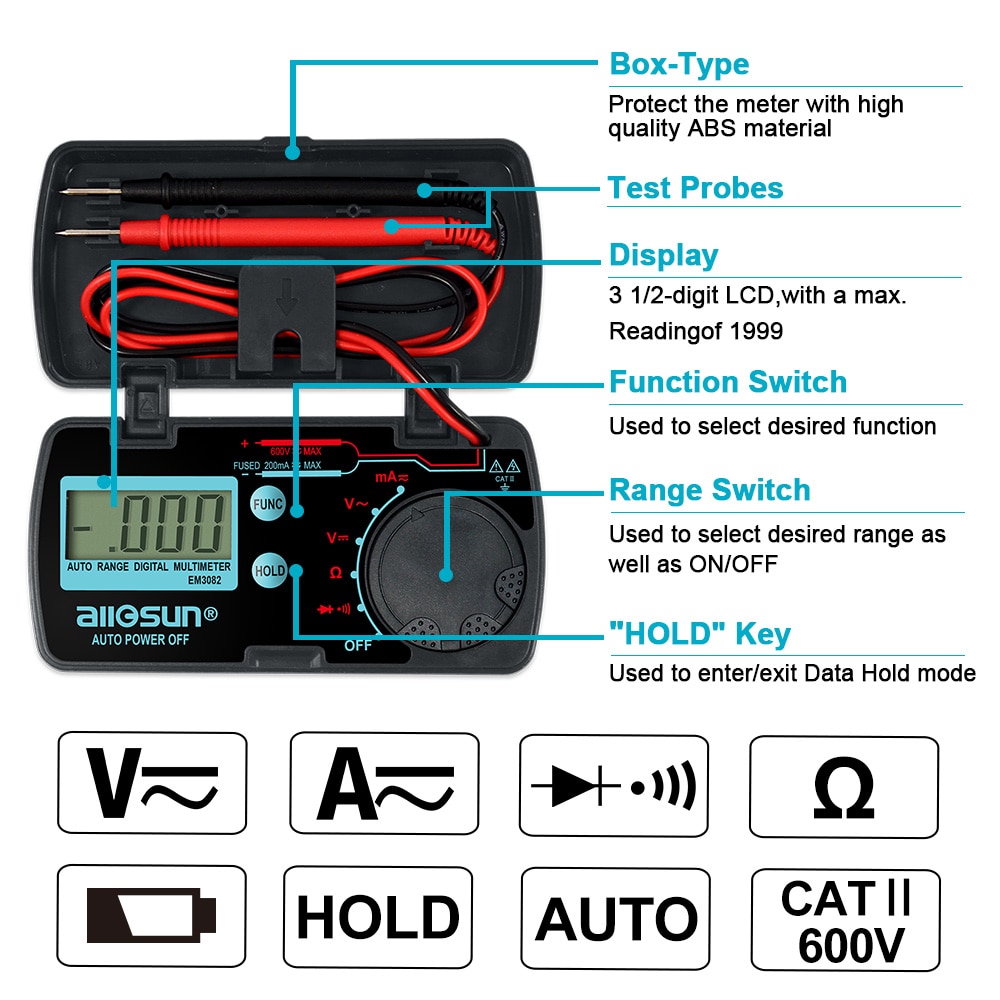

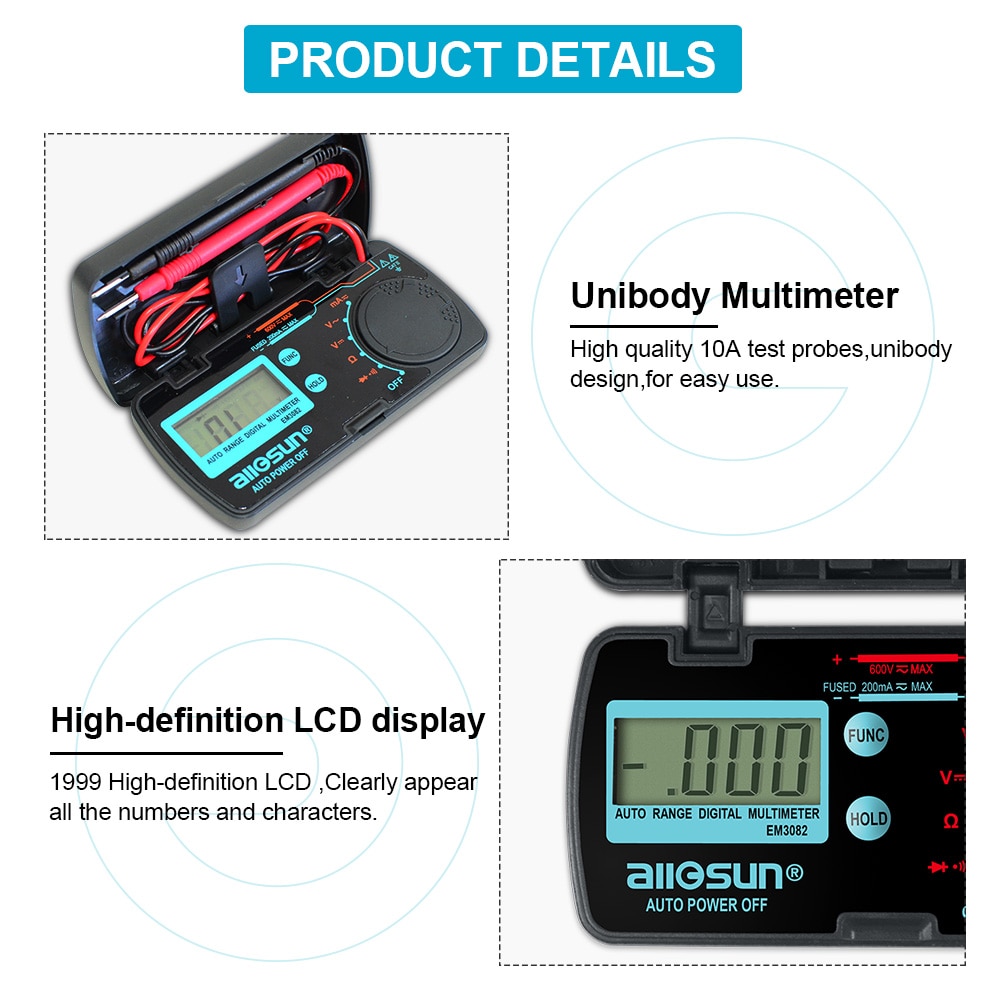

1) Display: 3 1/2-digit LCD with a max,reading of 1999
2) Overrange indication: Only figure"1" shown on the display
1) Display: 3 1/2-digit LCD with a max,reading of 1999
2) Overrange indication: Only figure"1" shown on the display
3) Negative Polarity Indication: Negative sign"-"shown on the display automatically
4) Sampling Rate: Approximate 2 to 3 times/sec
5) Operation Environment: Temperature:0-40 degree
Relative humilty:<75%
6) Storage Temperature: Temperature:-10-50 degree
Relative humilty:<85%
4) Sampling Rate: Approximate 2 to 3 times/sec
5) Operation Environment: Temperature:0-40 degree
Relative humilty:<75%
6) Storage Temperature: Temperature:-10-50 degree
Relative humilty:<85%

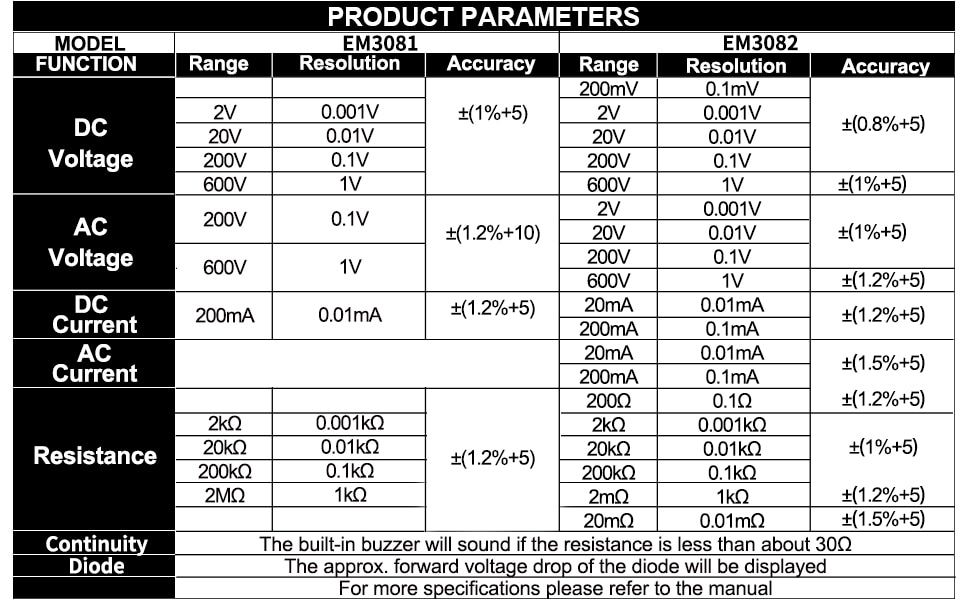

PRODUCT SPECIFICATION
| MODEL | EM3081 | EM3082 | ||||
| FUNCTION | Range | Resolution | Accuracy | Range | Resolution | Accuracy |
| DC Voltage | | | ±(1%+5) | 200mV | 0.1mV | ±(0.8%+5) |
| 2V | 0.001V | 2V | 0.001V | |||
| 20V | 0.01V | 20V | 0.01V | |||
| 200V | 0.1V | 200V | 0.1V | |||
| 600V | 1V | 600V | 1V | ±(1%+5) | ||
| AC Voltage | 200V | 0.1V | ±(1.2%+10) | 2V | 0.001V | ±(1%+5) |
| 20V | 0.01V | |||||
| 600V | 1V | 200V | 0.1V | |||
| 600V | 1V | ±(1.2%+5) | ||||
| DC Current | 200mA | 0.01mA | ±(1.2%+5) | 20mA | 0.01mA | ±(1.2%+5) |
| 200mA | 0.1mA | |||||
| AC Current | | 20mA | 0.01mA | ±(1.5%+5) | ||
| 200mA | 0.1mA | |||||
| Resistance | | | ±(1.2%+5) | 200Ω | 0.1Ω | ±(1.2%+5) |
| 2kΩ | 0.001kΩ | 2kΩ | 0.001kΩ | ±(1%+5) | ||
| 20kΩ | 0.01kΩ | 20kΩ | 0.01kΩ | |||
| 200kΩ | 0.1kΩ | 200kΩ | 0.1kΩ | |||
| 2mΩ | 1kΩ | 2mΩ | 1kΩ | ±(1.2%+5) | ||
| | | 20mΩ | 0.01mkΩ | ±(1.5%+5) | ||
| Continuity | The built-in buzzer will sound if the resistance is less than about 30Ω | |||||
| Diode | The approx. forward voltage drop of the diode will be displayed. | |||||
| For more specifications please refer to the manual | ||||||
