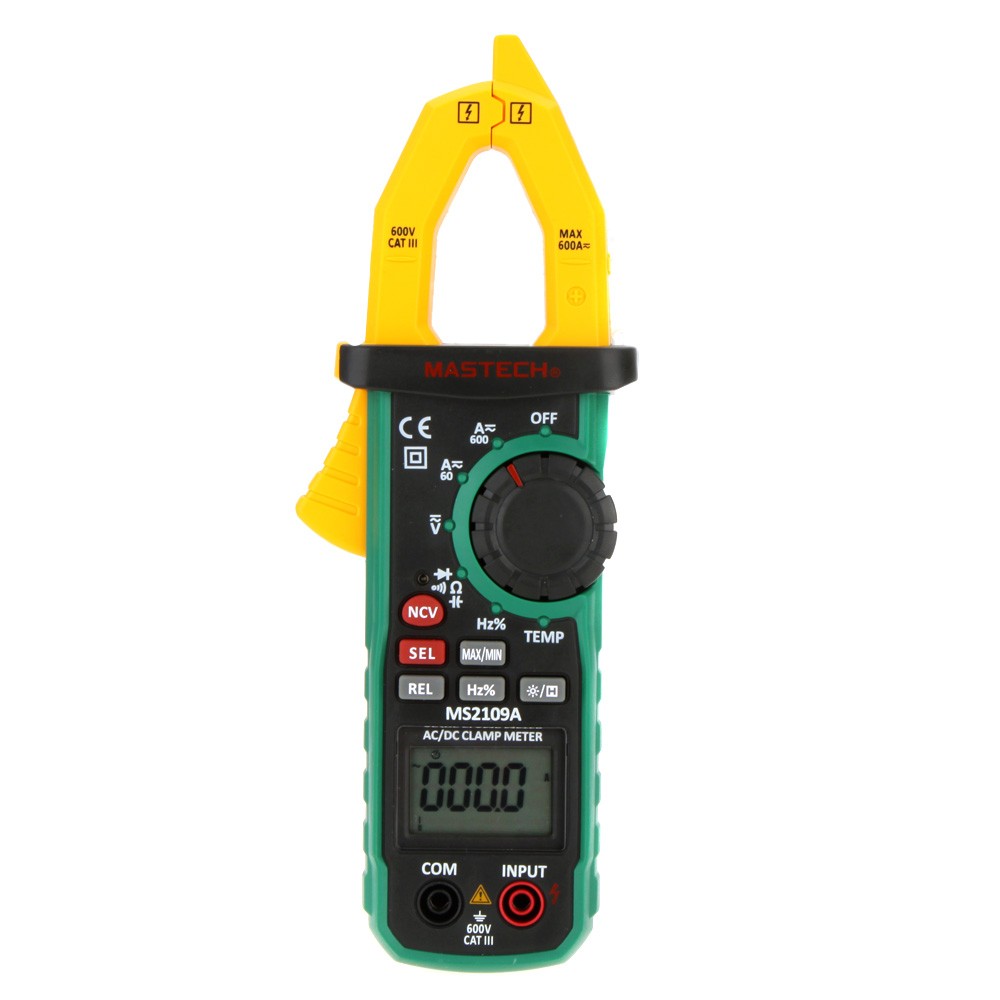

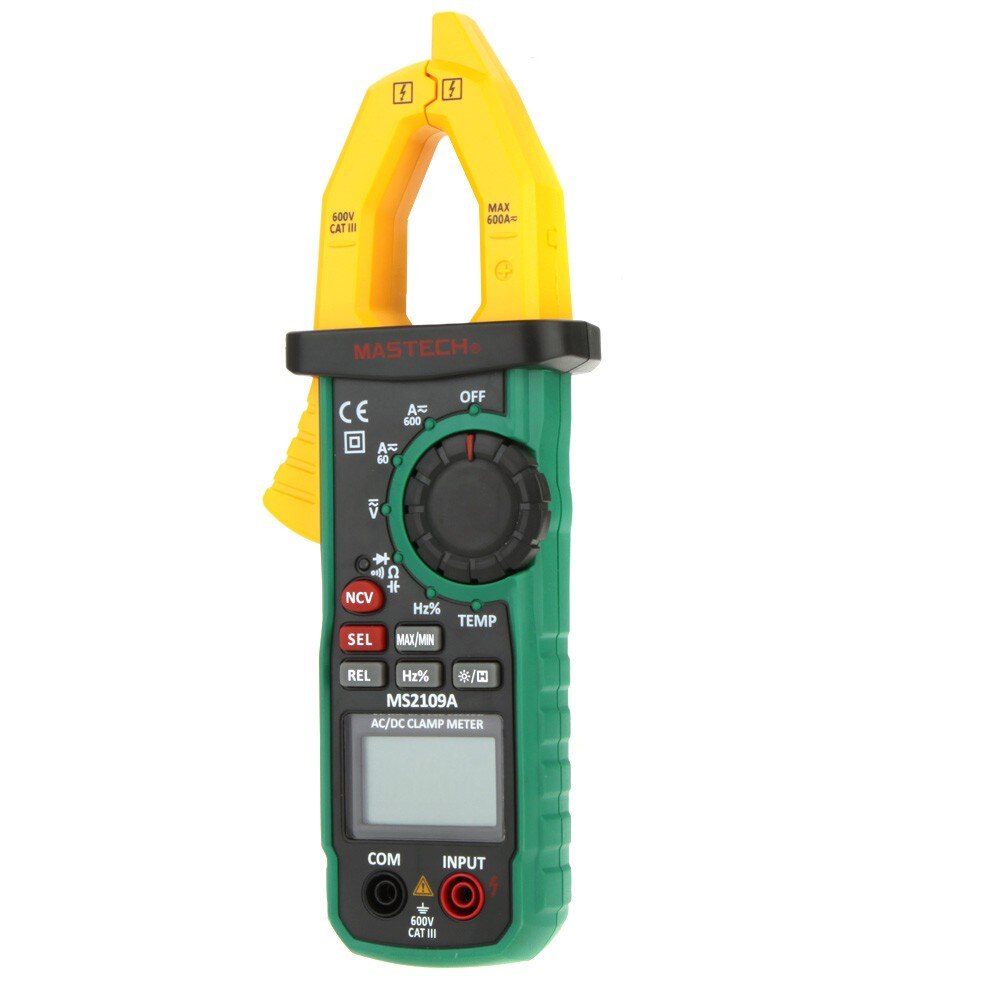

MS2109A Auto Range Digital AC DC Clamp Meter 600A Multimeter Frequency Temp Capacitance Tester NCV Test
Introduction:
This meter is a portable professional measuring instrument with LCD and back light for easy reading. The 'single-hand operation’ design for the range switch makes measurement easier. Overload protection and low battery indication are provided. It is an ideal multi-functional instrument with scores of practical applications for professional, workshop, school, hobby and home use.
Features:
LCD display 6000 counts
Max/Min/Relative measuring
Measure AC DC Current,Voltage, Resistance, Frequency, Capacitance, Duty ratio, Diodes, circuit connections, non-contact voltages and temperatures.
Full range overload protection
Reading Hold
Clamp head frequency measurement
Low battery indicator

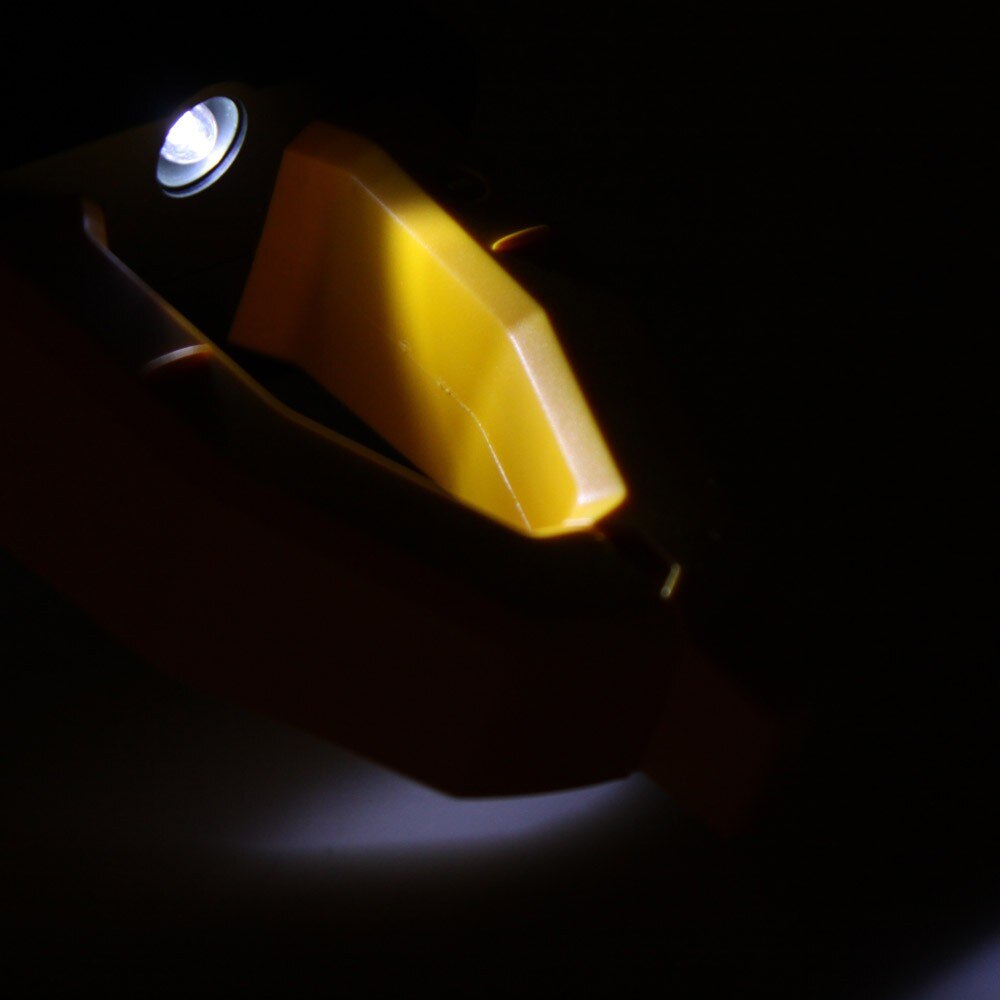

Back light and clamp head light
Auto power-off
Auto measuring range
Specification:
| Screen Size | 3.4*2cm |
| Max. Display | 6000 |
| DC Voltage | 600mV/6V/60V/600V±(0.7% +2) |
| AC Voltage | 6V/60V/600V±(0.8% +3) |
| DC Current | 60A/600A ±(3% +6) |
| AC Current | 60A/600A ±(2.5% +6) |
| Resistance | 600/6k/60k/600k/6MW±(0.8% +3) 60MW±(1.2% +3) |
| Capacitance | 40nF/400nF/4µF/40µF/400µF/4000µF±(4.0% +5) |
| Frequency (Clamp head frequency) | 99.99Hz/999.9Hz± (1.5%+5) (through grade A) 99.99Hz/999.9Hz/9.999kHz± (1.5%+5) (Through grade V) |
| Frequency(Through grade HZ/DUTY) | 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99KHZ/999.9KHZ/9.999MHZ±(0.5%+3) |
| Temperature Test | -20°C~1000°C |
| Duty ratio | 0.1 – 99.9% ±(3.0%+5) |
| Diode test | Yes |
| Circuit continuity test | Yes |
| Auto Power Off | Yes |

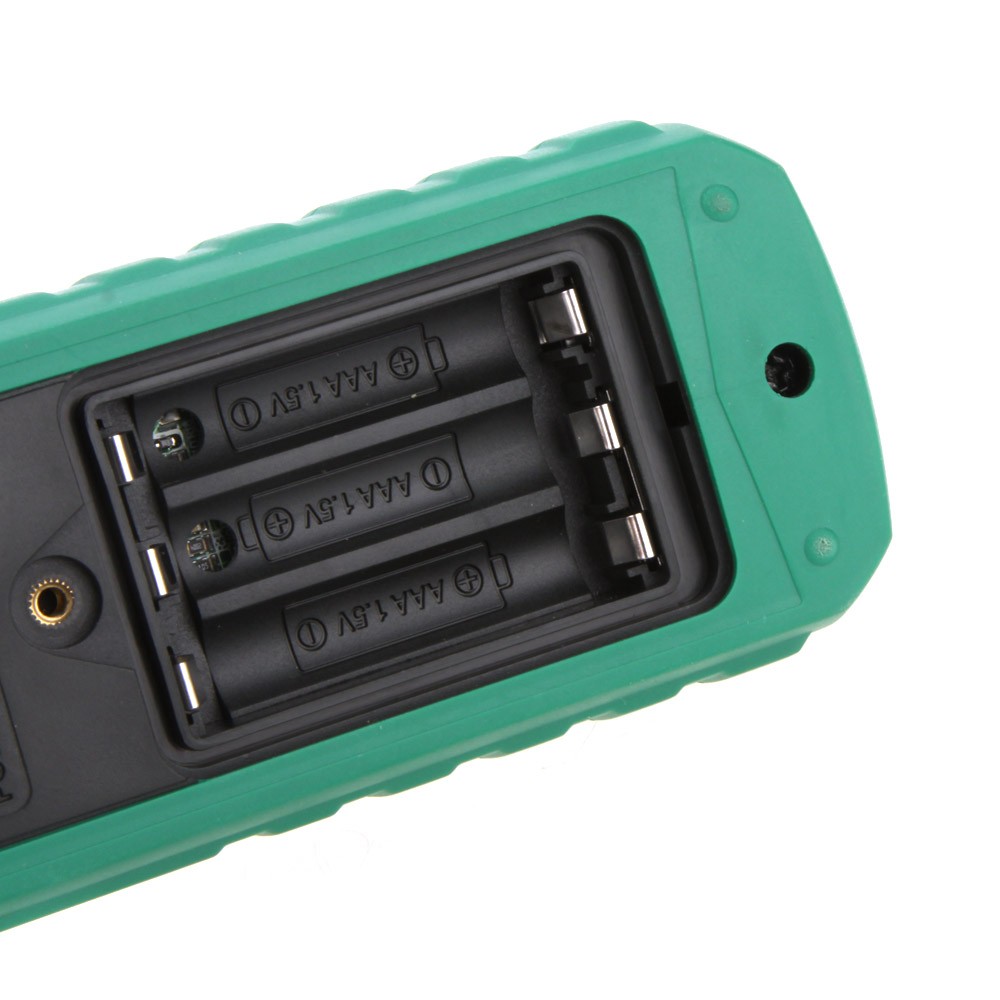

| Powered By | AAA Battery(not include in the package) |
| Battery Number | 3 |
| Battery included or not | Yes |
Dimensions 8.66 in x 3.15 in x 1.61 in (22 cm x 8 cm x 4.1 cm)
Weight20.46 oz (580 g)
CE CAT.III 600V ROHS

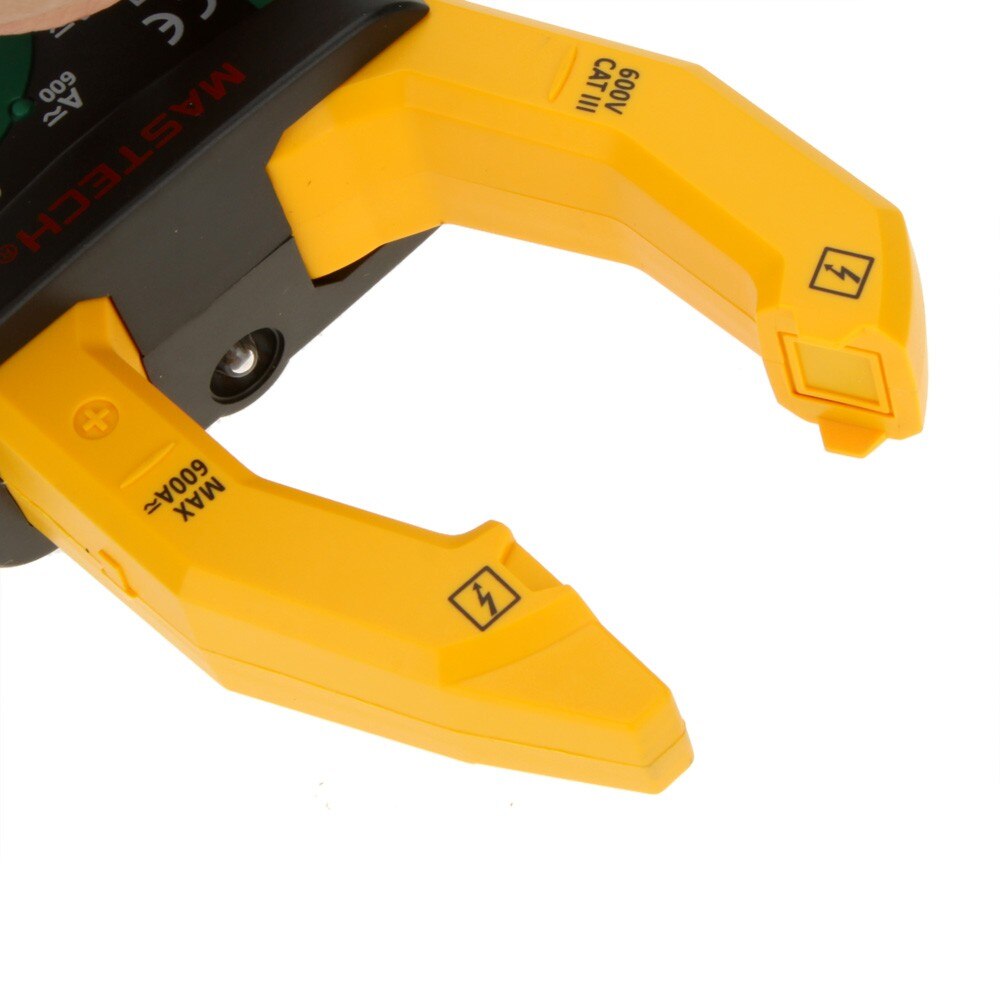

Jaw Opening:26mm/1.0"
Continuity Buzzer:<50

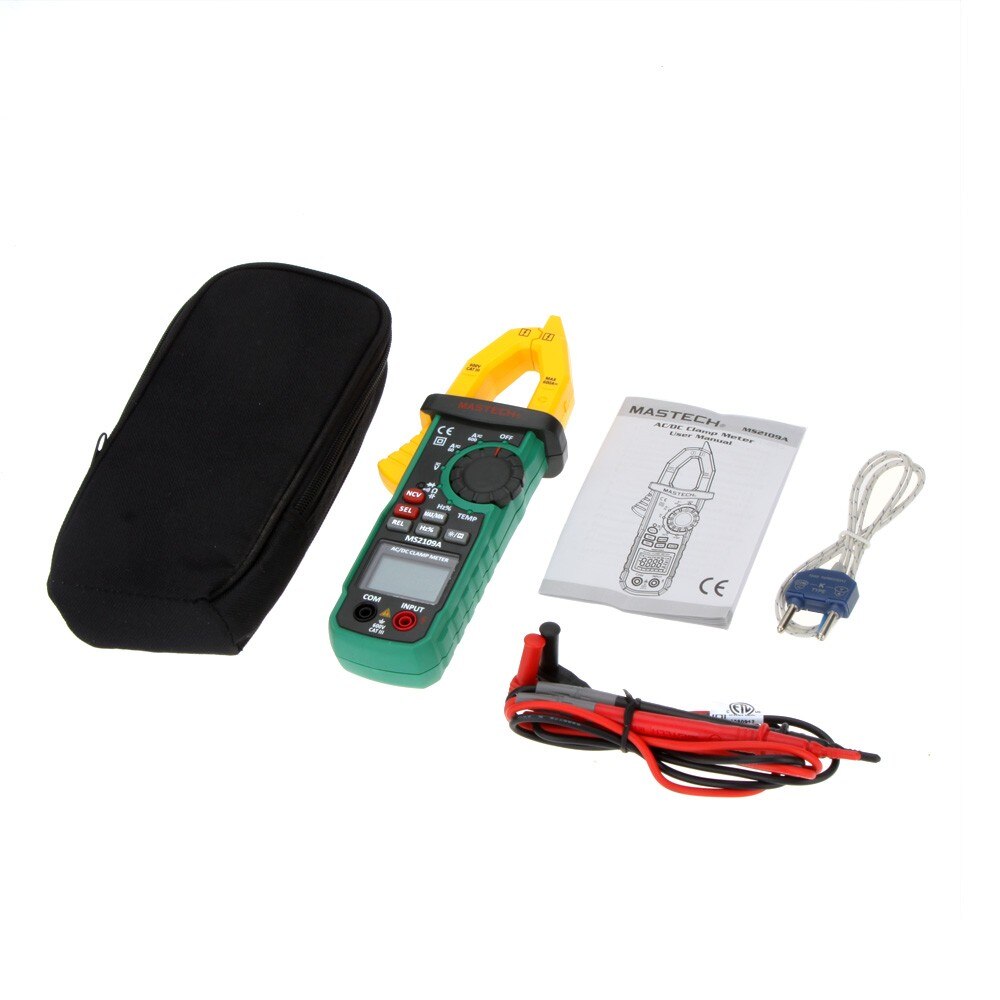

Packing List:
-
1 * MS2109A Multimeter
-
1 * Temperature Probe
-
1 * Pair test leads
-
1 * Cloth bag
-
1 * Color box
