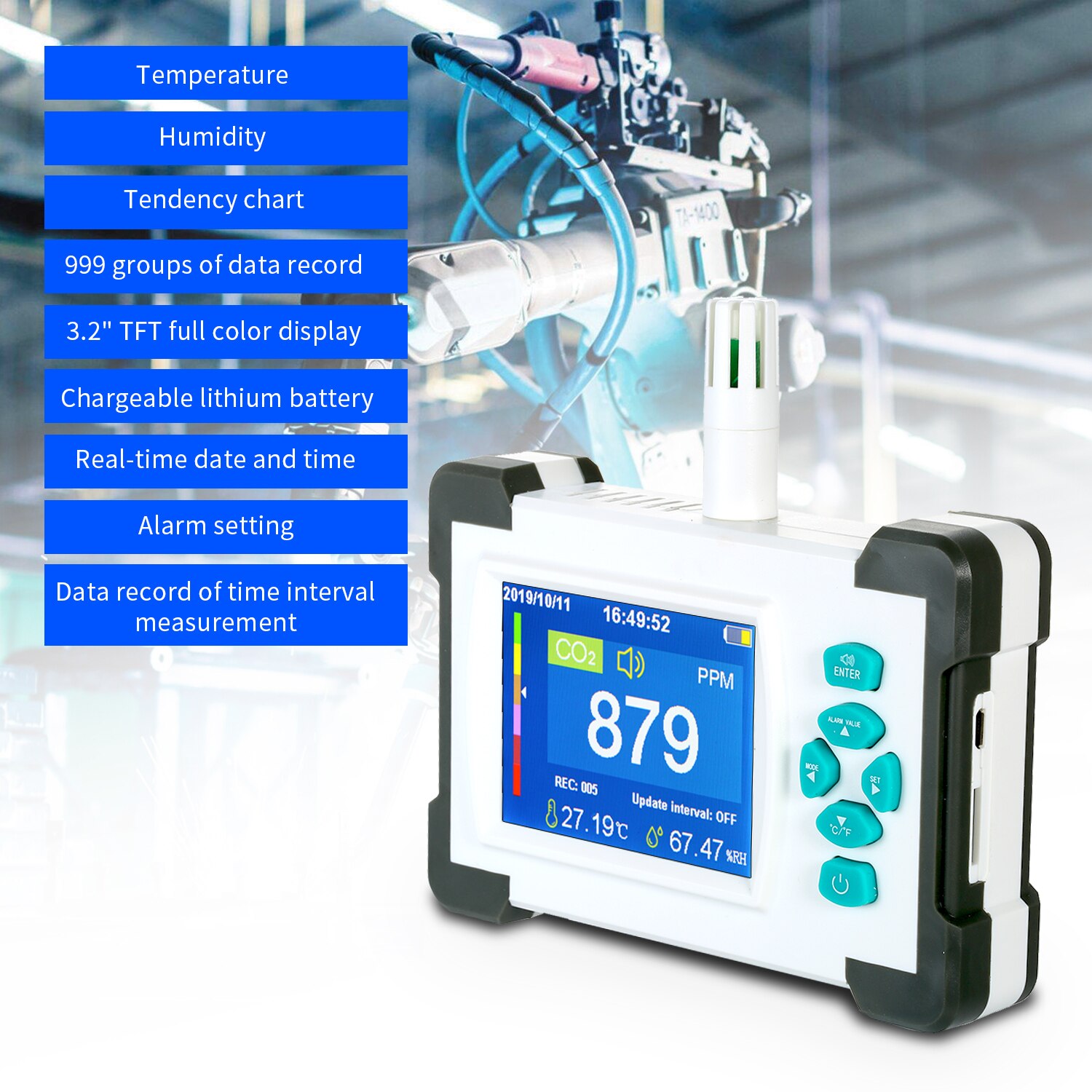

The carbon dioxide detector detects the carbon dioxide gas of the onsite environment through absorption principle of infrared light sources. The product has the characteristics of temperature, humidity, tendency chart, 999 groups of data record, 3.2" TFT full color display, alarm setting, data record of time interval measurement, real-time date and time, chargeable lithium battery or separate external USB charging, use life of sensor ≥8,000 hours and stable data, max/min display, and the best point is the test data can be exported to PDF file.



Features:

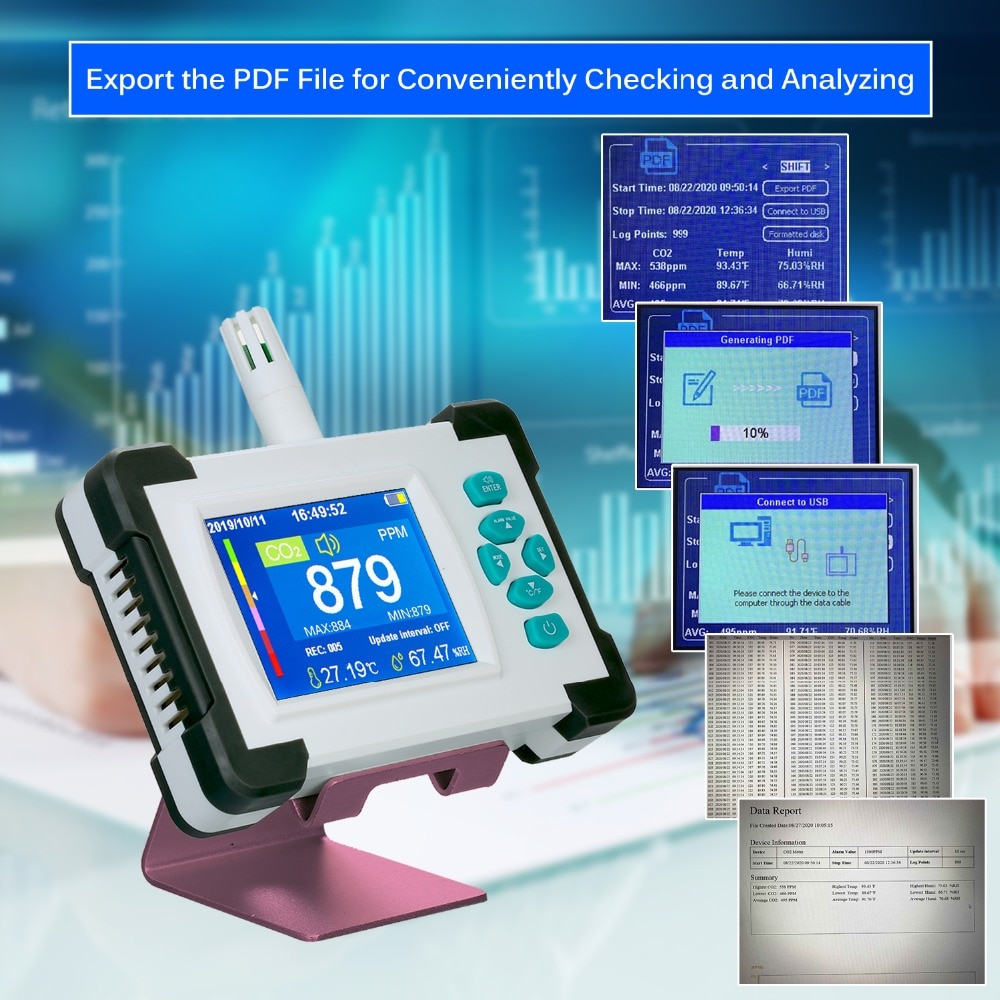

PDF Data Export Function: the upgrade version allows you to connect with computer and export the PDF file for conveniently checking and analyzing. It also has a new function of displaying MAX and MIN value.

The application field of carbon dioxide detector is public site, agriculture, animal husbandry, industry, and more.

With professional grade detection technology, this CO2 meter has stable performance, and high accuracy.

3.2-inch TFT full color display date, time, CO2, humidity, temperature(℃/℉ switchable), and other data clearly.

Real time CO2 monitoring by the high precision sensor, and it will alarm you once the CO2 is exceed the setting value.

Can store up to 999 groups of data, and has a chart of historical data trend for you to review.

Compact size with a portable storage, easy to operate and to carry around.

Rechargeable lithium battery is included, or can be powered up through 5V USB cable.

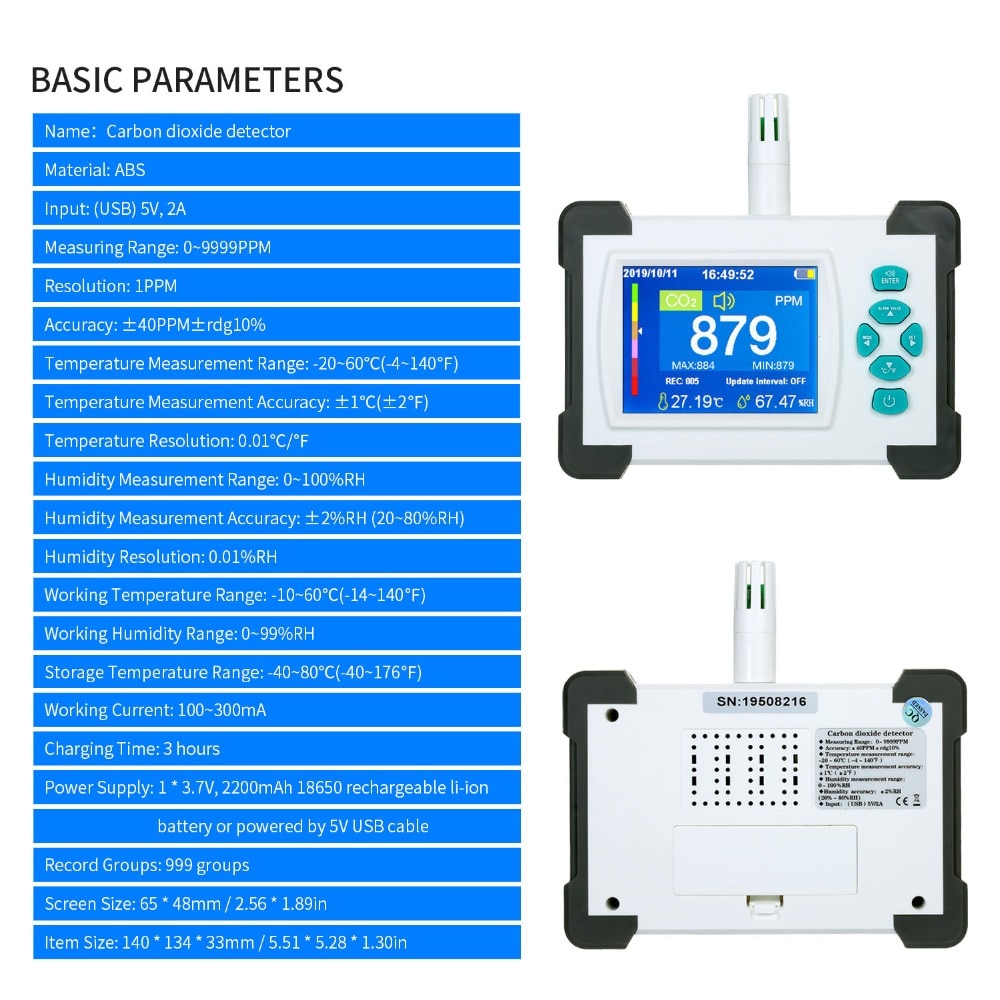

Specifications:

Type: Upgrade Version (Optional)

Material: ABS

Input: (USB) 5V, 2A

Measuring Range: 0~9999PPM

Resolution: 1PPM

Accuracy: ±40PPM±rdg10%

Temperature Measurement Range: -20~60℃(-4~140℉)

Temperature Measurement Accuracy: ±1℃(±2℉)

Temperature Resolution: 0.01℃/℉

Humidity Measurement Range: 0~100%RH

Humidity Measurement Accuracy: ±2%RH (20~80%RH)

Humidity Resolution: 0.01%RH

Working Temperature Range: -10~60℃(-14~140℉)

Working Humidity Range: 0~99%RH

Storage Temperature Range: -40~80℃(-40~176℉)

Working Current: 100~300mA

Charging Time: 3 hours

Power Supply: 1 * 3.7V, 2200mAh rechargeable li-ion battery or powered by 5V USB cable

Record Groups: 999 groups

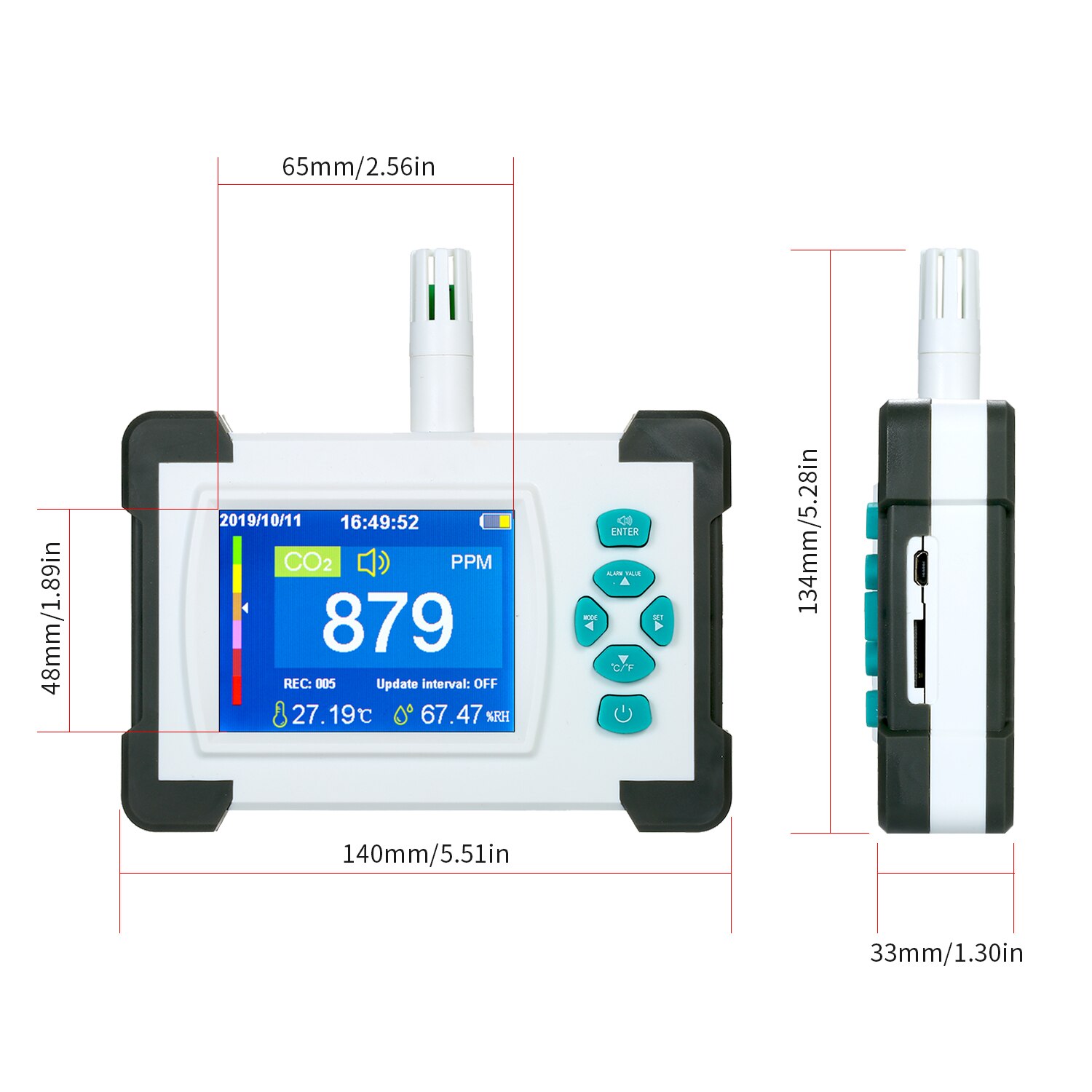

Screen Size: 65 * 48mm / 2.56 * 1.89in

Storage Box Size: 252 * 206 * 70mm / 9.92 * 8.11 * 2.76in

Item Size: 140 * 134 * 33mm / 5.51 * 5.28 * 1.30in

Item Weight: 301g / 10.62oz

Package Weight: 871g / 30.73oz

Package Size: 26.5 * 21.7 * 7.2cm / 10.43 * 8.54 * 2.83in



Package List:

1 * Detector

1 * USB Cable

1 * Stand

1 * Storage Box

1 * Manual (English)
