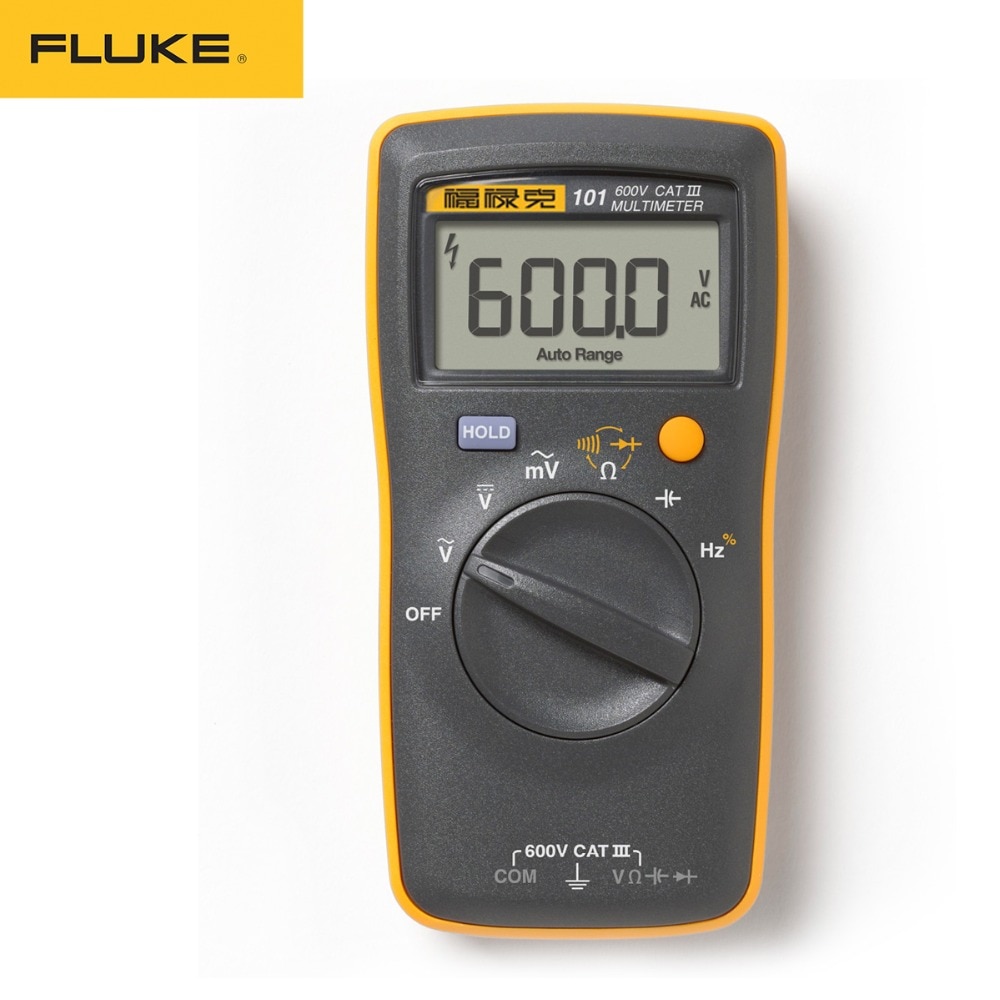

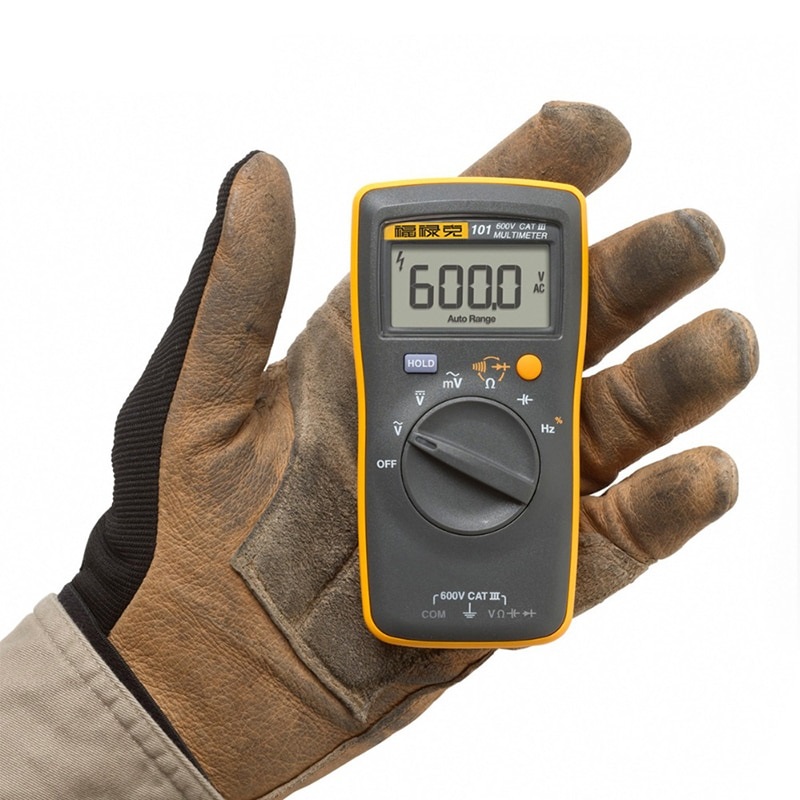

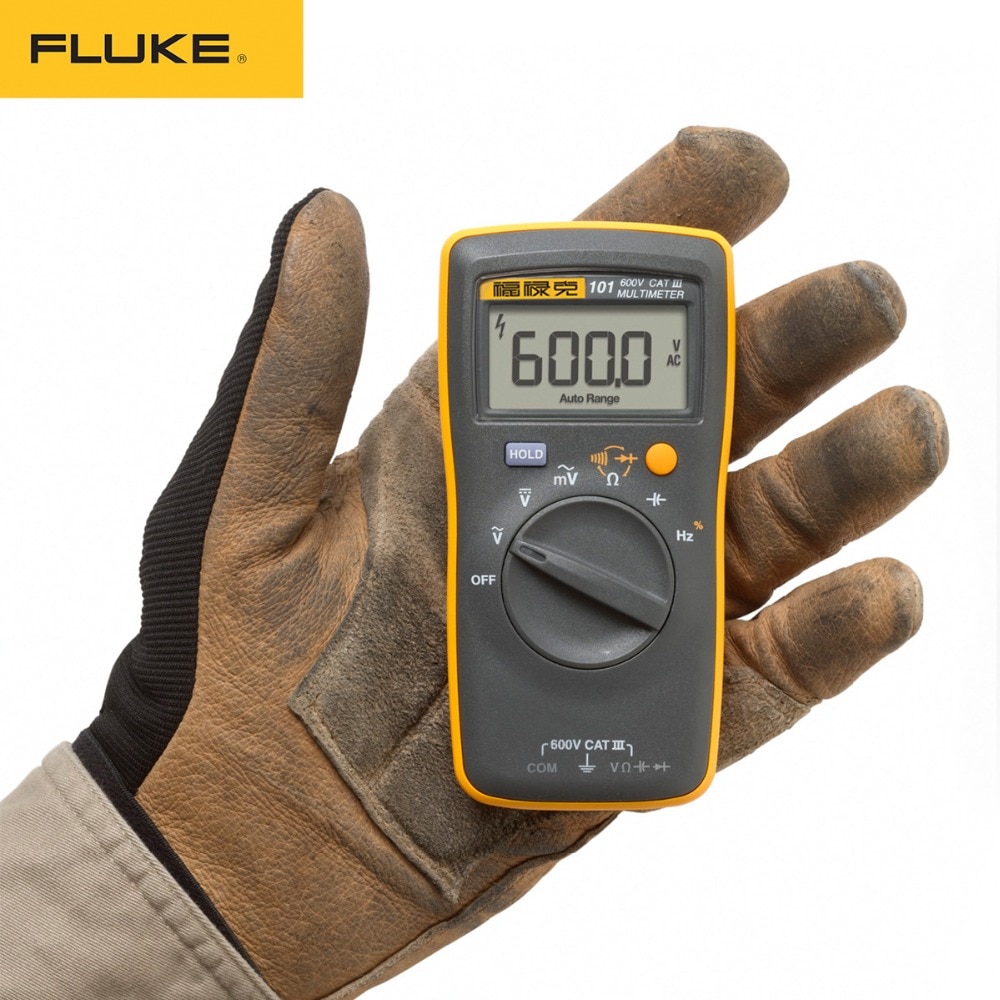

Features:
- Automatic power-saving mode
- Auto Range Test----It can be used for measurement more conveniently and rapidly.Also, it reduces the rotations of the impeller and extends the life of the instrument.
- Data Hold Function----It is easier to read the testing result. It meets IEC61010-1 CATIII 600V safety grade standard, the scene and range of testing for users can be much more widespread and safer so that it will not only protect the user’s investment, but also ensure the safety of personnel and equipment
| function | range | The resolution of the | Accuracy of + / - + minimum resolution (% readings words) |
| Ac voltage measurement v(40Hz-500Hz) | 6.000V | 0.001V | 1%+3 |
| 60.00V | 0.01V |
| |
| 600.0V | 0.1V |
| |
| Dc voltage measurement | 6.000V | 0.001V | 0.5%+3 |
| 60.00V | 0.01V |
| |
| 600.0V | 0.1V |
| |
| Communication millivolt measurement | 600.0 mV | 0.1mV | 3%+3 |
| Diode test | 2.000V | 0.001V | 10% |
| Resistance test | 400.0 Ω | 0.1 Ω | 0.5 % + 3 |
| 4.000 kΩ | 0.001 kΩ | 0.5 % + 2 | |
| 40.00 kΩ | 0.01 kΩ | 0.5 % + 2 | |
| 400.0 kΩ | 0.1 kΩ | 0.5 % + 2 | |
| 4.000 MΩ | 0.001 MΩ | 0.5 % + 2 | |
| 40.00 MΩ | 0.01 MΩ | 1.5% + 3 | |
| Capacitance test | 50.00 nF | 0.01 nF | 2 % + 5 |
| 500.0 nF | 0.1 nF | 2 % + 5 | |
| 5.000 μF | 0.001 μF | 5 % + 5 | |
| 50.00 μF | 0.01 μF | 5 % + 5 | |
| 500.0 μF | 0.1 μF | 5 % + 5 | |
| 1000 μF | 1 μF | 5 % + 5 | |
| Frequency test(10Hz-100KHz) | 50.00 Hz | 0.01 Hz | 0.1 % + 3 |
| 500.0 Hz | 0.1 Hz |
| |
| 5.000 kHz | 0.001 kHz |
| |
| 50.00 kHz | 0.01 kHz |
| |
| 100.0 kHz | 0.1 kHz |
| |
| Duty ratio% | 1%-99% | 0.1% | 1% Typical values |
