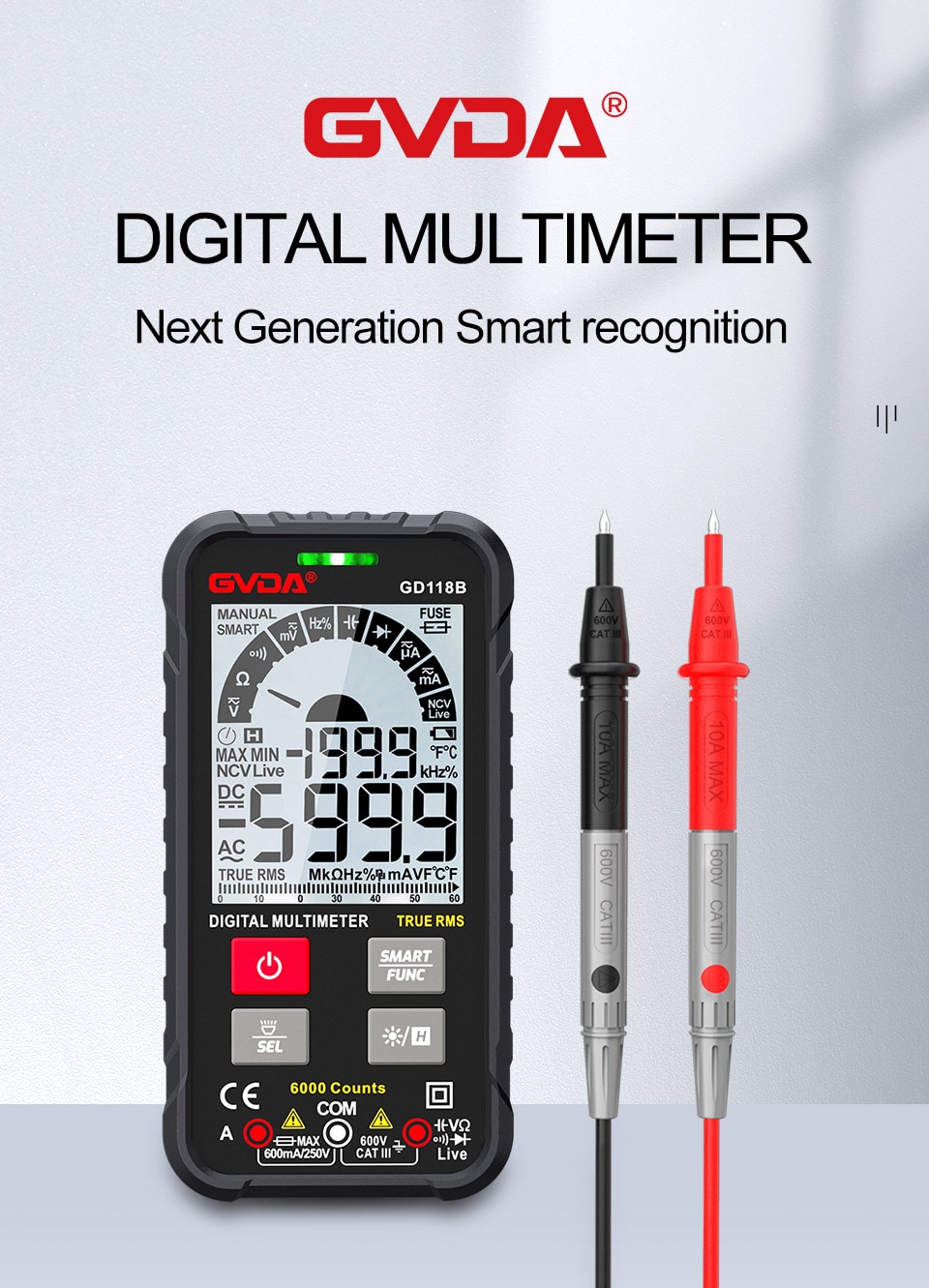

GVDA Digital Multimeter 6000 Count Smart Multimetro AC DC NCV Voltage Current Capacitance Resistance Ohm Tester Voltmeter Ammeter
Product Features
GD118B Series :
Technical Details
| Functions | Range | Accurancy |
| DC Voltage | 600mV/6V/60V/600V | +-(0.5%+3) |
| AC Voltage | 600mV/6V/60V/600V | +-(0.8%+3) |
| DC Current | 600uA/6000uA/60mA/600mA | +-(0.8%+3) |
| AC Current | 600uA/6000uA/60mA/600mA | +-(1.0%+3) |
| Resistance | 600/6k/60k/600k/6m/60mOHM | +-(0.8%+3) |
| Capacitance | 9.999n/99.99n/999.9n/9.999u/ 99.99u/999.9u/9.999mF | +-(4.0%+3) |
| Frequency | 99.99/999.9/9.999k/99.99k/ 999.9k/9.999mHz | +-(5.0%+5) |
| Duty | 01.%-99.99% | +-(5.0%+3) |

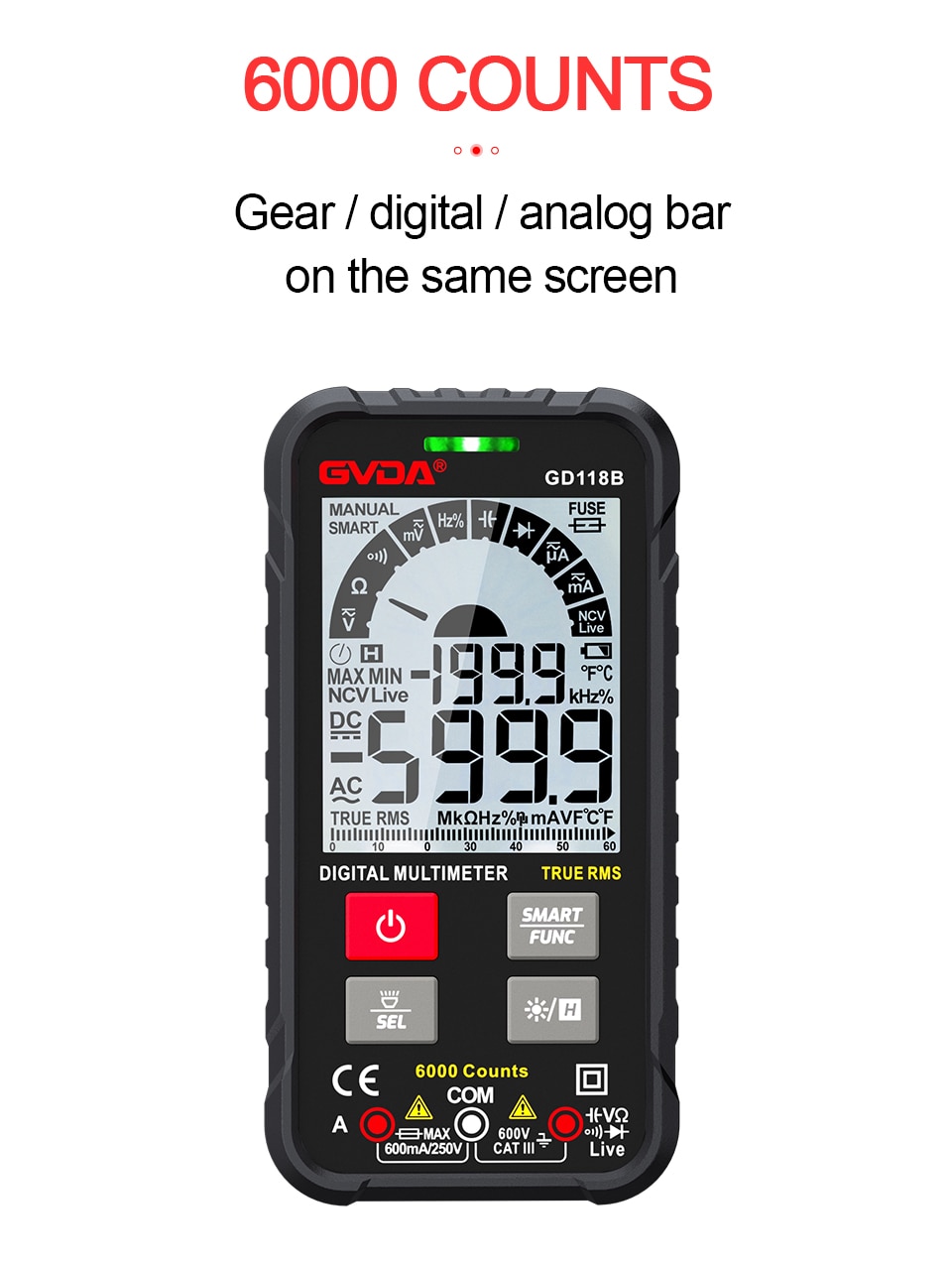

| Counts | 6000 counts | |

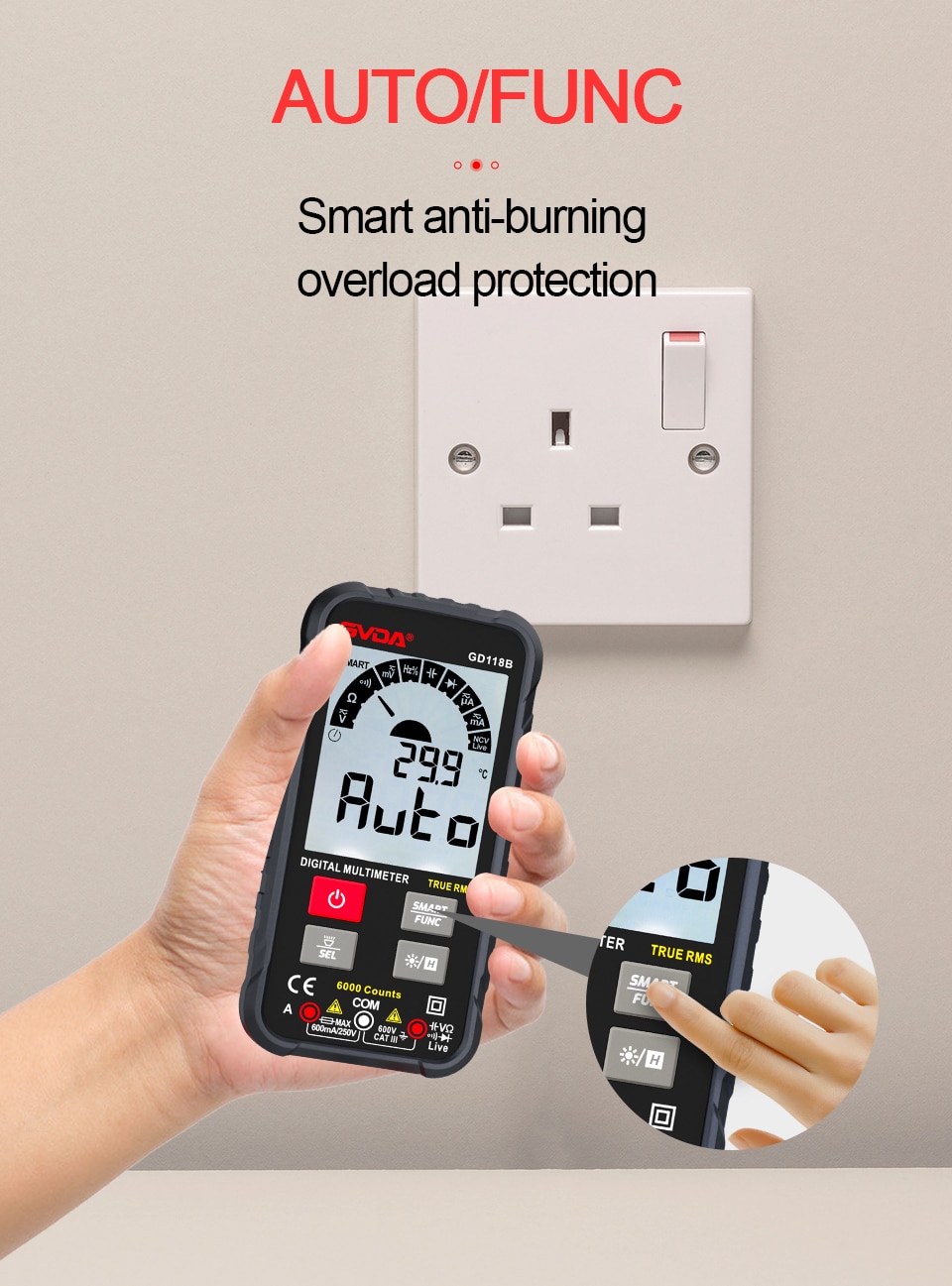

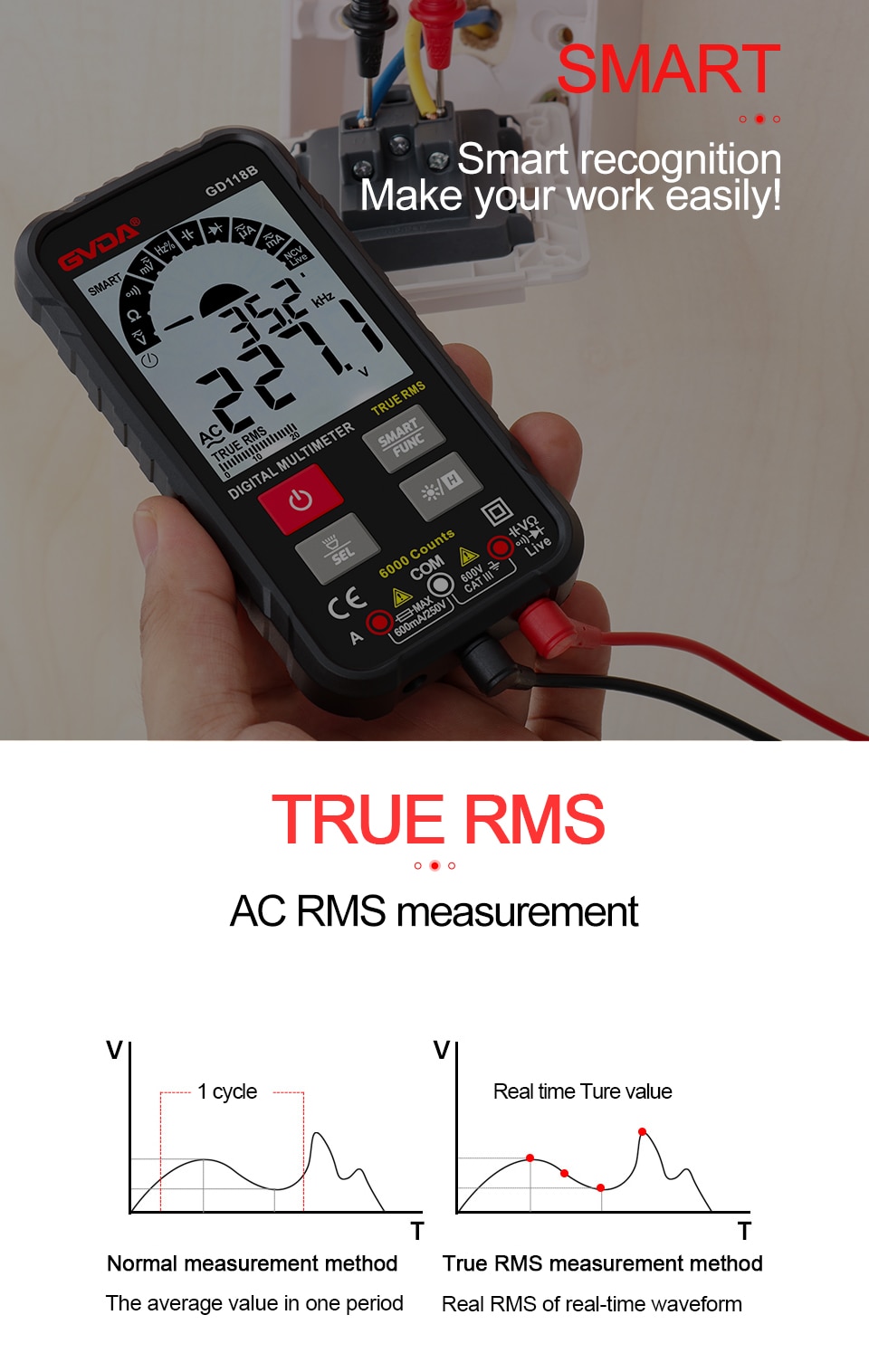

| Smart Functin(AC/DC Voltage, resistance and continuity) | V | |
| Auto Identifcation of current input | V | |

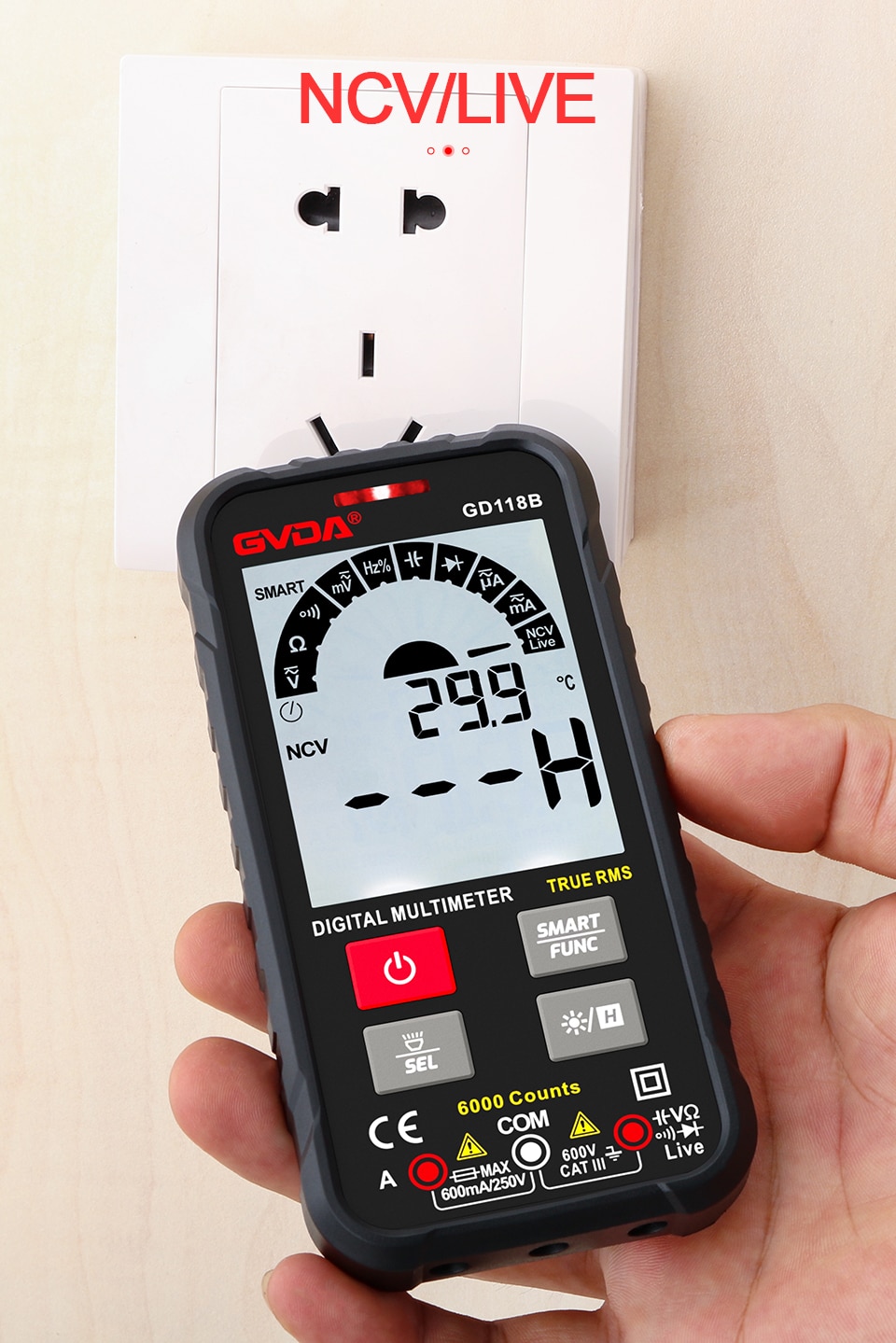

| NCV/Live/Continuity test | V (sound and light alarm) | |
| Diode test | V (sound alarm) | |
| Bargraph/Data hold /True RMS | V | |
| Fuse Burning Prompt / | V | |
| Low batery indication | V | |
| Auto power off / Flashlights | V | |

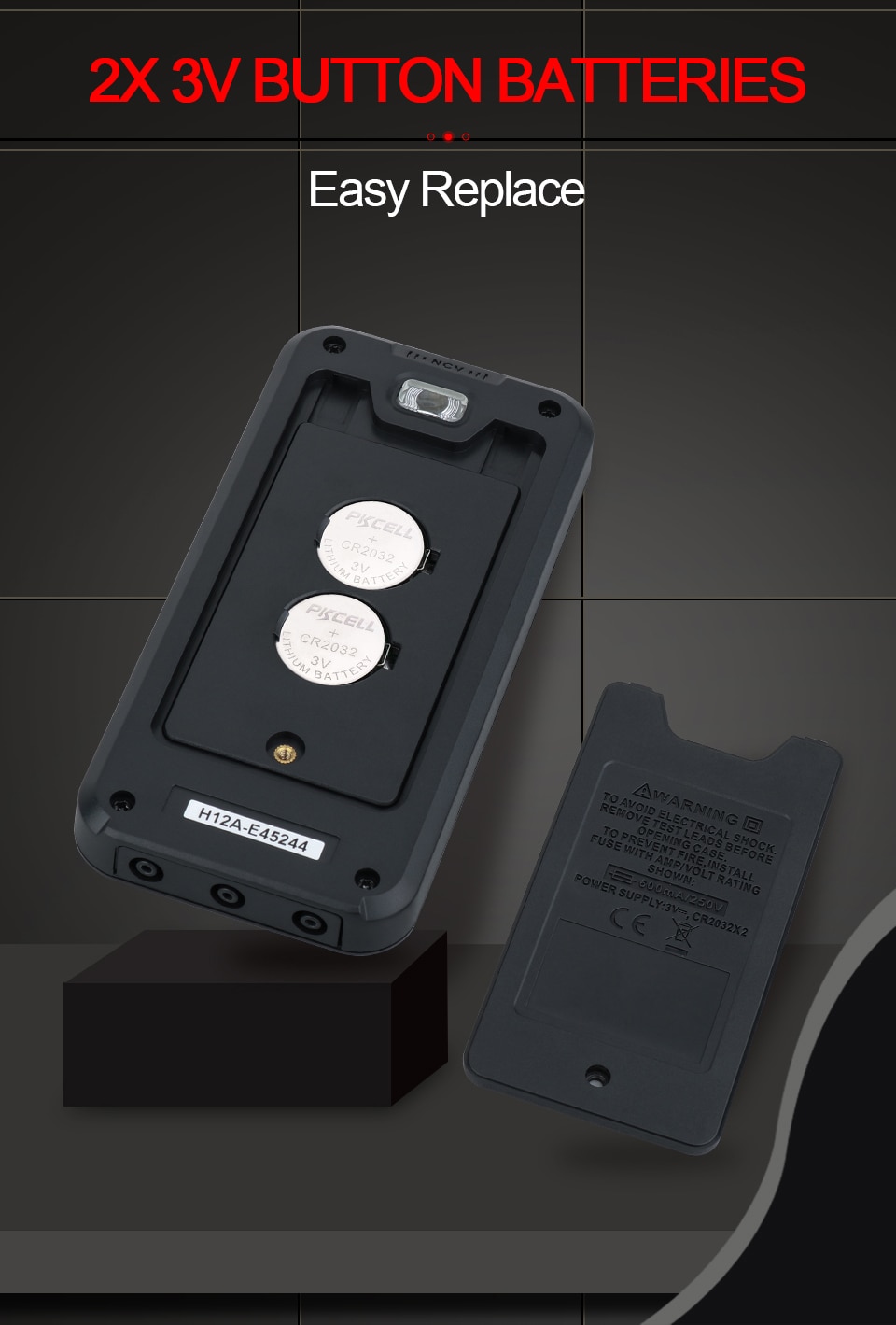

| Power supply | 2x CR2302 Batteries (not include) | |
| Product Weight | Approx.150g | |
| Product Size | 113x68x19mm | |
| Package Size | 170x95x50mm | |
| Package Weight | 275g | |
| Safety rating | EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT IIII 600V | |
| Packing Contents | 1pc Multimeter / 1pc pen cable / 1pc cloth bag | |
