2in1 Handheld Oscilloscope 2 Channels with Color Screen Scope Digital Multimeter DMM Meter EM1230

2in1 Handheld Oscilloscope 2 Channels with Color Screen Scope Digital Multimeter DMM Meter EM1230
Item No. COBD28861
5 stars, 9 reviews.
In Stock
Price:
US$599.00/ piece
Discount Price:
US$368.54/ piece 38%
Quantity:

Shipping:
Free ShippingAirmail Post
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question
Description

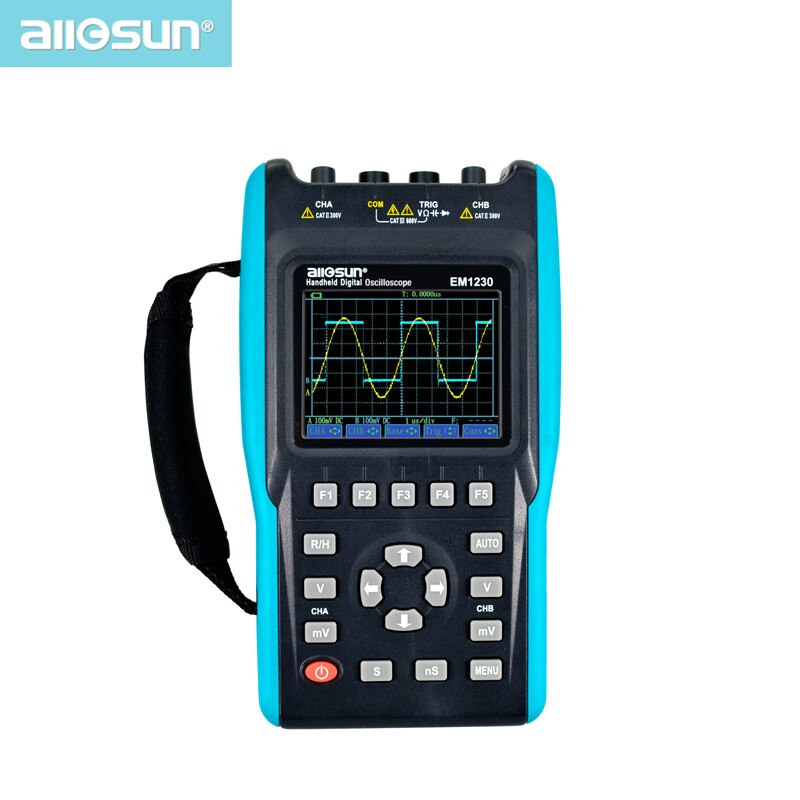

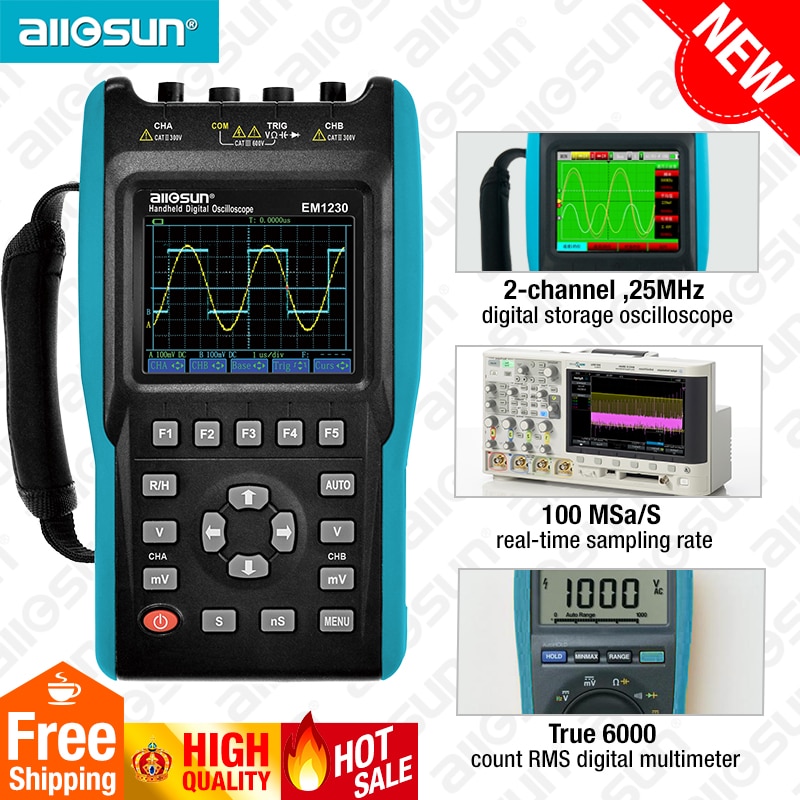

Digital 2 in 1 Handheld Portable Oscilloscope + Multimeter 25MHz Dual/ Two Channel Waveform Real Time Sample Rate 100MSa/s LCD Backlight EM1230

> This handheld oscilloscope is a portable waveform measurement tool.

And one ofbest 2 in 1 test tools in outdoor testing, repairing or teaching.

> When the real time sample rate is 100MSa/s, the bandwidth is 25MHz.

When the real time sample rate is 500MSa/s, the bandwidth is 60MHz.
When the real time sample rate is 1GSa/s, the bandwidth is 100MHz.
(Notice, if you want to test the rate higher than 100MSa/s, you should purchase additional probe)

> Its multimeter part uses a dedicated chip (6000-count), which can provide a higher precision.

> The large capacity lithium battery can ensure at least 6 hours working after fully charged.

MAIN TECHNICAL SPECIFICATIONS
Oscilloscope
Horizontal

Bandwidth

DC - 25MHz ( -3dB )

Channel Number

2

Raise Time

14ns

Sampling Rate

100MSa/s

Horizontal Sensitivity

10ns/div - 5s/div

Horizontal Precision

0.01% + 1 pixel


Vertical

Vertical Sensitivity

10mV/div - 500V/div

Vertical Precision

±(3% + 1 pixel)

Vertical Resolution

8 bit

Maximum Allowable Input Voltage

CAT II 300V

Coupling

AC, DC

Input Impedance

1MΩ, ≤20pF


Trigger

Trigger Source

CHA, CHB, external trigger

Trigger Mode

Normal, Auto, Single

Trigger Sensitivity

≤1.0 div

Trigger Slope

rising or falling edge of waveform

Trigger Coupling

AC, DC


Multimeter Performance

Display

6000 counts

Max. Allo wable Input Voltage

CAT III 600V


Miscellaneous

Cursor Measurement

time and voltage measurements

Display

3.5″ TFT LCD, 52mm×70mm, 240 ×320 pixels

Memory Location locations

10 waveform storage locations and 10 setup storage

Battery

3.7V lithium battery

Power Adapter

Output: DC 5V/8W

Operating Environment

Temperature: 0°C ~ 40°C

Relative Humidity: ≤ 75%

Storage Environment

Temperature: -10°C ~ 50°C

Relative Humidity: ≤ 85%

Operating Altitude

0 ~ 2000m

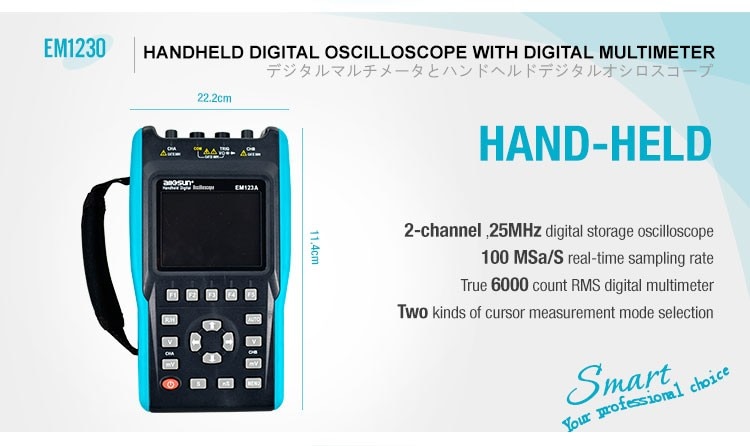

Dimensions

212mm × 121mm × 50mm ( for main body only )

Weight

About 700g


Multimeter Specifications

Function

Range

Accuracy

DC Voltage

600mV/6V/60V/600V/1000V

±(1% + 5 counts )

AC Voltage

600mV/ 6V/ 60V/ 600V/1000V

±(1.2% + 5 counts )

DC Current accuracy

See the user manual of the current probe.

same as DCV ( add current probe

AC Current during

See the user manual of the current probe.

If the current probe’s output voltage measurement is DC voltage,measurem accuracy is DCV measuremenplus current probe accuracy.

Resistance

600Ω/6kΩ/60kΩ/600kΩ/6MΩ

±(1.2% + 5 counts )

60MΩ

±(2% + 5 counts )

Capacitance

6nF\600nF\6μF\60μF\600μF\6nF\6mF

±(4% + 5 counts )

Diode Test

Test voltage is about 3V.

±(5% + 10 counts )


Continuity Test If the resistance is less than about 5Ω, the built-in buzzer will sound.
