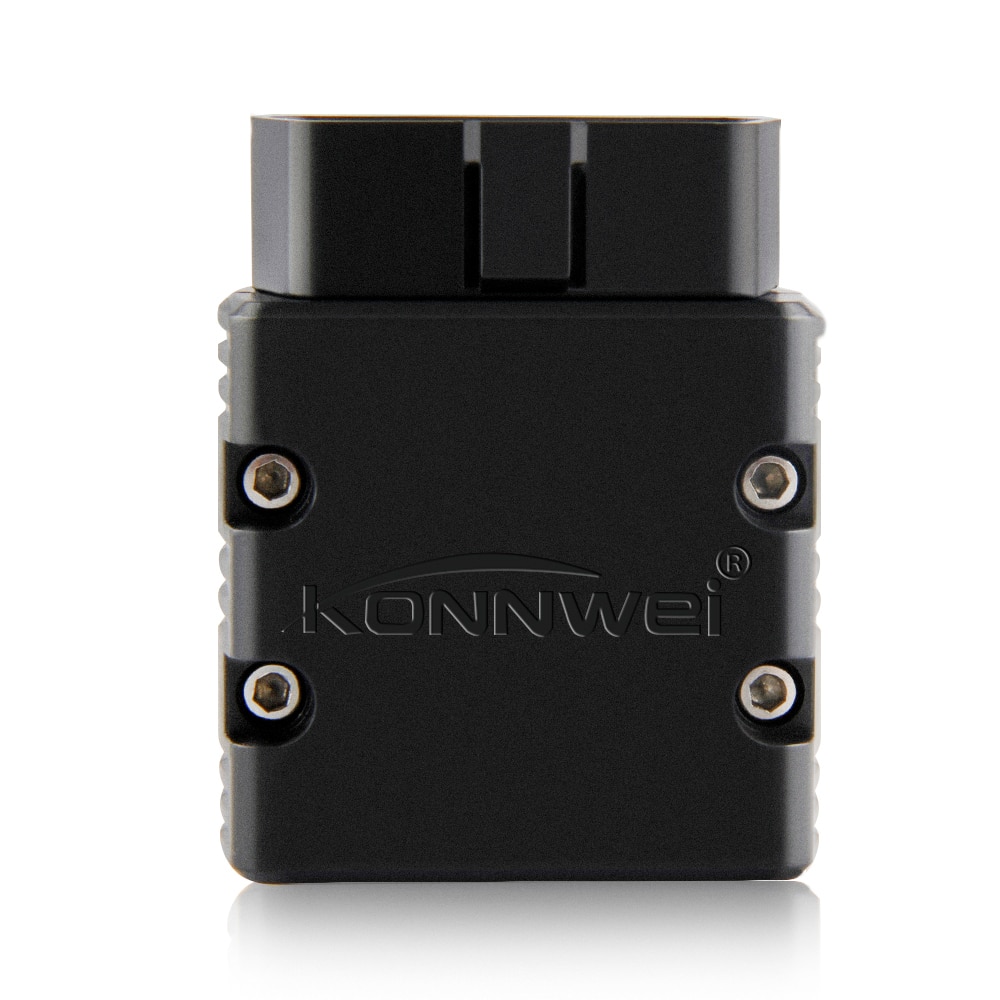

KONNWEI OBD2 Scanner KW902 ELM327 V1.5 Bluetooth Autoscanner PIC18f25k80 MINI ELM 327 OBDII KW902 Code Reader for Android Phone
FAQ Before Orders (Please kindly read before)
Q1: What is the version of the ELM327?
A1: This is the real V1.5 High Quality version,original Microchip PIC18F25K80,frequency4mhzof crystal oscillator there,support commands ATAL and ATPPS,Support all OBD2 Vehicles.

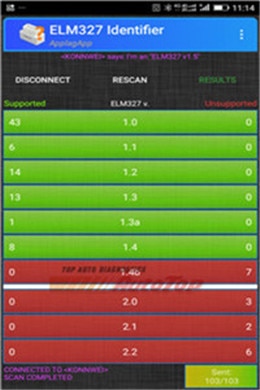

Q2: What is difference between V1.5 and V2.1 ? and How can I check it ?
A2: Our newest ELM327 is 100% V1.5, which is support full protocols version(10 protocols), especially J1850 & J1939 Protocols for Japanese Cars and American Cars, other elm327 only 7 or 9 protocols.
After you receive our ELM327, you can run it on any apps, if it's not V1.5 Hardware version, 100% full refund.
Q3: Does this adapter support the diesel cars or trucks ? Is this working with IOS?
A3: ELM327 does support the diesel vehicles or trucks, and this ELM327 is bluetooth version for android system cellphones only. If you need the IOS version, please refer to KW902 wifi by click below picture:
Q5: How do i know if my car is working with the ELM327 or not ?
A5: This ELM327 bluetooth adapter is working for all OBD-II Compliant vehicles.
The OBDII compliant vehicles referernce as below:
1996 or newer model year vehicle made in the United States
Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep
2004 or newer model year vehicle made in the European Union
Fit for Alfa Romeo, Fit for SAAB, Fit for Acura, Fit for Opel, Fit for Audi, Fit for Seat, Fit for Peugeot ,Fit for Renault after 2009 year, doesn't support Clio 2
Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu ,Fit for Land Rover
Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar
2008 or newer model year vehicle made in the Asian car makes
Fit for KIA , Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai ,Fit for Dacia ,Fit for Lexus ,Fit for Mazda
Fit for Nissan, Fit for Subaru , Fit for Suzuki, Fit for Toyota
Warm Notice for Special car models:
ForLada/ VAZ/ UAZcar makes, please don't purchase If your car is before2006.
ForSsangyongcar makes, please don't purchase If your car is before2008.
ForRenault - Dacia - Logancar model, please don't purchase If your car is before2009.
NOTE: Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is spercial design, so it may not compatible with some cars which do not support OBD2 protocol. If you're not sure, ask us anytime!

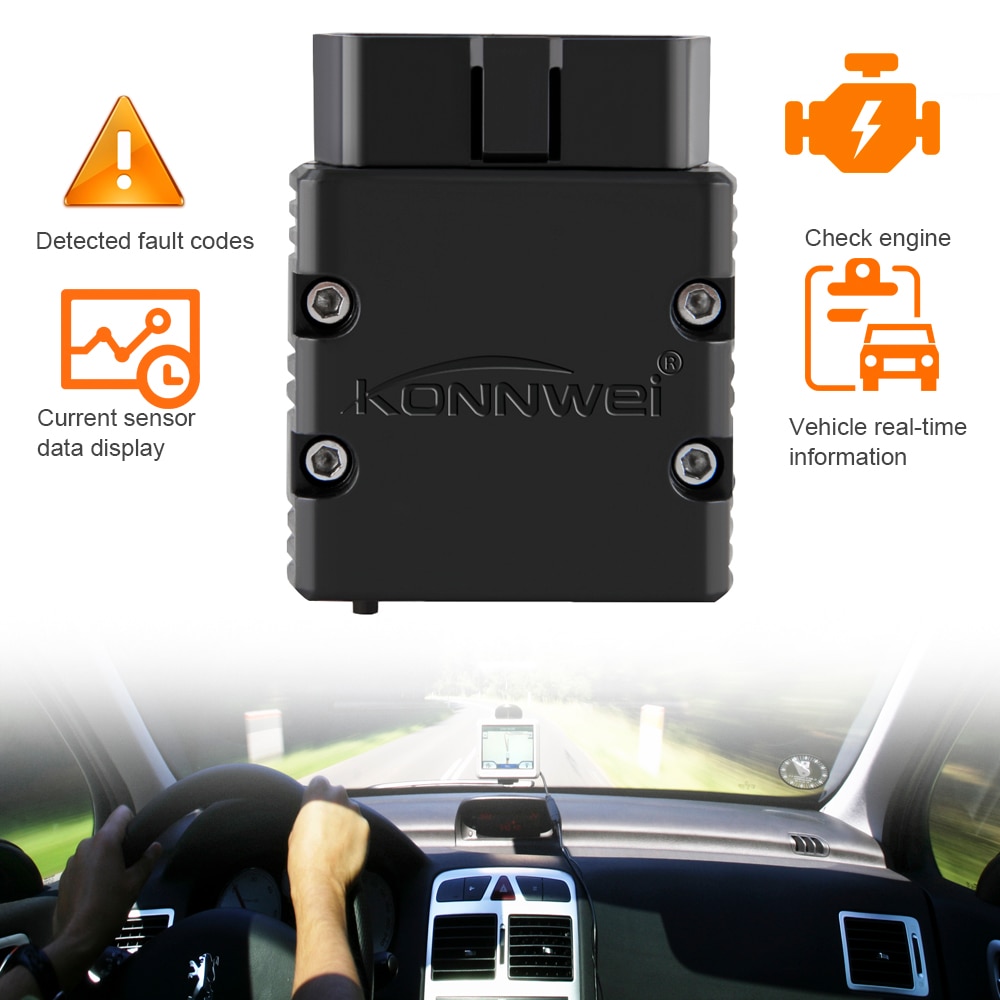

Q6: What functions that I can do with the ELM327 ?
A5: The device is a small adapter that plugged into the vehicle OBD-connector. On Bluetooth, it connects to any computer, tablet or smartphone( android), With associated diagnostic procedures . Doing these simple operations, you will be able:
* Read, erase and display code descriptions problems - both standard and special manufacturers.
* Measure the fuel consumption.
* Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake
temperature, and more.
* Turn off the MIL (signal Check Engine).
* Download data to external media in a variety of formats for later printing.
* Record various parameters, display graphics in real time, and more.
Q7: What is the function of the ON/OFF button ?
A7: The blue ON/OFF button is for reset/ wake up the device, because this new designed ELM327 is built with auto-sleep mode, after 30 min without communication, it will go in sleep-mode. The Sleep mode consumption of our scanner is only 10MA, so there is no need to worry about leaving it in car over night with plugging in.
ELM327 V1.5 (Bluetooth )Features:

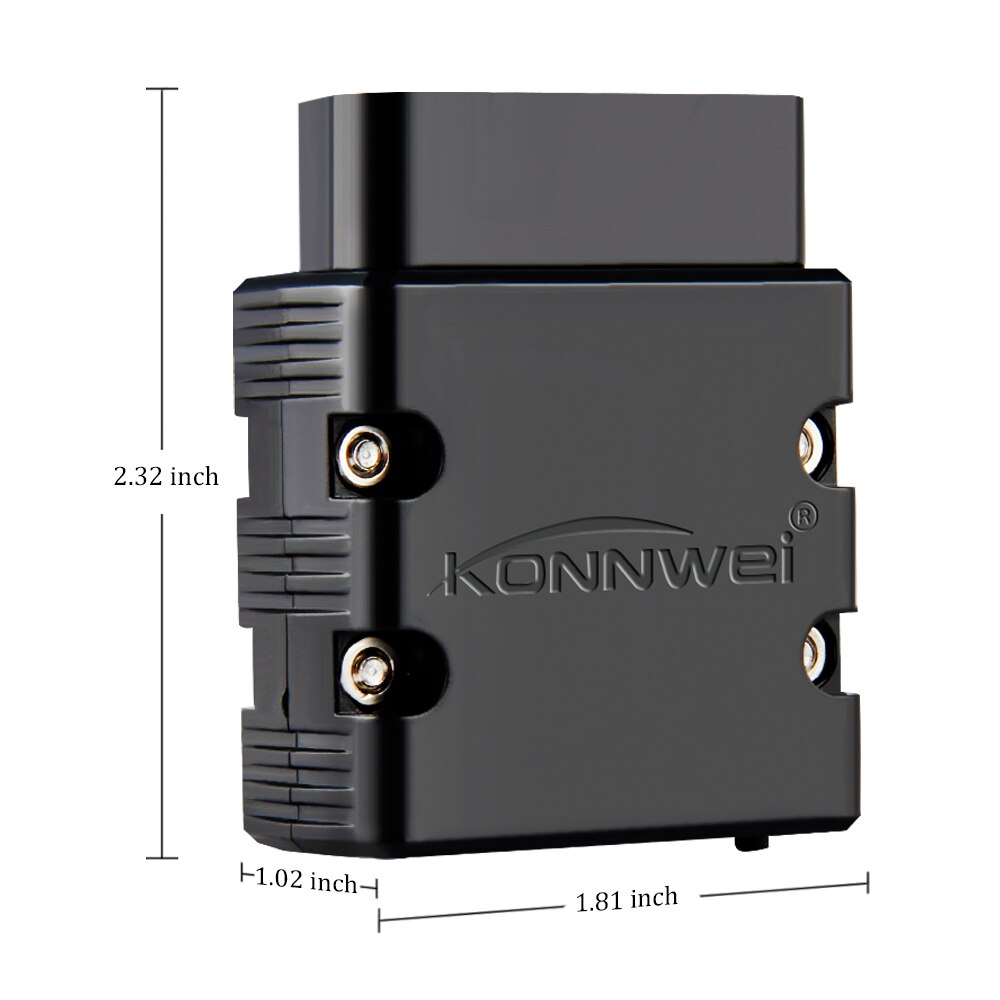

* Small size, compact structure. Plug and never unplug
* Stable wireless connection via bluetooth 3.0.
* No wires or batteries (adapter is powered by the 12V Vehicles battery)
* 30 Minutes without communication, it will automatically go to sleep mode.
* Ultra low cumsumption in sleep-mode, less than 10MA
* Supports ALL OBDII protocols, widest coverages
* The adapter uses the fast communication mode and most reliable PIC18F25K80 chips, up to 30PID/S.
* True ON-OFF button, you can press button to turn off the elm if not in use.
ELM327 V1.5 (Bluetooth) Function List:
1.Read diagnostic trouble codes, both generic and manufacturer specific
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17.Fuel System status
18.Fuel Pressure
Delivery time Note: If your Confirmation Time is coming, you still not receive the goods, please contact us, we will extend the delivery date in advance.
No Dispute please: Please do not apply dispute within 60 days, let's keep good business relationship. Thanks for your kind understanding.

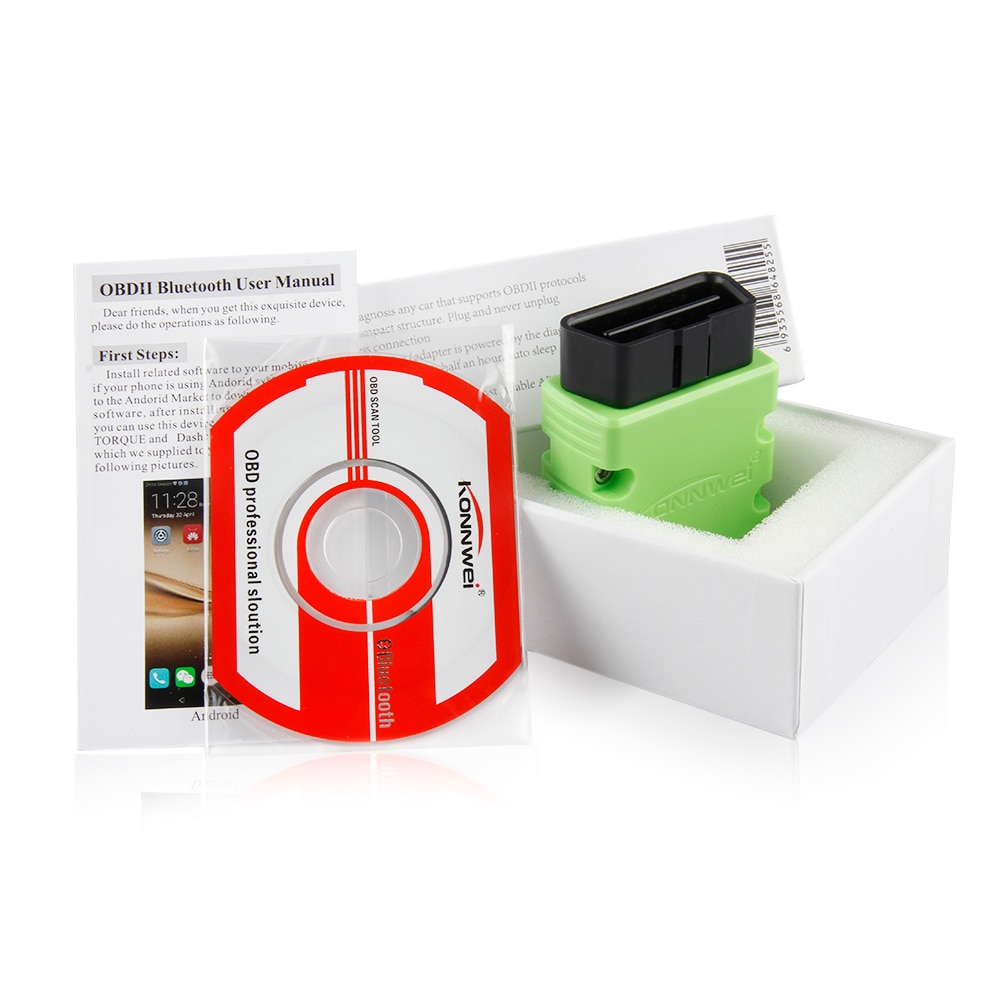

1x KW902 Bluetooth scanner (pic18f25k80 chip set)
1x Software CD
1x English User Manual
