ELM327 OBD2 Scanner Car Scanner Icar2 KONNWEI Bluetooth ELM 327 V 1.5 Car Diagnostic Tool OBD 2 Scanner Pic18f25k80 Chip Real V1.5
Notes: Welcome! Video is available to check on PC Side in this link of ICAR2.
1. This is Bluetooth version, support android phone, can't work with Iphone, ipad and car radio. Bluetooth ELM327 does support the diesel vehicles, but not for trucks, and this ELM327 is bluetooth version for android system cellphones/smart device.
2. The Switch is reset function, not for the power switch, pls kindly be aware of it.
ICar 2 Bluetooth Brief

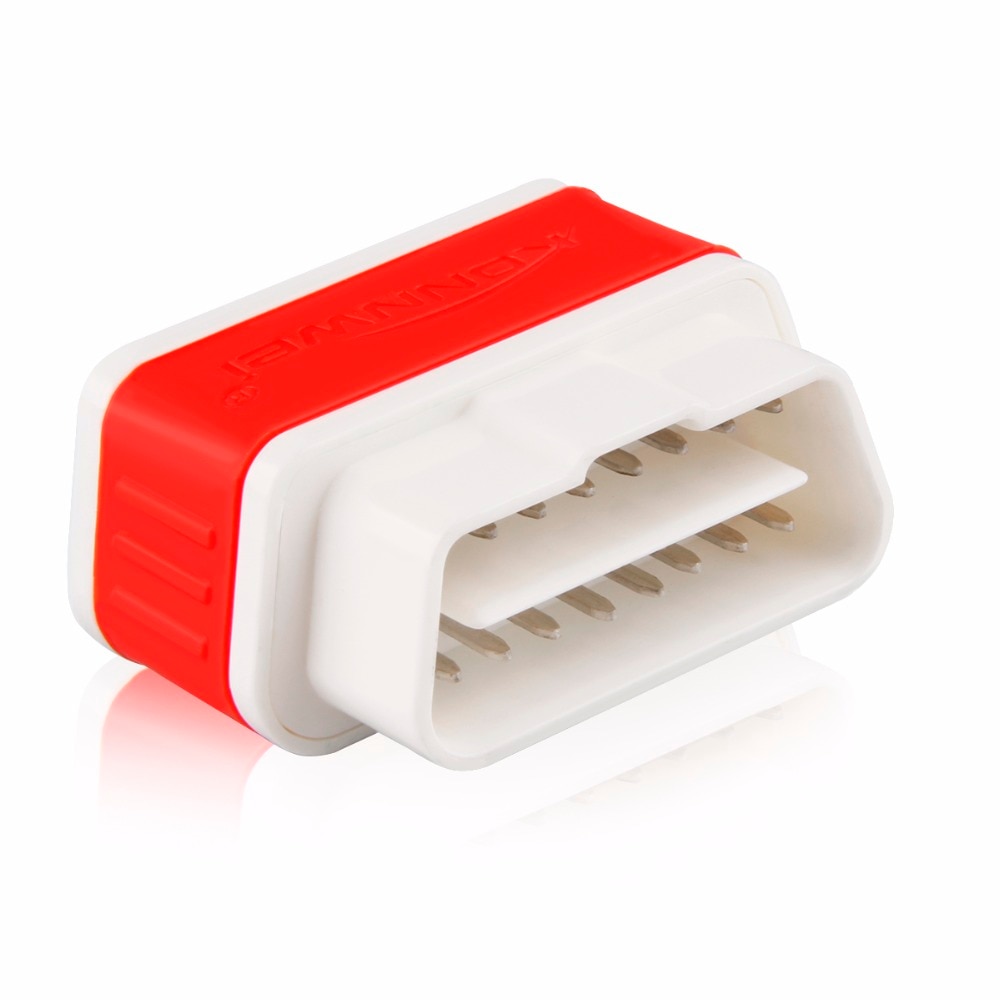

The device is a small adapter that plugged into the vehicle OBD-connector. On Bluetooth, it connects to anycomputer, tablet or smartphone, with associated diagnostic procedures . Doing these simple operations, you will be able:
* Read, erase and display code descriptions problems - both pending and permannent codes
* Measure the fuel consumption.
* Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.
* Turn off the MIL (signal Check Engine).
* Download data to external media in a variety of formats for later printing.

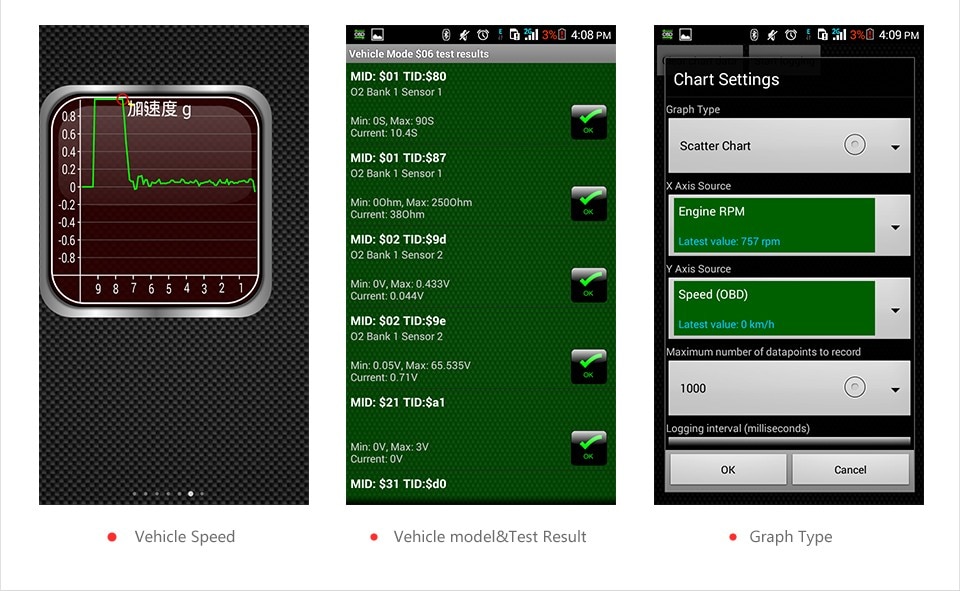

* Record various parameters, display graphics in real time, and more.
ELM327 1.5 ICar2 Bluetooth Scanner Features:
Small size, compact structure. Plug and never unplug, ON-OFF Switch allows you to turn off the elm327 totally.
Stable bluetooth 3.0 wireless connection
No wires or batteries (adapter is powered by the diagnosis size sockets)
Stop communication, press the button, no more consumption.
Supports all OBDII 9 protocols
The adapter uses the fastest and most reliable PIC18F25K80 chips
The icar2 ELM327 Bluetooth adapter is 100% V1.5, support all obd2 commands.
ICar2 Detailed Functin List:
ICar2 Detailed Functin List:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17.Fuel System status
18.Fuel Pressure
With iCar you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.
V1.5 supports all OBD-II Protocols:
0.Automatic
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)
The OBDII compliant vehicles referernce as below:
1996 or newer model year vehicle made in the United States
Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep
2004 or newer model year vehicle made in the European Union
Fit for Alfa Romeo, Fit for SAAB, Fit for Acura, Fit for Opel, Fit for Audi, Fit for Seat, Fit for Peugeot ,Fit for Renault after 2009 year, doesn't support Clio 2
Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu ,Fit for Land Rover
Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar
2008 or newer model year vehicle made in the Asian Union
Fit for KIA , Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai ,Fit for Dacia ,Fit for Lexus ,Fit for Mazda
Fit for Nissan, Fit for Subaru , Fit for Suzuki, Fit for Toyota
Warm Notice
For Lada/ VAZ/ UAZ car makes, please don't purchase If your car is before2011.
For Renault Dacia Logan car model, please don't purchase If your car is before 2009.
You may also pop the hood and look for a sticker named "VEHICLE EMISSION CONTORL INFORMATION"
NOTE: Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is spercial design, so it may not compatible with some cars which do not support OBD2 protocol. If you're not sure, ask us anytime!
Notes:
Delivery time Note: If your Confirmation Time is coming, you still not receive the goods, please contact us, we will extend the delivery date in advance.
No Dispute please: Please do not apply dispute within 60 days, let's keep good business relationship. Thanks for your kind understanding.
Step by step guideilnes for ICar2 Bluetooth Adapter
1. Locate your OBDII Diagnostic Port. If your car does't have OBDII 16pin Port, you can check the pins on your diagnositc port, we will help you find the connector the convert it to 16pin.
2. Download the Torque APP from android market or install it from our CD.
3. Plug the ELM327 into your car, and it will emit the bluetooth signal, connect it with your cell-phone. Password is "1234".
4. Open the TORQUE Software, go to"Adapter status" -- "Settings" on top right,
select "OBD2 Adapter settings" ;
Choose "Connection settings" as "Bluetooth" ;
Choose "Bluetooth settings" as "V_LINK" ;
EXIT the APP TORQUE
Restart the TORQUE App, You will see the green light blinking, and wait for a while it will build up the communication.

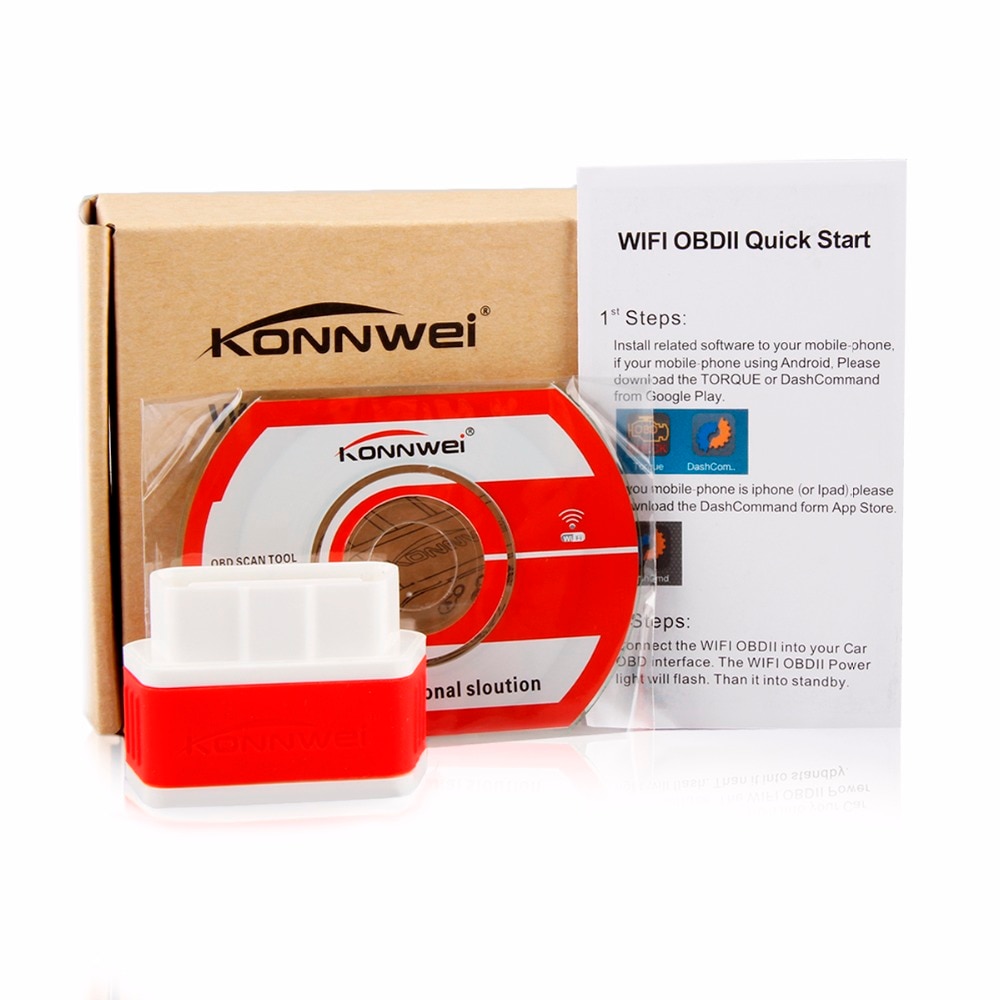

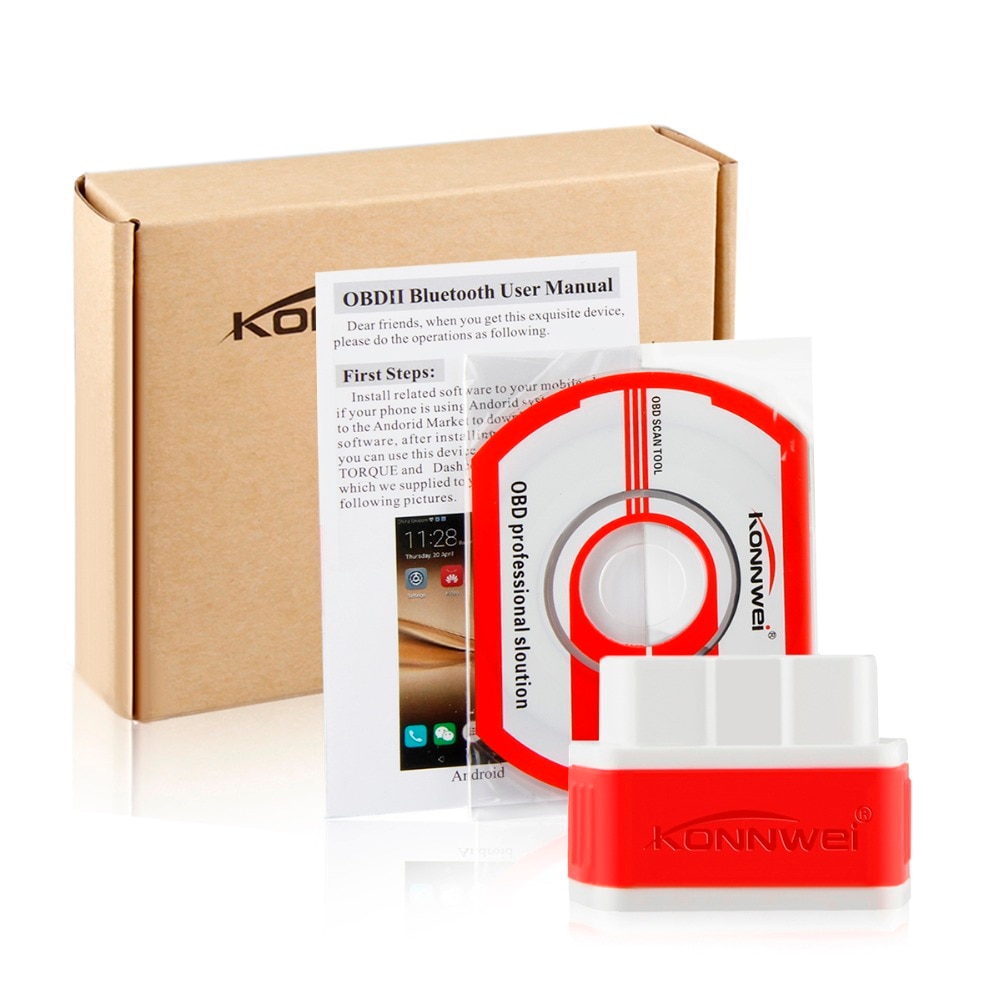

1x iCar 2 ELM327
1*CD for download program
1* User manual .
1* durable retailing box
